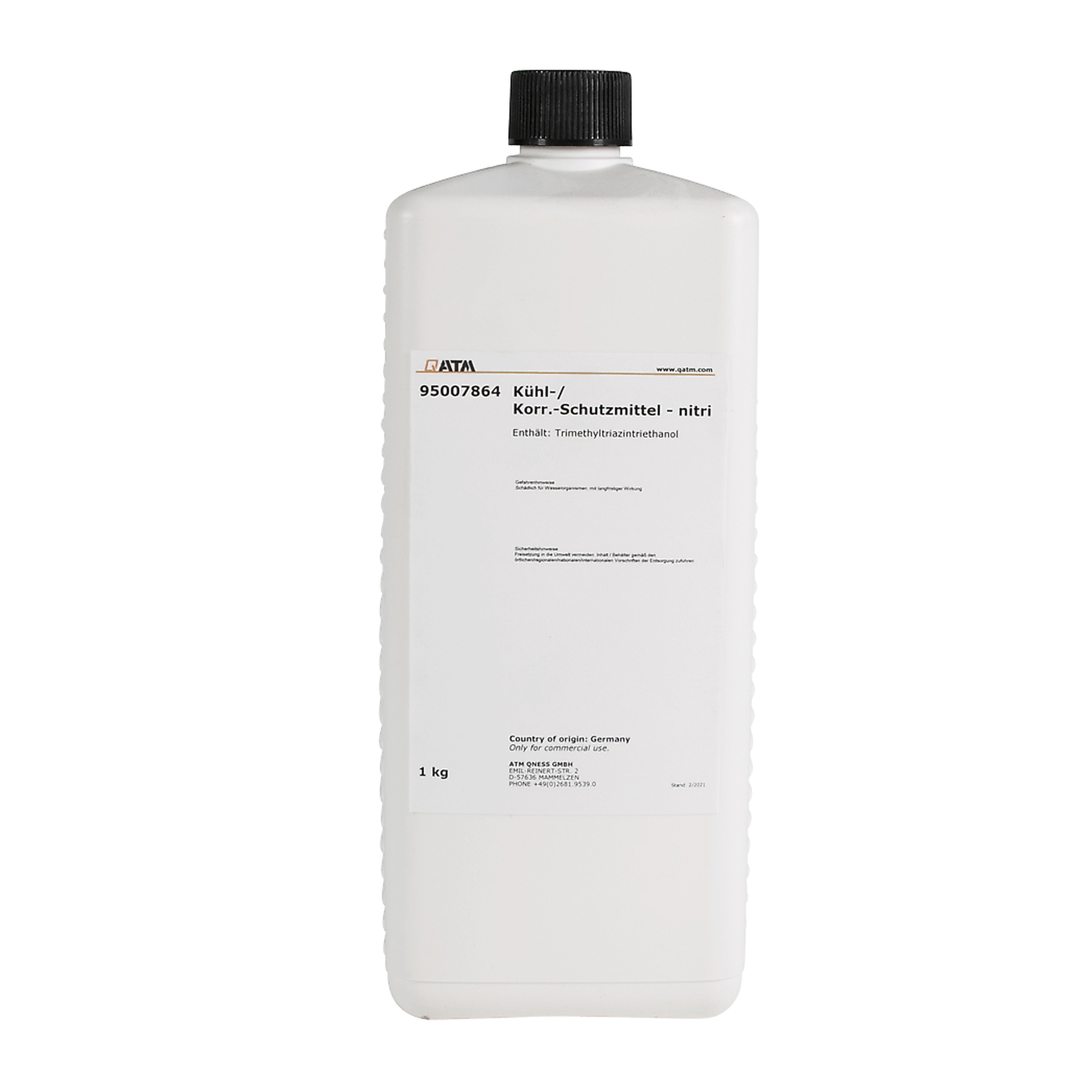

防腐蚀冷却液，标准

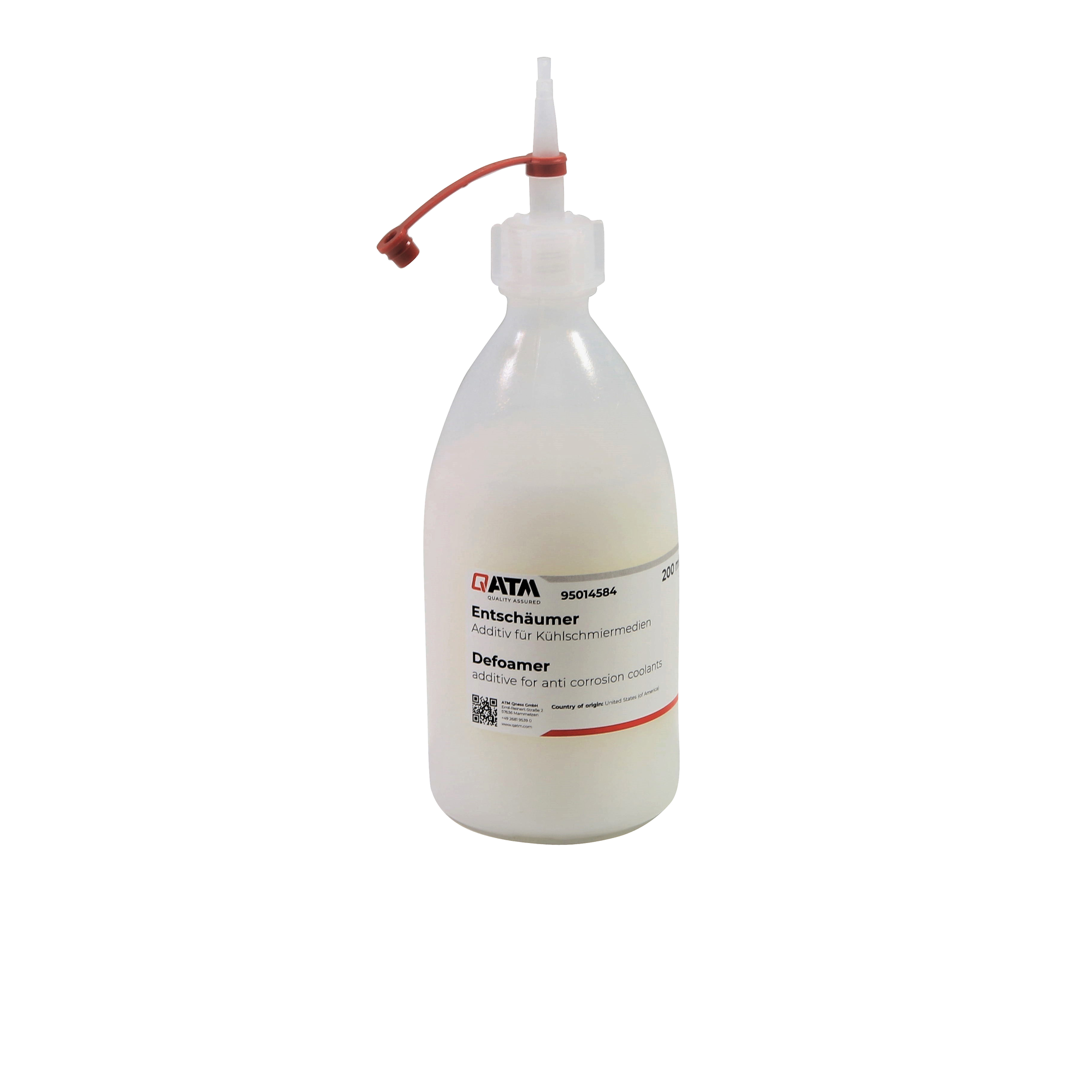

冷却液添加剂
冷却剂维护保养附件

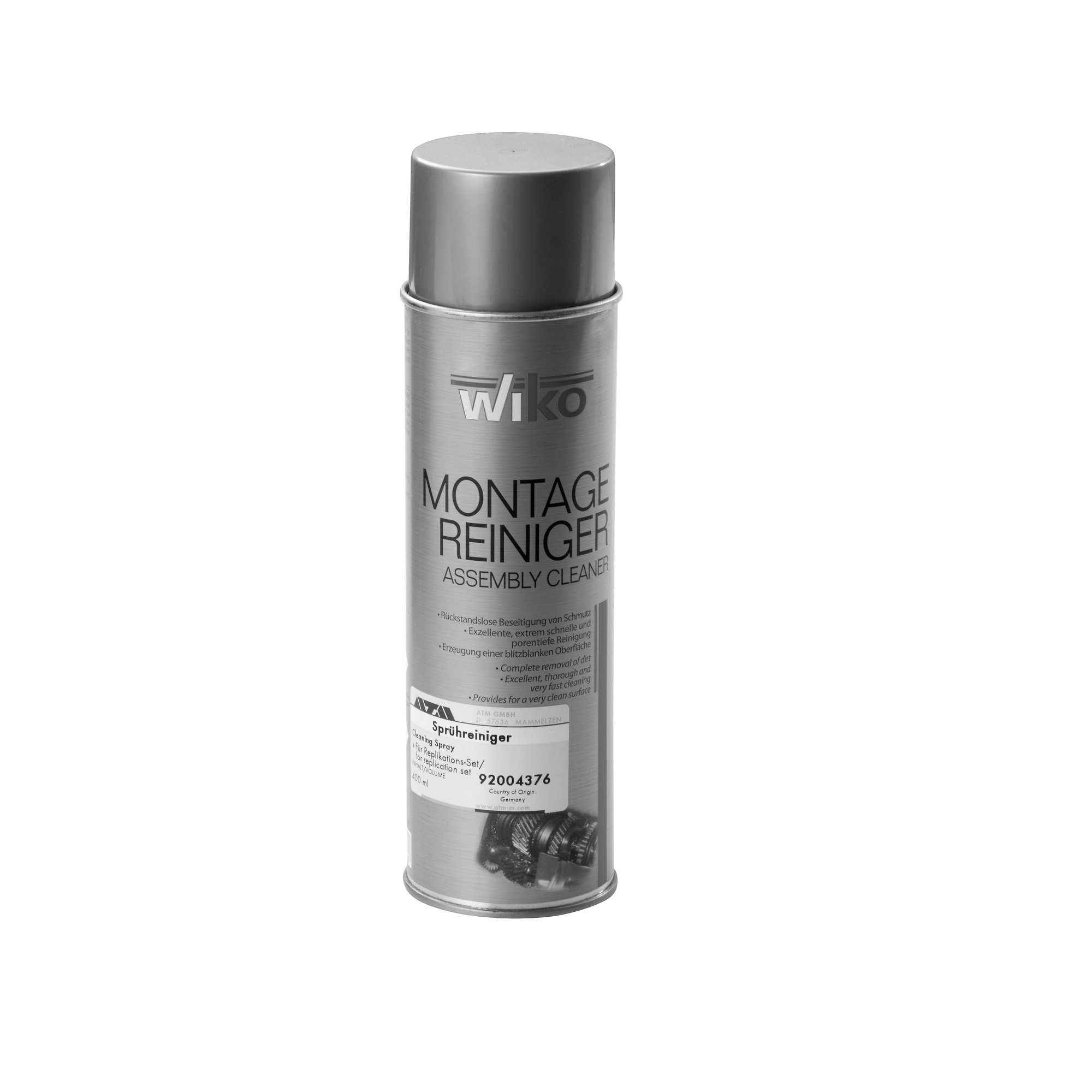

切割机维护保养所需附件
切割轮附件

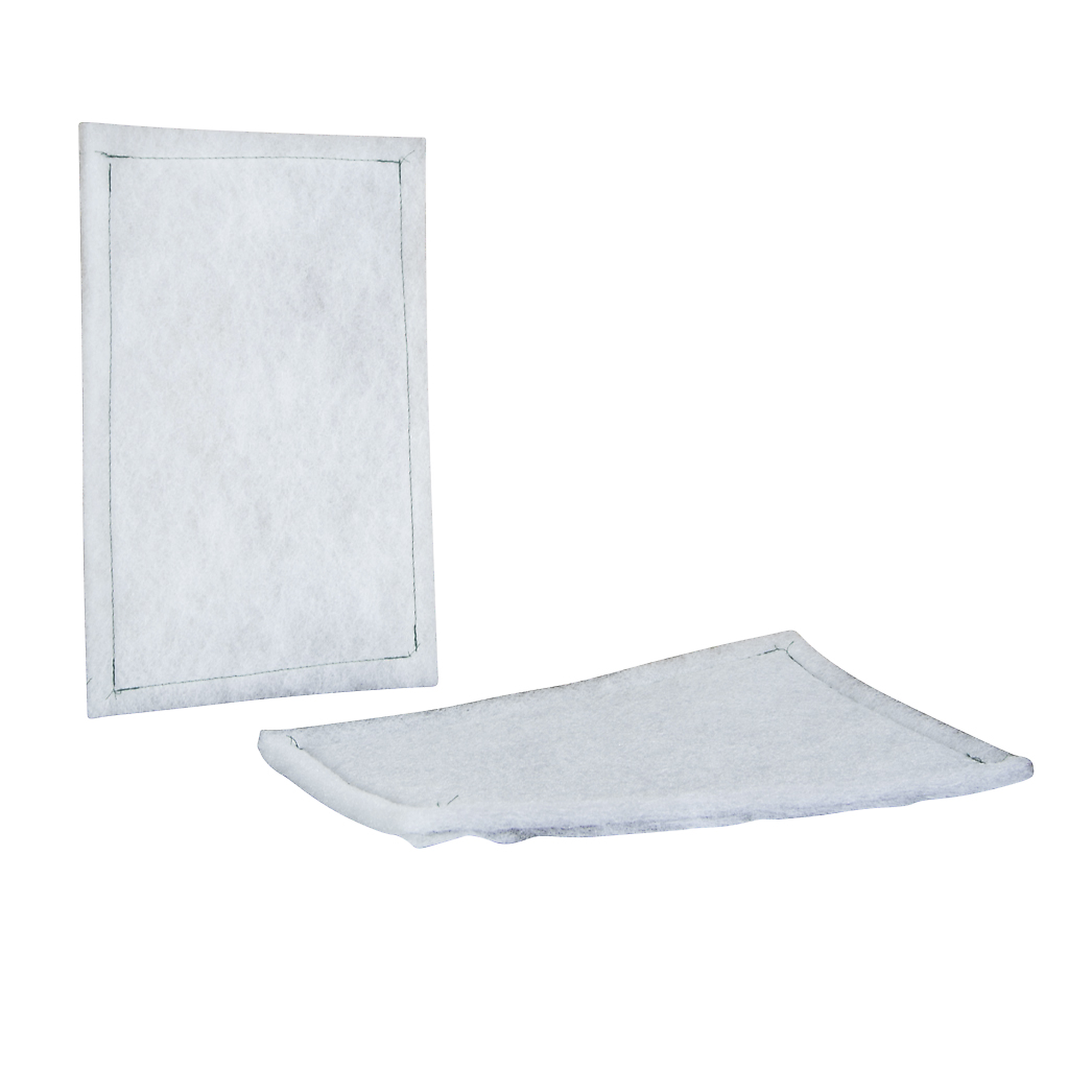

Filter inserts for recirculation cooling system for floor-standing cut-off machines, 140 Ltr.
过滤篮
带式过滤系统所用滤网

Grinding Consumables

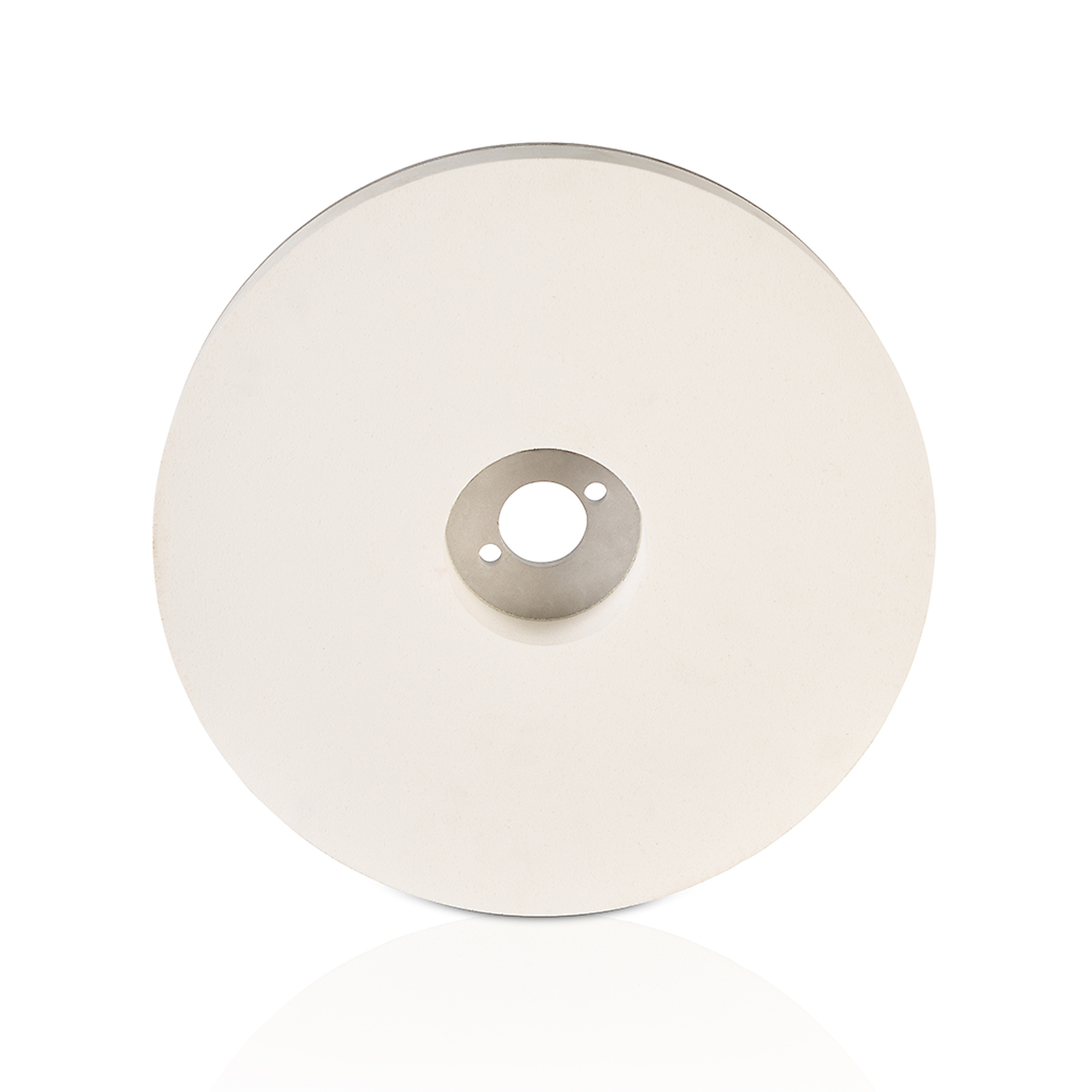

Planar grinding stones
磁性膜，自粘

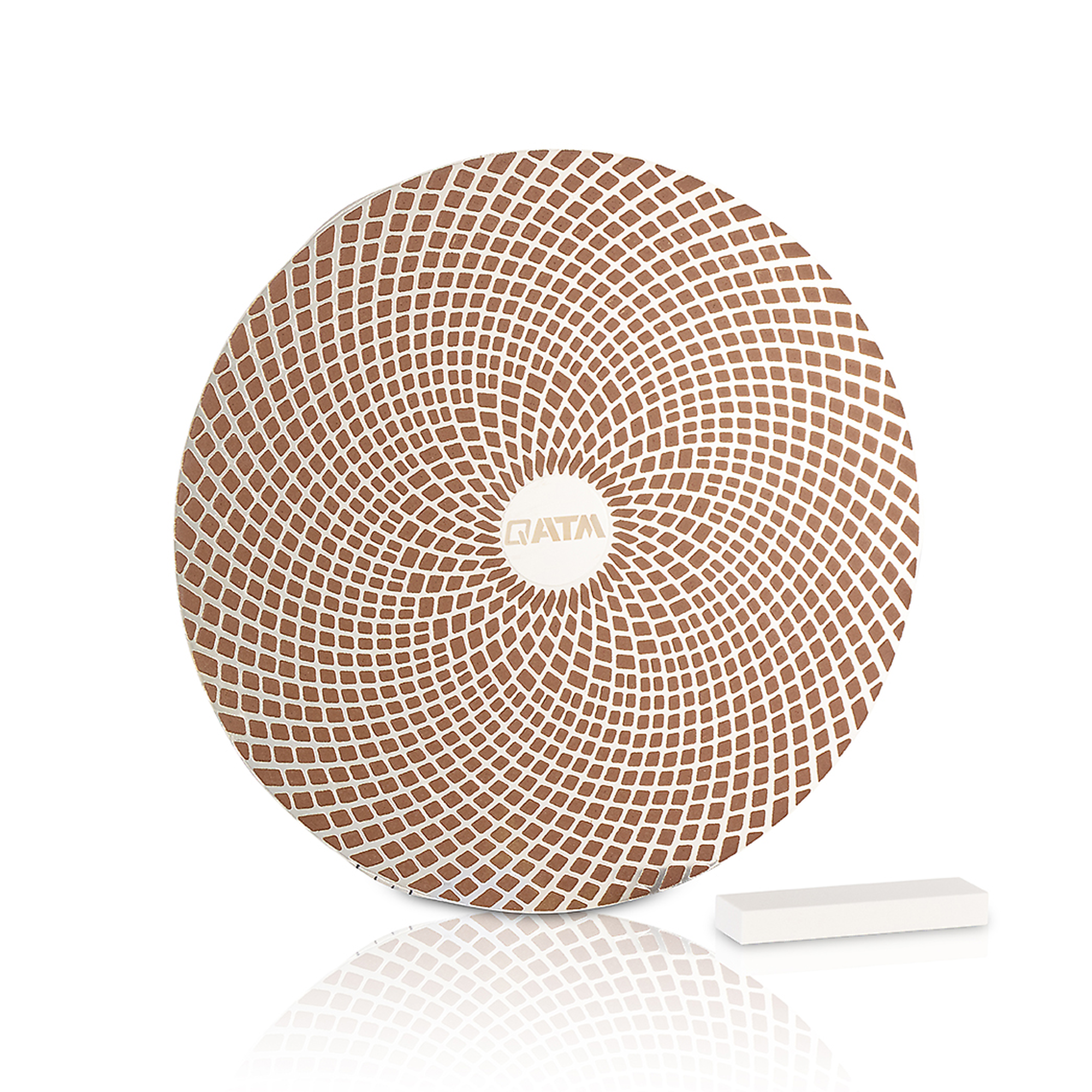

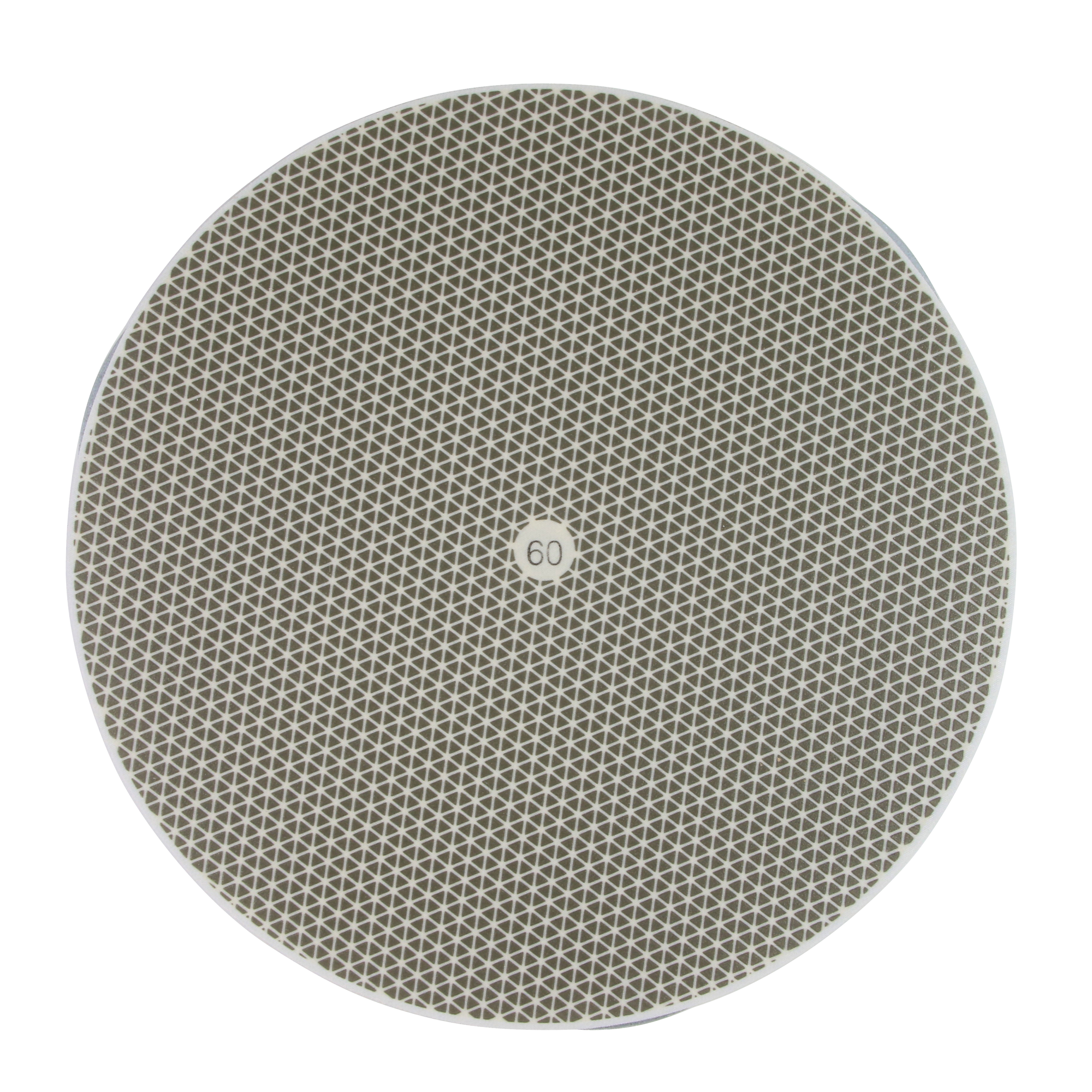

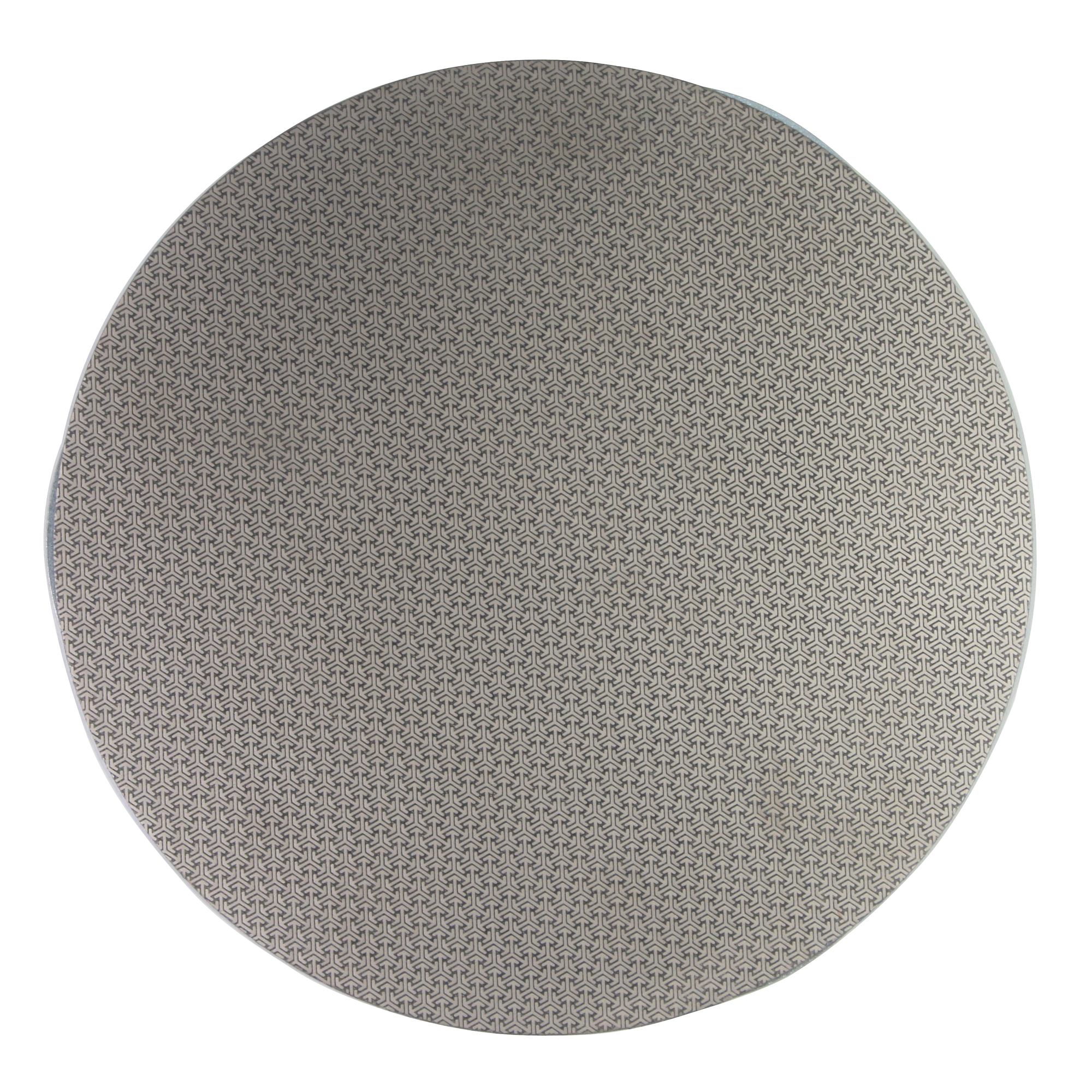

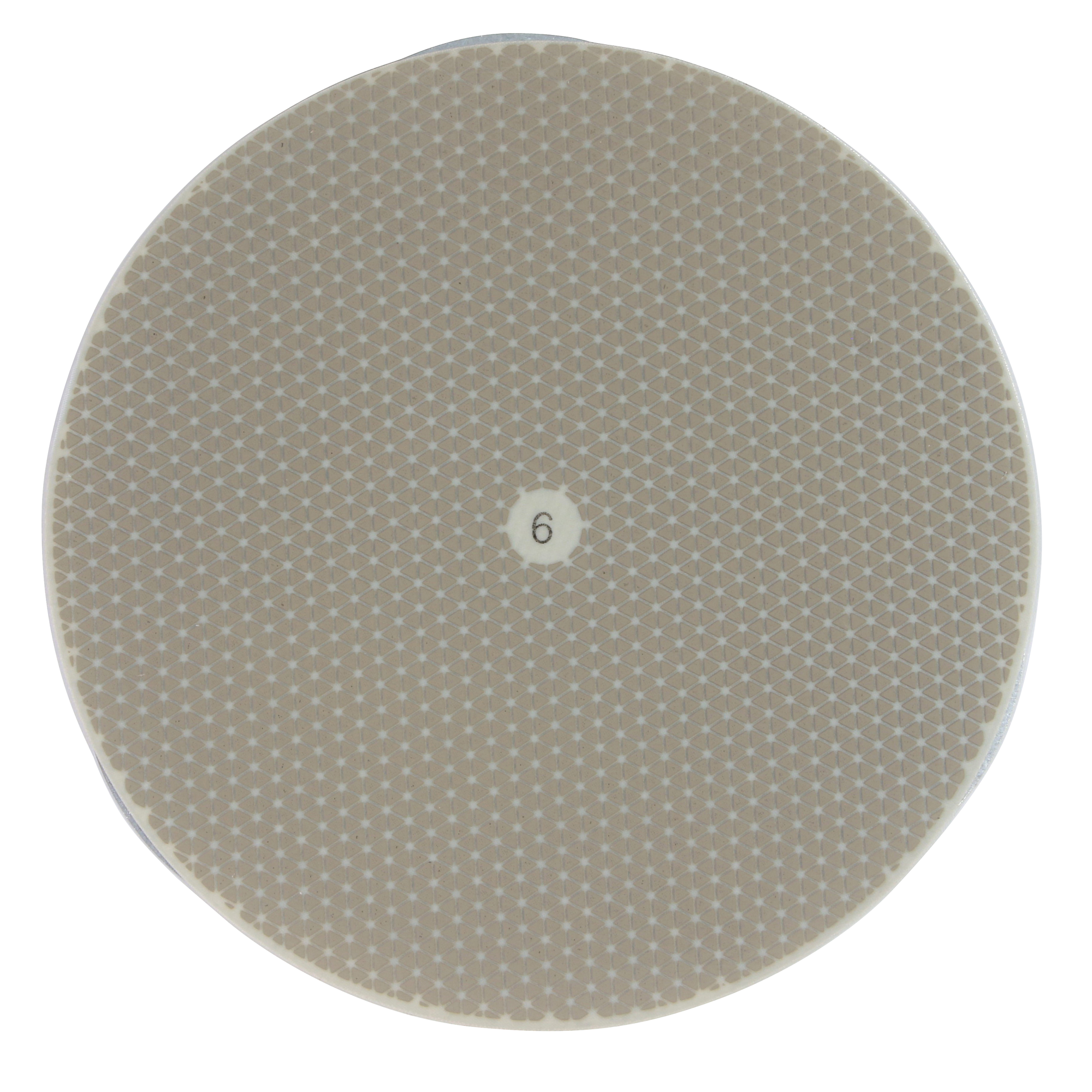

GALAXY 金刚石磨盘
粘接剂: 树脂

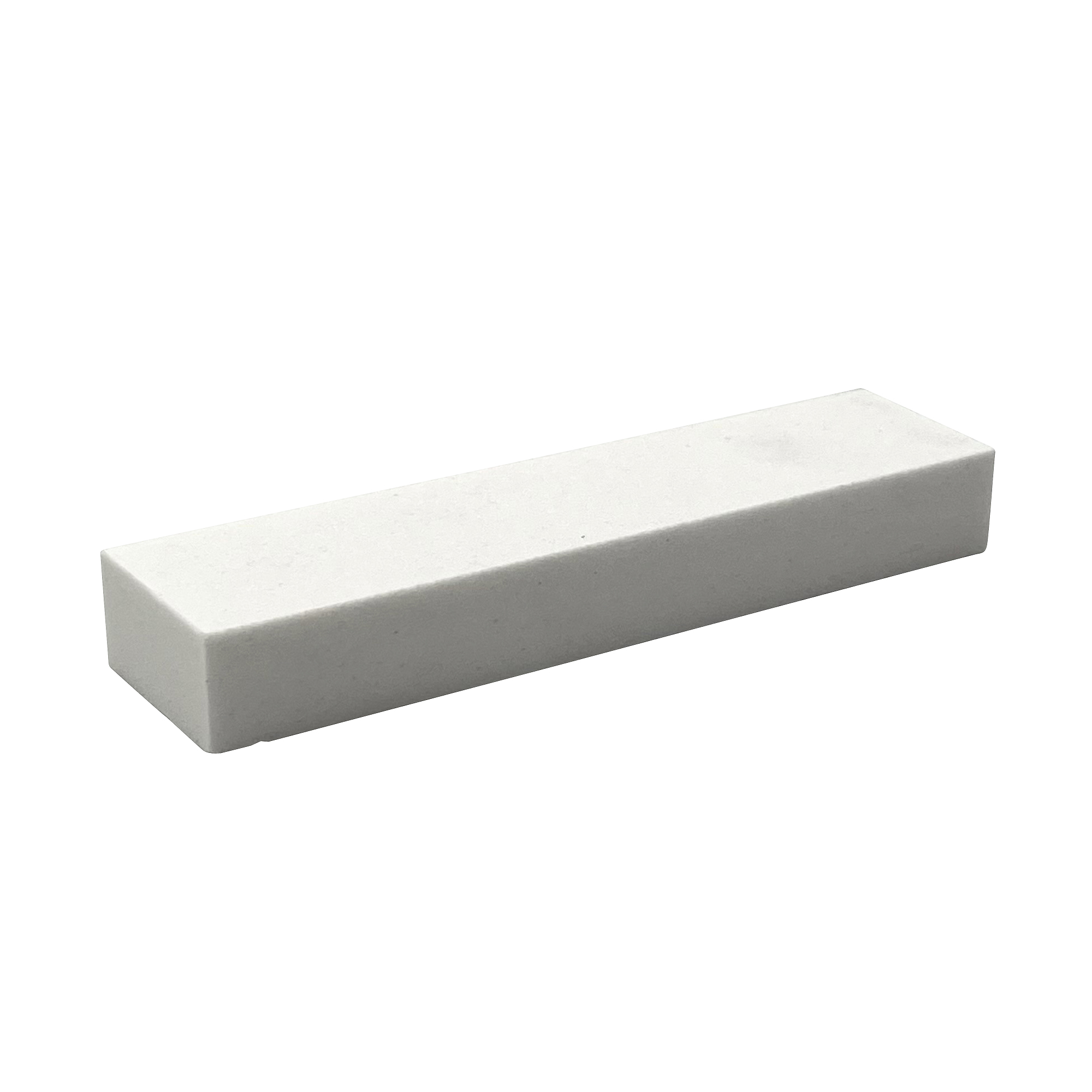

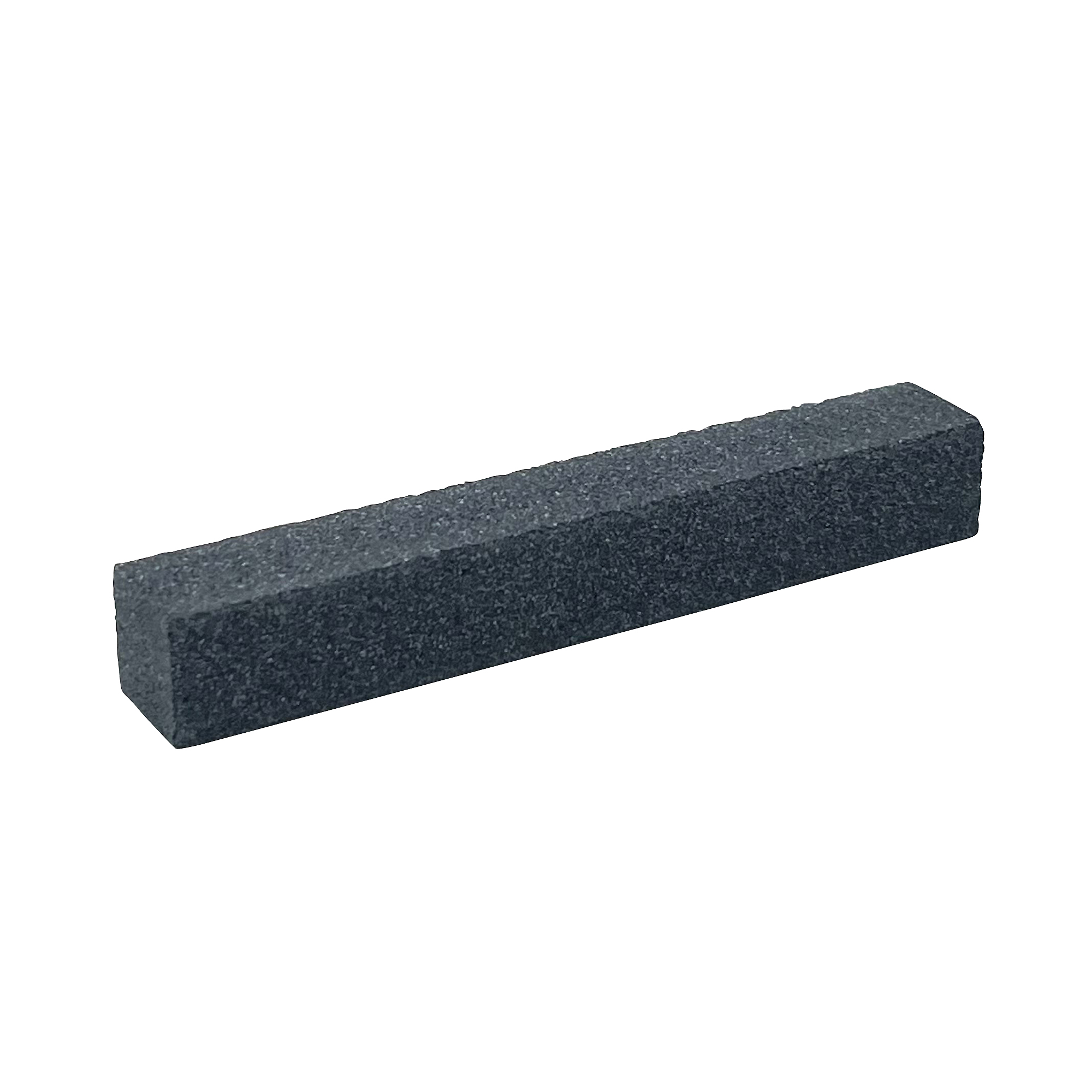

Dressing/cleaning stones

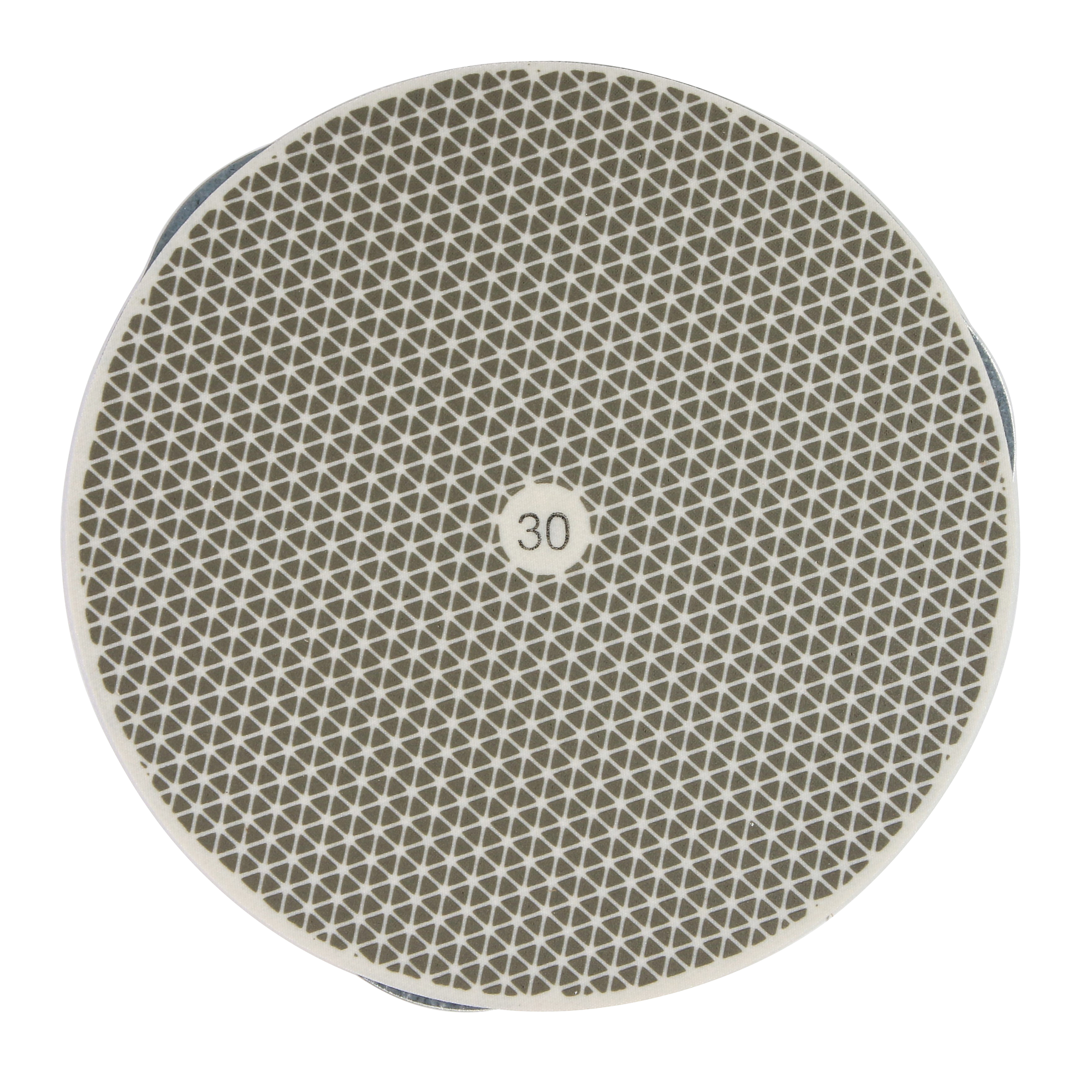

POLARIS M 金刚石磨盘
POLARIS H 金刚石磨盘
QUASAR 金刚石磨盘
VEGA 金刚石磨盘
Contero S fine grinding/lapping discs
Contero H fine grinding/lapping discs
清洁刷
粘接转换盘，双面

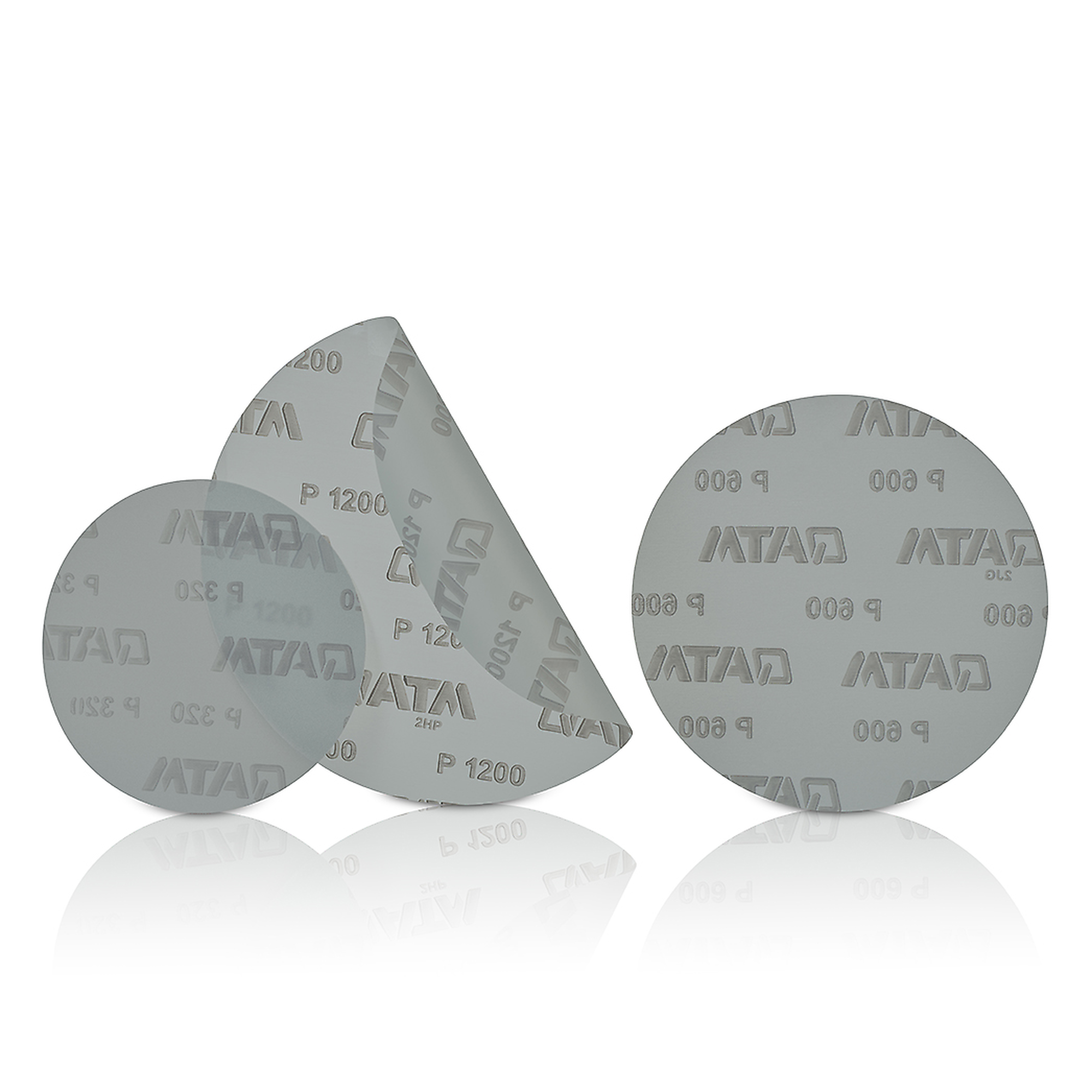

碳化硅研磨薄膜
碳化硅砂纸
带膜背衬
X-Tap
碳化硅砂纸，自粘

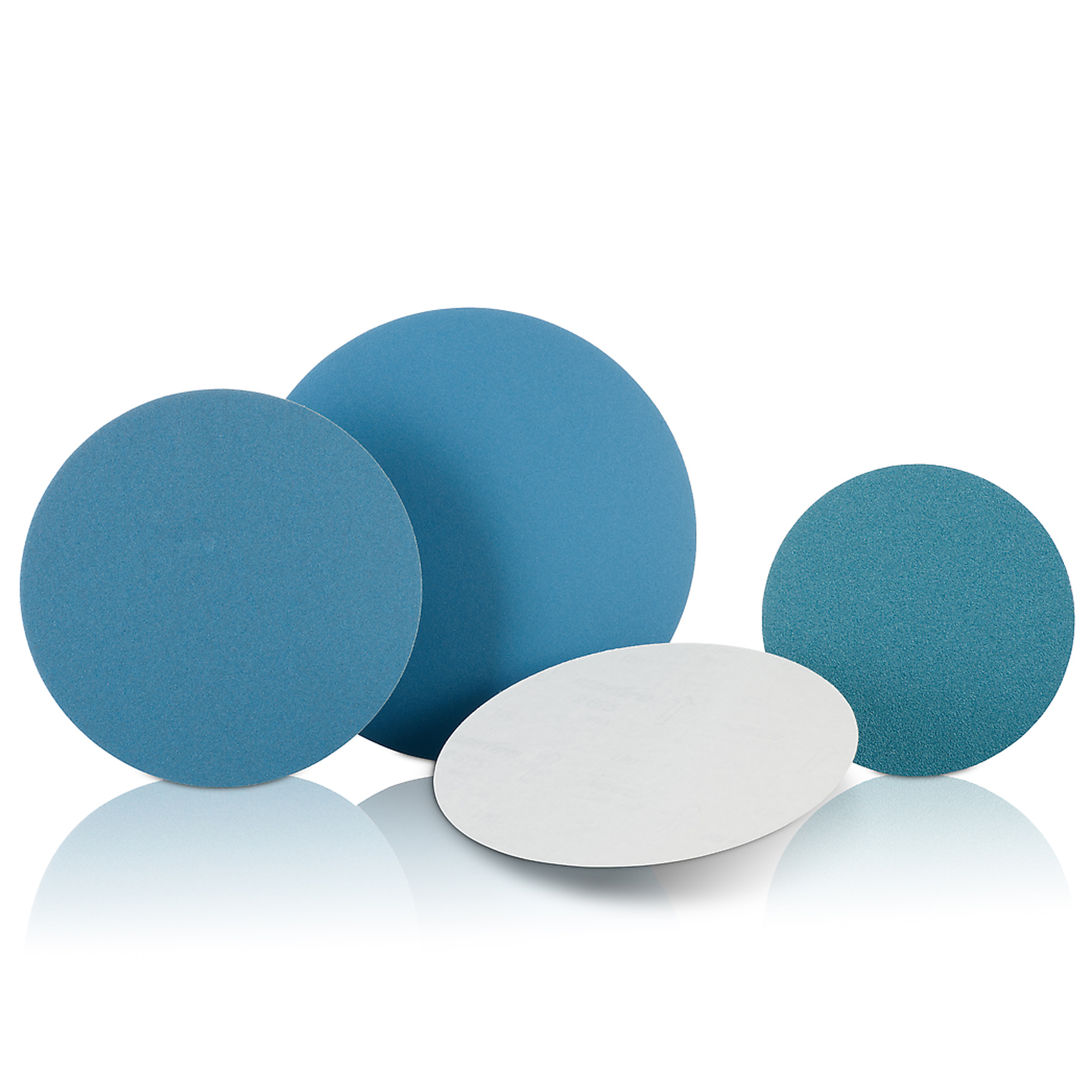

氧化锆氧化铝砂纸, 自粘
GALAXY Quick-Tap
碳化硅光面砂纸
无背胶/膜背衬
Grinding papers for mobile grinder and polisher Qpol 30

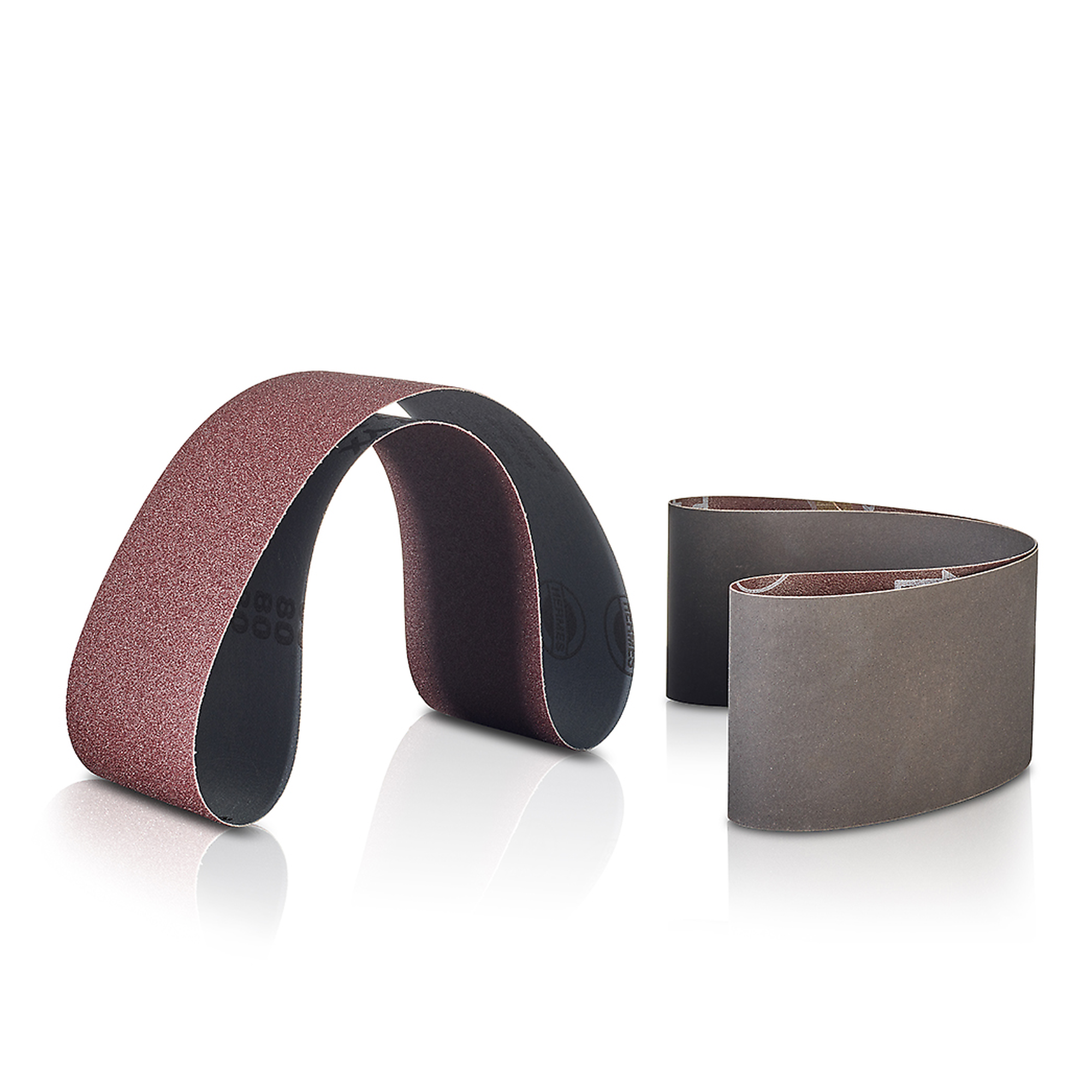

Grinding belts for Qgrind 100

Polishing Consumables

Polishing Consumables

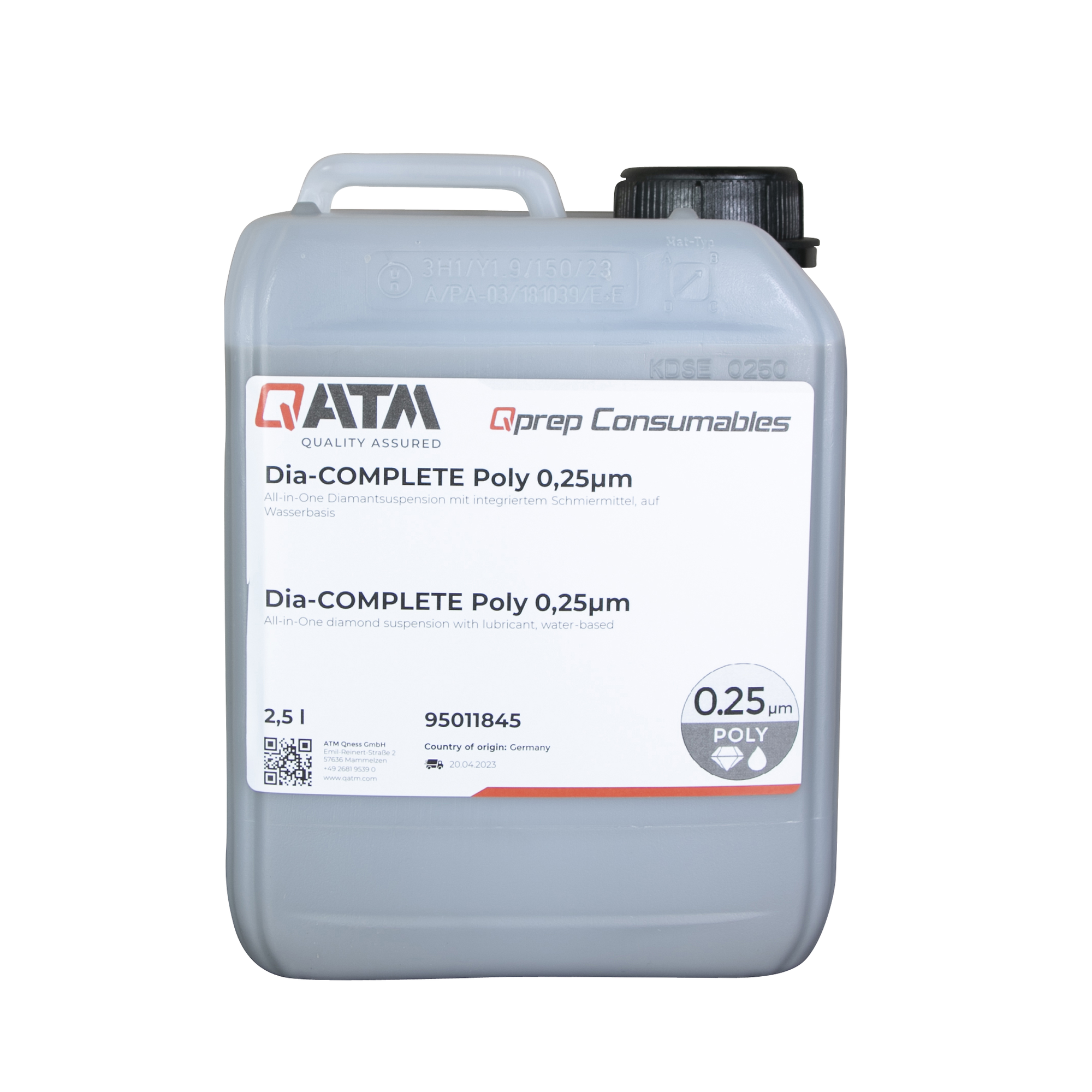

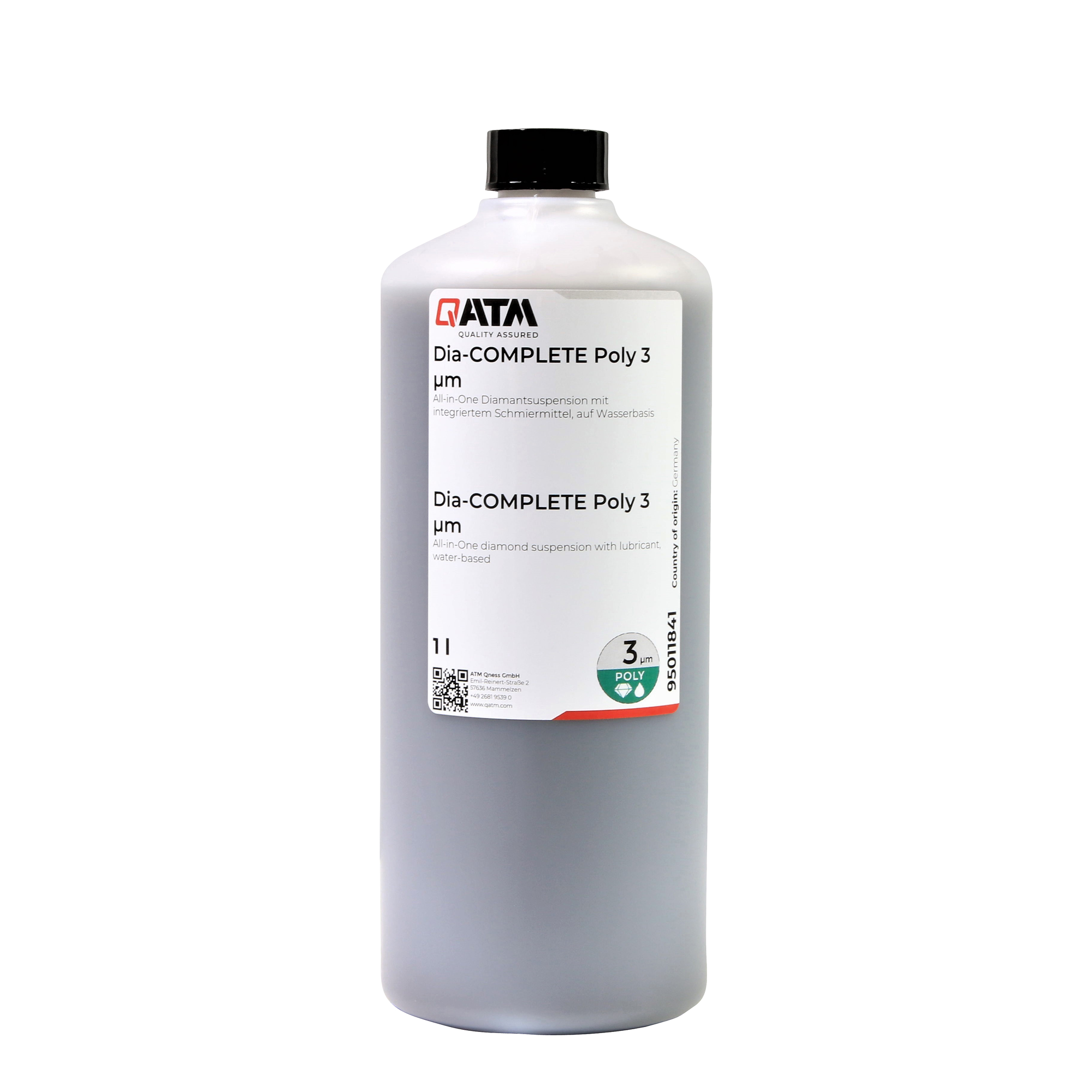

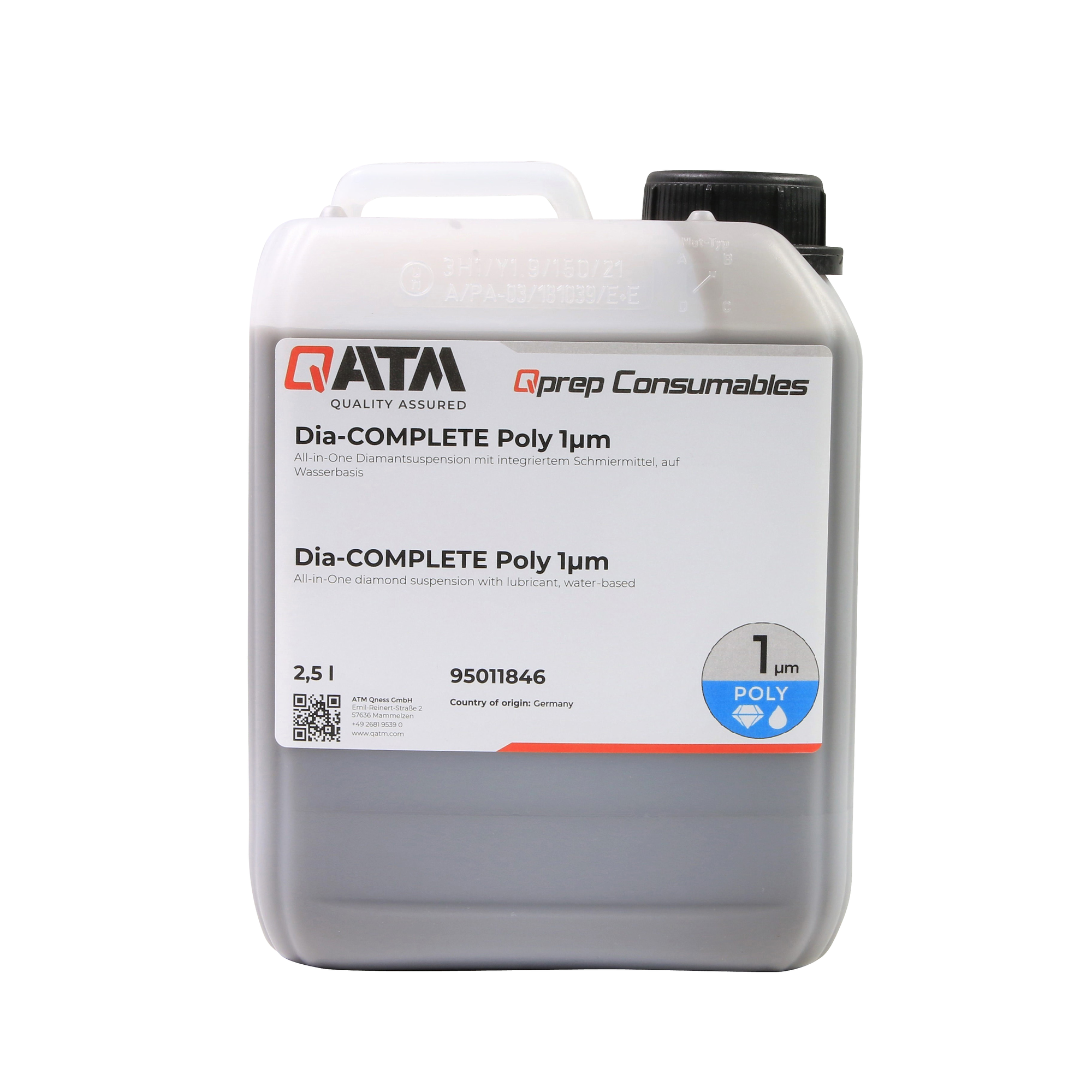

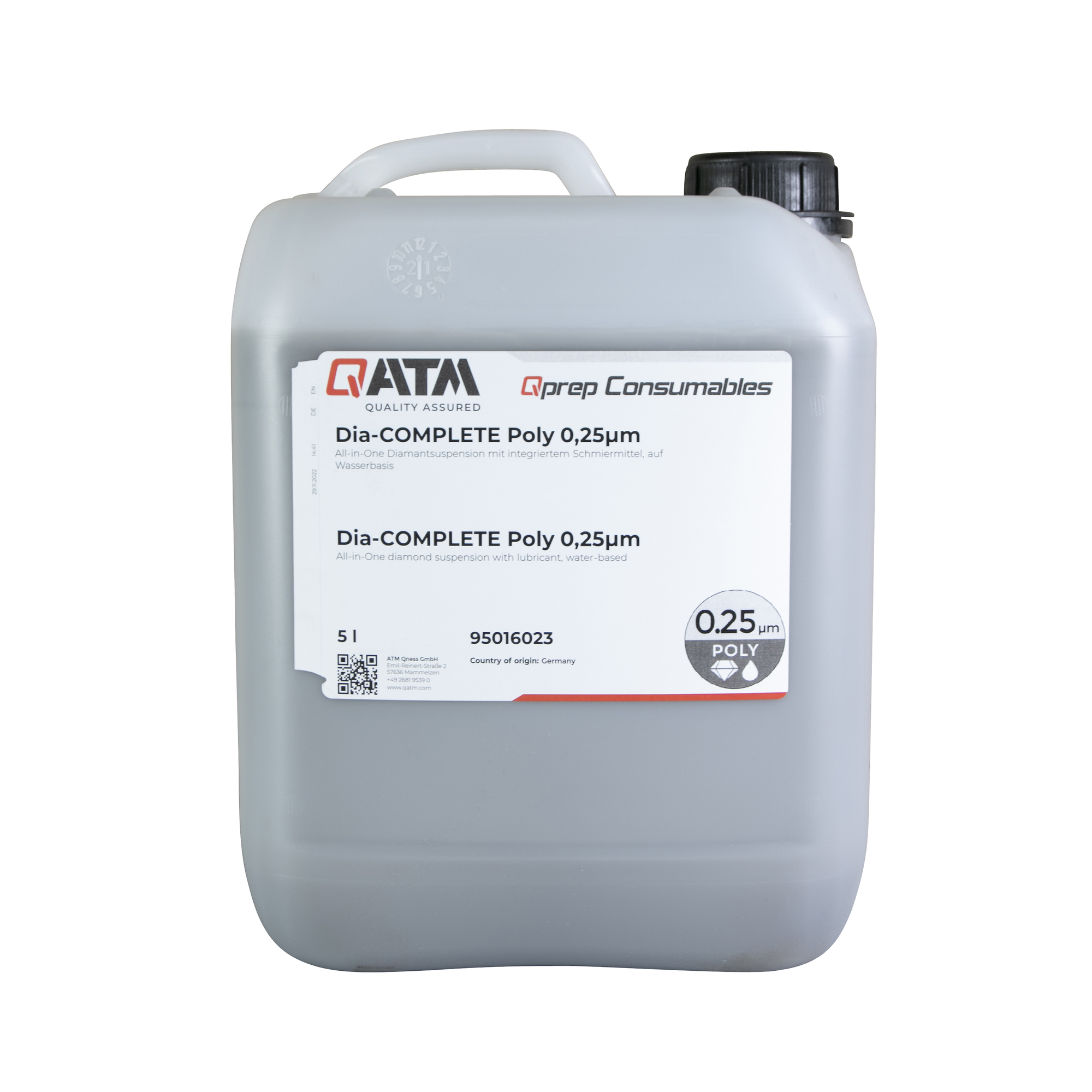

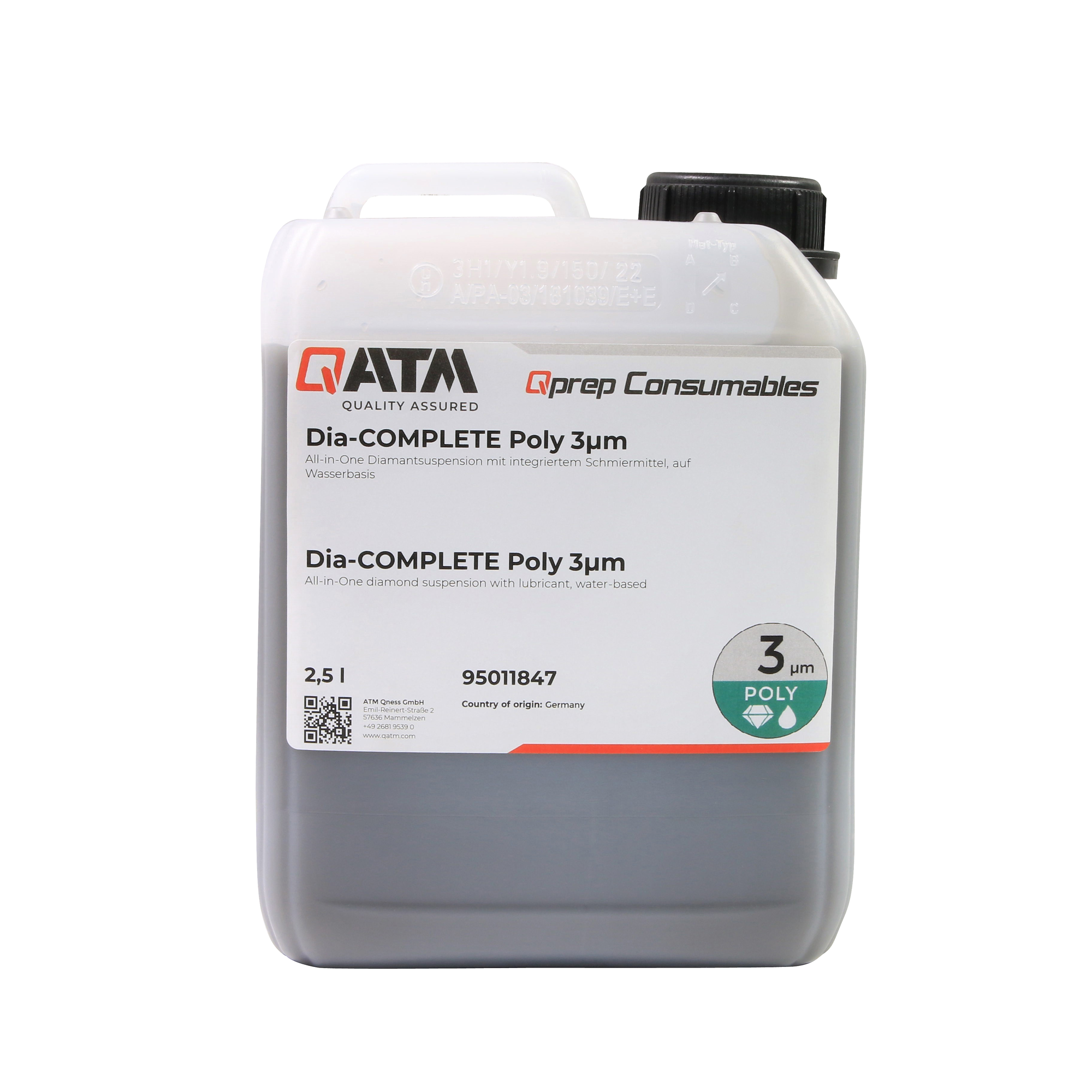

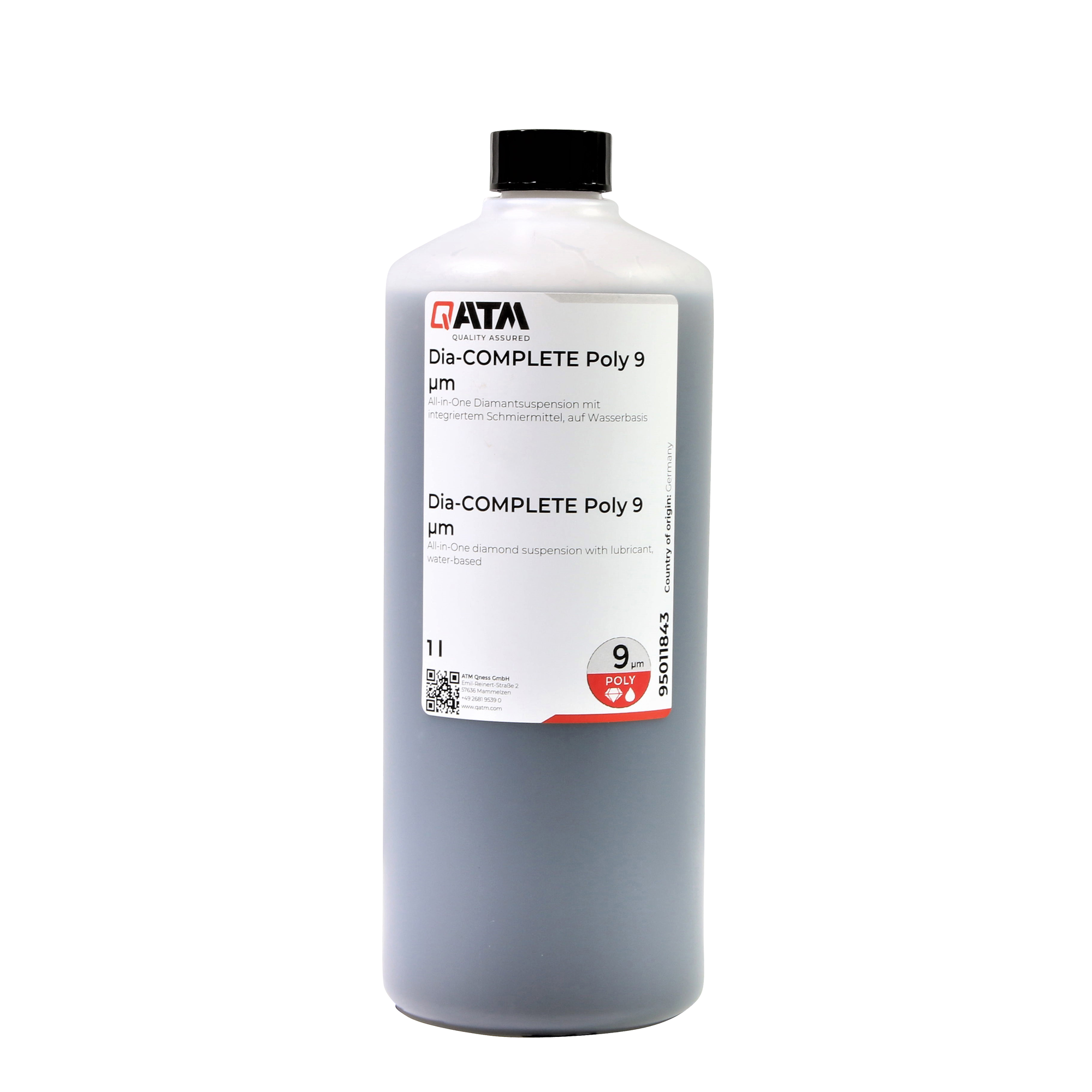

Dia-COMPLETE Poly,
二合一多晶金刚石悬浮液

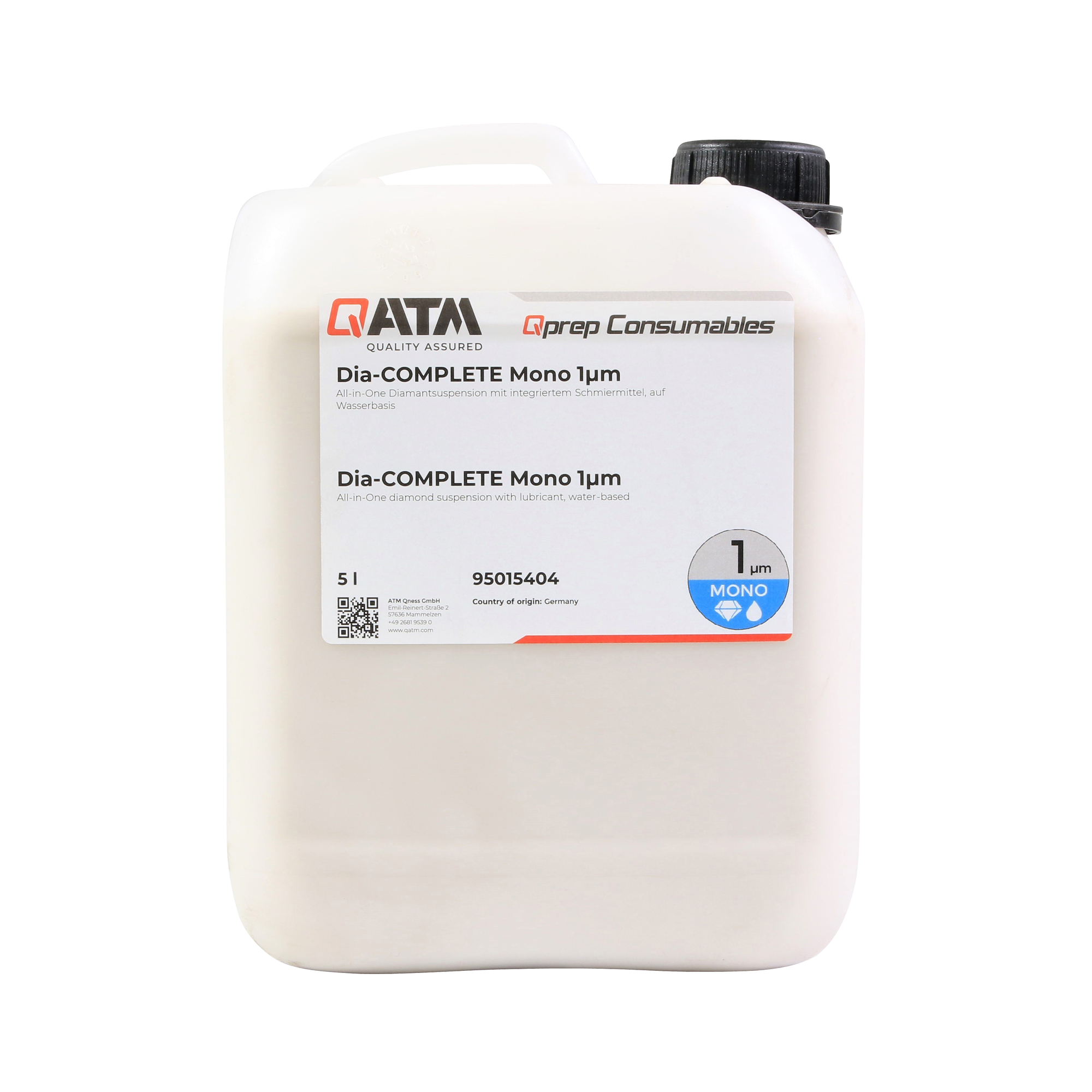

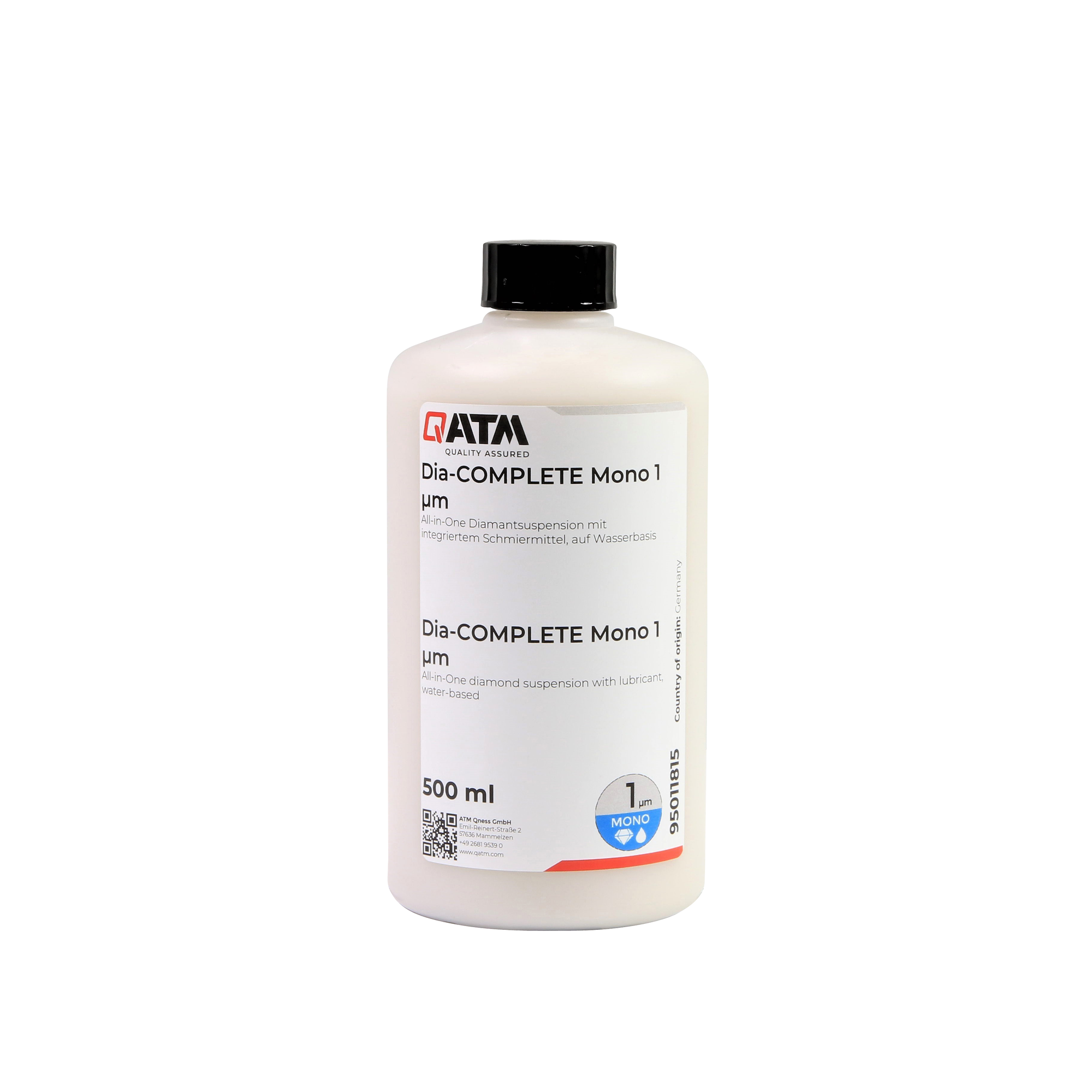

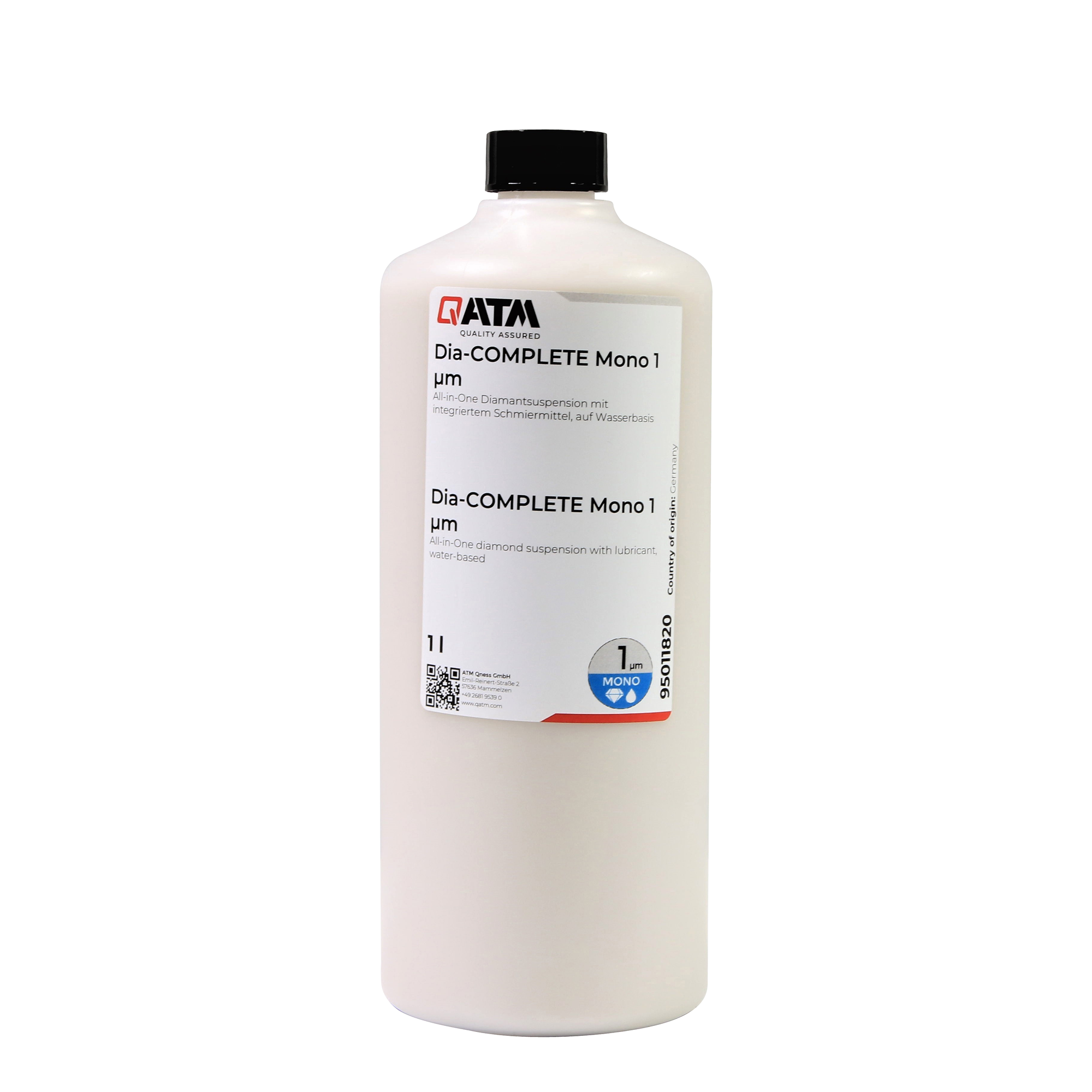

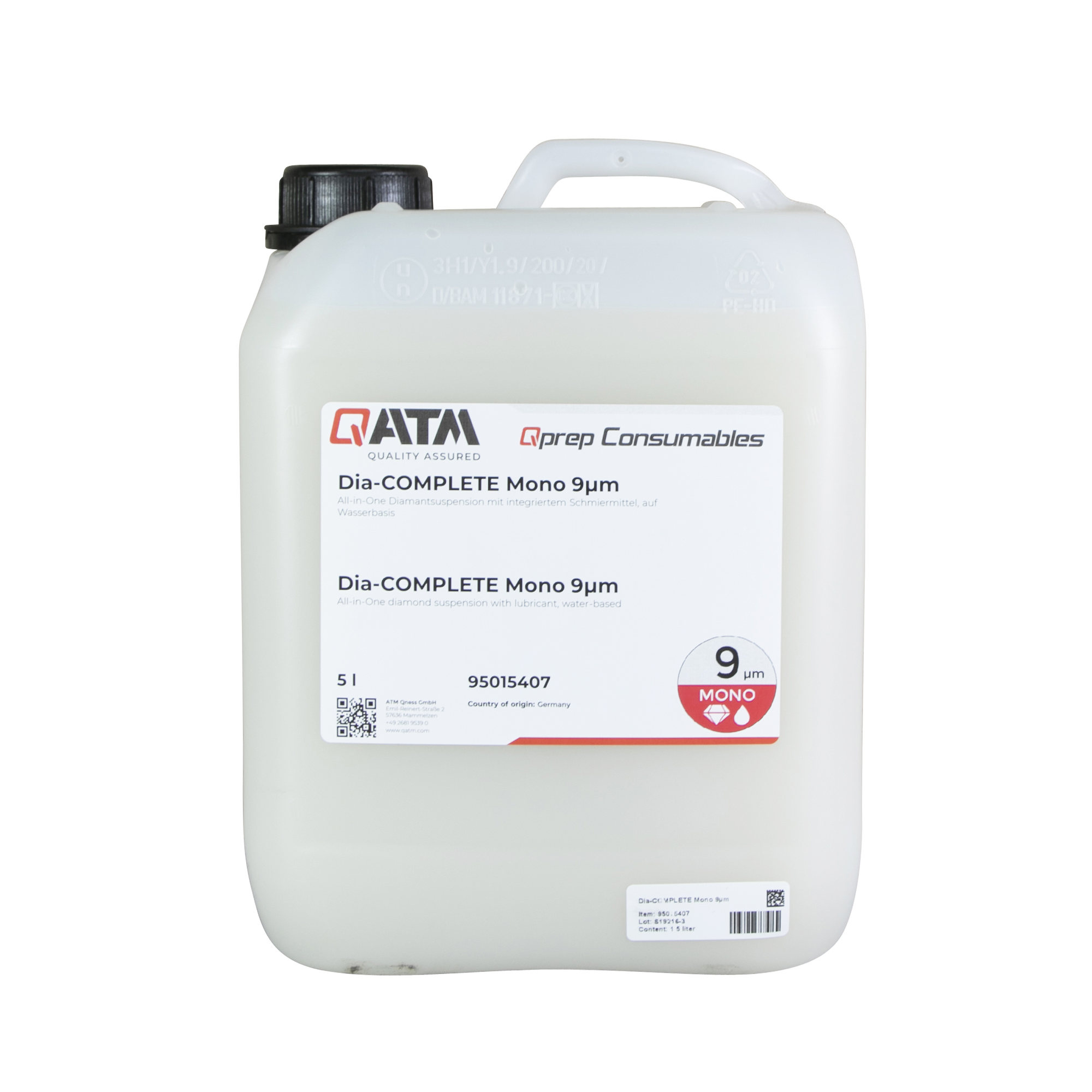

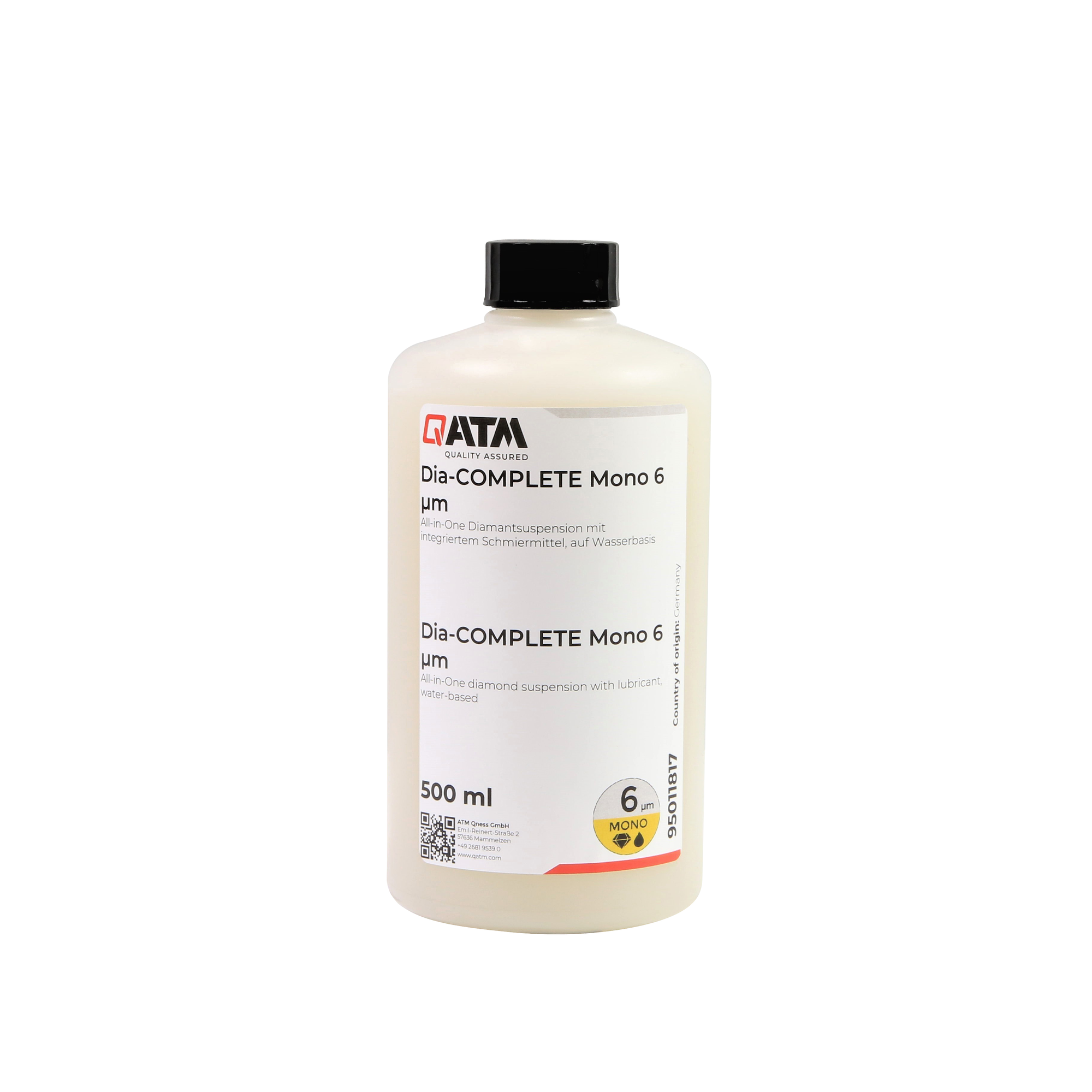

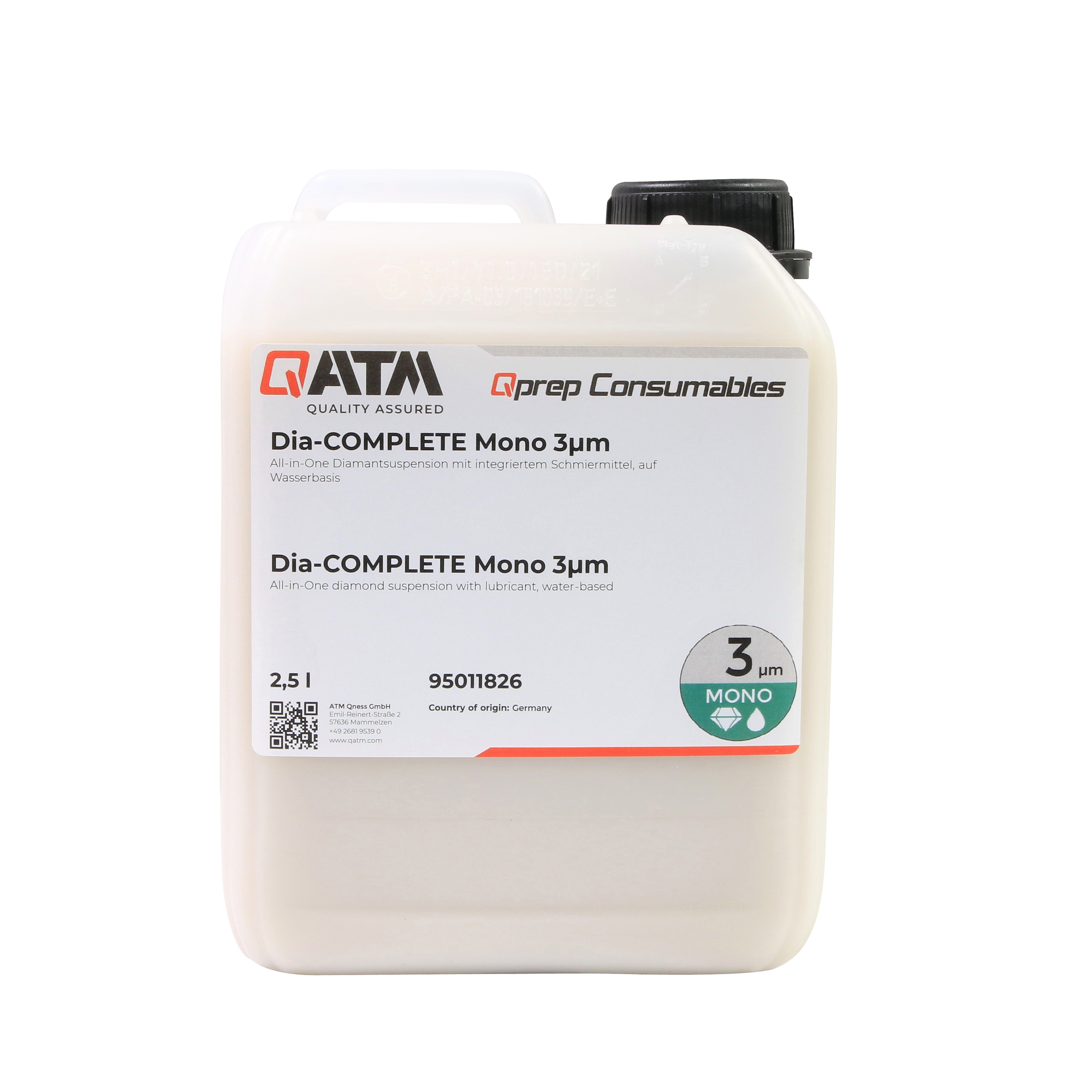

Dia-COMPLETE Mono,
二合一单晶金刚石悬浮液

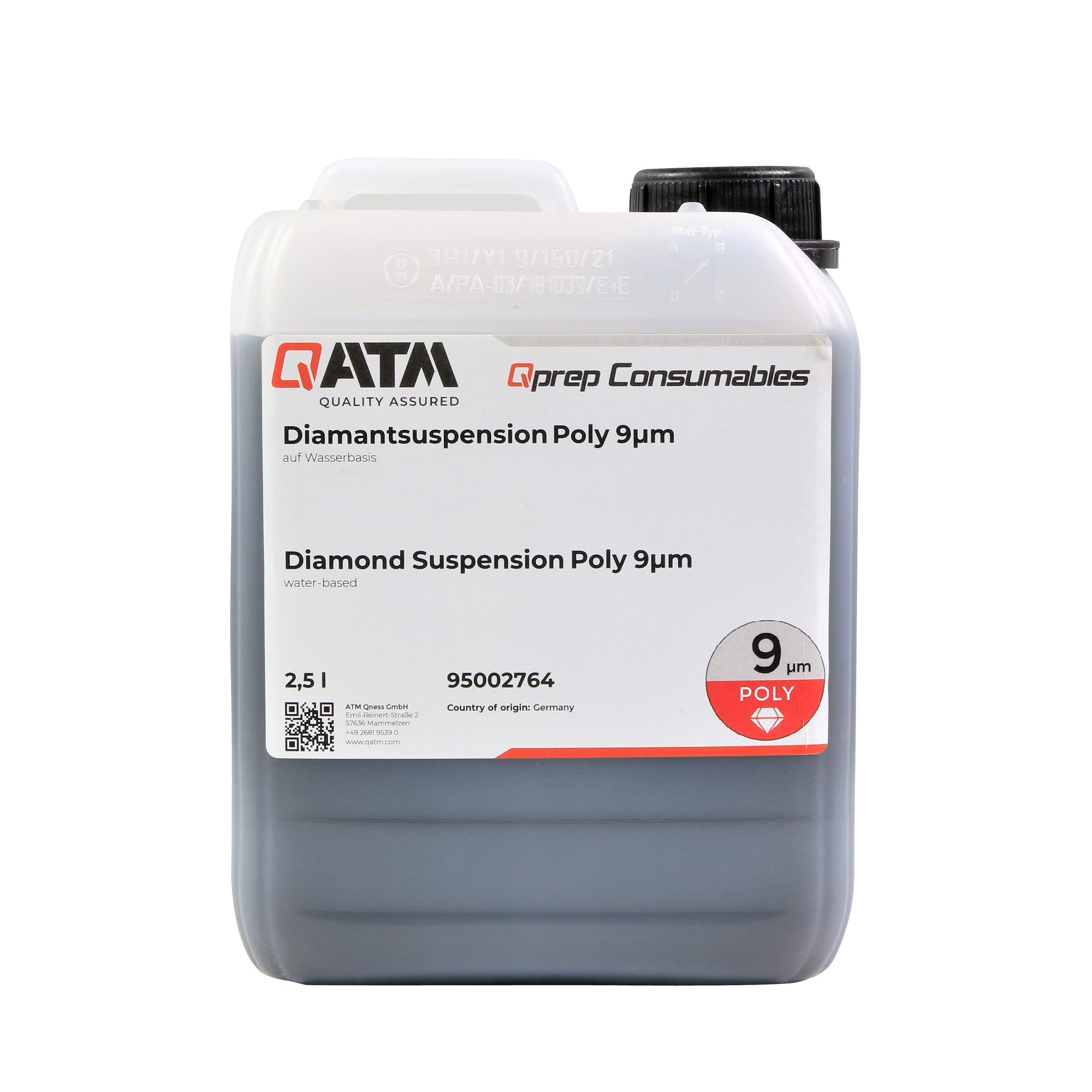

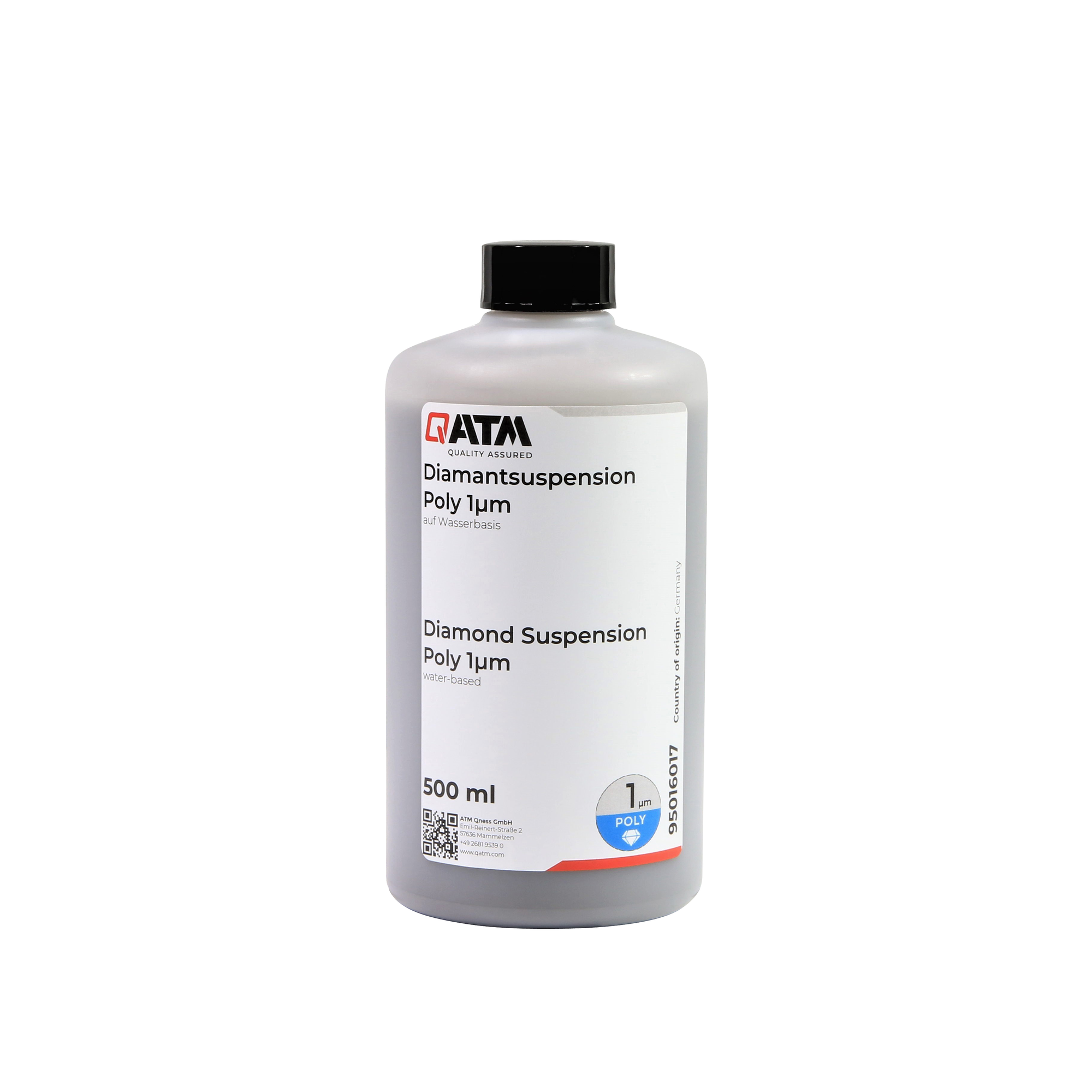

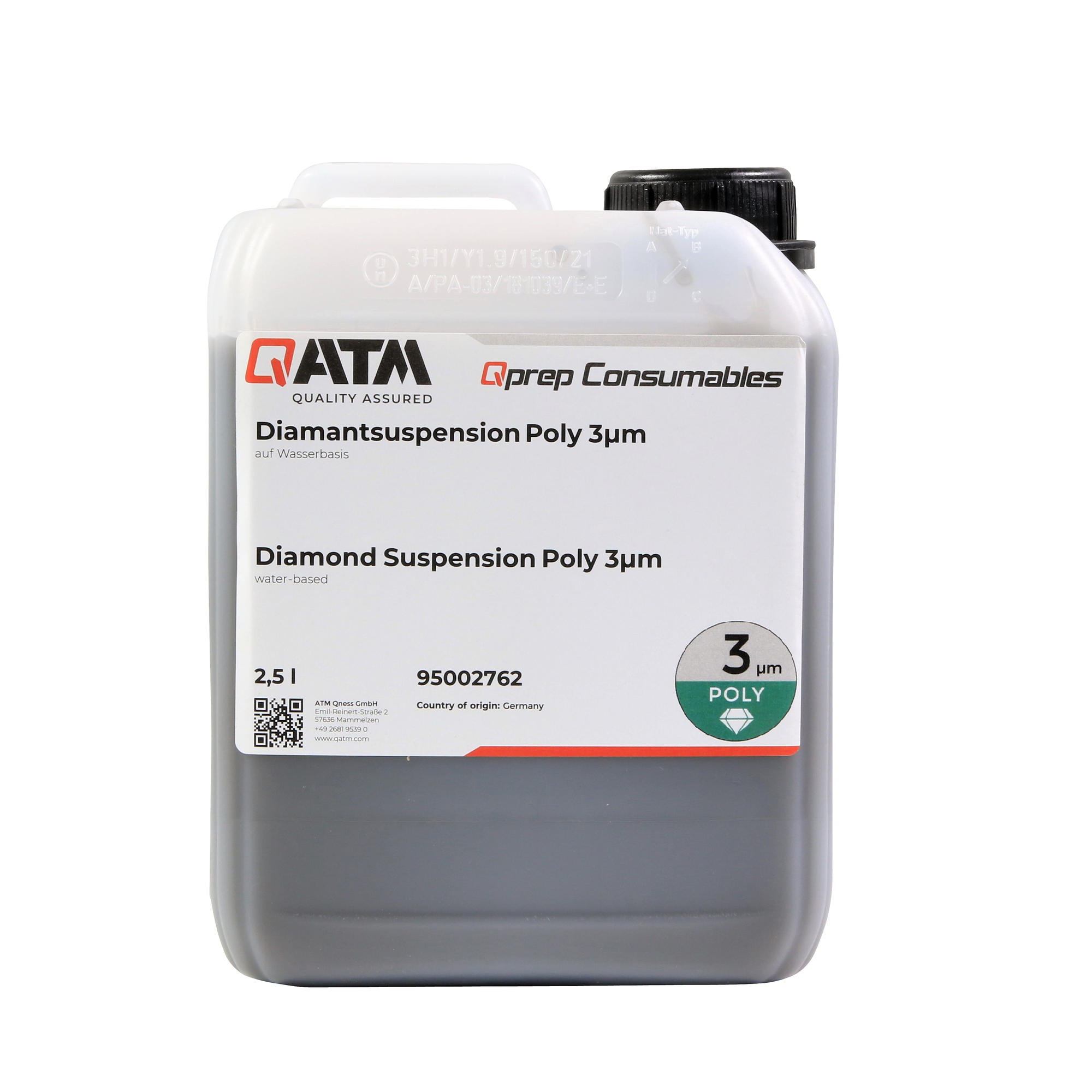

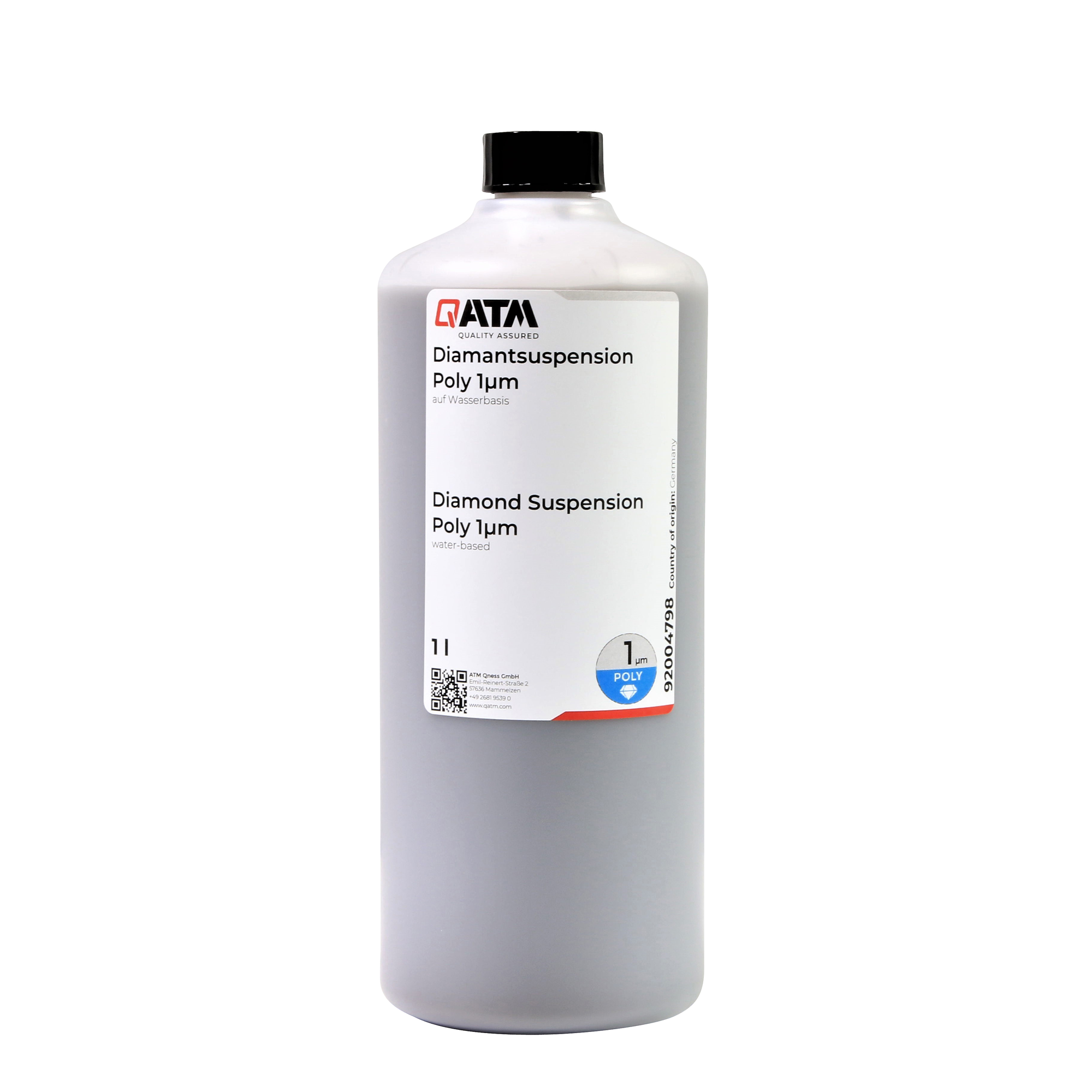

多晶金刚石悬浮液

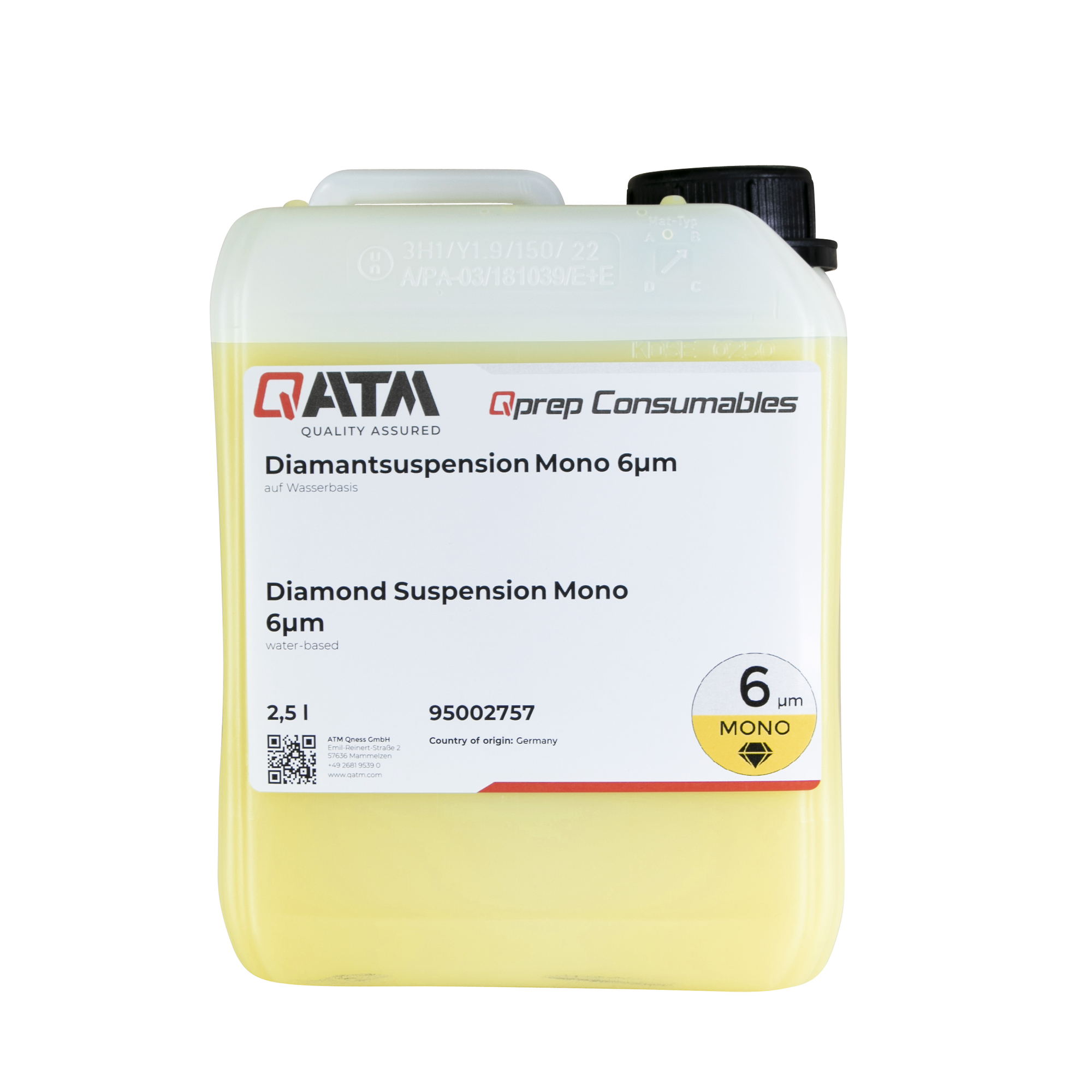

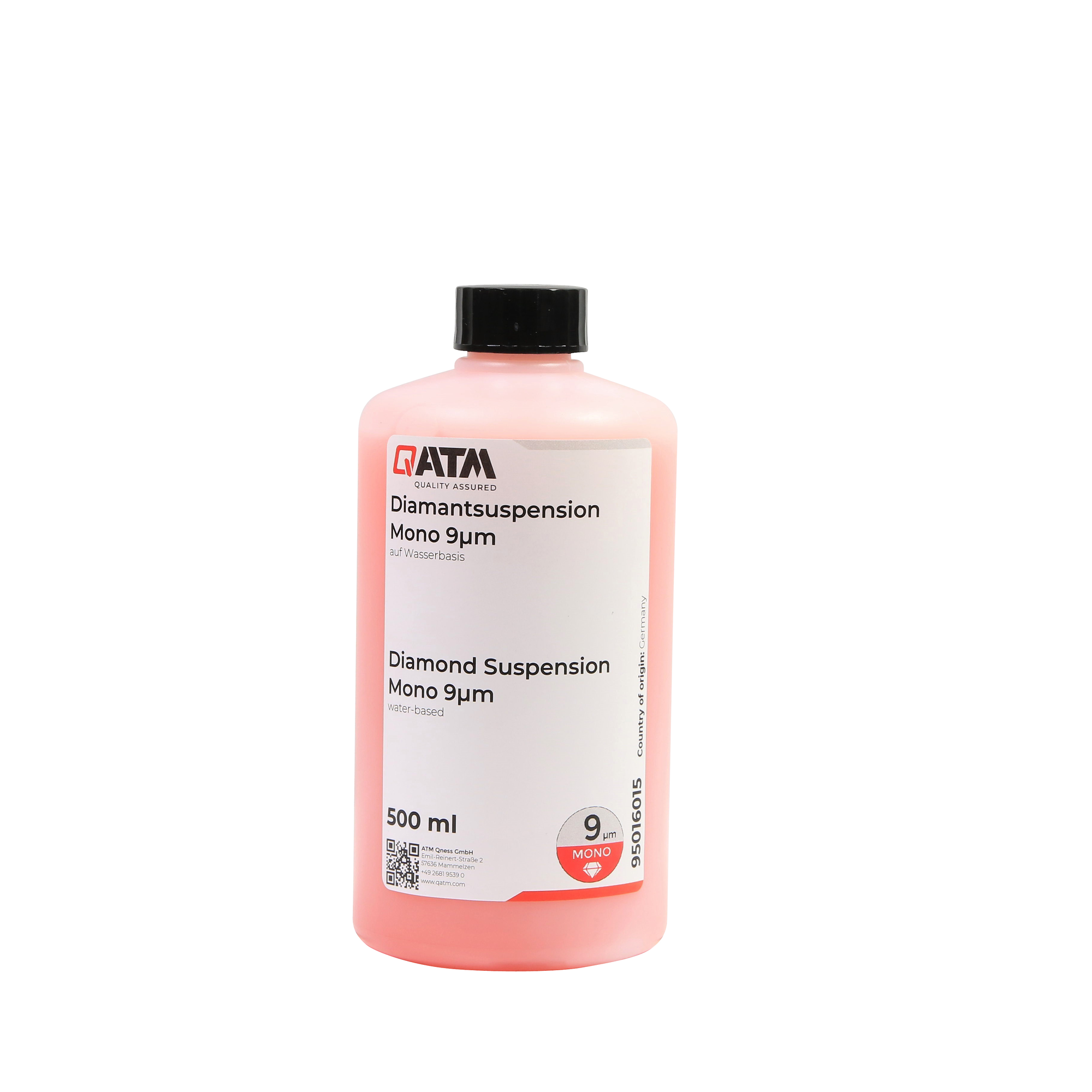

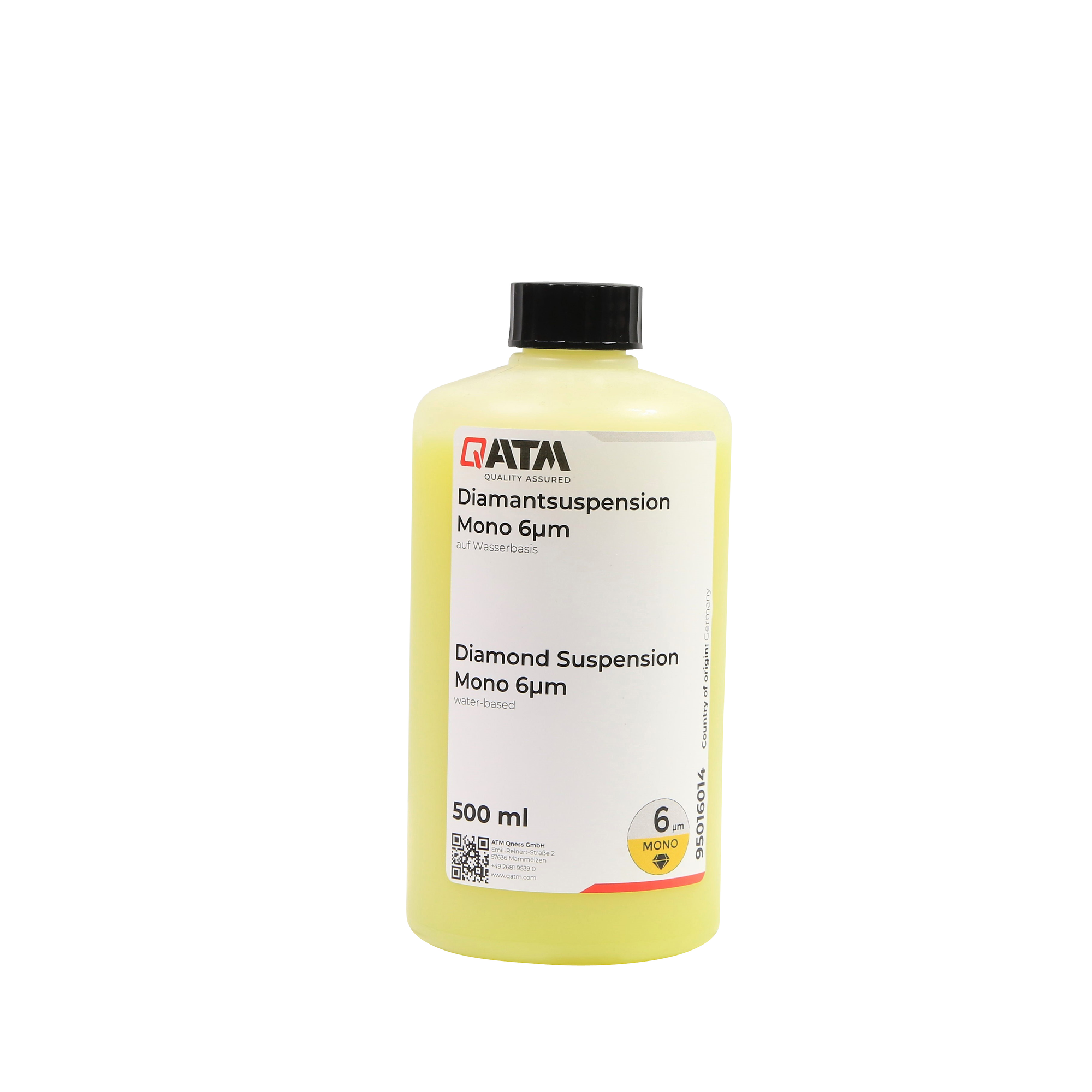

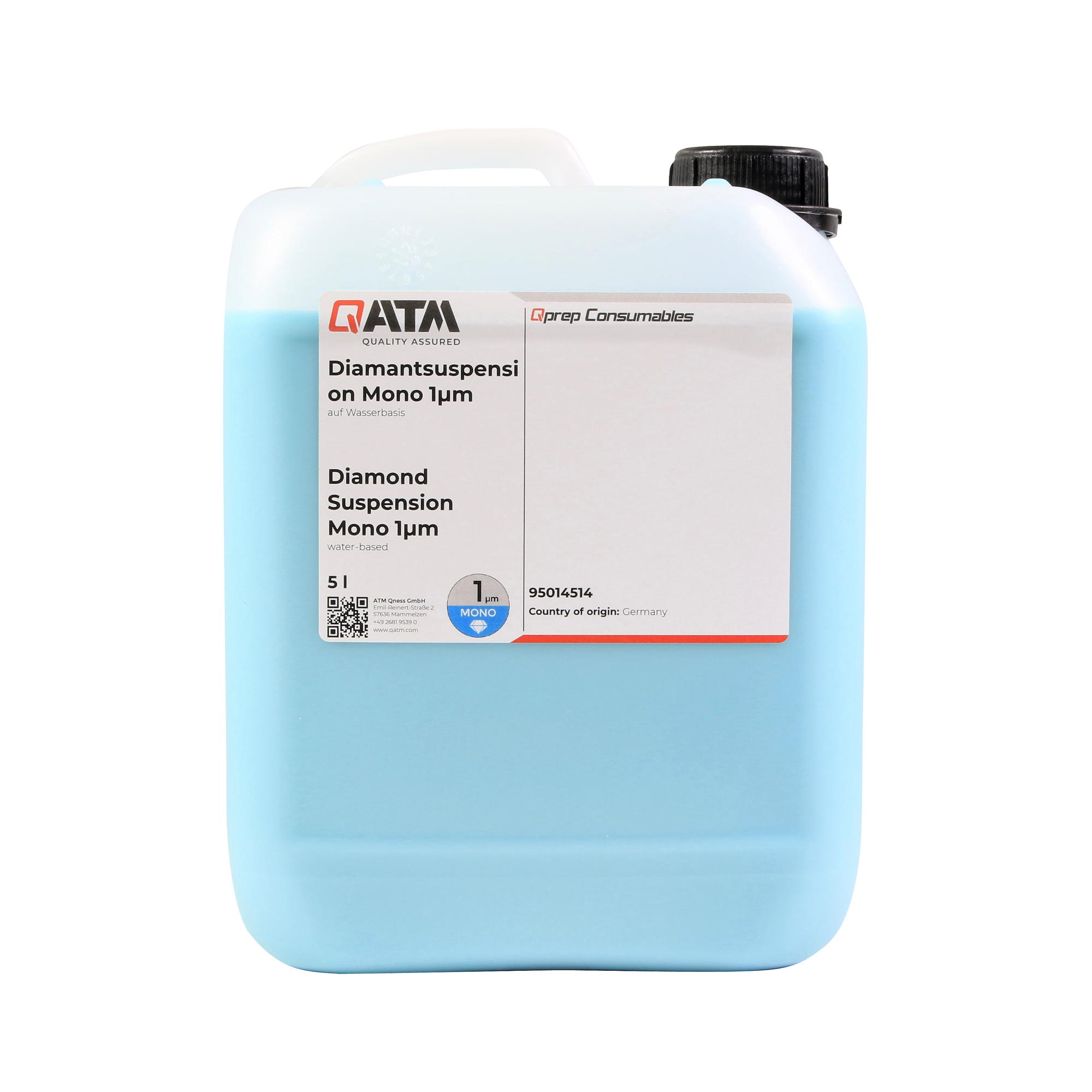

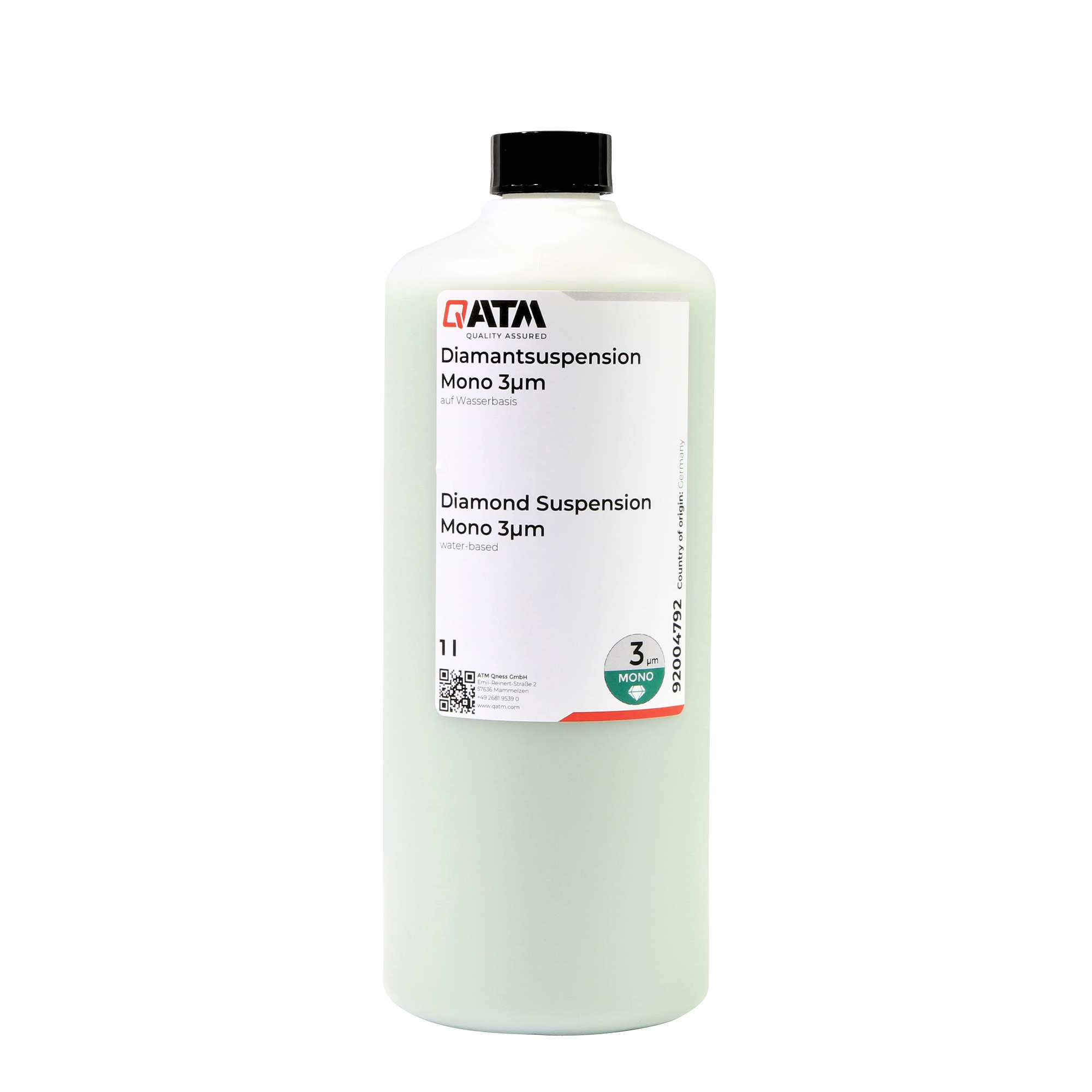

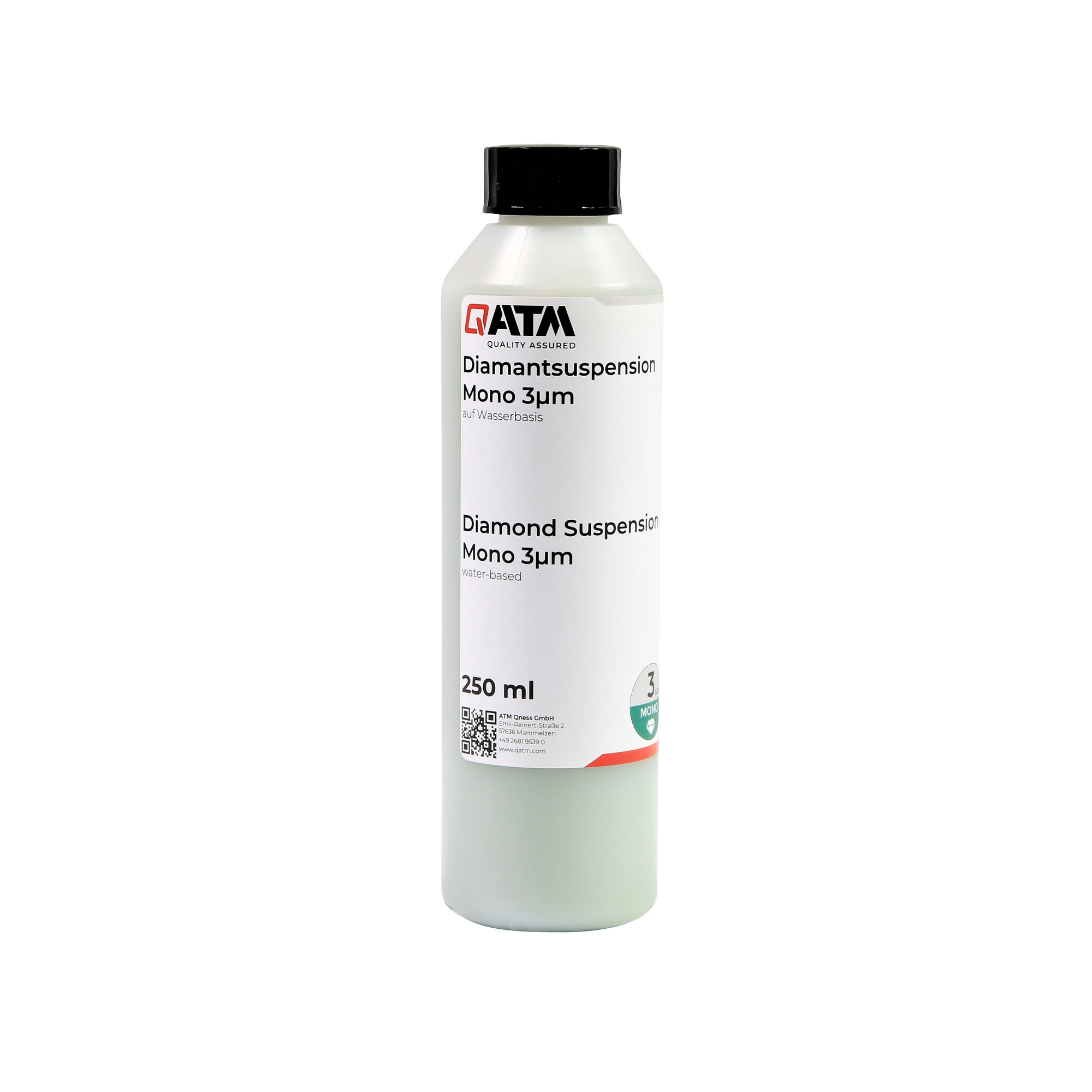

单晶金刚石悬浮液

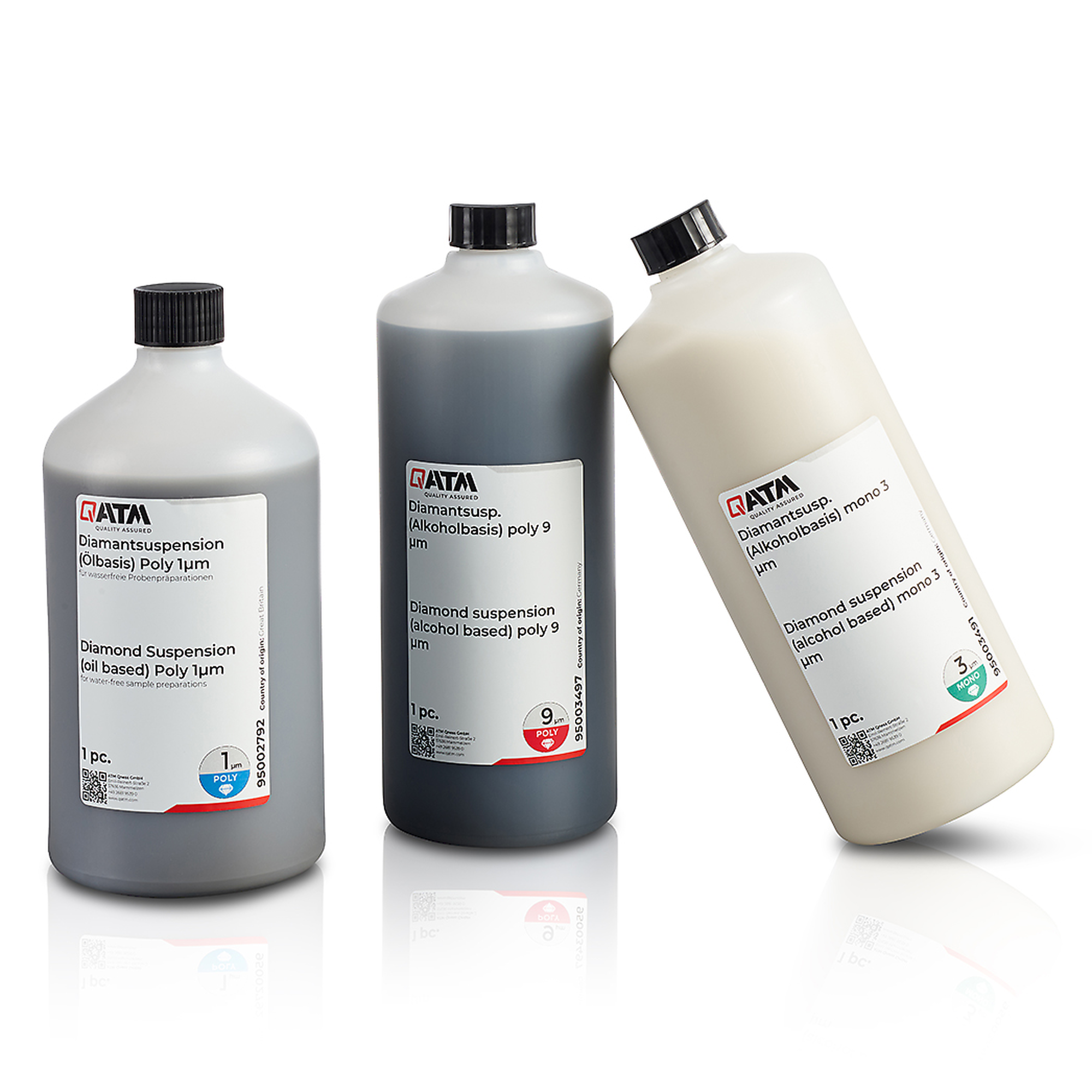

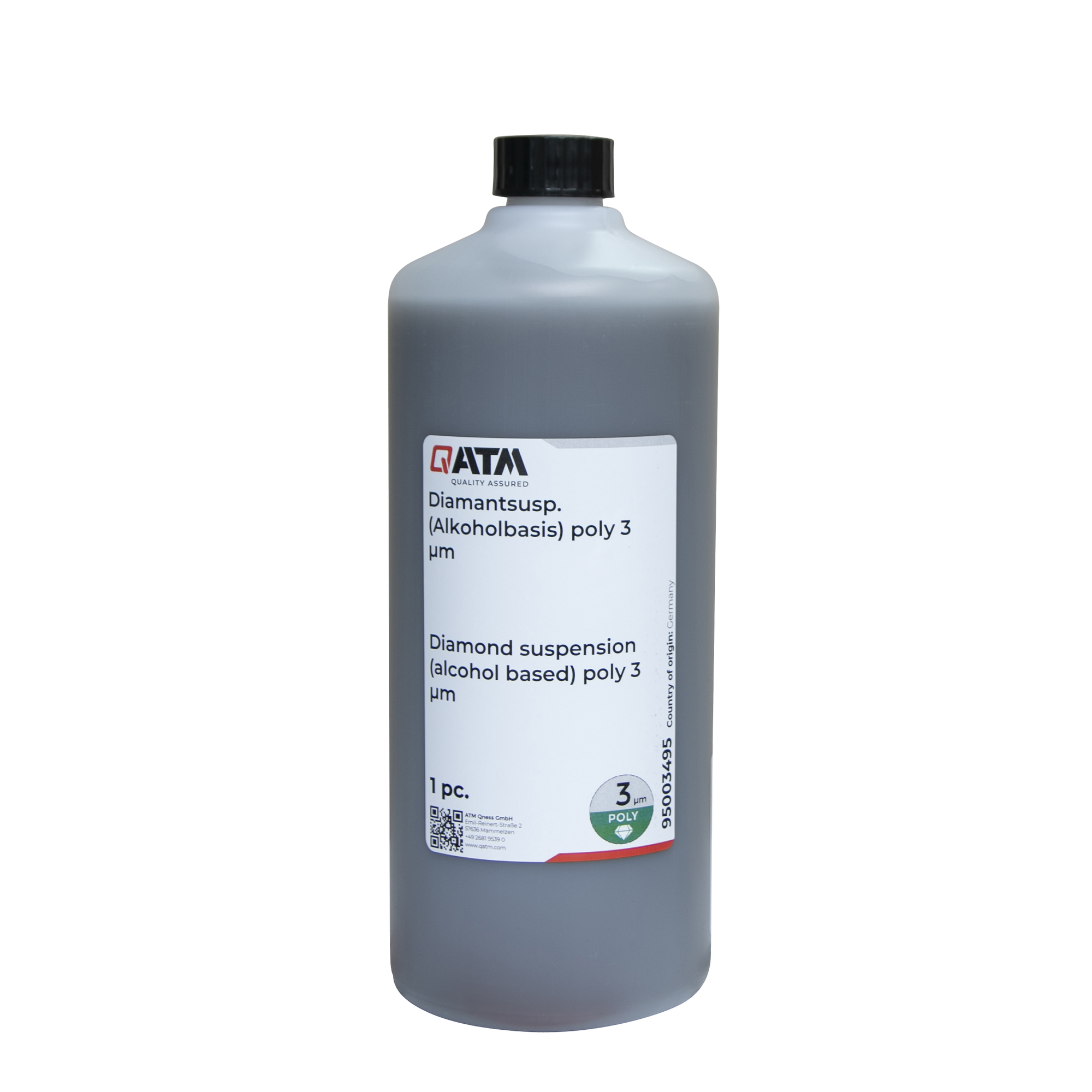

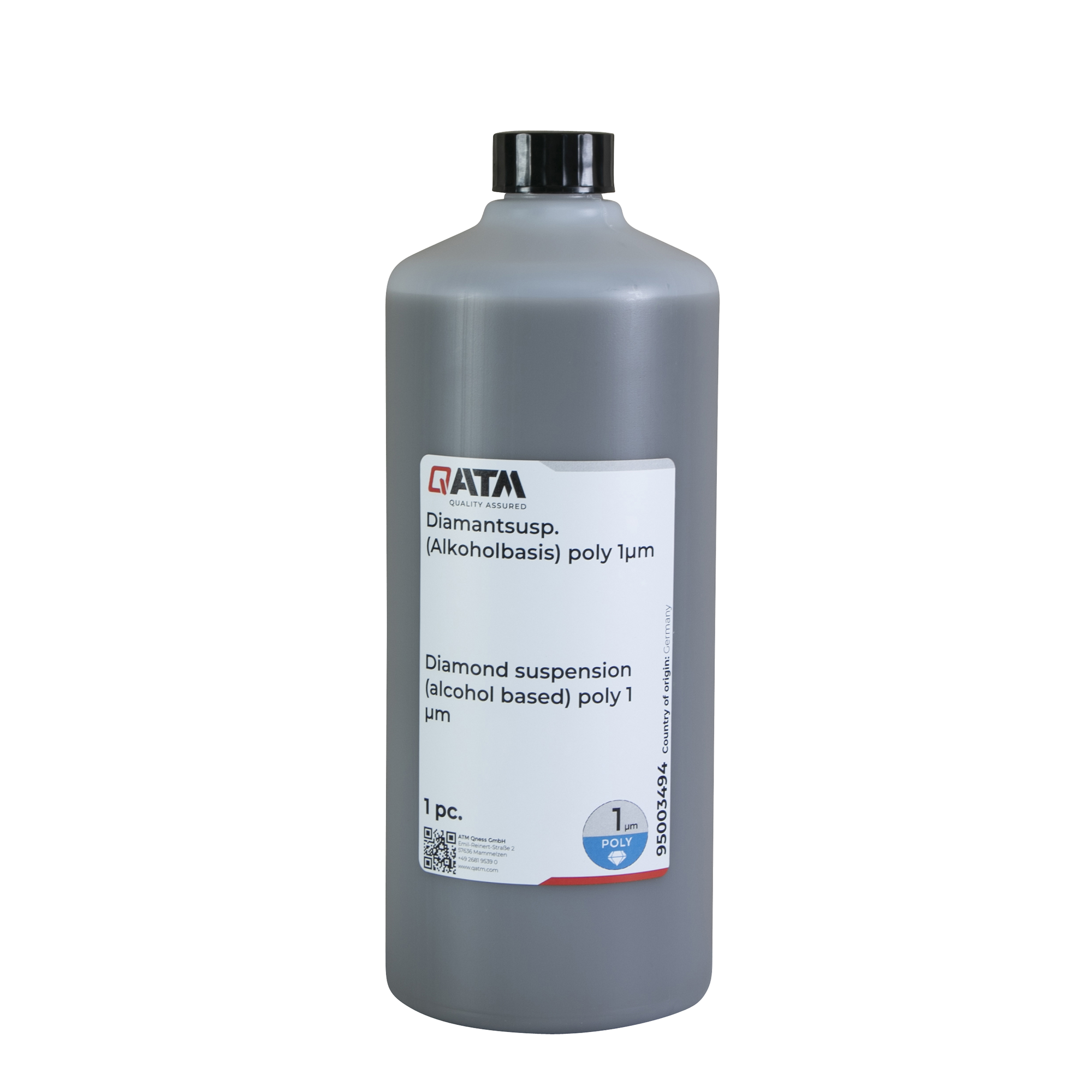

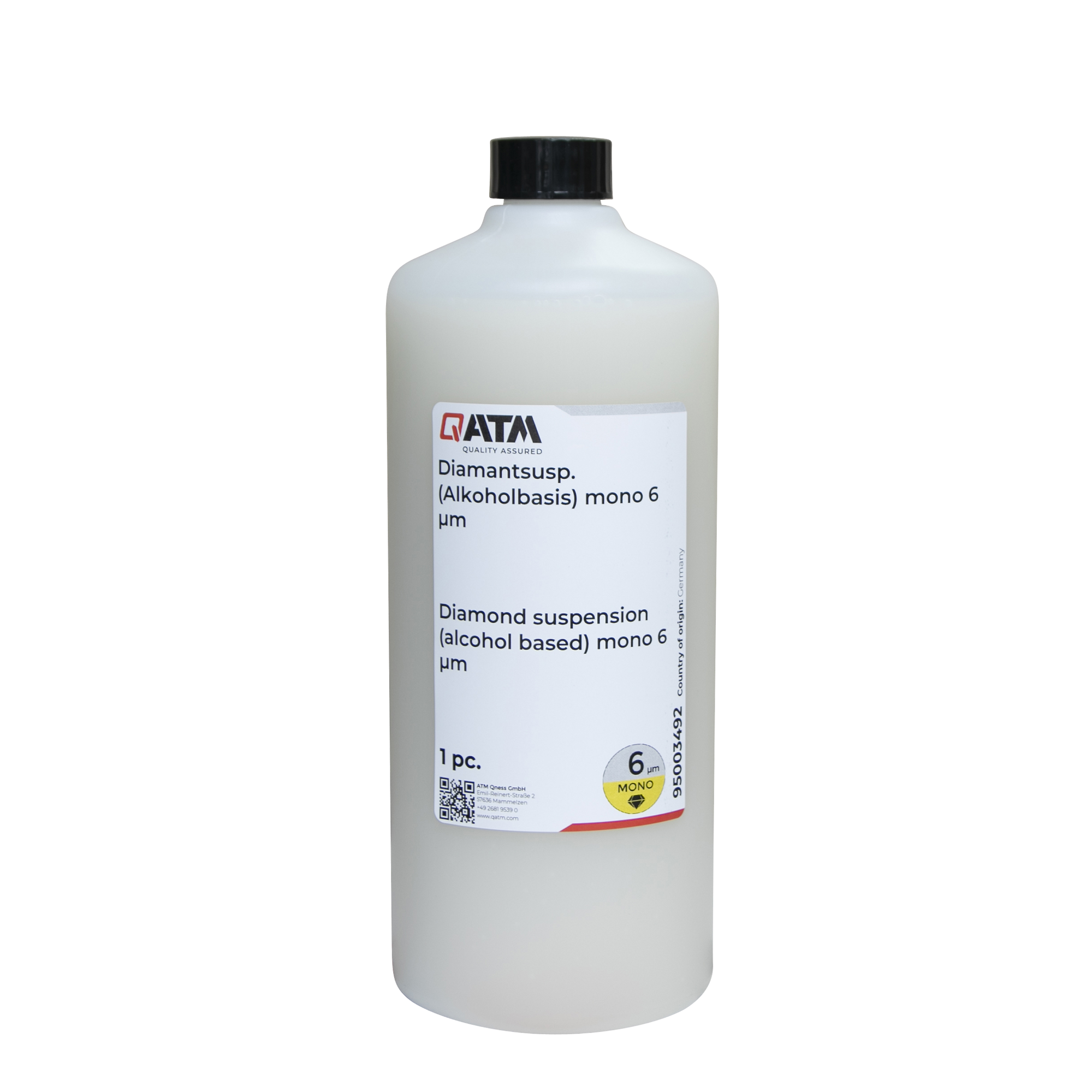

金刚石悬浮液 (酒精基)
多晶
金刚石悬浮液 (酒精基)
单晶
金刚石悬浮液 (油基)
多晶
配件

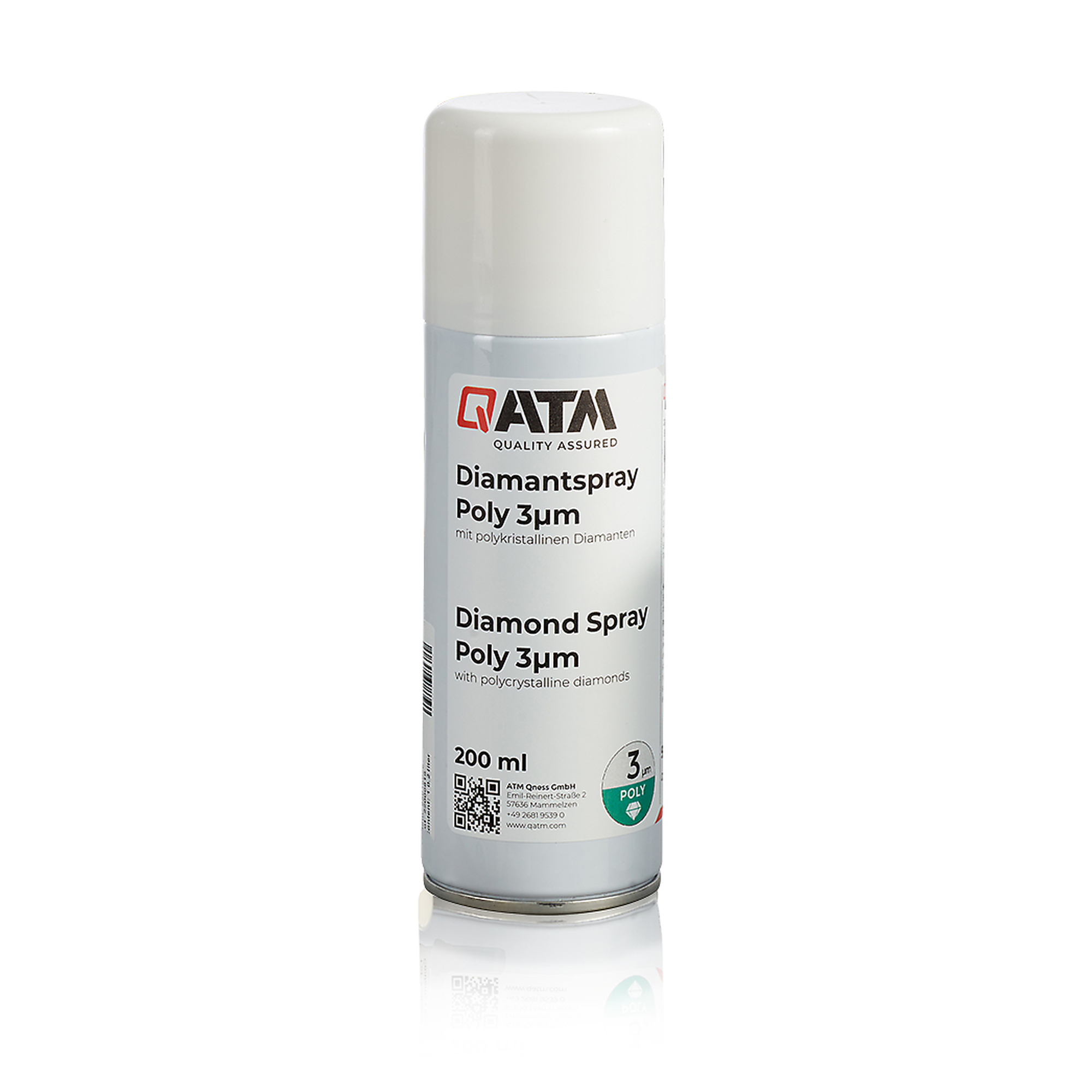

多晶金刚石喷雾
多晶金刚石抛光膏
单晶金刚石抛光膏

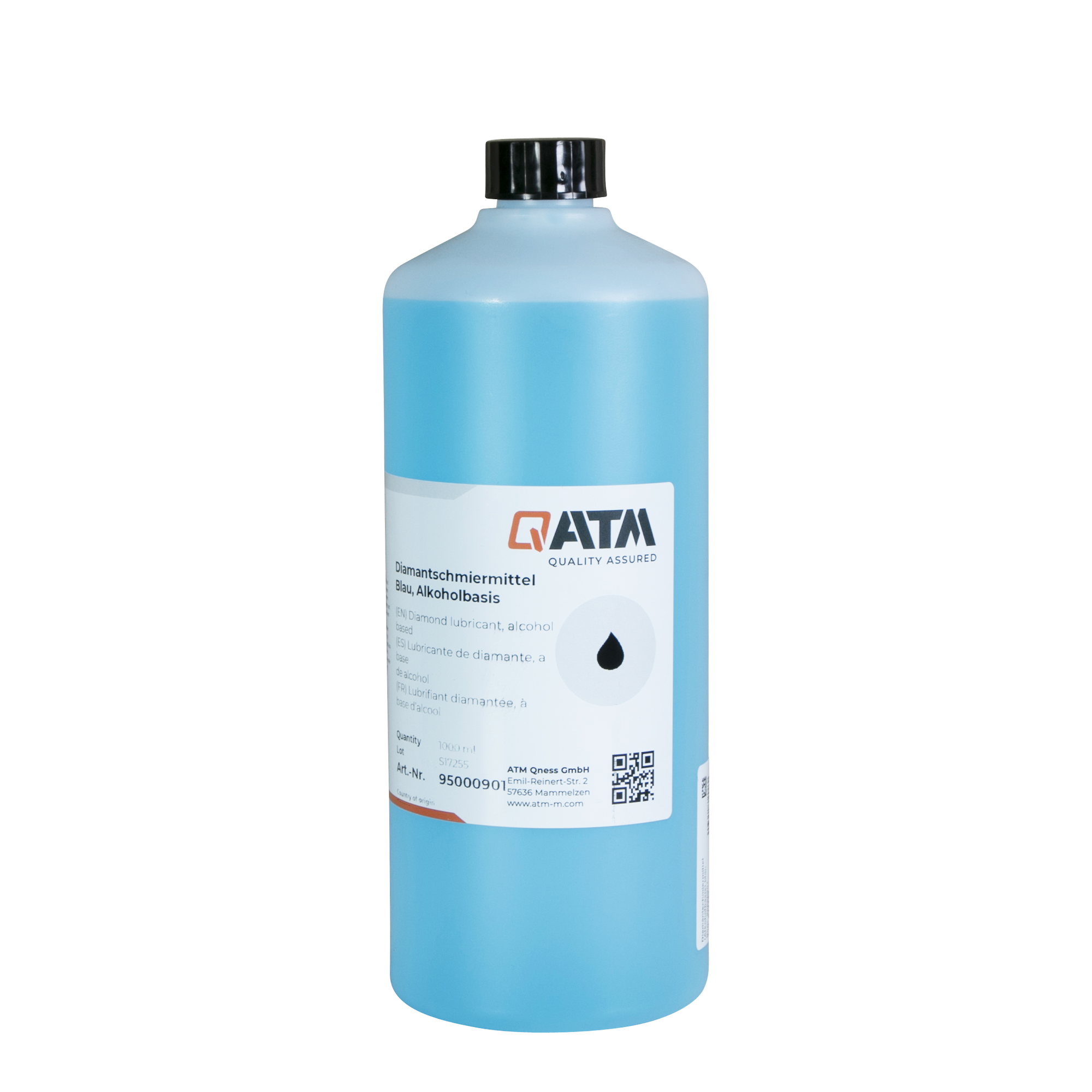

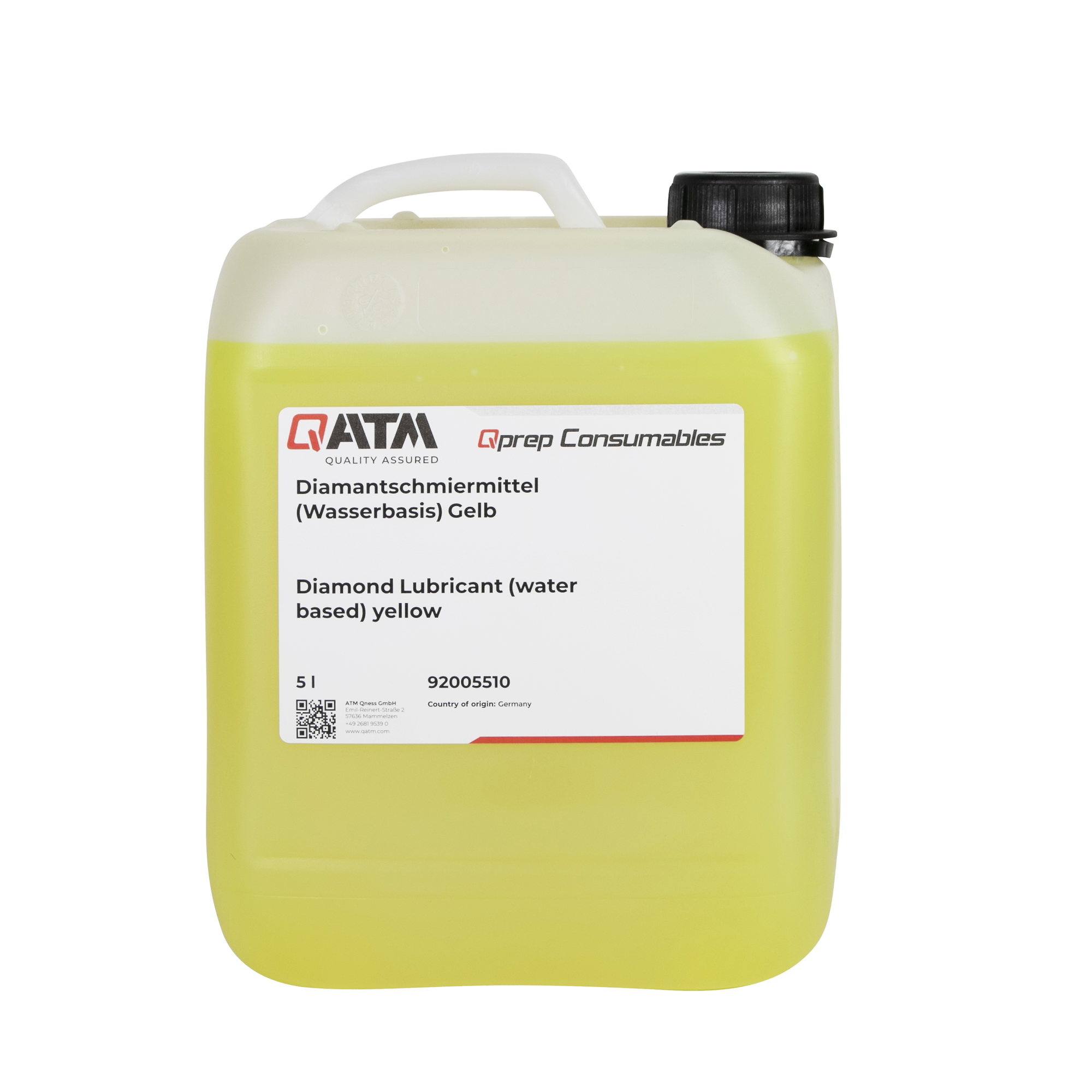

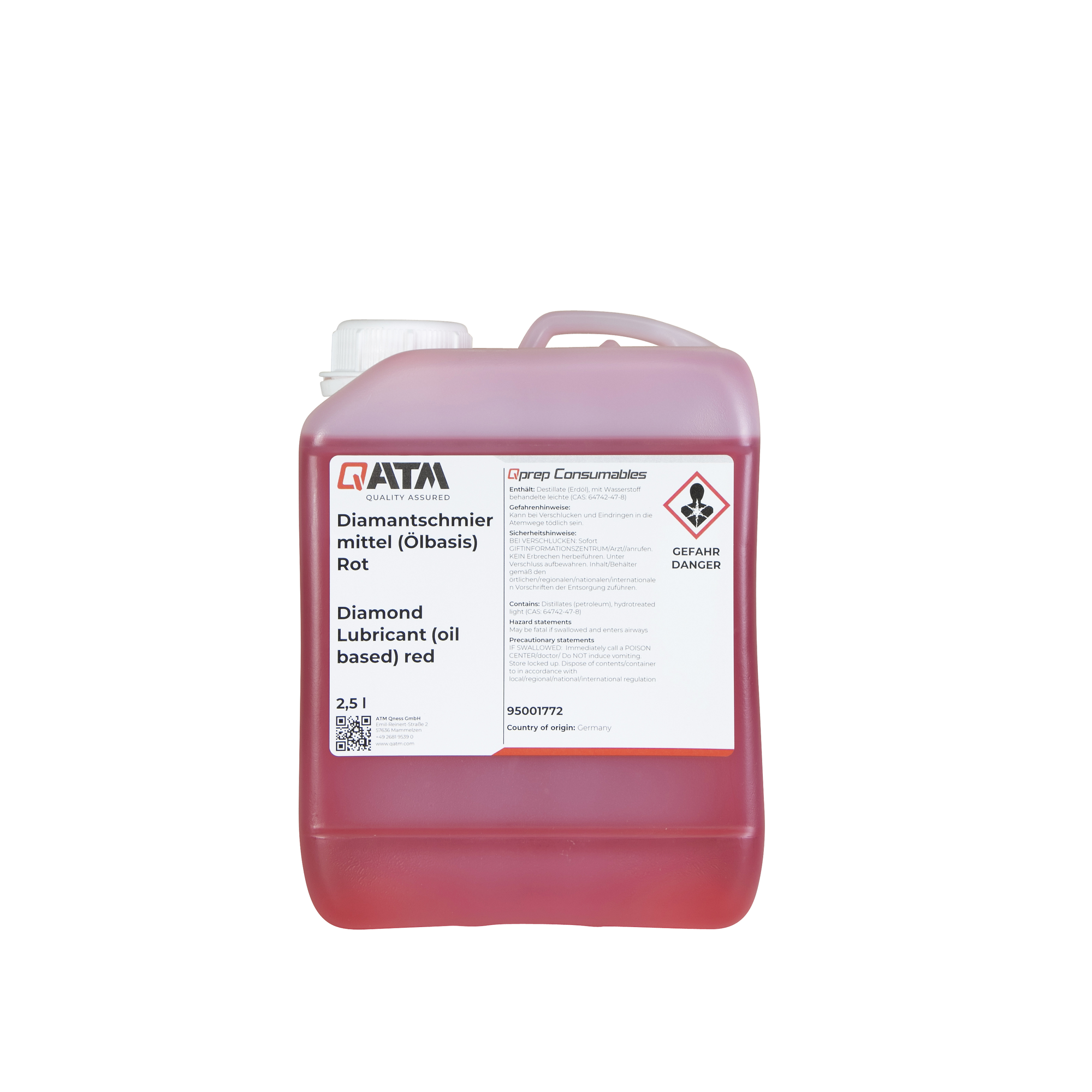

金刚石润滑剂, additive for diamond suspension/paste
金刚石润滑浓缩液
酒精
精抛悬浮液

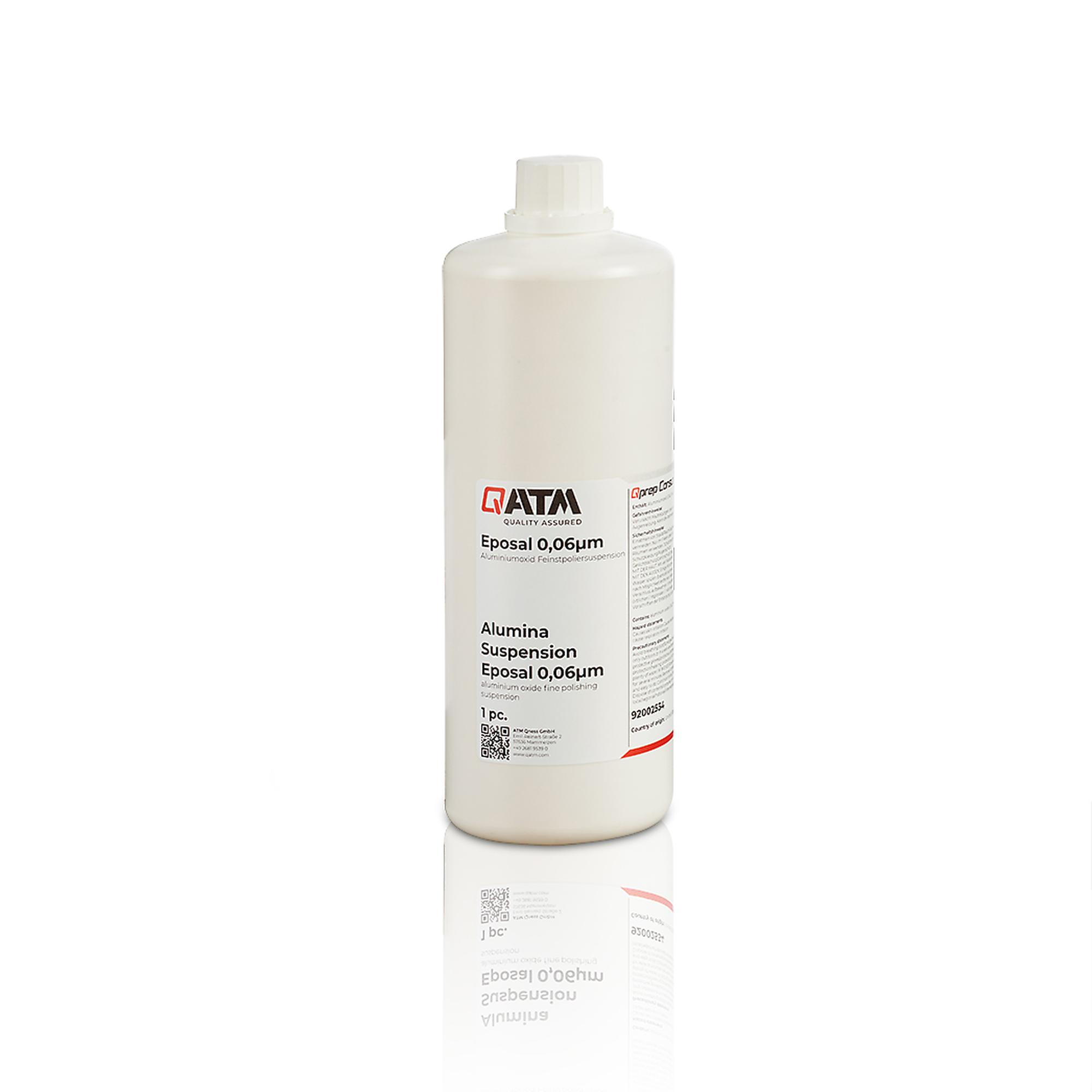

氧化铝悬浮液，煅烧
磁性膜，自粘
带金属背底的GALAXY抛光布
X-Tap

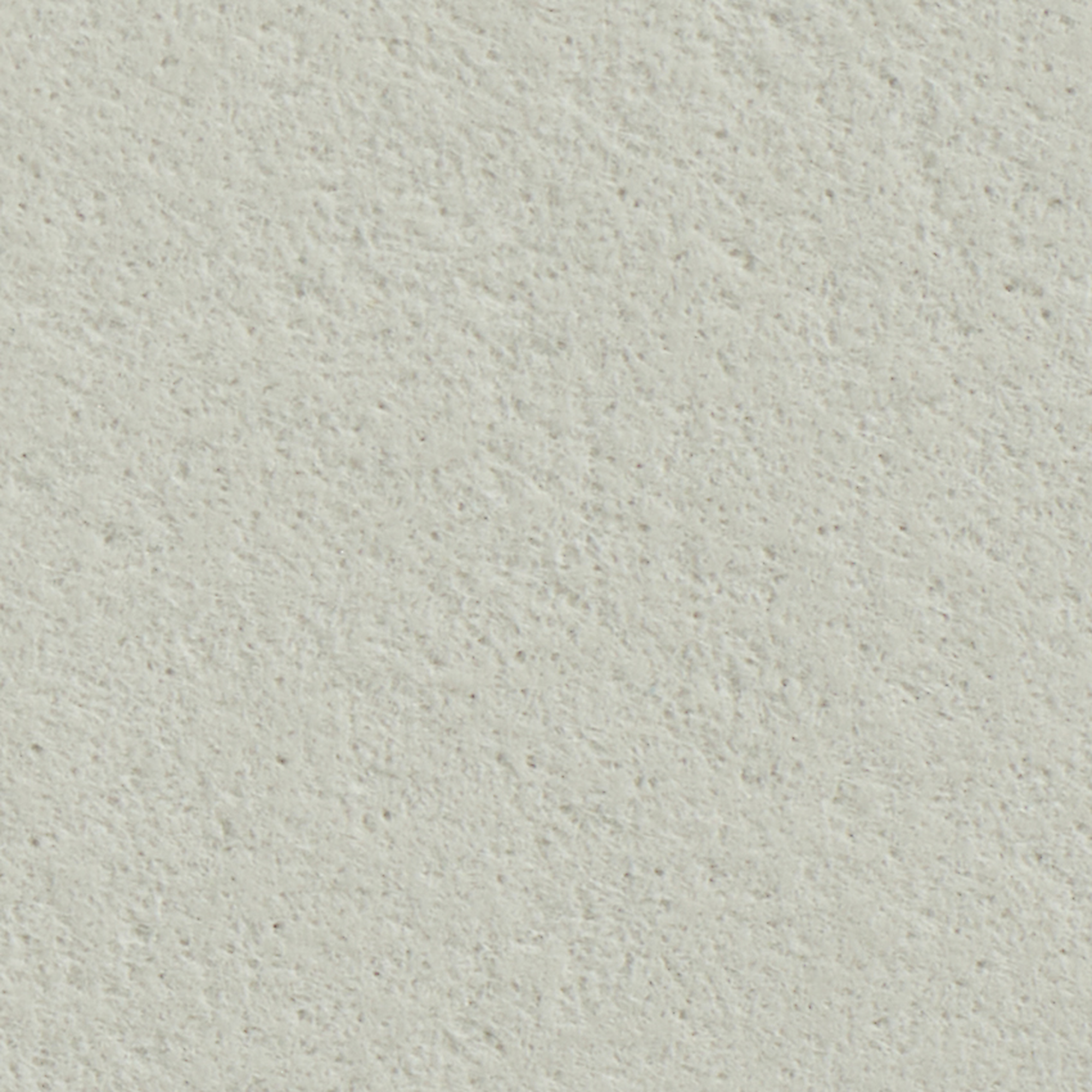

抛光布, 自粘

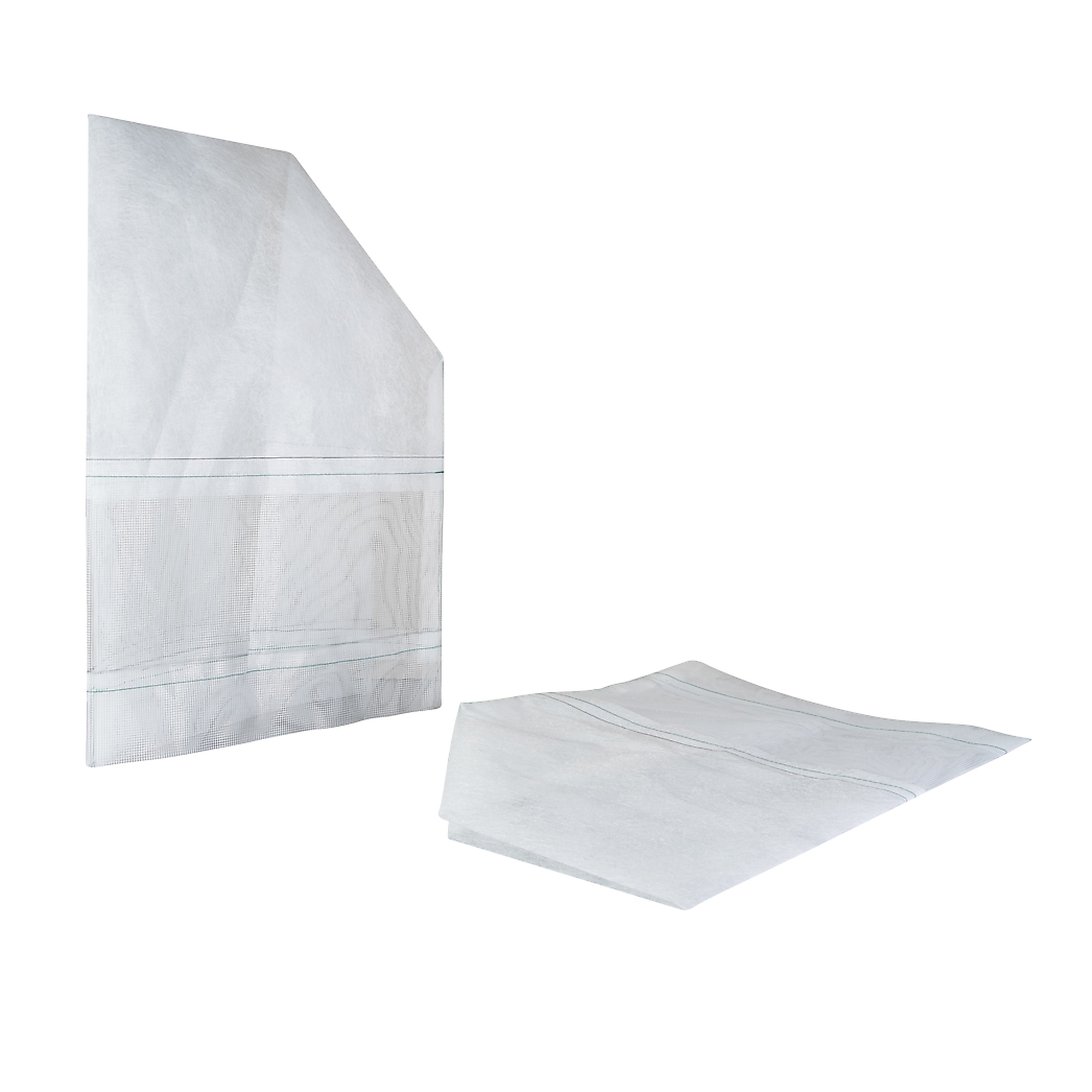

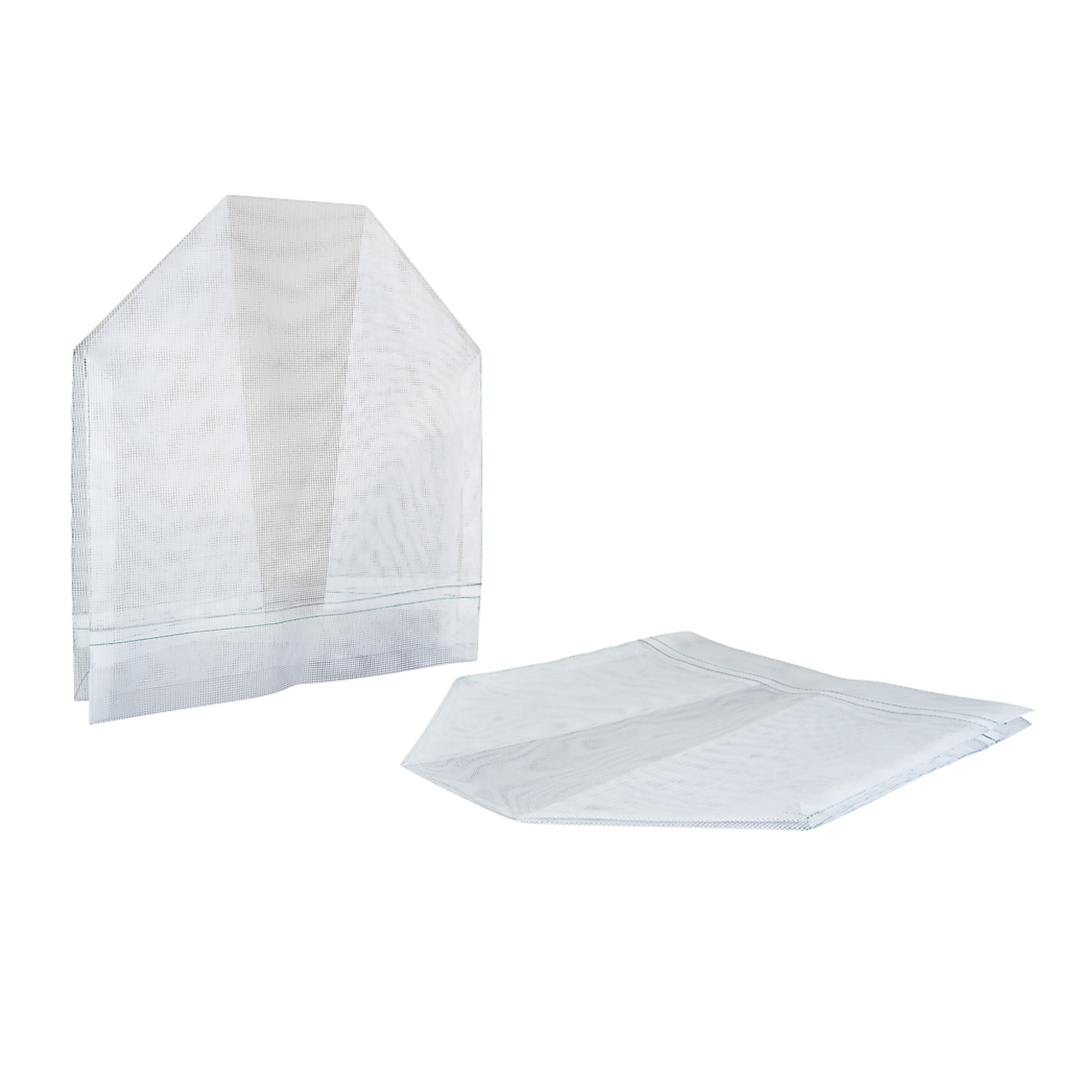

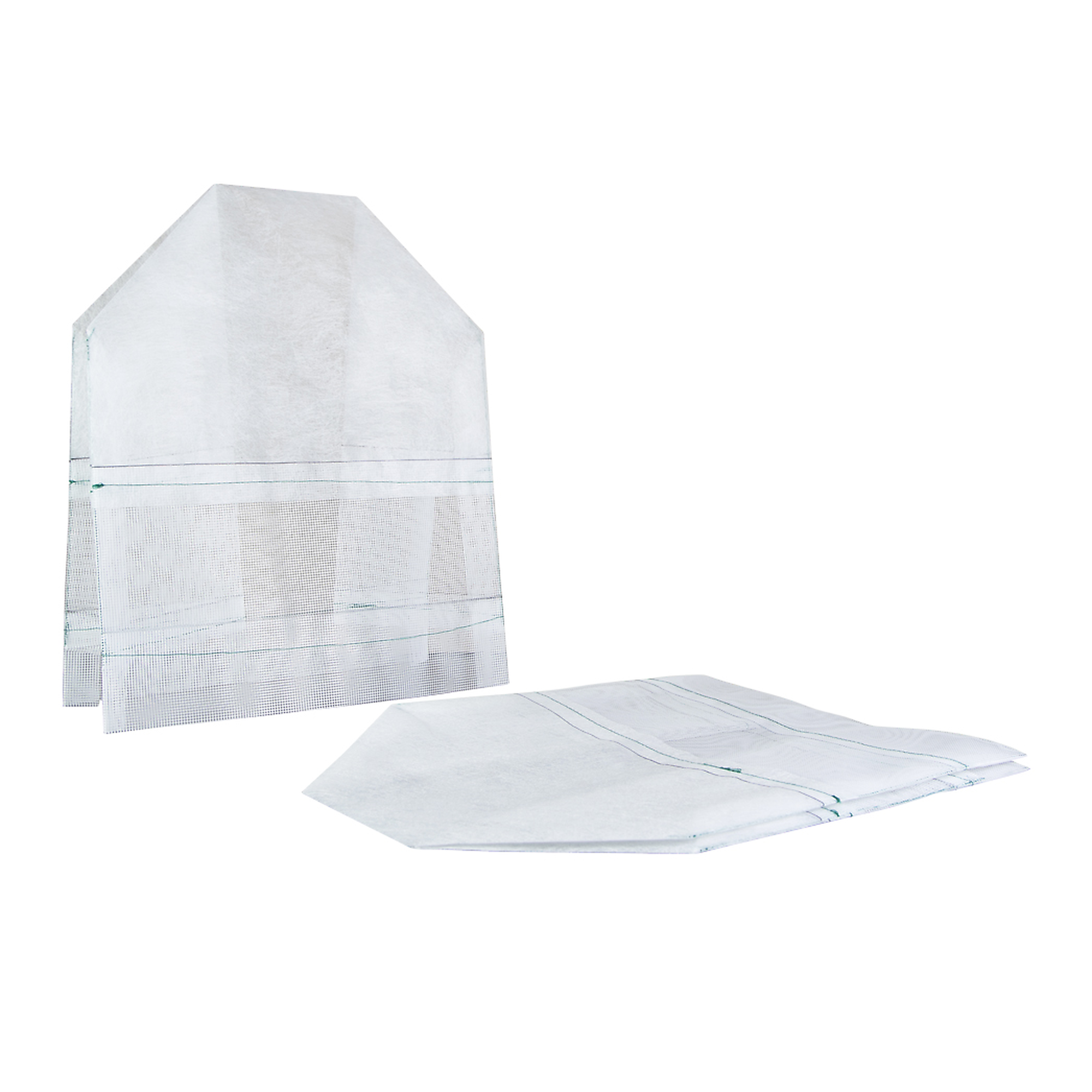

过滤袋
Qpol 300 BOT用滤芯

Hardness Testing

选项
Hardness test blocks Rockwell
(EN ISO 6508-3, ASTM E18)
Hardness test blocks Brinell
(EN ISO 6506-3, ASTM E10)
Hardness test blocks Vickers
(EN ISO 6507-3, ASTM E92)
Hardness test blocks Knoop
(EN ISO 4545-3, ASTM E92)

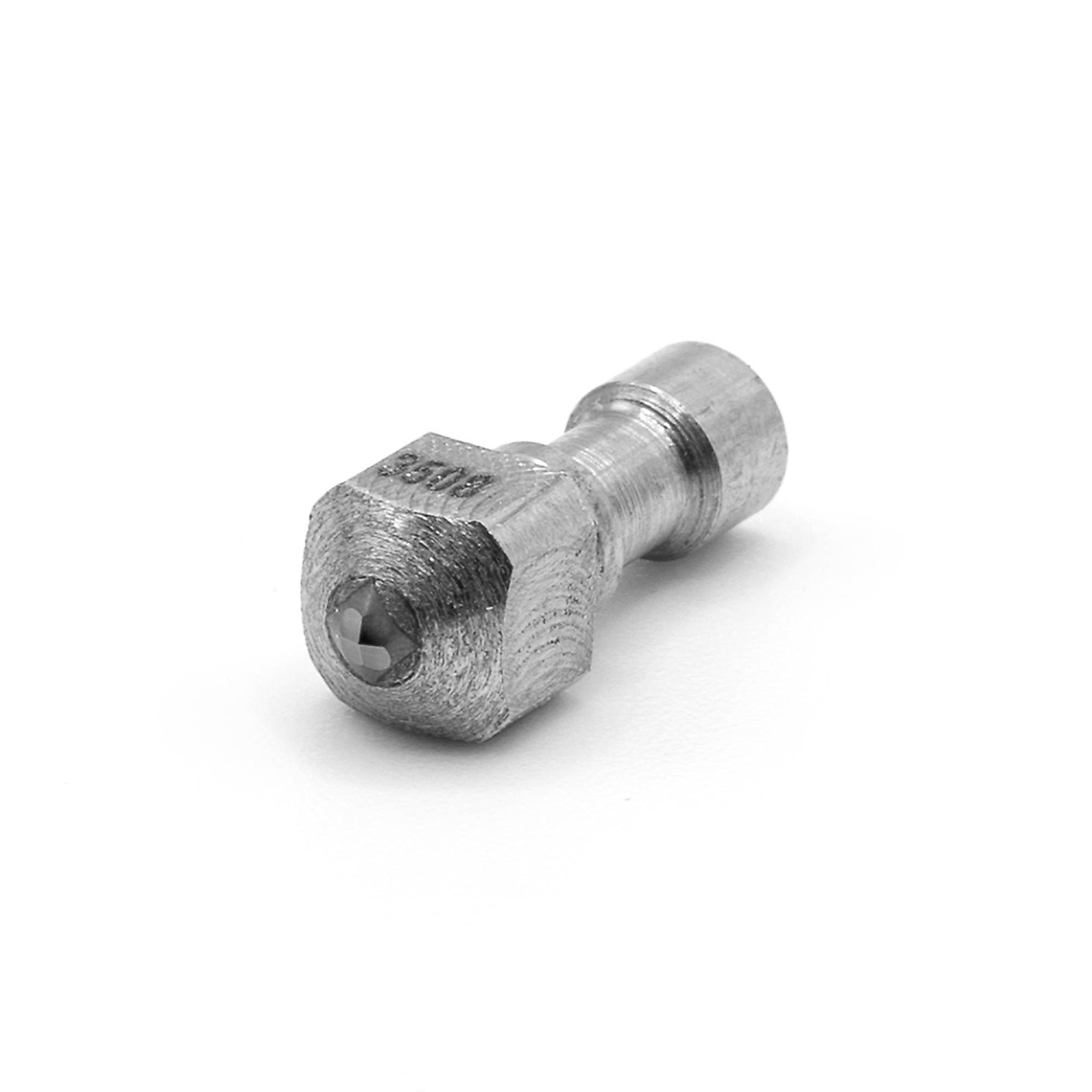

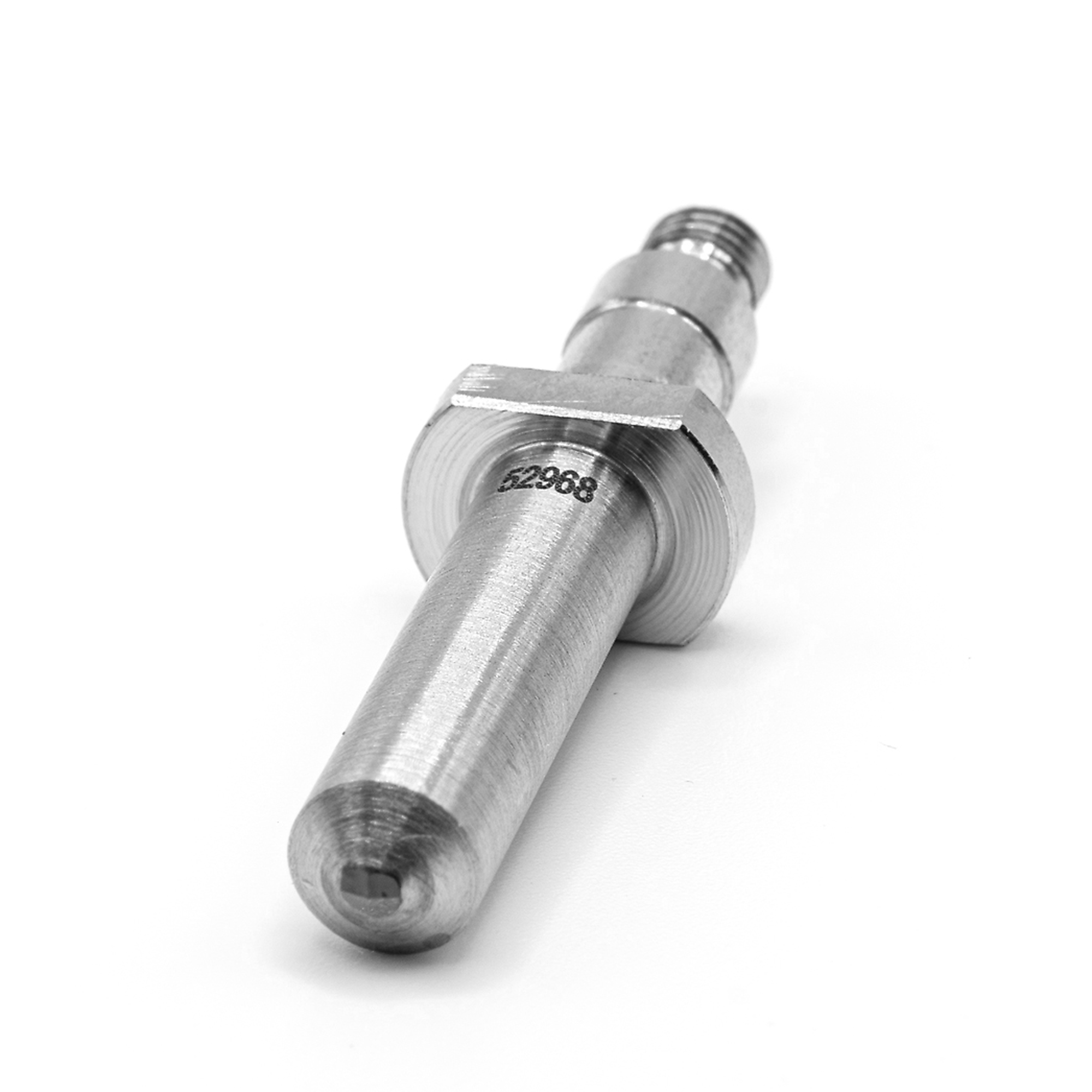

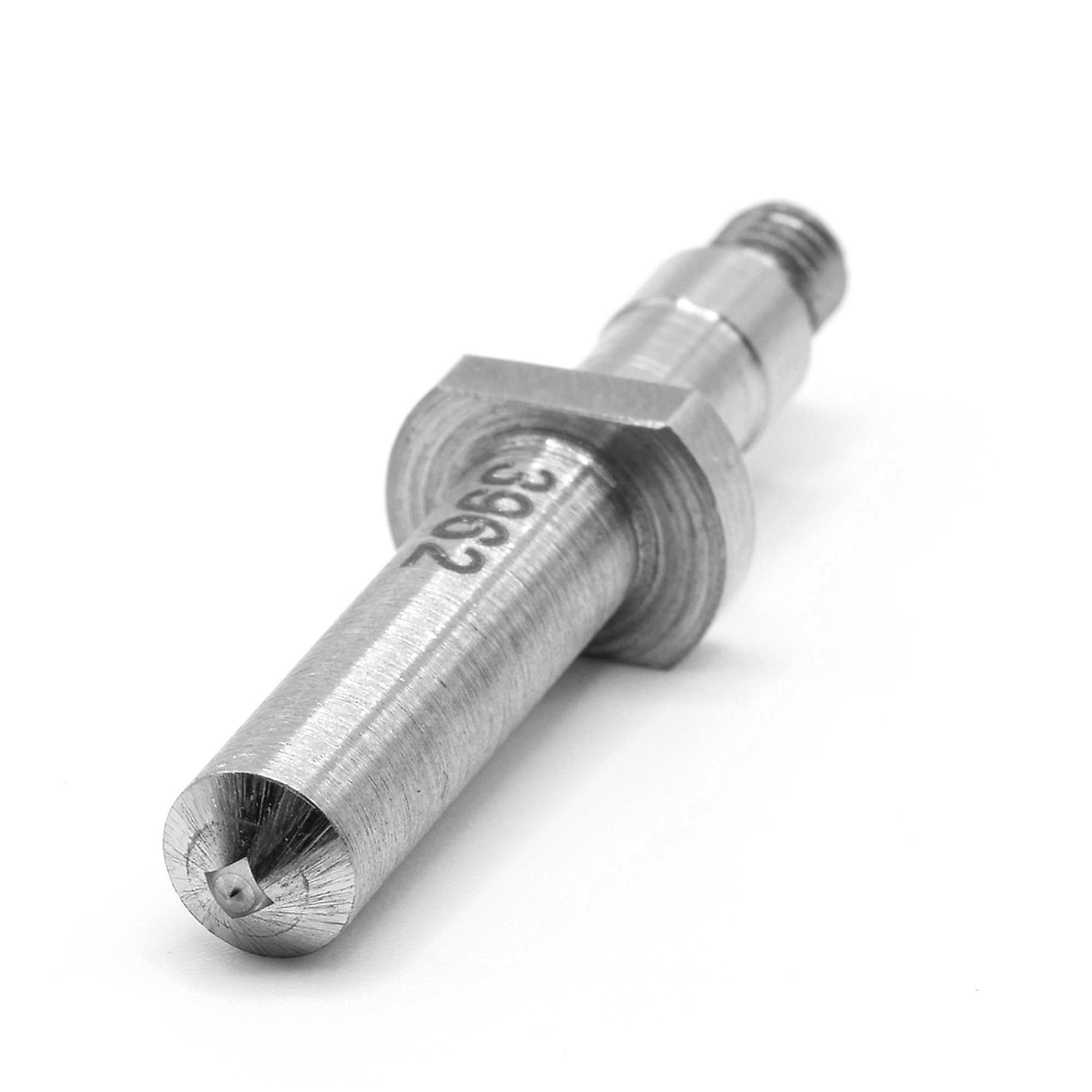

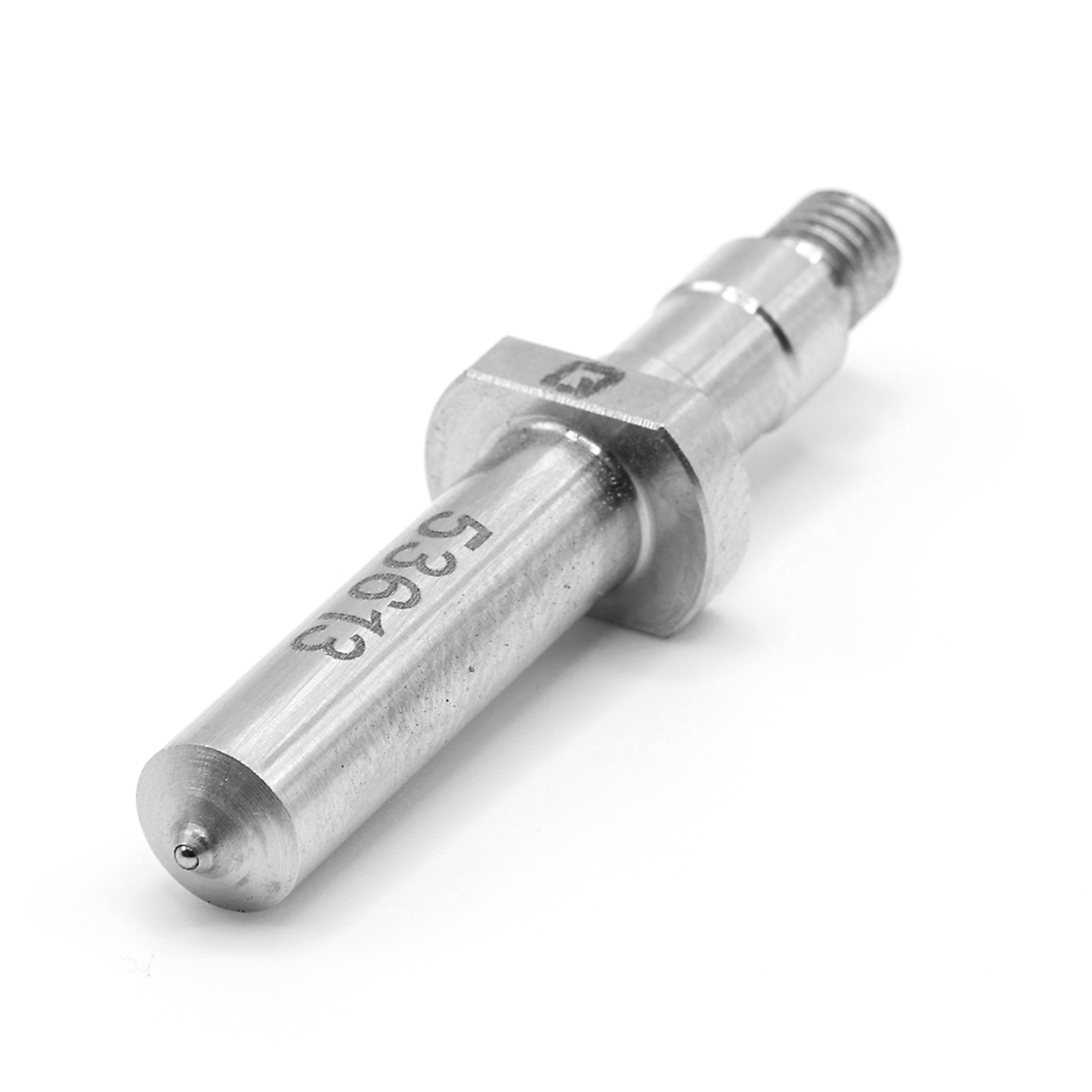

宏观金刚石压头

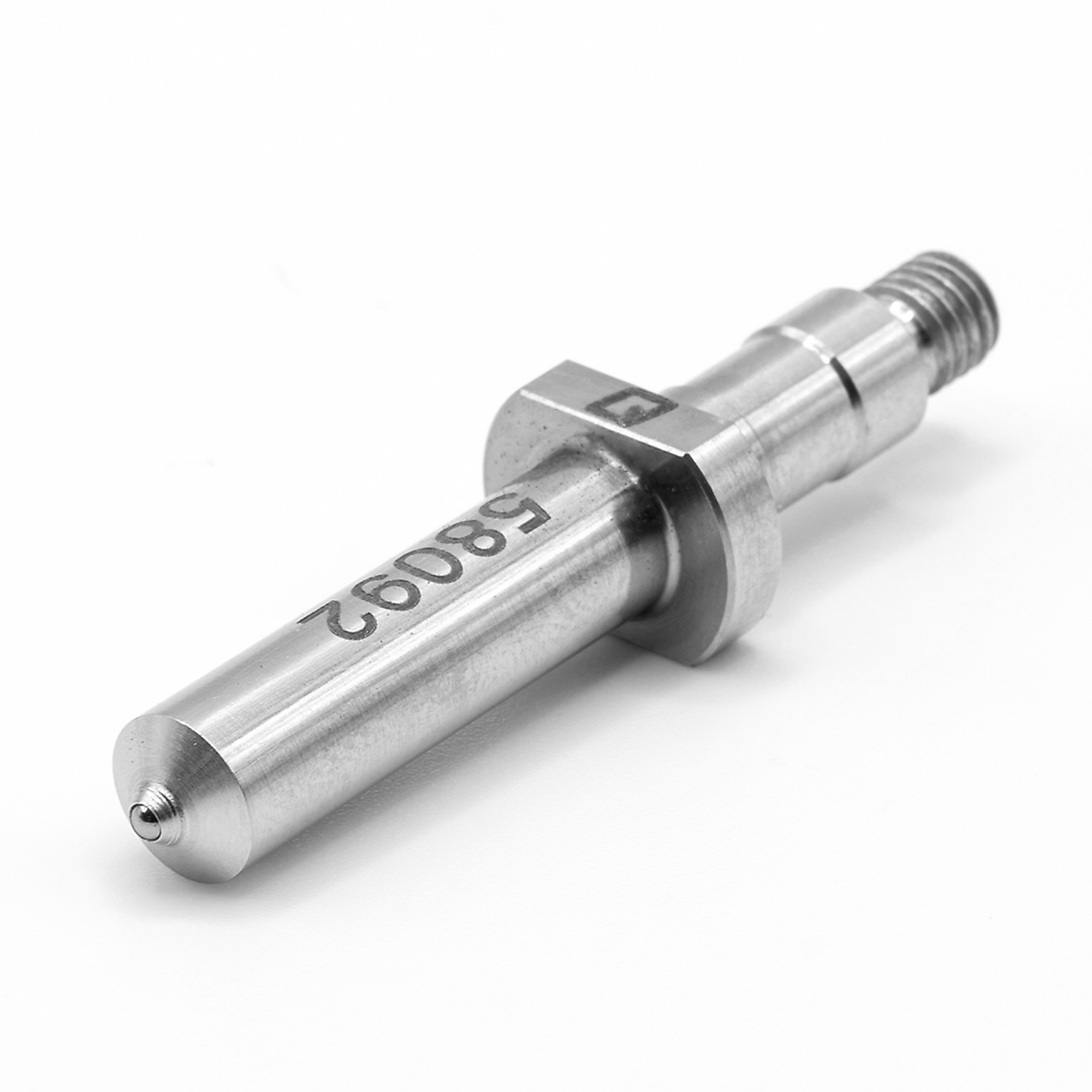

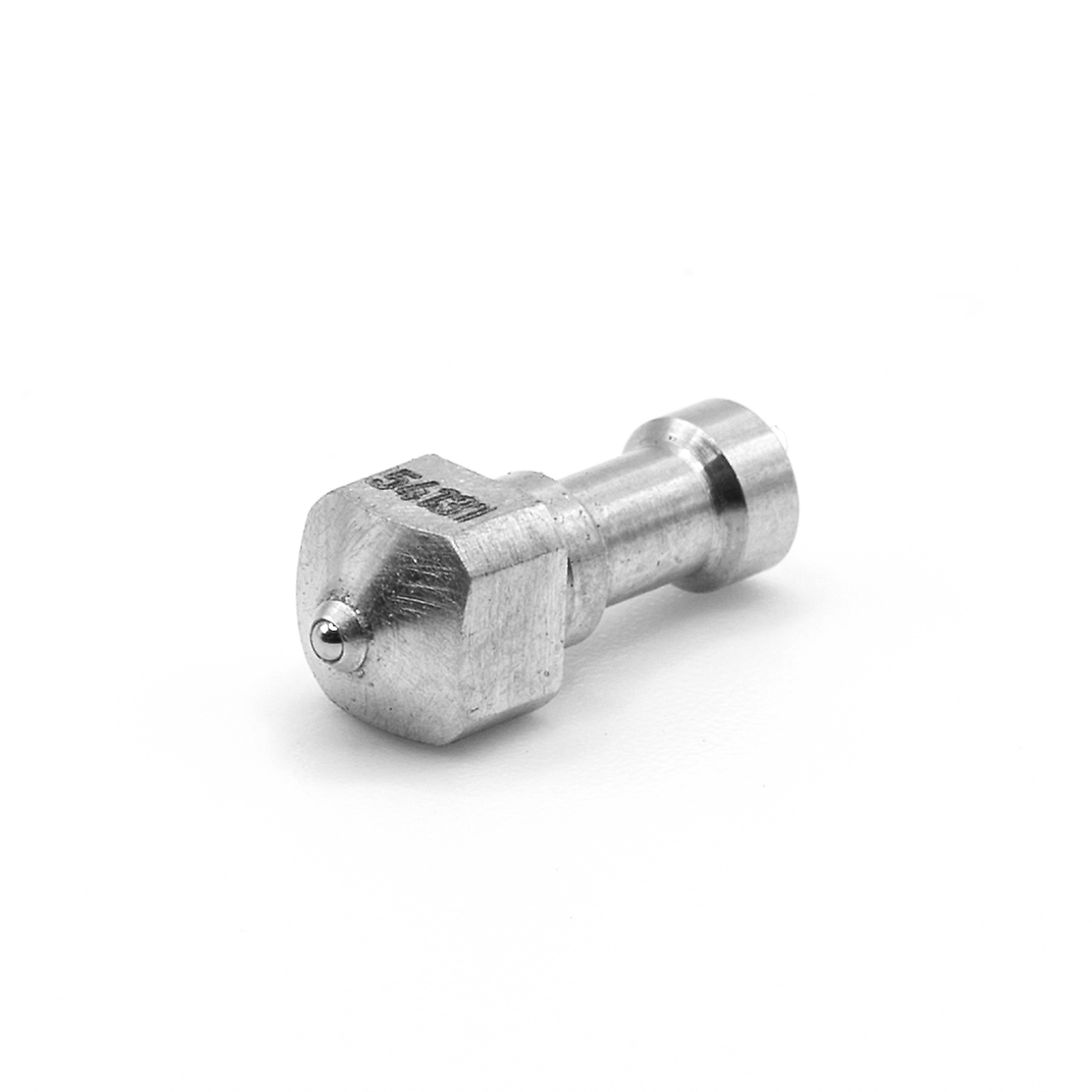

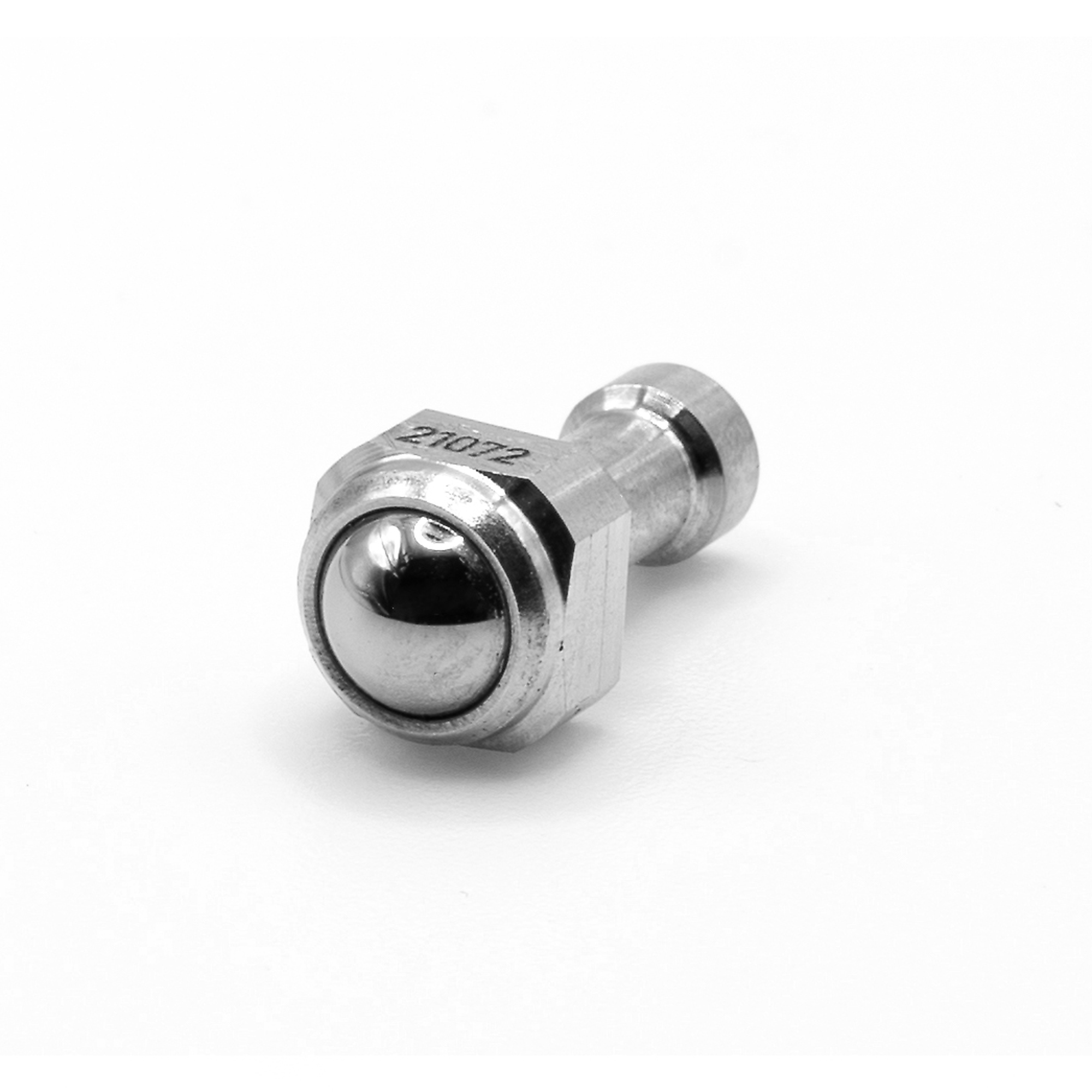

嵌入式球压头 – 宏观硬度

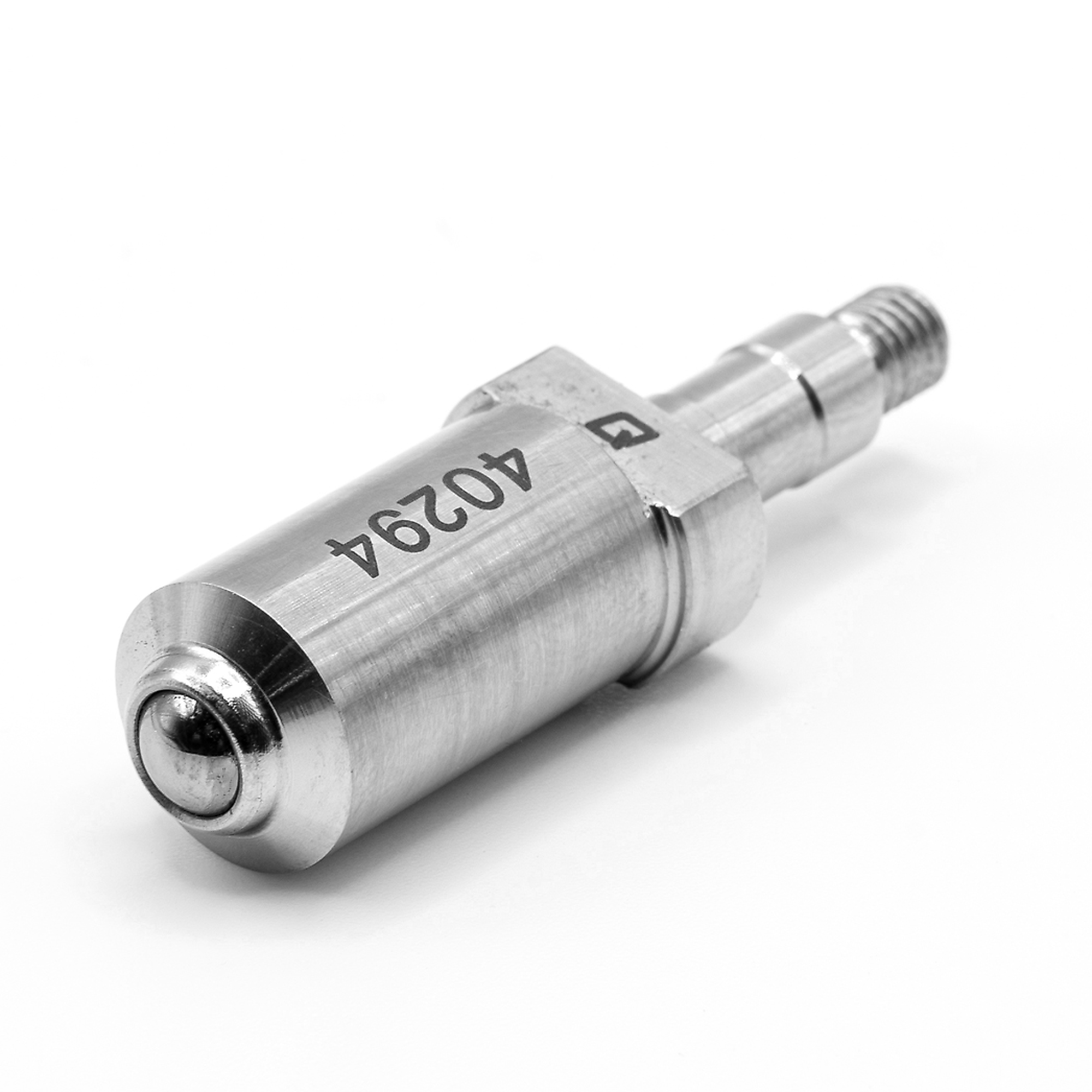

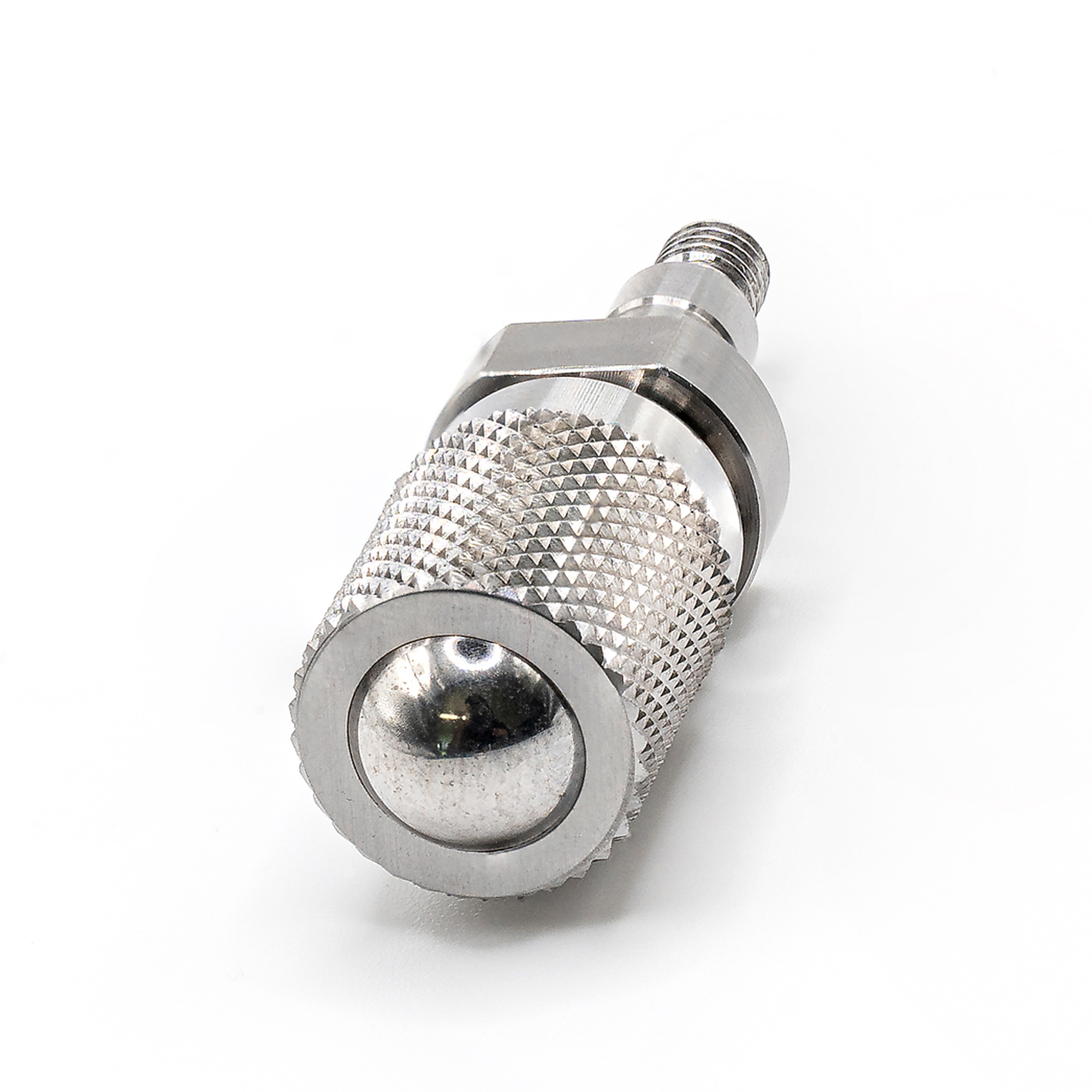

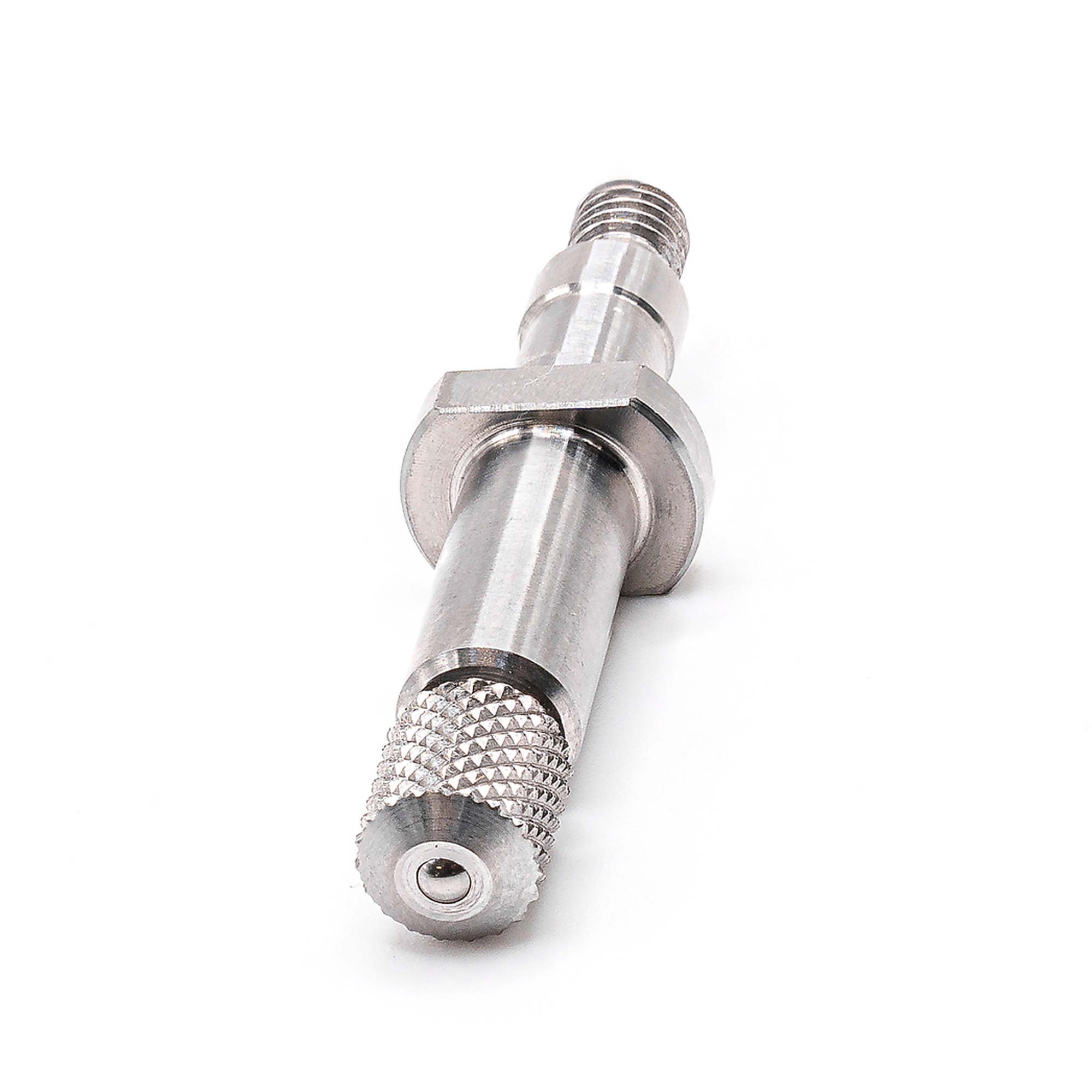

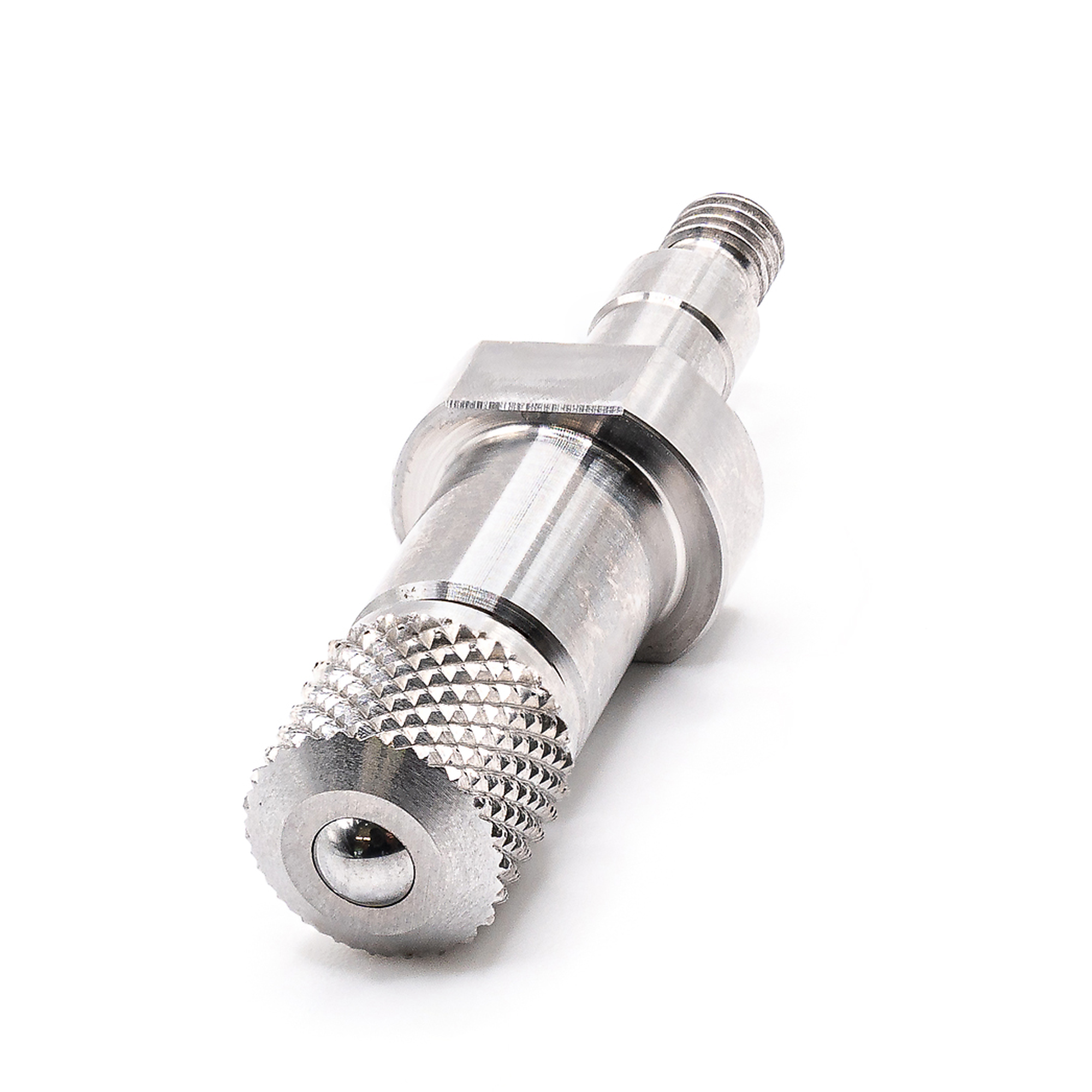

球压头，可更换球 – 宏观硬度

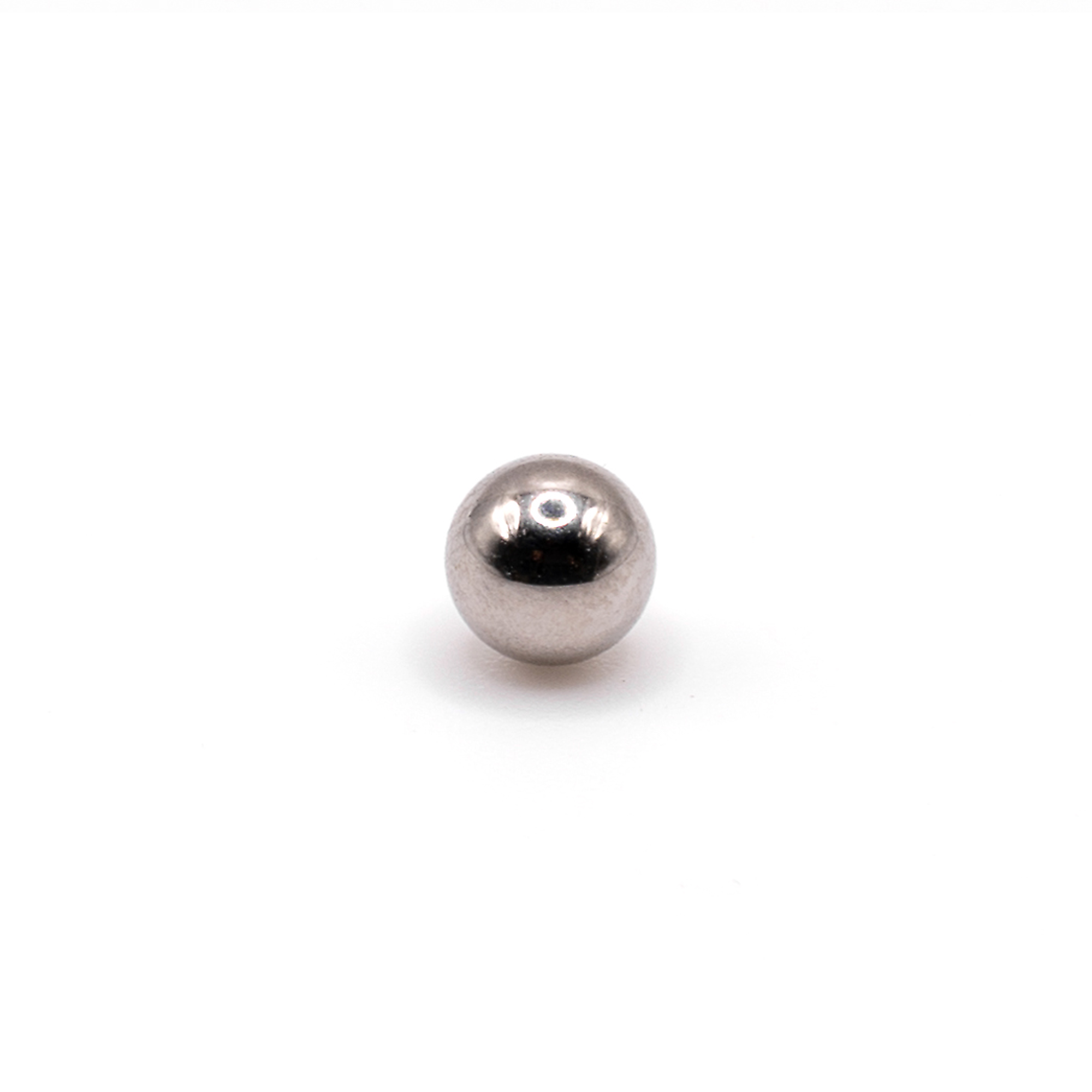

球压头用硬质合金球，可更换 – 宏观硬度
显微金刚石压头
硬度转换表海报

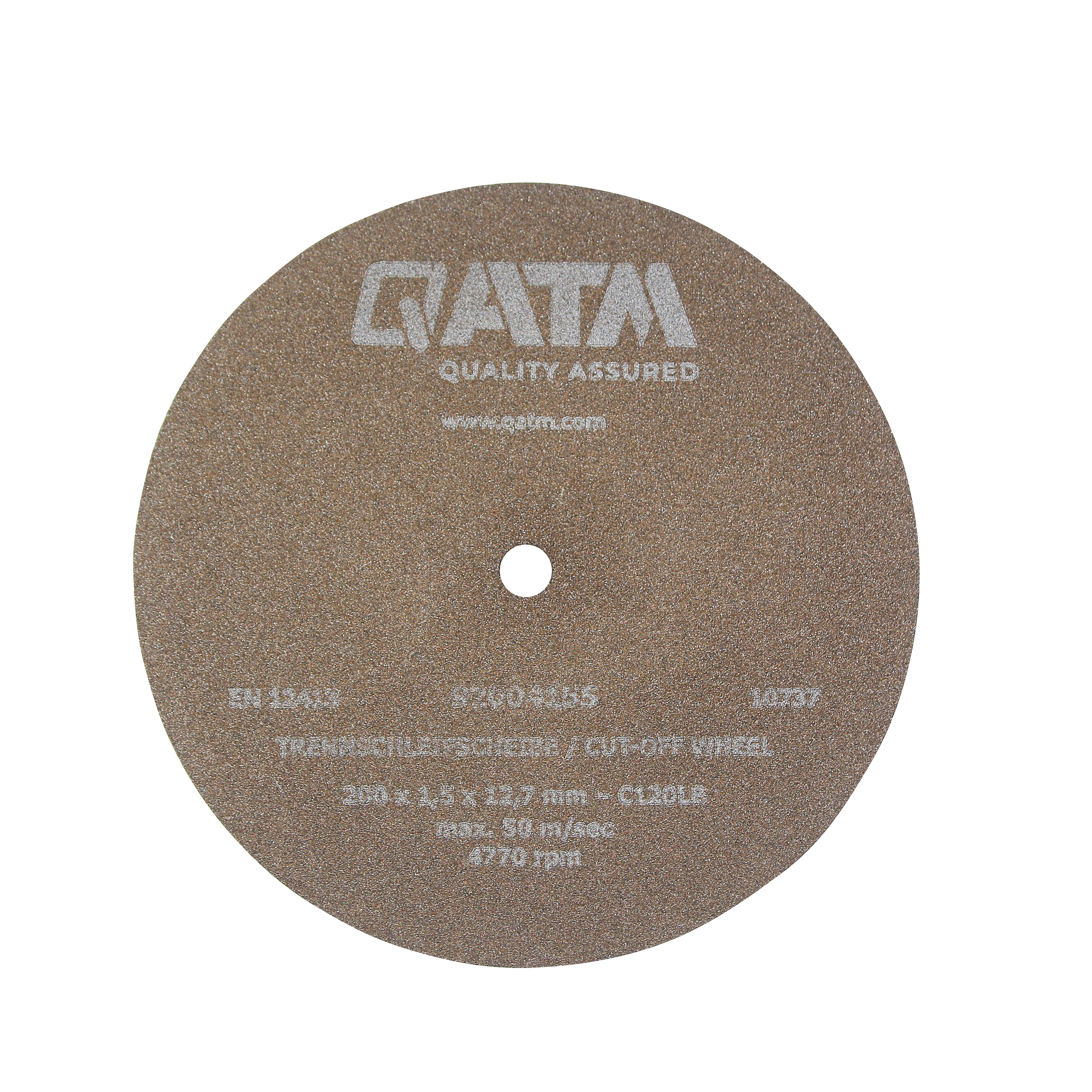

碳化硅精密切割轮

• for non-ferrous metals

厚度

内径

粘结剂

95017765

100 mm

0.5 mm

12.7 mm

树脂

5 pcs

95017766

150 mm

0.8 mm

12.7 mm

树脂

5 pcs

92004998

150 mm

1 mm

12.7 mm

树脂

5 pcs

92004155

200 mm

1.5 mm

12.7 mm

树脂

5 pcs

* 每个订单可获取一个变径环

变径环

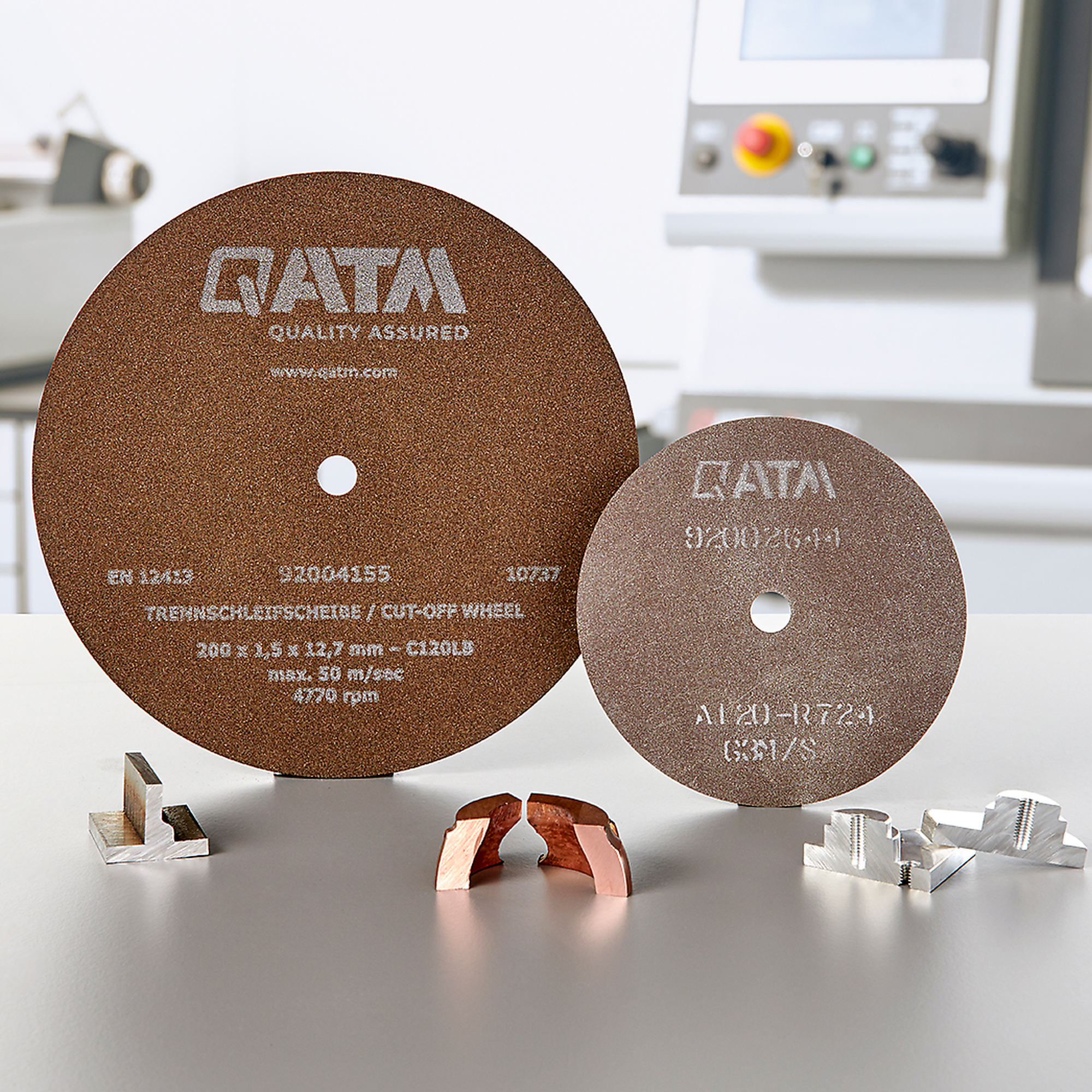

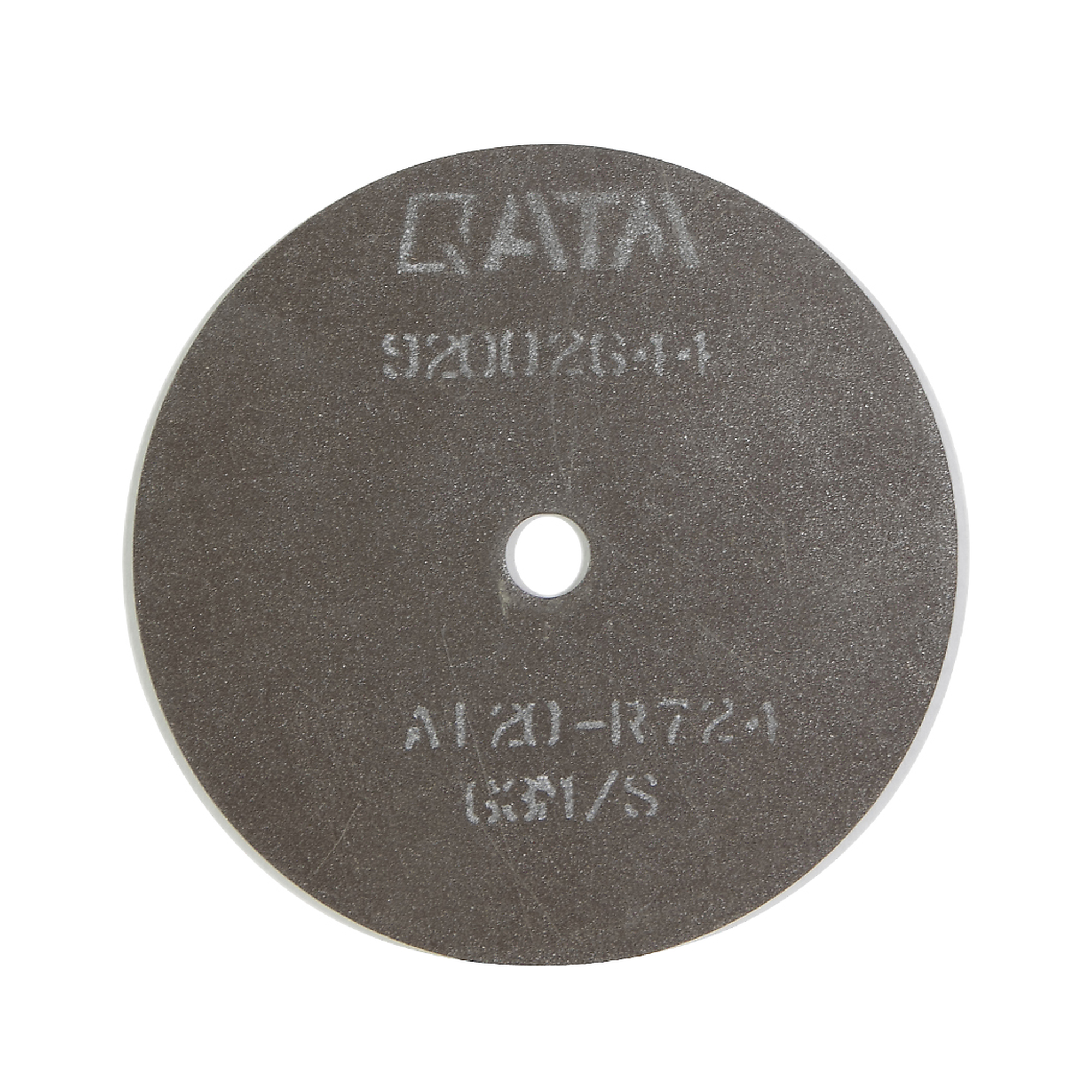

氧化铝精密切割轮

Fine-grained
• for universal application of materials of higher hardness
• precise cuts and high surface quality
• optimal for delicate samples and sensitive materials

厚度

内径

粘结剂

粒度

92002643

100 mm

0.25 mm

12.7 mm

Rubber

Fine grid

5 pcs

92002645

100 mm

0.4 mm

12.7 mm

Rubber

Fine grid

5 pcs

92002644

125 mm

0.45 mm

12.7 mm

Rubber

Fine grid

5 pcs

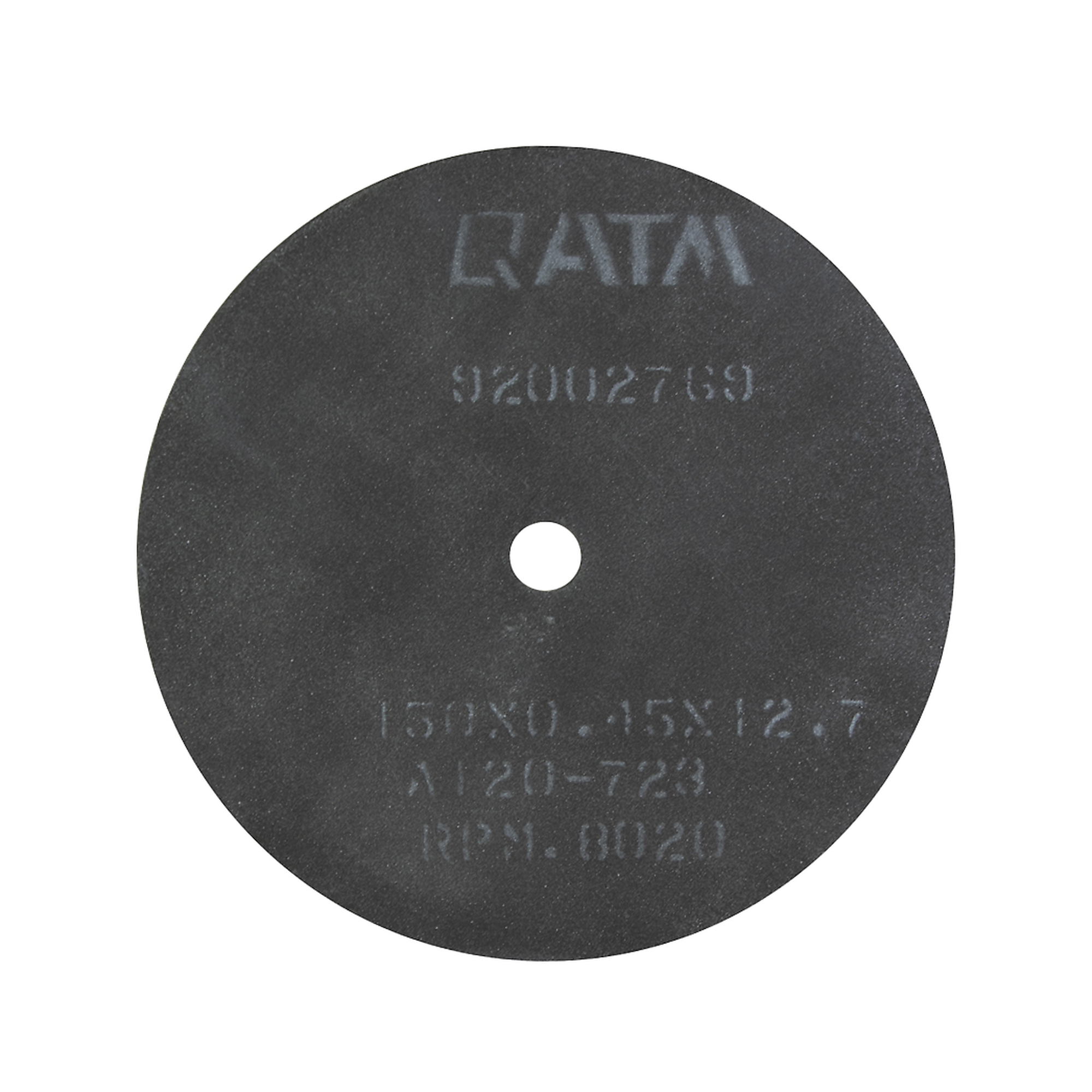

92002769

150 mm

0.45 mm

12.7 mm

Rubber

Fine grid

5 pcs

95014126

200 mm

0.45 mm

12.7 mm

Rubber

Fine grid

5 pcs

Coarse-grained
• for universal use with lower hardness materials
• ideal for rough geometries and mounted sample material
• fast and efficient cuts

厚度

内径

粘结剂

粒度

92002646

125 mm

0.8 mm

12.7 mm

Rubber

Coarse grid

5 pcs

92002770

150 mm

0.6 mm

12.7 mm

Rubber

Coarse grid

5 pcs

92002647

200 mm

0.8 mm

12.7 mm

Rubber

Coarse grid

5 pcs

92004159

150 mm

1 mm

12.7 mm

树脂

Coarse grid

5 pcs

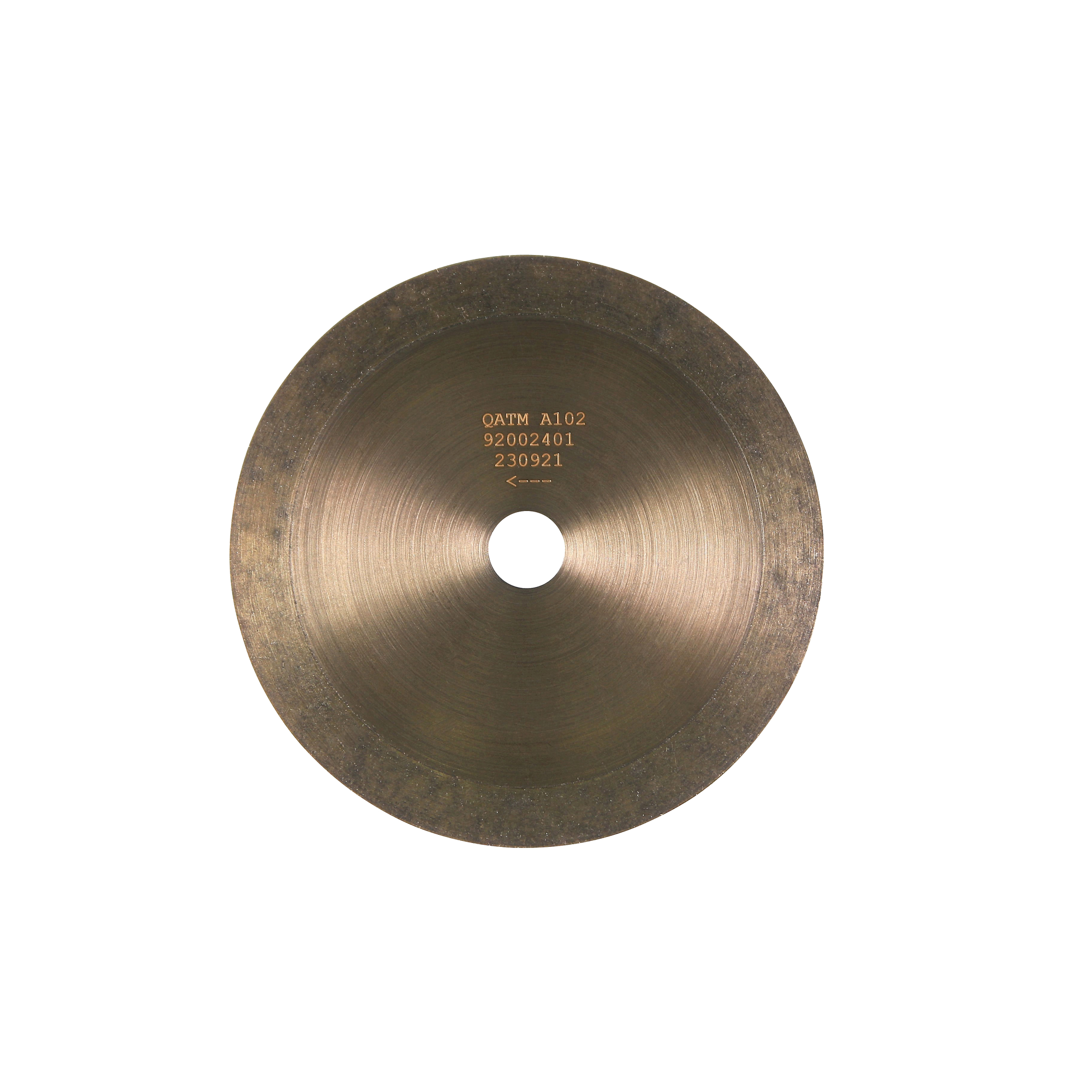

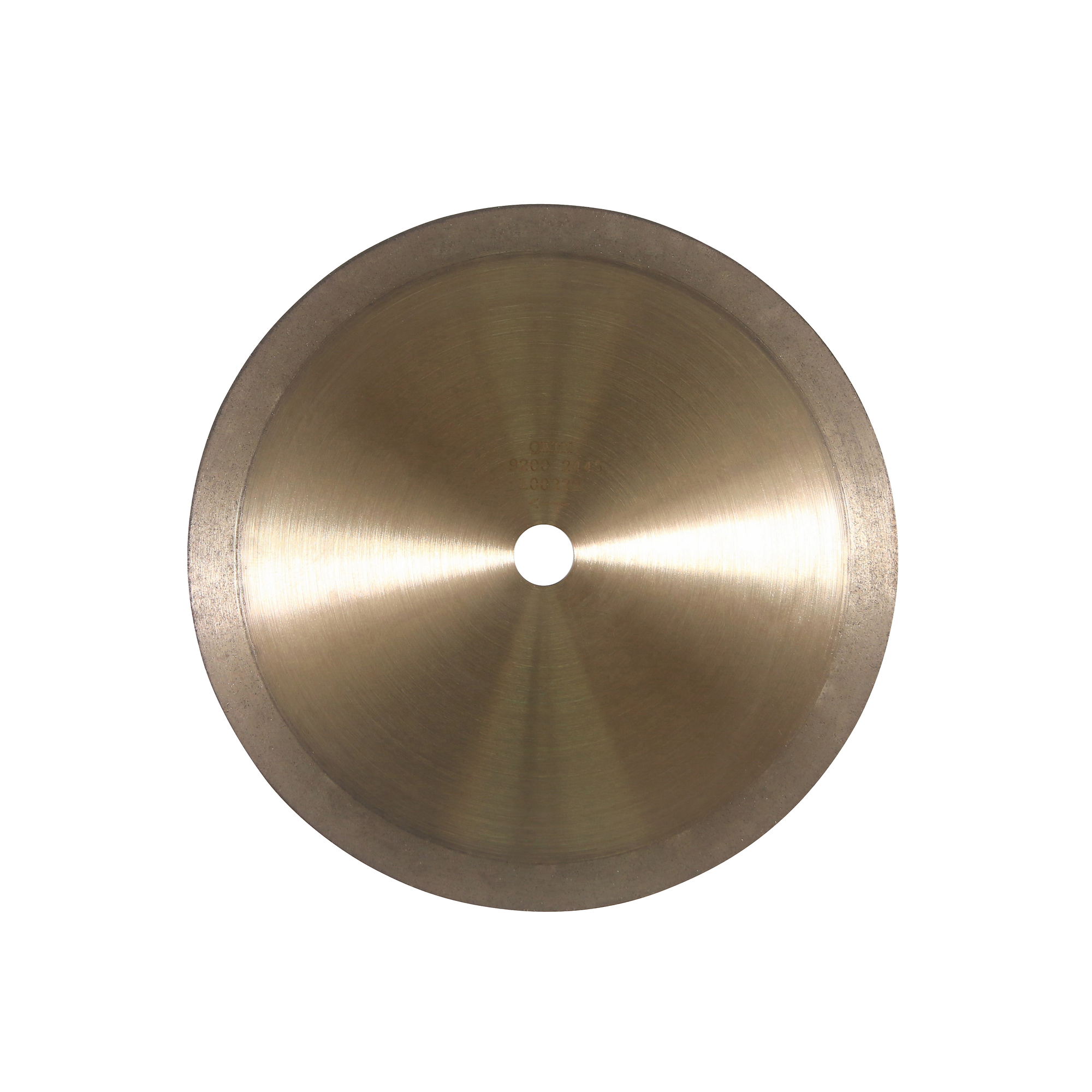

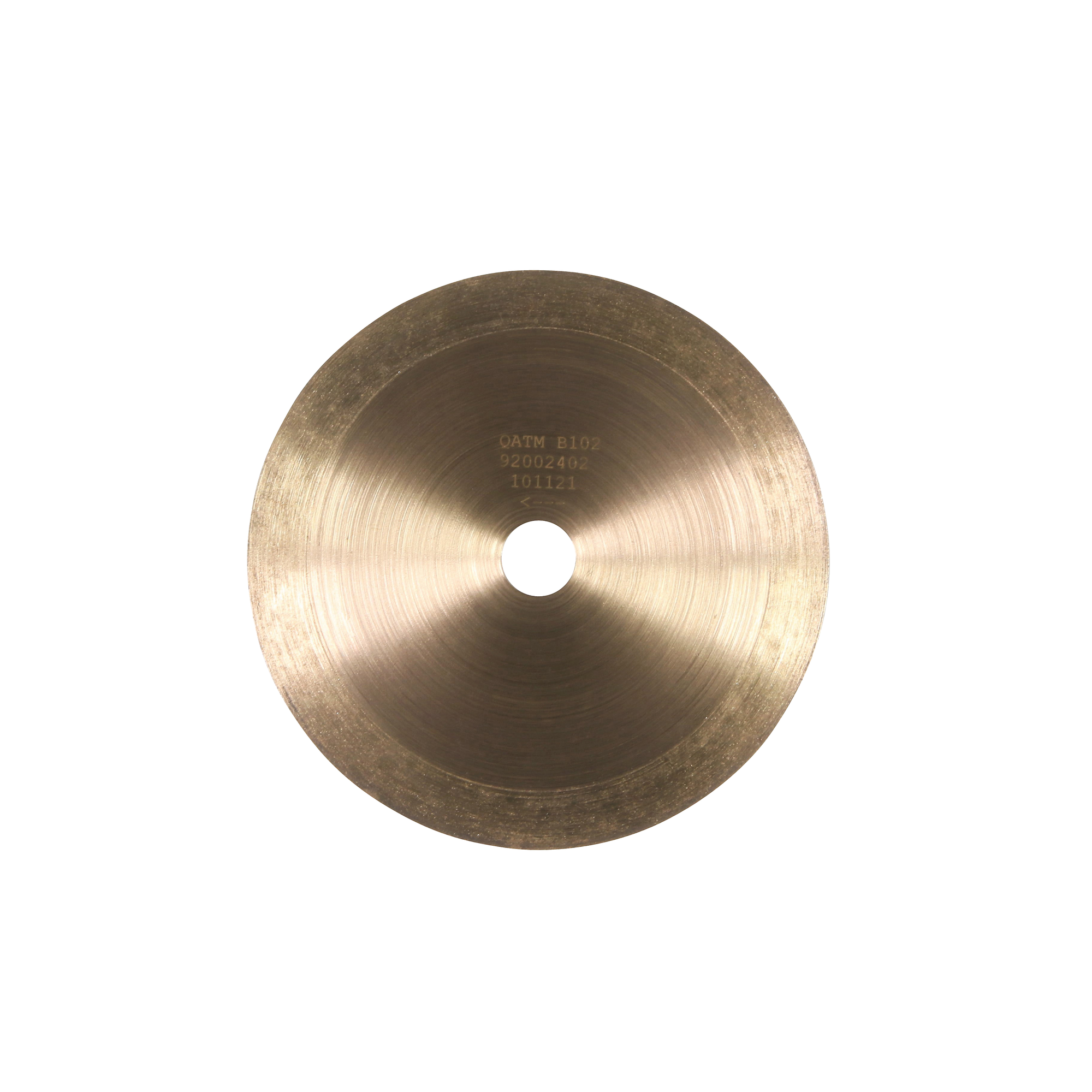

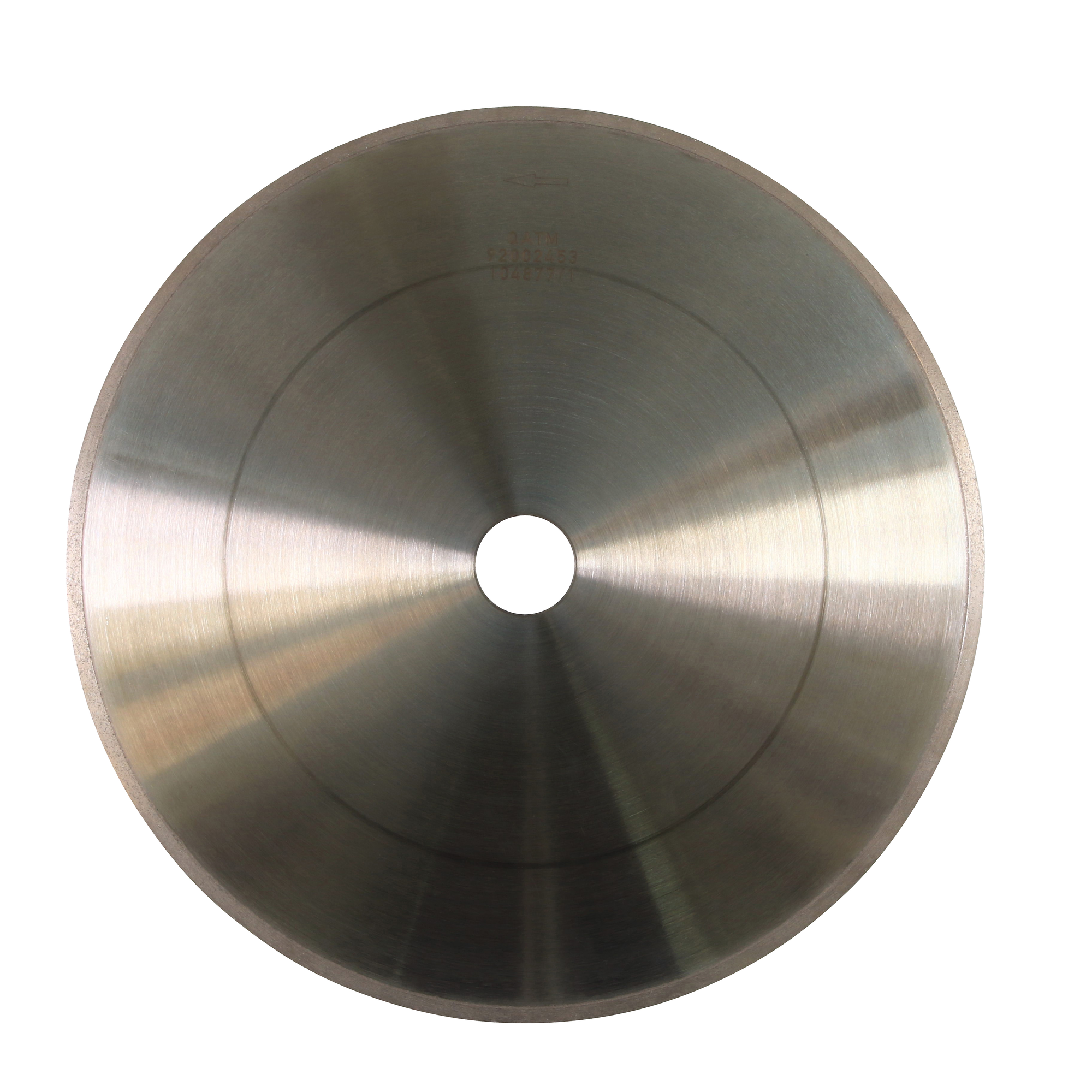

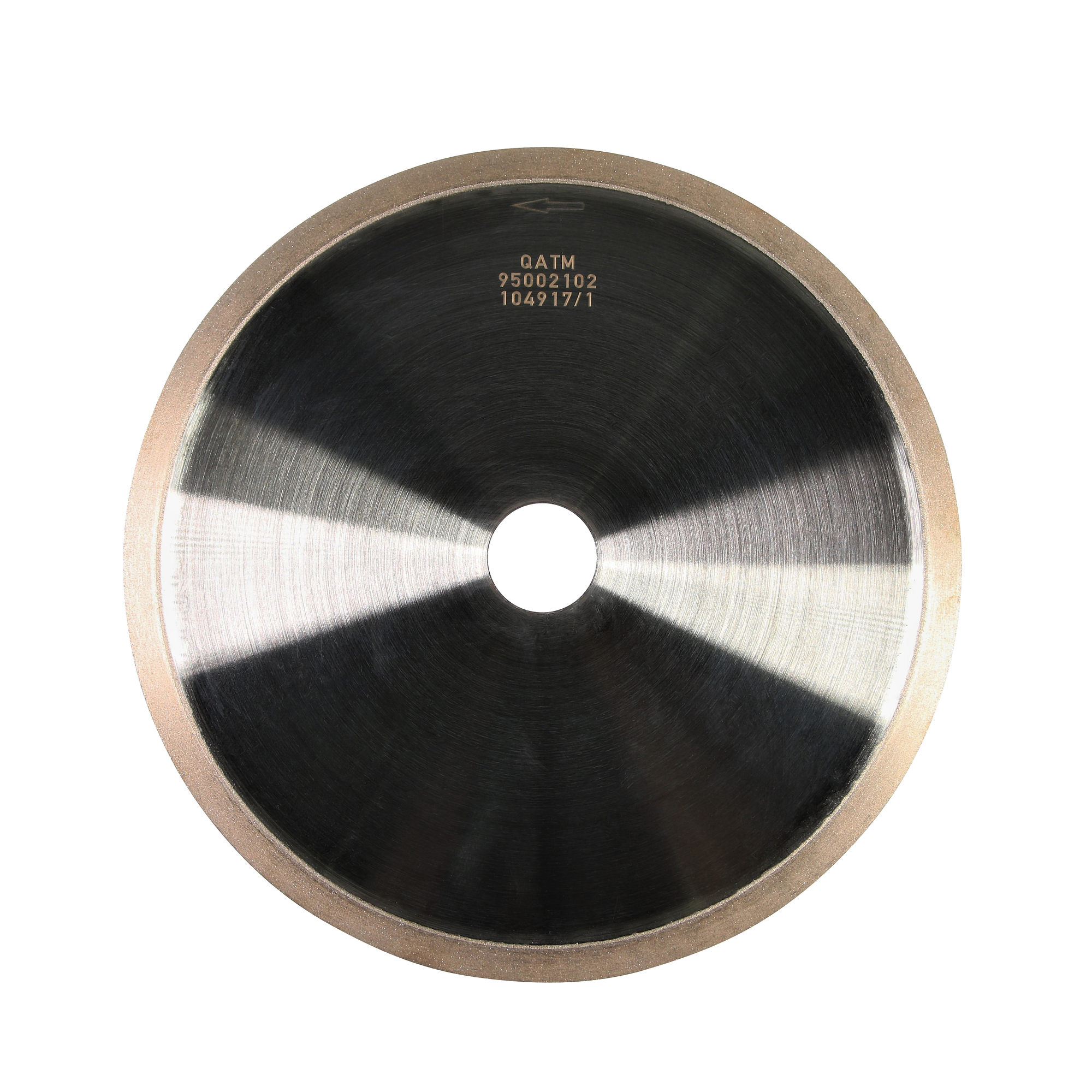

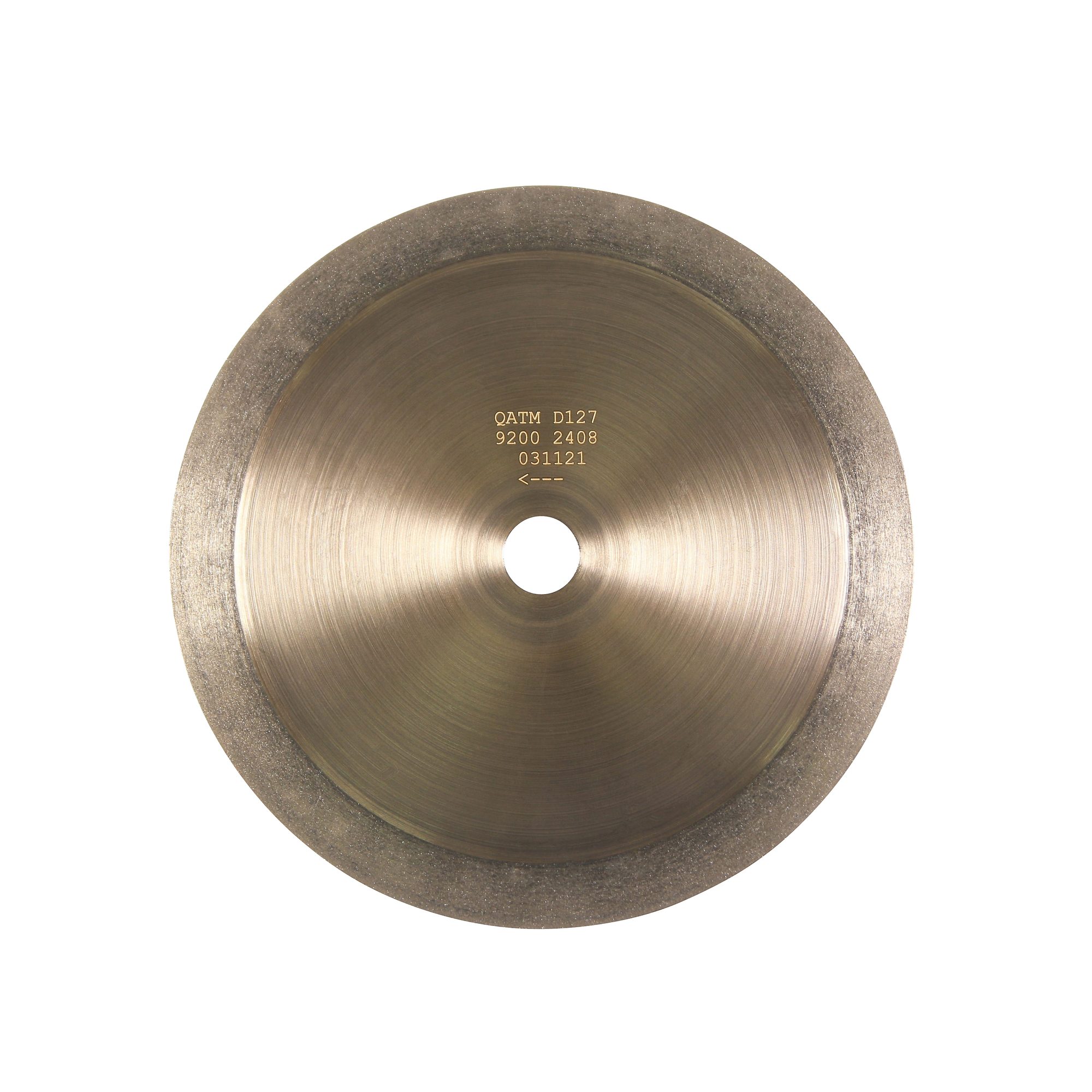

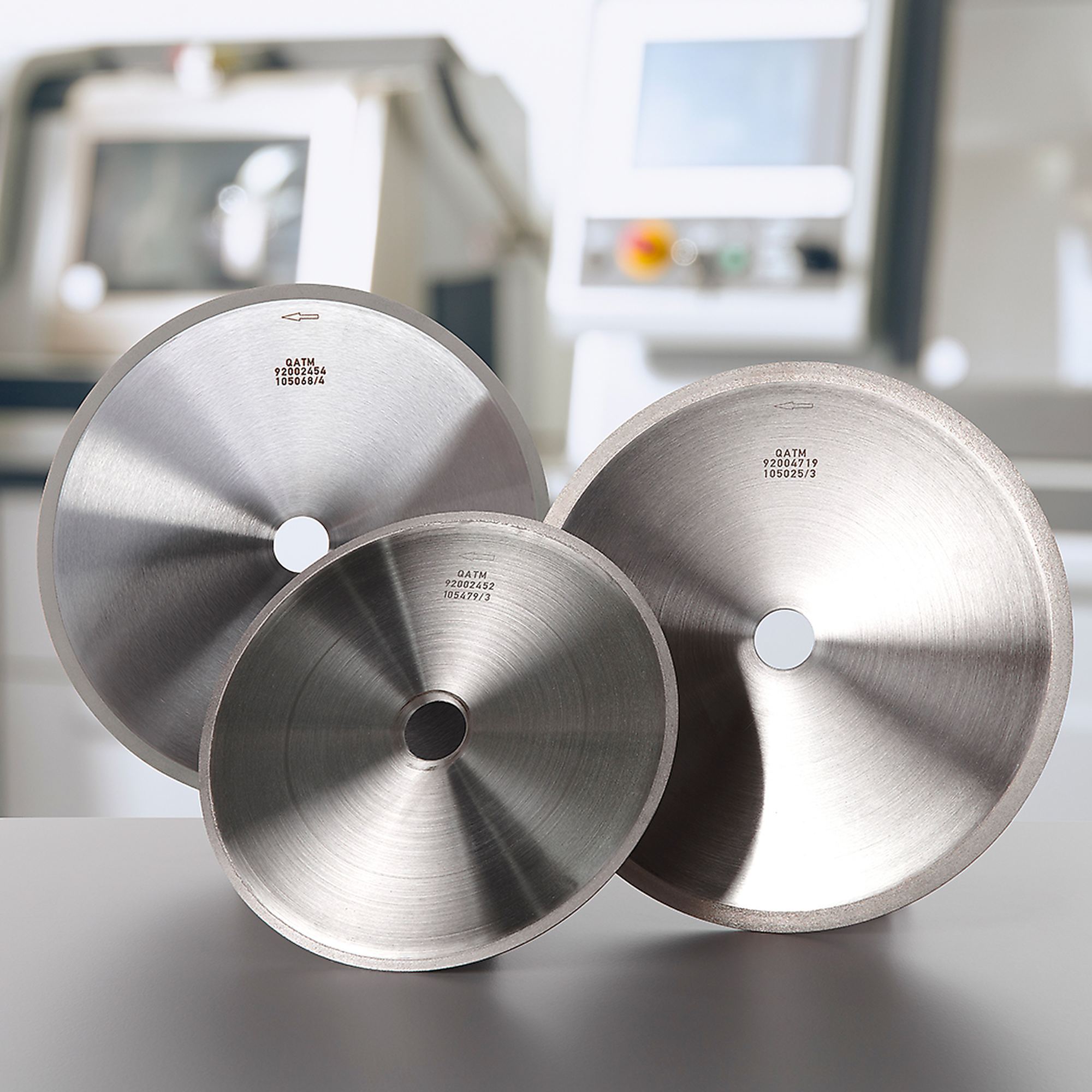

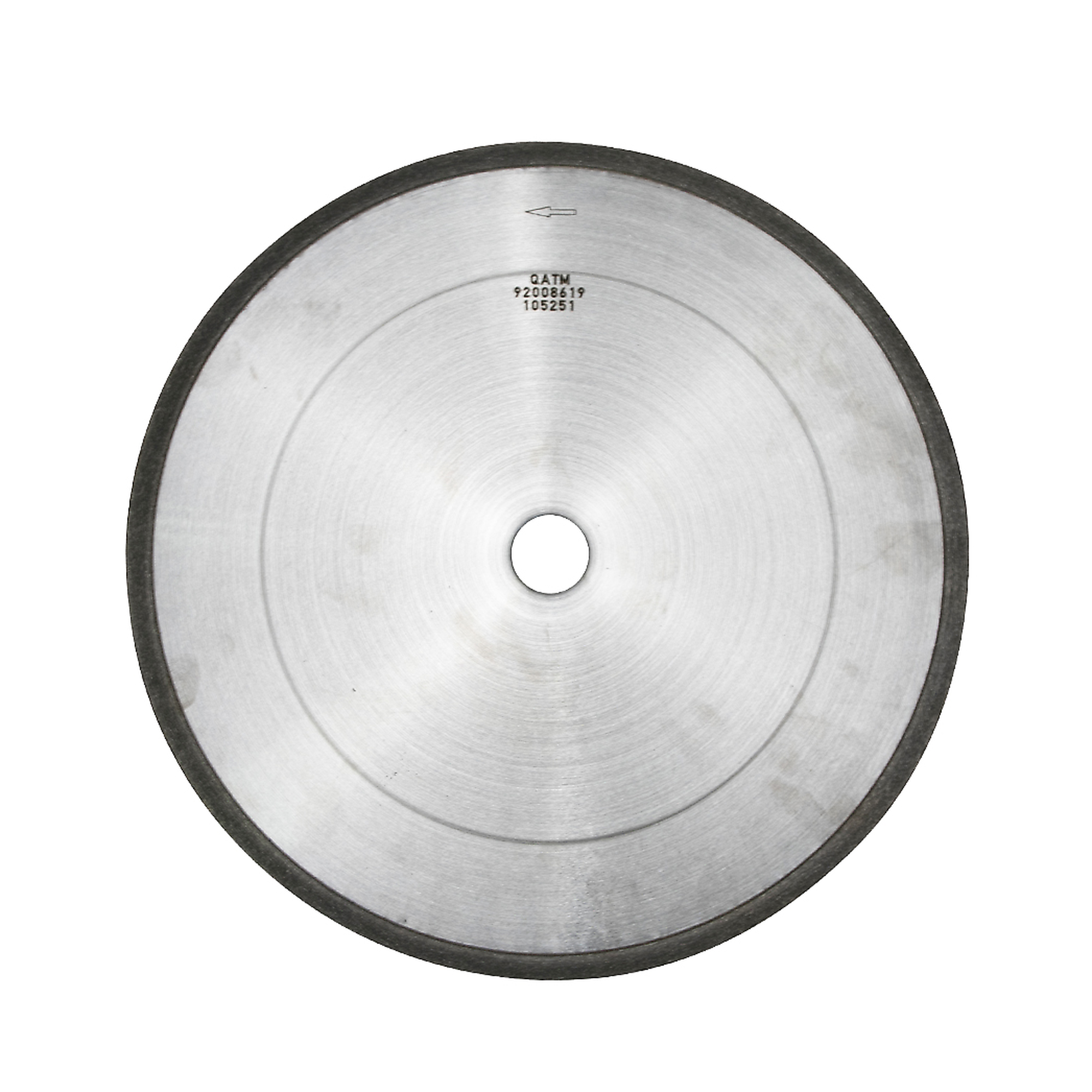

Diamond precision cut-off wheels
Bond: Bronze

• for universal application and carbides

厚度

内径

粘结剂

粒度

92002397

75 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

92002401

100 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

92002405

125 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

92002409

150 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

95016591

175 mm

0.65 mm

12.7 mm

Bronze

D213

1 pc

95004814

200 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

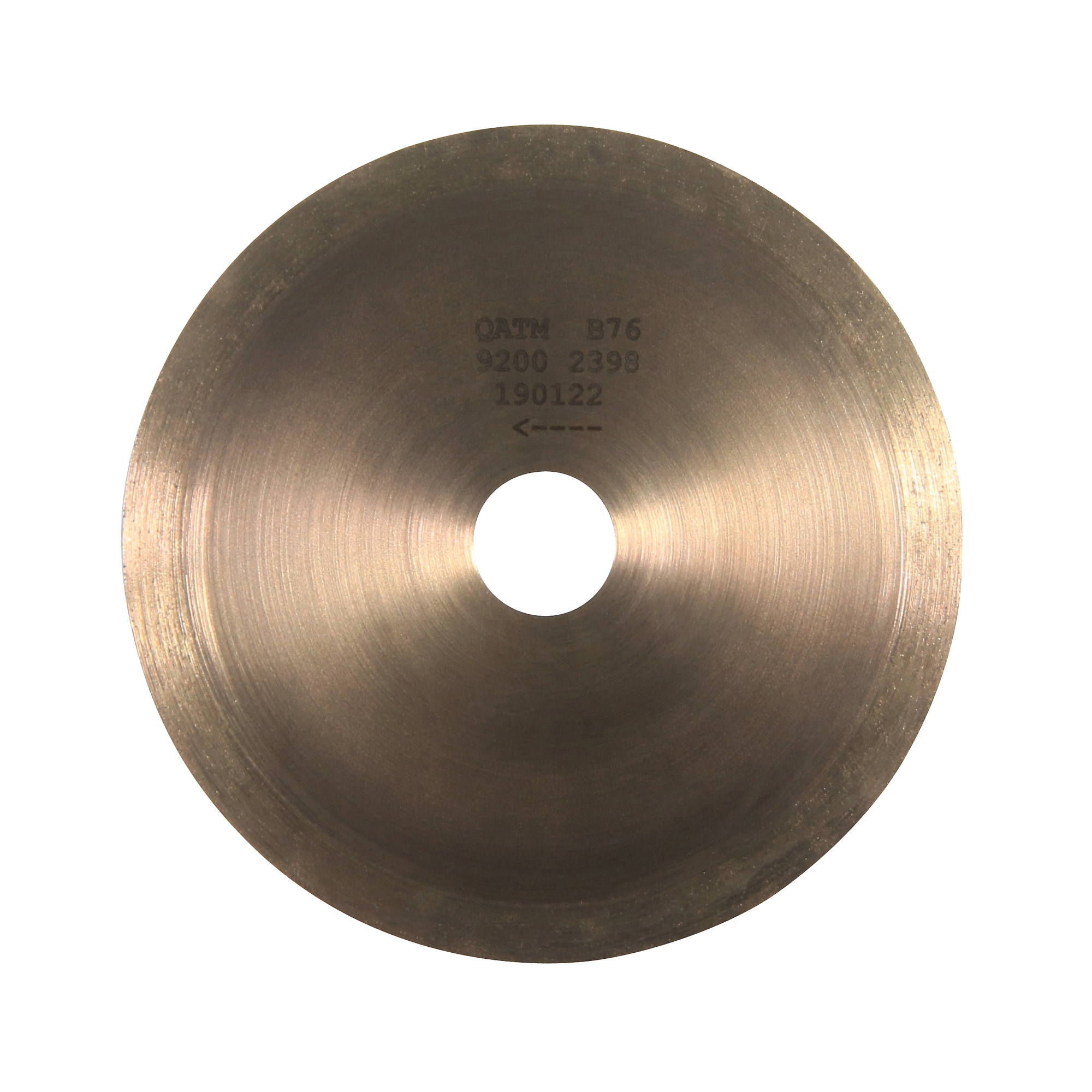

• for glass, minerals, rock as well as brittle and hard ceramic materials

厚度

内径

粘结剂

粒度

92002398

75 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

92002402

100 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

92002406

125 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

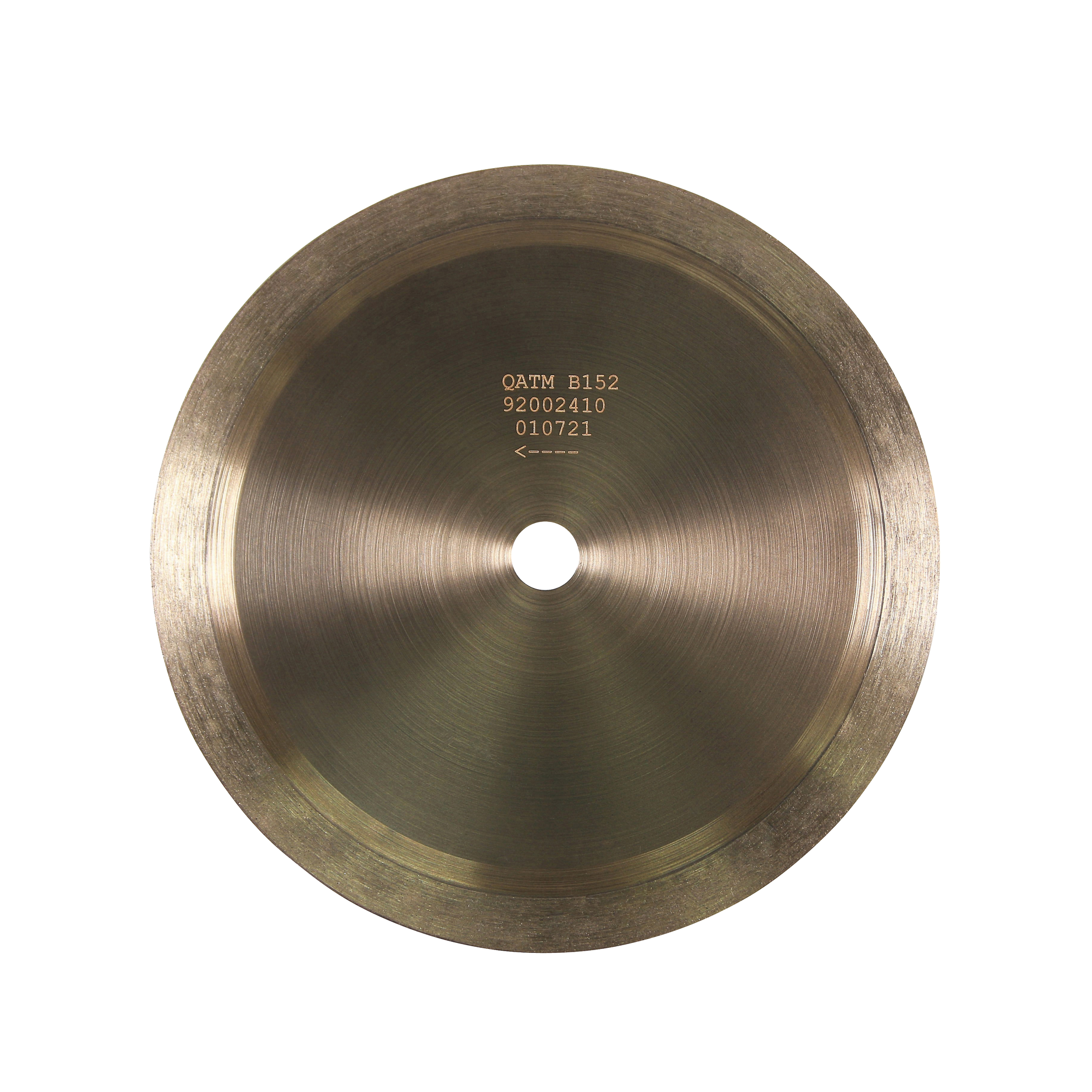

92002410

150 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

92006368

200 mm

0.6 mm

12.7 mm

Bronze

D213

1 pc

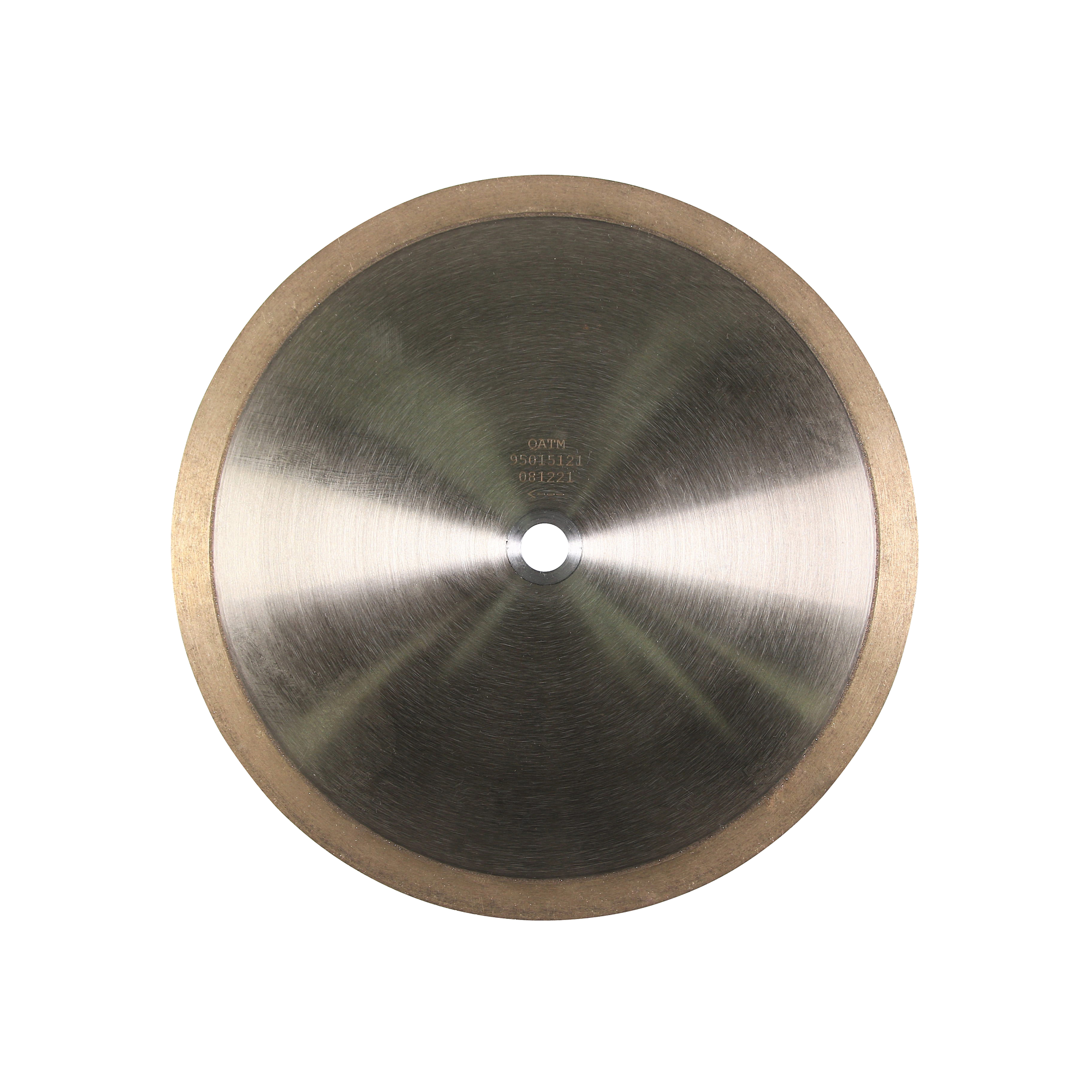

• for hard metals and hard ceramic materials

厚度

内径

粘结剂

粒度

95010518

150 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

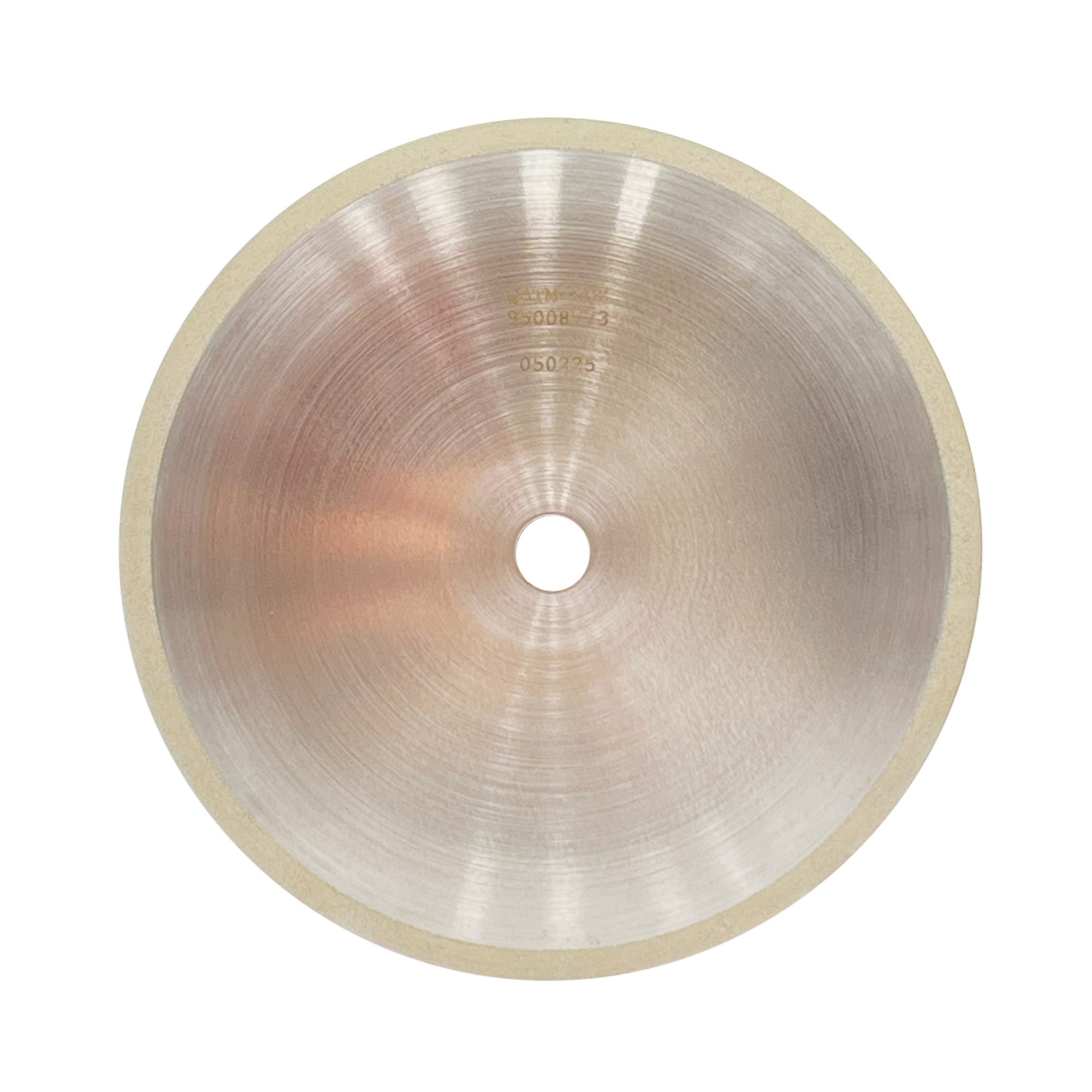

95008773

150 mm

0.5 mm

12.7 mm

树脂

D213

1 pc

95015121

200 mm

1.0 mm

12.7 mm

Bronze

D151

1 pc

• for assembled printed circuit boards and filigree component geometries

厚度

内径

粘结剂

粒度

92002400

75 mm

0.3 mm

12.7 mm

Bronze

D91/107

1 pc

92002404

100 mm

0.3 mm

12.7 mm

Bronze

D91/107

1 pc

92002408

125 mm

0.5 mm

12.7 mm

Bronze

D91/107

1 pc

92002412

150 mm

0.5 mm

12.7 mm

Bronze

D91/107

1 pc

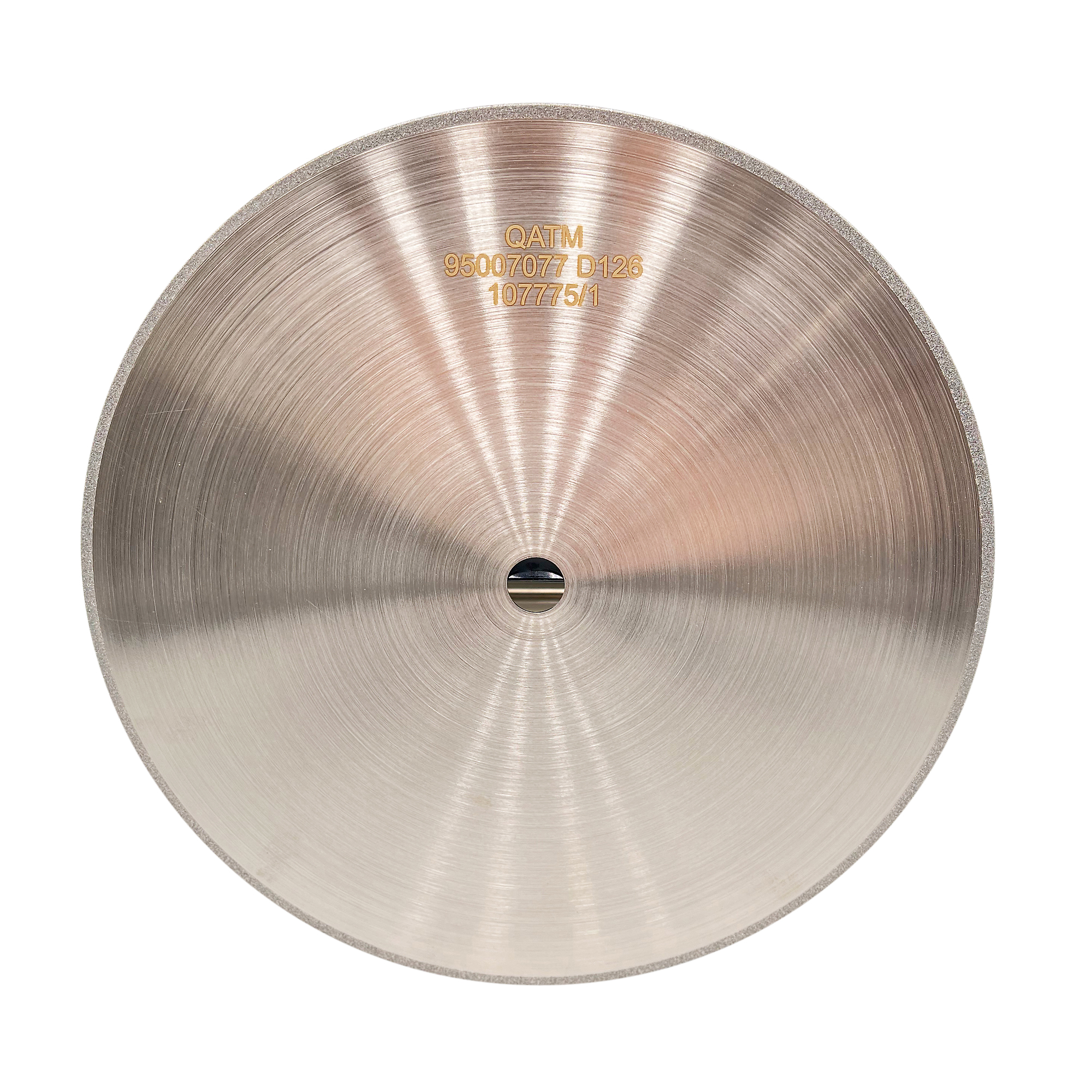

• for mounted samples, composites, CFRP, GFRP and plastics

厚度

内径

粘结剂

粒度

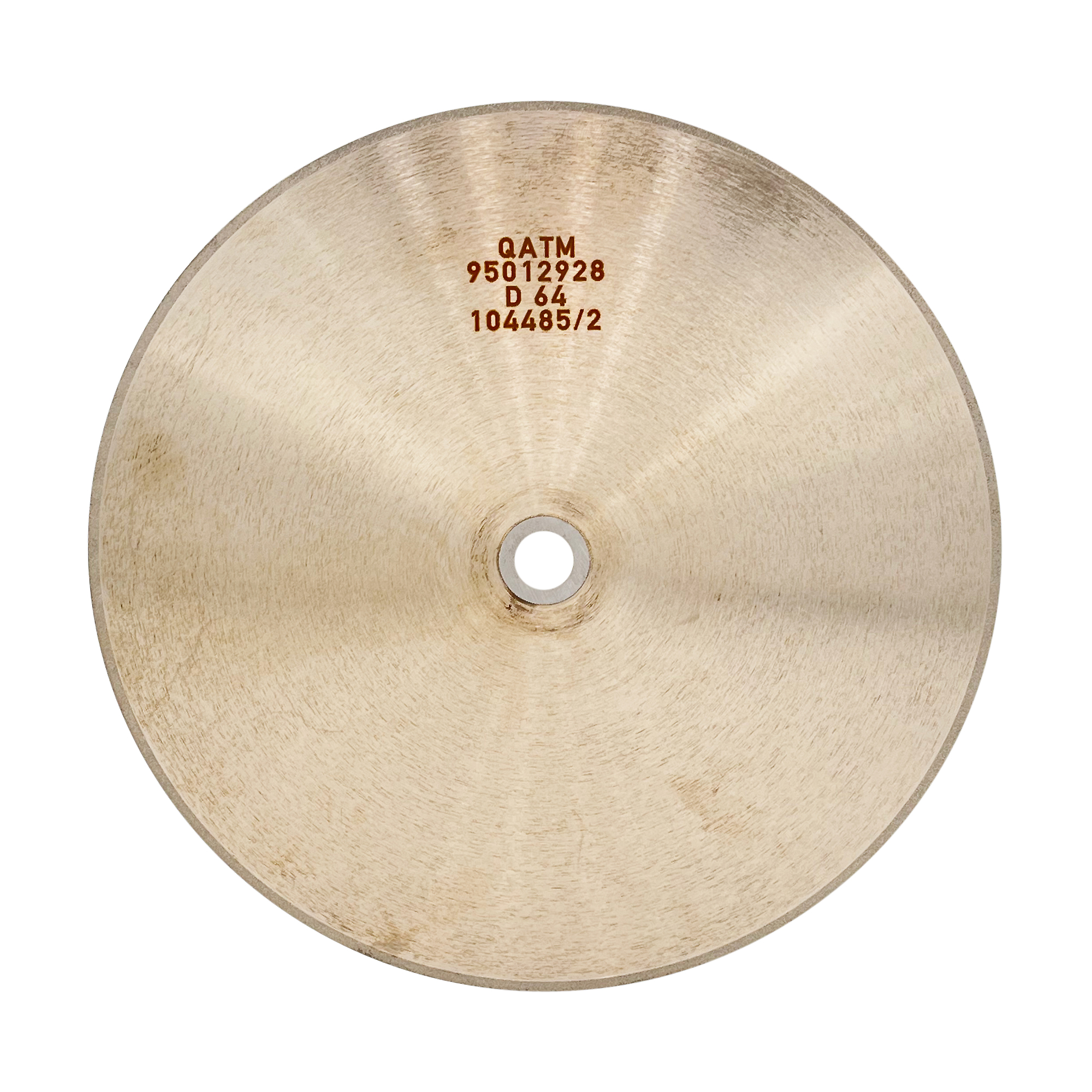

95012928

200 mm

1.0 mm

12.7 mm

Galvanic

D64

1 pc

95007077

200 mm

1.2 mm

12.7 mm

Galvanic

D126

1 pc

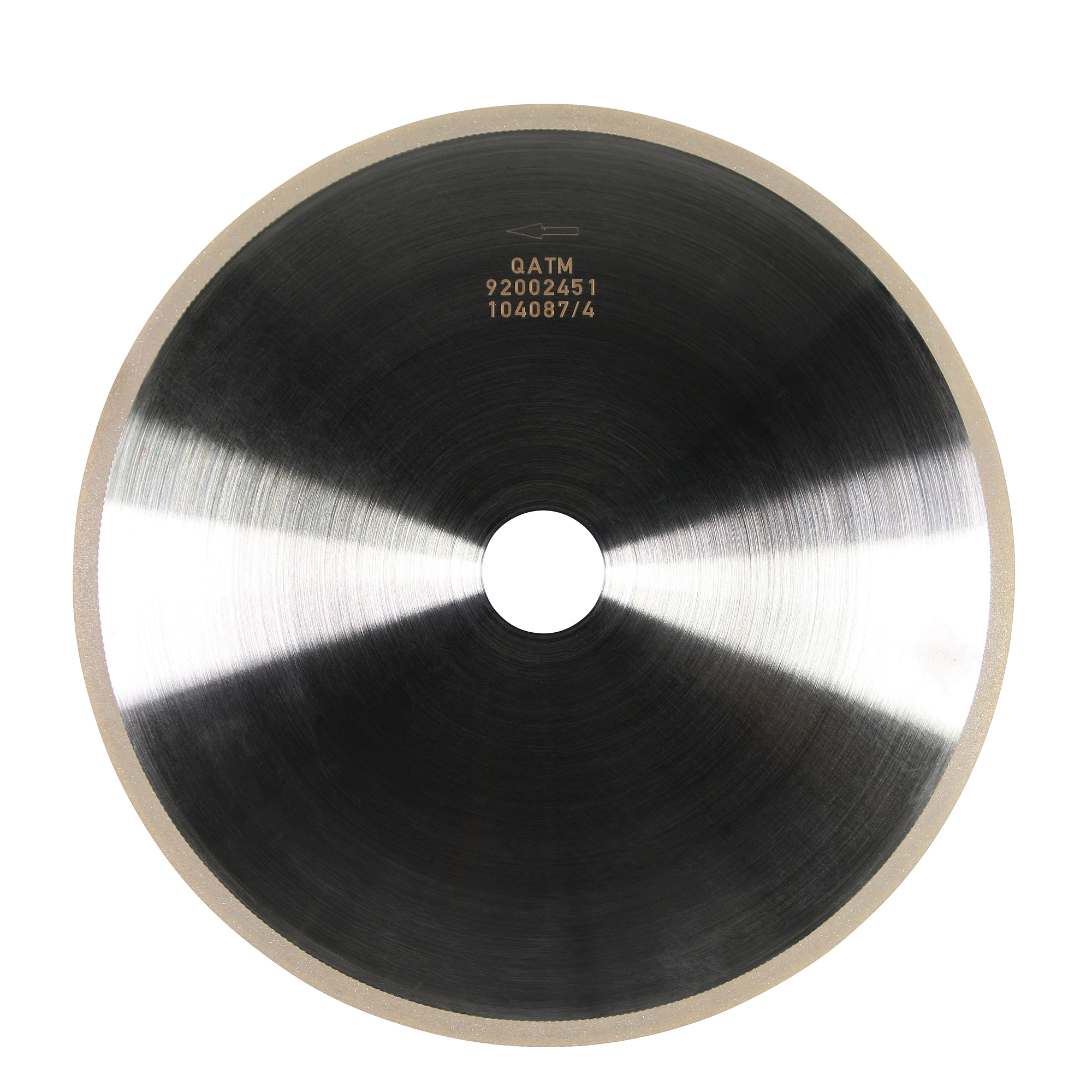

CBN精密切割轮
粘结剂: 青铜

• for composites and rigid materials

厚度

内径

92002444

125 mm

0.5 mm

12.7 mm

1 pc

92002445

150 mm

0.65 mm

12.7 mm

1 pc

92002446

175 mm

0.9 mm

12.7 mm

1 pc

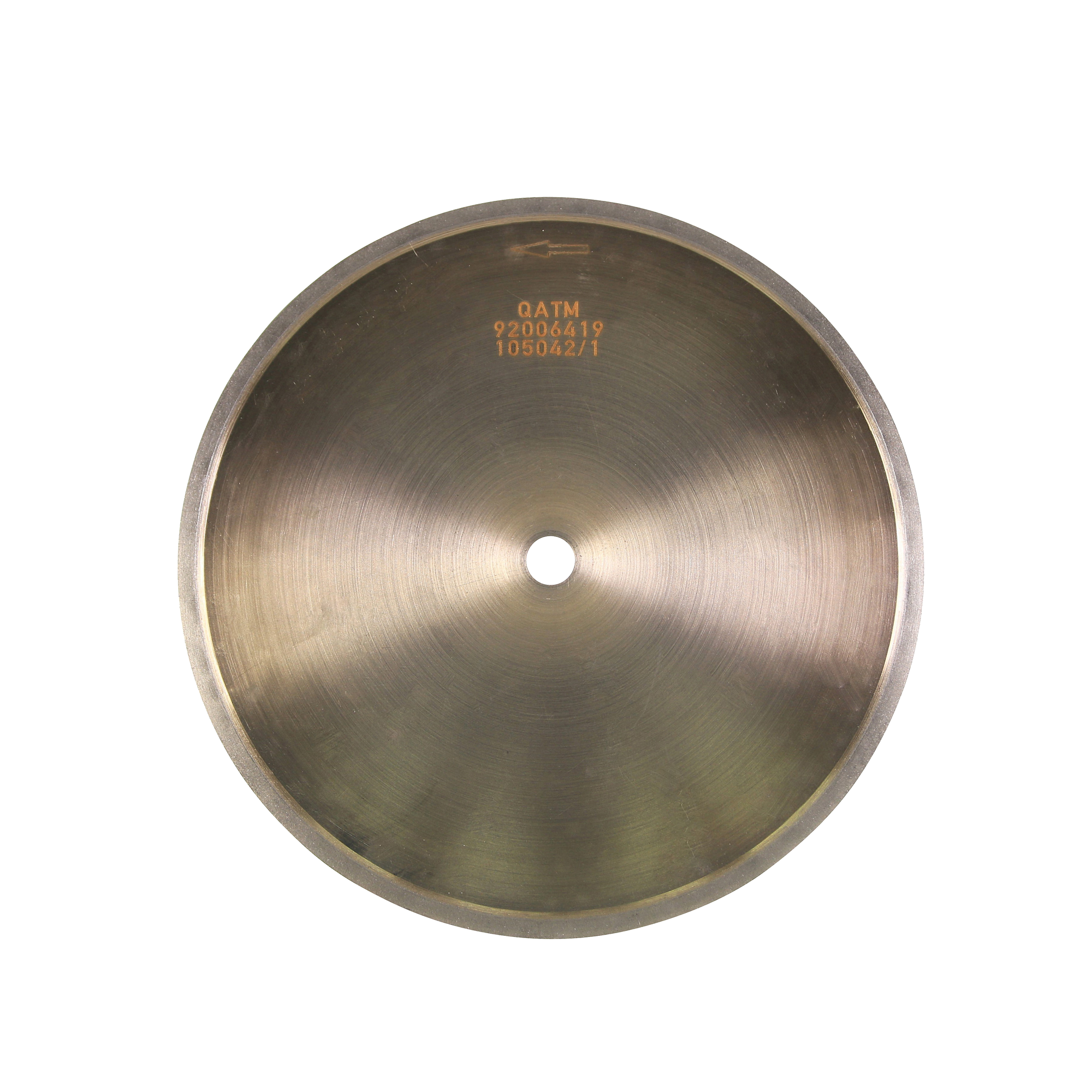

92006419

200 mm

0.5 mm

12.7 mm

1 pc

其他尺寸需求，请致电垂询

Saw blade precision cut-off wheel

• for plastics, non-ferrous metals

厚度

内径

95009083

150 mm

1.4 mm

12.7 mm

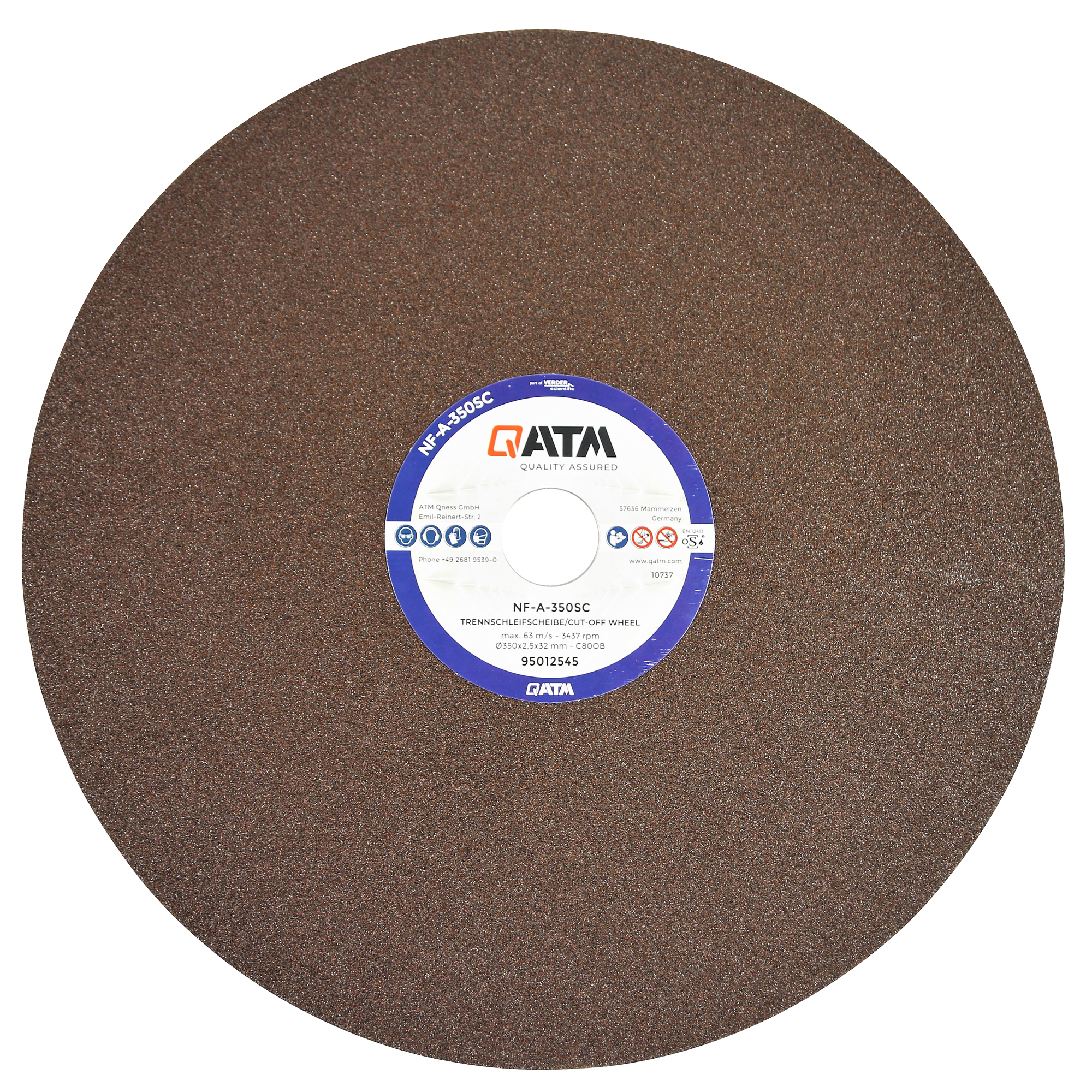

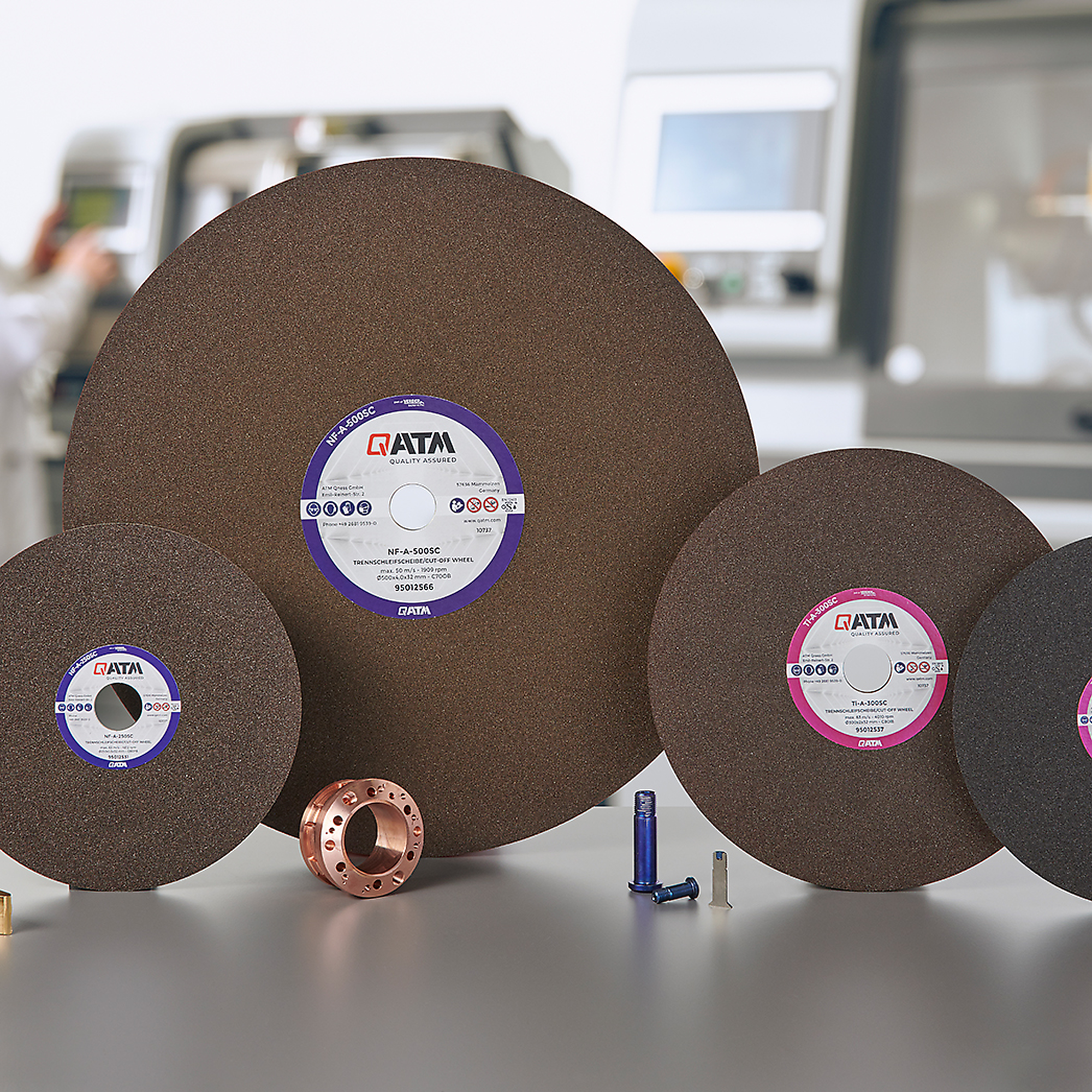

Silicon carbide cut-off wheels
Bond: Resin

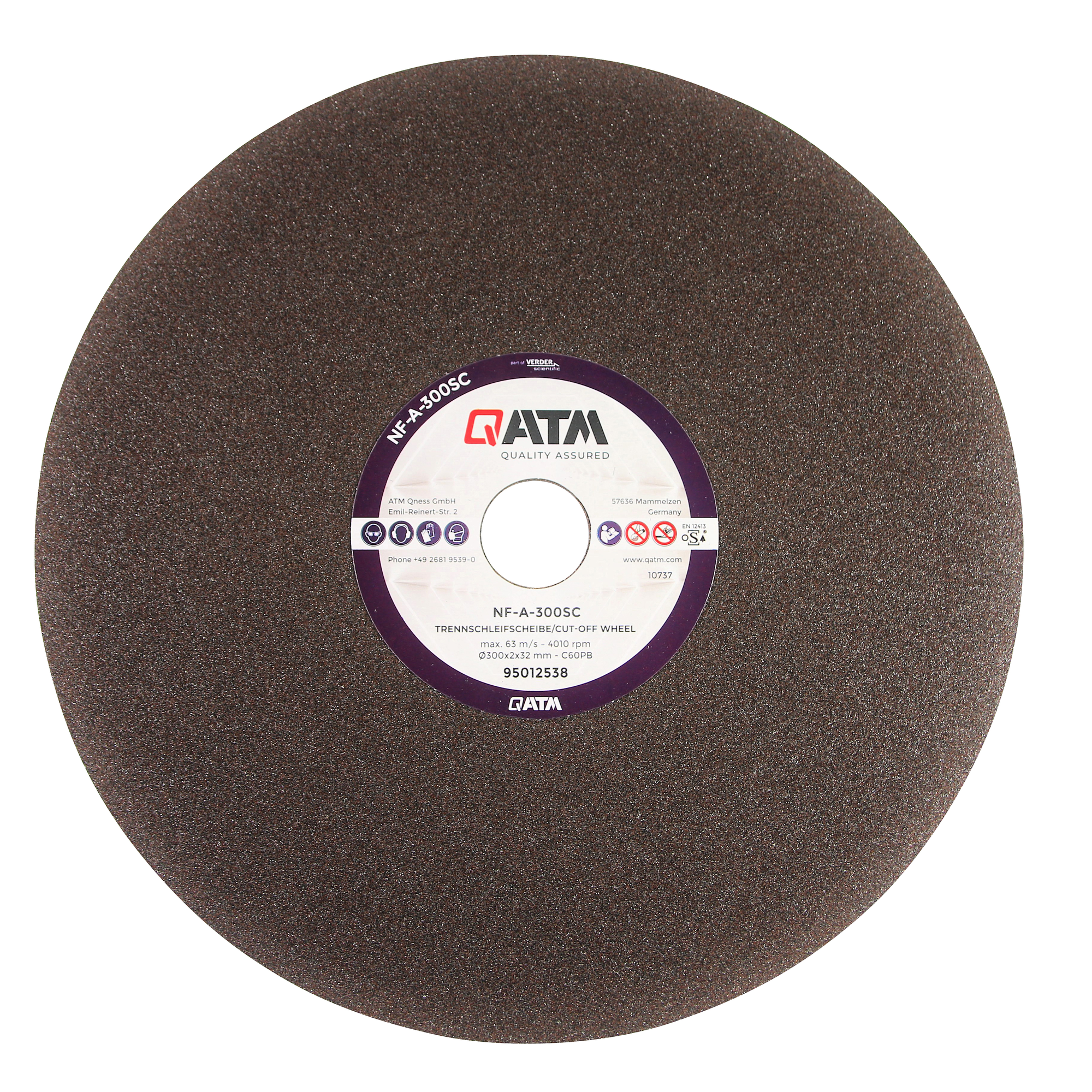

Type NF-A, Purple
• for non-ferrous metals (30-300HV)

厚度

内径

粘结剂

95012531

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012538

300 mm

2.0 mm

32 mm

树脂

10 pcs

95012545

350 mm

2.5 mm

32 mm

树脂

10 pcs

95012552

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012566

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012573

600 mm

4.5 mm

32 mm

树脂

5 pcs

Type Ti-A, Pink
• for titanium and alloys, refractory metals (30-300 HV)

厚度

内径

粘结剂

92002417

230 mm

1.5 mm

32 mm

树脂

10 pcs

95012530

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012537

300 mm

2.0 mm

32 mm

树脂

10 pcs

92002427

350 mm

2.5 mm

32 mm

树脂

10 pcs

92002428

400 mm

3.0 mm

32 mm

树脂

10 pcs

95018054

500 mm

4.0 mm

32 mm

树脂

5 Pcs.

95018055

600 mm

4.5 mm

32 mm

树脂

5 Pcs.

for cut-off wheels with Ø 230 mm and 400 mm for titanium and titanium alloys, see type F aluminum oxide cut-off wheels

Aluminum oxide cut-off wheels
Bond: Resin

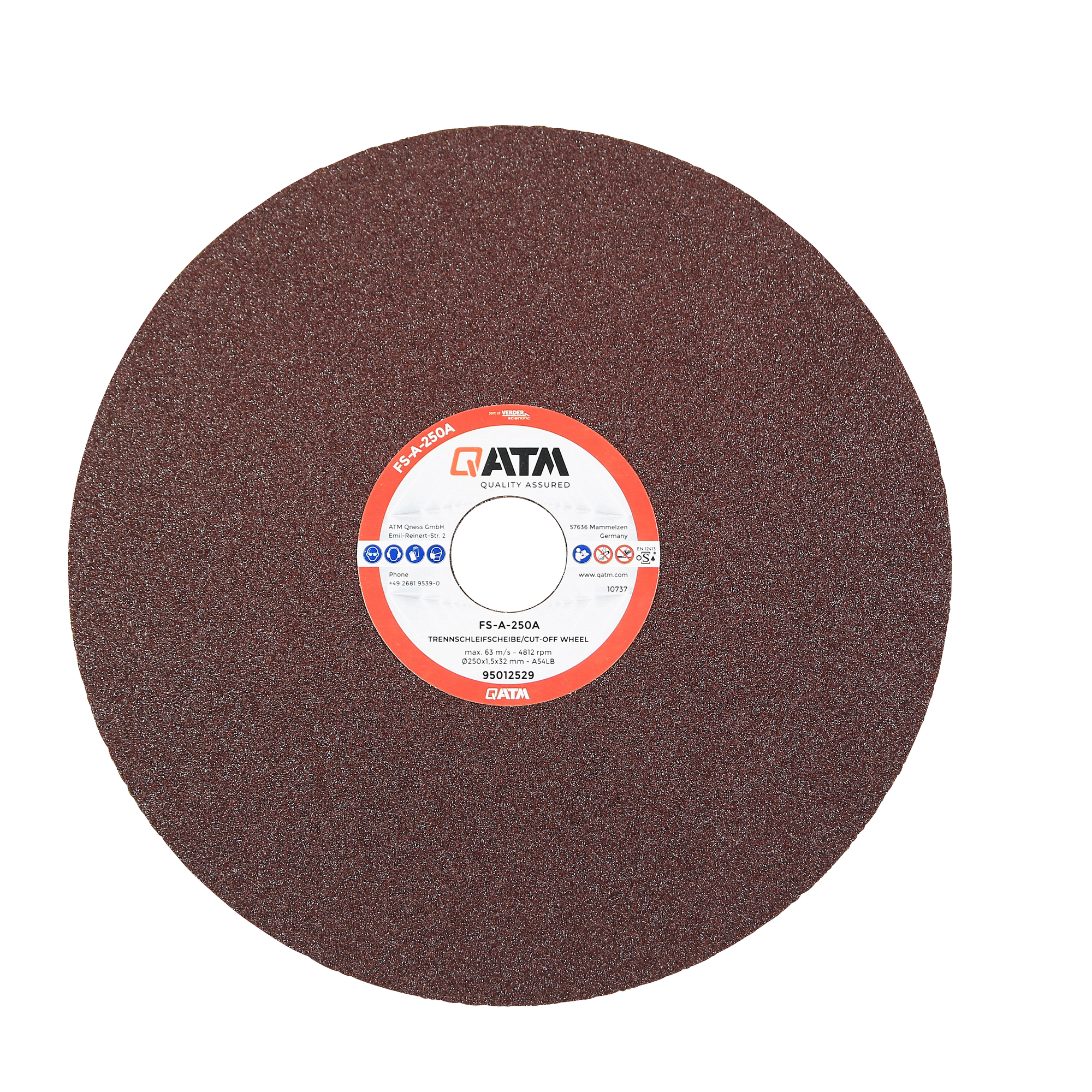

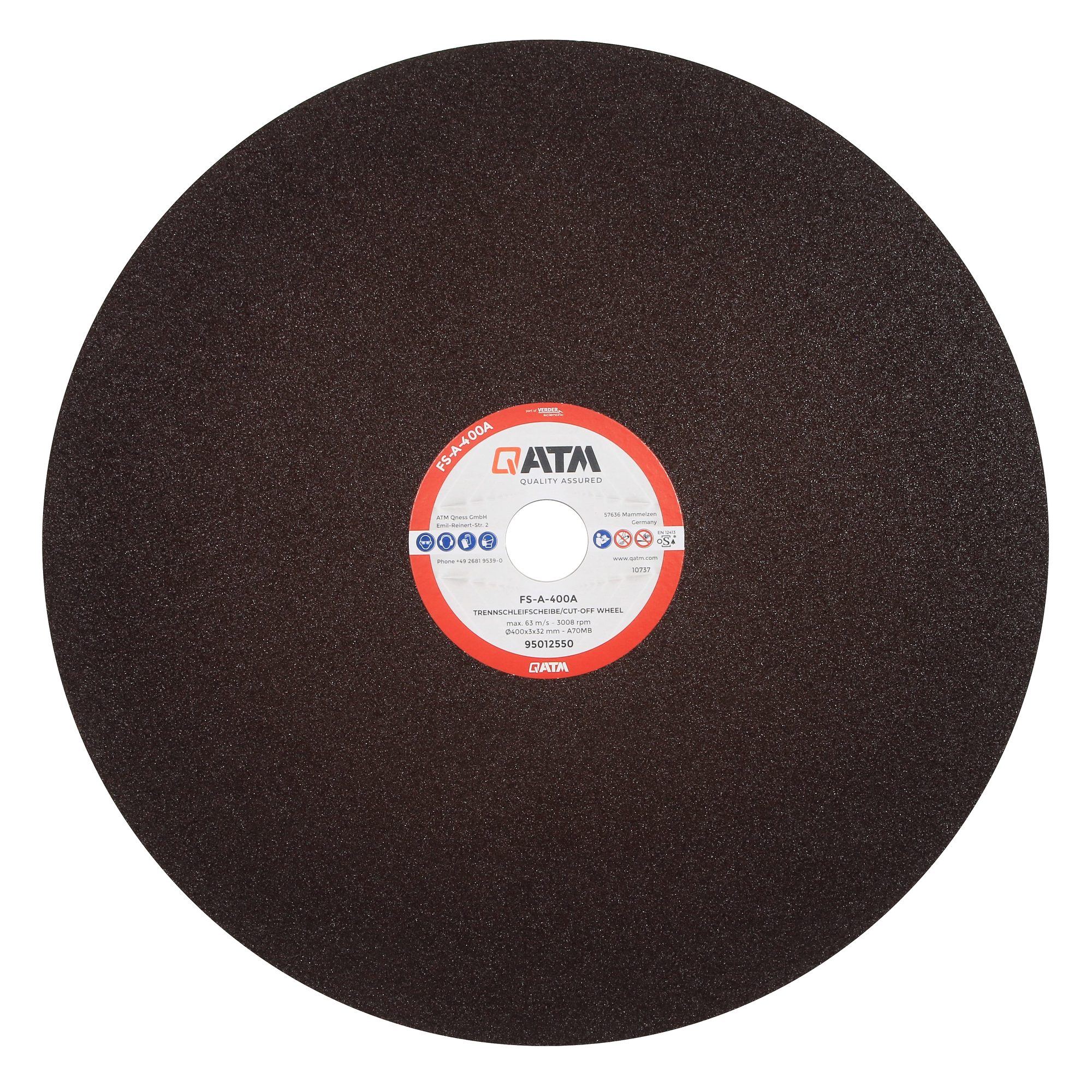

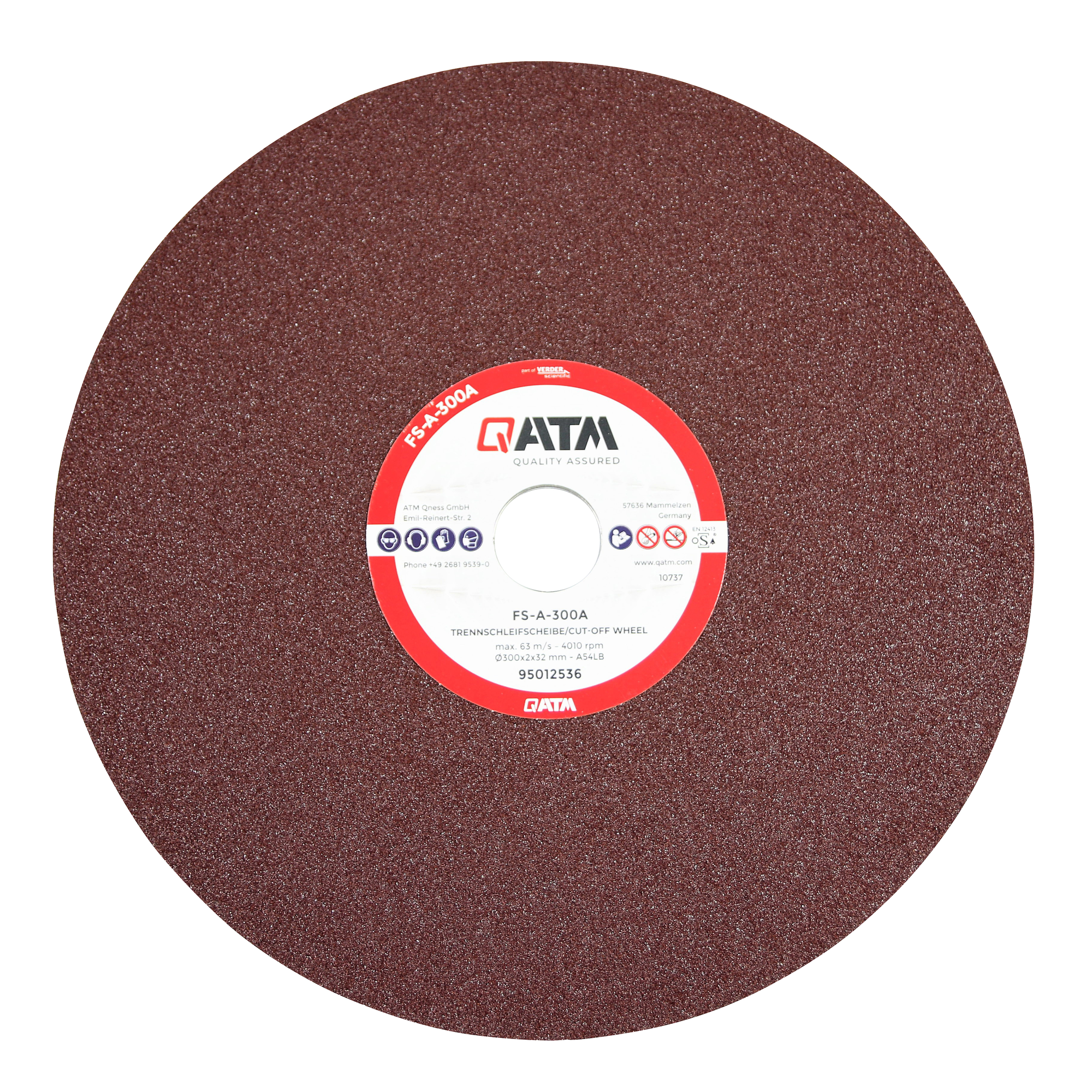

Type FS-A, Red
• for soft steel (30-300HV), non-ferrous metals, polymer (e.g., PMMA, PEEK, PTFE) due to hard bonding

厚度

内径

粘结剂

95012529

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012536

300 mm

2.0 mm

32 mm

树脂

10 pcs

95012543

350 mm

2.5 mm

32 mm

树脂

10 pcs

95012550

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012564

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012571

600 mm

4.5 mm

32 mm

树脂

5 pcs

Type I
• ideal for cutting structural steel (e.g., S235JR, S355J2, C45) and cast materials (e.g., ductile iron, gray cast iron, cast steel) (60-350 HV)

厚度

内径

粘结剂

92006066

250 mm

1.6 mm

32 mm

树脂

10 pcs

92005863

300 mm

2 mm

32 mm

树脂

10 pcs

92005862

350 mm

2.5 mm

32 mm

树脂

10 pcs

92008504

400 mm

3 mm

32 mm

树脂

10 pcs

Type FS-B, Orange
• for medium soft steel (200-450HV) e.g. unalloyed structural steels and low-alloy steels

厚度

内径

粘结剂

95012528

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012535

300 mm

2.0 mm

32 mm

树脂

10 pcs

95012542

350 mm

2.5 mm

32 mm

树脂

10 pcs

95012549

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012563

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012570

600 mm

4.5 mm

32 mm

树脂

5 pcs

Type FS-C, Yellow
• for medium hard steel (300-550HV), case hardened, nitrided steels

厚度

内径

粘结剂

95012527

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012534

300 mm

2.2 mm

32 mm

树脂

10 pcs

95012541

350 mm

2.2 mm

32 mm

树脂

10 pcs

95012548

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012562

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012569

600 mm

4.5 mm

32 mm

树脂

5 pcs

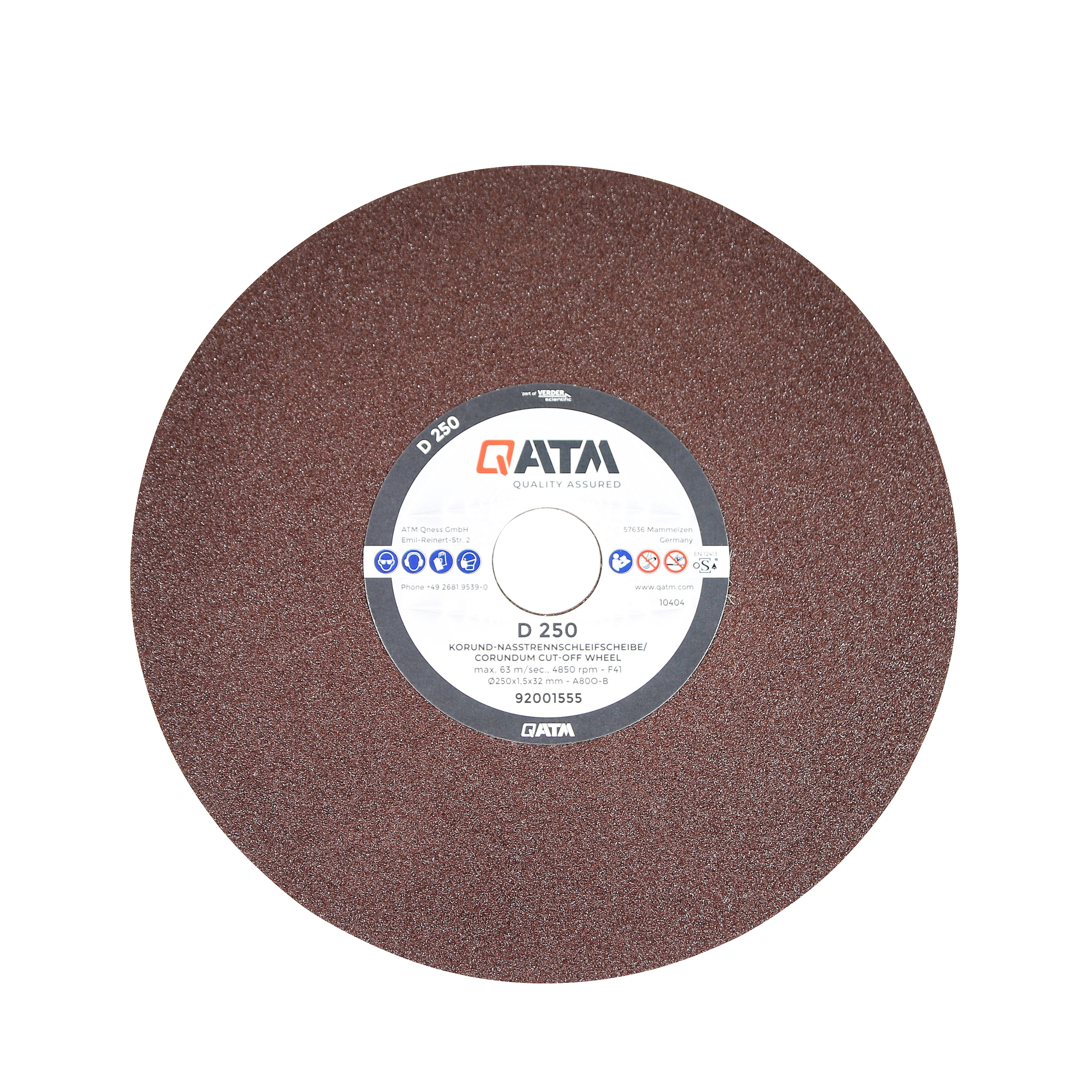

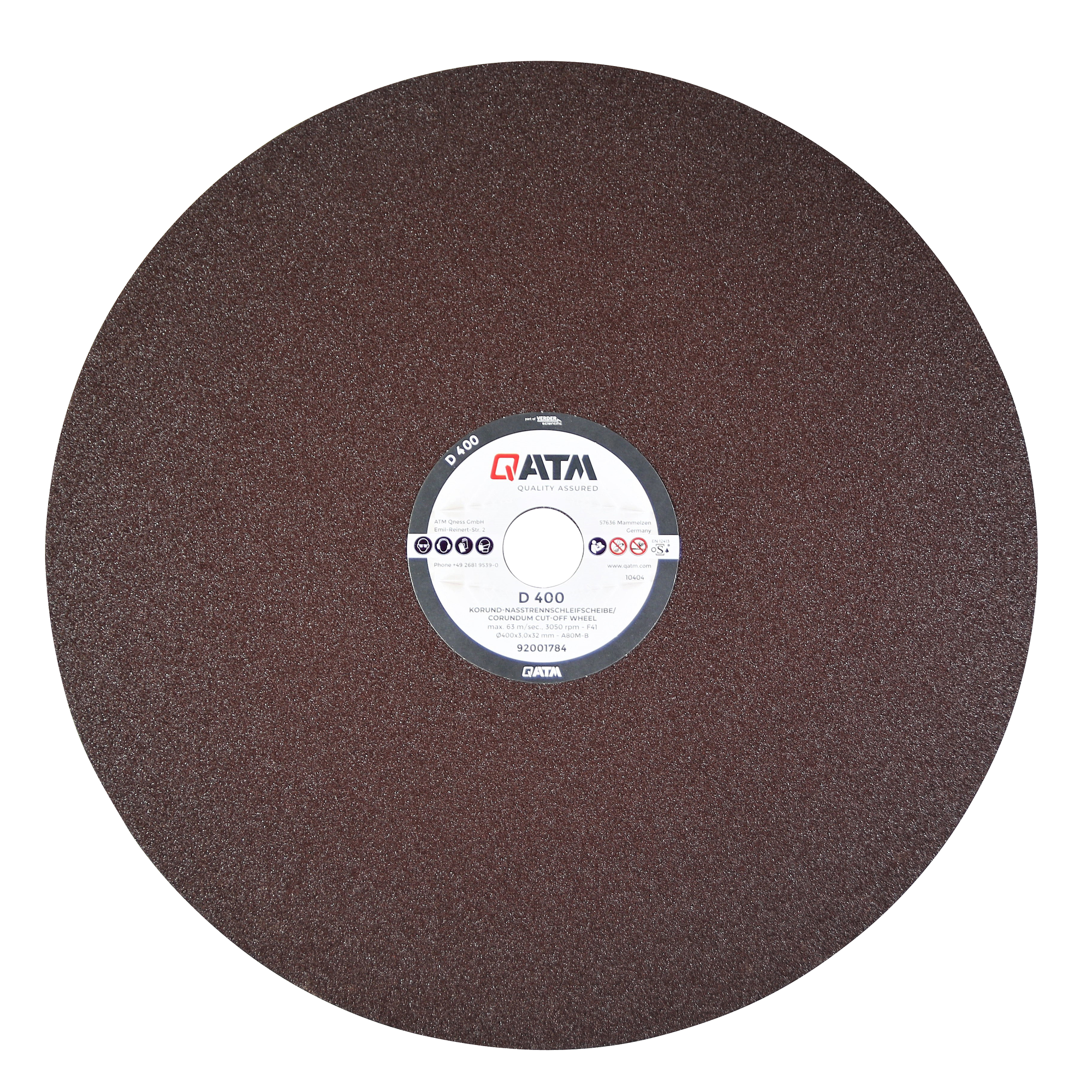

Type D
• universally applicable for medium material hardness and case-hardened steels (350-600 HV), e.g., tempered steel 42CrMo4, CuSn8

厚度

内径

粘结剂

92001555

250 mm

1.5 mm

32 mm

树脂

10 pcs

92001559

300 mm

2 mm

32 mm

树脂

10 pcs

92001670

350 mm

2 mm

32 mm

树脂

10 pcs

92001784

400 mm

3 mm

32 mm

树脂

10 pcs

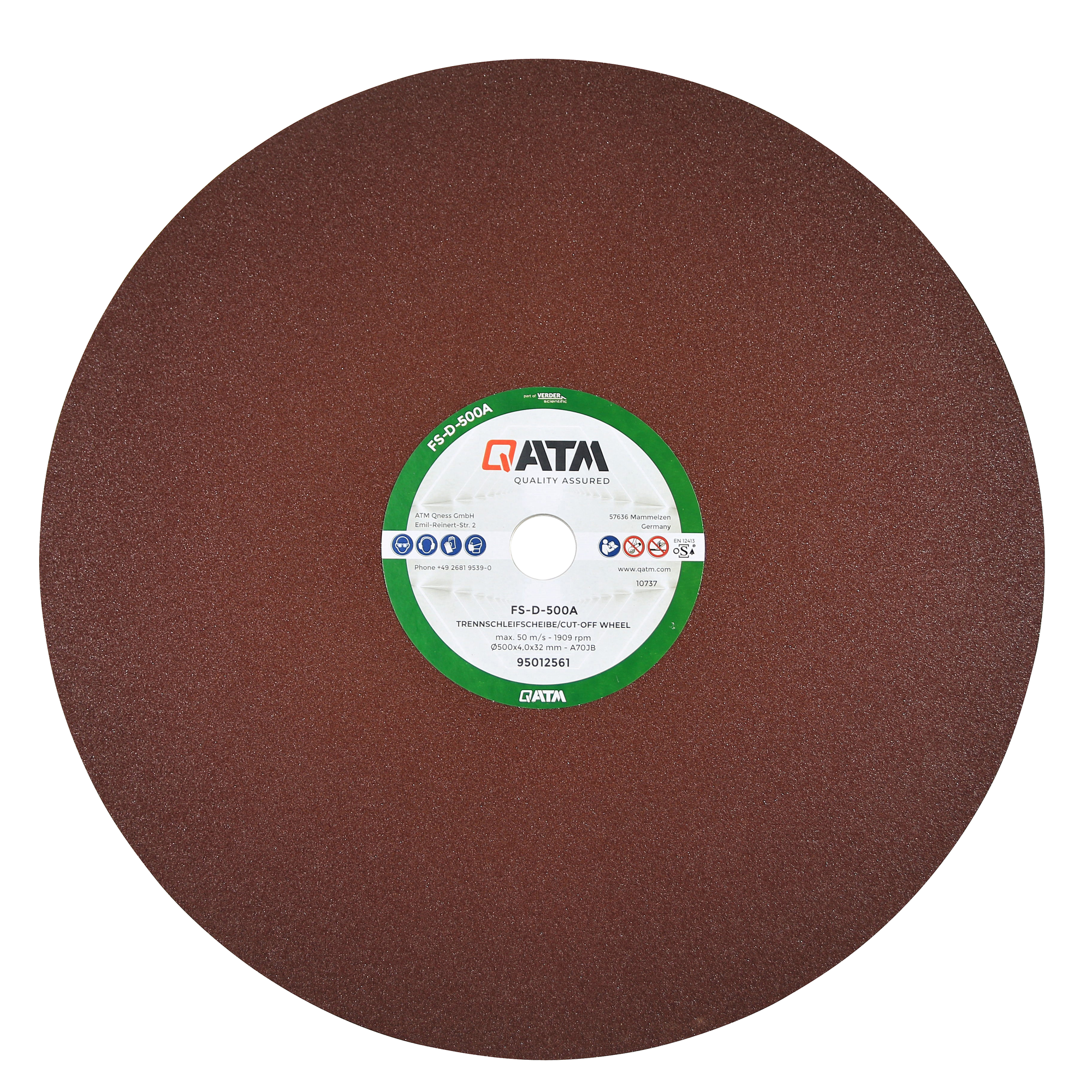

Type FS-D, Green
• for hard steels (400-700HV), annealed, carburised steels

厚度

内径

粘结剂

95012526

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012533

300 mm

2.0 mm

32 mm

树脂

10 pcs

95012540

350 mm

2.5 mm

32 mm

树脂

10 pcs

95012547

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012561

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012568

600 mm

4.5 mm

32 mm

树脂

5 pcs

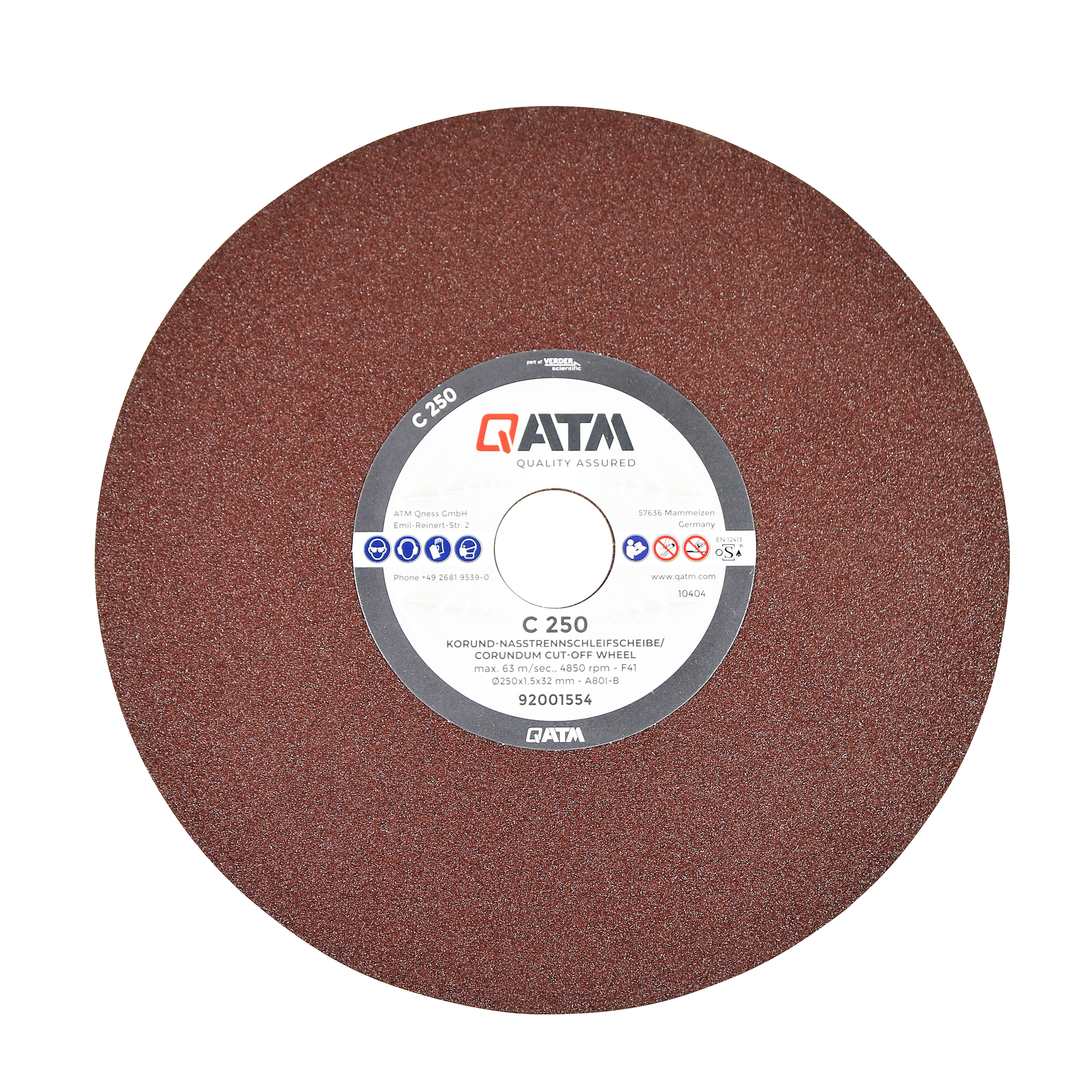

Type C
• universally applicable for materials of high and very high hardness (>600 HV), e.g., martensitic stainless steels, WC-Co, carbide

厚度

内径

粘结剂

92001554

250 mm

1.5 mm

32 mm

树脂

10 pcs

92001558

300 mm

2 mm

32 mm

树脂

10 pcs

92001669

350 mm

2 mm

32 mm

树脂

10 pcs

92001783

400 mm

3 mm

32 mm

树脂

10 pcs

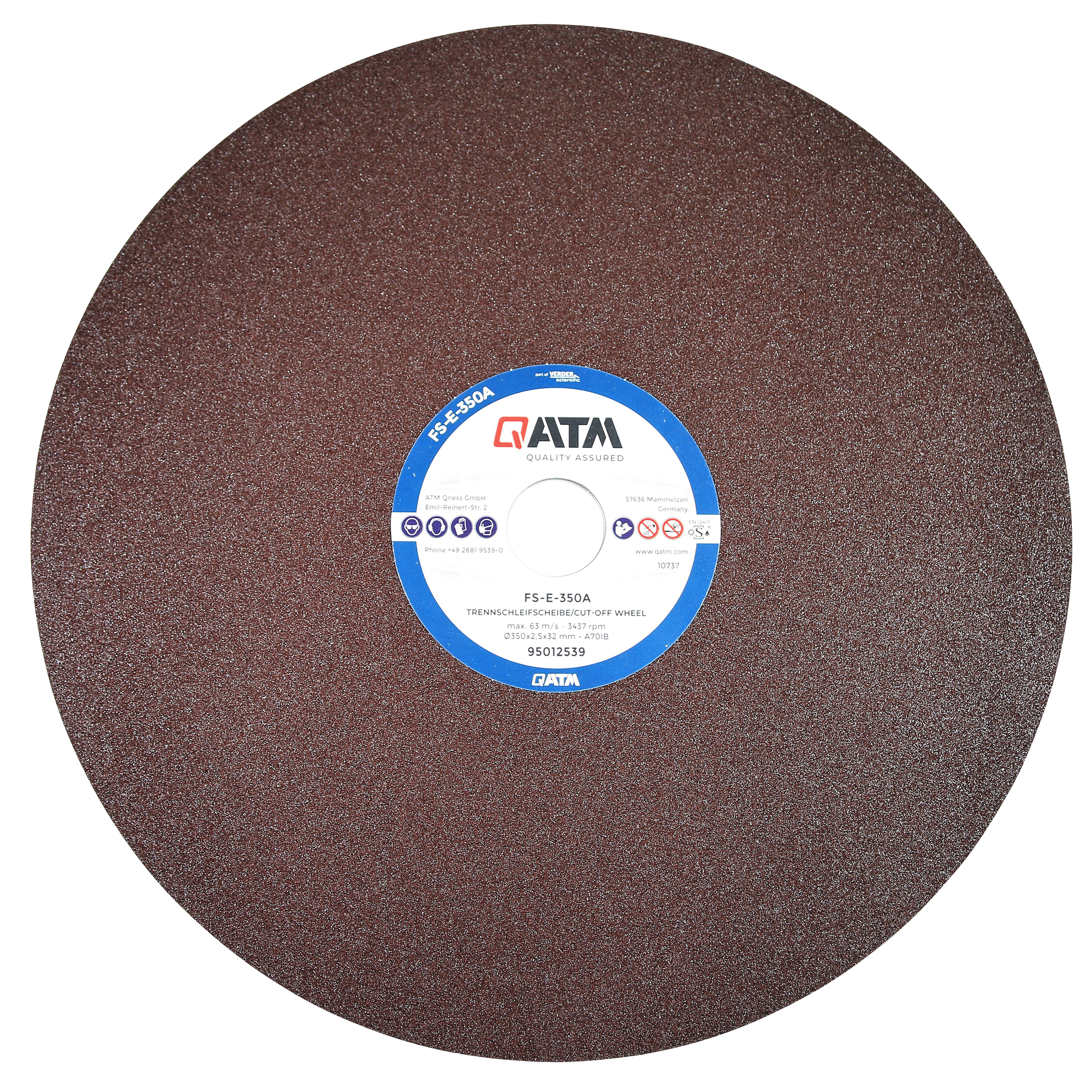

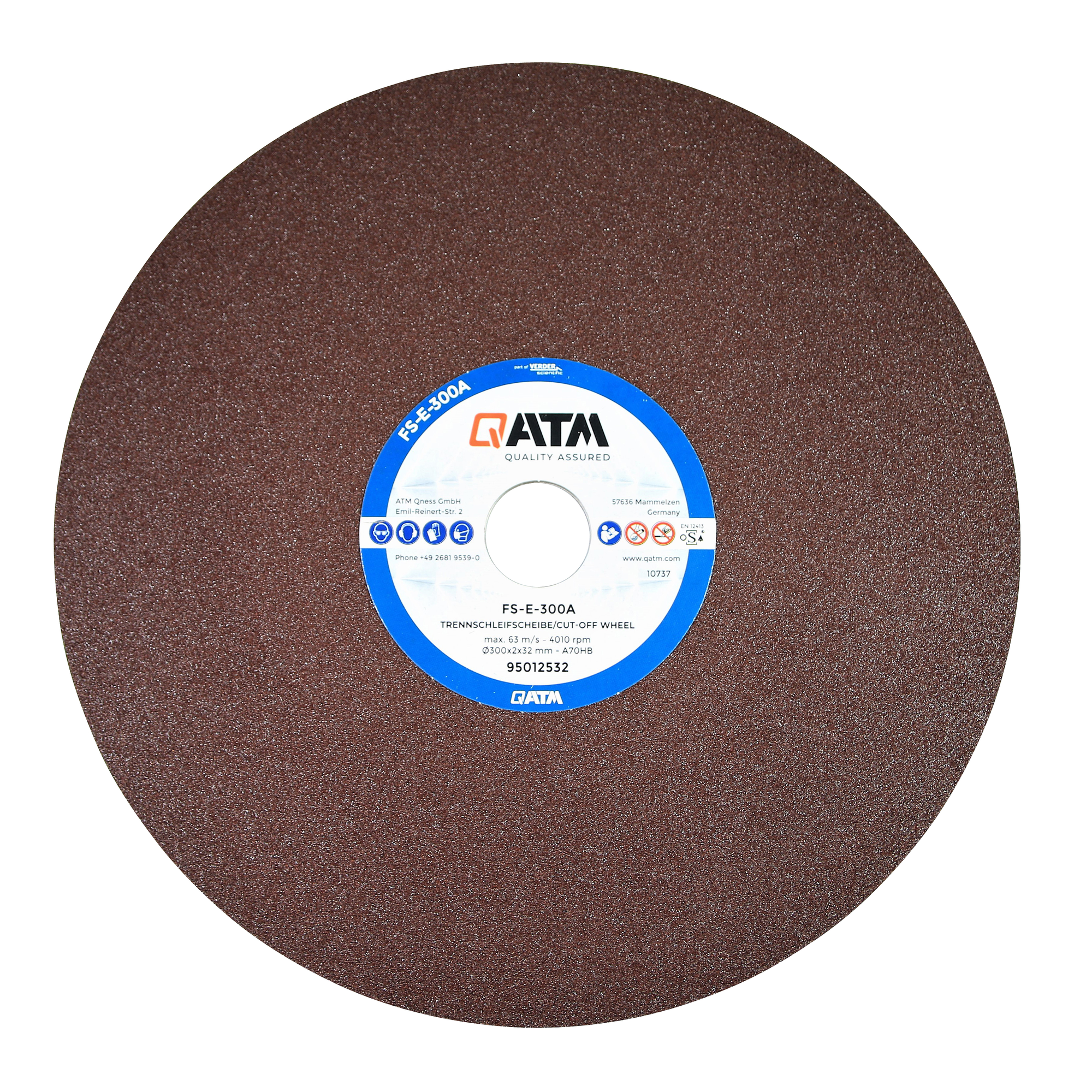

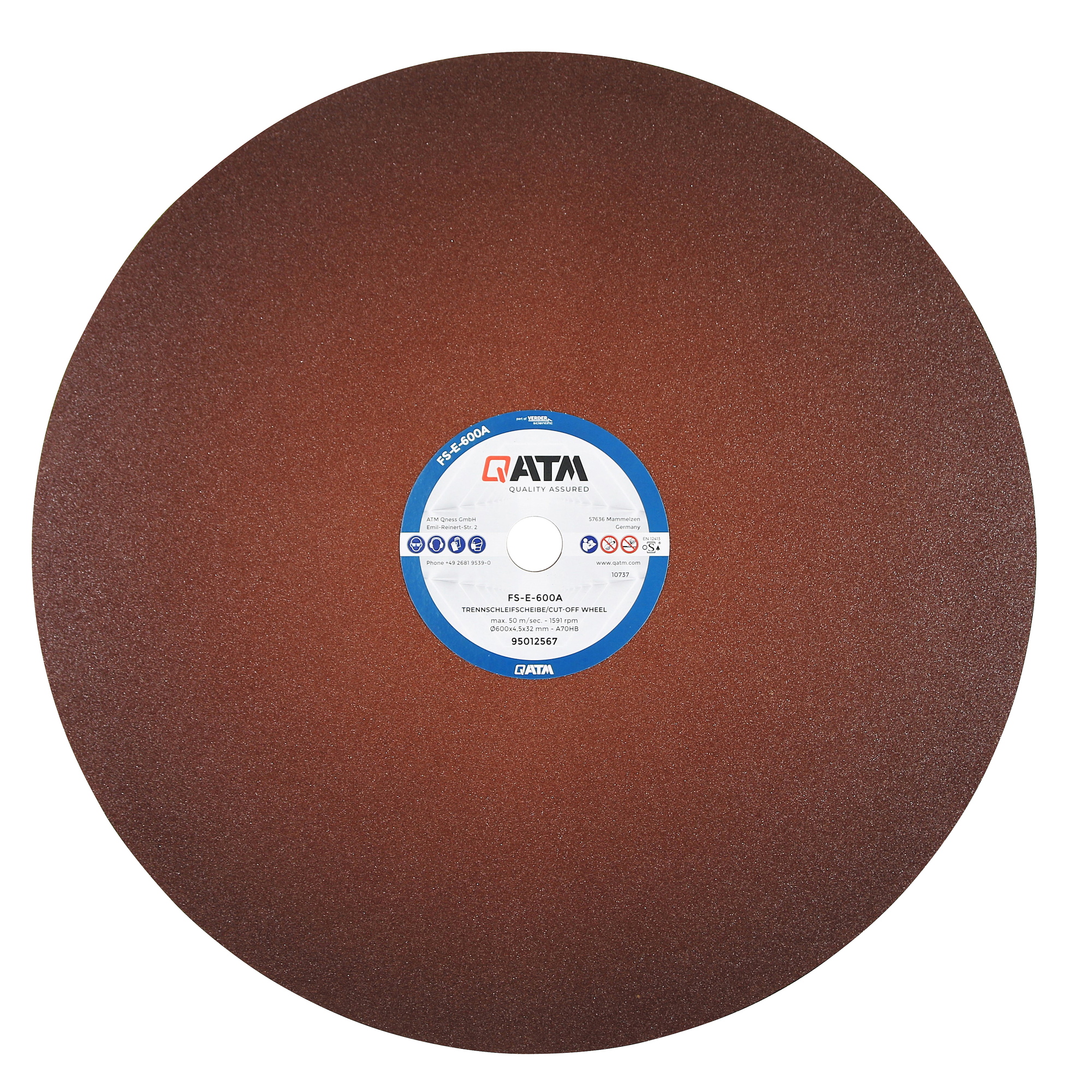

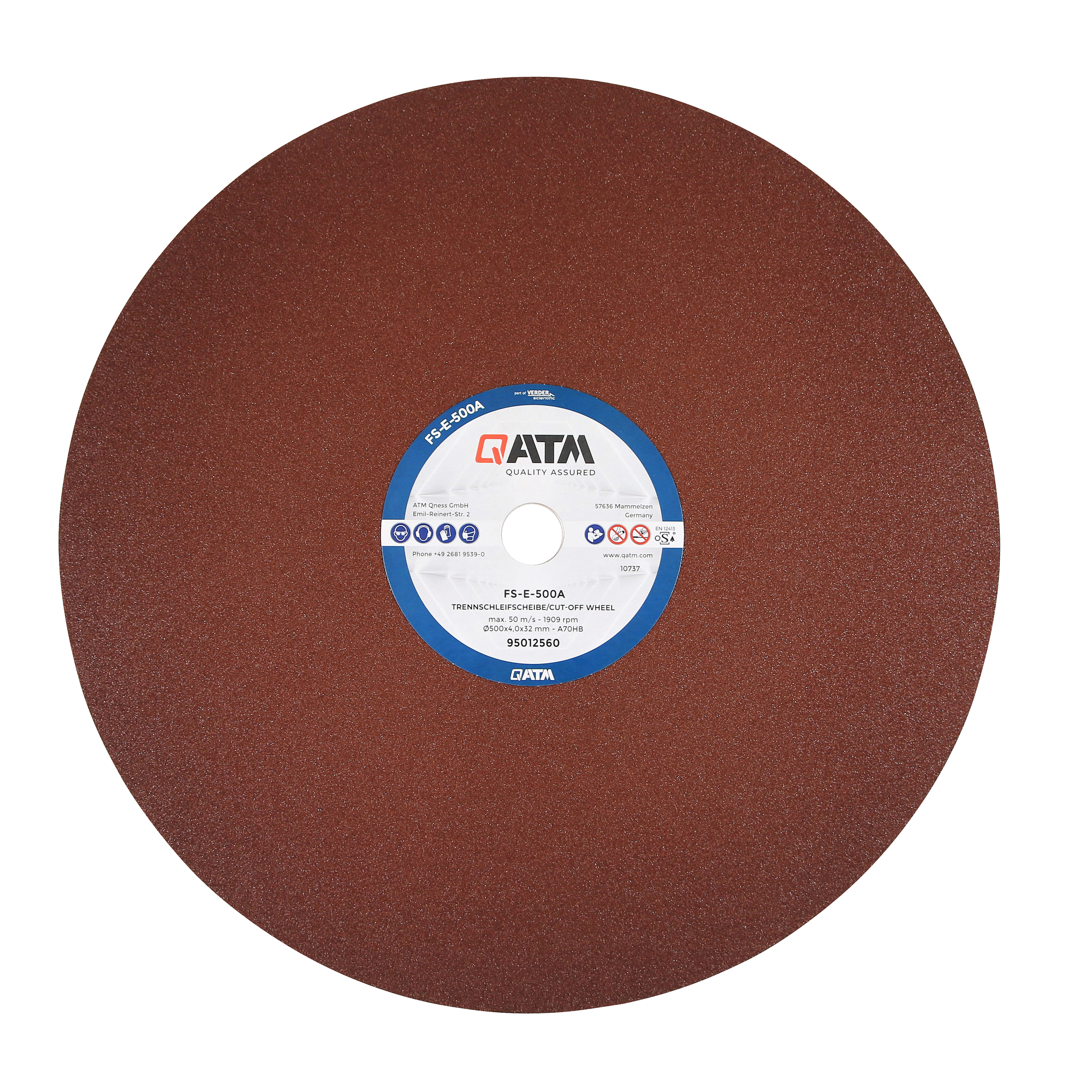

Type FS-E, Blue
• for very hard steels (>650 HV), e.g., CrV, manganese steel

厚度

内径

粘结剂

95012525

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012532

300 mm

2.0 mm

32 mm

树脂

10 pcs

95012539

350 mm

2.5 mm

32 mm

树脂

10 pcs

95012546

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012560

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012567

600 mm

4.5 mm

40 mm

树脂

5 pcs

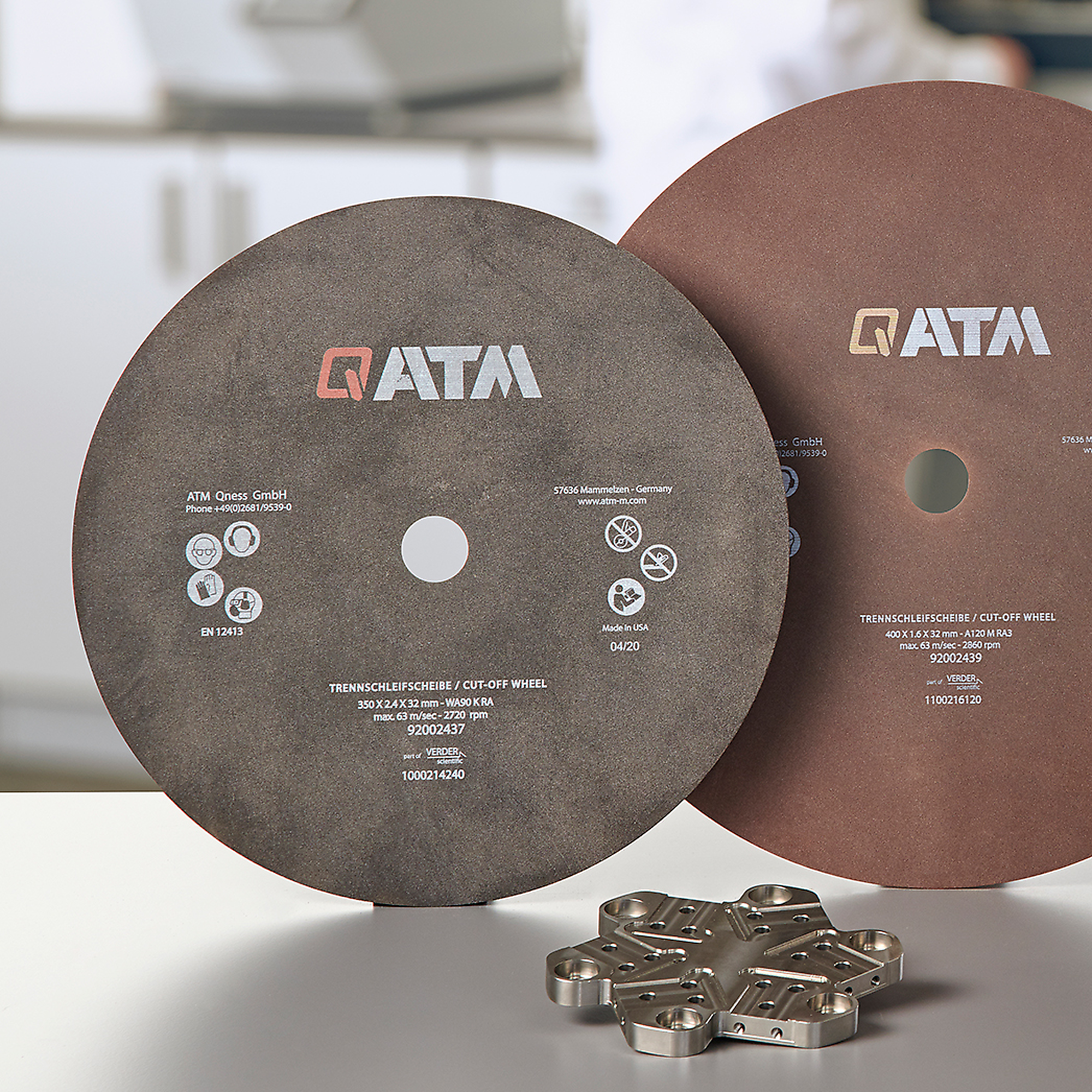

Type A, Brown
• universal wheel, soft and hard metals, superalloys (50-500 HV)

厚度

内径

粘结剂

92002413

230 mm

0.8 mm

32 mm

Rubber

10 pcs

92002599

250 mm

1.0 mm

32 mm

Rubber

10 pcs

92002441

300 mm

1.0 mm

32 mm

Rubber

10 pcs

92002436

350 mm

1.6 mm

32 mm

Rubber

10 pcs

92002439

400 mm

1.6 mm

32 mm

Rubber

10 pcs

92008537

500 mm

2.4 mm

32 mm

Rubber

5 pcs

92004007

600 mm

4.3 mm

40 mm

Rubber

5 pcs

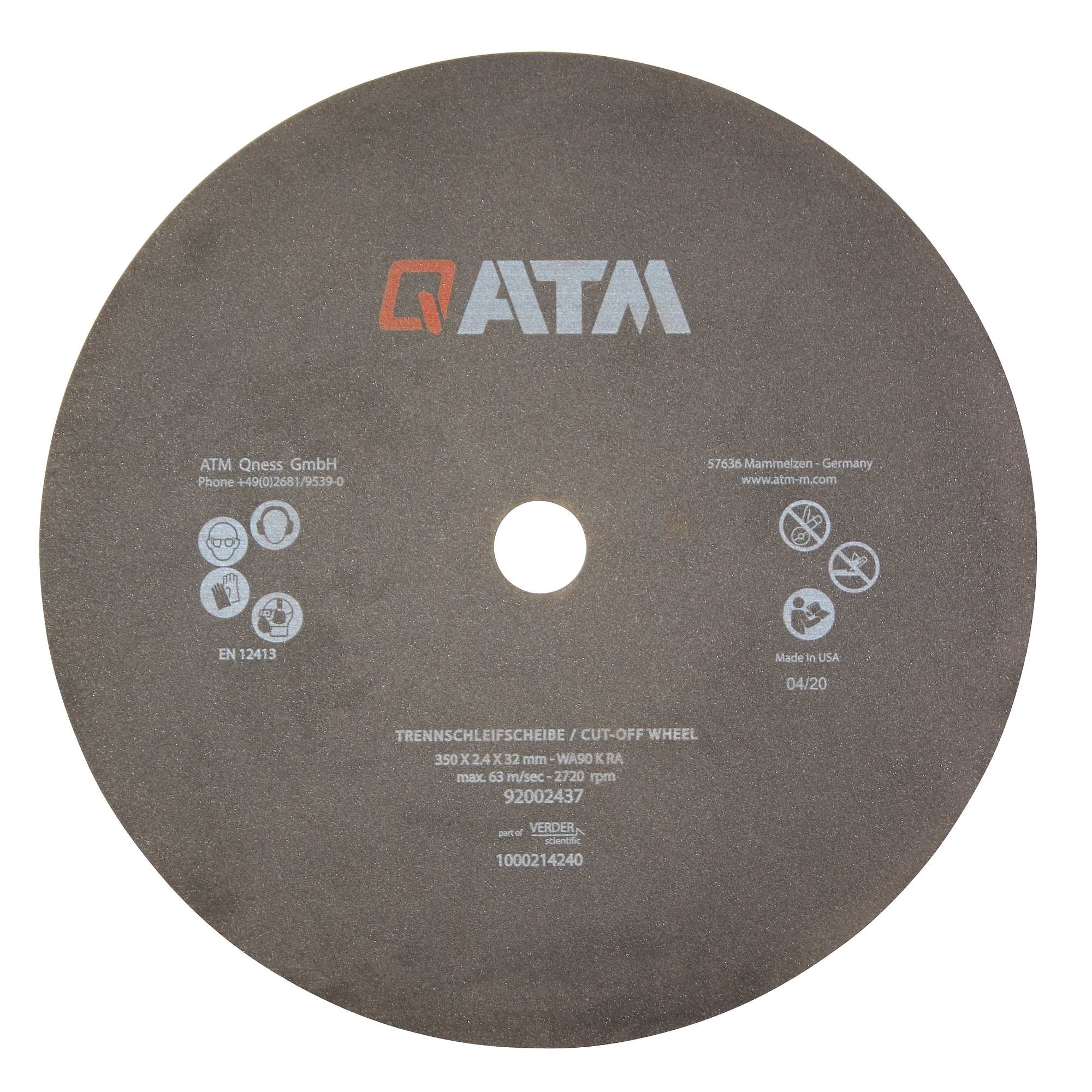

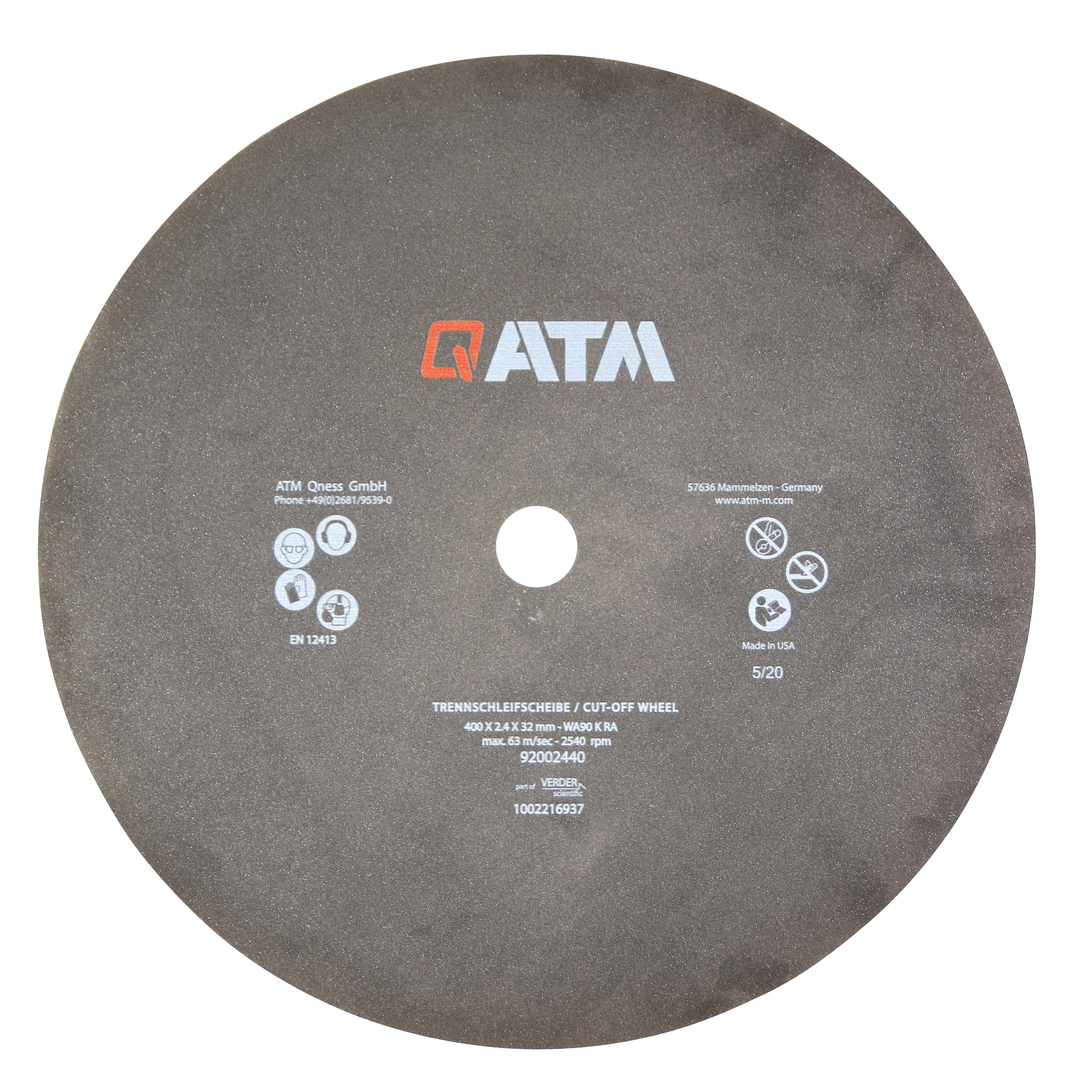

Type B, Black
• for high-speed steels, heat-treated steels, non-corrosive steels (400-700 HV)

厚度

内径

粘结剂

92002414

230 mm

1.6 mm

32 mm

Rubber

10 pcs

92002600

250 mm

1.6 mm

32 mm

Rubber

10 pcs

92002434

300 mm

1.6 mm

32 mm

Rubber

10 pcs

92002437

350 mm

2.4 mm

32 mm

Rubber

10 pcs

92002440

400 mm

2.4 mm

32 mm

Rubber

10 pcs

92008874

500 mm

3.0 mm

32 mm

Rubber

5 pcs

95018035

600 mm

4.3 mm

40 mm

Rubber

5 pcs

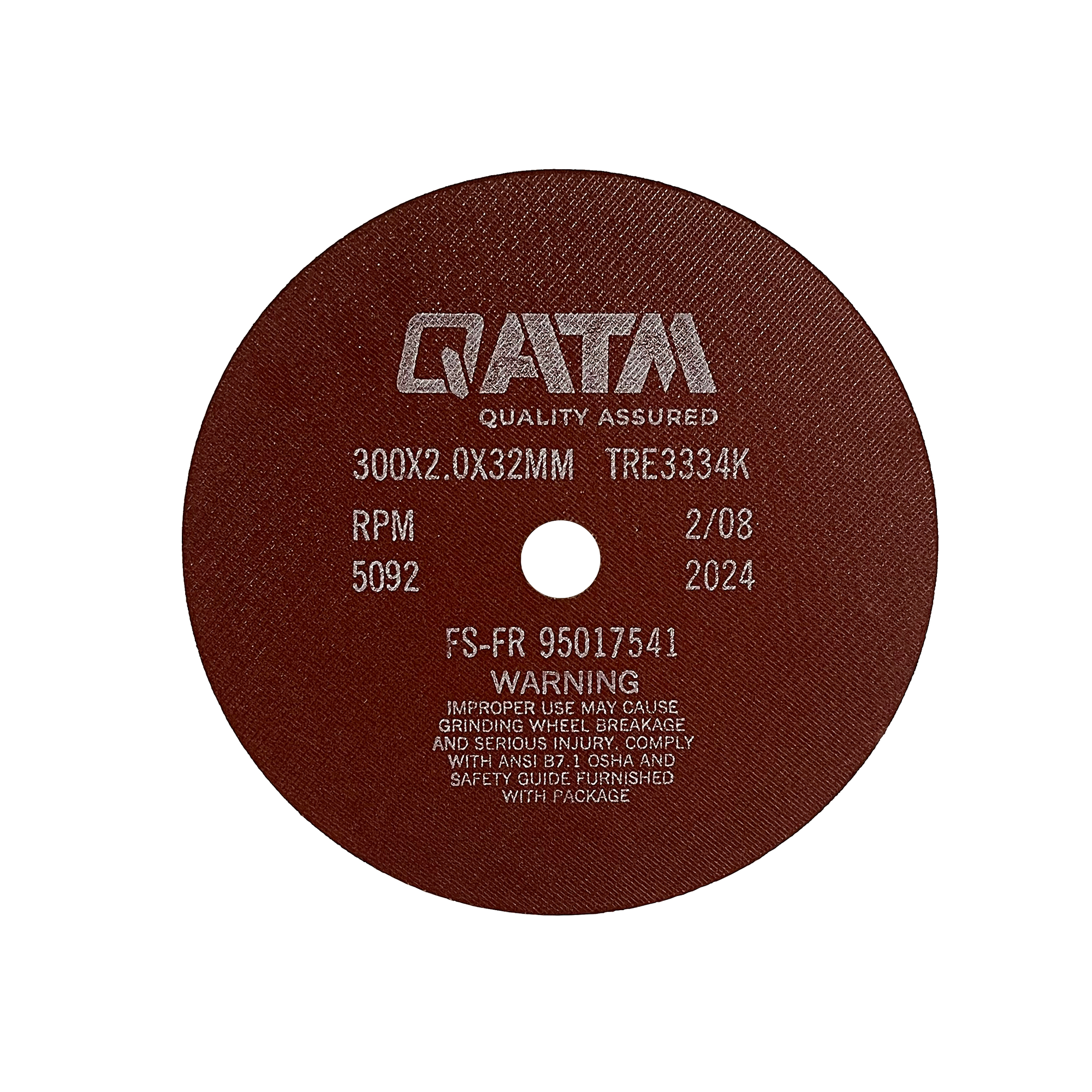

Fabric reinforced premium aluminum oxide cut-off wheels
Bond: Resin

Type FS-FR, fabric reinforced
• for medium soft to hard steels (250-600 HV)
• > 30% wear reduction
• ideal for manual cutting

厚度

内径

粘结剂

95017540

250 mm

1.5 mm

32 mm

树脂

10 pcs

95017541

300 mm

2.0 mm

32 mm

树脂

10 pcs

95017542

350 mm

2.5 mm

32 mm

树脂

10 pcs

95017543

400 mm

3.0 mm

32 mm

树脂

10 pcs

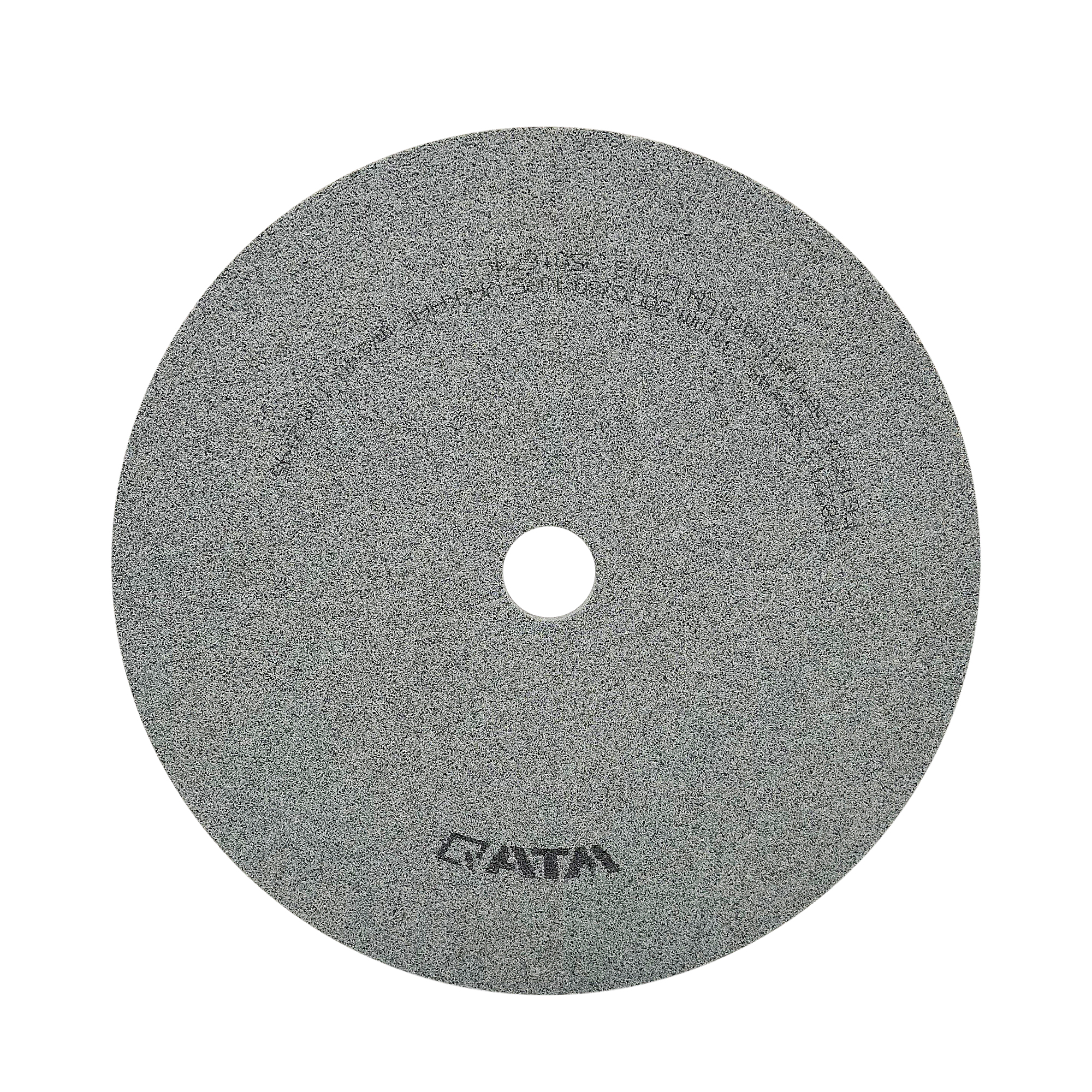

Premium diamond cut-off wheels
Bond: Bronze

• for ceramic materials

厚度

内径

粘结剂

粒度

92002452

250 mm

1.2 mm

32 mm

Bronze

D181

1 pc

92002453

300 mm

1.6 mm

32 mm

Bronze

D181

1 pc

95003433

350 mm

1.6 mm

32 mm

Bronze

D181

1 pc

92008751

400 mm

2.4 mm

32 mm

Bronze

D181/213

1 pc

• for composite materials (hard/soft combinations)

厚度

内径

粘结剂

粒度

95002102

250 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

92004719

300 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

92008619

350 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

95006793

400 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

其他尺寸需求，请致电垂询

Premium diamond cut-off wheels
Bond: Resin

• for hard metals, for materials with high hardness (>700 HV)

厚度

内径

粘结剂

粒度

92002451

250 mm

1.2 mm

32 mm

树脂

D126/151

1 pc

92002454

300 mm

1.6 mm

32 mm

树脂

D126

1 pc

95003049

350 mm

1.6 mm

32 mm

树脂

D126

1 pc

95010131

400 mm

1.6 mm

32 mm

树脂

D126

1 pc

其他尺寸需求，请致电垂询

优质CBN切割轮
粘结剂: 青铜

• for Nickel and Cobald based alloys

厚度

内径

粘结剂

92002456

250 mm

1.6 mm

32 mm

Bronze

1 pc

92002457

300 mm

1.6 mm

32 mm

Bronze

1 pc

95005025

350 mm

1.6 mm

32 mm

Bronze

1 pc

92004473

400 mm

1.6 mm

32 mm

Bronze

1 pc

ATM-CoolCut, environment- and user-friendly

混合比例 1:25 (4%) – 1:17 (6%) /折射计: 2.0%/°Bx

• for steel, cast iron, light and non-ferrous metal, glass and ceramics, composites
• free of oil, boron, nitride and formaldehyde
• optimized anti-corrosion protection and cutting properties

95004145

ATM-CoolCut, 浓缩型

1 l

95004146

ATM-CoolCut, 浓缩型

5 l

95004147

ATM-CoolCut, 浓缩型

10 l

适用于聚合物和复合材料的防腐冷却液

混合比例: 1:66 (1.5%) - 1:33 (3%) / 折射计: 2.4%/°Bx

• optimized for polymers and composites
• free of nitride and oil
• also suitable for steels, non-ferrous metals, ceramics and glasses

95007864

浓缩型

1 l

防腐蚀冷却液，标准

混合比例 1:35 / 折射计: 1.4%/°Bx

• for steel, cast iron, non-ferrous metal

95014280

浓缩型

1 l

95014281

浓缩型

5 l

95014282

浓缩型

10 l

冷却液添加剂

ATM-CoolAdd CU

95008731

ATM-CoolAdd CU, additive for Cu/non-ferrous metal processing. Use concentration in water-mixed coolant and anti-corrosion agent approx. 0.05 - 0.2%
• reduces heavy metal ions concentration, protects surfaces, promotes filterability
• supports machine functionality	1 l

消泡剂

95014584 消泡剂,水基冷却液添加剂
水冷剂的混合浓度约为0.005-0.05% 清

95014583 消泡剂,水基冷却液添加剂
水冷剂的混合浓度约为0.005-0.05% 清

ATM-PreClean

92006502 ATM-PreClean, 清洁浓缩液/用于循环冷却系统和切割机的系统清洁剂

冷却剂维护保养附件

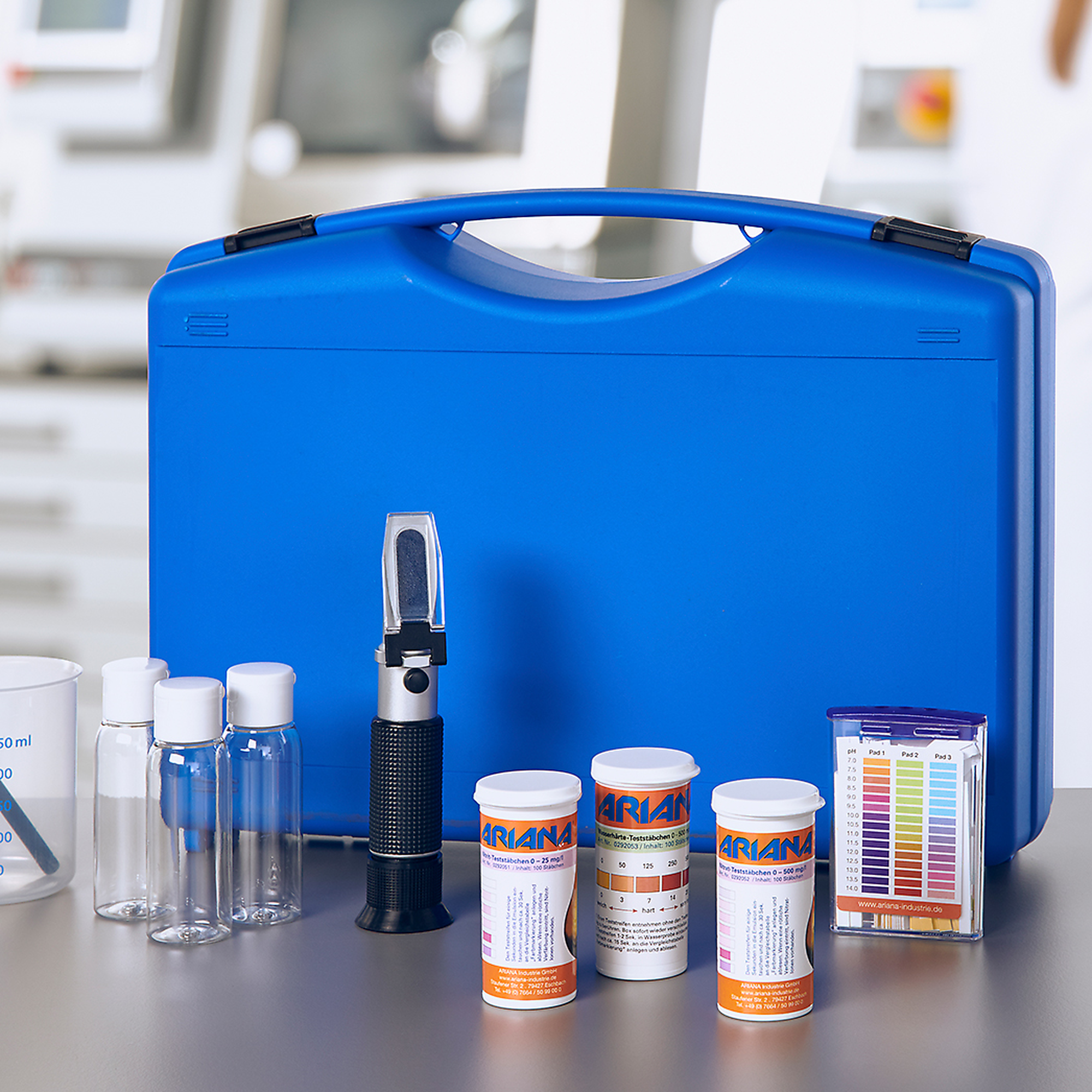

维护和测试套装

95007866

维护和测试防腐冷却液的套装(装有手持式折光仪，抽取样品的塑料杯，试纸和温度计的盒子)

1 pc

维护和测试套装的附件

92005616

PH试纸

100 pcs

92005613

硝酸盐试纸

100 pcs

92005614

亚硝酸盐试纸

100 pcs

95007865

水硬度试纸

100 pcs

切割机维护保养所需附件

防腐护理喷雾

95016408

防腐护理喷雾，全方位无硅防腐油，适用于金属表面（例如夹具）

400 ml

防雾护理喷雾

95008900

防雾护理喷雾（预防因冷却液溅射而导致视窗雾化）

100 ml

切割轮附件

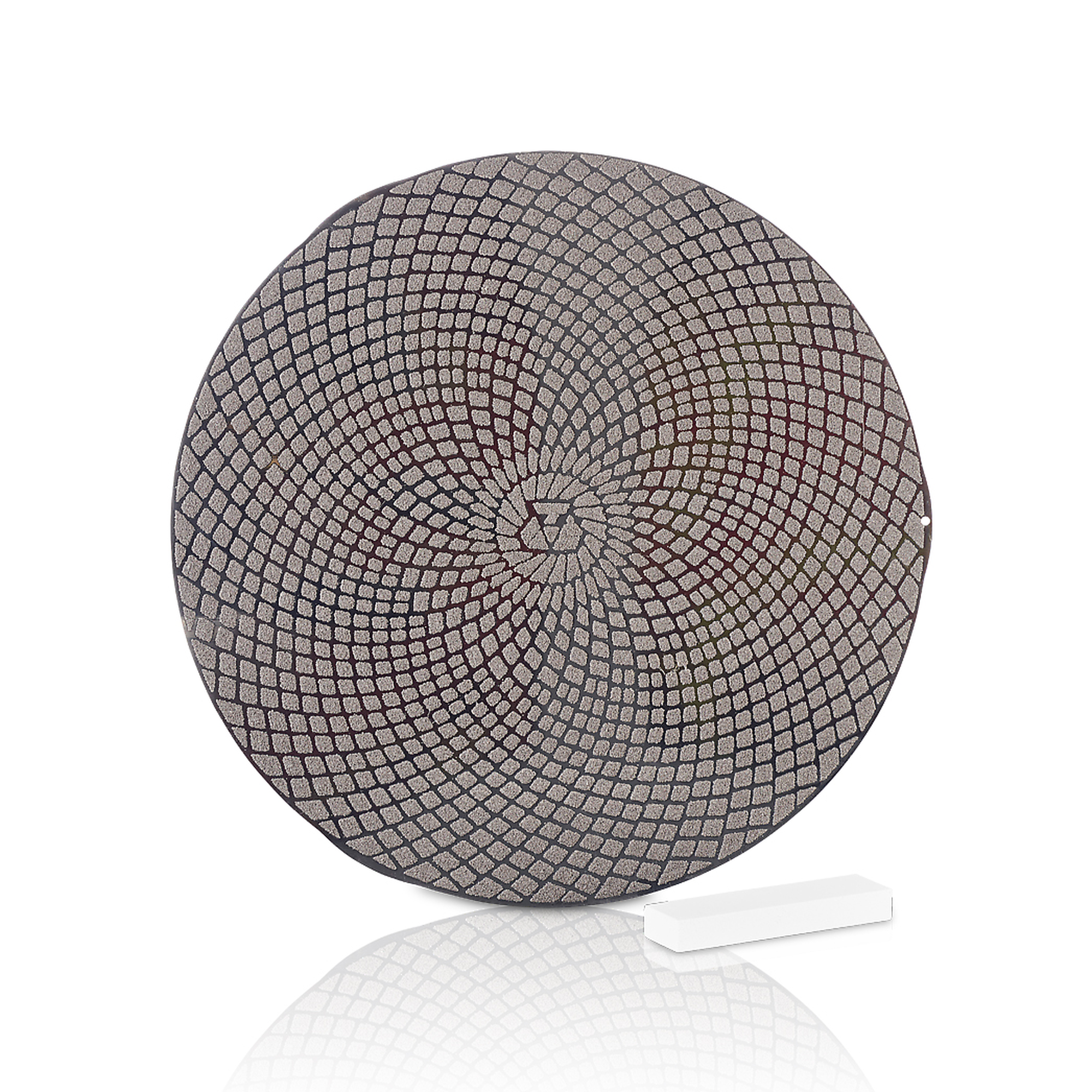

磨刀石

92002460

适用于金刚石切割轮，CBN切割轮和研磨杯轮的磨刀石

1 pc

Filter inserts for recirculation cooling system for floor-standing cut-off machines, 140 Ltr.

for Brillant 255 / Qcut 400 A (Brillant 265) / Brillant 270 / Qcut 500 A (Brillant 275) / Brillant 280

尺寸

网孔尺寸

95017301

过滤棉片

490 x 290 x 190 mm

60 µm

5 pcs

95017302

过滤棉片

490 x 290 x 190 mm

100 µm

5 pcs

95017303

过滤棉片

490 x 290 x 190 mm

800 µm

5 pcs

for recirculation cooling system for benchtop cut-off machines, 45 Ltr.
(until year of construction 2012)

尺寸

网孔尺寸

95017304

过滤棉片

290 x 150 x 190 mm

60 µm

(until year of construction 2012)

5 pcs

95017305

过滤棉片

290 x 150 x 190 mm

100 µm

(until year of construction 2012)

5 pcs

95017306

过滤棉片

290 x 150 x 190 mm

800 µm

(until year of construction 2012)

5 pcs

for recirculation cooling system for benchtop cut-off machines, 45 Ltr.
(from year of construction 2013)

尺寸

网孔尺寸

95017307

过滤棉片

250 x 200 x 155 mm

60 µm

(as of year of construction 2013)

5 pcs

95017308

过滤棉片

250 x 200 x 155 mm

100 µm

(as of year of construction 2013)

5 pcs

95017309

Filter cloth

250 x 200 x 155 mm

800 µm

(as of year of construction 2013)

5 pcs

过滤篮

hanging basket made of stainless steel for the collection of the chip abrasion
• can be hooked into 45 liter recirculating cooling unit

尺寸(宽x高x深)

Z5800008

过滤篮

140 x 80 x 200 mm

1 pc

带式过滤系统所用滤网

适用于带式过滤系统 BFA 285

长 x 宽

92008780

Filter fleece roll

100 m x 710 mm

1 pc

95017825

Filter fleece roll

100 m x 710 mm

1 pc

95017826

Filter fleece roll

100 m x 750 mm

1 pc

95017827

Filter fleece roll

100 m x 800 mm

1 pc

适用于带式过滤系统 BFA 100/130

长 x 宽

95001696

Filter fleece roll

100 m x 420 mm

1 pc

其他尺寸需求请致电咨询

适用于Qcut 600 A (Brillant 285)

长 x 宽

95016231

过滤棉片

724 x 720 mm

5 pcs

for recirculation cooling system 15 Ltr.

长 x 宽

95017314

过滤棉片

235 x 148 mm

5 pcs

Mounting Consumables

10 kg

Hot mounting accessories

92002660

硅胶膏，脱模剂

90 ml

92002661

硅胶喷雾，脱模剂

200 ml

92004441

铜刷，用于清洁热镶嵌设备

1 pc

95017752

20号平头刷，用于清洁热镶嵌机

1 pc

95017753

尖头斜角镊子，160 毫米，用于固定小样品

1 pc

92002658

热镶嵌树脂粉末用漏斗

1 pc

92002715

用于放置热镶嵌树脂的1L方瓶带螺旋盖容器

1 pc

92002657

适合角度抛光的角度适配附件，10°

100 pcs

92001716

用于盛取冷、热镶嵌树脂的量勺，13ml

10 pcs

Clip for aligning thin samples in mould

92002662

钢

100 pcs

92002663

塑料, 透明

100 pcs

92002707

塑料, 黑色

100 pcs

92002708

塑料, 红色

100 pcs

92002709

塑料, 灰色

100 pcs

热镶嵌机附件

for Hot Mounting Press Qpress 40

95017793

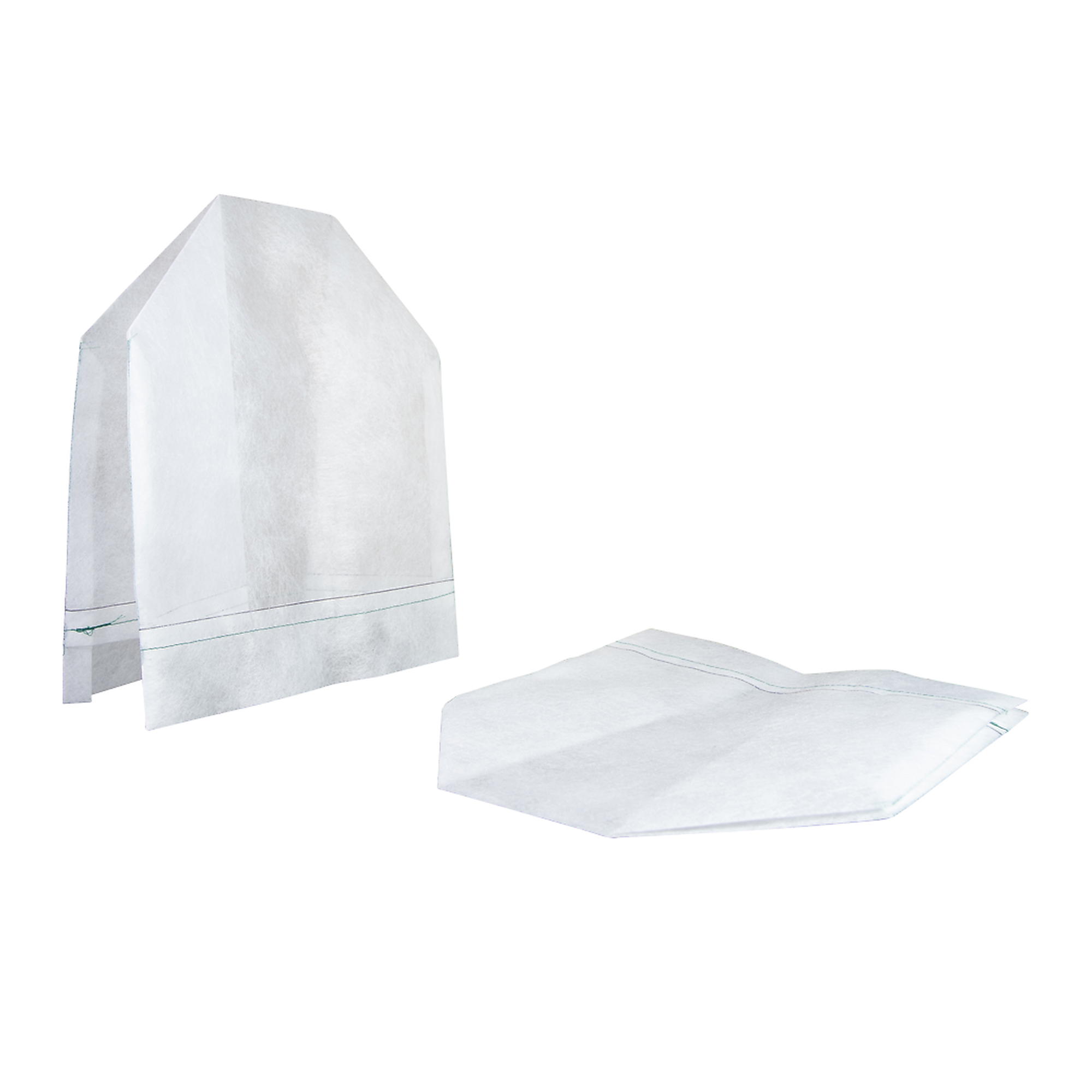

Qpress 40吸尘器用的吸尘滤袋

10 Pcs.

95017797

适用于 Qpress 40 吸尘器的HEPA 级微尘过滤器

1 Pcs.

95016887

除垢片

3 Pcs.

for Hot Mounting Press Qpress 50

95014506

过滤棉片, 230 x 230 mm

1 Pcs.

95014507

颗粒过滤器, 250 x 250 x 190 mm,两侧密封处理

1 Pcs.

95016887

除垢片

3 Pcs.

Cold mounting material

冷镶嵌材料 KEM 15 PLUS

Basis: Methyl methacrylate (MMA)

• blue, opaque
• 2-component system: powder + liquid (1.5:1 [Vol.-%])

95012019

1kg粉末，500ml液体，
40个搅拌杯，40根搅拌棒，2个量勺：13 ml 和20 ml	1 Set

95011628

粉末

1 kg

95011629

液体

500 ml

冷镶嵌材料 KEM 20

Basis: Methyl methacrylate (MMA)

• feasibility of transparent embeddings by means of pressure unit
• 2-component system: powder + liquid (2:1 [Vol.-%])

95013990

1 kg powder, 500 ml liquid,
40 mixing cups, 40 mixing sticks, 2 dosing spoons	1 Set

95013939

粉末

1 kg

95013940

粉末

5 kg

95013941

粉末

10 kg

95013942

液体

500 ml

95013943

液体

1 l

冷镶嵌材料 KEM 30

Basis: Methyl methacrylate (MMA)

• green, semi-transparent
• 2-component system: powder + liquid (2:1 [Vol.-%])

95012021

1kg粉末，500ml液体，
40 40个搅拌杯，40根搅拌棒，2个量勺: 13 ml, 椭圆形	1 pc

92004080

粉末

1 kg

92004082

粉末

5 kg

92004081

液体

500 ml

92004083

液体

1 l

92002540

液体

2.5 l

冷镶嵌材料 KEM 35

Basis: Methyl methacrylate (MMA)

• light green, opaque
• 2-component system: powder + liquid (1.5:1 [Vol.-%])

95012022

1kg粉末，500ml液体，
40个搅拌杯，40根搅拌棒，2个量勺：13 ml 和20 ml	1 Set

92002473

粉末

1 kg

92002474

粉末

5 kg

92002512

粉末

10 kg

92002475

液体

500 ml

92002476

液体

1 l

92002477

液体

2.5 l

冷镶嵌材料 Qprep SEM 5000

Basis: Modified MMA compound

• copper-brown, free of blowholes by using a pressure device
• 2-component system: powder + liquid (20 g : 13 g)

95004058

粉末

1 kg

95004059

液体

500 ml

冷镶嵌材料 KEM 60, 1 l

Basis: THFMA

• red, MMA-free
• 2-component system: powder + liquid (2:0.9 [weight-%])

95014004

1kg粉末，500ml液体，
40 40个搅拌杯，40根搅拌棒，2个量勺: 13 ml, 椭圆形	1 Set

95013184

粉末

1 kg

95013185

粉末

5 kg

95013187

液体

500 ml

冷镶嵌材料 Qpox 90

主要成分: 环氧树脂

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener (2:1 [weight-%])

95017315

500 ml 树脂, 250 ml 固化剂
40个搅拌杯, 40根搅拌棒	1 Set

92002484

树脂

500 ml

92002485

固化剂

250 ml

冷镶嵌材料 Qpox 92

主要成分: 环氧树脂

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener (100:23.2 [weight-%])

95017316

1 l Resin, 250 ml Hardener
40 mixing cups, 40 mixing sticks	1 Set

95016854

树脂

1 l

95016855

固化剂

250 ml

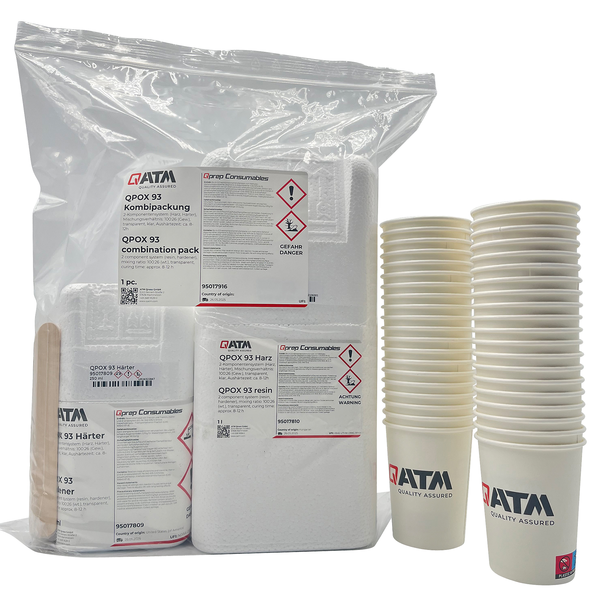

Cold mounting material Qpox 93

主要成分: 环氧树脂

• transparent, suitable for vacuum infiltration
•2-components-system: resin + hardener (100:26 [weight-%])

95017916 1升树脂, 250 ml 固化剂
40个搅拌杯, 40根搅拌棒

95017810 树脂

95017809 固化剂

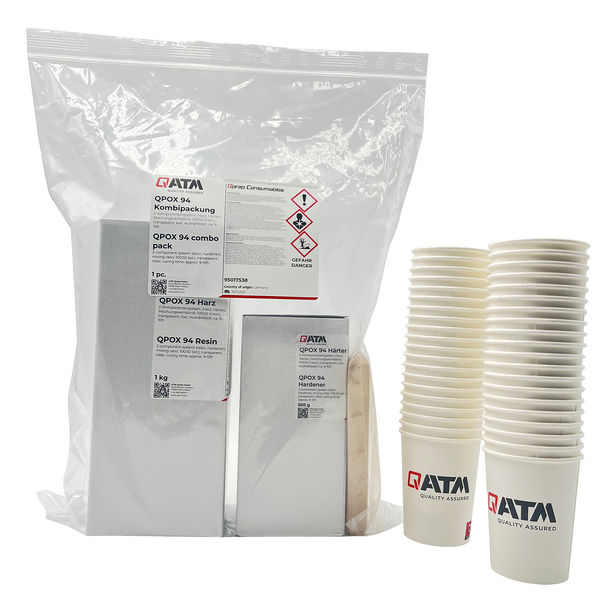

冷镶嵌材料 Qpox 94

主要成分: 环氧树脂

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener (2:1 [weight-%])

95017538 1升树脂, 500 ml 固化剂
40个搅拌杯, 40根搅拌棒

95017496 树脂

95017497 固化剂

Cold mounting material Qpox 96 Rapid

主要成分: 环氧树脂

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener for 40 mm = 100/50, for ≤ 30 mm 100/56 [weight-%]

95018001 1升树脂, 500 ml 固化剂
40个搅拌杯, 40根搅拌棒

95017944 树脂

95017945 固化剂

Vacuum infiltration and pressure device

真空浸渍单元

• for cold mounting, pouring and hardening using vacuum
• recommended for Qpox epoxy resins

M6500001

真空浸渍单元，230V/50Hz，真空度0.8bar，
W 宽330x高270x深300mm
(包括含机械加液臂和真空泵的干燥器，可安放8个 φ50mm的硅胶冷镶嵌模具或者9个φ40mmPTFE模具的旋转底盘，10个搅拌杯）	1 pc

Infiltration unit 110 V/60 Hz on request

Pressure equipment

95016569

Pressure Equipment Qprep Pressure, dimensions: B, 340 x W340 x H255 mm

1 pc

UV mounting material

UV mounting material Qprep UV 50

主要成分: 改性甲基丙烯酸酯

• transparent
• 1-component system

95016840

多合一液体

1 l

UV mounting resin Qprep UV 55

• transparent
• 1-component system

95017495 多合一液体

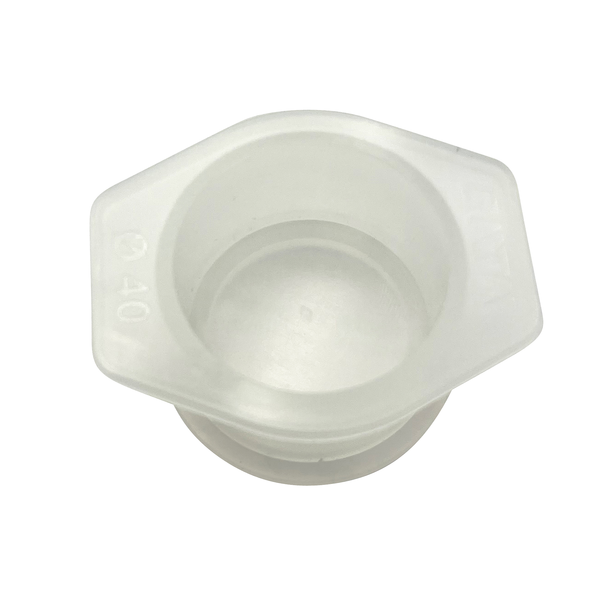

用于UV光固化的冷镶嵌模具

Qmould Clear mounting moulds

• suitable for light curing
• with exchangeable bottom

95017575

Ø 40 mm / H 25 mm

5 pcs

95017576

Ø 50 mm / H 25 mm

5 pcs

聚丙烯，圆形，无倒角

• suitable for light curing
• with exchangeable bottom

95017317

Ø 25 mm / H 27 mm

5 pcs

95017318

Ø 30 mm / H 27 mm

5 pcs

Mounting

UV mounting material

95017319

Ø 40 mm / H 27 mm (will be replaced by Qmould Clear 95017575)

5 pcs

Cold & UV mounting accessories

92001715

搅拌杯，一次性，180ml

100 pcs

92004360

硅胶搅拌杯，可重复使用

1 pc

92001717

搅拌棒 (木制)

100 pcs

92002657

适合角度抛光的角度适配附件，10°

100 pcs

92001716

用于盛取冷、热镶嵌树脂的量勺，13ml

10 pcs

92001779

用于盛取冷镶嵌树脂的量勺，20ml

10 pcs

92001781

用于盛取冷镶嵌树脂的量勺，13ml

10 pcs

Clip for aligning thin samples in mould

92002662

钢

100 pcs

92002663

塑料, 透明

100 pcs

92002707

塑料, 黑色

100 pcs

92002708

塑料, 红色

100 pcs

92002709

塑料, 灰色

100 pcs

塑料镶嵌辅助支架

92002623

Ø 30 mm, 用于4个样品, 样品厚度 <1 mm, 蓝色

100 pcs

92002625

Ø 30 mm, for 4 samples, sample thickness <2 mm, gray

100 pcs

92002624

Ø 30 mm, 用于3个样品, 样品厚度 <3 mm, 白色

100 pcs

透明镶嵌辅助支架

95016787

Ø 35 mm, 用于4个样品，样品厚度< 1mm

10 pcs

95016788

Ø 35 mm, 用于4个样品，样品厚度< 1mm

50 pcs

95016789

Ø 35 mm, 用于4个样品，样品厚度< 1mm

100 pcs

95016790

Ø 35 mm, 用于4个样品，样品厚度1-2mm

10 pcs

95016791

Ø 35 mm, 用于4个样品，样品厚度1-2mm

50 pcs

95016792

Ø 35 mm, 用于4个样品，样品厚度1-2mm

100 pcs

95016793

Ø 35 mm, 用于3个样品，样品厚度2-3mm

10 pcs

95016794

Ø 35 mm, 用于3个样品，样品厚度2-3mm

50 pcs

95016795

Ø 35 mm, 用于3个样品，样品厚度2-3mm

100 pcs

95016796

Ø 35 mm, 用于2个样品，样品厚度3-4mm

10 pcs

95016797

95017026

Ø 25 mm / H 23 mm

5 pcs

95017027

Ø 30 mm / H 25 mm

5 pcs

95017028

Ø 32 mm / H 25 mm

5 pcs

95017029

Ø 38 mm / H 25 mm

5 pcs

95017030

Ø 40 mm / H 30 mm

5 pcs

95017031

Ø 50 mm / H 30 mm

5 pcs

硅胶，方形，倒角

• not suitable for light curing

92002509

55 x 30 mm / H 22 mm

1 pc

95017032

55 x 30 mm / H 22 mm

5 pcs

92002510

70 x 40 mm / H 22 mm

1 pc

95017033

70 x 40 mm / H 22 mm

5 pcs

聚丙烯，圆形，无倒角

• suitable for light curing
• with exchangeable bottom

95017317

Ø 25 mm / H 27 mm

5 pcs

95017318

Ø 30 mm / H 27 mm

5 pcs

95017319

Ø 40 mm / H 27 mm (will be replaced by Qmould Clear 95017575)

5 pcs

聚乙烯，圆形

• not suitable for light curing
• with exchangeable bottom

95017037

Ø 25 mm / H 25 mm

5 pcs

95017038

Ø 30 mm / H 25 mm

5 pcs

PTFE(聚四氟乙烯）圆形，倒角

• not suitable for light curing
• with exchangeable bottom

95017041 Ø 25 mm / H 23 mm, 3 pcs

95017042 Ø 30 mm / H 25 mm, 3 pcs

95017043 Ø 32 mm / H 25 mm, 3 pcs

95017044 Ø 38 mm / H 25 mm, 3 pcs

95017045 Ø 40 mm / H 30 mm, 3 pcs

95017046 Ø 50 mm / H 30 mm, 3 pcs

95017047 Ø 70 mm / H 30 mm, 3 pcs

方案套装盒, 方案套装盒

方案套装盒

Grinding Consumables

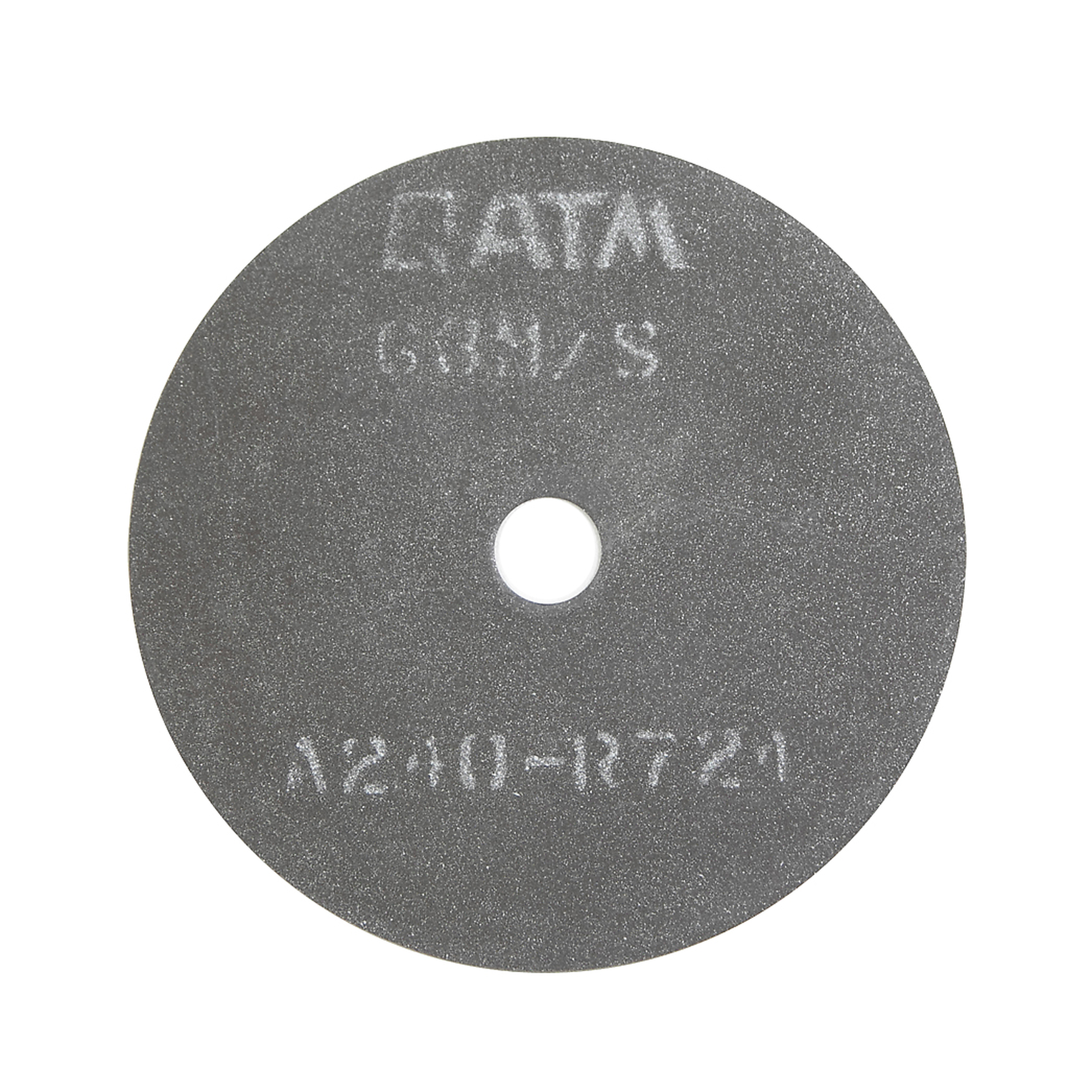

Planar grinding stones

Qgrind XL预磨机用平面磨石

White corundum grinding stone
• for tool steel (hardened and not hardened), stainless steel, steel and cast iron

粒度	外径	内径	Abor Size Ø
FEPA standard

95016741

100

356 mm

126 mm

38 mm

1 pc

95017565

150

356 mm

126 mm

38 mm

1 pc

SIC grinding stone
• for sintered materials (low- and unalloyed), aluminum, chilled cast iron, copper

粒度	外径	内径	Abor Size Ø
FEPA standard

95016746

356 mm

126 mm

38 mm

1 pc

95016747

150

356 mm

126 mm

38 mm

1 pc

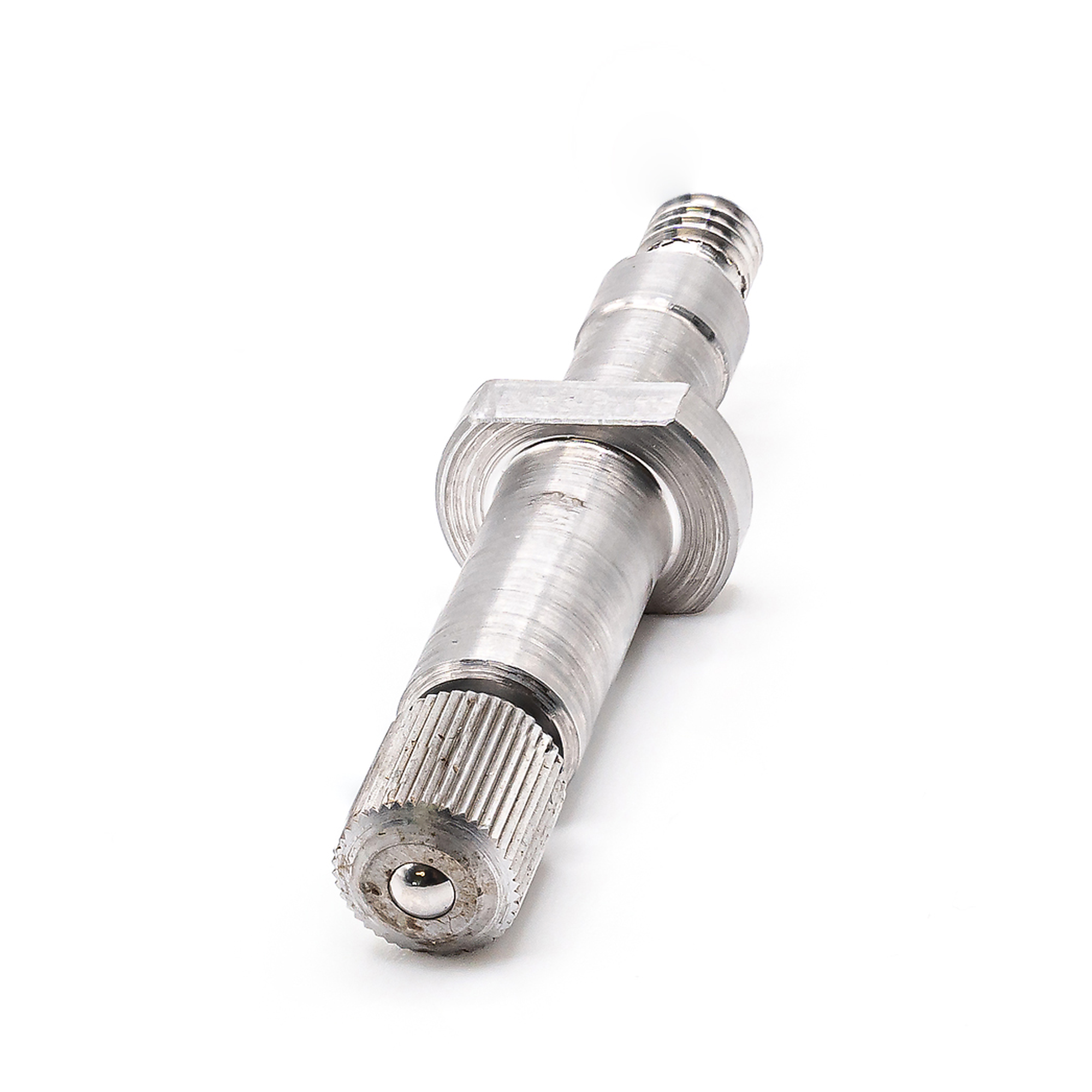

多点金刚石修刀棒，用于修整磨石

95016897

多点金刚石修刀棒

1 pc

Planar grinding stones for Saphir 375

White corundum grinding stone
• for tool steel (hardened and not hardened), stainless steel, steel and cast iron
• glued on metal carrier plate

粒度	外径	内径	Abor Size Ø
FEPA standard

95000180

100

350 mm

90 mm

40 mm

1 pc

95000210

150

350 mm

90 mm

40 mm

1 pc

95002034

180

350 mm

90 mm

40 mm

1 pc

SIC grinding stone
• for sintered materials (low- and unalloyed), aluminum, chilled cast iron, copper
• glued on metal carrier plate

粒度	外径	内径	Abor Size Ø
FEPA standard

95002223

350 mm

90 mm

40 mm

1 pc

可根据需要提供内径120mm规格

多点金刚石修刀棒，用于修整磨石

92008759

多点金刚石修刀棒

1 pc

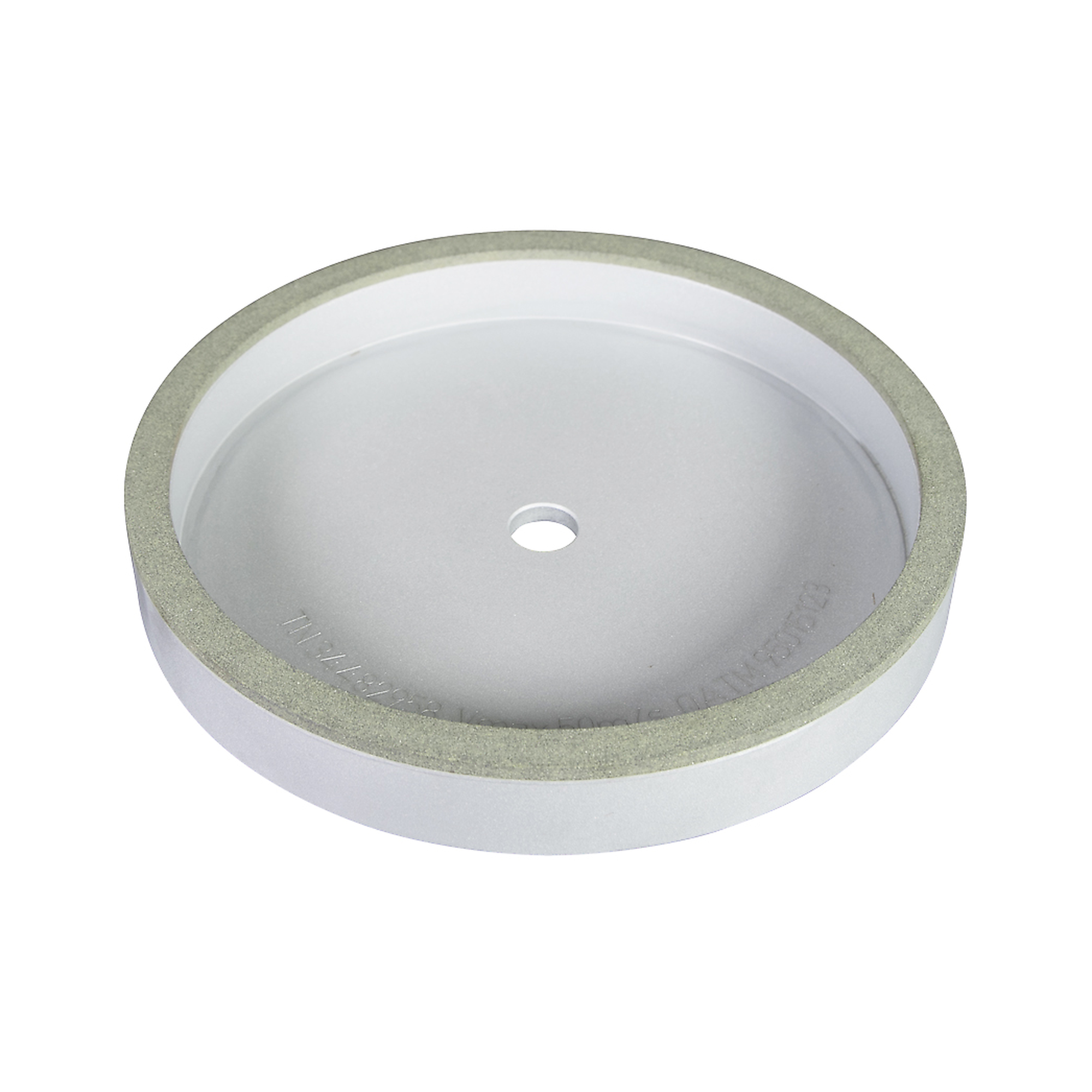

金刚石研磨杯轮

• for glass fiber reinforced plastics and printed circuit boards
• with galvanic bond

厚度

高度

内径

粒度

95017782

150 mm

8 mm

21.7 mm

12.7 mm

D120

1 pc

95017784

150 mm

8 mm

21.7 mm

12.7 mm

D213

1 pc

• for glass, ceramics, rocks, hard metal
• with resin bond

厚度

高度

内径

粒度

95015123

150 mm

8 mm

21.5 mm

12.7 mm

D151

1 pc

95015122

150 mm

8 mm

21.5 mm

12.7 mm

D64

1 pc

95017563

150 mm

8 mm

21.5 mm

12.7 mm

D126

1 pc

磁性膜，自粘

Magnetic foil, normal adhesion
• to apply on working wheel

厚度

92008528

200 mm

1 mm

1 pc

92005820

250 mm

1 mm

1 pc

92005822

300 mm

1 mm

1 pc

Magnetic foil, strong adhesion
• to apply on working wheel

厚度

95016345

200 mm

1 mm

1 pc

95018002

230 mm

1 mm

1 pc

95016346

250 mm

1 mm

1 pc

95012161

300 mm

1 mm

1 pc

95014137

350 mm

1 mm

1 pc

Magnetic foil, strongest adhesion
• to apply on working wheel
• increased magnetic adhesion by higher material thickness

厚度

95016298

200 mm

2 mm

1 pc

95018003

230 mm

2 mm

1 pc

95016300

250 mm

2 mm

1 pc

95016301

300 mm

2 mm

1 pc

95016302

350 mm

2 mm

1 pc

GALAXY 金刚石磨盘
粘接剂: 树脂

• incl. dressing stone No.95015076
• for medium to hard materials
• planar grinding: grey (P80-P100)
• Fixation system: Magnetic foil

描述

Fixation

95005505

GALAXY 金刚石磨盘灰色

200 mm

Adhesion carrier/Magnet carrier

1 pc

95004279

GALAXY 金刚石磨盘灰色

250 mm

Adhesion carrier/Magnet carrier

1 pc

95004280

GALAXY 金刚石磨盘灰色

300 mm

Adhesion carrier/Magnet carrier

1 pc

95013917

GALAXY 金刚石磨盘灰色

350 mm

Adhesion carrier/Magnet carrier

1 pc

• incl. dressing stone No.95015076
• for medium to hard materials
• planar grinding: red (P100-P120)
• Fixation system: Magnetic foil

描述

Fixation

95005521

GALAXY 金刚石磨盘红色

200 mm

Adhesion carrier/Magnet carrier

1 pc

95004310

GALAXY 金刚石磨盘红色

250 mm

Adhesion carrier/Magnet carrier

1 pc

95004314

GALAXY 金刚石磨盘红色

300 mm

Adhesion carrier/Magnet carrier

1 pc

95013918

GALAXY 金刚石磨盘红色

350 mm

Adhesion carrier/Magnet carrier

1 pc

• incl. dressing stone No.95015076
• for medium to hard materials
• fine grinding: green (P180-P320)
• Fixation system: Magnetic foil

描述

Fixation

95005522

GALAXY 金刚石磨盘绿色

200 mm

Adhesion carrier/Magnet carrier

1 pc

95004311

GALAXY 金刚石磨盘绿色

250 mm

Adhesion carrier/Magnet carrier

1 pc

95004315

GALAXY 金刚石磨盘绿色

300 mm

Adhesion carrier/Magnet carrier

1 pc

95013919

GALAXY 金刚石磨盘绿色

350 mm

Adhesion carrier/Magnet carrier

1 pc

• incl. dressing stone No.95015076
• for medium to hard materials
• fine grinding: green (P400-P600)
• Fixation system: Magnetic foil

描述

Fixation

95005523

GALAXY 金刚石磨盘蓝色

200 mm

Adhesion carrier/Magnet carrier

1 pc

95004312

GALAXY 金刚石磨盘蓝色

250 mm

Adhesion carrier/Magnet carrier

1 pc

95004316

GALAXY 金刚石磨盘蓝色

300 mm

Adhesion carrier/Magnet carrier

1 pc

95013920

GALAXY 金刚石磨盘蓝色

350 mm

Adhesion carrier/Magnet carrier

1 pc

• incl. dressing stone No.95015076
• for medium to hard materials
• fine grinding: yellow (P800-P1000)
• Fixation system: Magnetic foil

描述

Fixation

95005524

GALAXY 金刚石磨盘黄色

200 mm

Adhesion carrier/Magnet carrier

1 pc

95004313

GALAXY 金刚石磨盘黄色

250 mm

Adhesion carrier/Magnet carrier

1 pc

95004317

GALAXY 金刚石磨盘黄色

300 mm

Adhesion carrier/Magnet carrier

1 pc

95013921

GALAXY 金刚石磨盘黄色

350 mm

Adhesion carrier/Magnet carrier

1 pc

Dressing/cleaning stones

for dressing and cleaning of GALAXY diamond grinding discs

描述

95006603

SiC dressing/cleaning stone

1 pc

95015076

Corundum dressing/cleaning stone

1 pc

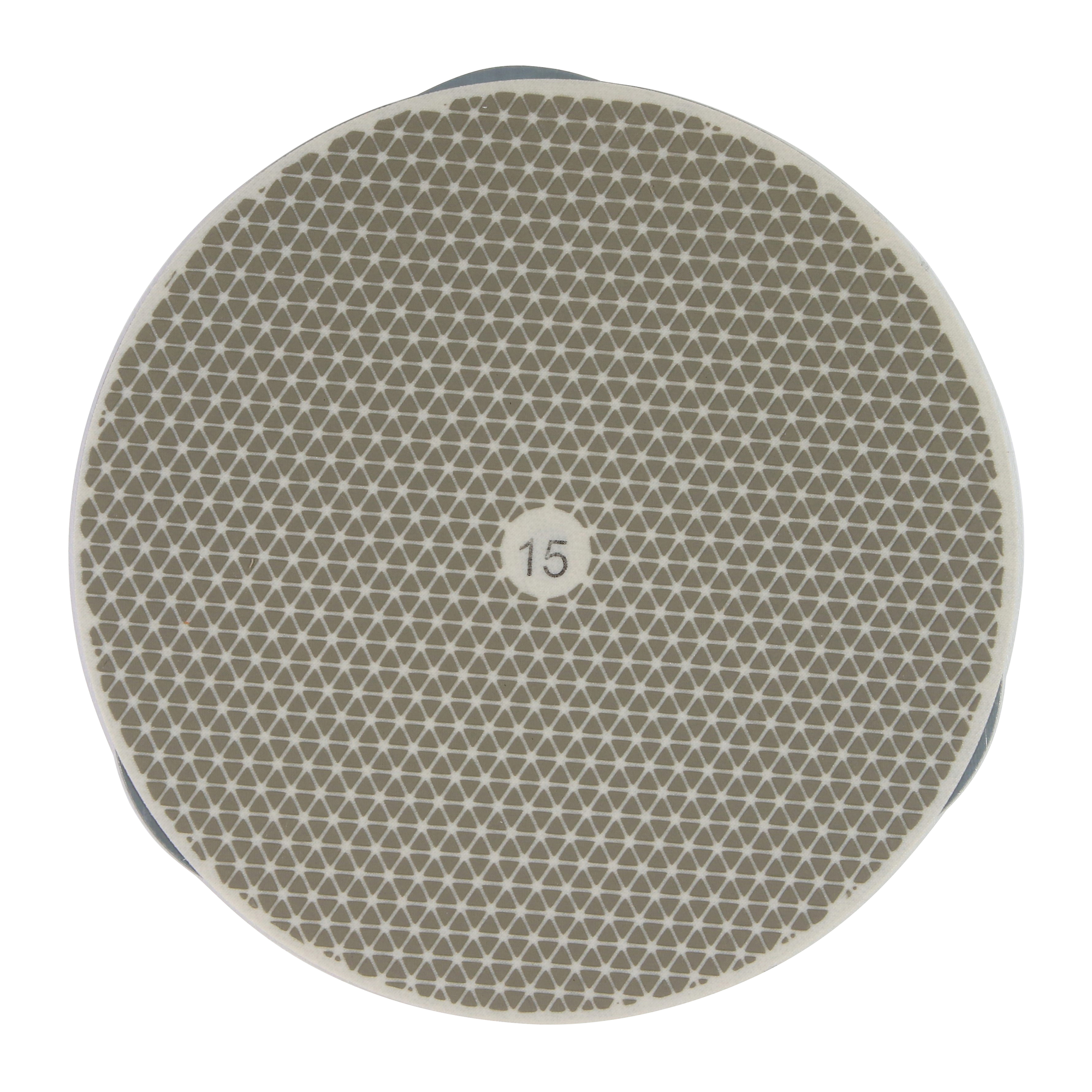

POLARIS M 金刚石磨盘

for medium-hard materials
• incl. cleaning stone No. (95015077)
• Fixation system: Magnetic foil

250 mm Ø

描述

粒度

95015016

POLARIS M 金刚石磨盘

60 µm

1 pc

95015017

POLARIS M 金刚石磨盘

30 µm

1 pc

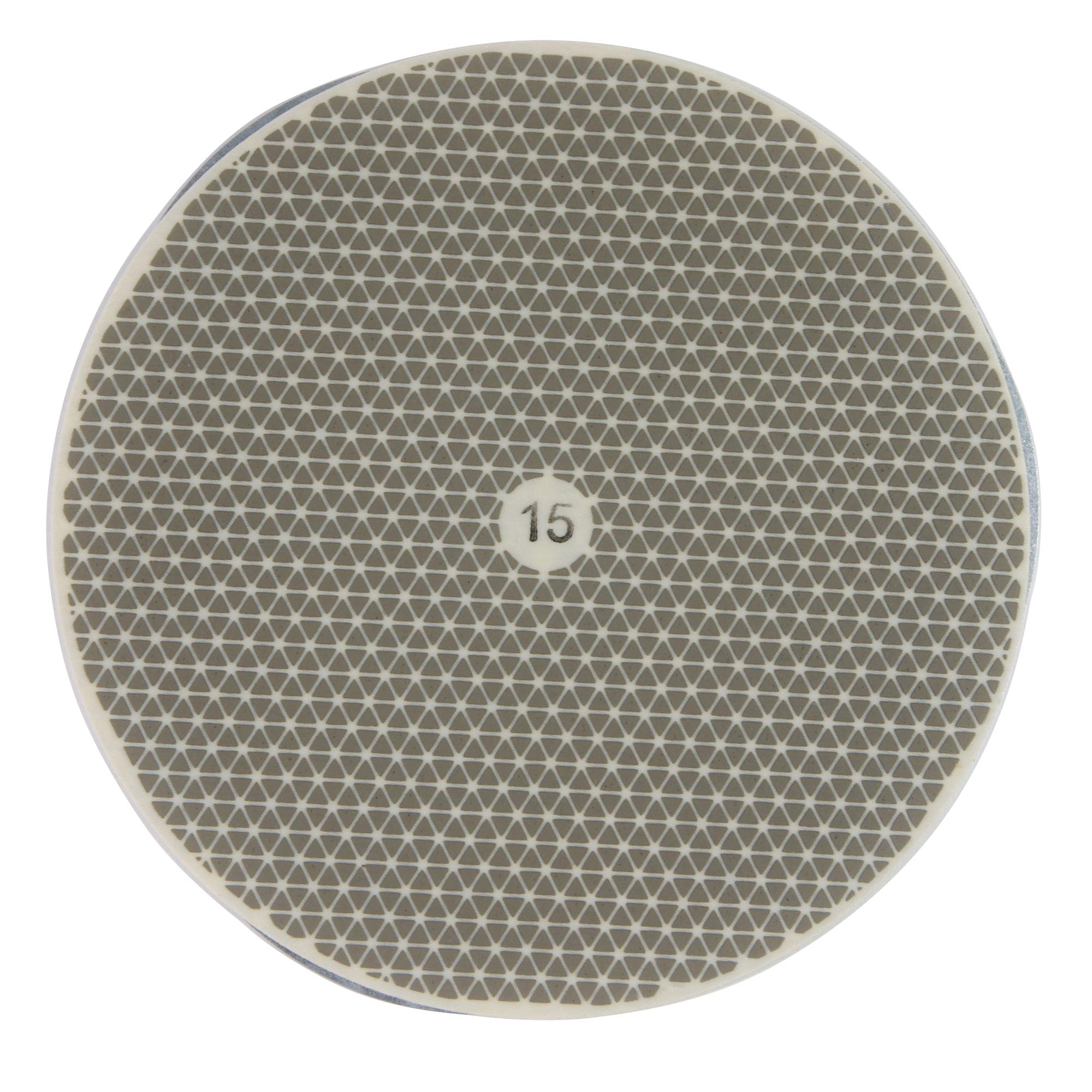

95015018

POLARIS M 金刚石磨盘

15 µm

1 pc

95015019

POLARIS M 金刚石磨盘

6 µm

1 pc

95015020

POLARIS M 金刚石磨盘

3 µm

1 pc

300 mm Ø

描述

粒度

95015041

POLARIS M 金刚石磨盘

60 µm

1 pc

95015042

POLARIS M 金刚石磨盘

30 µm

1 pc

95015043

POLARIS M 金刚石磨盘

15 µm

1 pc

95015044

POLARIS M 金刚石磨盘

6 µm

1 pc

95015045

POLARIS M 金刚石磨盘

3 µm

1 pc

• for cleaning of POLARIS diamond grinding discs

95015077

Corundum cleaning stone

1 pc

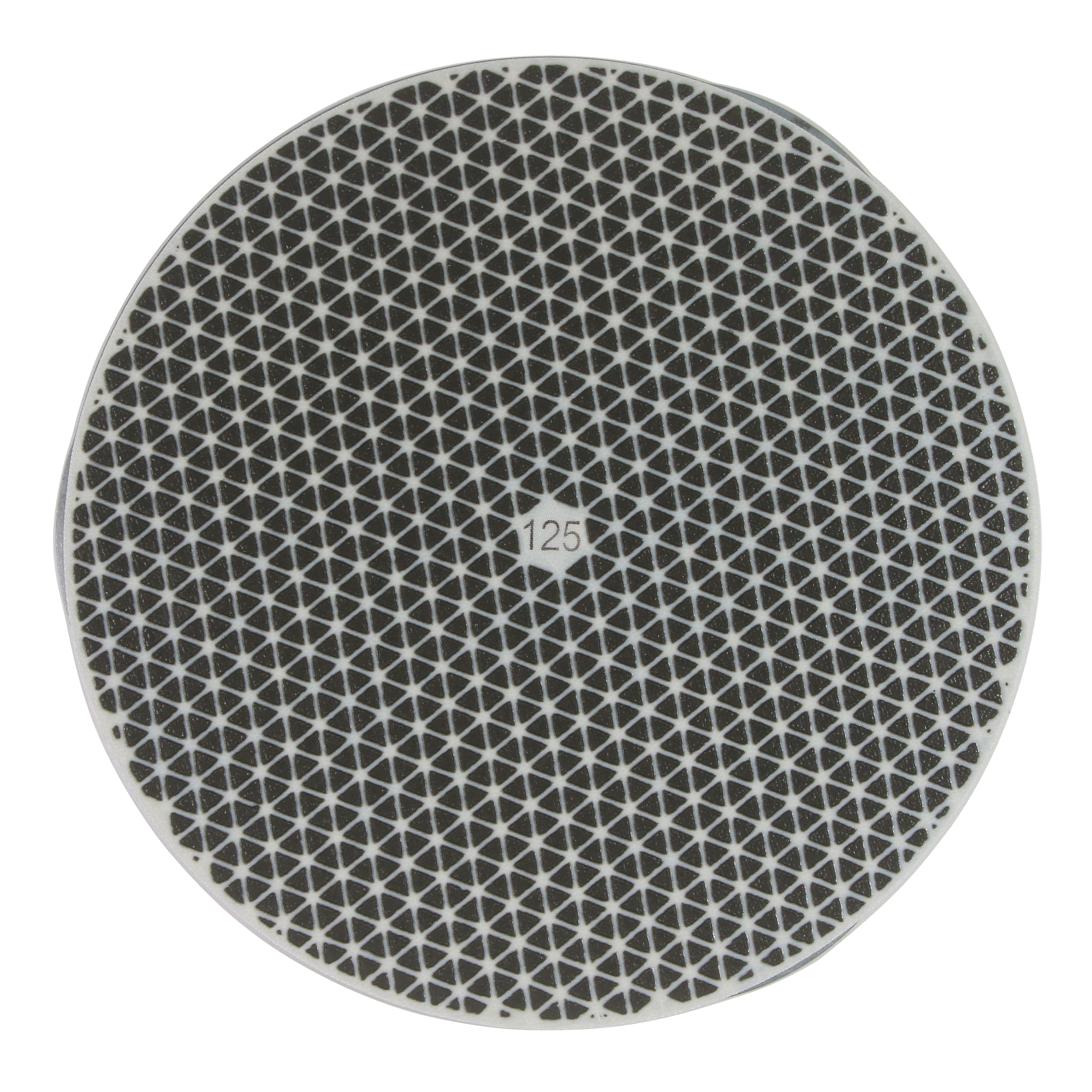

POLARIS H 金刚石磨盘

for hard materials
• incl. cleaning stone No. (95015077)
• Fixation system: Magnetic foil

250 mm Ø

描述

粒度

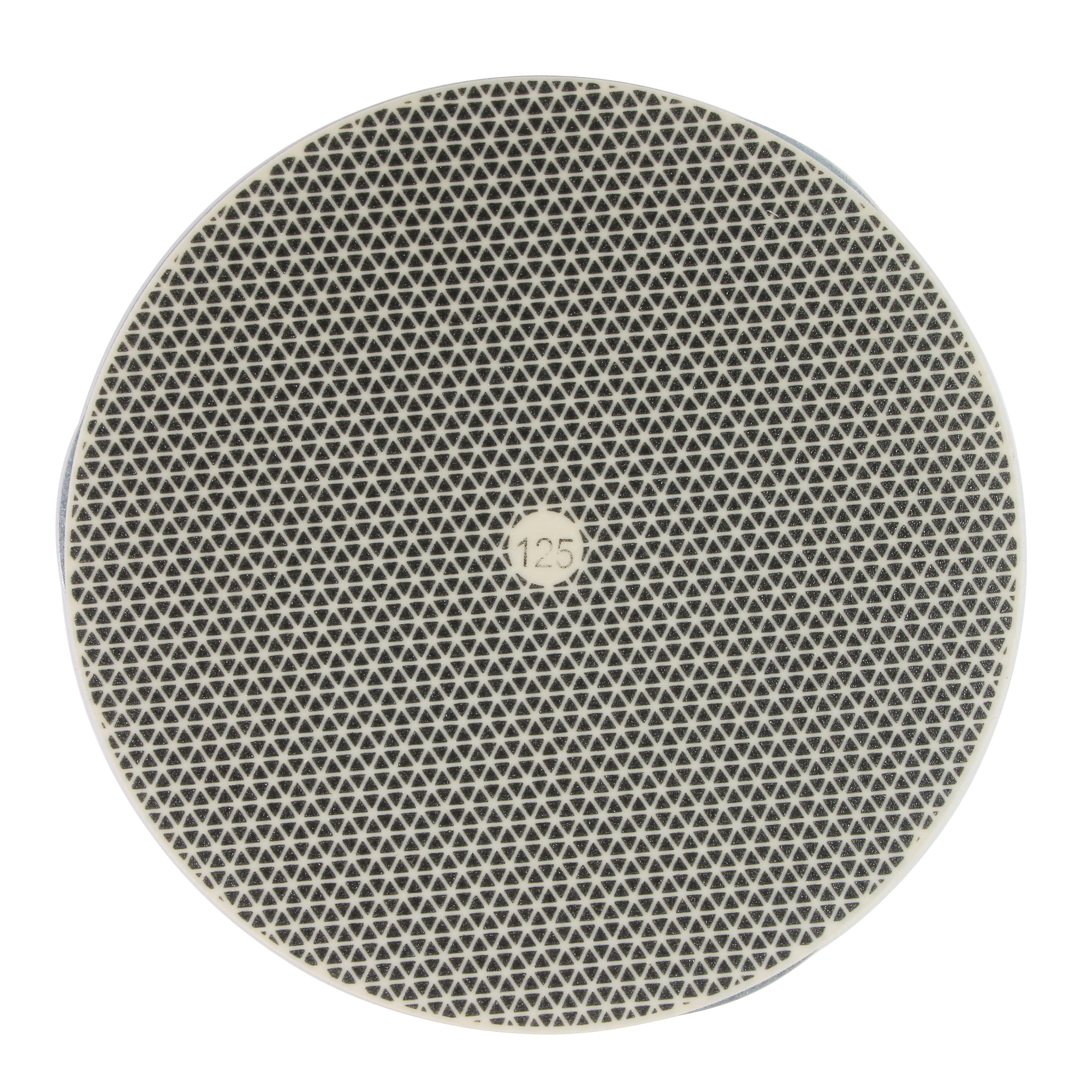

95015010

POLARIS H 金刚石磨盘

125 µm

1 pc

95015011

POLARIS H 金刚石磨盘

60 µm

1 pc

95015012

POLARIS H 金刚石磨盘

30 µm

1 pc

95015013

POLARIS H 金刚石磨盘

15 µm

1 pc

95015014

POLARIS H 金刚石磨盘

6 µm

1 pc

95015015

POLARIS H 金刚石磨盘

3 µm

1 pc

300 mm Ø

描述

粒度

95015035

POLARIS H 金刚石磨盘

125 µm

1 pc

95015036

POLARIS H 金刚石磨盘

60 µm

1 pc

95015037

POLARIS H 金刚石磨盘

30 µm

1 pc

95015038

POLARIS H 金刚石磨盘

15 µm

1 pc

95015039

POLARIS H 金刚石磨盘

6 µm

1 pc

95015040

POLARIS H 金刚石磨盘

3 µm

1 pc

• for cleaning of POLARIS diamond grinding discs

95015077

Corundum cleaning stone

1 pc

QUASAR 金刚石磨盘

for hard materials
• incl. dressing stone No. (95015076)
• Fixation system: Magnetic foil

250 mm Ø

描述

粒度

95015006

QUASAR 金刚石磨盘

252 µm

1 pc

95015007

QUASAR 金刚石磨盘

125 µm

1 pc

95015008

QUASAR 金刚石磨盘

91 µm

1 pc

95015009

QUASAR 金刚石磨盘

46 µm

1 pc

300 mm Ø

描述

粒度

95015031

QUASAR 金刚石磨盘

252 µm

1 pc

95015032

QUASAR 金刚石磨盘

125 µm

1 pc

95015033

QUASAR 金刚石磨盘

91 µm

1 pc

95015034

QUASAR 金刚石磨盘

46 µm

1 pc

• for cleaning of QUASAR and VEGA diamond grinding discs

95015076

Corundum dressing/cleaning stone

1 pc

VEGA 金刚石磨盘

for hard materials, for planar and pre-grinding
• incl. cleaning stone (95015076)
• Fixation system: Magnetic foil

200 mm Ø

描述

粒度

95017836

VEGA 金刚石磨盘

250 µm

1 pc

Grinding

Grinding discs

Diamond

200 mm

VEGA

250 µm

Magnetic foil

95015001

VEGA 金刚石磨盘

125 µm

1 pc

95015002

VEGA 金刚石磨盘

75 µm

1 pc

95015003

VEGA 金刚石磨盘

54 µm

1 pc

95015004

VEGA 金刚石磨盘

25 µm

1 pc

95015005

VEGA 金刚石磨盘

10 µm

1 pc

250 mm Ø

描述

粒度

95017837

VEGA 金刚石磨盘

250 µm

1 pc

Grinding

Grinding discs

Diamond

250 mm

VEGA

250 µm

Magnetic foil

95015026

VEGA 金刚石磨盘

125 µm

1 pc

95015027

VEGA 金刚石磨盘

75 µm

1 pc

95015028

VEGA 金刚石磨盘

54 µm

1 pc

95015029

VEGA 金刚石磨盘

25 µm

1 pc

95015030

VEGA 金刚石磨盘

10 µm

1 pc

300 mm Ø

描述

粒度

95017838

VEGA 金刚石磨盘

250 µm

1 pc

Grinding

Grinding discs

Diamond

300 mm

VEGA

250 µm

Magnetic foil

95015051

VEGA 金刚石磨盘

125 µm

1 pc

95015052

VEGA 金刚石磨盘

75 µm

1 pc

95015053

VEGA 金刚石磨盘

54 µm

1 pc

95015054

VEGA 金刚石磨盘

25 µm

1 pc

95015055

VEGA 金刚石磨盘

10 µm

1 pc

350 mm Ø

描述

粒度

95017839

VEGA 金刚石磨盘

250 µm

1 pc

Grinding

Grinding discs

Diamond

350 mm

VEGA

250 µm

Magnetic foil

95016235

VEGA 金刚石磨盘

125 µm

1 pc

95016236

VEGA 金刚石磨盘

75 µm

1 pc

95016237

VEGA 金刚石磨盘

54 µm

1 pc

95016238

VEGA 金刚石磨盘

25 µm

1 pc

95016239

VEGA 金刚石磨盘

10 µm

1 pc

Contero S fine grinding/lapping discs

for soft to medium hard materials
• Fixation system: Magnetic foil

描述

95013194

Contero S fine grinding/lapping disc

250 mm

1 pc

95013196

Contero S fine grinding/lapping disc

300 mm

1 pc

Contero H fine grinding/lapping discs

for medium to hard materials
• Fixation system: Magnetic foil

描述

95017605

Contero H fine grinding/lapping disc

250 mm

1 pc

95017606

Contero H fine grinding/lapping disc

300 mm

1 pc

95013923

Contero H fine grinding/lapping disc

350 mm

1 pc

清洁刷

• for cleaning of ginding and fine grinding discs

描述

95016623

尼龙刷

1 pc

92004441

Brass brush

1 pc

粘接转换盘，双面

95003607

250 mm

1 pc

95003608

300 mm

1 pc

第一次使用前请揭掉两面的保护膜

碳化硅研磨薄膜

• Fixation system: Adhesive carrier disc

250 mm Ø

描述

Grain FEPA-Standard

92008557

SiC 研磨薄膜

P120

100 pcs

92008558

SiC 研磨薄膜

P180

100 pcs

95000899

SiC 研磨薄膜

P240

100 pcs

92006305

SiC 研磨薄膜

P320

100 pcs

92006304

SiC 研磨薄膜

P600

100 pcs

95000900

SiC 研磨薄膜

P800

100 pcs

92008559

SiC 研磨薄膜

P1200

100 pcs

92008639

SiC 研磨薄膜

P2500

100 pcs

300 mm Ø

描述

Grain FEPA-Standard

92008561

SiC 研磨薄膜

P120

100 pcs

92008658

SiC 研磨薄膜

P180

100 pcs

95000902

SiC 研磨薄膜

P240

100 pcs

92006303

SiC 研磨薄膜

P320

100 pcs

92006302

SiC 研磨薄膜

P600

100 pcs

95000903

SiC 研磨薄膜

P800

100 pcs

92008562

SiC 研磨薄膜

P1200

100 pcs

92008621

SiC 研磨薄膜

P2500

100 pcs

碳化硅砂纸
带膜背衬

• Fixation system: Adhesive carrier disc

250 mm Ø

描述

Grain FEPA-Standard

95011928

SiC 砂纸，带膜背衬

P80

100 pcs

95011929

SiC 砂纸，带膜背衬

P120

100 pcs

95011930

SiC 砂纸，带膜背衬

P180

100 pcs

95011931

SiC 砂纸，带膜背衬

P240

100 pcs

95011932

SiC 砂纸，带膜背衬

P320

100 pcs

95011933

SiC 砂纸，带膜背衬

P400

100 pcs

95011934

SiC 砂纸，带膜背衬

P500

100 pcs

95011935

SiC 砂纸，带膜背衬

P600

100 pcs

95011936

SiC 砂纸，带膜背衬

P800

100 pcs

95011937

SiC 砂纸，带膜背衬

P1000

100 pcs

95011938

SiC 砂纸，带膜背衬

P1200

100 pcs

95011939

SiC 砂纸，带膜背衬

P2500

100 pcs

300 mm Ø

描述

Grain FEPA-Standard

95011943

SiC 砂纸，带膜背衬

P80

100 pcs

95011944

SiC 砂纸，带膜背衬

P120

100 pcs

95011945

SiC 砂纸，带膜背衬

P180

100 pcs

95011946

SiC 砂纸，带膜背衬

P240

100 pcs

95011947

SiC 砂纸，带膜背衬

P320

100 pcs

95011948

SiC 砂纸，带膜背衬

P400

100 pcs

95011949

SiC 砂纸，带膜背衬

P500

100 pcs

95011950

SiC 砂纸，带膜背衬

P600

100 pcs

95011951

SiC 砂纸，带膜背衬

P800

100 pcs

95011952

SiC 砂纸，带膜背衬

P1000

100 pcs

95011953

SiC 砂纸，带膜背衬

P1200

100 pcs

95011954

SiC 砂纸，带膜背衬

P2500

100 pcs

X-Tap

X-Tap (self-adhesive to stick on the working wheel)

GALAXY-X-Tap (for using with magnetic foil)

95017019

200 mm

1 pc

95018004

230 mm

1 pc

95017020

250 mm

1 pc

95017021

300 mm

1 pc

95017022

350 mm

1 pc

碳化硅砂纸，自粘

• Fixation system: X-Tap

200 mm Ø

描述

Grain FEPA-Standard

92002544

SiC 砂纸

P80

100 pcs

92002545

SiC 砂纸

P120

100 pcs

92002546

SiC 砂纸

P180

100 pcs

92002547

SiC 砂纸

P240

100 pcs

92002548

SiC 砂纸

P320

100 pcs

92002549

SiC 砂纸

P400

100 pcs

92004516

SiC 砂纸

P600

100 pcs

92002550

SiC 砂纸

P800

100 pcs

92002551

SiC 砂纸

P1000

100 pcs

92002638

SiC 砂纸

P1200

100 pcs

92002761

SiC 砂纸

2400*

100 pcs

95018057

SiC 砂纸

2400*

100 pcs

92004561

SiC 砂纸

P2500

100 pcs

92002762

SiC 砂纸

4000*

100 pcs

95018058

SiC 砂纸

4000*

100 pcs

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

**static (electrostatically directed abrasive grains with homogeneous distribution), for a high cutting effect

250 mm Ø

描述

Grain FEPA-Standard

92001643

SiC 砂纸

P80

100 pcs

92001644

SiC 砂纸

P120

100 pcs

92001645

SiC 砂纸

P180

100 pcs

92004953

SiC 砂纸

P240

100 pcs

92001647

SiC 砂纸

P320

100 pcs

92001648

SiC 砂纸

P400

100 pcs

92001649

SiC 砂纸

P600

100 pcs

92001650

SiC 砂纸

P800

100 pcs

92001651

SiC 砂纸

P1000

100 pcs

92001652

SiC 砂纸

P1200

100 pcs

92002763

SiC 砂纸

2400*

100 pcs

95018059

SiC 砂纸

2400*

100 pcs

92004563

SiC 砂纸

P2500

100 pcs

92002764

SiC 砂纸

4000*

100 pcs

95018060

SiC 砂纸

4000*

100 pcs

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

**static (electrostatically directed abrasive grains with homogeneous distribution), for a high cutting effect

300 mm Ø

描述

Grain FEPA-Standard

92001654

SiC 砂纸

P80

100 pcs

92001655

SiC 砂纸

P120

100 pcs

92001657

SiC 砂纸

P180

100 pcs

92001658

SiC 砂纸

P240

100 pcs

92001659

SiC 砂纸

P320

100 pcs

92001660

SiC 砂纸

P400

100 pcs

92001661

SiC 砂纸

P600

100 pcs

92001662

SiC 砂纸

P800

100 pcs

92001663

SiC 砂纸

P1000

100 pcs

92001664

SiC 砂纸

P1200

100 pcs

92002765

SiC 砂纸

2400*

100 pcs

95018061

SiC 砂纸

2400*

100 pcs

92004564

SiC 砂纸

P2500

100 pcs

92002766

SiC 砂纸

4000*

100 pcs

95018062

SiC 砂纸

4000*

100 pcs

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

**static (electrostatically directed abrasive grains with homogeneous distribution), for a high cutting effect

350 mm Ø

描述

Grain FEPA-Standard

95017771

SiC 砂纸

P80

100 pcs

95017772

SiC 砂纸

P120

100 pcs

95017773

SiC 砂纸

P180

100 pcs

95017774

SiC 砂纸

P240

100 pcs

95017775

SiC 砂纸

P320

100 pcs

95017776

SiC 砂纸

P400

100 pcs

95017777

SiC 砂纸

P600

100 pcs

95017778

SiC 砂纸

P800

100 pcs

95017779

SiC 砂纸

P1000

100 pcs

95017780

SiC 砂纸

P1200

100 pcs

95017781

SiC 砂纸

P2500

100 pcs

氧化锆氧化铝砂纸, 自粘

• Fixation system: X-Tap

250 mm Ø

描述

Grain FEPA-Standard

92002382

氧化锆氧化铝砂纸

P60

25 pcs

92002383

氧化锆氧化铝砂纸

P120

25 pcs

300 mm Ø

描述

Grain FEPA-Standard

92002386

氧化锆氧化铝砂纸

P60

25 pcs

92002387

氧化锆氧化铝砂纸

P120

25 pcs

GALAXY Quick-Tap

GALAXY Quick-Tap (配合磁性膜使用)

95017587

200 mm

1 pc

95017484

250 mm

1 pc

95017485

300 mm

1 pc

碳化硅光面砂纸
无背胶/膜背衬

• Fixation system: Quick-Tap or clamping ring

200 mm Ø

描述

Grain FEPA-Standard

92001811

SiC 砂纸

P80

100 pcs

92001812

SiC 砂纸

P120

100 pcs

92001813

SiC 砂纸

P180

100 pcs

92001814

SiC 砂纸

P240

100 pcs

92001815

SiC 砂纸

P320

100 pcs

92001816

SiC 砂纸

P400

100 pcs

92001817

SiC 砂纸

P500

100 pcs

92001818

SiC 砂纸

P600

100 pcs

92001819

SiC 砂纸

P800

100 pcs

92001820

SiC 砂纸

P1000

100 pcs

92001821

SiC 砂纸

P1200

100 pcs

92002634

SiC 砂纸

2400*

100 pcs

95018063

SiC 砂纸

2400*

100 pcs

92004557

SiC 砂纸

P2500

100 pcs

92002640

SiC 砂纸

4000*

100 pcs

95018067

SiC 砂纸

4000*

100 pcs

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

**static (electrostatically directed abrasive grains with homogeneous distribution), for a high cutting effect

230 mm Ø

描述

Grain FEPA-Standard

92001568

SiC 砂纸

P80

100 pcs

92001569

SiC 砂纸

P120

100 pcs

92001570

SiC 砂纸

P180

100 pcs

92001571

SiC 砂纸

P240

100 pcs

92001572

SiC 砂纸

P320

100 pcs

92001573

SiC 砂纸

P400

100 pcs

92001574

SiC 砂纸

P500

100 pcs

92001575

SiC 砂纸

P600

100 pcs

92001576

SiC 砂纸

P800

100 pcs

92001577

SiC 砂纸

P1000

100 pcs

92001578

SiC 砂纸

P1200

100 pcs

92002635

SiC 光面砂纸

2400*

100 pcs

95018064

SiC 光面砂纸

2400*

100 pcs

92004558

SiC 砂纸

P2500

100 pcs

92001579

SiC 砂纸

4000*

100 pcs

95018068

SiC 光面砂纸

4000*

100 pcs

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

**static (electrostatically directed abrasive grains with homogeneous distribution), for a high cutting effect

250 mm Ø

描述

Grain FEPA-Standard

92001581

SiC 砂纸

P80

100 pcs

92001582

SiC 砂纸

P120

100 pcs

92001583

SiC 砂纸

P180

100 pcs

92002369

SiC 砂纸

P240

100 pcs

92001585

SiC 砂纸

P320

100 pcs

92001586

SiC 砂纸

P400

100 pcs

92001587

SiC 砂纸

P500

100 pcs

92001588

SiC 砂纸

P600

100 pcs

92001589

SiC 砂纸

P800

100 pcs

92001590

SiC 砂纸

P1000

100 pcs

92001591

SiC 砂纸

P1200

100 pcs

92002636

SiC 砂纸

2400*

100 pcs

95018065

SiC 光面砂纸

2400*

100 pcs

92004559

SiC 砂纸

P2500

100 pcs

92001592

SiC 砂纸

4000*

100 pcs

95018069

SiC 光面砂纸

4000*

100 pcs

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

**static (electrostatically directed abrasive grains with homogeneous distribution), for a high cutting effect

300 mm Ø

描述

Grain FEPA-Standard

92001593

SiC 砂纸

P60

100 pcs

92001594

SiC 砂纸

P80

100 pcs

92001595

SiC 砂纸

P120

100 pcs

92001596

SiC 砂纸

P180

100 pcs

92001597

SiC 砂纸

P240

100 pcs

92001598

SiC 砂纸

P320

100 pcs

92001599

SiC 砂纸

P400

100 pcs

92001600

SiC 砂纸

P500

100 pcs

92001601

SiC 砂纸

P600

100 pcs

92001602

SiC 砂纸

P800

100 pcs

92001603

SiC 砂纸

P1000

100 pcs

92001604

SiC 砂纸

P1200

100 pcs

92002637

SiC 砂纸

2400*

100 pcs

95018066

SiC 光面砂纸

2400*

100 pcs

92004560

SiC 砂纸

P2500

100 pcs

92002154

SiC 砂纸

4000*

100 pcs

95018070

SiC 光面砂纸

4000*

100 pcs

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

**static (electrostatically directed abrasive grains with homogeneous distribution), for a high cutting effect

Grinding papers for mobile grinder and polisher Qpol 30

刚玉砂纸，带钩环扣背衬

Grain FEPA-Standard

92004285

30 mm

P60

100 pcs

92004286

30 mm

P180

100 pcs

92004288

30 mm

P240

100 pcs

92004287

30 mm

P320

100 pcs

带背胶的碳化硅砂纸

Grain FEPA-Standard

92004498

30 mm

P400

100 pcs

92004499

30 mm

P600

100 pcs

92004631

30 mm

P1000

100 pcs

自粘抛光布: 请参见抛光章节

Grinding belts for Qgrind 100

氧化铝研磨砂带，防水

尺寸

Grain FEPA-Standard

92002528

100 x 920 mm

P80

5 pcs

92002529

100 x 920 mm

P120

5 pcs

92002530

100 x 920 mm

P180

5 pcs

92002531

100 x 920 mm

P240

5 pcs

92004505

100 x 920 mm

P320

5 pcs

碳化硅研磨，防水

尺寸

Grain FEPA-Standard

92002664

100 x 915 mm

P80

5 pcs

92002665

100 x 915 mm

P120

5 pcs

92002666

100 x 915 mm

P180

5 pcs

92002667

100 x 915 mm

P240

5 pcs

92004613

100 x 915 mm

P320

5 pcs

92002394

100 x 915 mm

P400

5 pcs

Polishing Consumables

Dia-COMPLETE Poly,
二合一多晶金刚石悬浮液

金刚石悬浮液和润滑剂的组合产品

粒度

95011833

0.25 µm

500 ml

95011839

0.25 µm

1 l

95011845

0.25 µm

2.5 l

95016023

0.25 µm

5 l

95011834

1 µm

500 ml

95011840

1 µm

1 l

95011846

1 µm

2.5 l

95015394

1 µm

5 l

95011835

3 µm

500 ml

95011841

3 µm

1 l

95011847

3 µm

2.5 l

95015395

3 µm

5 l

95011836

6 µm

500 ml

95011842

6 µm

1 l

95011848

6 µm

2.5 l

95015396

6 µm

5 l

95011837

9 µm

500 ml

95011843

9 µm

1 l

95011849

9 µm

2.5 l

95015397

9 µm

5 l

95011844

15 µm

1 l

Dia-COMPLETE Mono,
二合一单晶金刚石悬浮液

金刚石悬浮液和润滑剂的组合产品

粒度

95011815

1 µm

500 ml

95011820

1 µm

1 l

95011825

1 µm

2.5 l

95015404

1 µm

5 l

95011816

3 µm

500 ml

95011821

3 µm

1 l

95011826

3 µm

2.5 l

95015405

3 µm

5 l

95011817

6 µm

500 ml

95011822

6 µm

1 l

95011827

6 µm

2.5 l

95015406

6 µm

5 l

95011818

9 µm

500 ml

95011823

9 µm

1 l

95011828

9 µm

2.5 l

95015407

9 µm

5 l

多晶金刚石悬浮液

粒度

92002353

1 µm

250 ml

95016017

1 µm

500 ml

92004798

1 µm

1 l

95002761

1 µm

2.5 l

95014519

1 µm

5 l

92002354

3 µm

250 ml

95016018

3 µm

500 ml

92004799

3 µm

1 l

95002762

3 µm

2.5 l

95014520

3 µm

5 l

92002355

6 µm

250 ml

95016019

6 µm

500 ml

92004800

6 µm

1 l

95002763

6 µm

2.5 l

95014521

6 µm

5 l

92002356

9 µm

250 ml

95016020

9 µm

500 ml

92004801

9 µm

1 l

95002764

9 µm

2.5 l

95014522

9 µm

5 l

95005738

15 µm

1 l

单晶金刚石悬浮液

粒度

92002346

1 µm

250 ml

95016012

1 µm

500 ml

92004791

1 µm

1 l

95002755

1 µm

2.5 l

95014514

1 µm

5 l

92002347

3 µm

250 ml

95016013

3 µm

500 ml

92004792

3 µm

1 l

95002756

3 µm

2.5 l

95014515

3 µm

5 l

92002348

6 µm

250 ml

95016014

6 µm

500 ml

92004793

6 µm

1 l

95002757

6 µm

2.5 l

95014516

6 µm

5 l

92002349

9 µm

250 ml

95016015

9 µm

500 ml

92004794

9 µm

1 l

95002758

9 µm

2.5 l

95014517

9 µm

5 l

金刚石悬浮液 (酒精基)
多晶

粒度

95003494

1 µm

1 l

95003495

3 µm

1 l

95003496

6 µm

1 l

95003497

9 µm

1 l

金刚石悬浮液 (酒精基)
单晶

Grain Size (µm)

95003490

1 µm

1 l

95003491

3 µm

1 l

95003492

6 µm

1 l

95003493

9 µm

1 l

金刚石悬浮液 (油基)
多晶

粒度

95002792

1 µm

1 pc

95002793

3 µm

1 pc

95002794

6 µm

1 pc

95002795

9 µm

1 pc

配件

喷嘴

• for diamond suspensions of all grain sizes
• for 250 ml, 500 ml and 1 L bottles

95016723 喷嘴

用于悬浮液滴加的Qdoser ONE加液系统

Qdoser ONE基础模块

Z5631014 Qdoser ONE支架

Z5631016 Qdoser ONE立架

多晶金刚石喷雾

不含氟氯碳化物

粒度

95016025

1 µm

200 ml

95016026

3 µm

200 ml

95016027

6 µm

200 ml

95016028

9 µm

200 ml

多晶金刚石抛光膏

10g 注射器

粒度

92002340

1 µm

10 g

92002341

3 µm

10 g

92002342

6 µm

10 g

92002343

9 µm

10 g

92002344

15 µm

10 g

单晶金刚石抛光膏

10g 注射器

粒度

92002333

1 µm

10 g

92002316

3 µm

10 g

92002335

6 µm

10 g

92002336

9 µm

10 g

92002337

15 µm

10 g

金刚石润滑剂, additive for diamond suspension/paste

颜色

特性

92005509

黄色

- 水基 -

uniform lubricating film

1 l

92004925

黄色

- 水基 -

uniform lubricating film

2.5 l

92005510

黄色

- 水基 -

uniform lubricating film

5 l

95016174

黄色

- 水基 -

uniform lubricating film

10 l

95000901

蓝色

- 酒精基 -

水敏样品制备

1 l

95000911

蓝色

- 酒精基 -

水敏样品制备

2,5 l

95001194

蓝色

- 酒精基 -

水敏样品制备

5 l

95001759

红色

- 油基 -

水敏样品制备

1 l

95001772

红色

- 油基 -

水敏样品制备

2.5 l

95001784

红色

- 油基 -

水敏样品制备

5 l

金刚石润滑浓缩液

• for manual dosing with diamond suspension

颜色, 特性

95016362 蓝色, - 用于酒精基润滑剂 -
可与9等份酒精混合，调配10L润滑剂, , , 1 l

酒精

95004662

乙醇，99.9%变性醇

1 l

95004663

乙醇，99.9%变性醇

5 l

95004664

乙醇，99.9%变性醇

10 l

精抛悬浮液

Fine polishing suspension (Al2O3)
• does not crystallize
•for ferrous materials, polymers, composites, PCB, rocks and minerals

描述

ph值

粒度

92002534

Eposal

pH≈8.0

0.06 µm

1 l

Colloidal silica
• for polishing, also mixable with diluted etchant
•

描述

ph值

粒度

92002536

Eposil F

pH≈9.5

0.1 µm

1 l

95013858

Eposil Non Dry

pH≈9.5

0.05 µm

1 l

95013958

Eposil Non Dry

pH≈9.5

0.05 µm

10 l

92002541

Eposil M

pH≈9.5

0.06 µm

1 l

Colloidal silica
• for titanium, nickel, tin and its alloys

描述

ph值

粒度

95001206

Eposil M11

pH≈11.0

0.06 µm

1 l

Water-free fine polishing suspension
• e.g. for magnesium, zinc

描述

ph值

粒度

95005033

Etosil E

pH≈7.0

0.06 µm

1 l

氧化铝悬浮液，煅烧

浓缩型，可用3-5份去离子水稀释

描述

粒度

92002533

氧化铝悬浮液

0.3 µm

1 l

92002532

氧化铝悬浮液

0.6 µm

1 l

92004950

氧化铝悬浮液

1 µm

1 l

磁性膜，自粘

Magnetic foil, normal adhesion
• to apply on working wheel

厚度

92008528

200 mm

1 mm

1 pc

92005820

250 mm

1 mm

1 pc

92005822

300 mm

1 mm

1 pc

Magnetic foil, strong adhesion
• to apply on working wheel

厚度

95016345

200 mm

1 mm

1 pc

95018002

230 mm

1 mm

1 pc

95016346

250 mm

1 mm

1 pc

95012161

300 mm

1 mm

1 pc

95014137

350 mm

1 mm

1 pc

Magnetic foil, strongest adhesion
• to apply on working wheel
• increased magnetic adhesion by higher material thickness

厚度

95016298

200 mm

2 mm

1 pc

95018003

230 mm

2 mm

1 pc

95016300

250 mm

2 mm

1 pc

95016301

300 mm

2 mm

1 pc

95016302

350 mm

2 mm

1 pc

带金属背底的GALAXY抛光布

GALAXY – ALPHA
• Suitable for pre-polishing
• Very hard, perforated chemical fiber cloth
• For ceramics, hard metal, steel, grey cast iron, aluminum
• High lifetime and planarity
• For use with diamond grain size: 15/9 µm
• Fixation system: Magnetic foil

描述

95001407

ALPHA

200 mm

5 pcs

95001408

ALPHA

250 mm

5 pcs

95001409

ALPHA

300 mm

5 pcs

95013994

ALPHA

350 mm

5 pcs

GALAXY – BETA
• Suitable for pre-polishing
• Hard synthetic cloth
• Materials with high hardness, steel, grey cast iron, hard metal, ceramics
• High removal rate
• For use with diamond grain size: 15/9/6 µm
• Fixation system: Magnetic foil

描述

Fixation

95001410

BETA

200 mm

5 pcs

95001411

BETA

250 mm

5 pcs

95001412

BETA

300 mm

5 pcs

95013995

BETA

350 mm

5 pcs

GALAXY – DELTA
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum
• For use with diamond grain size: 9/6/3 µm
• Fixation system: Magnetic foil

描述

95001413

DELTA

200 mm

5 pcs

95001414

DELTA

250 mm

5 pcs

95001415

DELTA

300 mm

5 pcs

95013996

DELTA

350 mm

5 pcs

GALAXY - GAMMA
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, coatings, plastics [CFK, GFK]
• For use with diamond grain size: 9/6/3 µm
• Fixation system: Magnetic foil

描述

95017588

GAMMA

200 mm

5 pcs

95017589

GAMMA

250 mm

5 pcs

95017590

GAMMA

300 mm

5 pcs

GALAXY – PHI
• Suitable for pre-, intermediate-, and end polishing
• Medium hard chemical fiber cloth
• For iron, non – ferrous metals, minerals, ceramics, composite materials
• For use with diamond grain size: 9/6/3/1 µm
• Fixation system: Magnetic foil

描述

95012739

PHI

200 mm

5 pcs

95012740

PHI

250 mm

5 pcs

95012741

PHI

300 mm

5 pcs

95014002

PHI

350 mm

5 pcs

GALAXY – SIGMA
• Suitable for intermediate and end polishing
• Soft wool cloth
• For all materials
• For use with diamond grain size: 6/3/1 µm
• Fixation system: Magnetic foil

描述

95001416

SIGMA

200 mm

5 pcs

95001417

SIGMA

250 mm

5 pcs

95001418

SIGMA

300 mm

5 pcs

95013997

SIGMA

350 mm

5 pcs

GALAXY – ETA
• Suitable for end polishing
• Short flocked, medium hard synthetic cloth
• For all materials of medium and high hardness
• For use with diamond grain size: 3/1 µm
• Fixation system: Magnetic foil

描述

95016832

ETA

200 mm

5 pcs

95016833

ETA

250 mm

5 pcs

95016834

ETA

300 mm

5 pcs

95016835

ETA

350 mm

5 pcs

GALAXY – IOTA
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Long flocked, soft synthetic cloth
• For all materials, especially hard materials
• For use with diamond grain size: 3/1 μm
• Suitable for oxide suspensions
• Fixation system: Magnetic foil

描述

95001419

IOTA

200 mm

5 pcs

95001420

IOTA

250 mm

5 pcs

95001421

IOTA

300 mm

5 pcs

95013998

IOTA

350 mm

5 pcs

GALAXY – ZETA
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Short flocked, soft synthetic cloth
• For all materials
• For use with diamond grain size: 3/1 µm
•, Suitable for oxide suspensions as well as alumina
• Fixation system: Magnetic foil

描述

95005776

ZETA

200 mm

5 pcs

95005777

ZETA

250 mm

5 pcs

95005778

ZETA

300 mm

5 pcs

95013999

ZETA

350 mm

5 pcs

GALAXY – OMEGA
• Suitable for fine polishing with fine polishing suspension
• Soft synthetic cloth (chemical resistant)
•, For all materials
•, Suitable for oxide suspensions
• Fixation system: Magnetic foil

描述

95005779

OMEGA

200 mm

5 pcs

95005780

OMEGA

250 mm

5 pcs

95005781

OMEGA

300 mm

5 pcs

95014000

OMEGA

350 mm

5 pcs

GALAXY – LAMBDA
• Suitable for fine polishing with fine polishing suspension
• Brushed, structured synthetic cloth (chemical resistant)
• For all materials
•, Suitable for oxide suspensions as well as alumina
• Fixation system: Magnetic foil

描述

95005782

LAMBDA

200 mm

5 pcs

95005783

LAMBDA

250 mm

5 pcs

95005784

LAMBDA

300 mm

5 pcs

95014001

LAMBDA

350 mm

5 pcs

X-Tap

X-Tap (self-adhesive to stick on the working wheel)

GALAXY-X-Tap (for using with magnetic foil)

95017019

200 mm

1 pc

92008802

DELTA

250 mm

5 pcs

92008803

DELTA

300 mm

5 pcs

GAMMA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, coatings, plastics [CFK, GFK],
• For use with diamond grain size: 9/6/3 µm
• Fixation system: X-Tap

描述

92002567

GAMMA

250 mm

5 pcs

92002576

GAMMA

300 mm

5 pcs

PHI – Polishing cloth
• Suitable for pre-, intermediate-, and end polishing
• Medium-hard chemical fiber cloth
• For iron, non-ferrous metals, minerals, ceramics, composite materials
• For use with diamond grain size: 9/6/3/1 μm
• Fixation system: GALAXY X-Tap

描述

92005679

PHI

250 mm

5 pcs

92005680

PHI

300 mm

5 pcs

SIGMA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Soft wool cloth
• For all materials
• For use with diamond grain size: 6/3/1 µm
• Fixation system: X-Tap

描述

92008811

SIGMA

250 mm

5 pcs

92008812

SIGMA

300 mm

5 pcs

ETA – Polishing cloth
•Suitable for end polishing
• Short flocked, medium-hard synthetic cloth
• For all materials of medium and high hardness
• For use with diamond grain size: 3/1 µm
• Fixation system: GALAXY X-Tap

描述

95016829

ETA

250 mm

5 pcs

95016830

ETA

300 mm

5 pcs

IOTA – Polishing cloth
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Long flocked, soft synthetic cloth
• for all materials, especially hard materials
• For use with diamond grain size: 3/1 µm
• Suitable for oxide suspensions
• Fixation system: X-Tap

描述

95002394

IOTA

250 mm

5 pcs

95002395

IOTA

300 mm

5 pcs

ZETA – Polishing cloth
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Short flocked, soft synthetic cloth
• for all materials
• For use with diamond grain size: 3/1 µm
• Suitable for oxide suspensions as well as alumina
• Fixation system: X-Tap

描述

92005683

ZETA

250 mm

5 pcs

92005684

ZETA

300 mm

5 pcs

KAPPA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Soft polishing felt
• For all materials
• Suitable for alumina
• Fixation system: X-Tap

描述

92002572

KAPPA

250 mm

5 pcs

92002581

KAPPA

300 mm

5 pcs

OMEGA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Soft synthetic cloth (chemical resistant)
• For all materials
• Suitable for oxide suspensions
• Fixation system: X-Tap

描述

92002571

OMEGA

250 mm

5 pcs

92002580

OMEGA

300 mm

5 pcs

LAMBDA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Brushed, structured synthetic cloth (chemical resistant)
• For all materials
• Suitable for oxide suspensions as well as alumina
• Fixation system: GALAXY X-Tap

描述

95003598

LAMBDA

250 mm

5 pcs

95003599

LAMBDA

300 mm

5 pcs

Media carrier plate for Qpol 250 BOT

• for grinding and polishing robot Qpol 250 BOT (SAPHIR X-Change)

95005867

250 mm

1 pc

过滤袋

Filter inserts for settling tank
(until year of construction 2012)

尺寸

网孔尺寸

95017310

过滤棉片

290 x 150 x 190 mm

40 µm

95017311

过滤棉片

290 x 150 x 190 mm

60 µm

Filter inserts for settling tank
(from year of construction 2013)

尺寸

网孔尺寸

95017312

过滤棉片

250 x 200 x 155 mm

60 µm

95017313

过滤棉片

250 x 200 x 155 mm

100 µm

Qpol 300 BOT用滤芯

Filter cartridge for circulation filter system of the ultrasonic cleaning tank

过滤粒度

高度

内径

外径

92007119

5 µm

248 mm

28 mm

64 mm

1 pc

92007120

150 µm

248 mm

28 mm

62 mm

1 pc

Polishing Consumables

地质和矿物学制样附件

Bonding jig
• Special pressure transducers for the simultaneous processing of four samples
• For traditional mounting media and adhesives

95017722

薄片压紧器

1 pc

载玻片

95017713

载玻片 48x28 mm, 切边处理, 透明

50 pcs

95017714

载玻片 48x28 mm, 磨边处理, 透明

50 pcs

95017715

载玻片 48x28 mm, 切边处理, 麻面

50 pcs

95017716

载玻片 48x28 mm, 磨边处理, 麻面

50 pcs

盖玻片

95017717

盖玻片 24x24 mm

100 pcs

95017718

盖玻片 24x40 mm

100 pcs

Slide boxes

95017719

可盛放25个玻片的玻片盒，木制

1 pc

95017720

可盛放50个玻片的玻片盒，木制

1 pc

95017721

可盛放100个玻片的玻片盒，木制

1 pc

Cover medium

95017723

用于粘接和覆盖样品的透明介质，不含二甲苯

100 ml

玻片夹具

95017724

适用于48×28 mm载玻片的手持式试样夹具，采用铸铝材质，符合人体工程学设计，可在手动研磨机上使用，尺寸为56×36×20 mm

1 pc

95017725

用于显微分析的显微镜玻片夹具76x32-48x28 mm, 适用于所有显微镜载玻片, 2.0 mm厚

1 pc

试样夹具

Z5446091

岩相试样磨抛夹具，单点力，
包含3个试样夹具插件，适用玻片尺寸48x28 mm					1 pc

Z5651021

Qpol Vibro用于薄片样品的夹具,
尺寸 48x28 mm					1 pc

Polishing Consumables

Etching / Analyzing Consumables

F1 - 组分B（高氯酸），和组分A混合成1升体积的溶液

1 pc

• Shipping of hazardous materials will be charged extra
• Download of Safety Data Sheets at www.qatm.com

1-component electrolytic etchant

95017935

Oxalic acid 10%, electrolytic etchant for Cr and CrNi steels,
for carbide precipitation at grain boundaries in ferritic and austenitic alloys	1 l

95006393

Barker试剂（显示铝晶界）

1 l

Qetch 100M (Kristall 650)的附件

带有螺旋盖的电解液瓶

95003955

1升体积

1 pc

Qetch 100M（Kristall 650)附件套装-手提箱

Z6201001

手提箱（单独-货号）:
• 5pcsV型环（货号：95003606）
• 1pc膨胀圈，约150mm（货号：06201052）
• 1pc 膨胀圈的柔性终端（货号：06201051）
• 1pc 截管器（货号：95004030）
• 10pcs滤板φ40.5mm（货号：95003985）
• 1pc 海豚夹（货号：82000374）	1 pc

浸蚀剂

95014346

VisiPro-I腐蚀剂，用于显示奥氏体晶界（淬火或回火低合金调质钢和表面硬化钢）

500 ml

95014347

VisiPro-I腐蚀剂，用于显示奥氏体晶界（淬火或回火低合金调质钢和表面硬化钢）

1 l

95017581

VisiPro-I 快速腐蚀剂，用于显示调质非合金钢和低合金钢、轴承钢(比如102Cr6)的前奥氏体晶界。腐蚀时间：约2到6分钟，取决于材料。

500 ml

95017582

VisiPro-I 快速腐蚀剂，用于显示调质非合金钢和低合金钢、轴承钢(比如102Cr6)的前奥氏体晶界。腐蚀时间：约2到6分钟，取决于材料。

1 l

95014348

VisiPro-II 腐蚀剂，用于显示奥氏体晶界（调质低合金钢、调质表面硬化钢和耐磨轴承钢）

500 ml

95014349

VisiPro-II 腐蚀剂，用于显示奥氏体晶界（调质低合金钢、调质表面硬化钢和耐磨轴承钢）

1 l

92002601

Heyn腐蚀剂（适用于钢，磷含量偏析，宏观浸蚀，铜合金，黄铜）

1 kg

95000508

铜A，氯化物版本（用于铜、铜合金、黄铜和青铜）

500 ml

92002602

Adler腐蚀剂（适用于钢，焊缝，宏观浸蚀）

1 kg

92002603

苦味酸酒精，5%苦味酸酒精溶液（适用于钢，马氏体）

1 l

92006878

硝酸酒精，5%硝酸酒精溶液（适用于非合金钢和低合金钢）

1 l

92002597

硝酸酒精，3%硝酸酒精溶液（适用于非合金钢和低合金钢）

1 l

92002596

硝酸酒精，1%硝酸酒精溶液（适用于非合金钢和低合金钢）

1 l

92002605

V2A etchant (for austenitic steels), applied at approximately 60°C, contains the additive Dr. Vogel's economy etchant, which acts as an inhibitor and optimizes etching performance

1 kg

92002678

氢氧化钠溶液（适用于铝合金）

1 kg

92004240

Oberhoffer腐蚀剂（适用于钢，偏析，变形流线，宏观/微观浸蚀）

1 kg

92004492

Kroll腐蚀剂（适用于铝合金，钛）

1 kg

92004493

Fry腐蚀剂（适用于钢，变形流线，宏观/微观浸蚀）

1 kg

92004222

CU2腐蚀液（铜、含硫化物和氧化物夹杂物的铜）

1 kg

92002750

苦味酸钠（检测钢中的渗碳体）

1 kg

95002313

Kalling1腐蚀剂（适用于马氏体不锈钢）

1 l

95002347

Kalling2腐蚀剂（适用于镍，镍合金，不锈钢，镍-铜合金）

1 kg

95002434

彩色腐蚀，根据KlemmI(适用于低碳钢)，储存溶液

1 l

95002390

用于KlemmI的重亚硫酸钾

20 g

95002435

彩色浸蚀，根据KlemmII(铜，焊点)，储存溶液

1 l

95002391

用于KlemmII的重亚硫酸钾

50 g

95002436

Bechet-Beaujard浸蚀剂,原始奥氏体晶界

1 l

95002408

Murakami浸蚀剂（适用于硬质金属，钼/钼合金，铬合金，钨及钨合金）

1 kg

在此找到安全数据表

用过的浸蚀剂的储存瓶

95017528

用过的浸蚀剂的储存瓶

1 pc

浸蚀附件

腐蚀器皿, DDURAN® 玻璃带盖，耐热

92002629

Ø 60/H 40 mm

1 pc

92002628

Ø 80/H 50 mm

1 pc

92002430

Ø 100/H 60 mm

1 pc

92002626

Ø 150/H 80 mm

1 pc

Etching bowl, polyethylene (PE),

95012078

Ø 90/H 40mm

1 pc

95012079

Ø 110/H 55mm

1 pc

95012080

Ø 110/H 75mm

1 pc

腐蚀器皿，聚丙烯（PP），带螺旋接口

95012081

Ø 60/H 60mm

1 pc

95012082

Ø 115/H 70mm

1 pc

坩埚钳

92002431

不锈钢坩埚钳

1 pc

95008097

带隔热柄的不锈钢坩埚钳

Nitrile disposable gloves, blue, size M

100 pcs

95007658

Nitrile disposable gloves, blue, size L

100 pcs

95008208

Nitrile disposable gloves, blue, size XL

100 pcs

Nitrile disposable gloves, green
(conforms to EN 374, EN 455)

95017880

Nitrile disposable gloves, green, size M

100 pcs

95017881

Nitrile disposable gloves, green, size L

100 pcs

95017882

Nitrile disposable gloves, green, size XL

100 pcs

Nitrile disposable gloves, orange
(conforms to EN 21420, EN 374, EN 455)

95017911

Nitrile disposable gloves, orange, size M

50 pcs

95017912

Nitrile disposable gloves, orange, size L

50 pcs

95017913

Nitrile disposable gloves, orange, size XL

50 pcs

黑色防护手套, 符合EN 388, EN 374标准

95003208

Protective gloves, black, size L
- high resistance to water-soluble chemicals
- very durable	1 pair

喷雾瓶500ml

1 pc

92004491

窄颈洗瓶500ml

1 pc

量筒

92004302

量筒50ml

1 pc

92004303

量筒100ml

1 pc

Specimen drying unit
• Hot air blower with push button
• Frame made of HPL solid material
• Stainless steel tray made of perforated sheet for placing specimens
• With underlying water protection mat
• Dimensions W x H x D: 350 x 670 x 370 mm

A5810355

桌式样品烘干机

1 pc

A5810419

样品烘干机，带墙壁支架

1 pc

超声波清洗装置

Ultrasonic cleaning device 100
Interior approx. W x H x D: 240 x 140 x 100 mm, capacity: 3 liters
HF power: 80 W, connection: 230 V/50 Hz (1 Ph/N/PE)

92002613

US 100, 旋钮操作

1 pc

92008794

DT 100, 数字式按键操作

1 pc

92002609

穿孔式吊篮

1 pc

95017798

Lid

1 pc

Ultrasonic cleaning device 106
Internal diameter/height: 240/130 mm, capacity: 5.6 liters
HF power: 120 W, connection: 230 V/50 Hz (1 Ph/N/PE)

92005839

US 106, 旋钮操作

1 pc

95001285

DT 106, 数字式按键操作

1 pc

92005840

穿孔式吊篮

1 pc

92005841

盖子VA

1 pc

如有需要，可提供其它超声波清洗设备

Cleaning concentrate, alkaline
• for universal use and intensive cleaning
• use 1 – 5%, pH 10 at 2%, removes oils, fats, silicon oil residues, pigments, ink and proteins

92002614

Tickopur R 33

1 l

Cleaning aids
• individually applicable for intensive cleaning

95004662

乙醇，99.9%变性醇

1 l

95004663

乙醇，99.9%变性醇

5 l

95004664

乙醇，99.9%变性醇

10 l

92004510

丙酮，化学纯，用于样品表面脱脂

1 l

通风橱面板清洁

Z7510002

Pane cleaning set in suitcase
• Pane wiper magnet
• 2x 30 pcs. cleaning cloths	1 pc

Electric engraving device

95006339

Electric engraving device for marking metal, glass, and plastic with 6 different tips

1 pc

Z5690032

替换的刀头套件

1 pc

复型套装

复型系统用于微观结构的无损检测
将两种成份的化合物在样品表面快速凝固；
凝固了的覆膜可以轻松揭掉并直接进行分析

92006498

两组分化合物

2x50 ml

92006609

加料枪

1 pc

92008692

混合管

48 pcs

Assembly cleaner
• for sample preparation, for replication set, in spray can

92004376

装备清洁喷雾

500 ml

精密复型材料

Replica system
• for surface structures (metallic or mineral),
for surface roughness inspection (R, Ra)

95001664

2-components compound standard

900 ml

Analyzing Consumables

显微镜附件

配套附件

92004109

橡皮泥

1 kg

92002943

金属载玻片, 76x26 mm

5 pcs

92004243

玻璃载玻片, 32x24 mm

100 pcs

92004256

玻璃载玻片, 40x24 mm

100 pcs

M1321000

试样压平器
•使样品表面平行于载玻片
•操作简便省力
•结构紧凑，坚固，耐用
•由阳极化处理的铝合金制成	1 pc

样品储存

成品样品的储存系统

92002898

盘式柜 320 x 320 mm, 用于存放φ300盘
带6个抽屉	1 pc

92002717

盘式柜, 290 x 290 mm, 用于存放Ø 200和250 mm盘
带5个抽屉	1 pc

95012025

样品干燥柜 310 x 525 x 375 mm

1 pc

95012026

干燥柜架

1 pc

92002868

干燥剂，用于干燥皿

1 pc

A7500417

样品盒，320x320x58mm，可储存56个φ25-32mm样品

1 pc

A7500418

样品盒，320x320x58mm，可储存25个φ38-50mm样品

1 kg

文献

Expert Guide Materialography/Metallography
QATM Academy

95016622

Expert Guide Materialography/Metallography, German

1 pc

95016686

Expert Guide Materialography/Metallography, English

1 pc

金相学,
作者: Hermann Schumann

92005114

金相学

1 pc

Metallographisches, keramographisches und plastographisches Ätzen,
Autor: Günter Petzow

92004667

Metallographisches, keramographisches und plastographisches Ätzen

1 pc

Metallographische Anleitung zum Farbätzen nach dem Tauchverfahren,
Autoren: E. Weck, E. Leistner

95001841

有色金属、碳化物和黑色金属材料、镍基和钴基合金

1 pc

Hardness Testing, Hardness Testing, Hardness test blocks

Hardness Testing

选项

QH00014010 Grid for hardness test block

QH0002401A Additional calibration of a hardness test block

Hardness test blocks Rockwell
(EN ISO 6508-3, ASTM E18)

材质

Value

Dim. (mm)

HRA

QH1110022B

洛氏

HRA

铝

22 ±1 HR

Ø65x15

QH1110026B

洛氏

HRA

铝

26 ±1 HR

Ø65x15

QH1110031B

洛氏

HRA

铝

31 ±1 HR

Ø65x15

QH1110035B

洛氏

HRA

铝

35 ±1 HR

Ø65x15

QH1110040B

洛氏

HRA

铝

40 ±1 HR

Ø65x15

QH1110045B

洛氏

HRA

铝

45 ±1 HR

Ø65x15

QH1110047B

洛氏

HRA

铝

47 ±1 HR

Ø65x15

QH1110050B

洛氏

HRA

铝

50 ±1 HR

Ø65x15

QH1110053B

洛氏

HRA

铝

53 ±1 HR

Ø65x15

QH1110055B

洛氏

HRA

钢

55 ±1 HR

Ø65x15

QH1110059B

洛氏

HRA

钢

59 ±1 HR

Ø65x15

QH1110060B

洛氏

HRA

钢

60 ±1 HR

Ø65x15

QH1110062B

洛氏

HRA

钢

62 ±1 HR

Ø65x15

QH1110063B

洛氏

HRA

钢

63 ±1 HR

Ø65x15

QH1110065B

洛氏

HRA

钢

65 ±1 HR

Ø65x15

QH1110068B

洛氏

HRA

钢

68 ±1 HR

Ø65x15

QH1110070B

洛氏

HRA

钢

70 ±1 HR

Ø65x15

QH1110073B

洛氏

HRA

钢

73 ±1 HR

Ø65x15

QH1110076B

洛氏

HRA

钢

76 ±1 HR

Ø65x15

QH1110078B

洛氏

HRA

钢

78 ±1 HR

Ø65x15

QH1110081B

洛氏

HRA

钢

81 ±1 HR

Ø65x15

QH1110083B

洛氏

HRA

钢

83 ±1 HR

Ø65x15

QH1110084B

洛氏

HRA

钢

84 ±1 HR

Ø65x15

QH1110085B

洛氏

HRA

钢

85 ±1 HR

Ø65x15

QH1110086B

洛氏

HRA

钢

86 ±1 HR

Ø65x15

QH1110087B

洛氏

HRA

钢

87 ±1 HR

Ø65x15

QH1110088D

洛氏

HRA

Carbide

88 ±1 HR

25x25x6

QH1110089D

洛氏

HRA

Carbide

89 ±1 HR

25x25x6

QH1110090D

洛氏

HRA

Carbide

90 ±1 HR

25x25x6

QH1110091D

洛氏

HRA

Carbide

91 ±1 HR

25x25x6

QH1110092D

洛氏

HRA

Carbide

92 ±1 HR

25x25x6

HRB

QH1210020B

洛氏

HRB

铝

20 ±4 HR

Ø65x15

QH1210025B

洛氏

HRB

铝

25 ±4 HR

Ø65x15

QH1210030B

洛氏

HRB

铝

30 ±4 HR

Ø65x15

QH1210035B

洛氏

HRB

铝

35 ±4 HR

Ø65x15

QH1210040B

洛氏

HRB

铝

40 ±4 HR

Ø65x15

QH1210045B

洛氏

HRB

铝

45 ±4 HR

Ø65x15

QH1210050B

洛氏

HRB

铝

50 ±4 HR

Ø65x15

QH1210055B

洛氏

HRB

铝

55 ±4 HR

Ø65x15

QH1210060B

洛氏

HRB

铝

60 ±4 HR

Ø65x15

QH1210065B

洛氏

HRB

铝

65 ±4 HR

Ø65x15

QH1210070B

洛氏

HRB

铝

70 ±4 HR

Ø65x15

QH1210075B

洛氏

HRB

铝

75 ±4 HR

Ø65x15

QH1210080B

洛氏

HRB

铝

80 ±4 HR

Ø65x15

QH1210085B

洛氏

HRB

铝

85 ±4 HR

Ø65x15

QH1210090B

洛氏

HRB

钢

90 ±4 HR

Ø65x15

QH1210095B

洛氏

HRB

钢

95 ±4 HR

Ø65x15

QH1210100B

洛氏

HRB

钢

100 ±4 HR

Ø65x15

HRC

QH1120020B

洛氏

HRC

钢

20 ±1 HR

Ø65x15

QH1120021B

洛氏

HRC

钢

21 ±1 HR

Ø65x15

QH1120022B

洛氏

HRC

钢

22 ±1 HR

Ø65x15

QH1120023B

洛氏

HRC

钢

23 ±1 HR

Ø65x15

QH1120024B

洛氏

HRC

钢

24 ±1 HR

Ø65x15

QH1120025B

洛氏

HRC

钢

25 ±1 HR

Ø65x15

QH1120026B

洛氏

HRC

钢

26 ±1 HR

Ø65x15

QH1120027B

洛氏

HRC

钢

27 ±1 HR

Ø65x15

QH1120028B

洛氏

HRC

钢

28 ±1 HR

Ø65x15

QH1120029B

洛氏

HRC

钢

29 ±1 HR

Ø65x15

QH1120030B

洛氏

HRC

钢

30 ±1 HR

Ø65x15

QH1120031B

洛氏

HRC

钢

31 ±1 HR

Ø65x15

QH1120032B

洛氏

HRC

钢

32 ±1 HR

Ø65x15

QH1120033B

洛氏

HRC

钢

33 ±1 HR

Ø65x15

QH1120034B

洛氏

HRC

钢

34 ±1 HR

Ø65x15

QH1120035B

洛氏

HRC

钢

35 ±1 HR

Ø65x15

QH1120036B

洛氏

HRC

钢

36 ±1 HR

Ø65x15

QH1120037B

洛氏

HRC

钢

37 ±1 HR

Ø65x15

QH1120038B

洛氏

HRC

钢

38 ±1 HR

Ø65x15

QH1120039B

洛氏

HRC

钢

39 ±1 HR

Ø65x15

QH1120040B

洛氏

HRC

钢

40 ±1 HR

Ø65x15

QH1120041B

洛氏

HRC

钢

41 ±1 HR

Ø65x15

QH1120042B

洛氏

HRC

钢

42 ±1 HR

Ø65x15

QH1120043B

洛氏

HRC

钢

43 ±1 HR

Ø65x15

QH1120044B

洛氏

HRC

钢

44 ±1 HR

Ø65x15

QH1120045B

洛氏

HRC

钢

45 ±1 HR

Ø65x15

QH1120046B

洛氏

HRC

钢

46 ±1 HR

Ø65x15

QH1120047B

洛氏

HRC

钢

47 ±1 HR

Ø65x15

QH1120048B

洛氏

HRC

钢

48 ±1 HR

Ø65x15

QH1120049B

洛氏

HRC

钢

49 ±1 HR

Ø65x15

QH1120050B

洛氏

HRC

钢

50 ±1 HR

Ø65x15

QH1120051B

洛氏

HRC

钢

51 ±1 HR

Ø65x15

QH1120052B

洛氏

HRC

钢

52 ±1 HR

Ø65x15

QH1120053B

洛氏

HRC

钢

53 ±1 HR

Ø65x15

QH1120054B

洛氏

HRC

钢

54 ±1 HR

Ø65x15

QH1120055B

洛氏

HRC

钢

55 ±1 HR

Ø65x15

QH1120056B

洛氏

HRC

钢

56 ±1 HR

Ø65x15

QH1120057B

洛氏

HRC

钢

57 ±1 HR

Ø65x15

QH1120058B

洛氏

HRC

钢

58 ±1 HR

Ø65x15

QH1120059B

洛氏

HRC

钢

59 ±1 HR

Ø65x15

QH1120060B

洛氏

HRC

钢

60 ±1 HR

Ø65x15

QH1120061B

洛氏

HRC

钢

61 ±1 HR

Ø65x15

QH1120062B

洛氏

HRC

钢

62 ±1 HR

Ø65x15

QH1120063B

洛氏

HRC

钢

63 ±1 HR

Ø65x15

QH1120064B

洛氏

HRC

钢

64 ±1 HR

Ø65x15

QH1120065B

洛氏

HRC

钢

65 ±1 HR

Ø65x15

QH1120066B

洛氏

HRC

钢

66 ±1 HR

Ø65x15

QH1120067B

洛氏

HRC

钢

67 ±1 HR

Ø65x15

QH1120068B

洛氏

HRC

钢

68 ±1 HR

Ø65x15

QH1120069B

洛氏

HRC

钢

69 ±1 HR

Ø65x15

QH1120070B

洛氏

HRC

钢

70 ±1 HR

Ø65x15

QH1120071B

洛氏

HRC

钢

71 ±1 HR

Ø65x15

HRD

QH1130040B

洛氏

HRD

钢

40 ±2 HR

Ø65x15

QH1130044B

洛氏

HRD

钢

44 ±2 HR

Ø65x15

QH1130048B

洛氏

HRD

钢

48 ±2 HR

Ø65x15

QH1130052B

洛氏

HRD

钢

52 ±2 HR

Ø65x15

QH1130056B

洛氏

HRD

钢

56 ±2 HR

Ø65x15

QH1130060B

洛氏

HRD

钢

60 ±2 HR

Ø65x15

QH1130064B

洛氏

HRD

钢

64 ±2 HR

Ø65x15

QH1130067B

洛氏

HRD

钢

67 ±2 HR

Ø65x15

QH1130071B

洛氏

HRD

钢

71 ±2 HR

Ø65x15

QH1130073B

洛氏

HRD

钢

73 ±2 HR

Ø65x15

QH1130074B

洛氏

HRD

钢

74 ±2 HR

Ø65x15

QH1130077B

洛氏

HRD

钢

77 ±2 HR

Ø65x15

QH1130078B

洛氏

HRD

钢

78 ±2 HR

Ø65x15

QH1130079B

洛氏

HRD

钢

79 ±2 HR

Ø65x15

HRE

QH1310075B

洛氏

HRE

铝

75 ±4 HR

Ø65x15

QH1310081B

洛氏

HRE

铝

81 ±4 HR

Ø65x15

QH1310087B

洛氏

HRE

铝

87 ±4 HR

Ø65x15

QH1310093B

洛氏

HRE

铝

93 ±4 HR

Ø65x15

QH1310100B

洛氏

HRE

铝

100 ±4 HR

Ø65x15

HRF

QH1220074B

洛氏

HRF

铝

74 ±4 HR

Ø65x15

QH1220080B

洛氏

HRF

铝

80 ±4 HR

Ø65x15

QH1220086B

洛氏

HRF

铝

86 ±4 HR

Ø65x15

QH1220091B

洛氏

HRF

铝

91 ±4 HR

Ø65x15

QH1220097B

洛氏

HRF

铝

97 ±4 HR

Ø65x15

QH1220100B

洛氏

HRF

铝

100 ±4 HR

Ø65x15

HRG

QH1230003B

洛氏

HRG

铝

3 ±4 HR

Ø65x15

QH1230018B

洛氏

HRG

铝

18 ±4 HR

Ø65x15

QH1230033B

洛氏

HRG

铝

33 ±4 HR

Ø65x15

QH1230041B

洛氏

HRG

铝

41 ±4 HR

Ø65x15

QH1230049B

洛氏

HRG

铝

49 ±4 HR

Ø65x15

QH1230058B

洛氏

HRG

铝

58 ±4 HR

Ø65x15

QH1230066B

洛氏

HRG

钢

66 ±4 HR

Ø65x15

QH1230074B

洛氏

HRG

钢

74 ±4 HR

Ø65x15

QH1230083B

洛氏

HRG

钢

83 ±4 HR

Ø65x15

HRH

QH1320087B

洛氏

HRH

铝

87 ±4 HR

Ø65x15

QH1320094B

洛氏

HRH

铝

94 ±4 HR

Ø65x15

QH1320098B

洛氏

HRH

铝

98 ±4 HR

Ø65x15

HRK

QH1330038B

洛氏

HRK

铝

38 ±4 HR

Ø65x15

QH1330047B

洛氏

HRK

铝

47 ±4 HR

Ø65x15

QH1330056B

洛氏

HRK

铝

56 ±4 HR

Ø65x15

QH1330065B

洛氏

HRK

铝

65 ±4 HR

Ø65x15

QH1330073B

洛氏

HRK

铝

73 ±4 HR

Ø65x15

QH1330081B

洛氏

HRK

铝

81 ±4 HR

Ø65x15

QH1330086B

洛氏

HRK

铝

86 ±4 HR

Ø65x15

QH1330091B

洛氏

HRK

铝

91 ±4 HR

Ø65x15

QH1330095B

洛氏

HRK

铝

95 ±4 HR

Ø65x15

QH1330099B

洛氏

HRK

钢

99 ±4 HR

Ø65x15

HRL

QH1410092B

洛氏

HRL

铝

92 ±4 HR

Ø65x15

QH1410118B

洛氏

HRL

铝

118 ±4 HR

Ø65x15

QH1410123B

洛氏

HRL

铝

123 ±4 HR

Ø65x15

HRM

QH1420067B

洛氏

HRM

铝

67 ±4 HR

Ø65x15

QH1420107B

洛氏

HRM

铝

107 ±4 HR

Ø65x15

QH1420118B

洛氏

HRM

铝

118 ±4 HR

Ø65x15

HRP

QH1430086B

洛氏

HRP

铝

86 ±4 HR

Ø65x15

QH1430094B

洛氏

HRP

铝

94 ±4 HR

Ø65x15

QH1430112B

洛氏

HRP

铝

112 ±4 HR

Ø65x15

HRR

QH1510105B

洛氏

HRR

铝

105 ±4 HR

Ø65x15

QH1510123B

洛氏

HRR

铝

123 ±4 HR

Ø65x15

QH1510126B

洛氏

HRR

铝

126 ±4 HR

Ø65x15

HRS

QH1520115B

洛氏

HRS

铝

115 ±4 HR

Ø65x15

QH1520117B

洛氏

HRS

铝

117 ±4 HR

Ø65x15

QH1520123B

洛氏

HRS

铝

123 ±4 HR

Ø65x15

HRV

QH1530107B

洛氏

HRV

铝

107 ±4 HR

Ø65x15

QH1530109B

洛氏

HRV

铝

109 ±4 HR

Ø65x15

QH1530120B

洛氏

HRV

铝

120 ±4 HR

Ø65x15

HR15N

QH1140069B

洛氏

HR 15N

钢

69 ±2 HR

Ø65x15

QH1140072B

洛氏

HR 15N

钢

72 ±2 HR

Ø65x15

QH1140075B

洛氏

HR 15N

钢

75 ±2 HR

Ø65x15

QH1140078B

洛氏

HR 15N

钢

78 ±2 HR

Ø65x15

QH1140081B

洛氏

HR 15N

钢

81 ±2 HR

Ø65x15

QH1140083B

洛氏

HR 15N

钢

83 ±2 HR

Ø65x15

QH1140085B

洛氏

HR 15N

钢

85 ±2 HR

Ø65x15

QH1140088B

洛氏

HR 15N

钢

88 ±2 HR

Ø65x15

QH1140090B

洛氏

HR 15N

钢

90 ±2 HR

Ø65x15

QH1140091B

洛氏

HR 15N

钢

91 ±2 HR

Ø65x15

QH1140092B

洛氏

HR 15N

钢

92 ±2 HR

Ø65x15

QH1140093B

洛氏

HR 15N

钢

93 ±2 HR

Ø65x15

QH1140094B

洛氏

HR 15N

钢

94 ±2 HR

Ø65x15

HR30N

QH1150041B

洛氏

HR 30N

钢

41 ±2 HR

Ø65x15

QH1150046B

洛氏

HR 30N

钢

46 ±2 HR

Ø65x15

QH1150050B

洛氏

HR 30N

钢

50 ±2 HR

Ø65x15

QH1150055B

洛氏

HR 30N

钢

55 ±2 HR

Ø65x15

QH1150059B

洛氏

HR 30N

钢

59 ±2 HR

Ø65x15

QH1150064B

洛氏

HR 30N

钢

64 ±2 HR

Ø65x15

QH1150068B

洛氏

HR 30N

钢

68 ±2 HR

Ø65x15

QH1150073B

洛氏

HR 30N

钢

73 ±2 HR

Ø65x15

QH1150077B

洛氏

HR 30N

钢

77 ±2 HR

Ø65x15

QH1150080B

洛氏

HR 30N

钢

80 ±2 HR

Ø65x15

QH1150082B

洛氏

HR 30N

钢

82 ±2 HR

Ø65x15

QH1150083B

洛氏

HR 30N

钢

83 ±2 HR

Ø65x15

QH1150084B

洛氏

HR 30N

钢

84 ±2 HR

Ø65x15

QH1150085B

洛氏

HR 30N

钢

85 ±2 HR

Ø65x15

QH1150086B

洛氏

HR 30N

钢

86 ±2 HR

Ø65x15

HR45N

QH1160019B

洛氏

HR 45N

钢

19 ±2 HR

Ø65x15

QH1160025B

洛氏

HR 45N

钢

25 ±2 HR

Ø65x15

QH1160031B

洛氏

HR 45N

钢

31 ±2 HR

Ø65x15

QH1160037B

洛氏

HR 45N

钢

37 ±2 HR

Ø65x15

QH1160043B

洛氏

HR 45N

钢

43 ±2 HR

Ø65x15

QH1160049B

洛氏

HR 45N

钢

49 ±2 HR

Ø65x15

QH1160055B

洛氏

HR 45N

钢

55 ±2 HR

Ø65x15

QH1160061B

洛氏

HR 45N

钢

61 ±2 HR

Ø65x15

QH1160066B

洛氏

HR 45N

钢

66 ±2 HR

Ø65x15

QH1160070B

洛氏

HR 45N

钢

70 ±2 HR

Ø65x15

QH1160072B

洛氏

HR 45N

钢

72 ±2 HR

Ø65x15

QH1160074B

洛氏

HR 45N

钢

74 ±2 HR

Ø65x15

QH1160075B

洛氏

HR 45N

钢

75 ±2 HR

Ø65x15

QH1160076B

洛氏

HR 45N

钢

76 ±2 HR

Ø65x15

QH1160077B

洛氏

HR 45N

钢

77 ±2 HR

Ø65x15

QH1160078B

洛氏

HR 45N

钢

78 ±2 HR

Ø65x15

HR15T

QH1240067B

洛氏

HR 15T

铝

67 ±4 HR

Ø65x15

QH1240070B

洛氏

HR 15T

铝

70 ±4 HR

Ø65x15

QH1240073B

洛氏

HR 15T

铝

73 ±4 HR

Ø65x15

QH1240077B

洛氏

HR 15T

铝

77 ±4 HR

Ø65x15

QH1240080B

洛氏

HR 15T

铝

80 ±4 HR

Ø65x15

QH1240083B

洛氏

HR 15T

铝

83 ±4 HR

Ø65x15

QH1240085B

洛氏

HR 15T

铝

85 ±4 HR

Ø65x15

QH1240086B

洛氏

HR 15T

铝

86 ±4 HR

Ø65x15

QH1240088B

洛氏

HR 15T

铝

88 ±4 HR

Ø65x15

QH1240090B

洛氏

HR 15T

钢

90 ±4 HR

Ø65x15

QH1240091B

洛氏

HR 15T

钢

91 ±4 HR

Ø65x15

QH1240093B

洛氏

HR 15T

钢

93 ±4 HR

Ø65x15

HR30T

QH1250029B

洛氏

HR 30T

铝

29 ±4 HR

Ø65x15

QH1250036B

洛氏

HR 30T

铝

36 ±4 HR

Ø65x15

QH1250043B

洛氏

HR 30T

铝

43 ±4 HR

Ø65x15

QH1250049B

洛氏

HR 30T

铝

49 ±4 HR

Ø65x15

QH1250056B

洛氏

HR 30T

铝

56 ±4 HR

Ø65x15

QH1250063B

洛氏

HR 30T

铝

63 ±4 HR

Ø65x15

QH1250066B

洛氏

HR 30T

铝

66 ±4 HR

Ø65x15

QH1250069B

洛氏

HR 30T

铝

69 ±4 HR

Ø65x15

QH1250073B

洛氏

HR 30T

铝

73 ±4 HR

Ø65x15

QH1250076B

洛氏

HR 30T

钢

76 ±4 HR

Ø65x15

QH1250080B

洛氏

HR 30T

钢

80 ±4 HR

Ø65x15

QH1250083B

洛氏

HR 30T

钢

83 ±4 HR

Ø65x15

HR45T

QH1260002B

洛氏

HR 45T

铝

2 ±4 HR

Ø65x15

QH1260012B

洛氏

HR 45T

铝

12 ±4 HR

Ø65x15

QH1260022B

洛氏

HR 45T

铝

22 ±4 HR

Ø65x15

QH1260032B

洛氏

HR 45T

铝

32 ±4 HR

Ø65x15

QH1260043B

洛氏

HR 45T

铝

43 ±4 HR

Ø65x15

QH1260048B

洛氏

HR 45T

铝

48 ±4 HR

Ø65x15

QH1260053B

洛氏

HR 45T

铝

53 ±4 HR

Ø65x15

QH1260058B

洛氏

HR 45T

铝

58 ±4 HR

Ø65x15

QH1260063B

洛氏

HR 45T

钢

63 ±4 HR

Ø65x15

QH1260068B

洛氏

HR 45T

钢

68 ±4 HR

Ø65x15

QH1260073B

洛氏

HR 45T

钢

73 ±4 HR

Ø65x15

HR15W

QH1340084B

洛氏

HR 15W

铝

84 ±4 HR

Ø65x15

QH1340087B

洛氏

HR 15W

铝

87 ±4 HR

Ø65x15

QH1340094B

洛氏

HR 15W

铝

94 ±4 HR

Ø65x15

HR30W

QH1350067B

洛氏

HR 30W

铝

67 ±4 HR

Ø65x15

QH1350073B

洛氏

HR 30W

铝

73 ±4 HR

Ø65x15

QH1350087B

洛氏

HR 30W

铝

87 ±4 HR

Ø65x15

HR45W

QH1360050B

洛氏

HR 45W

铝

50 ±4 HR

Ø65x15

QH1360059B

洛氏

HR 45W

铝

59 ±4 HR

Ø65x15

QH1360080B

洛氏

HR 45W

铝

80 ±4 HR

Ø65x15

HR15X

QH1440092B

洛氏

HR 15X

铝

92 ±4 HR

Ø65x15

QH1440093B

洛氏

HR 15X

铝

93 ±4 HR

Ø65x15

QH1440096B

洛氏

HR 15X

铝

96 ±4 HR

Ø65x15

HR30X

QH1450082B

洛氏

HR 30X

铝

82 ±4 HR

Ø65x15

QH1450084B

洛氏

HR 30X

铝

84 ±4 HR

Ø65x15

QH1450092B

洛氏

HR 30X

铝

92 ±4 HR

Ø65x15

HR45X

QH1460072B

洛氏

HR 45X

铝

72 ±4 HR

Ø65x15

QH1460076B

洛氏

HR 45X

铝

76 ±4 HR

Ø65x15

QH1460085B

洛氏

HR 45X

铝

85 ±4 HR

Ø65x15

HR15Y

QH1540095B

洛氏

HR 15Y

铝

95 ±4 HR

Ø65x15

QH1540096B

洛氏

HR 15Y

铝

96 ±4 HR

Ø65x15

QH1540098B

洛氏

HR 15Y

铝

98 ±4 HR

Ø65x15

HR30Y

QH1550090B

洛氏

HR 30Y

铝

90 ±4 HR

Ø65x15

QH1550091B

洛氏

HR 30Y

铝

91 ±4 HR

Ø65x15

QH1550095B

洛氏

HR 30Y

铝

95 ±4 HR

Ø65x15

HR45Y

QH1560085B

洛氏

HR 45Y

铝

85 ±4 HR

Ø65x15

QH1560087B

洛氏

HR 45Y

铝

87 ±4 HR

Ø65x15

QH1560094B

洛氏

HR 45Y

铝

94 ±4 HR

Ø65x15

Hardness test blocks Brinell
(EN ISO 6506-3, ASTM E10)

HBW

材质

Value

Dim. (mm)

HBW 10/500

QH2440070C

布氏

HBW 10/500

铝

70 ±15 HB

150x125x16-20

QH2440100C

布氏

HBW 10/500

铝

100 ±15 HB

150x125x16-20

HBW 10/1000

QH2450070C

布氏

HBW 10/1000

铝

70 ±15 HB

150x125x16-20

QH2450100C

布氏

HBW 10/1000

铝

100 ±15 HB

150x125x16-20

QH2450130C

布氏

HBW 10/1000

铝

130 ±15 HB

150x125x16-20

QH2450150C

布氏

HBW 10/1000

铝

150 ±15 HB

150x125x16-20

QH2450170C

布氏

HBW 10/1000

铝

170 ±15 HB

150x125x16-20

QH2450200C

布氏

HBW 10/1000

钢

200 ±15 HB

150x125x16-20

HBW 10/1500

QH2460070C

布氏

HBW 10/1500

铝

70 ±15 HB

150x125x16-20

QH2460100C

布氏

HBW 10/1500

铝

100 ±15 HB

150x125x16-20

QH2460130C

布氏

HBW 10/1500

铝

130 ±15 HB

150x125x16-20

QH2460150C

布氏

HBW 10/1500

铝

150 ±15 HB

150x125x16-20

QH2460170C

布氏

HBW 10/1500

铝

170 ±15 HB

150x125x16-20

QH2460200C

布氏

HBW 10/1500

钢

200 ±15 HB

150x125x16-20

QH2460250C

布氏

HBW 10/1500

钢

250 ±15 HB

150x125x16-20

QH2460300C

布氏

HBW 10/1500

钢

300 ±15 HB

150x125x16-20

HBW 10/3000

QH2470070C

布氏

HBW 10/3000

铝

70 ±15 HB

150x125x16-20

QH2470100C

布氏

HBW 10/3000

铝

100 ±15 HB

150x125x16-20

QH2470130C

布氏

HBW 10/3000

铝

130 ±15 HB

150x125x16-20

QH2470150C

布氏

HBW 10/3000

铝

150 ±15 HB

150x125x16-20

QH2470170C

布氏

HBW 10/3000

铝

170 ±15 HB

150x125x16-20

QH2470200C

布氏

HBW 10/3000

钢

200 ±15 HB

150x125x16-20

QH2470250C

布氏

HBW 10/3000

钢

250 ±15 HB

150x125x16-20

QH2470300C

布氏

HBW 10/3000

钢

300 ±15 HB

150x125x16-20

QH2470350C

布氏

HBW 10/3000

钢

350 ±15 HB

150x125x16-20

QH2470400C

布氏

HBW 10/3000

钢

400 ±15 HB

150x125x16-20

QH2470450C

布氏

HBW 10/3000

钢

450 ±15 HB

150x125x16-20

QH2470500C

布氏

HBW 10/3000

钢

500 ±15 HB

150x125x16-20

QH2470550C

布氏

HBW 10/3000

钢

550 ±15 HB

150x125x16-20

QH2470600C

布氏

HBW 10/3000

钢

600 ±15 HB

150x125x16-20

QH2470650C

布氏

HBW 10/3000

钢

650 ±15 HB

150x125x16-20

HBW 5/62.5

QH2330040B

布氏

HBW 5/62.5

铝

40 ±15 HB

Ø65x15

HBW 5/125

QH2340040B

布氏

HBW 5/125

铝

40 ±15 HB

Ø65x15

QH2340070B

布氏

HBW 5/125

铝

70 ±15 HB

Ø65x15

QH2340100B

布氏

HBW 5/125

铝

100 ±15 HB

Ø65x15

HBW 5/250

QH2350070C

布氏

HBW 5/250

铝

70 ±15 HB

150x125x16-20

QH2350100C

布氏

HBW 5/250

铝

100 ±15 HB

150x125x16-20

QH2350130C

布氏

HBW 5/250

铝

130 ±15 HB

150x125x16-20

QH2350150C

布氏

HBW 5/250

铝

150 ±15 HB

150x125x16-20

QH2350170C

布氏

HBW 5/250

铝

170 ±15 HB

150x125x16-20

QH2350200C

布氏

HBW 5/250

钢

200 ±15 HB

150x125x16-20

HBW 5/750

QH2360070C

布氏

HBW 5/750

铝

70 ±15 HB

150x125x16-20

QH2360100C

布氏

HBW 5/750

铝

100 ±15 HB

150x125x16-20

QH2360130C

布氏

HBW 5/750

铝

130 ±15 HB

150x125x16-20

QH2360150C

布氏

HBW 5/750

铝

150 ±15 HB

150x125x16-20

QH2360170C

布氏

HBW 5/750

铝

170 ±15 HB

150x125x16-20

QH2360200C

布氏

HBW 5/750

钢

200 ±15 HB

150x125x16-20

QH2360250C

布氏

HBW 5/750

钢

250 ±15 HB

150x125x16-20

QH2360300C

布氏

HBW 5/750

钢

300 ±15 HB

150x125x16-20

QH2360350C

布氏

HBW 5/750

钢

350 ±15 HB

150x125x16-20

QH2360400C

布氏

HBW 5/750

钢

400 ±15 HB

150x125x16-20

QH2360450C

布氏

HBW 5/750

钢

450 ±15 HB

150x125x16-20

QH2360500C

布氏

HBW 5/750

钢

500 ±15 HB

150x125x16-20

QH2360550C

布氏

HBW 5/750

钢

550 ±15 HB

150x125x16-20

QH2360600C

布氏

HBW 5/750

钢

600 ±15 HB

150x125x16-20

QH2360650C

布氏

HBW 5/750

钢

650 ±15 HB

150x125x16-20

HBW 2.5/62.5

QH2250040B

布氏

HBW 2.5/62.5

铝

40 ±15 HB

Ø65x15

QH2250070B

布氏

HBW 2.5/62.5

铝

70 ±15 HB

Ø65x15

QH2250100B

布氏

HBW 2.5/62.5

铝

100 ±15 HB

Ø65x15

QH2250130B

布氏

HBW 2.5/62.5

铝

130 ±15 HB

Ø65x15

QH2250150B

布氏

HBW 2.5/62.5

铝

150 ±15 HB

Ø65x15

QH2250170B

布氏

HBW 2.5/62.5

铝

170 ±15 HB

Ø65x15

QH2250200B

布氏

HBW 2.5/62.5

钢

200 ±15 HB

Ø65x15

HBW 2.5/187.5

QH2260100B

布氏

HBW 2.5/187.5

铝

100 ±15 HB

Ø65x15

QH2260130B

布氏

HBW 2.5/187.5

铝

130 ±15 HB

Ø65x15

QH2260150B

布氏

HBW 2.5/187.5

铝

150 ±15 HB

Ø65x15

QH2260170B

布氏

HBW 2.5/187.5

铝

170 ±15 HB

Ø65x15

QH2260200B

布氏

HBW 2.5/187.5

钢

200 ±15 HB

Ø65x15

QH2260250B

布氏

HBW 2.5/187.5

钢

250 ±15 HB

Ø65x15

QH2260300B

布氏

HBW 2.5/187.5

钢

300 ±15 HB

Ø65x15

QH2260350B

布氏

HBW 2.5/187.5

钢

350 ±15 HB

Ø65x15

QH2260400B

布氏

HBW 2.5/187.5

钢

400 ±15 HB

Ø65x15

QH2260450B

布氏

HBW 2.5/187.5

钢

450 ±15 HB

Ø65x15

QH2260500B

布氏

HBW 2.5/187.5

钢

500 ±15 HB

Ø65x15

QH2260550B

布氏

HBW 2.5/187.5

钢

550 ±15 HB

Ø65x15

QH2260600B

布氏

HBW 2.5/187.5

钢

600 ±15 HB

Ø65x15

HBW 1/2.5

QH2130040B

布氏

HBW 1/2.5

铝

40 ±15 HB

Ø65x15

HBW 1/5

QH2140040B

布氏

HBW 1/5

铝

40 ±15 HB

Ø65x15

QH2140070B

布氏

HBW 1/5

铝

70 ±15 HB

Ø65x15

QH2140100B

布氏

HBW 1/5

铝

100 ±15 HB

Ø65x15

HBW 1/10

QH2150040B

布氏

HBW 1/10

铝

40 ±15 HB

Ø65x15

QH2150070B

布氏

HBW 1/10

铝

70 ±15 HB

Ø65x15

QH2150100B

布氏

HBW 1/10

铝

100 ±15 HB

Ø65x15

QH2150130B

布氏

HBW 1/10

铝

130 ±15 HB

Ø65x15

QH2150150B

布氏

HBW 1/10

铝

150 ±15 HB

Ø65x15

QH2150170B

布氏

HBW 1/10

铝

170 ±15 HB

Ø65x15

QH2150200B

布氏

HBW 1/10

钢

200 ±15 HB

Ø65x15

HBW 1/30

QH2160100B

布氏

HBW 1/30

铝

100 ±15 HB

Ø65x15

QH2160130B

布氏

HBW 1/30

铝

130 ±15 HB

Ø65x15

QH2160150B

布氏

HBW 1/30

铝

150 ±15 HB

Ø65x15

QH2160170B

布氏

HBW 1/30

铝

170 ±15 HB

Ø65x15

QH2160200B

布氏

HBW 1/30

钢

200 ±15 HB

Ø65x15

QH2160250B

布氏

HBW 1/30

钢

250 ±15 HB

Ø65x15

QH2160300B

布氏

HBW 1/30

钢

300 ±15 HB

Ø65x15

QH2160350B

布氏

HBW 1/30

钢

350 ±15 HB

Ø65x15

QH2160400B

布氏

HBW 1/30

钢

400 ±15 HB

Ø65x15

QH2160450B

布氏

HBW 1/30

钢

450 ±15 HB

Ø65x15

QH2160500B

布氏

HBW 1/30

钢

500 ±15 HB

Ø65x15

QH2160550B

布氏

HBW 1/30

钢

550 ±15 HB

Ø65x15

QH2160600B

布氏

HBW 1/30

钢

600 ±15 HB

Ø65x15

Hardness test blocks Vickers
(EN ISO 6507-3, ASTM E92)

材质

Value

Dim. (mm)

HV 0.01

QH3050040A

维氏

HV 0.01

铝

40 ±25 HV

Ø30x10

HV 0.025

QH3080040A

维氏

HV 0.025

铝

40 ±25 HV

Ø30x10

QH3080070A

维氏

HV 0.025

铝

70 ±25 HV

Ø30x10

QH3080100A

维氏

HV 0.025

铝

100 ±25 HV

Ø30x10

HV 0.05

QH3090040A

维氏

HV 0.05

铝

40 ±25 HV

Ø30x10

QH3090070A

维氏

HV 0.05

铝

70 ±25 HV

Ø30x10

QH3090100A

维氏

HV 0.05

铝

100 ±25 HV

Ø30x10

QH3090150A

维氏

HV 0.05

铝

150 ±25 HV

Ø30x10

QH3090200A

维氏

HV 0.05

钢

200 ±25 HV

Ø30x10

HV 0.1

QH3100040A

维氏

HV 0.1

铝

40 ±25 HV

Ø30x10

QH3100070A

维氏

HV 0.1

铝

70 ±25 HV

Ø30x10

QH3100100A

维氏

HV 0.1

铝

100 ±25 HV

Ø30x10

QH3100150A

维氏

HV 0.1

铝

150 ±25 HV

Ø30x10

QH3100200A

维氏

HV 0.1

钢

200 ±25 HV

Ø30x10

QH3100250A

维氏

HV 0.1

钢

250 ±25 HV

Ø30x10

QH3100300A

维氏

HV 0.1

钢

300 ±25 HV

Ø30x10

QH3100350A

维氏

HV 0.1

钢

350 ±25 HV

Ø30x10

QH3100400A

维氏

HV 0.1

钢

400 ±25 HV

Ø30x10

QH3100450A

维氏

HV 0.1

钢

450 ±25 HV

Ø30x10

HV 0.2

QH3110040A

维氏

HV 0.2

铝

40 ±25 HV

Ø30x10

QH3110070A

维氏

HV 0.2

铝

70 ±25 HV

Ø30x10

QH3110100A

维氏

HV 0.2

铝

100 ±25 HV

Ø30x10

QH3110150A

维氏

HV 0.2

铝

150 ±25 HV

Ø30x10

QH3110200A

维氏

HV 0.2

钢

200 ±25 HV

Ø30x10

QH3110250A

维氏

HV 0.2

钢

250 ±25 HV

Ø30x10

QH3110300A

维氏

HV 0.2

钢

300 ±25 HV

Ø30x10

QH3110350A

维氏

HV 0.2

钢

350 ±25 HV

Ø30x10

QH3110400A

维氏

HV 0.2

钢

400 ±25 HV

Ø30x10

QH3110450A

维氏

HV 0.2

钢

450 ±25 HV

Ø30x10

QH3110500A

维氏

HV 0.2

钢

500 ±25 HV

Ø30x10

QH3110550A

维氏

HV 0.2

钢

550 ±25 HV

Ø30x10

QH3110600A

维氏

HV 0.2

钢

600 ±25 HV

Ø30x10

QH3110650A

维氏

HV 0.2

钢

650 ±25 HV

Ø30x10

QH3110700A

维氏

HV 0.2

钢

700 ±25 HV

Ø30x10

QH3110750A

维氏

HV 0.2

钢

750 ±25 HV

Ø30x10

QH3110800A

维氏

HV 0.2

钢

800 ±25 HV

Ø30x10

QH3110850A

维氏

HV 0.2

钢

850 ±25 HV

Ø30x10

QH3110900A

维氏

HV 0.2

钢

900 ±25 HV

Ø30x10

HV 0.3

QH3120040A

维氏

HV 0.3

铝

40 ±25 HV

Ø30x10

QH3120070A

维氏

HV 0.3

铝

70 ±25 HV

Ø30x10

QH3120100A

维氏

HV 0.3

铝

100 ±25 HV

Ø30x10

QH3120150A

维氏

HV 0.3

铝

150 ±25 HV

Ø30x10

QH3120200A

维氏

HV 0.3

钢

200 ±25 HV

Ø30x10

QH3120250A

维氏

HV 0.3

钢

250 ±25 HV

Ø30x10

QH3120300A

维氏

HV 0.3

钢

300 ±25 HV

Ø30x10

QH3120350A

维氏

HV 0.3

钢

350 ±25 HV

Ø30x10

QH3120400A

维氏

HV 0.3

钢

400 ±25 HV

Ø30x10

QH3120450A

维氏

HV 0.3

钢

450 ±25 HV

Ø30x10

QH3120500A

维氏

HV 0.3

钢

500 ±25 HV

Ø30x10

QH3120550A

维氏

HV 0.3

钢

550 ±25 HV

Ø30x10

QH3120600A

维氏

HV 0.3

钢

600 ±25 HV

Ø30x10

QH3120650A

维氏

HV 0.3

钢

650 ±25 HV

Ø30x10

QH3120700A

维氏

HV 0.3

钢

700 ±25 HV

Ø30x10

QH3120750A

维氏

HV 0.3

钢

750 ±25 HV

Ø30x10

QH3120800A

维氏

HV 0.3

钢

800 ±25 HV

Ø30x10

QH3120850A

维氏

HV 0.3

钢

850 ±25 HV

Ø30x10

QH3120900A

维氏

HV 0.3

钢

900 ±25 HV

Ø30x10

QH3120950A

维氏

HV 0.3

钢

950 ±25 HV

Ø30x10

QH3121000A

维氏

HV 0.3

钢

1000 ±25 HV

Ø30x10

QH3121050A

维氏

HV 0.3

钢

1050 ±25 HV

Ø30x10

QH3121100A

维氏

HV 0.3

钢

1100 ±25 HV

Ø30x10

HV 0.5

QH3130040A

维氏

HV 0.5

铝

40 ±25 HV

Ø30x10

QH3130070A

维氏

HV 0.5

铝

70 ±25 HV

Ø30x10

QH3130100A

维氏

HV 0.5

铝

100 ±25 HV

Ø30x10

QH3130150A

维氏

HV 0.5

铝

150 ±25 HV

Ø30x10

QH3130200A

维氏

HV 0.5

钢

200 ±25 HV

Ø30x10

QH3130250A

维氏

HV 0.5

钢

250 ±25 HV

Ø30x10

QH3130300A

维氏

HV 0.5

钢

300 ±25 HV

Ø30x10

QH3130350A

维氏

HV 0.5

钢

350 ±25 HV

Ø30x10

QH3130400A

维氏

HV 0.5

钢

400 ±25 HV

Ø30x10

QH3130450A

维氏

HV 0.5

钢

450 ±25 HV

Ø30x10

QH3130500A

维氏

HV 0.5

钢

500 ±25 HV

Ø30x10

QH3130550A

维氏

HV 0.5

钢

550 ±25 HV

Ø30x10

QH3130600A

维氏

HV 0.5

钢

600 ±25 HV

Ø30x10

QH3130650A

维氏

HV 0.5

钢

650 ±25 HV

Ø30x10

QH3130700A

维氏

HV 0.5

钢

700 ±25 HV

Ø30x10

QH3130750A

维氏

HV 0.5

钢

750 ±25 HV

Ø30x10

QH3130800A

维氏

HV 0.5

钢

800 ±25 HV

Ø30x10

QH3130850A

维氏

HV 0.5

钢

850 ±25 HV

Ø30x10

QH3130900A

维氏

HV 0.5

钢

900 ±25 HV

Ø30x10

QH3130950A

维氏

HV 0.5

钢

950 ±25 HV

Ø30x10

QH3131000A

维氏

HV 0.5

钢

1000 ±25 HV

Ø30x10

QH3131050A

维氏

HV 0.5

钢

1050 ±25 HV

Ø30x10

QH3131100A

维氏

HV 0.5

钢

1100 ±25 HV

Ø30x10

HV 1

QH3140040A

维氏

HV 1

铝

40 ±25 HV

Ø30x10

QH3140070A

维氏

HV 1

铝

70 ±25 HV

Ø30x10

QH3140100A

维氏

HV 1

铝

100 ±25 HV

Ø30x10

QH3140150A

维氏

HV 1

铝

150 ±25 HV

Ø30x10

QH3140200A

维氏

HV 1

钢

200 ±25 HV

Ø30x10

QH3140250A

维氏

HV 1

钢

250 ±25 HV

Ø30x10

QH3140300A

维氏

HV 1

钢

300 ±25 HV

Ø30x10

QH3140350A

维氏

HV 1

钢

350 ±25 HV

Ø30x10

QH3140400A

维氏

HV 1

钢

400 ±25 HV

Ø30x10

QH3140450A

维氏

HV 1

钢

450 ±25 HV

Ø30x10

QH3140500A

维氏

HV 1

钢

500 ±25 HV

Ø30x10

QH3140550A

维氏

HV 1

钢

550 ±25 HV

Ø30x10

QH3140600A

维氏

HV 1

钢

600 ±25 HV

Ø30x10

QH3140650A

维氏

HV 1

钢

650 ±25 HV

Ø30x10

QH3140700A

维氏

HV 1

钢

700 ±25 HV

Ø30x10

QH3140750A

维氏

HV 1

钢

750 ±25 HV

Ø30x10

QH3140800A

维氏

HV 1

钢

800 ±25 HV

Ø30x10

QH3140850A

维氏

HV 1

钢

850 ±25 HV

Ø30x10

QH3140900A

维氏

HV 1

钢

900 ±25 HV

Ø30x10

QH3140950A

维氏

HV 1

钢

950 ±25 HV

Ø30x10

QH3141000A

维氏

HV 1

钢

1000 ±25 HV

Ø30x10

QH3141050A

维氏

HV 1

钢

1050 ±25 HV

Ø30x10

QH3141100A

维氏

HV 1

钢

1100 ±25 HV

Ø30x10

HV 2

QH3150040B

维氏

HV 2

铝

40 ±25 HV

Ø65x15

QH3150070B

维氏

HV 2

铝

70 ±25 HV

Ø65x15

QH3150100B

维氏

HV 2

铝

100 ±25 HV

Ø65x15

QH3150150B

维氏

HV 2

铝

150 ±25 HV

Ø65x15

QH3150200B

维氏

HV 2

钢

200 ±25 HV

Ø65x15

QH3150250B

维氏

HV 2

钢

250 ±25 HV

Ø65x15

QH3150300B

维氏

HV 2

钢

300 ±25 HV

Ø65x15

QH3150350B

维氏

HV 2

钢

350 ±25 HV

Ø65x15

QH3150400B

维氏

HV 2

钢

400 ±25 HV

Ø65x15

QH3150450B

维氏

HV 2

钢

450 ±25 HV

Ø65x15

QH3150500B

维氏

HV 2

钢

500 ±25 HV

Ø65x15

QH3150550B

维氏

HV 2

钢

550 ±25 HV

Ø65x15

QH3150600B

维氏

HV 2

钢

600 ±25 HV

Ø65x15

QH3150650B

维氏

HV 2

钢

650 ±25 HV

Ø65x15

QH3150700B

维氏

HV 2

钢

700 ±25 HV

Ø65x15

QH3150750B

维氏

HV 2

钢

750 ±25 HV

Ø65x15

QH3150800B

维氏

HV 2

钢

800 ±25 HV

Ø65x15

QH3150850B

维氏

HV 2

钢

850 ±25 HV

Ø65x15

QH3150900B

维氏

HV 2

钢

900 ±25 HV

Ø65x15

QH3150950B

维氏

HV 2

钢

950 ±25 HV

Ø65x15

QH3151000B

维氏

HV 2

钢

1000 ±25 HV

Ø65x15

QH3151050B

维氏

HV 2

钢

1050 ±25 HV

Ø65x15

HV 2.5

QH3160040B

维氏

HV 2.5

铝

40 ±25 HV

Ø65x15

QH3160070B

维氏

HV 2.5

铝

70 ±25 HV

Ø65x15

QH3160100B

维氏

HV 2.5

铝

100 ±25 HV

Ø65x15

QH3160150B

维氏

HV 2.5

铝

150 ±25 HV

Ø65x15

QH3160200B

维氏

HV 2.5

钢

200 ±25 HV

Ø65x15

QH3160250B

维氏

HV 2.5

钢

250 ±25 HV

Ø65x15

QH3160300B

维氏

HV 2.5

钢

300 ±25 HV

Ø65x15

QH3160350B

维氏

HV 2.5

钢

350 ±25 HV

Ø65x15

QH3160400B

维氏

HV 2.5

钢

400 ±25 HV

Ø65x15

QH3160450B

维氏

HV 2.5

钢

450 ±25 HV

Ø65x15

QH3160500B

维氏

HV 2.5

钢

500 ±25 HV

Ø65x15

QH3160550B

维氏

HV 2.5

钢

550 ±25 HV

Ø65x15

QH3160600B

维氏

HV 2.5

钢

600 ±25 HV

Ø65x15

QH3160650B

维氏

HV 2.5

钢

650 ±25 HV

Ø65x15

QH3160700B

维氏

HV 2.5

钢

700 ±25 HV

Ø65x15

QH3160750B

维氏

HV 2.5

钢

750 ±25 HV

Ø65x15

QH3160800B

维氏

HV 2.5

钢

800 ±25 HV

Ø65x15

QH3160850B

维氏

HV 2.5

钢

850 ±25 HV

Ø65x15

QH3160900B

维氏

HV 2.5

钢

900 ±25 HV

Ø65x15

QH3160950B

维氏

HV 2.5

钢

950 ±25 HV

Ø65x15

QH3161000B

维氏

HV 2.5

钢

1000 ±25 HV

Ø65x15

QH3161050B

维氏

HV 2.5

钢

1050 ±25 HV

Ø65x15

HV 3

QH3170040B

维氏

HV 3

铝

40 ±25 HV

Ø65x15

QH3170070B

维氏

HV 3

铝

70 ±25 HV

Ø65x15

QH3170100B

维氏

HV 3

铝

100 ±25 HV

Ø65x15

QH3170150B

维氏

HV 3

铝

150 ±25 HV

Ø65x15

QH3170200B

维氏

HV 3

钢

200 ±25 HV

Ø65x15

QH3170250B

维氏

HV 3

钢

250 ±25 HV

Ø65x15

QH3170300B

维氏

HV 3

钢

300 ±25 HV

Ø65x15

QH3170350B

维氏

HV 3

钢

350 ±25 HV

Ø65x15

QH3170400B

维氏

HV 3

钢

400 ±25 HV

Ø65x15

QH3170450B

维氏

HV 3

钢

450 ±25 HV

Ø65x15

QH3170500B

维氏

HV 3

钢

500 ±25 HV

Ø65x15

QH3170550B

维氏

HV 3

钢

550 ±25 HV

Ø65x15

QH3170600B

维氏

HV 3

钢

600 ±25 HV

Ø65x15

QH3170650B

维氏

HV 3

钢

650 ±25 HV

Ø65x15

QH3170700B

维氏

HV 3

钢

700 ±25 HV

Ø65x15

QH3170750B

维氏

HV 3

钢

750 ±25 HV

Ø65x15

QH3170800B

维氏

HV 3

钢

800 ±25 HV

Ø65x15

QH3170850B

维氏

HV 3

钢

850 ±25 HV

Ø65x15

QH3170900B

维氏

HV 3

钢

900 ±25 HV

Ø65x15

QH3170950B

维氏

HV 3

钢

950 ±25 HV

Ø65x15

QH3171000B

维氏

HV 3

钢

1000 ±25 HV

Ø65x15

QH3171050B

维氏

HV 3

钢

1050 ±25 HV

Ø65x15

HV 5

QH3180040B

维氏

HV 5

铝

40 ±25 HV

Ø65x15

QH3180070B

维氏

HV 5

铝

70 ±25 HV

Ø65x15

QH3180100B

维氏

HV 5

铝

100 ±25 HV

Ø65x15

QH3180150B

维氏

HV 5

铝

150 ±25 HV

Ø65x15

QH3180200B

维氏

HV 5

钢

200 ±25 HV

Ø65x15

QH3180250B

维氏

HV 5

钢

250 ±25 HV

Ø65x15

QH3180300B

维氏

HV 5

钢

300 ±25 HV

Ø65x15

QH3180350B

维氏

HV 5

钢

350 ±25 HV

Ø65x15

QH3180400B

维氏

HV 5

钢

400 ±25 HV

Ø65x15

QH3180450B

维氏

HV 5

钢

450 ±25 HV

Ø65x15

QH3180500B

维氏

HV 5

钢

500 ±25 HV

Ø65x15

QH3180550B

维氏

HV 5

钢

550 ±25 HV

Ø65x15

QH3180600B

维氏

HV 5

钢

600 ±25 HV

Ø65x15

QH3180650B

维氏

HV 5

钢

650 ±25 HV

Ø65x15

QH3180700B

维氏

HV 5

钢

700 ±25 HV

Ø65x15

QH3180750B

维氏

HV 5

钢

750 ±25 HV

Ø65x15

QH3180800B

维氏

HV 5

钢

800 ±25 HV

Ø65x15

QH3180850B

维氏

HV 5

钢

850 ±25 HV

Ø65x15

QH3180900B

维氏

HV 5

钢

900 ±25 HV

Ø65x15

QH3180950B

维氏

HV 5

钢

950 ±25 HV

Ø65x15

QH3181000B

维氏

HV 5

钢

1000 ±25 HV

Ø65x15

QH3181050B

维氏

HV 5

钢

1050 ±25 HV

Ø65x15

HV 10

QH3190040B

维氏

HV 10

铝

40 ±25 HV

Ø65x15

QH3190070B

维氏

HV 10

铝

70 ±25 HV

Ø65x15

QH3190100B

维氏

HV 10

铝

100 ±25 HV

Ø65x15

QH3190150B

维氏

HV 10

铝

150 ±25 HV

Ø65x15

QH3190200B

维氏

HV 10

钢

200 ±25 HV

Ø65x15

QH3190250B

维氏

HV 10

钢

250 ±25 HV

Ø65x15

QH3190300B

维氏

HV 10

钢

300 ±25 HV

Ø65x15

QH3190350B

维氏

HV 10

钢

350 ±25 HV

Ø65x15

QH3190400B

维氏

HV 10

钢

400 ±25 HV

Ø65x15

QH3190450B

维氏

HV 10

钢

450 ±25 HV

Ø65x15

QH3190500B

维氏

HV 10

钢

500 ±25 HV

Ø65x15

QH3190550B

维氏

HV 10

钢

550 ±25 HV

Ø65x15

QH3190600B

维氏

HV 10

钢

600 ±25 HV

Ø65x15

QH3190650B

维氏

HV 10

钢

650 ±25 HV

Ø65x15

QH3190700B

维氏

HV 10

钢

700 ±25 HV

Ø65x15

QH3190750B

维氏

HV 10

钢

750 ±25 HV

Ø65x15

QH3190800B

维氏

HV 10

钢

800 ±25 HV

Ø65x15

QH3190850B

维氏

HV 10

钢

850 ±25 HV

Ø65x15

QH3190900B

维氏

HV 10

钢

900 ±25 HV

Ø65x15

QH3190950B

维氏

HV 10

钢

950 ±25 HV

Ø65x15

QH3191000B

维氏

HV 10

钢

1000 ±25 HV

Ø65x15

QH3191050B

维氏

HV 10

钢

1050 ±25 HV

Ø65x15

HV 10

QH3191180D

维氏

HV 10

Carbide

1180 ±25 HV

25x25x6

QH3191300D

维氏

HV 10

Carbide

1300 ±25 HV

25x25x6

QH3191350D

维氏

HV 10

Carbide

1350 ±25 HV

25x25x6

QH3191420D

维氏

HV 10

Carbide

1420 ±25 HV

25x25x6

QH3191500D

维氏

HV 10

Carbide

1500 ±25 HV

25x25x6

QH3191550D

维氏

HV 10

Carbide

1550 ±25 HV

25x25x6

QH3191600D

维氏

HV 10

Carbide

1600 ±25 HV

25x25x6

QH3191640D

维氏

HV 10

Carbide

1640 ±25 HV

25x25x6

QH3191700D

维氏

HV 10

Carbide

1700 ±25 HV

25x25x6

QH3191740D

维氏

HV 10

Carbide

1740 ±25 HV

25x25x6

QH3191820D

维氏

HV 10

Carbide

1820 ±25 HV

25x25x6

HV 20

QH3200040B

维氏

HV 20

铝

40 ±25 HV

Ø65x15

QH3200070B

维氏

HV 20

铝

70 ±25 HV

Ø65x15

QH3200100B

维氏

HV 20

铝

100 ±25 HV

Ø65x15

QH3200150B

维氏

HV 20

铝

150 ±25 HV

Ø65x15

QH3200200B

维氏

HV 20

钢

200 ±25 HV

Ø65x15

QH3200250B

维氏

HV 20

钢

250 ±25 HV

Ø65x15

QH3200300B

维氏

HV 20

钢

300 ±25 HV

Ø65x15

QH3200350B

维氏

HV 20

钢

350 ±25 HV

Ø65x15

QH3200400B

维氏

HV 20

钢

400 ±25 HV

Ø65x15

QH3200450B

维氏

HV 20

钢

450 ±25 HV

Ø65x15

QH3200500B

维氏

HV 20

钢

500 ±25 HV

Ø65x15

QH3200550B

维氏

HV 20

钢

550 ±25 HV

Ø65x15

QH3200600B

维氏

HV 20

钢

600 ±25 HV

Ø65x15

QH3200650B

维氏

HV 20

钢

650 ±25 HV

Ø65x15

QH3200700B

维氏

HV 20

钢

700 ±25 HV

Ø65x15

QH3200750B

维氏

HV 20

钢

750 ±25 HV

Ø65x15

QH3200800B

维氏

HV 20

钢

800 ±25 HV

Ø65x15

QH3200850B

维氏

HV 20

钢

850 ±25 HV

Ø65x15

QH3200900B

维氏

HV 20

钢

900 ±25 HV

Ø65x15

QH3200950B

维氏

HV 20

钢

950 ±25 HV

Ø65x15

QH3201000B

维氏

HV 20

钢

1000 ±25 HV

Ø65x15

QH3201050B

维氏

HV 20

钢

1050 ±25 HV

Ø65x15

HV 30

QH3210040B

维氏

HV 30

铝

40 ±25 HV

Ø65x15

QH3210070B

维氏

HV 30

铝

70 ±25 HV

Ø65x15

QH3210100B

维氏

HV 30

铝

100 ±25 HV

Ø65x15

QH3210150B

维氏

HV 30

铝

150 ±25 HV

Ø65x15

QH3210200B

维氏

HV 30

钢

200 ±25 HV

Ø65x15

QH3210250B

维氏

HV 30

钢

250 ±25 HV

Ø65x15

QH3210300B

维氏

HV 30

钢

300 ±25 HV

Ø65x15

QH3210350B

维氏

HV 30

钢

350 ±25 HV

Ø65x15

QH3210400B

维氏

HV 30

钢

400 ±25 HV

Ø65x15

QH3210450B

维氏

HV 30

钢

450 ±25 HV

Ø65x15

QH3210500B

维氏

HV 30

钢

500 ±25 HV

Ø65x15

QH3210550B

维氏

HV 30

钢

550 ±25 HV

Ø65x15

QH3210600B

维氏

HV 30

钢

600 ±25 HV

Ø65x15

QH3210650B

维氏

HV 30

钢

650 ±25 HV

Ø65x15

QH3210700B

维氏

HV 30

钢

700 ±25 HV

Ø65x15

QH3210750B

维氏

HV 30

钢

750 ±25 HV

Ø65x15

QH3210800B

维氏

HV 30

钢

800 ±25 HV

Ø65x15

QH3210850B

维氏

HV 30

钢

850 ±25 HV

Ø65x15

QH3210900B

维氏

HV 30

钢

900 ±25 HV

Ø65x15

QH3210950B

维氏

HV 30

钢

950 ±25 HV

Ø65x15

QH3211000B

维氏

HV 30

钢

1000 ±25 HV

Ø65x15

QH3211050B

维氏

HV 30

钢

1050 ±25 HV

Ø65x15

QH3211180D

维氏

HV 30

Carbide

1180 ±25 HV

25x25x6

QH3211300D

维氏

HV 30

Carbide

1300 ±25 HV

25x25x6

QH3211350D

维氏

HV 30

Carbide

1350 ±25 HV

25x25x6

QH3211420D

维氏

HV 30

Carbide

1420 ±25 HV

25x25x6

QH3211500D

维氏

HV 30

Carbide

1500 ±25 HV

25x25x6

QH3211550D

维氏

HV 30

Carbide

1550 ±25 HV

25x25x6

QH3211600D

维氏

HV 30

Carbide

1600 ±25 HV

25x25x6

QH3211640D

维氏

HV 30

Carbide

1640 ±25 HV

25x25x6

QH3211700D

维氏

HV 30

Carbide

1700 ±25 HV

25x25x6

QH3211740D

维氏

HV 30

Carbide

1740 ±25 HV

25x25x6

QH3211820D

维氏

HV 30

Carbide

1820 ±25 HV

25x25x6

HV 50

QH3220040B

维氏

HV 50

铝

40 ±25 HV

Ø65x15

QH3220070B

维氏

HV 50

铝

70 ±25 HV

Ø65x15

QH3220100B

维氏

HV 50

铝

100 ±25 HV

Ø65x15

QH3220150B

维氏

HV 50

铝

150 ±25 HV

Ø65x15

QH3220200B

维氏

HV 50

钢

200 ±25 HV

Ø65x15

QH3220250B

维氏

HV 50

钢

250 ±25 HV

Ø65x15

QH3220300B

维氏

HV 50

钢

300 ±25 HV

Ø65x15

QH3220350B

维氏

HV 50

钢

350 ±25 HV

Ø65x15

QH3220400B

维氏

HV 50

钢

400 ±25 HV

Ø65x15

QH3220450B

维氏

HV 50

钢

450 ±25 HV

Ø65x15

QH3220500B

维氏

HV 50

钢

500 ±25 HV

Ø65x15

QH3220550B

维氏

HV 50

钢

550 ±25 HV

Ø65x15

QH3220600B

维氏

HV 50

钢

600 ±25 HV

Ø65x15

QH3220650B

维氏

HV 50

钢

650 ±25 HV

Ø65x15

QH3220700B

维氏

HV 50

钢

700 ±25 HV

Ø65x15

QH3220750B

维氏

HV 50

钢

750 ±25 HV

Ø65x15

QH3220800B

维氏

HV 50

钢

800 ±25 HV

Ø65x15

QH3220850B

维氏

HV 50

钢

850 ±25 HV

Ø65x15

QH3220900B

维氏

HV 50

钢

900 ±25 HV

Ø65x15

QH3220950B

维氏

HV 50

钢

950 ±25 HV

Ø65x15

QH3221000B

维氏

HV 50

钢

1000 ±25 HV

Ø65x15

QH3221050B

维氏

HV 50

钢

1050 ±25 HV

Ø65x15

HV 100

QH3240040B

维氏

HV 100

铝

40 ±25 HV

Ø65x15

QH3240070B

维氏

HV 100

铝

70 ±25 HV

Ø65x15

QH3240100B

维氏

HV 100

铝

100 ±25 HV

Ø65x15

QH3240150B

维氏

HV 100

铝

150 ±25 HV

Ø65x15

QH3240200B

维氏

HV 100

钢

200 ±25 HV

Ø65x15

QH3240250B

维氏

HV 100

钢

250 ±25 HV

Ø65x15

QH3240300B

维氏

HV 100

钢

300 ±25 HV

Ø65x15

QH3240350B

维氏

HV 100

钢

350 ±25 HV

Ø65x15

QH3240400B

维氏

HV 100

钢

400 ±25 HV

Ø65x15

QH3240450B

维氏

HV 100

钢

450 ±25 HV

Ø65x15

QH3240500B

维氏

HV 100

钢

500 ±25 HV

Ø65x15

QH3240550B

维氏

HV 100

钢

550 ±25 HV

Ø65x15

QH3240600B

维氏

HV 100

钢

600 ±25 HV

Ø65x15

QH3240650B

维氏

HV 100

钢

650 ±25 HV

Ø65x15

QH3240700B

维氏

HV 100

钢

700 ±25 HV

Ø65x15

QH3240750B

维氏

HV 100

钢

750 ±25 HV

Ø65x15

QH3240800B

维氏

HV 100

钢

800 ±25 HV

Ø65x15

QH3240850B

维氏

HV 100

钢

850 ±25 HV

Ø65x15

QH3240900B

维氏

HV 100

钢

900 ±25 HV

Ø65x15

QH3240950B

维氏

HV 100

钢

950 ±25 HV

Ø65x15

QH3241000B

维氏

HV 100

钢

1000 ±25 HV

Ø65x15

QH3241050B

维氏

HV 100

钢

1050 ±25 HV

Ø65x15

Hardness test blocks Knoop
(EN ISO 4545-3, ASTM E92)

材质

Value

Dim. (mm)

HK 0.01

QH4040040A

努氏

HK 0.01

铝

40 ±25 HK

Ø30x10

QH4040070A

努氏

HK 0.01

铝

70 ±25 HK

Ø30x10

QH4040100A

努氏

HK 0.01

铝

100 ±25 HK

Ø30x10

QH4040150A

努氏

HK 0.01

铝

150 ±25 HK

Ø30x10

QH4040200A

努氏

HK 0.01

钢

200 ±25 HK

Ø30x10

QH4040250A

努氏

HK 0.01

钢

250 ±25 HK

Ø30x10

QH4040300A

努氏

HK 0.01

钢

300 ±25 HK

Ø30x10

QH4040350A

努氏

HK 0.01

钢

350 ±25 HK

Ø30x10

QH4040400A

努氏

HK 0.01

钢

400 ±25 HK

Ø30x10

QH4040450A

努氏

HK 0.01

钢

450 ±25 HK

Ø30x10

QH4040500A

努氏

HK 0.01

钢

500 ±25 HK

Ø30x10

QH4040550A

努氏

HK 0.01

钢

550 ±25 HK

Ø30x10

QH4040600A

努氏

HK 0.01

钢

600 ±25 HK

Ø30x10

QH4040650A

努氏

HK 0.01

钢

650 ±25 HK

Ø30x10

QH4040700A

努氏

HK 0.01

钢

700 ±25 HK

Ø30x10

QH4040750A

努氏

HK 0.01

钢

750 ±25 HK

Ø30x10

QH4040800A

努氏

HK 0.01

钢

800 ±25 HK

Ø30x10

QH4040850A

努氏

HK 0.01

钢

850 ±25 HK

Ø30x10

QH4040900A

努氏

HK 0.01

钢

900 ±25 HK

Ø30x10

QH4040950A

努氏

HK 0.01

钢

950 ±25 HK

Ø30x10

QH4041000A

努氏

HK 0.01

钢

1000 ±25 HK

Ø30x10

HK 0.025

QH4070040A

努氏

HK 0.025

铝

40 ±25 HK

Ø30x10

QH4070070A

努氏

HK 0.025

铝

70 ±25 HK

Ø30x10

QH4070100A

努氏

HK 0.025

铝

100 ±25 HK

Ø30x10

QH4070150A

努氏

HK 0.025

铝

150 ±25 HK

Ø30x10

QH4070200A

努氏

HK 0.025

钢

200 ±25 HK

Ø30x10

QH4070250A

努氏

HK 0.025

钢

250 ±25 HK

Ø30x10

QH4070300A

努氏

HK 0.025

钢

300 ±25 HK

Ø30x10

QH4070350A

努氏

HK 0.025

钢

350 ±25 HK

Ø30x10

QH4070400A

努氏

HK 0.025

钢

400 ±25 HK

Ø30x10

QH4070450A

努氏

HK 0.025

钢

450 ±25 HK

Ø30x10

QH4070500A

努氏

HK 0.025

钢

500 ±25 HK

Ø30x10

QH4070550A

努氏

HK 0.025

钢

550 ±25 HK

Ø30x10

QH4070600A

努氏

HK 0.025

钢

600 ±25 HK

Ø30x10

QH4070650A

努氏

HK 0.025

钢

650 ±25 HK

Ø30x10

QH4070700A

努氏

HK 0.025

钢

700 ±25 HK

Ø30x10

QH4070750A

努氏

HK 0.025

钢

750 ±25 HK

Ø30x10

QH4070800A

努氏

HK 0.025

钢

800 ±25 HK

Ø30x10

QH4070850A

努氏

HK 0.025

钢

850 ±25 HK

Ø30x10

QH4070900A

努氏

HK 0.025

钢

900 ±25 HK

Ø30x10

QH4070950A

努氏

HK 0.025

钢

950 ±25 HK

Ø30x10

QH4071000A

努氏

HK 0.025

钢

1000 ±25 HK

Ø30x10

HK 0.05

QH4080040A

努氏

HK 0.05

铝

40 ±25 HK

Ø30x10

QH4080070A

努氏

HK 0.05

铝

70 ±25 HK

Ø30x10

QH4080100A

努氏

HK 0.05

铝

100 ±25 HK

Ø30x10

QH4080150A

努氏

HK 0.05

铝

150 ±25 HK

Ø30x10

QH4080200A

努氏

HK 0.05

钢

200 ±25 HK

Ø30x10

QH4080250A

努氏

HK 0.05

钢

250 ±25 HK

Ø30x10

QH4080300A

努氏

HK 0.05

钢

300 ±25 HK

Ø30x10

QH4080350A

努氏

HK 0.05

钢

350 ±25 HK

Ø30x10

QH4080400A

努氏

HK 0.05

钢

400 ±25 HK

Ø30x10

QH4080450A

努氏

HK 0.05

钢

450 ±25 HK

Ø30x10

QH4080500A

努氏

HK 0.05

钢

500 ±25 HK

Ø30x10

QH4080550A

努氏

HK 0.05

钢

550 ±25 HK

Ø30x10

QH4080600A

努氏

HK 0.05

钢

600 ±25 HK

Ø30x10

QH4080650A

努氏

HK 0.05

钢

650 ±25 HK

Ø30x10

QH4080700A

努氏

HK 0.05

钢

700 ±25 HK

Ø30x10

QH4080750A

努氏

HK 0.05

钢

750 ±25 HK

Ø30x10

QH4080800A

努氏

HK 0.05

钢

800 ±25 HK

Ø30x10

QH4080850A

努氏

HK 0.05

钢

850 ±25 HK

Ø30x10

QH4080900A

努氏

HK 0.05

钢

900 ±25 HK

Ø30x10

QH4080950A

努氏

HK 0.05

钢

950 ±25 HK

Ø30x10

QH4081000A

努氏

HK 0.05

钢

1000 ±25 HK

Ø30x10

HK 0.1

QH4090040A

努氏

HK 0.1

铝

40 ±25 HK

Ø30x10

QH4090070A

努氏

HK 0.1

铝

70 ±25 HK

Ø30x10

QH4090100A

努氏

HK 0.1

铝

100 ±25 HK

Ø30x10

QH4090150A

努氏

HK 0.1

铝

150 ±25 HK

Ø30x10

QH4090200A

努氏

HK 0.1

钢

200 ±25 HK

Ø30x10

QH4090250A

努氏

HK 0.1

钢

250 ±25 HK

Ø30x10

QH4090300A

努氏

HK 0.1

钢

300 ±25 HK

Ø30x10

QH4090350A

努氏

HK 0.1

钢

350 ±25 HK

Ø30x10

QH4090400A

努氏

HK 0.1

钢

400 ±25 HK

Ø30x10

QH4090450A

努氏

HK 0.1

钢

450 ±25 HK

Ø30x10

QH4090500A

努氏

HK 0.1

钢

500 ±25 HK

Ø30x10

QH4090550A

努氏

HK 0.1

钢

550 ±25 HK

Ø30x10

QH4090600A

努氏

HK 0.1

钢

600 ±25 HK

Ø30x10

QH4090650A

努氏

HK 0.1

钢

650 ±25 HK

Ø30x10

QH4090700A

努氏

HK 0.1

钢

700 ±25 HK

Ø30x10

QH4090750A

努氏

HK 0.1

钢

750 ±25 HK

Ø30x10

QH4090800A

努氏

HK 0.1

钢

800 ±25 HK

Ø30x10

QH4090850A

努氏

HK 0.1

钢

850 ±25 HK

Ø30x10

QH4090900A

努氏

HK 0.1

钢

900 ±25 HK

Ø30x10

QH4090950A

努氏

HK 0.1

钢

950 ±25 HK

Ø30x10

QH4091000A

努氏

HK 0.1

钢

1000 ±25 HK

Ø30x10

HK 0.2

QH4100040A

努氏

HK 0.2

铝

40 ±25 HK

Ø30x10

QH4100070A

努氏

HK 0.2

铝

70 ±25 HK

Ø30x10

QH4100100A

努氏

HK 0.2

铝

100 ±25 HK

Ø30x10

QH4100150A

努氏

HK 0.2

铝

150 ±25 HK

Ø30x10

QH4100200A

努氏

HK 0.2

钢

200 ±25 HK

Ø30x10

QH4100250A

努氏

HK 0.2

钢

250 ±25 HK

Ø30x10

QH4100300A

努氏

HK 0.2

钢

300 ±25 HK

Ø30x10

QH4100350A

努氏

HK 0.2

钢

350 ±25 HK

Ø30x10

QH4100400A

努氏

HK 0.2

钢

400 ±25 HK

Ø30x10

QH4100450A

努氏

HK 0.2

钢

450 ±25 HK

Ø30x10

QH4100500A

努氏

HK 0.2

钢

500 ±25 HK

Ø30x10

QH4100550A

努氏

HK 0.2

钢

550 ±25 HK

Ø30x10

QH4100600A

努氏

HK 0.2

钢

600 ±25 HK

Ø30x10

QH4100650A

努氏

HK 0.2

钢

650 ±25 HK

Ø30x10

QH4100700A

努氏

HK 0.2

钢

700 ±25 HK

Ø30x10

QH4100750A

努氏

HK 0.2

钢

750 ±25 HK

Ø30x10

QH4100800A

努氏

HK 0.2

钢

800 ±25 HK

Ø30x10

QH4100850A

努氏

HK 0.2

钢

850 ±25 HK

Ø30x10

QH4100900A

努氏

HK 0.2

钢

900 ±25 HK

Ø30x10

QH4100950A

努氏

HK 0.2

钢

950 ±25 HK

Ø30x10

QH4101000A

努氏

HK 0.2

钢

1000 ±25 HK

Ø30x10

HK 0.3

QH4110040A

努氏

HK 0.3

铝

40 ±25 HK

Ø30x10

QH4110070A

努氏

HK 0.3

铝

70 ±25 HK

Ø30x10

QH4110100A

努氏

HK 0.3

铝

100 ±25 HK

Ø30x10

QH4110150A

努氏

HK 0.3

铝

150 ±25 HK

Ø30x10

QH4110200A

努氏

HK 0.3

钢

200 ±25 HK

Ø30x10

QH4110250A

努氏

HK 0.3

钢

250 ±25 HK

Ø30x10

QH4110300A

努氏

HK 0.3

钢

300 ±25 HK

Ø30x10

QH4110350A

努氏

HK 0.3

钢

350 ±25 HK

Ø30x10

QH4110400A

努氏

HK 0.3

钢

400 ±25 HK

Ø30x10

QH4110450A

努氏

HK 0.3

钢

450 ±25 HK

Ø30x10

QH4110500A

努氏

HK 0.3

钢

500 ±25 HK

Ø30x10

QH4110550A

努氏

HK 0.3

钢

550 ±25 HK

Ø30x10

QH4110600A

努氏

HK 0.3

钢

600 ±25 HK

Ø30x10

QH4110650A

努氏

HK 0.3

钢

650 ±25 HK

Ø30x10

QH4110700A

努氏

HK 0.3

钢

700 ±25 HK

Ø30x10

QH4110750A

努氏

HK 0.3

钢

750 ±25 HK

Ø30x10

QH4110800A

努氏

HK 0.3

钢

800 ±25 HK

Ø30x10

QH4110850A

努氏

HK 0.3

钢

850 ±25 HK

Ø30x10

QH4110900A

努氏

HK 0.3

钢

900 ±25 HK

Ø30x10

QH4110950A

努氏

HK 0.3

钢

950 ±25 HK

Ø30x10

QH4111000A

努氏

HK 0.3

钢

1000 ±25 HK

Ø30x10

HK 0.5

QH4120040A

努氏

HK 0.5

铝

40 ±25 HK

Ø30x10

QH4120070A

努氏

HK 0.5

铝

70 ±25 HK

Ø30x10

QH4120100A

努氏

HK 0.5

铝

100 ±25 HK

Ø30x10

QH4120150A

努氏

HK 0.5

铝

150 ±25 HK

Ø30x10

QH4120200A

努氏

HK 0.5

钢

200 ±25 HK

Ø30x10

QH4120250A

努氏

HK 0.5

钢

250 ±25 HK

Ø30x10

QH4120300A

努氏

HK 0.5

钢

300 ±25 HK

Ø30x10

QH4120350A

努氏

HK 0.5

钢

350 ±25 HK

Ø30x10

QH4120400A

努氏

HK 0.5

钢

400 ±25 HK

Ø30x10

QH4120450A

努氏

HK 0.5

钢

450 ±25 HK

Ø30x10

QH4120500A

努氏

HK 0.5

钢

500 ±25 HK

Ø30x10

QH4120550A

努氏

HK 0.5

钢

550 ±25 HK

Ø30x10

QH4120600A

努氏

HK 0.5

钢

600 ±25 HK

Ø30x10

QH4120650A

努氏

HK 0.5

钢

650 ±25 HK

Ø30x10

QH4120700A

努氏

HK 0.5

钢

700 ±25 HK

Ø30x10

QH4120750A

努氏

HK 0.5

钢

750 ±25 HK

Ø30x10

QH4120800A

努氏

HK 0.5

钢

800 ±25 HK

Ø30x10

QH4120850A

努氏

HK 0.5

钢

850 ±25 HK

Ø30x10

QH4120900A

努氏

HK 0.5

钢

900 ±25 HK

Ø30x10

QH4120950A

努氏

HK 0.5

钢

950 ±25 HK

Ø30x10

QH4121000A

努氏

HK 0.5

钢

1000 ±25 HK

Ø30x10

HK 1

QH4130040A

努氏

HK 1

铝

40 ±25 HK

Ø30x10

QH4130070A

努氏

HK 1

铝

70 ±25 HK

Ø30x10

QH4130100A

努氏

HK 1

铝

100 ±25 HK

Ø30x10

QH4130150A

努氏

HK 1

铝

150 ±25 HK

Ø30x10

QH4130200A

努氏

HK 1

钢

200 ±25 HK

Ø30x10

QH4130250A

努氏

HK 1

钢

250 ±25 HK

Ø30x10

QH4130300A

努氏

HK 1

钢

300 ±25 HK

Ø30x10

QH4130350A

努氏

HK 1

钢

350 ±25 HK

Ø30x10

QH4130400A

努氏

HK 1

钢

400 ±25 HK

Ø30x10

QH4130450A

努氏

HK 1

钢

450 ±25 HK

Ø30x10

QH4130500A

努氏

HK 1

钢

500 ±25 HK

Ø30x10

QH4130550A

努氏

HK 1

钢

550 ±25 HK

Ø30x10

QH4130600A

努氏

HK 1

钢

600 ±25 HK

Ø30x10

QH4130650A

努氏

HK 1

钢

650 ±25 HK

Ø30x10

QH4130700A

努氏

HK 1

钢

700 ±25 HK

Ø30x10

QH4130750A

努氏

HK 1

钢

750 ±25 HK

Ø30x10

QH4130800A

努氏

HK 1

钢

800 ±25 HK

Ø30x10

QH4130850A

努氏

HK 1

钢

850 ±25 HK

Ø30x10

QH4130900A

努氏

HK 1

钢

900 ±25 HK

Ø30x10

QH4130950A

努氏

HK 1

钢

950 ±25 HK

Ø30x10

QH4131000A

努氏

HK 1

钢

1000 ±25 HK

Ø30x10

HK 2

QH4140040A

努氏

HK 2

铝

40 ±25 HK

Ø30x10

QH4140070A

努氏

HK 2

铝

70 ±25 HK

Ø30x10

QH4140100A

努氏

HK 2

铝

100 ±25 HK

Ø30x10

QH4140150A

努氏

HK 2

铝

150 ±25 HK

Ø30x10

QH4140200A

努氏

HK 2

钢

200 ±25 HK

Ø30x10

QH4140250A

努氏

HK 2

钢

250 ±25 HK

Ø30x10

QH4140300A

努氏

HK 2

钢

300 ±25 HK

Ø30x10

QH4140350A

努氏

HK 2

钢

350 ±25 HK

Ø30x10

QH4140400A

努氏

HK 2

钢

400 ±25 HK

Ø30x10

QH4140450A

努氏

HK 2

钢

450 ±25 HK

Ø30x10

QH4140500A

努氏

HK 2

钢

500 ±25 HK

Ø30x10

QH4140550A

努氏

HK 2

钢

550 ±25 HK

Ø30x10

QH4140600A

努氏

HK 2

钢

600 ±25 HK

Ø30x10

QH4140650A

努氏

HK 2

钢

650 ±25 HK

Ø30x10

QH4140700A

努氏

HK 2

钢

700 ±25 HK

Ø30x10

QH4140750A

努氏

HK 2

钢

750 ±25 HK

Ø30x10

QH4140800A

努氏

HK 2

钢

800 ±25 HK

Ø30x10

QH4140850A

努氏

HK 2

钢

850 ±25 HK

Ø30x10

QH4140900A

努氏

HK 2

钢

900 ±25 HK

Ø30x10

QH4140950A

努氏

HK 2

钢

950 ±25 HK

Ø30x10

QH4141000A

努氏

HK 2

钢

1000 ±25 HK

Ø30x10

宏观金刚石压头

• with DAkkS/ASTM Certificate

长度

QER28000EA

洛氏金刚石压头

28 mm

6.5 mm

QER28400EA

洛氏金刚石压头

28 mm

3.8 mm

QEV28000EA

维氏金刚石压头

≥HV0.01

28 mm

6.5 mm

QEV28000EZ

维氏金刚石压头

≥HV5

28 mm

仅6.5 mm带DAkkS证书

QEK28000EA

努氏金刚石压头

28 mm

6.5 mm

嵌入式球压头 – 宏观硬度

• with DAkkS/ASTM Certificate

QEB28010EA 1mm球压头，嵌入式

QEB28025EA 2.5mm球压头，嵌入式

QEB28050EA 5mm球压头，嵌入式

QEB28100EA 10mm球压头，嵌入式

QEB28116EA 1/16"球压头，嵌入式

QEB28108EA 1/8"球压头，嵌入式

QEB28104EA 1/4"球压头，嵌入式

QEB28102EA 1/2"球压头，嵌入式

球压头，可更换球 – 宏观硬度

• with DAkkS/ASTM Certificate

QEB28025AA 2.5 mm球压头- 可更换式

QEB28050AA 5 mm球压头- 可更换式

QEB28100AA 10 mm球压头- 可更换式

QEB28108AA 1/8"球压头- 可更换式

QEB28104AA 1/4"球压头- 可更换式

QEB28102AA 1/2"球压头- 可更换式

球压头用硬质合金球，可更换 – 宏观硬度

• with DAkkS/ASTM Certificate

QKG010025A 硬质合金球 2.5 mm

QKG010050A 硬质合金球5 mm

QKG010100A 硬质合金球 10 mm

QKG011108A 硬质合金球 1/8"

QKG011104A 硬质合金球 1/4"

QKG011102A 硬质合金球 1/2"

显微金刚石压头

• with DAkkS/ASTM Certificate

QEV05000EA 维氏金刚石压头

QEK05000EA 努氏金刚石压头

QER05000EA 洛氏金刚石压头

QEB05010EA 1mm球压头，嵌入式

QEB05025EA 2.5mm球压头，嵌入式

QEB05050EA 5mm球压头，嵌入式

QEB05116EA 1/16"球压头，嵌入式

硬度转换表海报

95016705 硬度转换表海报

耗材 概览

在这个页面你可以申请报价。

我们随时为您提供帮助！

碳化硅精密切割轮

• for non-ferrous metals

变径环

氧化铝精密切割轮

Fine-grained• for universal application of materials of higher hardness• precise cuts and high surface quality• optimal for delicate samples and sensitive materials

Coarse-grained• for universal use with lower hardness materials• ideal for rough geometries and mounted sample material• fast and efficient cuts

Diamond precision cut-off wheelsBond: Bronze

• for universal application and carbides

• for glass, minerals, rock as well as brittle and hard ceramic materials

• for hard metals and hard ceramic materials

• for assembled printed circuit boards and filigree component geometries

• for mounted samples, composites, CFRP, GFRP and plastics

CBN精密切割轮粘结剂: 青铜

• for composites and rigid materials

Saw blade precision cut-off wheel

• for plastics, non-ferrous metals

Silicon carbide cut-off wheelsBond: Resin

Type NF-A, Purple• for non-ferrous metals (30-300HV)

Type Ti-A, Pink • for titanium and alloys, refractory metals (30-300 HV)

Aluminum oxide cut-off wheelsBond: Resin

Type FS-A, Red• for soft steel (30-300HV), non-ferrous metals, polymer (e.g., PMMA, PEEK, PTFE) due to hard bonding

Type I • ideal for cutting structural steel (e.g., S235JR, S355J2, C45) and cast materials (e.g., ductile iron, gray cast iron, cast steel) (60-350 HV)

Type FS-B, Orange • for medium soft steel (200-450HV) e.g. unalloyed structural steels and low-alloy steels

Type FS-C, Yellow• for medium hard steel (300-550HV), case hardened, nitrided steels

Type D• universally applicable for medium material hardness and case-hardened steels (350-600 HV), e.g., tempered steel 42CrMo4, CuSn8

Type FS-D, Green • for hard steels (400-700HV), annealed, carburised steels

Type C• universally applicable for materials of high and very high hardness (>600 HV), e.g., martensitic stainless steels, WC-Co, carbide

Type FS-E, Blue • for very hard steels (>650 HV), e.g., CrV, manganese steel

Type A, Brown• universal wheel, soft and hard metals, superalloys (50-500 HV)

Type B, Black • for high-speed steels, heat-treated steels, non-corrosive steels (400-700 HV)

Fabric reinforced premium aluminum oxide cut-off wheelsBond: Resin

Type FS-FR, fabric reinforced• for medium soft to hard steels (250-600 HV)• > 30% wear reduction• ideal for manual cutting

Premium diamond cut-off wheelsBond: Bronze

• for ceramic materials

• for composite materials (hard/soft combinations)

Premium diamond cut-off wheelsBond: Resin

• for hard metals, for materials with high hardness (>700 HV)

优质CBN切割轮粘结剂: 青铜

• for Nickel and Cobald based alloys

ATM-CoolCut, environment- and user-friendly

适用于聚合物和复合材料的防腐冷却液

防腐蚀冷却液，标准

冷却液添加剂

ATM-CoolAdd CU

消泡剂

ATM-PreClean

冷却剂维护保养附件

维护和测试套装

维护和测试套装的附件

切割机维护保养所需附件

防腐护理喷雾

防雾护理喷雾

切割轮附件

磨刀石

Filter inserts for recirculation cooling system for floor-standing cut-off machines, 140 Ltr.

for Brillant 255 / Qcut 400 A (Brillant 265) / Brillant 270 / Qcut 500 A (Brillant 275) / Brillant 280

for recirculation cooling system for benchtop cut-off machines, 45 Ltr. (until year of construction 2012)

for recirculation cooling system for benchtop cut-off machines, 45 Ltr. (from year of construction 2013)

过滤篮

hanging basket made of stainless steel for the collection of the chip abrasion• can be hooked into 45 liter recirculating cooling unit

带式过滤系统所用滤网

适用于带式过滤系统 BFA 285

适用于带式过滤系统 BFA 100/130

适用于Qcut 600 A (Brillant 285)

for recirculation cooling system 15 Ltr.

Mounting Consumables

Hot mounting material

热镶嵌材料 EPO 黑色

热镶嵌材料 EPO-Max

热镶嵌材料 Duroplast 黑色

热镶嵌材料 Thermoplast

热镶嵌材料 Bakelit 黑色

热镶嵌材料 Bakelit 绿色

热镶嵌材料 Bakelit 红色

Hot mounting accessories

Clip for aligning thin samples in mould

热镶嵌机附件

耗材概览

Fine-grained
• for universal application of materials of higher hardness
• precise cuts and high surface quality
• optimal for delicate samples and sensitive materials

Coarse-grained
• for universal use with lower hardness materials
• ideal for rough geometries and mounted sample material
• fast and efficient cuts

Diamond precision cut-off wheels
Bond: Bronze

CBN精密切割轮
粘结剂: 青铜

Silicon carbide cut-off wheels
Bond: Resin

Type NF-A, Purple
• for non-ferrous metals (30-300HV)

Type Ti-A, Pink
• for titanium and alloys, refractory metals (30-300 HV)

Aluminum oxide cut-off wheels
Bond: Resin

Type FS-A, Red
• for soft steel (30-300HV), non-ferrous metals, polymer (e.g., PMMA, PEEK, PTFE) due to hard bonding

Type I
• ideal for cutting structural steel (e.g., S235JR, S355J2, C45) and cast materials (e.g., ductile iron, gray cast iron, cast steel) (60-350 HV)

Type FS-B, Orange
• for medium soft steel (200-450HV) e.g. unalloyed structural steels and low-alloy steels

Type FS-C, Yellow
• for medium hard steel (300-550HV), case hardened, nitrided steels

Type D
• universally applicable for medium material hardness and case-hardened steels (350-600 HV), e.g., tempered steel 42CrMo4, CuSn8

Type FS-D, Green
• for hard steels (400-700HV), annealed, carburised steels

Type C
• universally applicable for materials of high and very high hardness (>600 HV), e.g., martensitic stainless steels, WC-Co, carbide

Type FS-E, Blue
• for very hard steels (>650 HV), e.g., CrV, manganese steel

Type A, Brown
• universal wheel, soft and hard metals, superalloys (50-500 HV)

Type B, Black
• for high-speed steels, heat-treated steels, non-corrosive steels (400-700 HV)

Fabric reinforced premium aluminum oxide cut-off wheels
Bond: Resin

Type FS-FR, fabric reinforced
• for medium soft to hard steels (250-600 HV)
• > 30% wear reduction
• ideal for manual cutting

Premium diamond cut-off wheels
Bond: Bronze

Premium diamond cut-off wheels
Bond: Resin

优质CBN切割轮
粘结剂: 青铜

for recirculation cooling system for benchtop cut-off machines, 45 Ltr.
(until year of construction 2012)

for recirculation cooling system for benchtop cut-off machines, 45 Ltr.
(from year of construction 2013)

hanging basket made of stainless steel for the collection of the chip abrasion
• can be hooked into 45 liter recirculating cooling unit

• blue, opaque
• 2-component system: powder + liquid (1.5:1 [Vol.-%])

• feasibility of transparent embeddings by means of pressure unit
• 2-component system: powder + liquid (2:1 [Vol.-%])

• green, semi-transparent
• 2-component system: powder + liquid (2:1 [Vol.-%])

• light green, opaque
• 2-component system: powder + liquid (1.5:1 [Vol.-%])

• copper-brown, free of blowholes by using a pressure device
• 2-component system: powder + liquid (20 g : 13 g)

• red, MMA-free
• 2-component system: powder + liquid (2:0.9 [weight-%])

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener (2:1 [weight-%])

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener (100:23.2 [weight-%])

• transparent, suitable for vacuum infiltration
•2-components-system: resin + hardener (100:26 [weight-%])

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener (2:1 [weight-%])

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener for 40 mm = 100/50, for ≤ 30 mm 100/56 [weight-%]

• for cold mounting, pouring and hardening using vacuum
• recommended for Qpox epoxy resins

• transparent
• 1-component system

• transparent
• 1-component system

• suitable for light curing
• with exchangeable bottom

• suitable for light curing
• with exchangeable bottom

• not suitable for light curing
• with exchangeable bottom

• not suitable for light curing
• with exchangeable bottom

• suitable for light curing
• with exchangeable bottom

• not suitable for light curing
• with exchangeable bottom

• not suitable for light curing
• with exchangeable bottom
