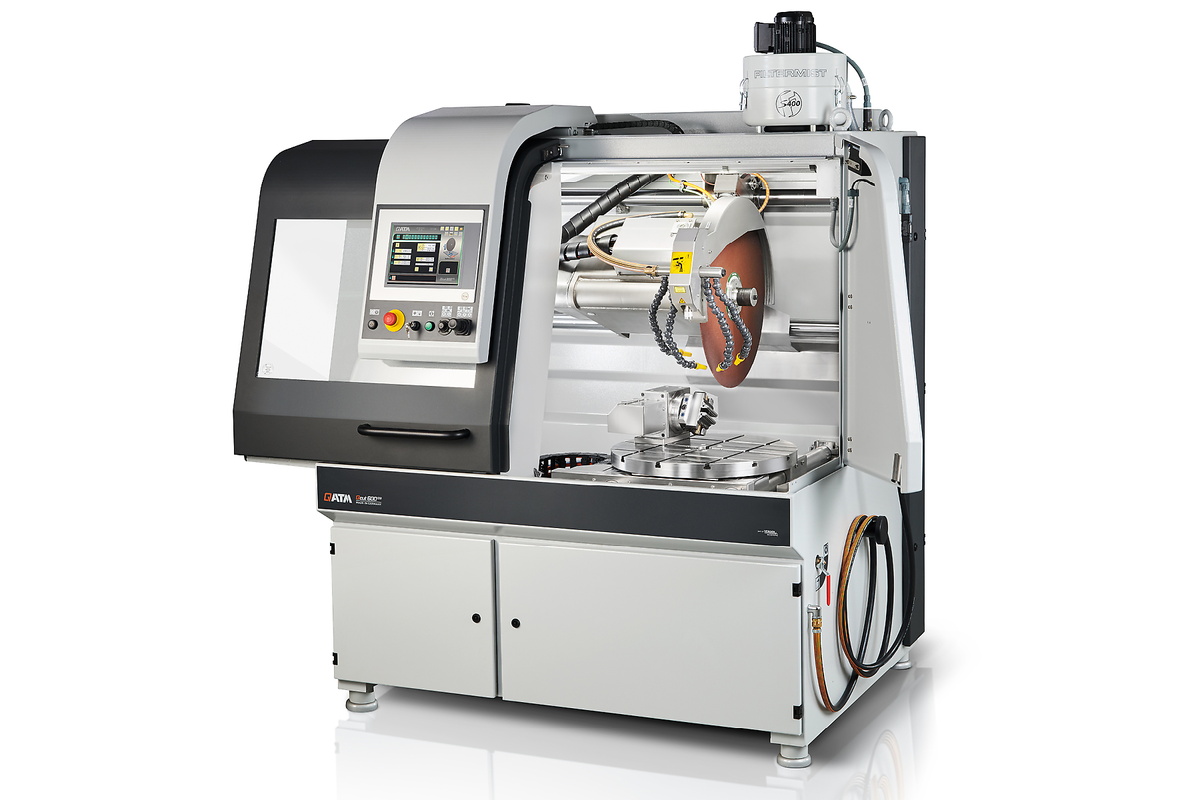

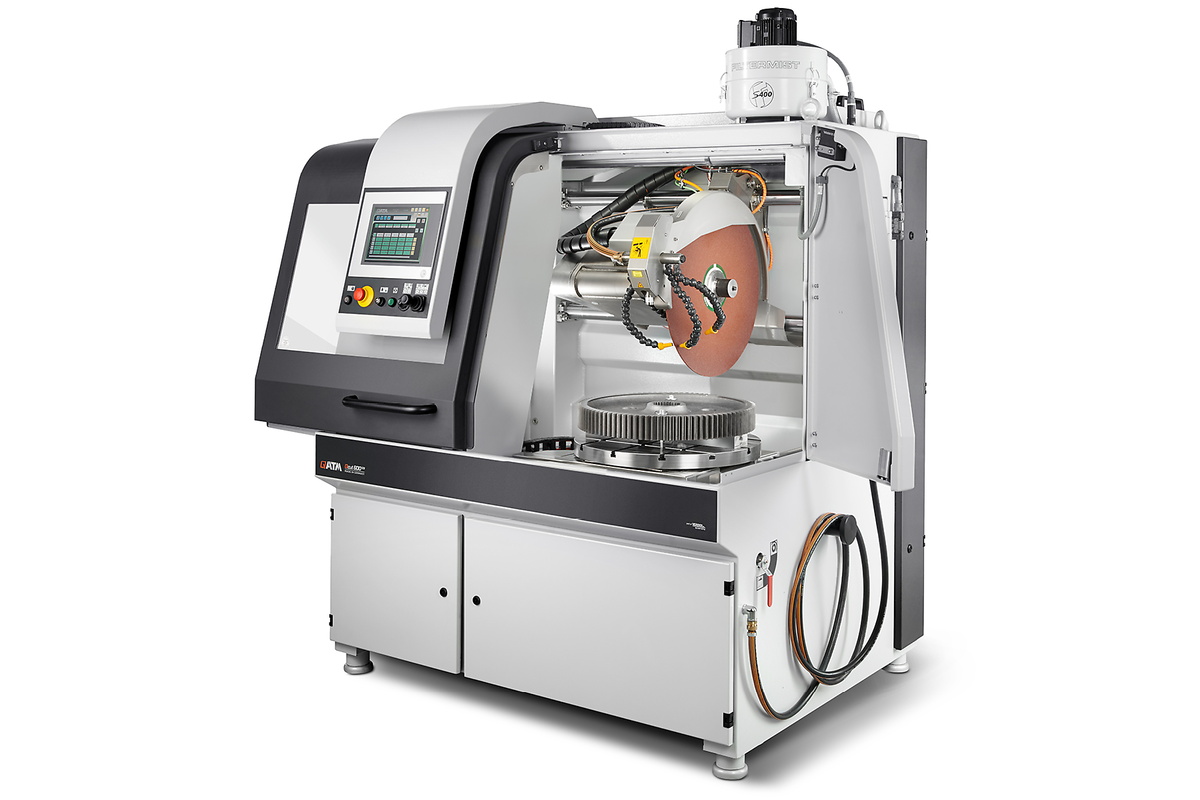

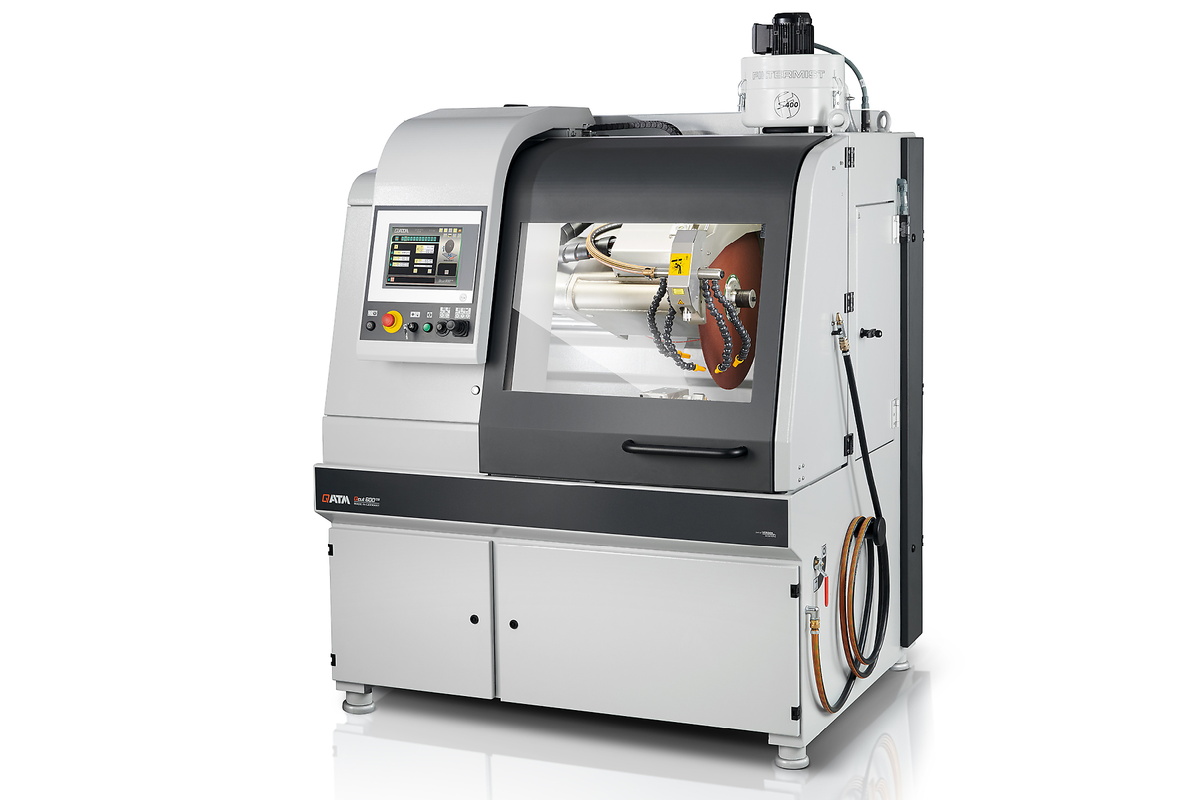

切割机器人 Qcut 600 BOT

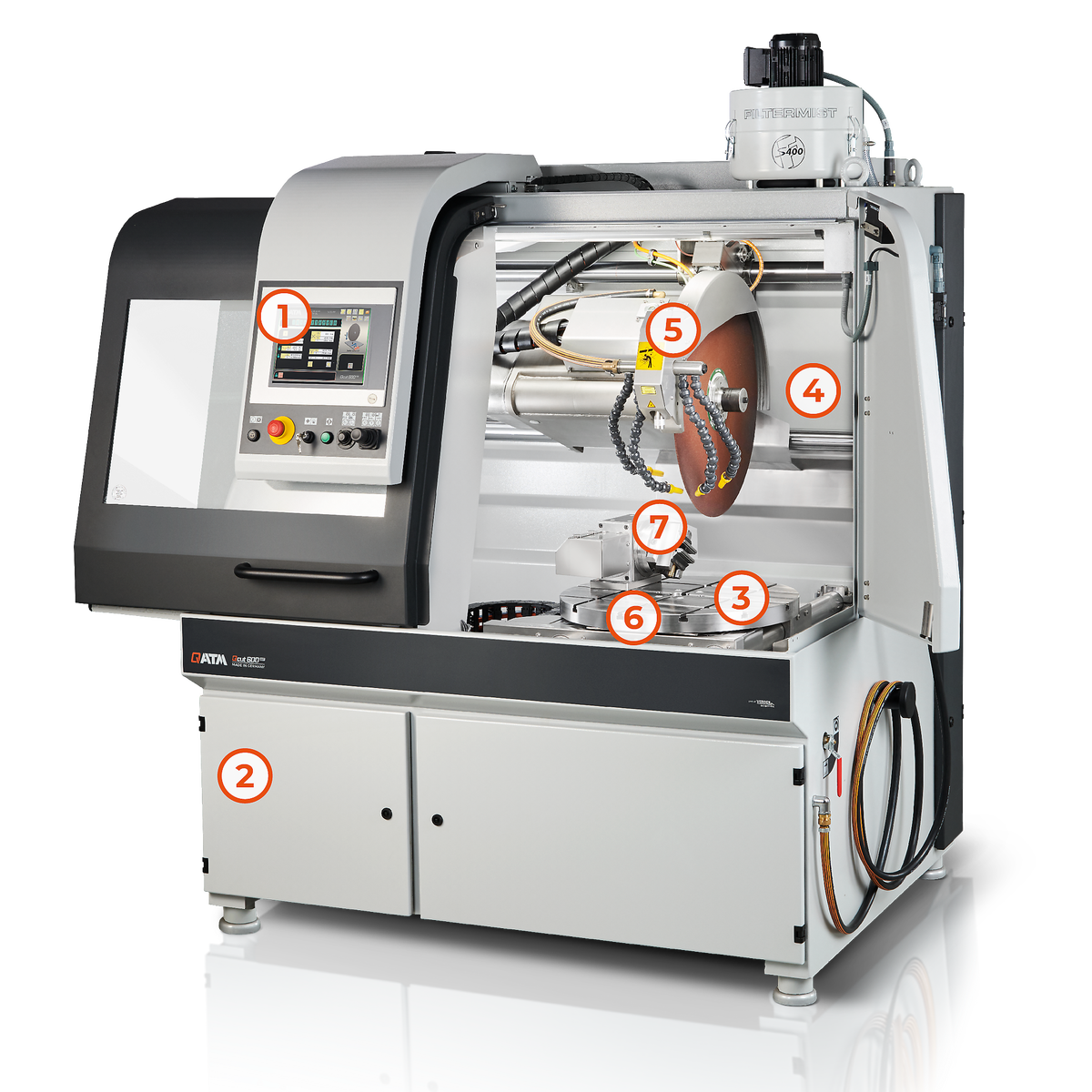

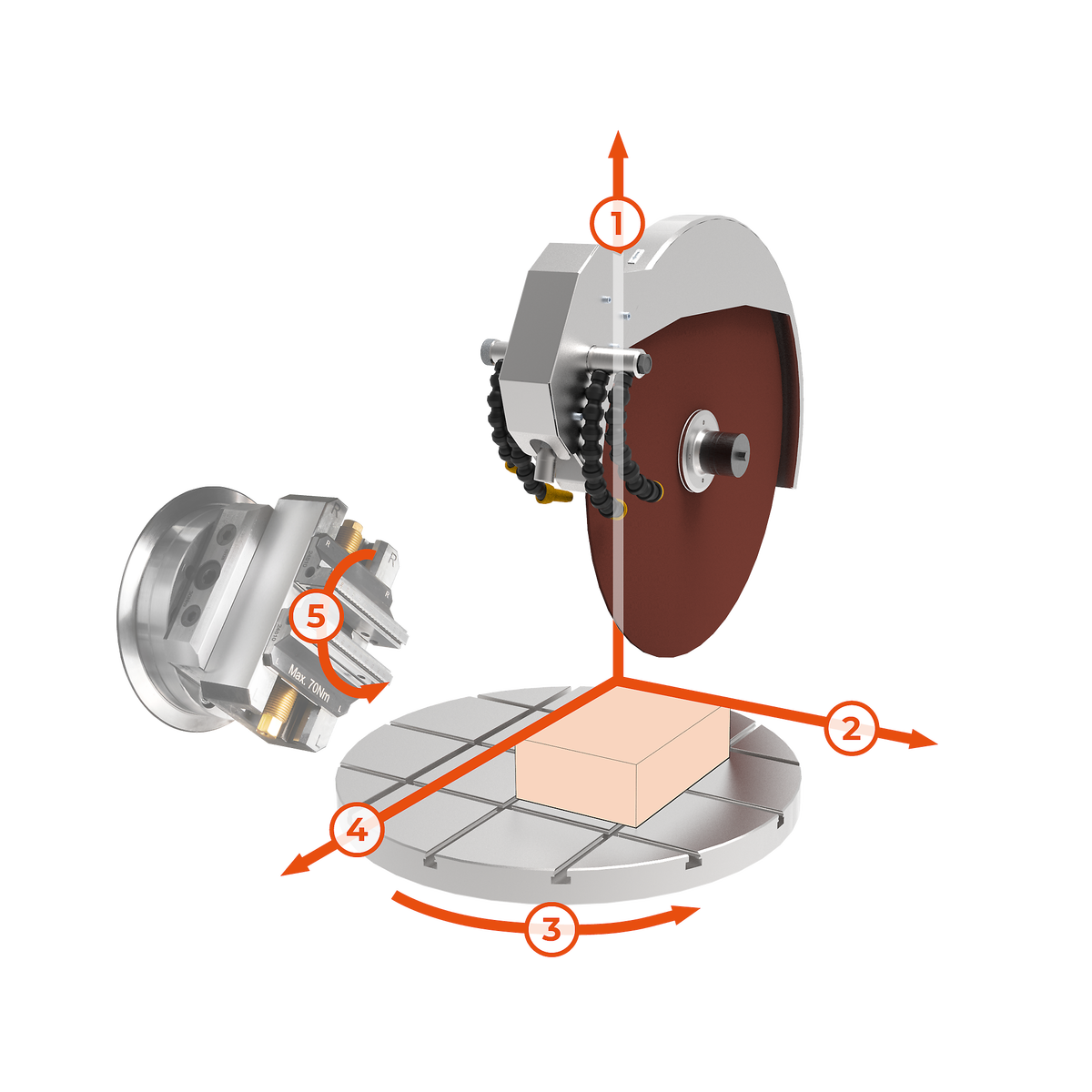

切割机器人 Qcut 600 BOT 超凡细节

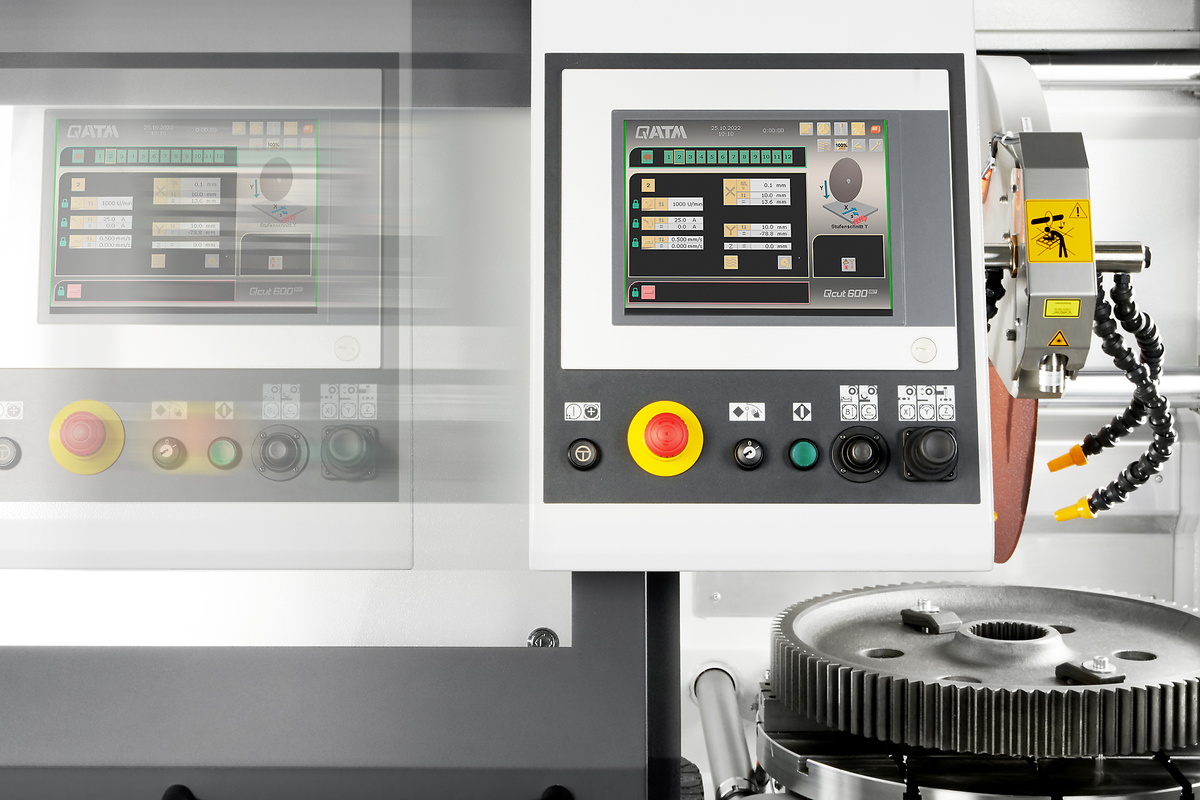

1. 符合人体工程学的控制面板

• Large 12.1" industrial touchscreen with intuitive QATM software
• Quick setup, control of all axes with two joysticks
• The sliding control panel enables unobstructed working conditions

2. Robust machine body

• Sturdy powder-coated steel construction

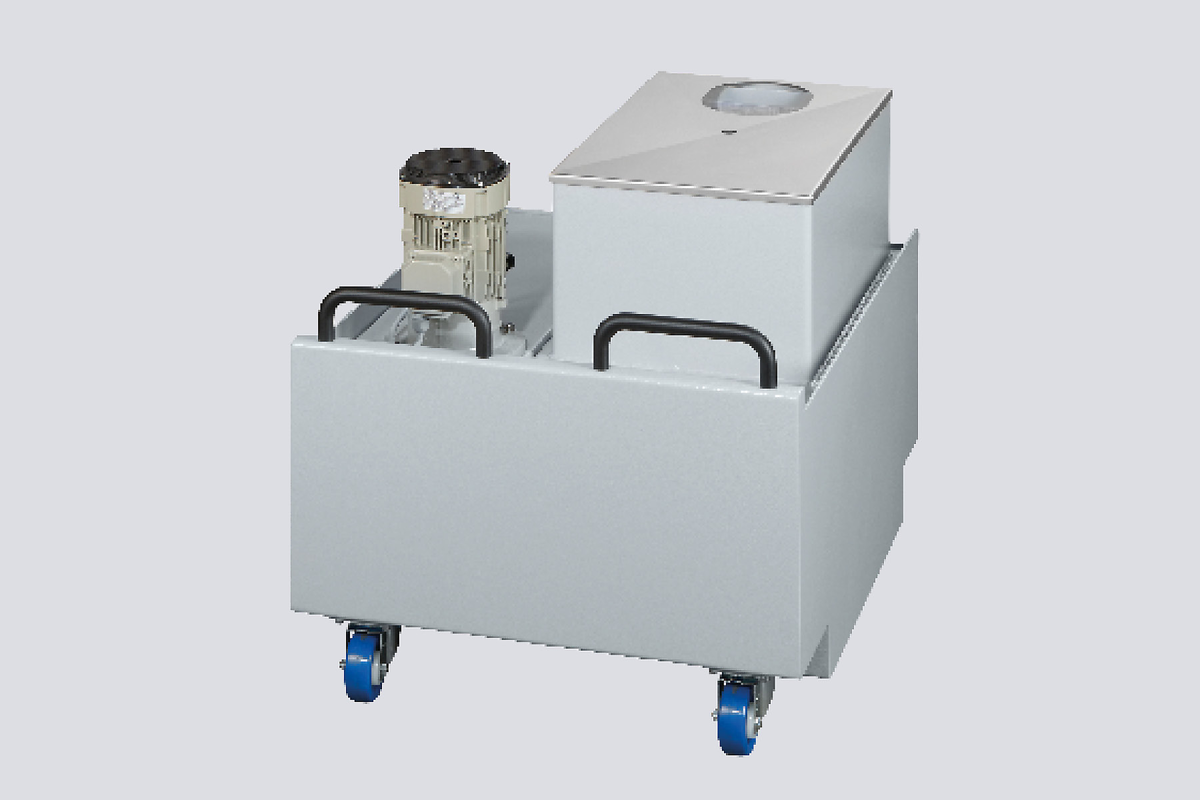

• Integrable recirculating cooling unit
• Automatic central lubrication of the axes

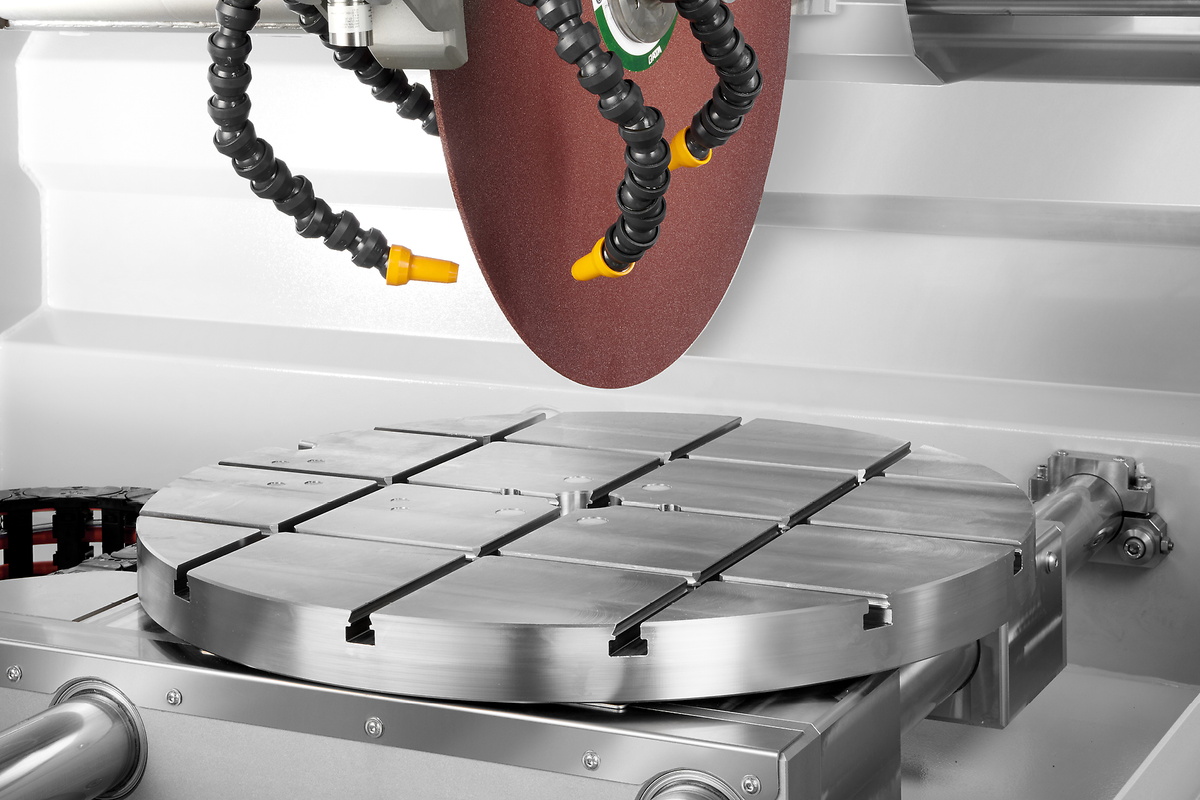

3. 超大圆形切割试台

• Made of stainless steel with integrated longitudinal and cross T-slots
• Secure clamping of complex workpiece shapes using the T-slot table or Easy clamping system
• 直径: Ø 600 mm
• Load capacity: up to 150 kg

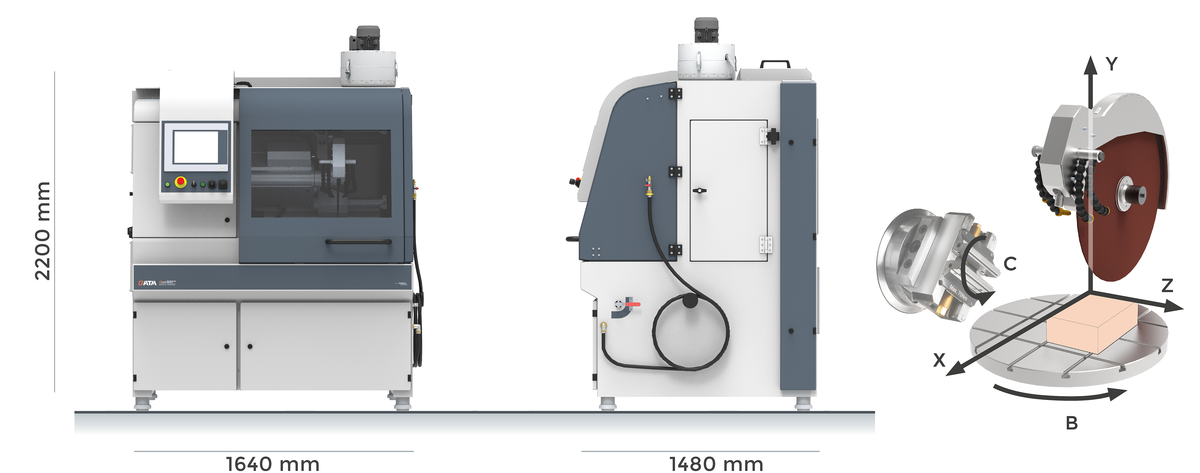

• 行程: X: 550 mm, Y: 360 mm, Z: 550 mm

4. 大切割室

• Large sliding door provides easy access and visibility
• Side swing door for convenient access to cutting chamber
• Large side door for easy cut-off wheel replacement
• Break-resistant LED interior lighting

5. 优化的旋转臂

• Highly efficient cooling system
• Increased cutting capacity thanks to parallel guided cut-off wheel guard
• Laser alignment aid for easy workpiece positioning

6. Rotation axis, B-axis

• Rotation range 360°, with combined C-axis 200°
• Positioning accuracy: ±0.1°

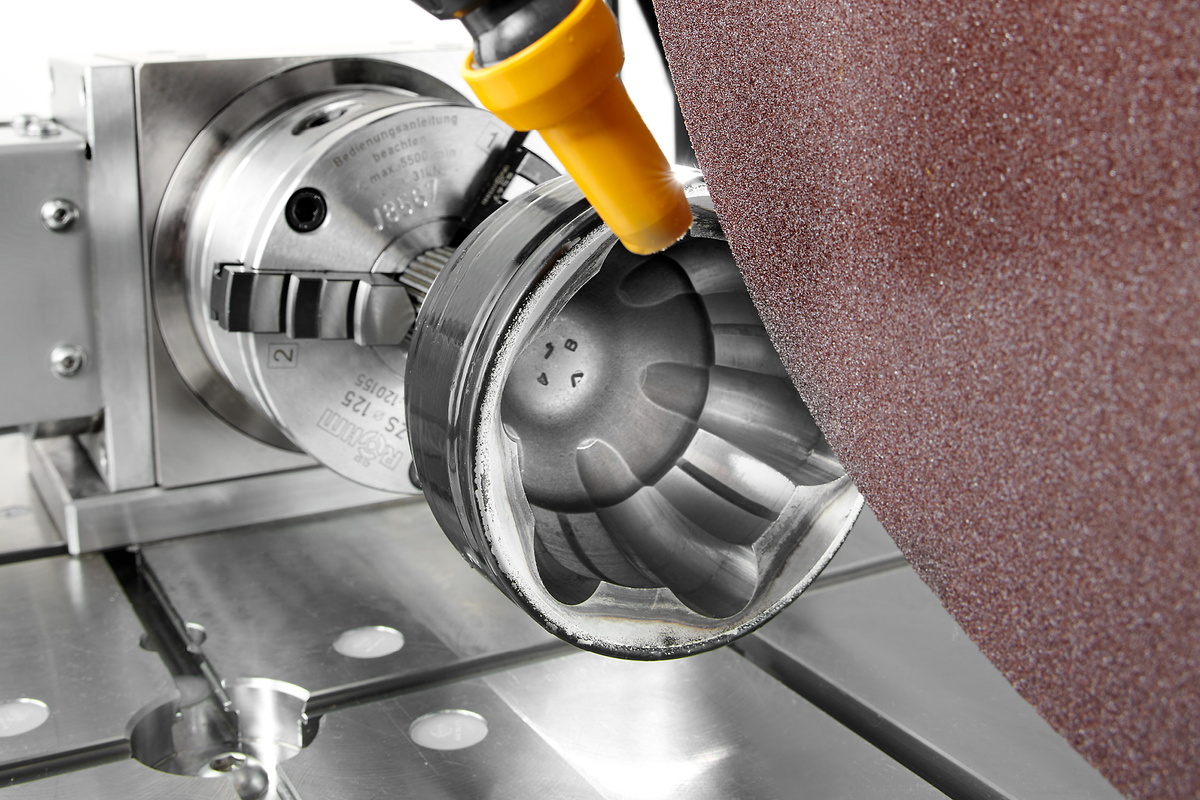

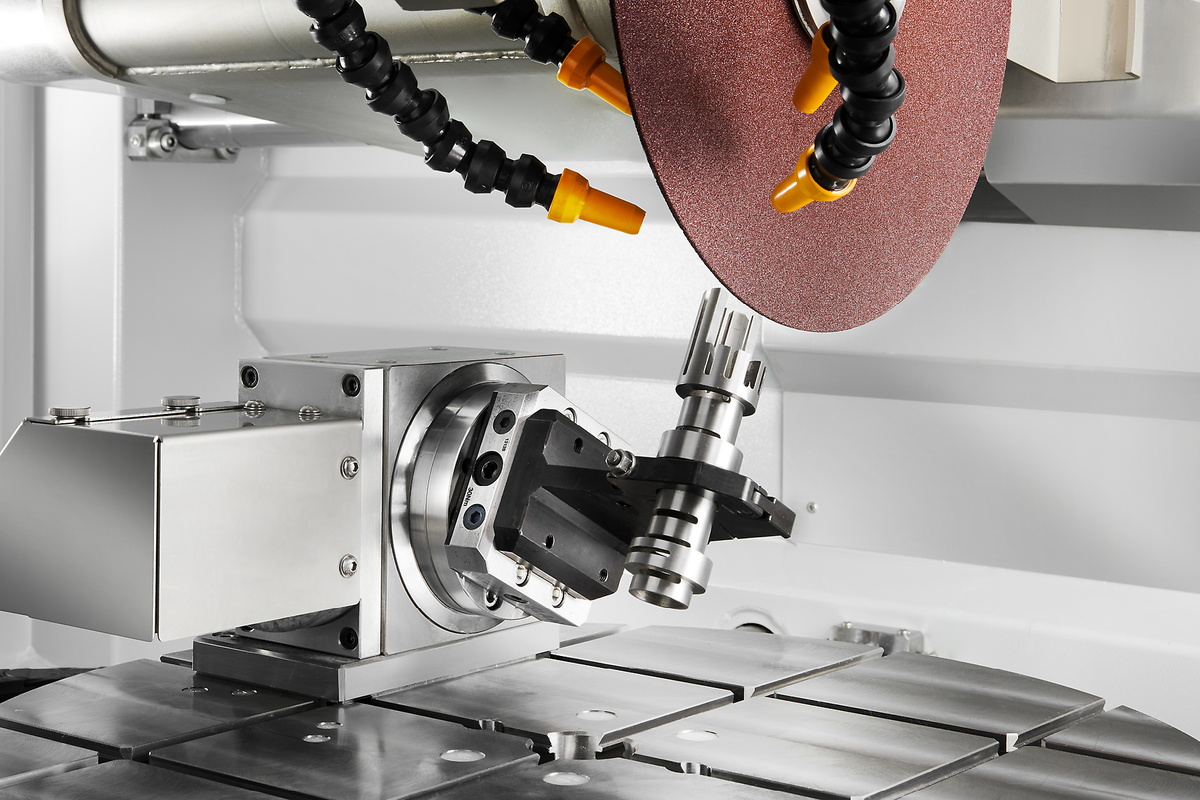

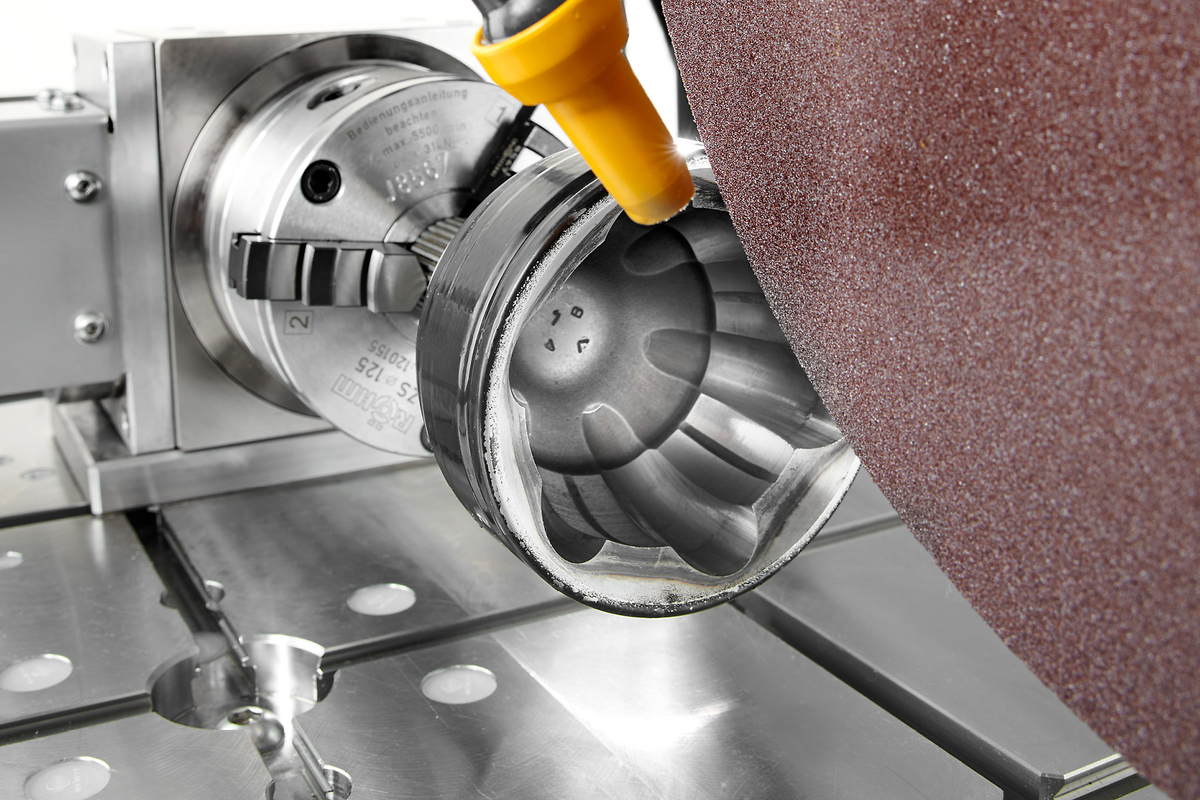

7. Optional rotation axis, C-axis

• Rotation range: max. 360°
• Removable modular rotation axis
• Clamping capabilities can be expanded with a lathe chuck or other clamping devices

切割机器人 Qcut 600 BOT 性能指标

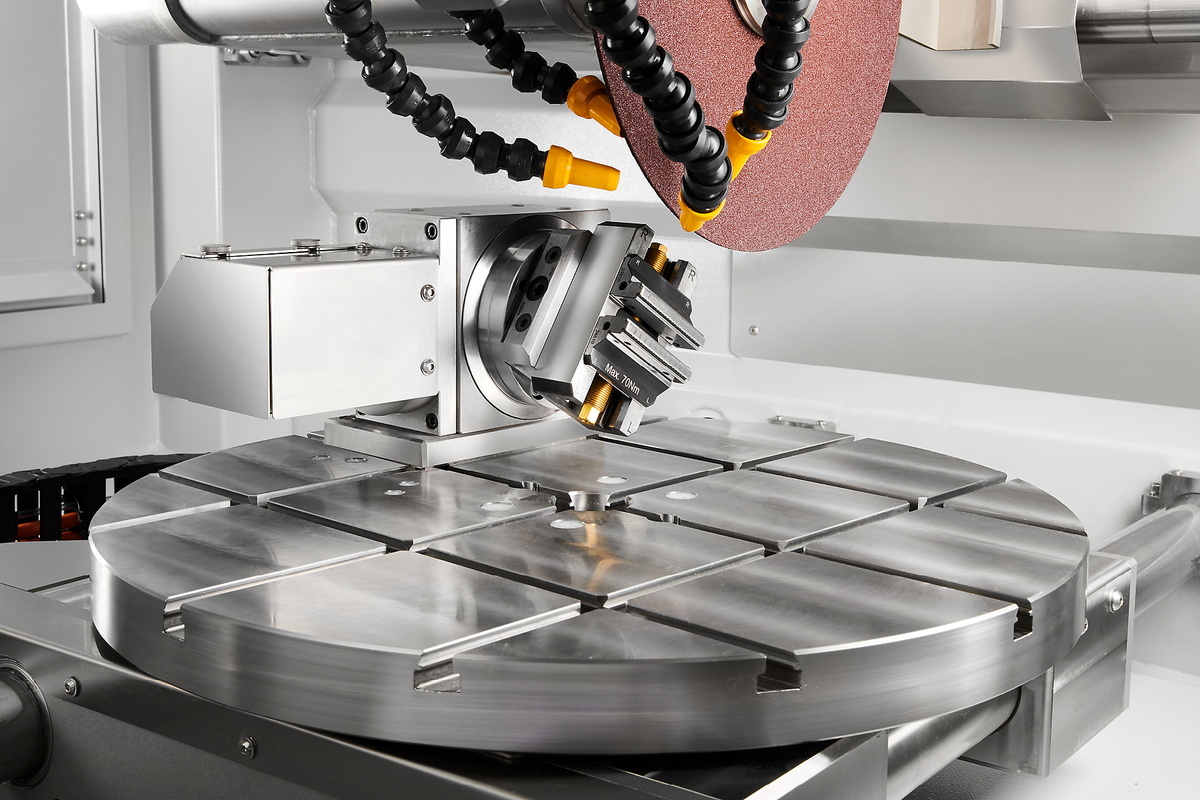

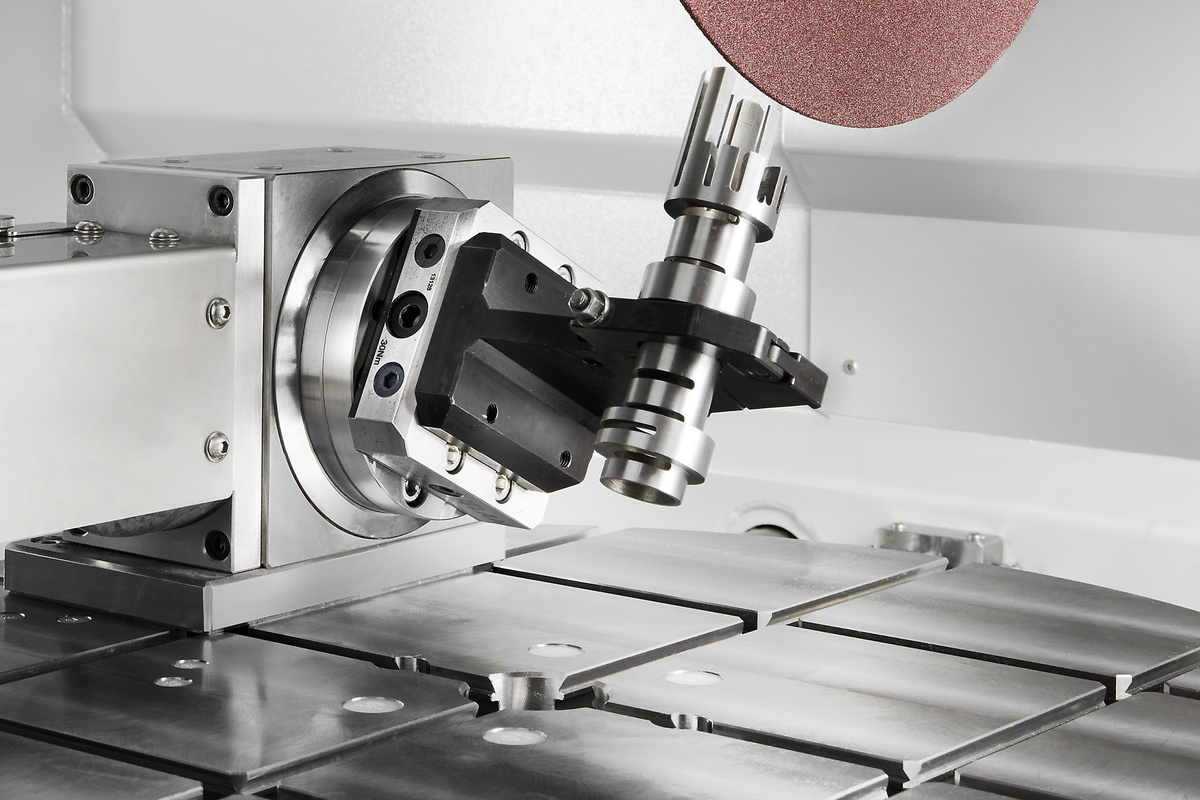

不锈钢旋转试台

Spacious rotary table (Ø 600 mm) enables precise work even under heavy loads.

• Rotation of the machine table (max. 360°) eliminates the need for time-consuming re-clamping of workpieces
• Can be expanded with a modular adaptable rotation axis (C-axis)
• Integrated T-slots for the Easy clamping system for quick mounting of clamping tools

自动切割轮测量

Dynamic cut-off wheel measurement leads to reproducible cutting results with consistent quality.

• Automatic monitoring of the current cut-off wheel diameter
• Adjustment of cutting parameters after each cut
• Enables consistent cutting speed and cutting depth

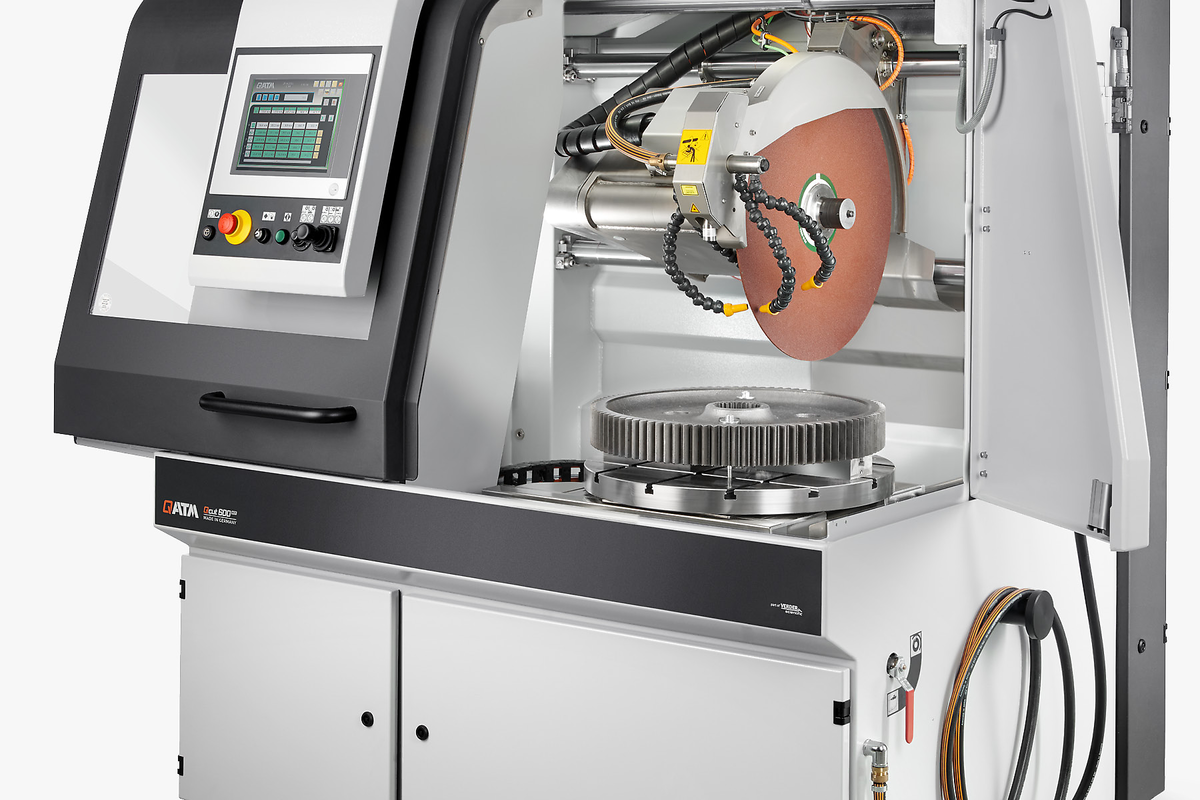

坚固耐用的机器，配有宽敞的切割室

Robust, powder-coated steel machine body with large sliding door made of scratch-resistant laminated safety glass and large side door.

• Machine body with integrable recirculating cooling unit and automatic central lubrication
• Optimal access to the large cutting chamber with safety interlock that prevents door opening when the cut-off wheel is operating
• Large side door for easy cut-off wheel replacement

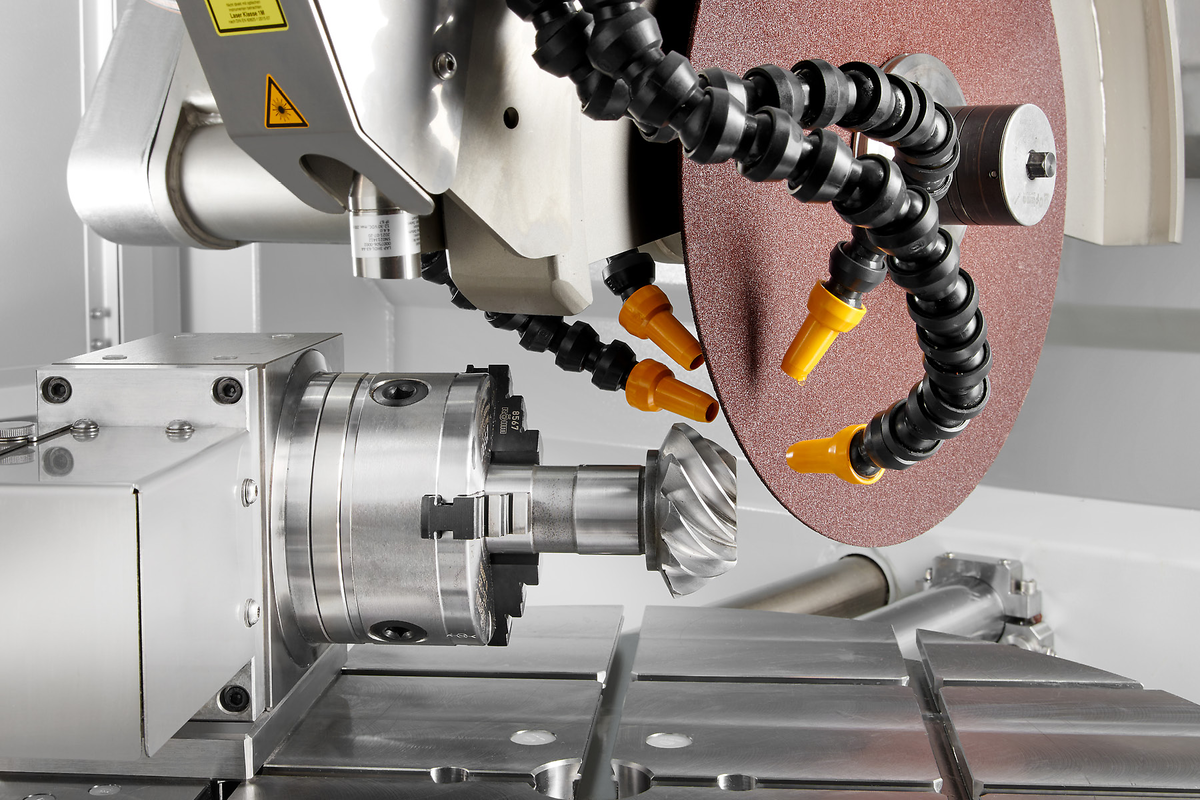

切割优化

To optimize the cutting quality, the machine automatically detects local material characteristics, such as hardened areas.

• Cutting force-dependent feed control
• Cut detection: When starting a new cut, the workpiece is automatically detected and approached at reduced speed
• Parallel-guided cut-off wheel guard increases the cutting capacity of the cut-off wheel during chop cuts

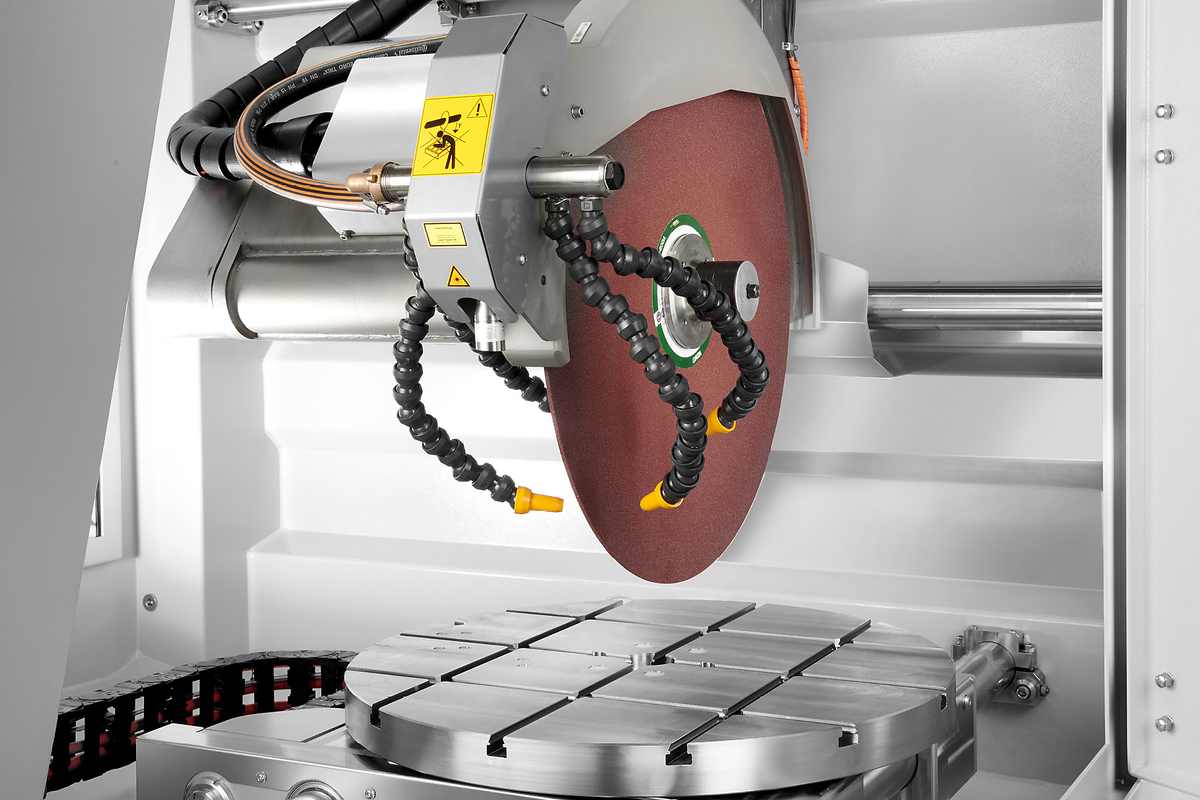

强有力的切割轮驱动

Precise swivel arm guidance and cut-off wheel cooling.

• Water-cooled main drive with 15 kW drive power
• Optimal cooling thanks to flexibly adjustable cooling hoses
• Parallel guided cut-off wheel guard for increased cutting capacity when making cross cuts

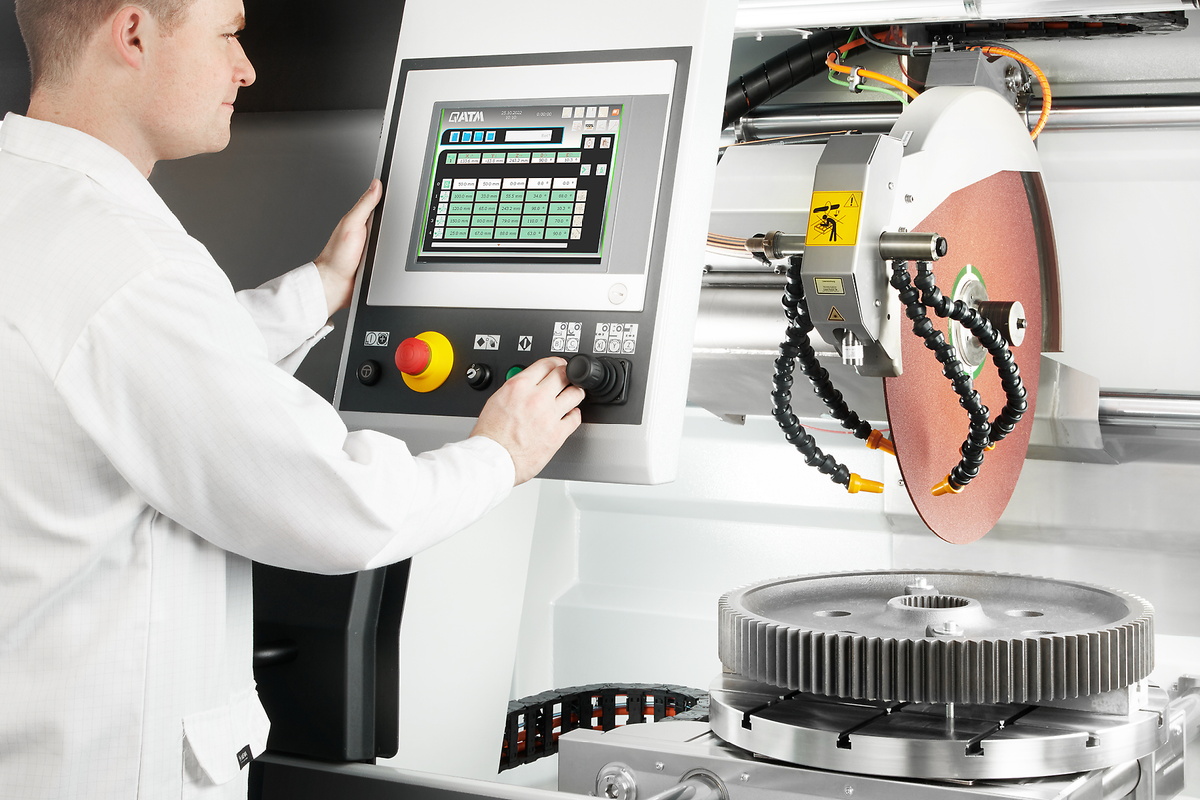

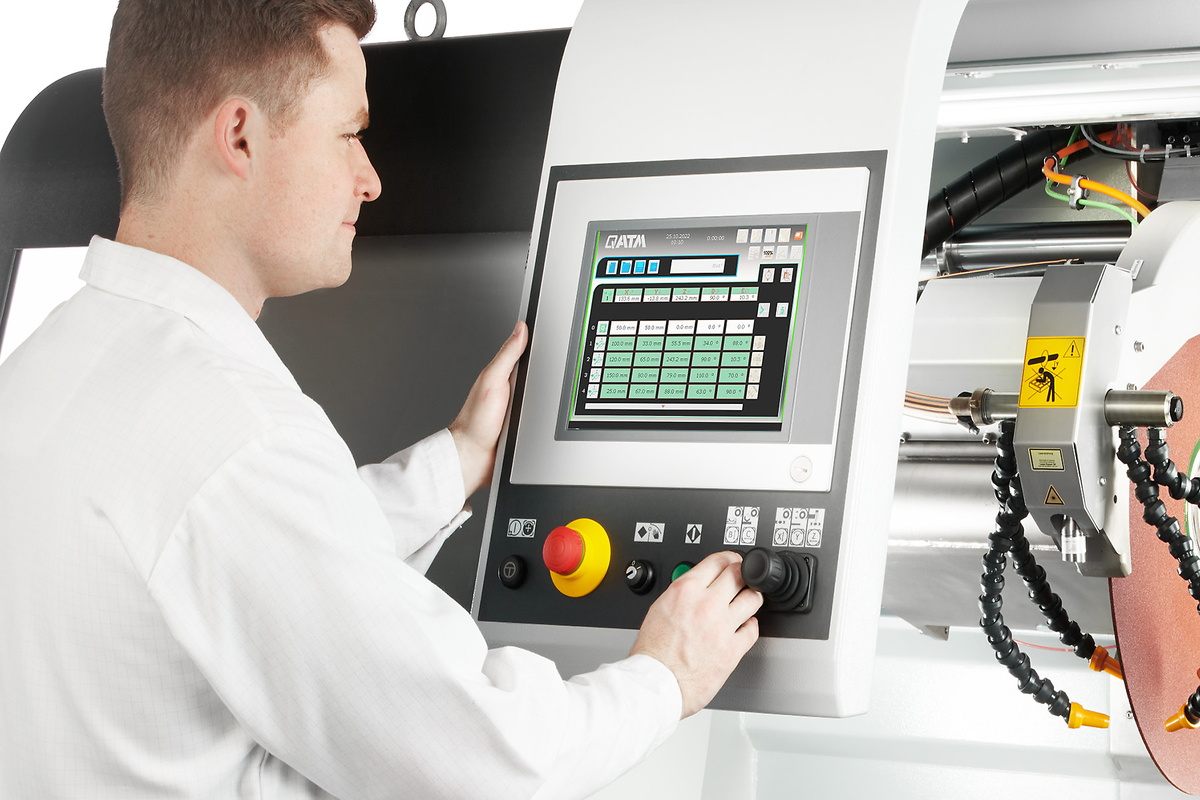

直观且易于操作

Large 12.1" industrial touchscreen with intuitive QATM user software, joysticks, and emergency stop switch.

• The teach function enables user-friendly programming of cutting positions by manually positioning the machine at each desired location
• Simultaneous positioning and automatic cutting of different workpieces without re-clamping (Multi-Position Process MPP

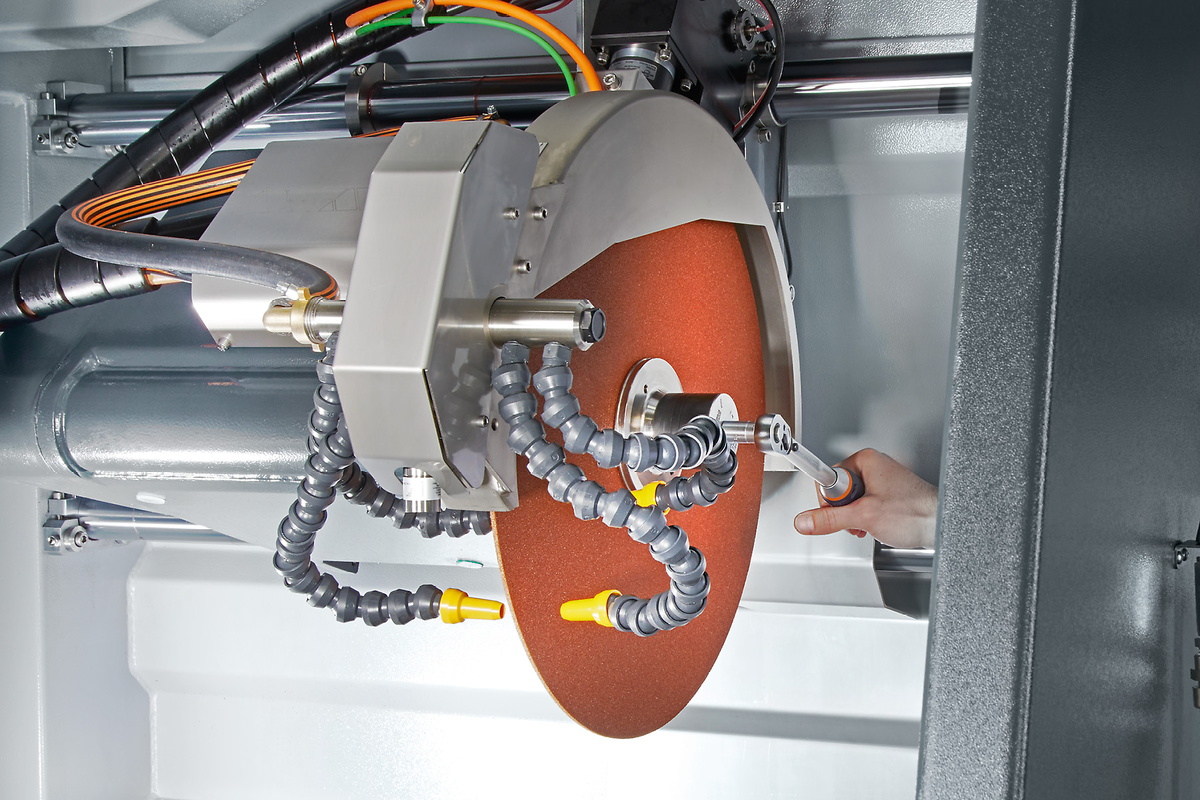

精妙的设计

Easy cut-off wheel replacement and simple clamping allow you to focus on cutting.

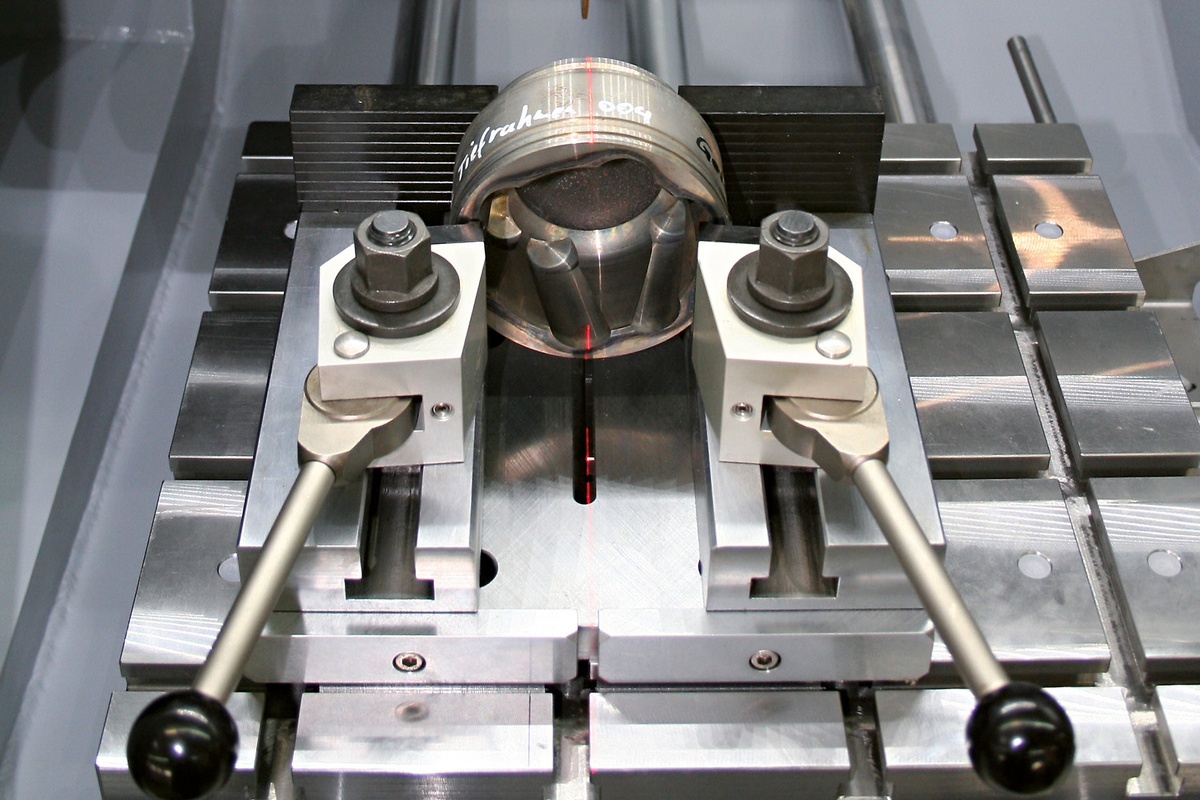

• Laser alignment for easy workpiece positioning
• Power clamping nut: easy clamping and loosening of the cut-off wheel

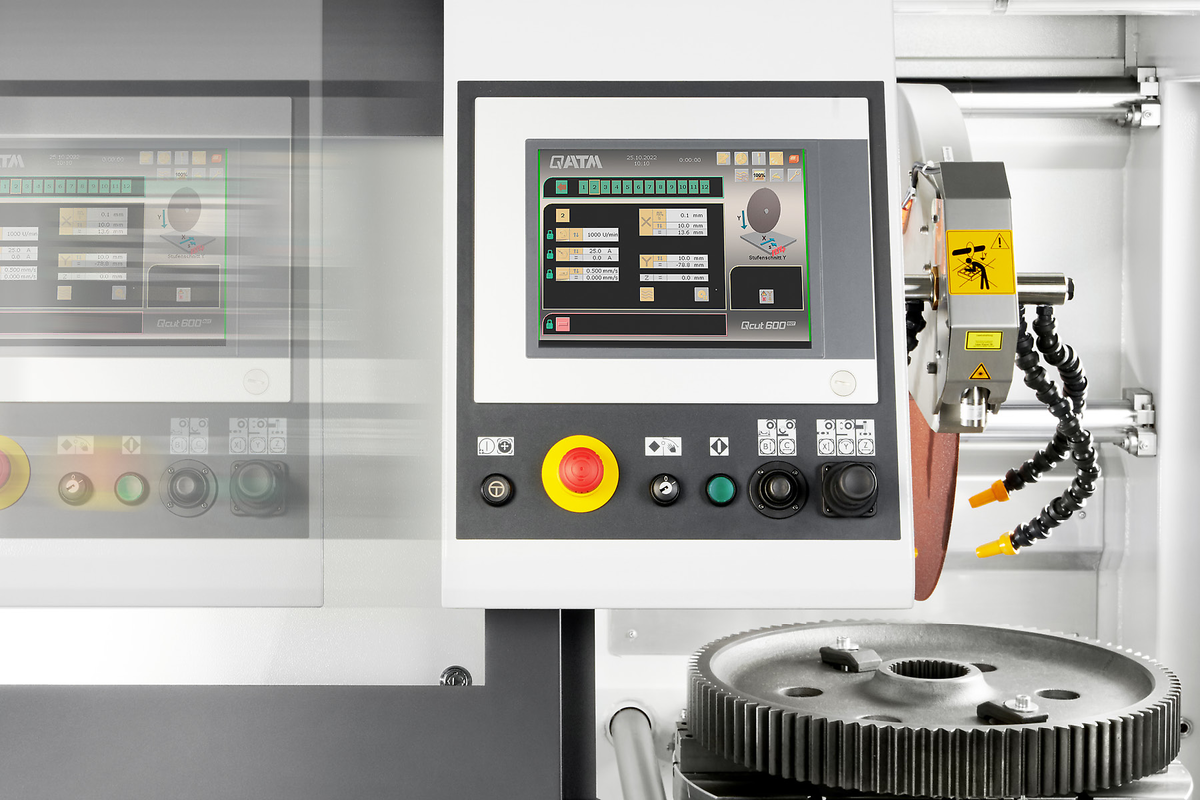

最大化的易用性

The control panel is movable and can be freely positioned for ergonomic operation during setup and operation of the machine.

• Programming in close proximity to the workpiece
• During series operation, the control panel can be moved to the side
