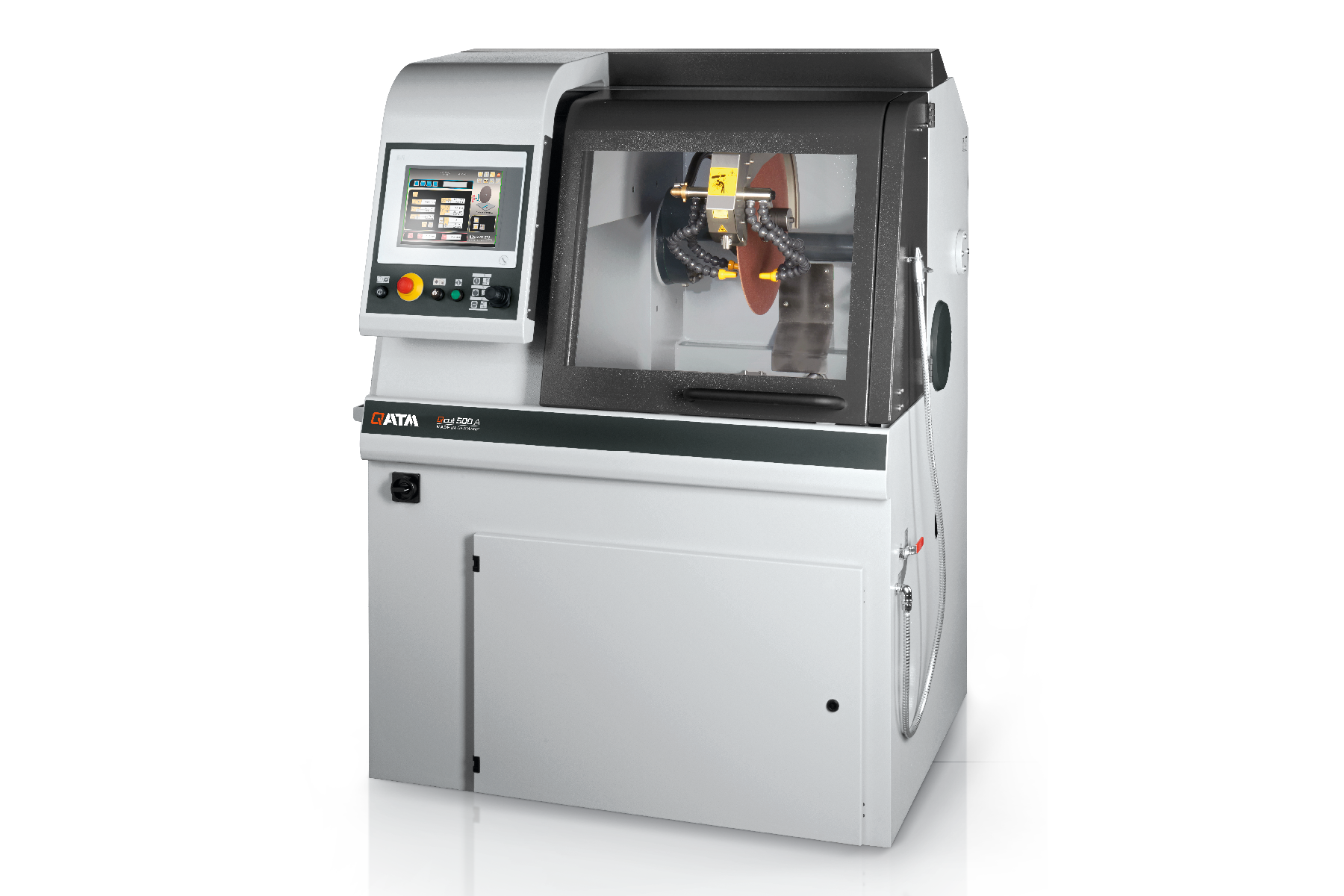

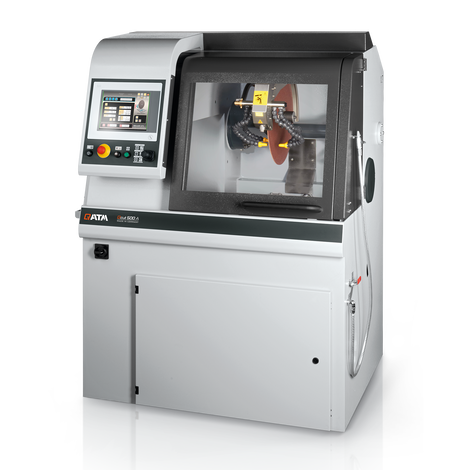

切割机 Qcut 500 A

The Qcut 500 A is the powerhouse of the large cut-off machine family. Equipped with a highly dynamic axis drive and automatic trave cut/chop cut functions, the system cuts large components with exceptional precision, minimal contact, and outstanding speed.

• Fast, powerful cuts: The highly dynamic axis drive allows rapid traverses of up to 80 mm/s and greatly reduces cutting time
• Versatile applications: Cutting of particularly long samples is easily possible thanks to side openings on both sides
• Multi-Position Process (MPP): Simultaneous positioning and automatic cutting of different components on the machine table

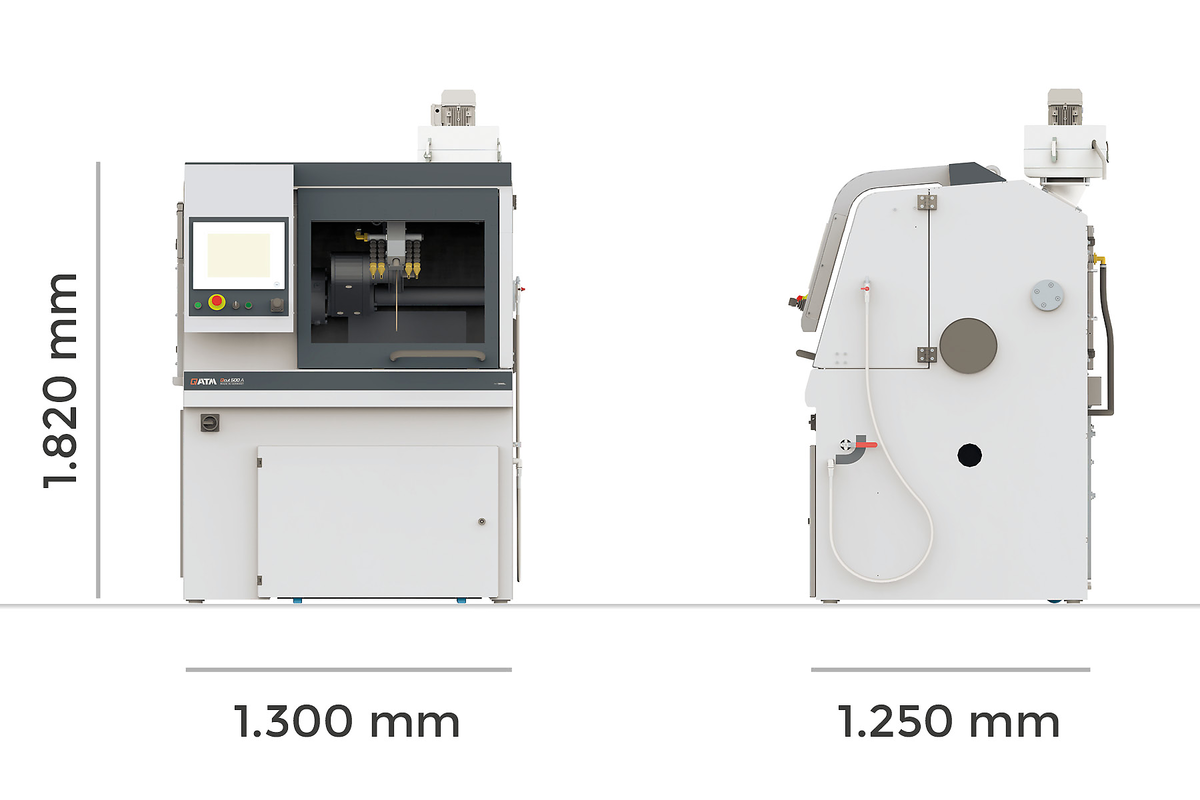

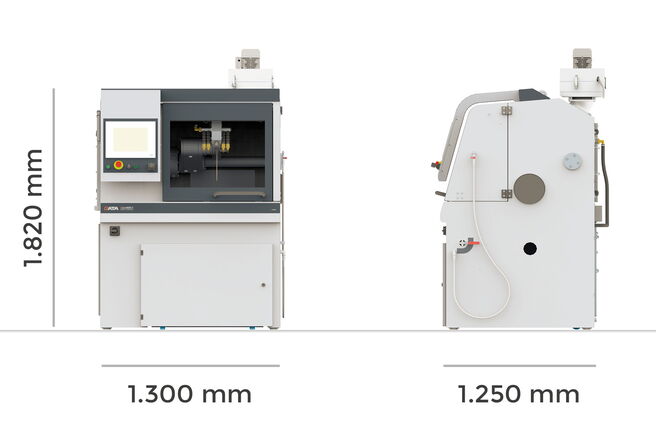

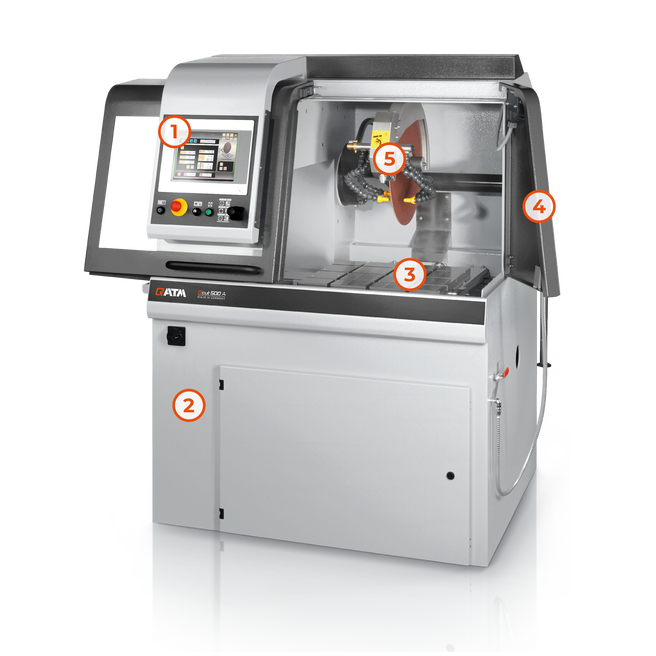

切割机 Qcut 500 A 性能指标

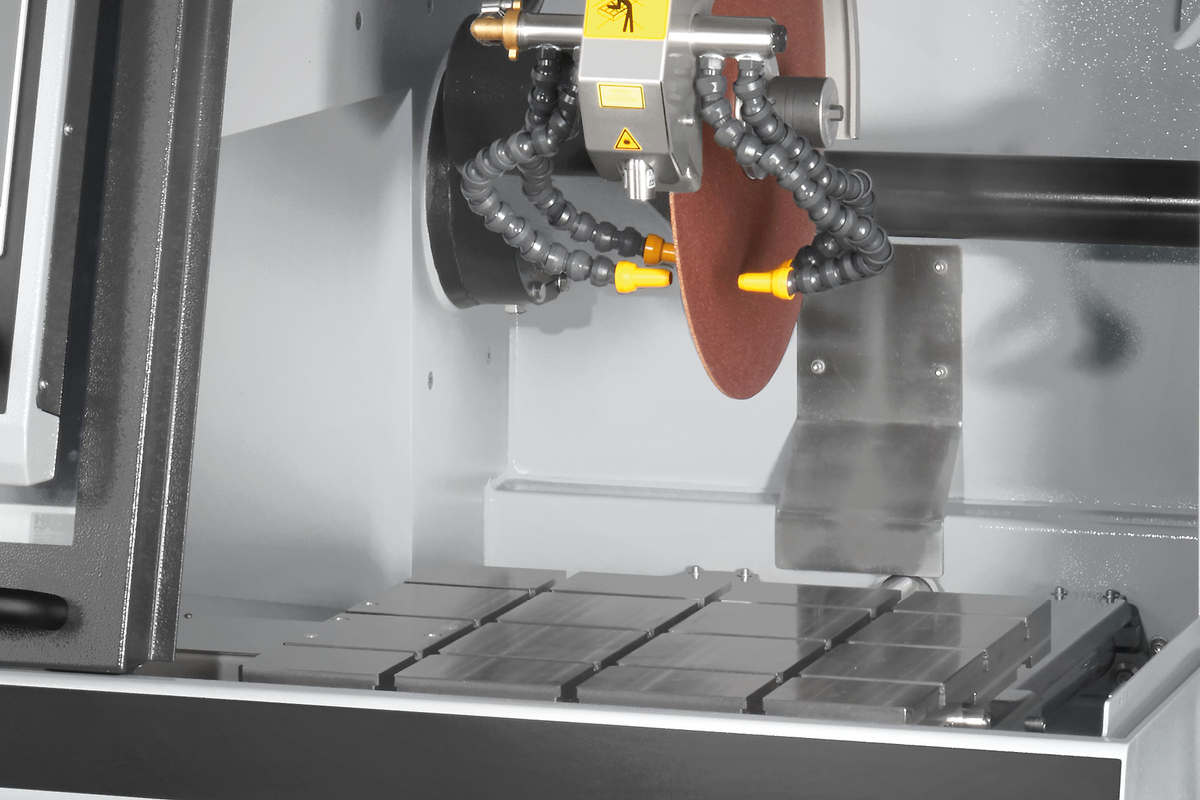

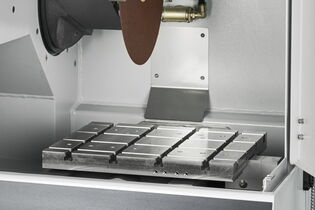

Stainless steel machine table

Spacious machine table enables precise work even under heavy loads.

• Integrated T-slots for the Easy clamping system for quick mounting of clamping tools
• Efficient and reliable fixation of complex geometries using clamping devices
• Load capacity up to 120 kg (including clamping devices)

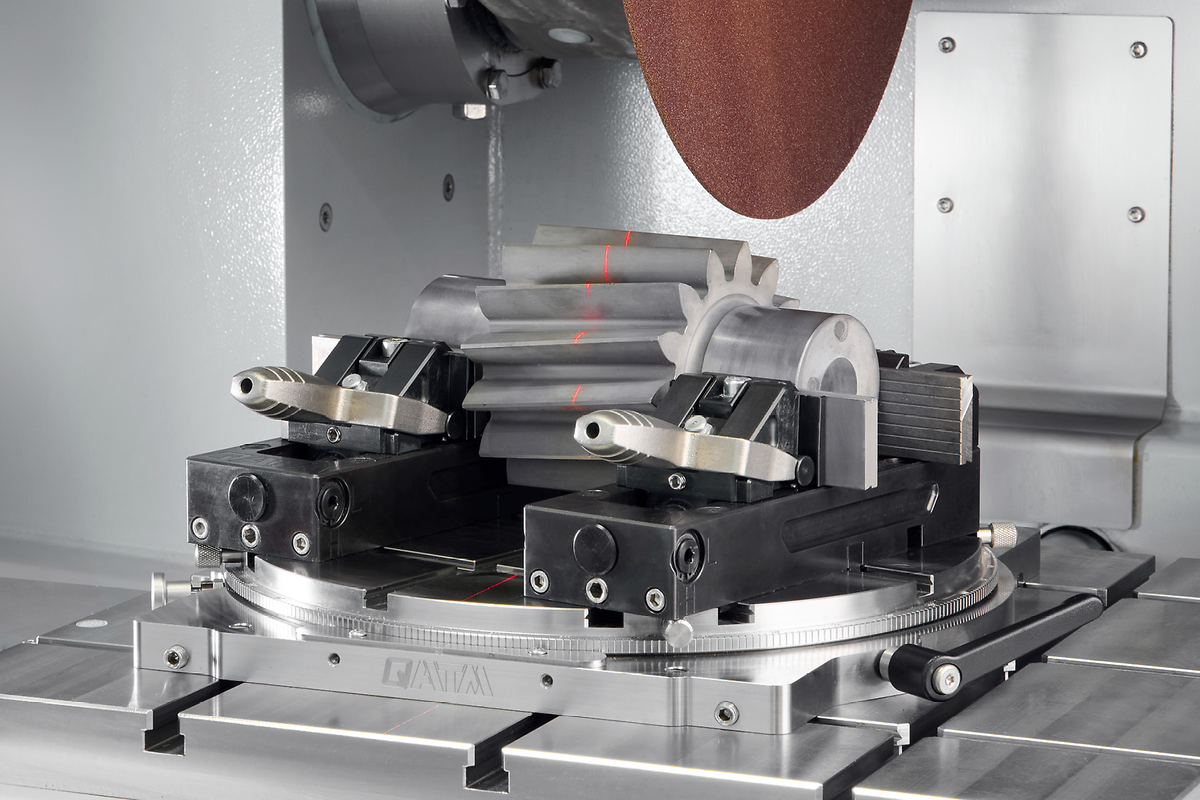

Laser alignment

Optional laser alignment projects the cutting line directly onto the workpiece, enabling precise positioning and exact cut placement.

• Easy positioning of workpieces
• Precise clamping without much effort

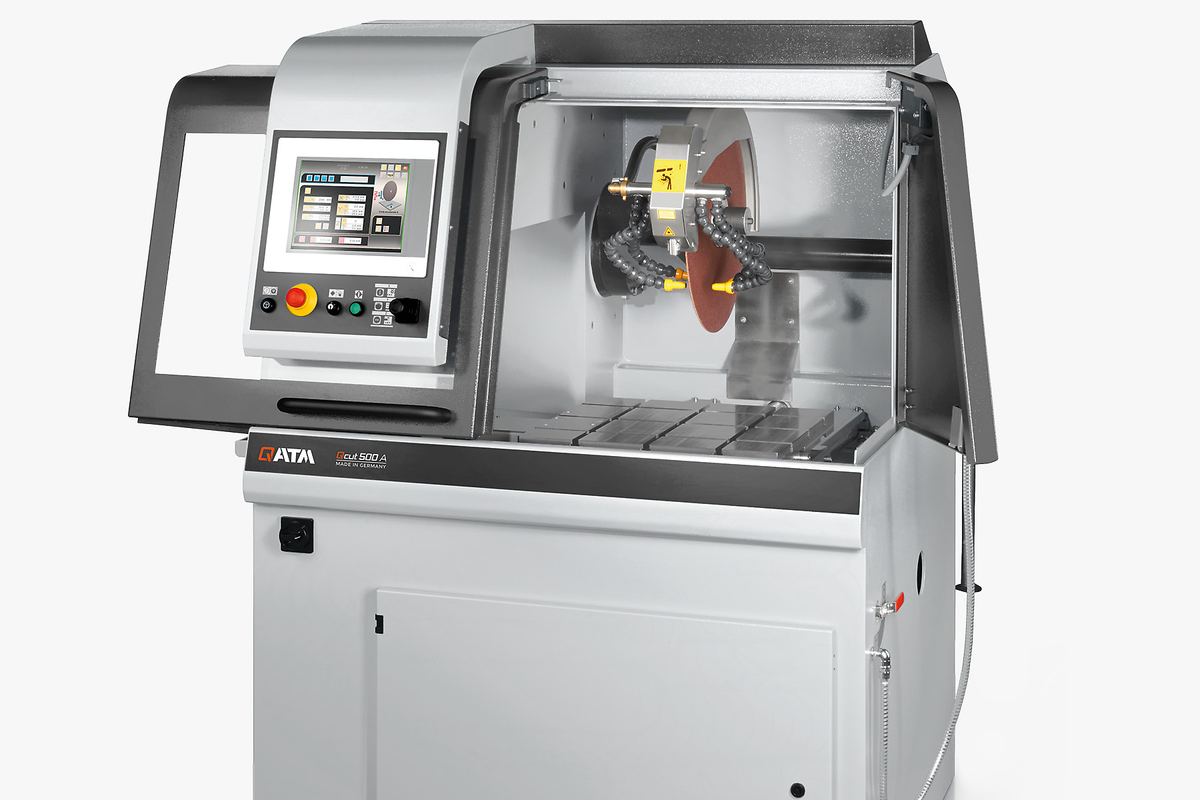

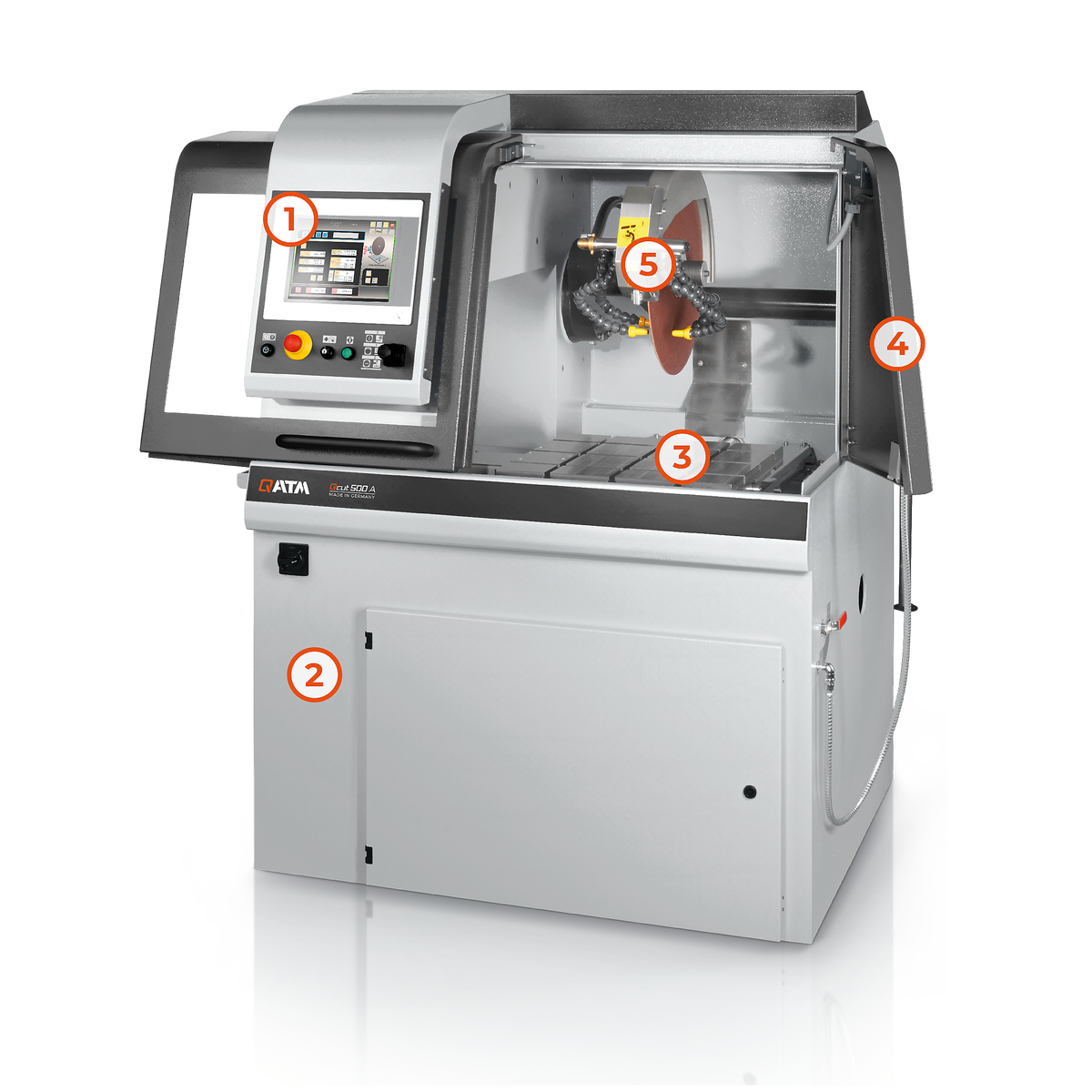

Robust machine with large cutting chamber

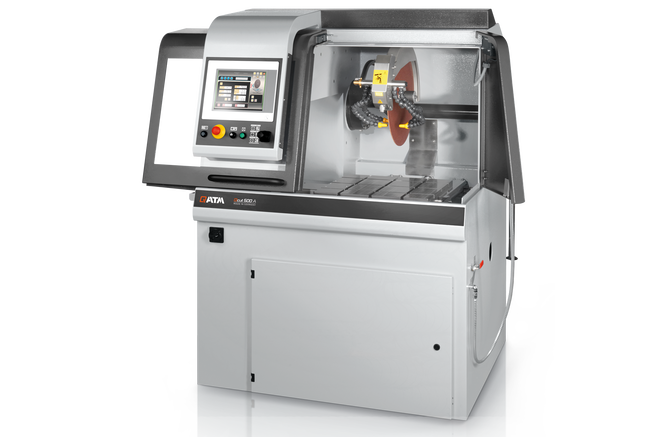

Robust, powder-coated aluminum machine body features a large sliding door with scratch-resistant laminated safety glass and convenient side access door.

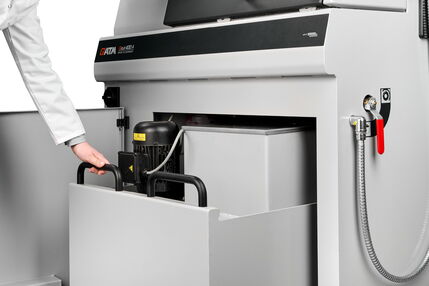

• Machine body with integrable recirculating cooling unit and automatic central lubrication
• Large cutting chamber access with safety interlock — doors open only when cut-off wheel is stationary
• Side openings on the right and left for long samples

Precision cross feed

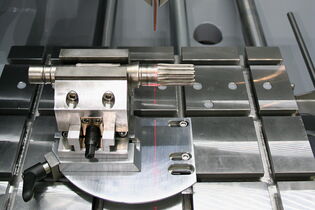

The table-integrated Z-axis maintains consistent cutting height while the automatic cross feed with serial cutting function delivers precise parallel cuts.

• Simple and intuitive serial cutting
• The multi-position process (MPP) allows more complex serial cutting to be carried out

Rotation tool

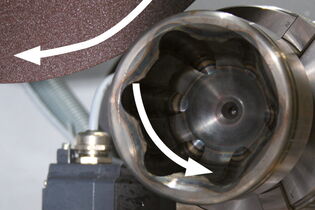

The optional rotation tool features a vertical rotary feed parallel to the wheel with software-controlled angle input.

• More uniform cutting surfaces and cutting quality
• Cutting time is halved for rotationally symmetrical parts
• Protects against cut-off wheel run-out

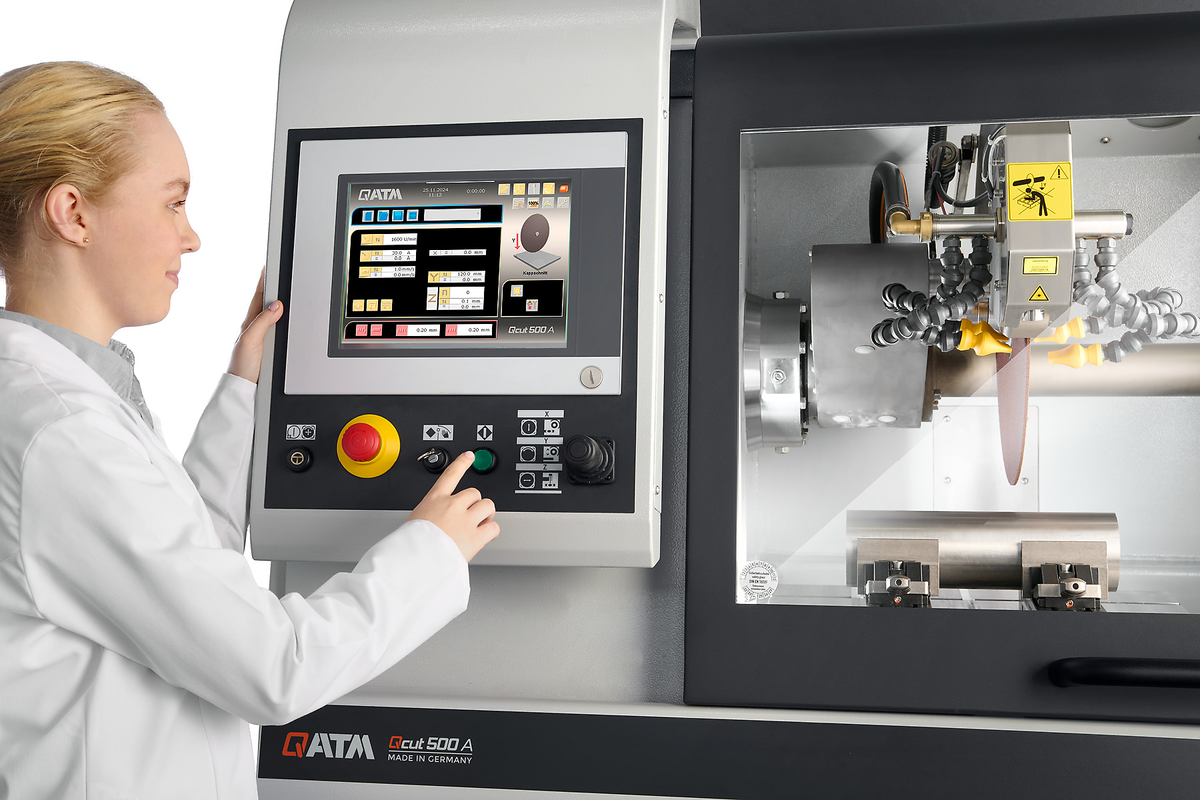

Intuitive and easy operation

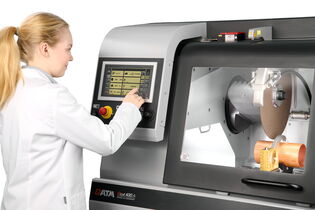

Large 12.1” industrial touchscreen with intuitive QATM user software and joystick.

• Easily manage process parameters and create customer-specific maintenance tasks (200 user programs can be saved)
• Parameters such as feed rate, travel distance, and cutting force can be changed during automatic operation

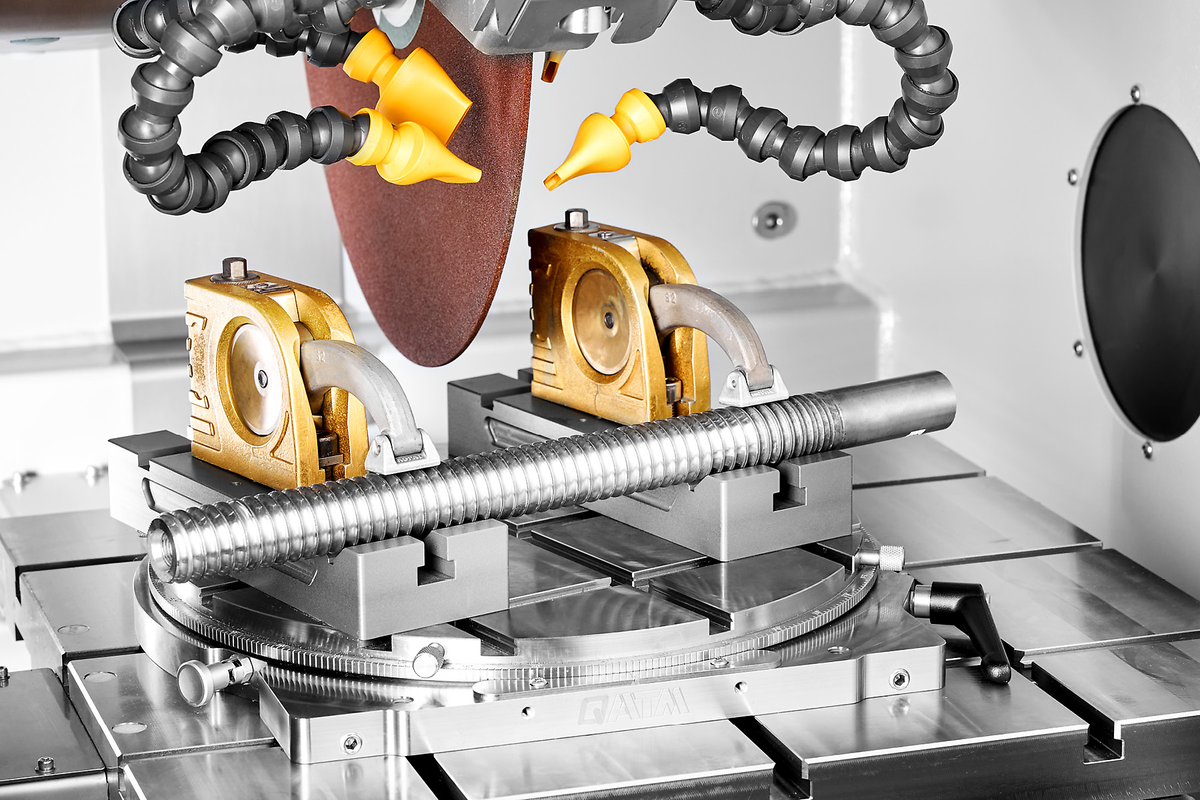

Pulsed cutting

For thick and difficult-to-cut materials, the adjustable automatic pulsed cutting provides gentle sectioning with optimal cooling of the cut interface.

• Enhanced cutting results for larger components
• Superior cooling of contact surfaces

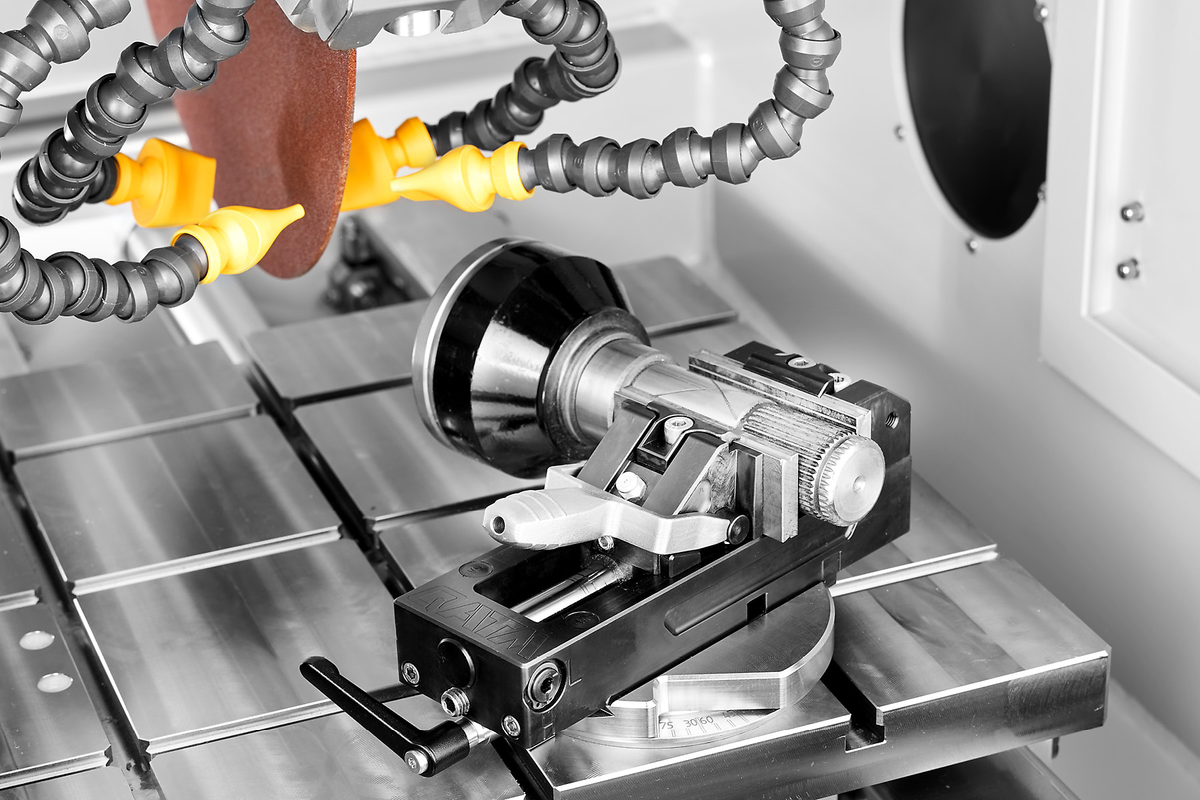

Cutting force dependent feed control (X- and Y-Axis)

The feed rate automatically decreases when cutting force reaches a preset limit, protecting the machine, sample, and clamping tools from overloading.

• Time savings thanks to variable feed rate
