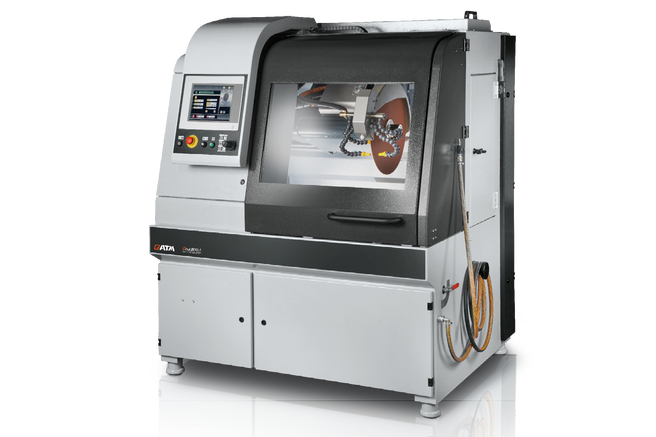

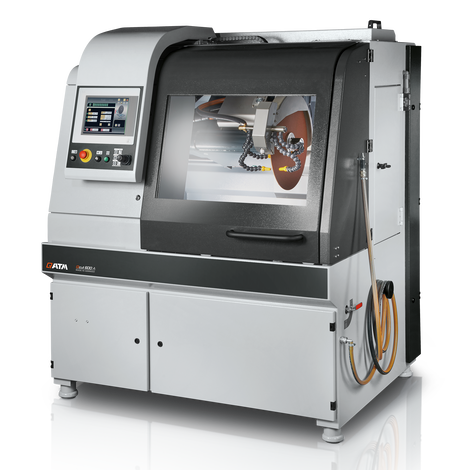

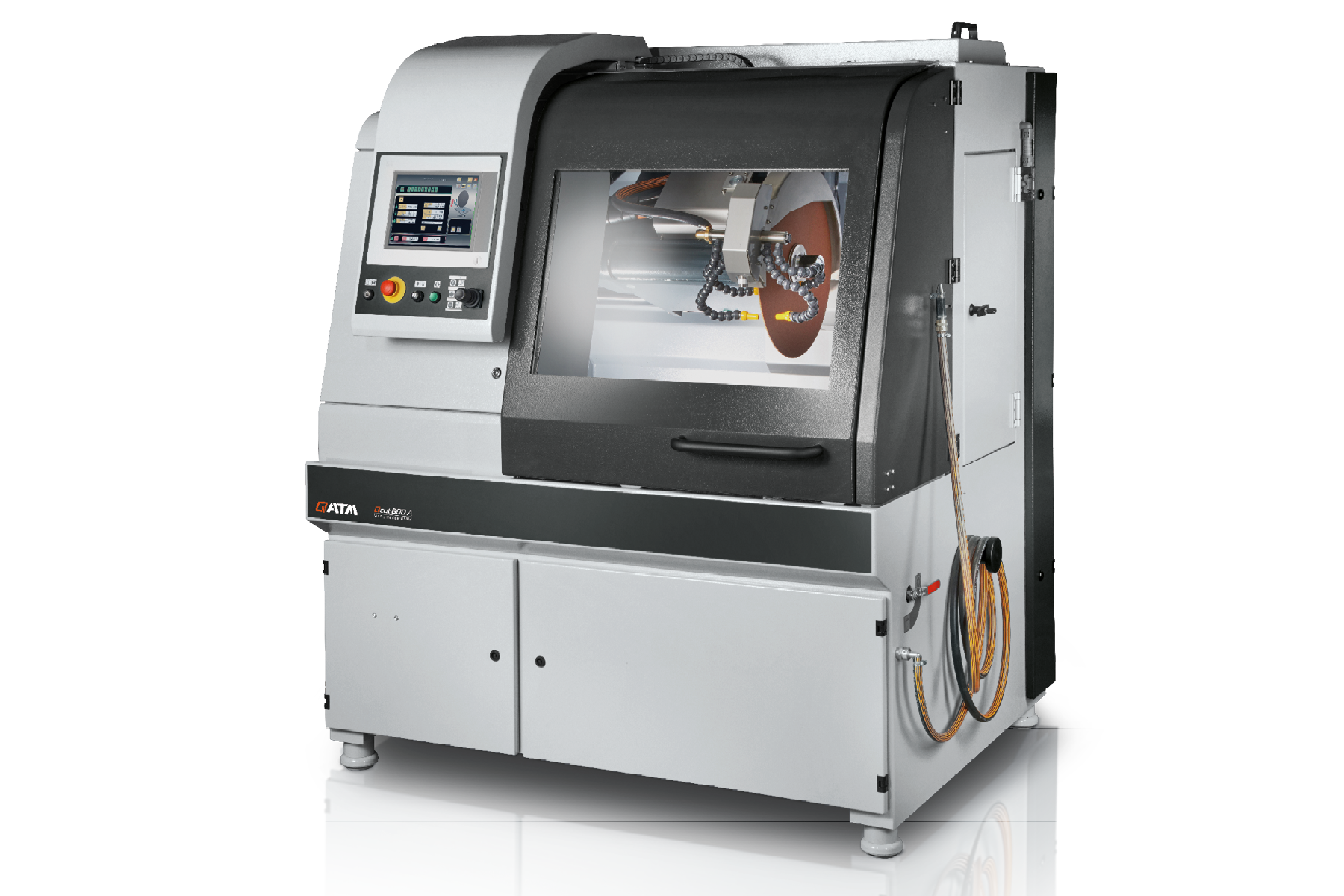

切割机 Qcut 600 A

The Qcut 600 A represents the flagship of QATM’s cut-off machine series, delivering maximum cutting capacity for large and heavy workpieces. Its automatic travel and cross-feed functions enable precise, low-contact cutting while setting new standards in workspace efficiency, operational flexibility, and process automation.

• Maximum cutting capacity: Samples with a diameter of up to 244 mm can be easily cut
• Industrial applications: Even the heaviest samples can be placed on the heavy-duty machine table using a forklift or crane
• Multi-Position Process (MPP): Simultaneous positioning and automatic cutting of different components on the machine table

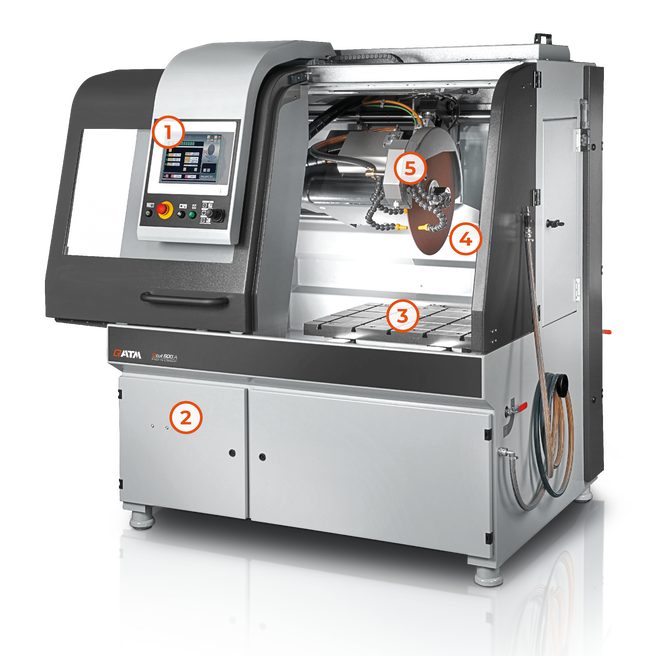

切割机 Qcut 600 A 性能指标

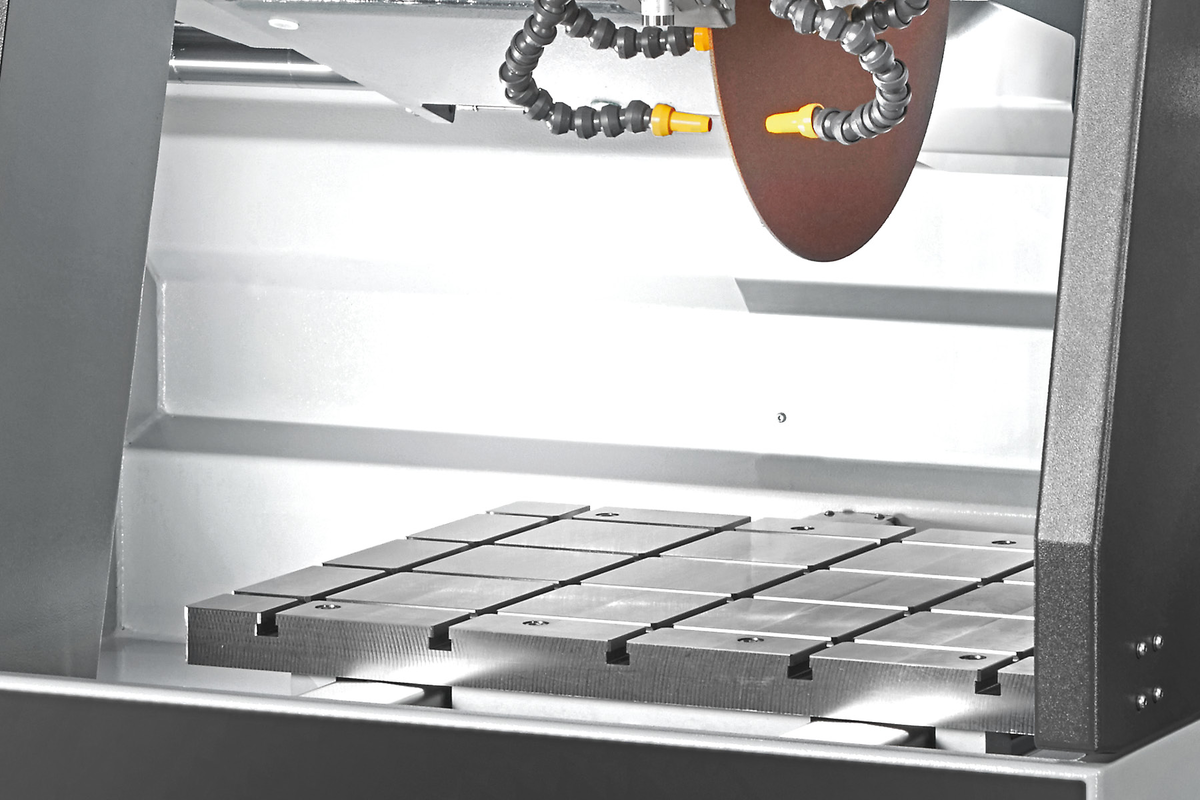

Stainless steel machine table

Spacious machine table enables precise work even under heavy loads.

• Integrated T-slots for the Easy clamping system for quick mounting of clamping tools
• Efficient and reliable fixation of complex geometries using clamping devices
• Load capacity up to 400 kg (including clamping devices)

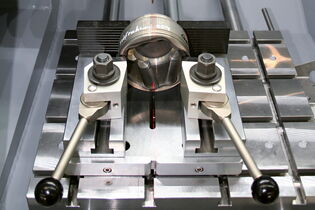

Laser alignment

Optional laser alignment projects the cutting line directly onto the workpiece, enabling precise positioning and exact cut placement.

• Easy positioning of workpieces
• Precise clamping without much effort

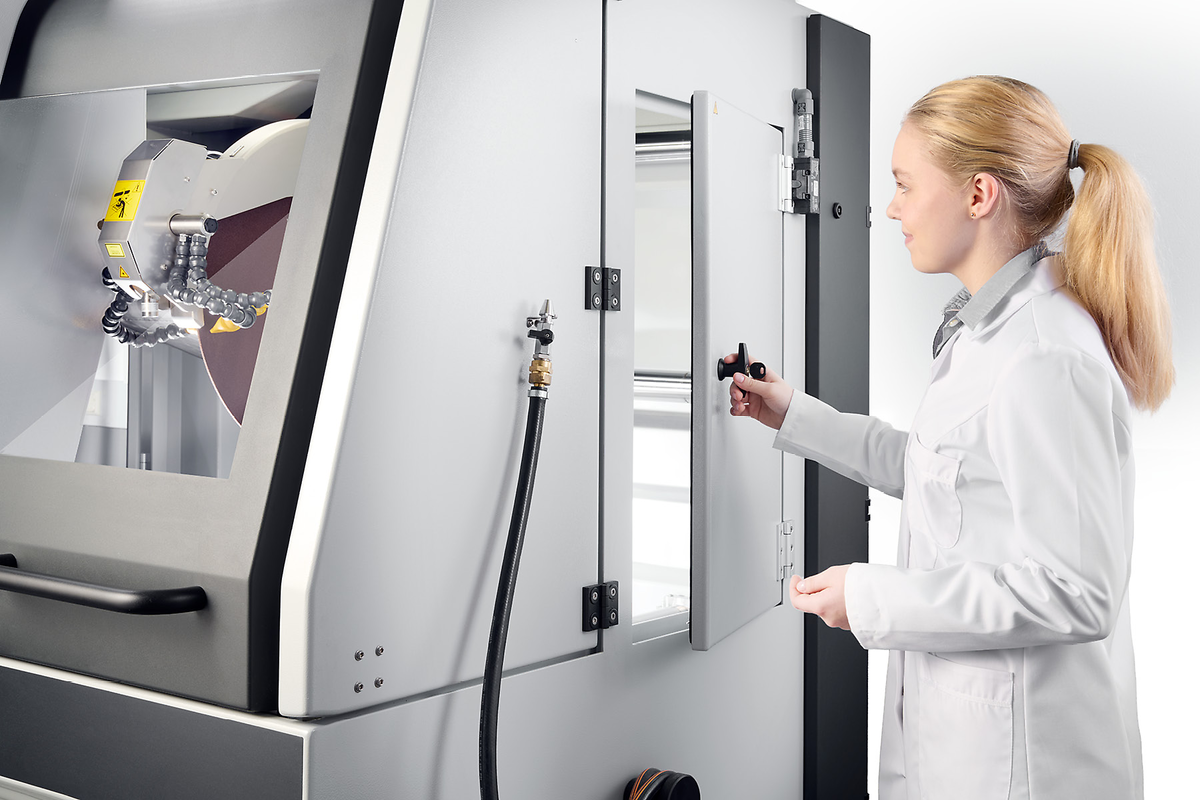

Robust machine with large cutting chamber

Robust, powder-coated steel machine body features a large sliding door with scratch-resistant laminated safety glass and convenient side access door.

• Machine body with integrable recirculating cooling unit and automatic central lubrication
• Large cutting chamber access with safety interlock — doors open only when cut-off wheel is stationary

Precision cross feed

The table-integrated Z-axis maintains consistent cutting height while the automatic cross feed with serial cutting function delivers precise parallel cuts.

• Simple and intuitive serial cutting
• The multi-position process (MPP) allows more complex serial cutting to be carried out

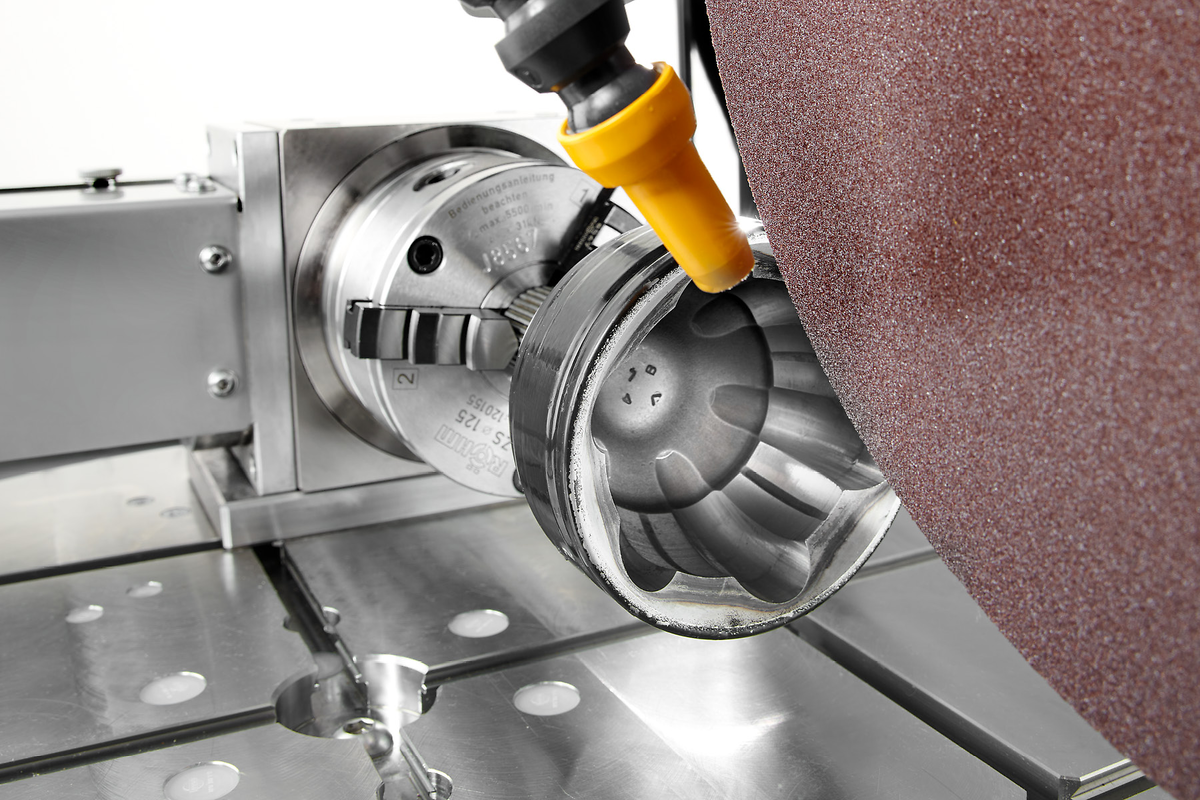

Rotation tool

The optional rotation tool features a vertical rotary feed parallel to the wheel with software-controlled angle input.

• More uniform cutting surfaces and cutting quality
• Cutting time is halved for rotationally symmetrical parts
• Protects against cut-off wheel run-out

Intuitive and easy operation

Large 12.1” industrial touchscreen with intuitive QATM user software and joystick.

• Easily manage process parameters and create customer-specific maintenance tasks (200 user programs can be saved)
• Parameters such as feed rate, travel distance, and cutting force can be changed during automatic operation

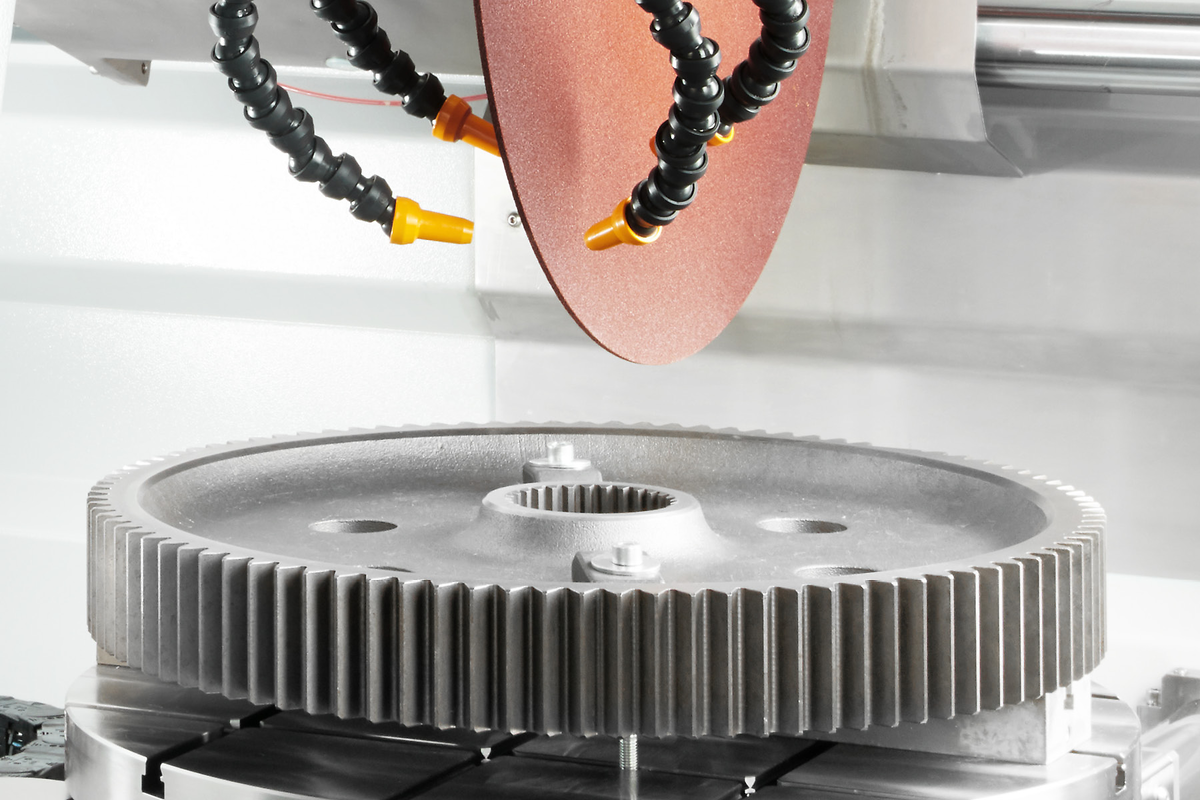

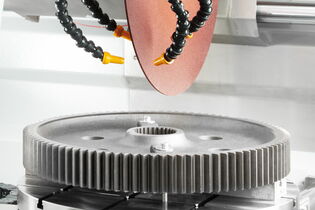

Pulsed cutting

For thick and difficult-to-cut materials, the adjustable automatic pulsed cutting provides gentle sectioning with optimal cooling of the cut interface.

• Enhanced cutting results for larger components
• Superior cooling of contact surfaces

Cutting force dependent feed control (X- and Y-Axis)

The feed rate automatically decreases when cutting force reaches a preset limit, protecting the machine, sample, and clamping tools from overloading.

• Time savings thanks to variable feed rate
