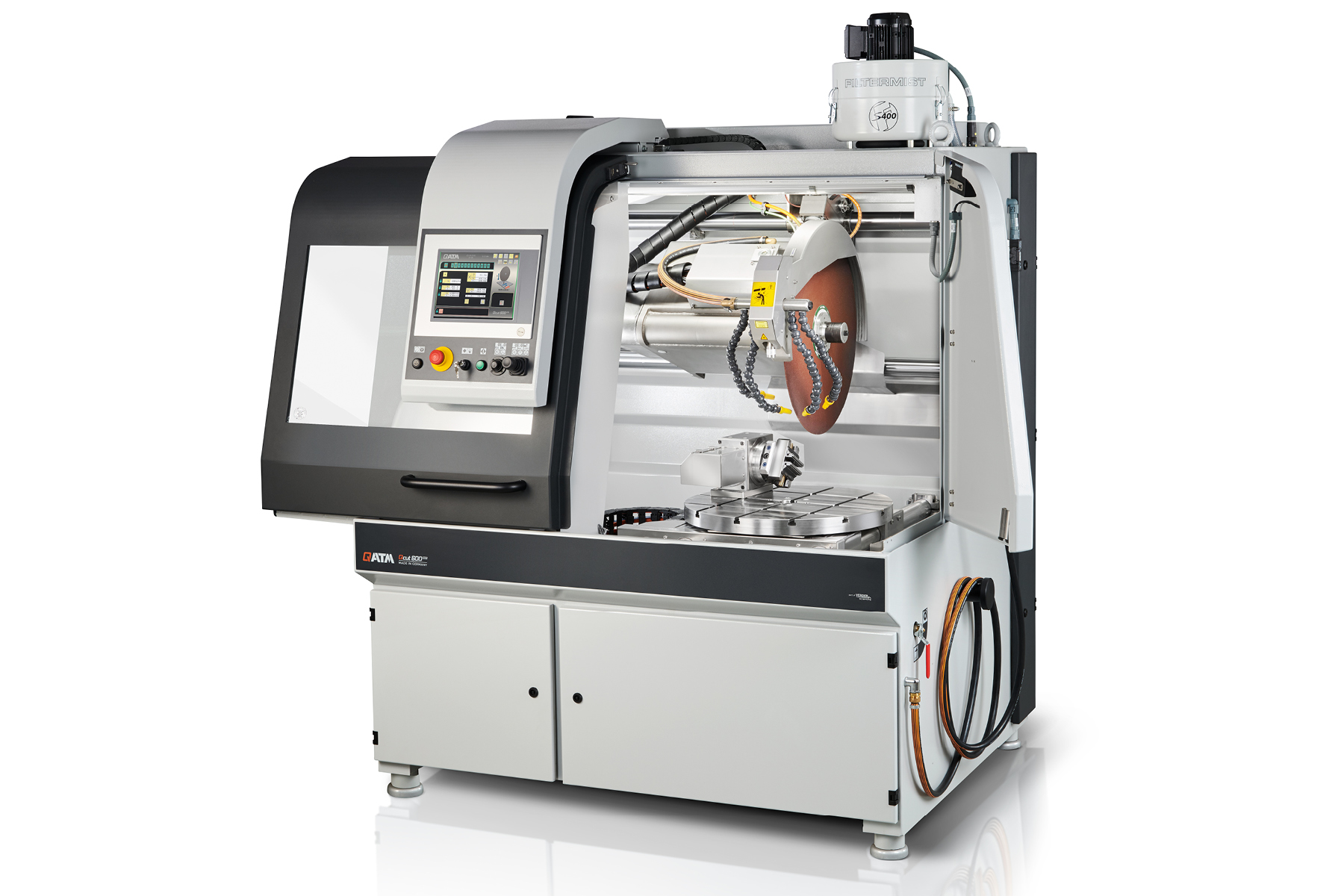

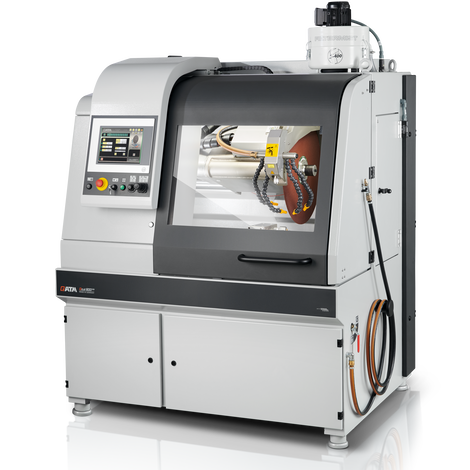

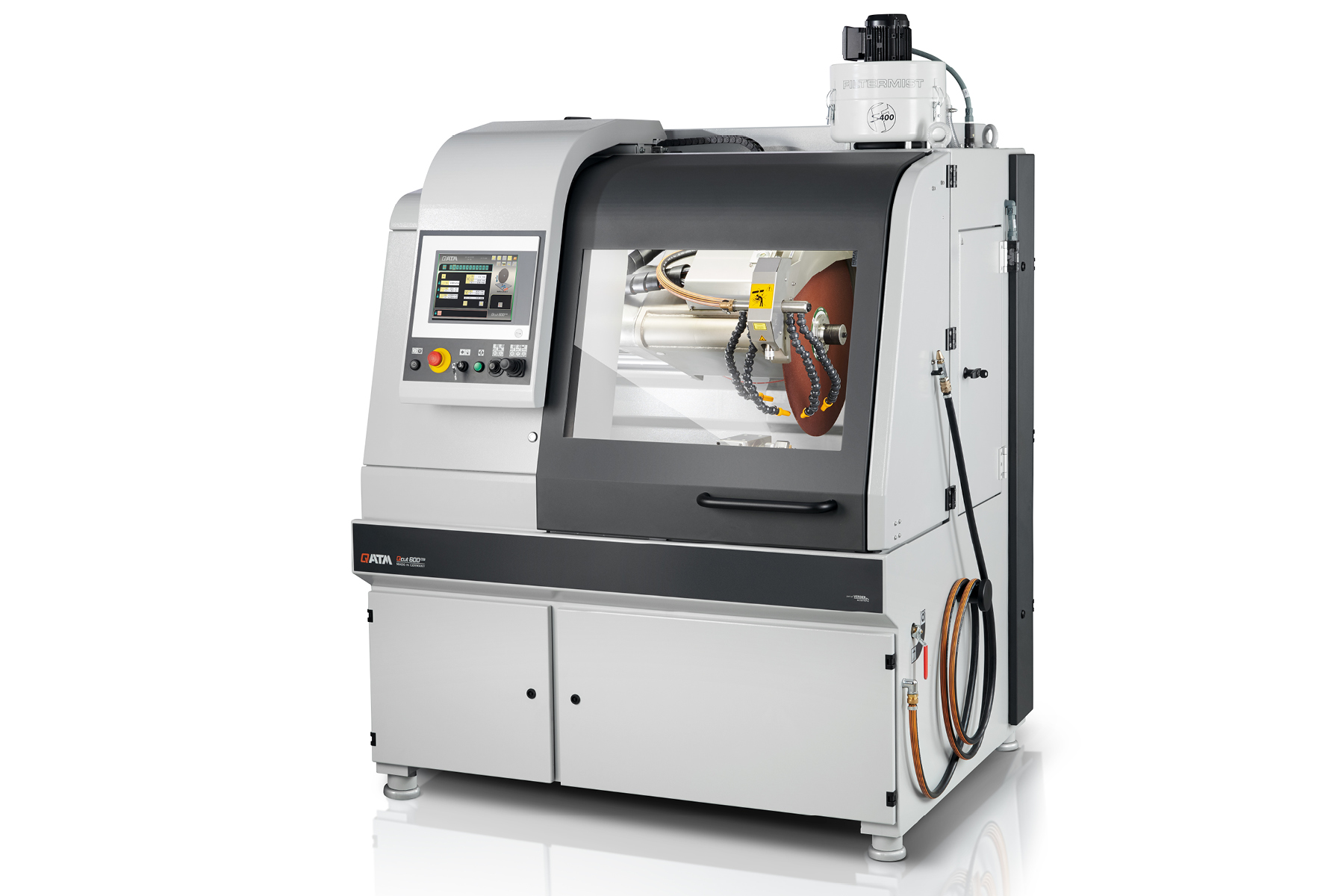

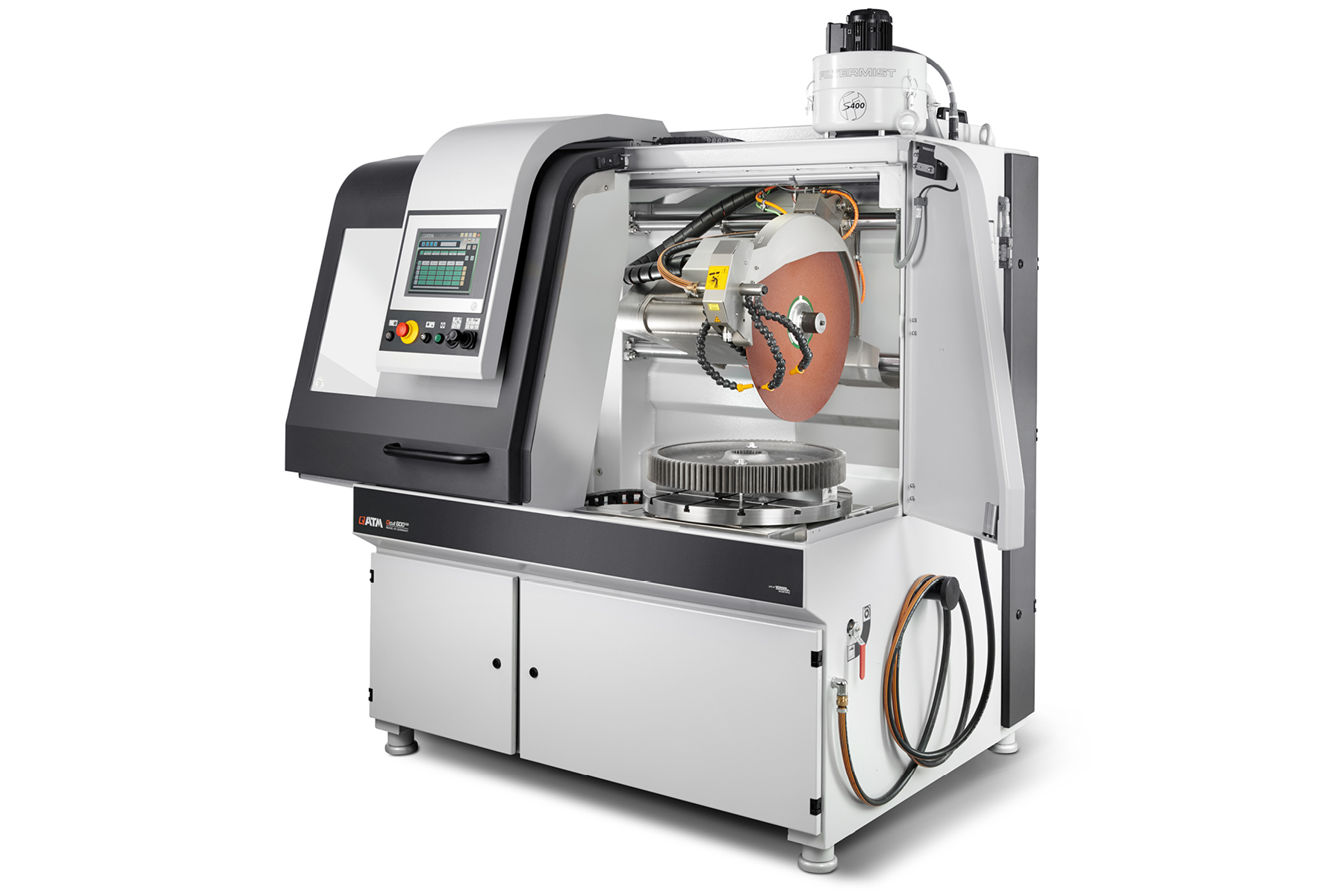

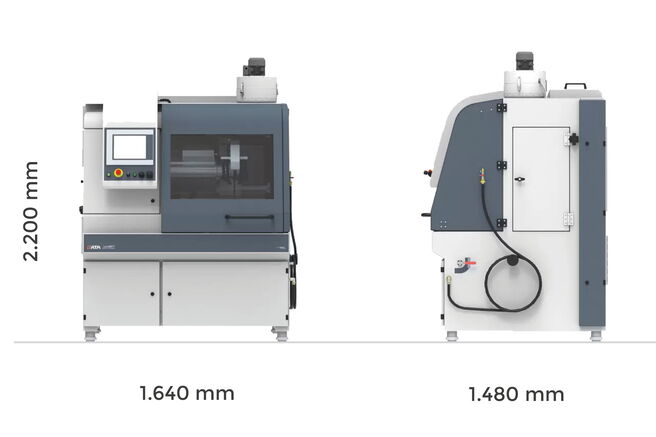

切割机器人 Qcut 600 BOT

Cutting in 5 dimensions – the Qcut 600 BOT is a fully automatic cut-off robot. Equipped with patented cutting- edge technology, it opens up new possibilities in the cutting process for materialographic sample preparation.

Patented technology: Complex cutting sequences can be performed using 5-axis technology (X, Y, Z, B, C axes) without time-consuming re-clamping of the workpiece.
Highest degree of automation: Dynamic cut-off wheel measurement and automatic adjustment of cutting parameters. Multiple cuts on different workpieces can be made in one process.
High reproducibility: Repeatable cutting operations are easy to program and perform.
Multi-Position Process (MPP): Simultaneous positioning and automatic cutting of different components on the machine table.

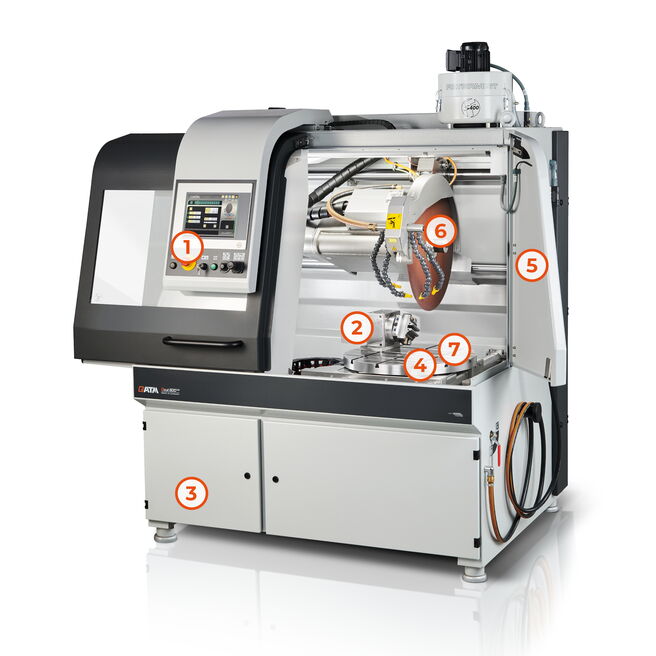

切割机器人 Qcut 600 BOT Superiority in detail

1. Ergonomic control panel

Large 12.1" industrial touchscreen with intuitive QATM software
Quick setup, control of all axes with two joysticks
The sliding control panel enables unobstructed working conditions

2. Robust machine body

Sturdy powder-coated steel construction
Integrable recirculating cooling unit
Automatic central lubrication of the axes

3. Large round machine table

Made of stainless steel with integrated longitudinal and cross T-slots
Secure clamping of complex workpiece shapes using the T-slot table or Easy clamping system
直径: Ø 600 mm
Load capacity: up to 150 kg
Travel: X: 550 mm, Y: 360 mm, Z: 550 mm

4. Large cutting chamber

Large sliding door provides easy access and visibility
Side swing door for convenient access to cutting chamber
Large side door for easy cut-off wheel replacement
Break-resistant LED interior lighting

5. Optimized swivel arm

Highly efficient cooling system
Increased cutting capacity thanks to parallel guided cut-off wheel guard
Laser alignment aid for easy workpiece positioning

6. Rotation axis, B-axis

Rotation range 360°, with combined C-axis 200°
Positioning accuracy: ±0.1°

7. Optional rotation axis, C-axis

Rotation range: max. 360°
Removable modular rotation axis
Clamping capabilities can be expanded with a lathe chuck or other clamping devices

轻松进件用于大型工件

大型工件可直接由叉车或起重机通过宽大的滑动门放入

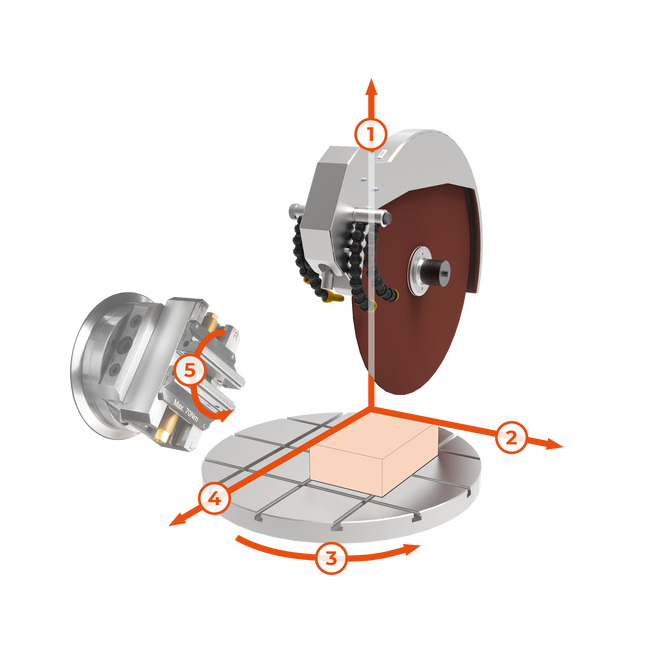

切割机器人 Qcut 600 BOT In 5 dimensions, sectioning the small from the large

With the patented 5-axis technology, workpieces can be cut at any angle precisely, repeatably, quickly, and easily. All axes are finely adjustable and remain vibration-free during the cut-off process – precise work is easier than ever. The positioning capabilites/movement of the various axes in combination with the clamping systems enables precise cutting of the workpiece without time-consuming re-clamping of the workpiece. All necessary cut-offs can be performed sequentially and automatically – even with large workpieces.

1. Y-AXIS (Chop cut)

Cutting range: 360 mm, automatic
Rapid traverse up to 80 mm/s.

2. Z-AXIS (Cross feed)

Travel: 550 mm, automatic
Cross feed for precise parallel cuts in series

3. B-AXIS (Rotation axis)

Rotation range: max. 360°, with combined C-axis 200°, automatic
Positioning accuracy: ±0.1°

4. X-AXIS (Travel cut)

Cutting range: 550 mm, automatic
Rapid traverse up to 80 mm/s.

5. C-AXIS (Rotation axis)

Rotation range: max. 360°, automatic
Removeable modular rotation axis

In 5 dimensions, sectioning the small from the large

切割机器人 Qcut 600 BOT 性能指标

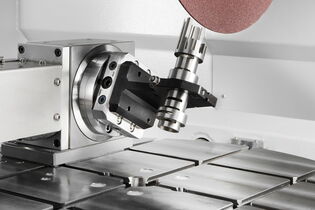

Stainless steel rotary table

Spacious rotary table (Ø 600 mm) enables precise work even under heavy loads.

Rotation of the machine table (max. 360°) eliminates the need for time-consuming re-clamping of workpieces
Can be expanded with a modular adaptable rotation axis (C-axis)
Integrated T-slots for the Easy clamping system for quick mounting of clamping tools

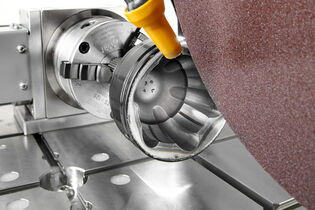

Automatic cut-off wheel measurement

Dynamic cut-off wheel measurement leads to reproducible cutting results with consistent quality.

Automatic monitoring of the current cut-off wheel diameter
Adjustment of cutting parameters after each cut
Enables consistent cutting speed and cutting depth

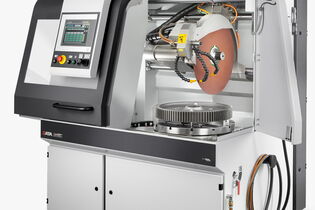

Robust machine with large cutting chamber

Robust, powder-coated steel machine body with large sliding door made of scratch-resistant laminated safety glass and large side door.

Machine body with integrable recirculating cooling unit and automatic central lubrication
Optimal access to the large cutting chamber with safety interlock that prevents door opening when the cut-off wheel is operating
Large side door for easy cut-off wheel replacement

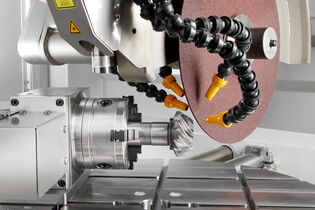

Cutting Optimization

To optimize the cutting quality, the machine automatically detects local material characteristics, such as hardened areas.

Cutting force-dependent feed control
Cut detection: When starting a new cut, the workpiece is automatically detected and approached at reduced speed
Parallel-guided cut-off wheel guard increases the cutting capacity of the cut-off wheel during chop cuts

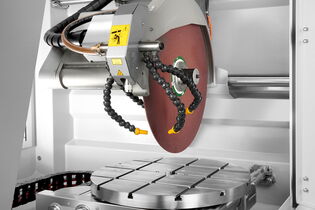

Powerful cut-off wheel drive

Precise swivel arm guidance and cut-off wheel cooling.

Water-cooled main drive with 15 kW drive power
Optimal cooling thanks to flexibly adjustable cooling hoses
Parallel guided cut-off wheel guard for increased cutting capacity when making cross cuts

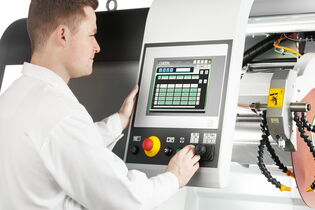

Intuitive and easy operation

Large 12.1" industrial touchscreen with intuitive QATM user software, joysticks, and emergency stop switch.

The teach function enables user-friendly programming of cutting positions by manually positioning the machine at each desired location
Simultaneous positioning and automatic cutting of different workpieces without re-clamping (Multi-Position Process MPP

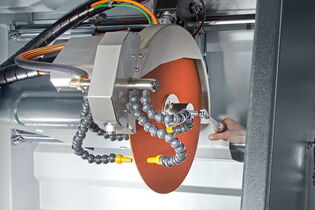

Clever design

Easy cut-off wheel replacement and simple clamping allow you to focus on cutting.

Laser alignment for easy workpiece positioning
Power clamping nut: easy clamping and loosening of the cut-off wheel

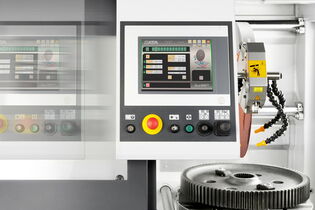

Maximum ease of use

The control panel is movable and can be freely positioned for ergonomic operation during setup and operation of the machine.

Programming in close proximity to the workpiece
During series operation, the control panel can be moved to the side

切割机器人 Qcut 600 BOT 附件配件

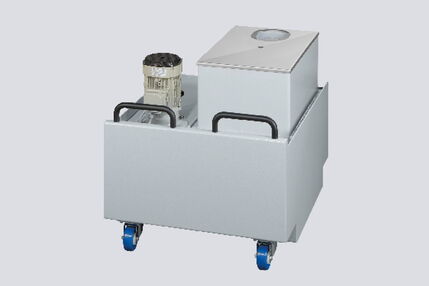

循环冷却单元

Compact, integrable cooling system for standard applications.

Can be integrated into the housing and extended
Multi-chamber filtration
Inlet sieve with filter bag (see consumables)

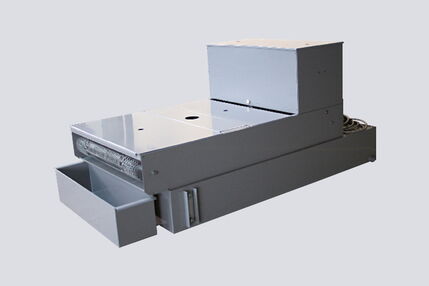

Belt filter system

Large cooling and filter system for continuous operation, e.g. in serial applications.

Tank size: 285 l
Filtering capacity: 100 l/min (referring emulsion)
Pump capacity: 100 l/min

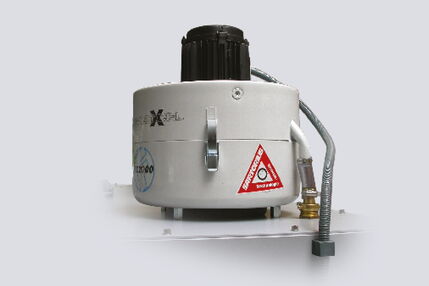

烟雾分离器

Work safety: Working environment with improved air quality.

Removes coolant mist
Purifies the air and increases visibility
Exhaust power 452 or 500 m3/h depending on voltage

完美的切割 - 由Qprep耗材保证

当使用正确的元素: 知识、保养和正确选择耗材和切割机进行加工时，切割更可靠、更安全、更高效。 The Qprep range includes specially developed cut-off wheels for a wide variety of materials and requirements.

Low thermal influence on the specimen during the cutting process
Wet abrasive cutting achieves very fine surface finishes after cutting
Optimal cutting shortens the further preparation process

产品系列

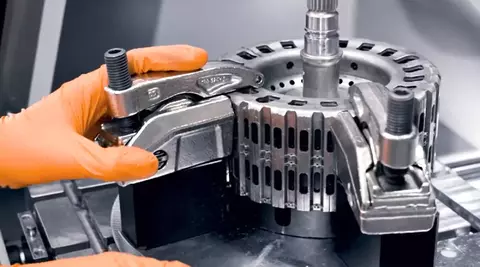

快速、强大、灵活-Qtools 夹具

我们创新的夹具用于安全、精确地夹紧工件，以确保精确的切割和磨削过程。针对特定的应用和工件尺寸，我们已经开发了各种不同的夹具。

Suitable for regular and irregularly shaped samples
Fast, repeat-accurate clamping of regularly shaped samples
Large range of different clamping tools and systems available
