精密切割机 Qcut 150 A

Brillant Qcut 150 A (Brillant 210 A)精密切割机
联系我们Request a product demo
报价详情

Qcut 150 A是一款灵活的精密切割机，可使用直径达203 mm/8”的切割轮。

The compact benchtop model performs automatic as well as manual cuts with the ergonomic lever. The optional sample holder arm with built-in force sensor ensures low-deformation cuts due to a precise force-controlled feed rate.

优点

  • 多达5种不同的切割模式:手动, 自动进给, 力-控制进给, 磨削模式, 平台附件切割 (取决于设备配置)
  • 手动交叉进给
  • 区域切割功能
  • 4种不同的冷却系统可选
  • 修刀装置
  • 集成了数据库的直观的QATM软件
Brillant Qcut 150 A (Brillant 210 A)精密切割机


点击观看视频

此仪器是地质学及矿物学应用的理想选择

地质和矿物学样品制备指南

精密切割机 Qcut 150 A 性能指标

力-控制切割

力-控制切割

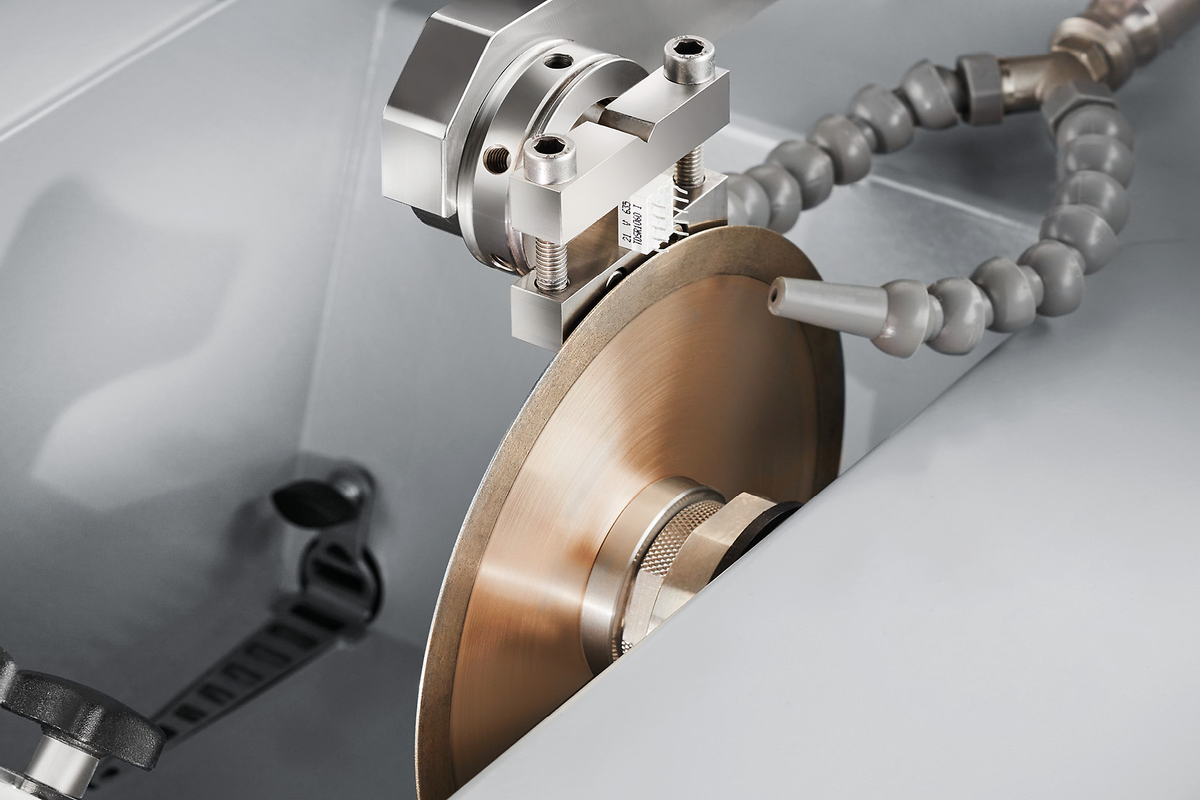

  • Integrated force sensor in the sample holder arm precisely regulates the feed rate via the set cutting force
  • Constant cutting force throughout the process for clean cutting even of edge-hardened components and composite materials
平台附件

平台附件

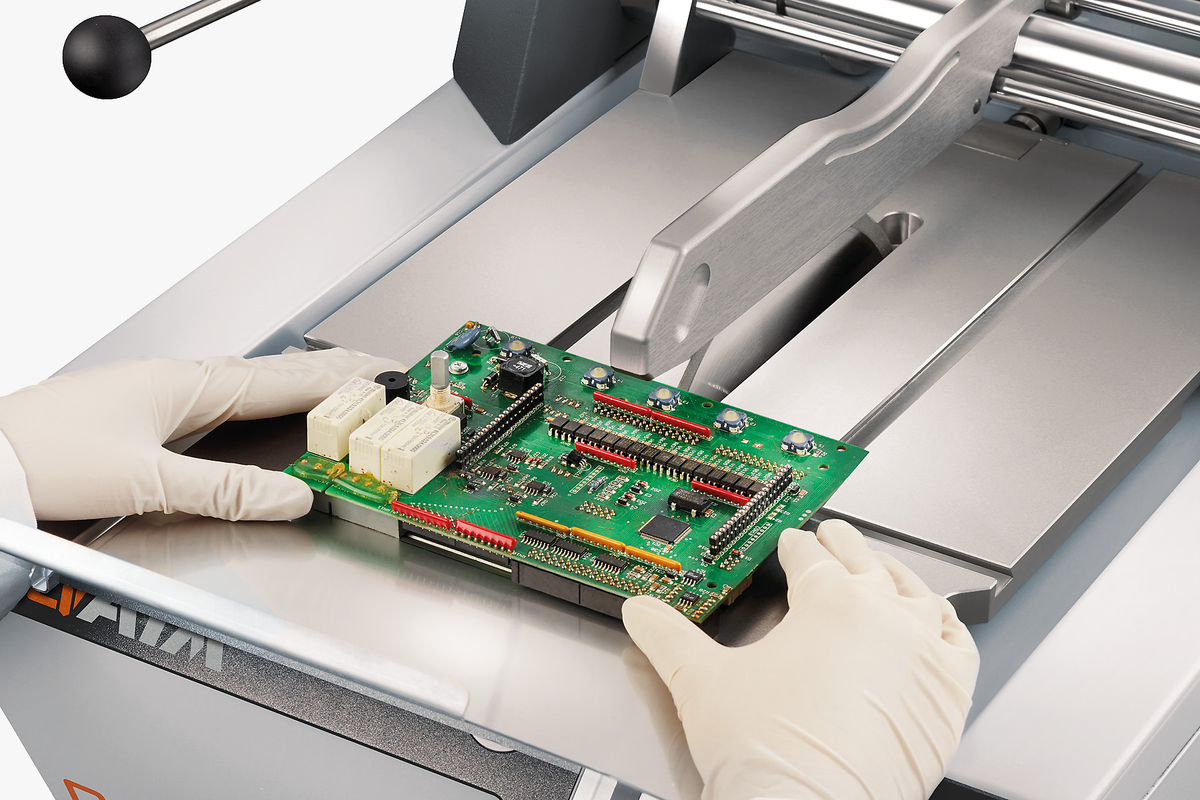

  • Table attachment can be mounted without tools
  • Quick and manual sectioning of large samples, PCBs, or plate material
区域切割

NEW: 区域切割

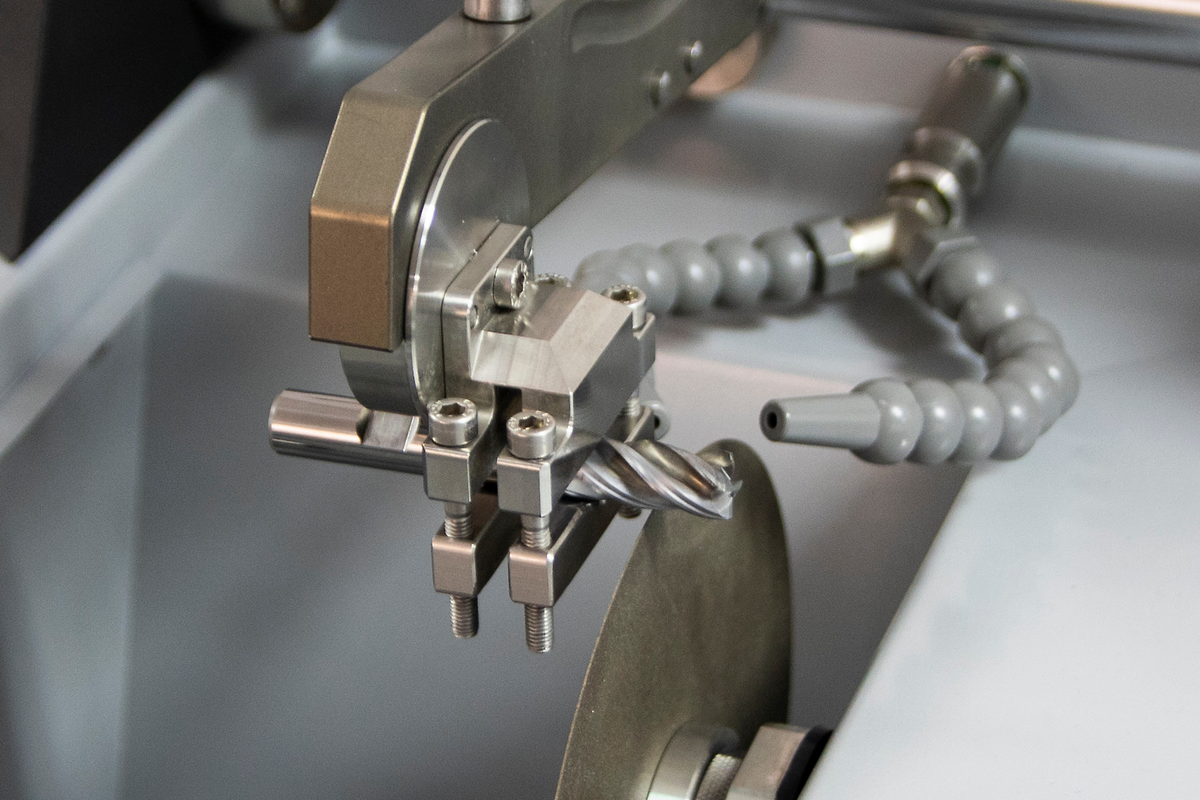

  • Individual adjustment of feed rate or cutting force for single sections of the sample
  • Reduced material deformation and heating
  • Accelerated cutting process

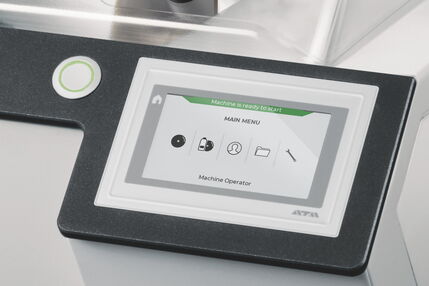

All parameters at a glance

All parameters at a glance

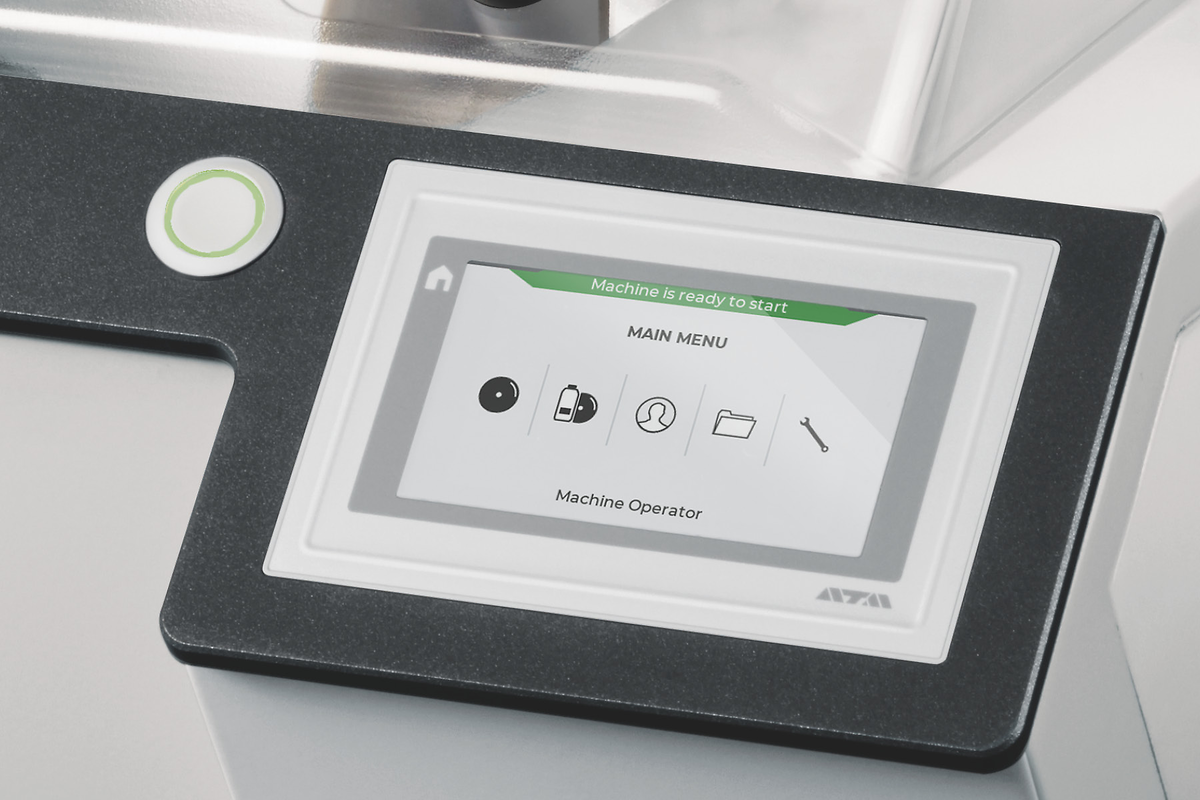

  • Robust 4.3" industrial touchscreen
  • Intuitive software with modern interface displaying all important cutting parameters
  • Extensive program storage and user account control
磨削模式

磨削模式

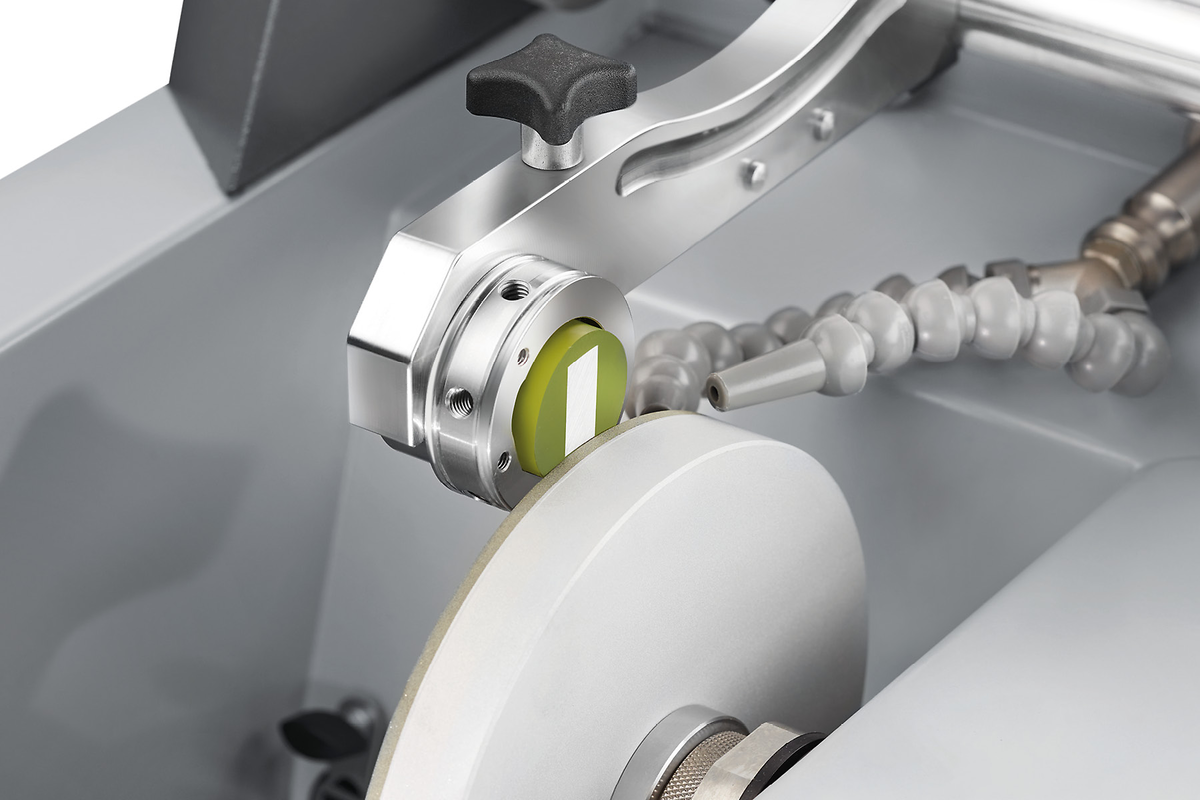

  • Target preparation: In grinding mode, samples can be ground manually or semi-automatically using a cup wheel
  • Ideal for thin sections and microelectronics

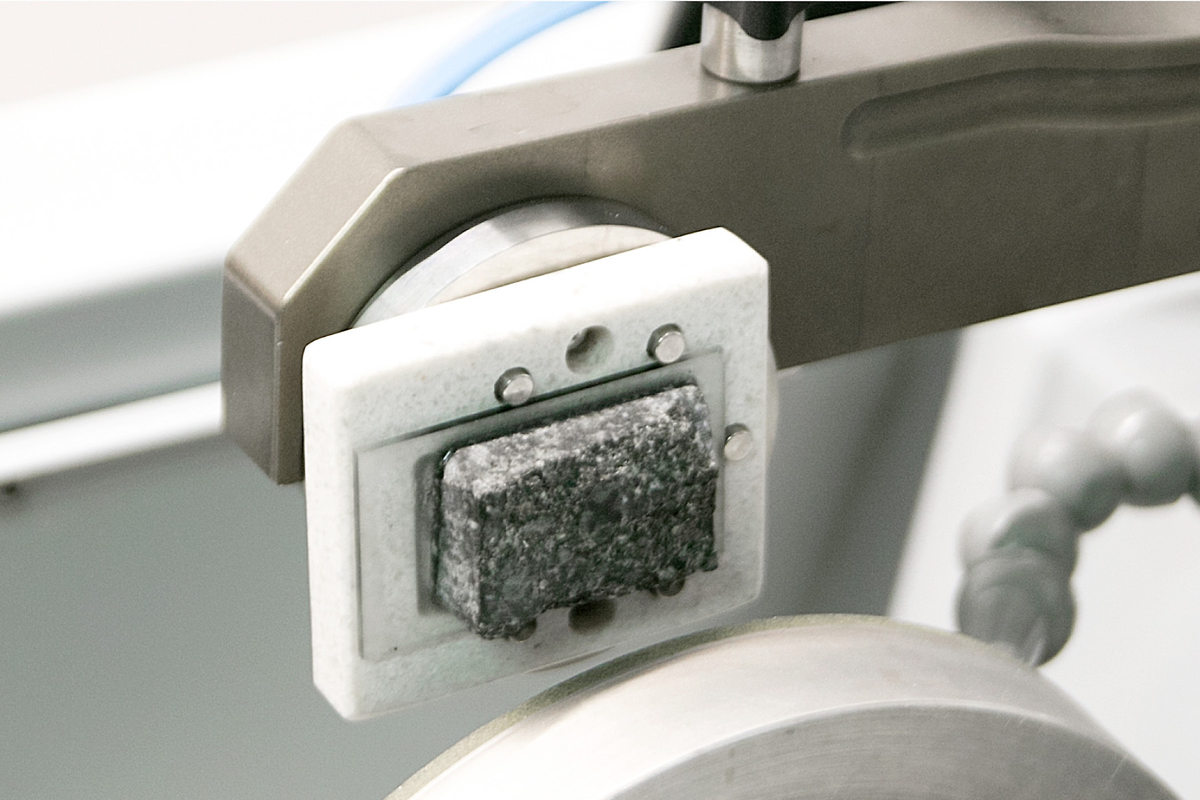

Vacuum clamping unit

Vacuum clamping unit

  • Glass slides for thin sections can be fixed easily and without slipping

减少后续研磨工序

自适应旋转轴的使用使切割模式更加均匀，并降低了切割轮跑偏的风险。这就减少了以后对试样进行平面平行磨削所需的工作量。

精密切割机 Qcut 150 A Superiority in detail

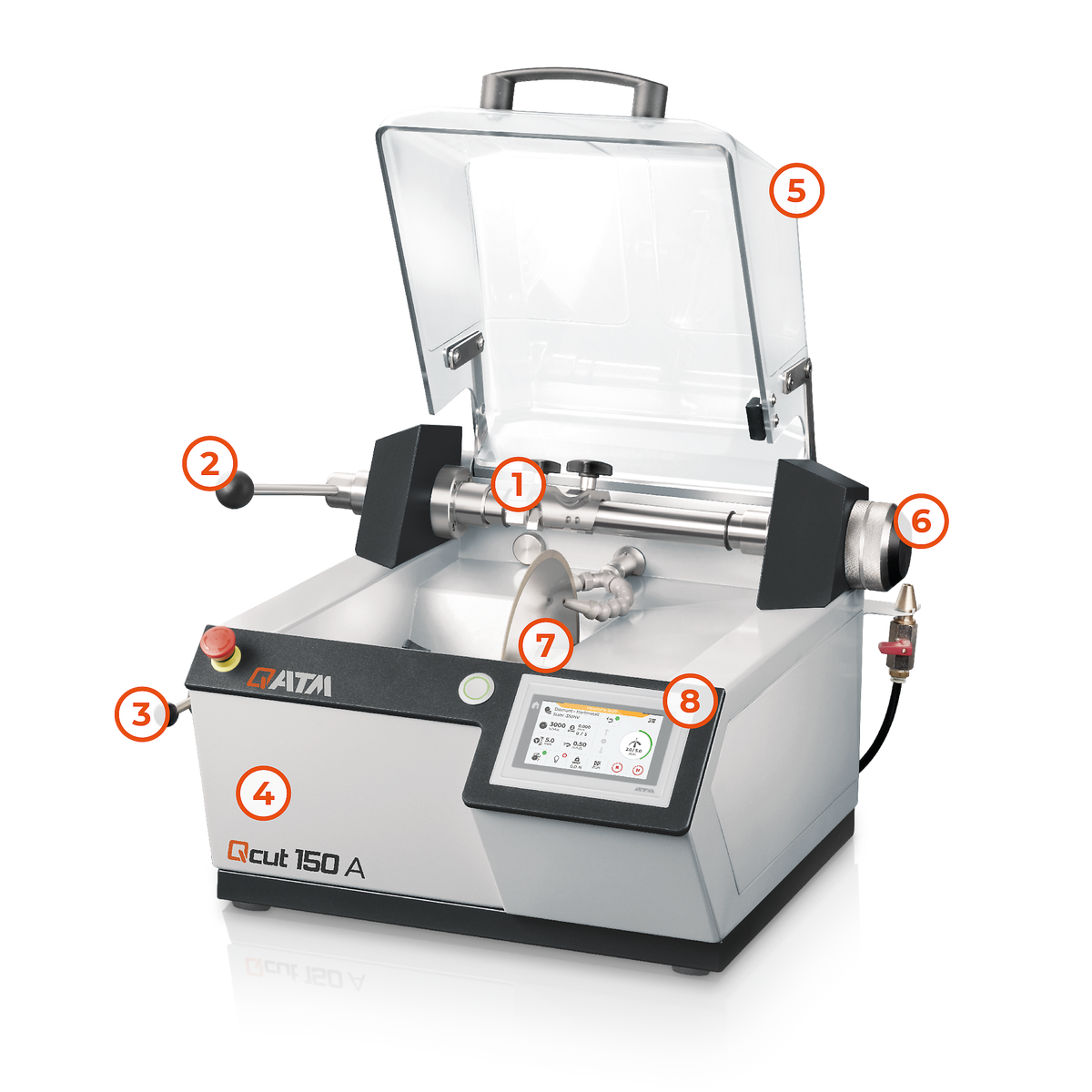

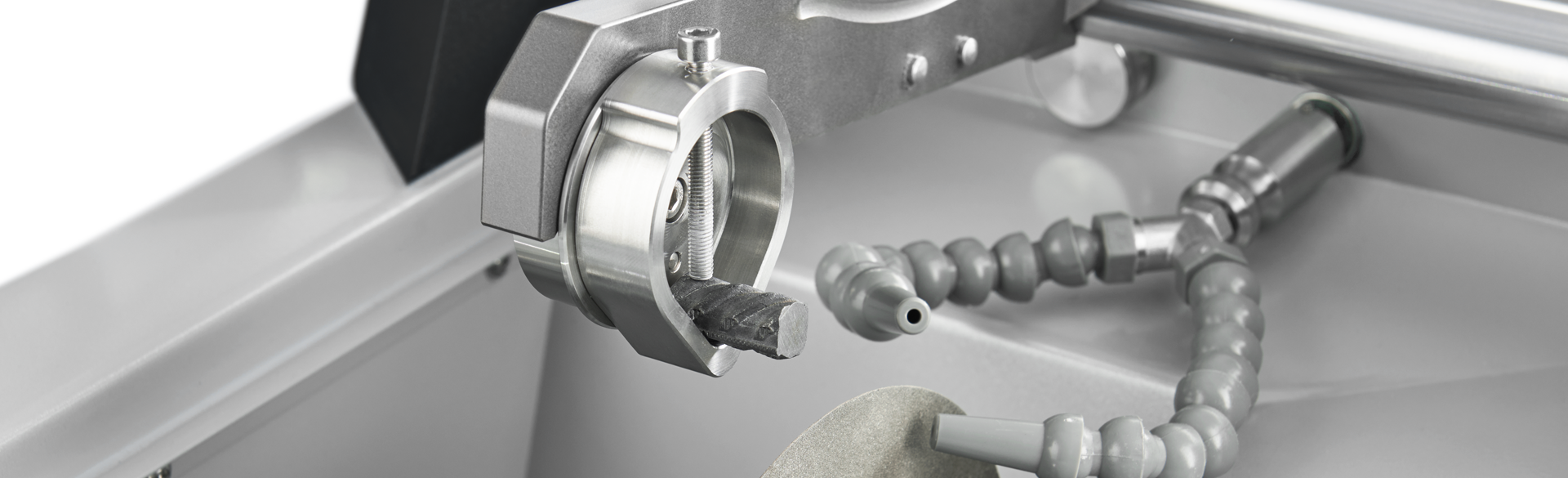

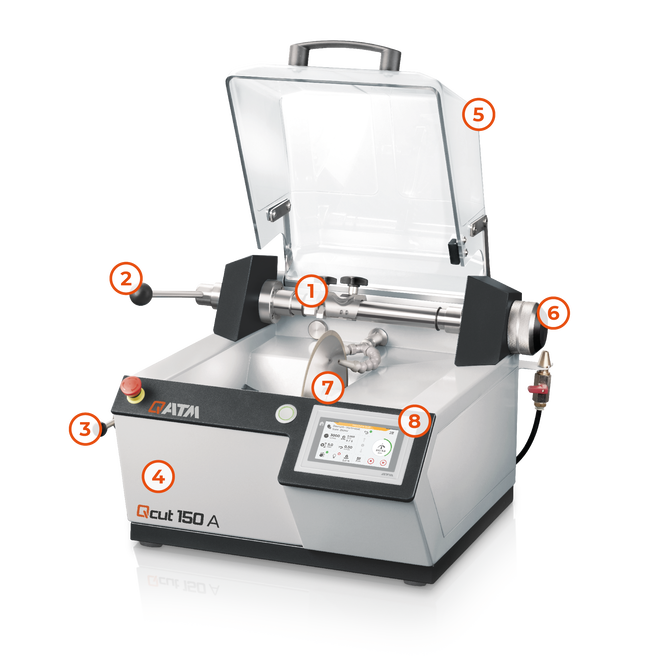

1. Sample holder arm

  • Tool-free quick-clamping system for mounting :
    • Precision clamping devices
    • Rotation device
    • Vacuum clamping unit
  • Max. sample size: Ø 40 mm

2. Y-axis

  • Manual or automatic feed
  • Travel: 120 mm
  • Feed rate: 0.01–20 mm/s (automatic)
  • Cutting force variably adjustable: 0–10 N (optional)

3. Dressing device

  • For sharpening diamond cutting and grinding wheels
  • Can be operated manually from the outside

4. Robust machine body

  • Sturdy and corrosion-resistant stainless steel housing
  • Powder-coated, for easier cleaning

5. Transparent hood

  • Swivel hood with free access to the cutting chamber
  • Integrated safety switch

6. Z-axis

  • Manual cross feed
  • Travel: 25 mm
  • Position shown on the display
  • Positioning accuracy: 0.005 mm

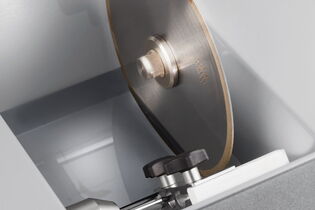

7. Cut-off Wheel drive

  • Cut-off wheel size: Ø 75–203 mm / 8"
  • Drive power: 0.37 kW (S1)

8. Ergonomic Control panel

  • 4.3" industrial touchscreen
  • Intuitive interface displaying process data
  • Storage of up to 200 user-defined cutting methods
  • User account management
不受限制的切割

齐全的夹具

With the help of a suitable clamping tool from the extensive range of accessories, mounted or non-mounted samples up to a size of Ø 40 mm can be clamped in the cut-off machine comfortably

夹具

Optimal accessories for Qcut 150 A and 200 A Recirculation cooling systems

Optimal cooling is essential during sectioning. Excessive heat generation during the sectioning process damages the specimen and increases the wear of the cut-off wheel. The cooling and corrosion protection agent dissipates the heat and simultaneously removes the chips from the cut-off chamber.

循环冷却单元

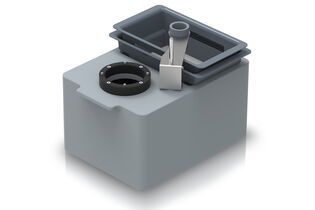

15L Recirculation cooling system

  • Portable system with filter cartridge and lid
  • Small footprint required
  • Easy to integrate into existing laboratory furniture
  • Two-chamber system for filtration

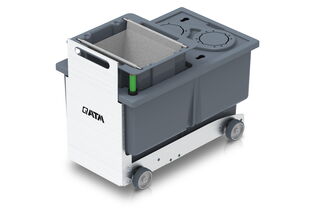

45L Recirculation cooling system (Mobile)

45L Recirculation cooling system (Mobile)

  • Mobile unit with inlet strainer, filter bag and overflow
  • Can be placed under a lab bench or floor-to-ceiling cabinet
  • Expandable with optional pump module for cut-off chamber flushing
  • Two-chamber system for filtration with removable separating slide

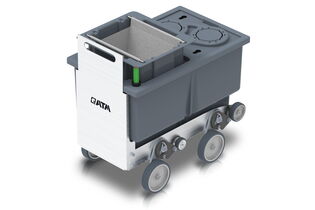

45L Recirculation cooling system (System lab)

45L Recirculation cooling system (System lab)

  • Mobile unit with retractable mechanism
  • Can be conveniently integrated into QATM system laboratory cabinets and cabinets with undershelves
  • Expandable with optional pump module for cut-off chamber flushing
  • Inlet strainer, filter bag and overflow
  • Two-chamber system for filtration with removable separating slide

完美的切割 - 由Qprep耗材保证

当使用正确的元素: 知识、保养和正确选择耗材和切割机进行加工时，切割更可靠、更安全、更高效。 The Qprep range includes specially developed cut-off wheels for a wide variety of materials and requirements.

  • Low thermal influence on the specimen during the cutting process
  • Wet abrasive cutting achieves very fine surface finishes after cutting
  • Optimal cutting shortens the further preparation process
产品系列

精密夹具

The Precision Series from QATM offers versatile clamping for both regular and irregularly shaped samples, designed for the most demanding and precise materialographic applications.

  • Handles Irregular and Complex Geometries
  • Varied and Versatile Product Range
  • Works with Rotating Device Integration (Qcut 150 A)
  • Horizontal and Vertical Adaptation Available

产品系列

精密切割机 Qcut 150 A 技术参数

切割轮ø 75 - 203 mm/8"
可调转速150 - 3000 rpm
最大切割能力：ø 40 mm
中心轴尺寸ø 12.7 mm
可调切割力0 - 10 N
进给0,01 - 20 mm/s (自动)
Y轴 （垂直移动）120 mm (手动/自动)
Z轴手动（平行切割）25mm(手动）
Z轴定位精度0.005 mm
电机功率0.37 kW (S1)
连接电源0.75 kVA

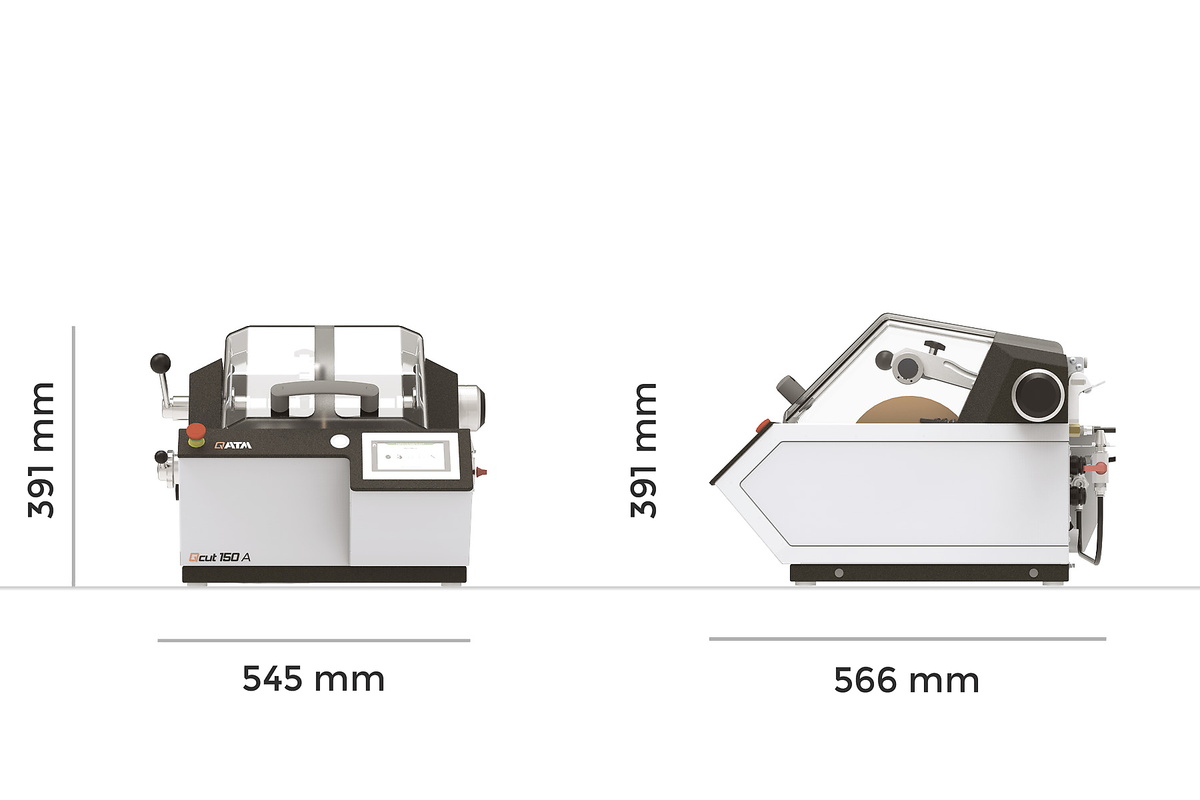

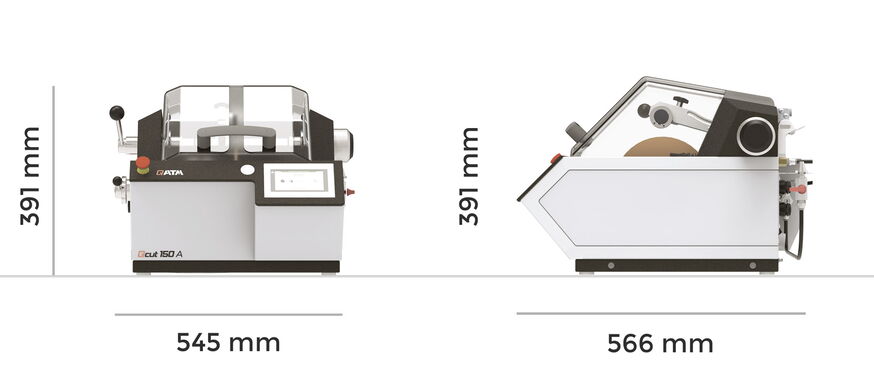

宽 x 高 x 深545 x 391 x 566 mm
重量~ 45 kg (取决于设备)

保留技术变更和出错的权利
