热镶嵌设备通过水冷和液压的方式，确保镶嵌出好的试样。多种模具形状的选择，可以方便客户镶嵌出各种直径的样品甚至是矩形试样。通过垫块，还能实现一次镶嵌两个样品的需求。

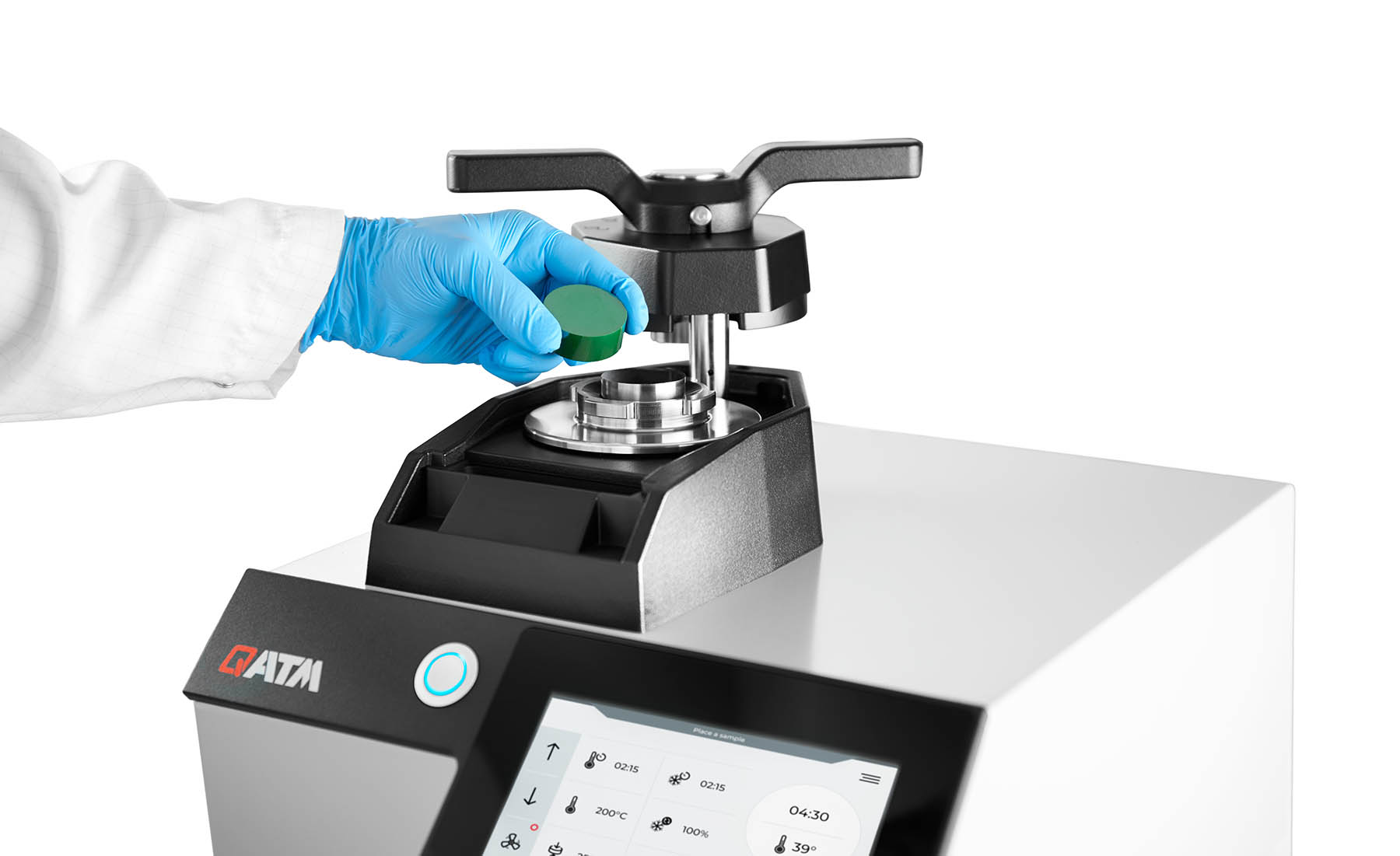

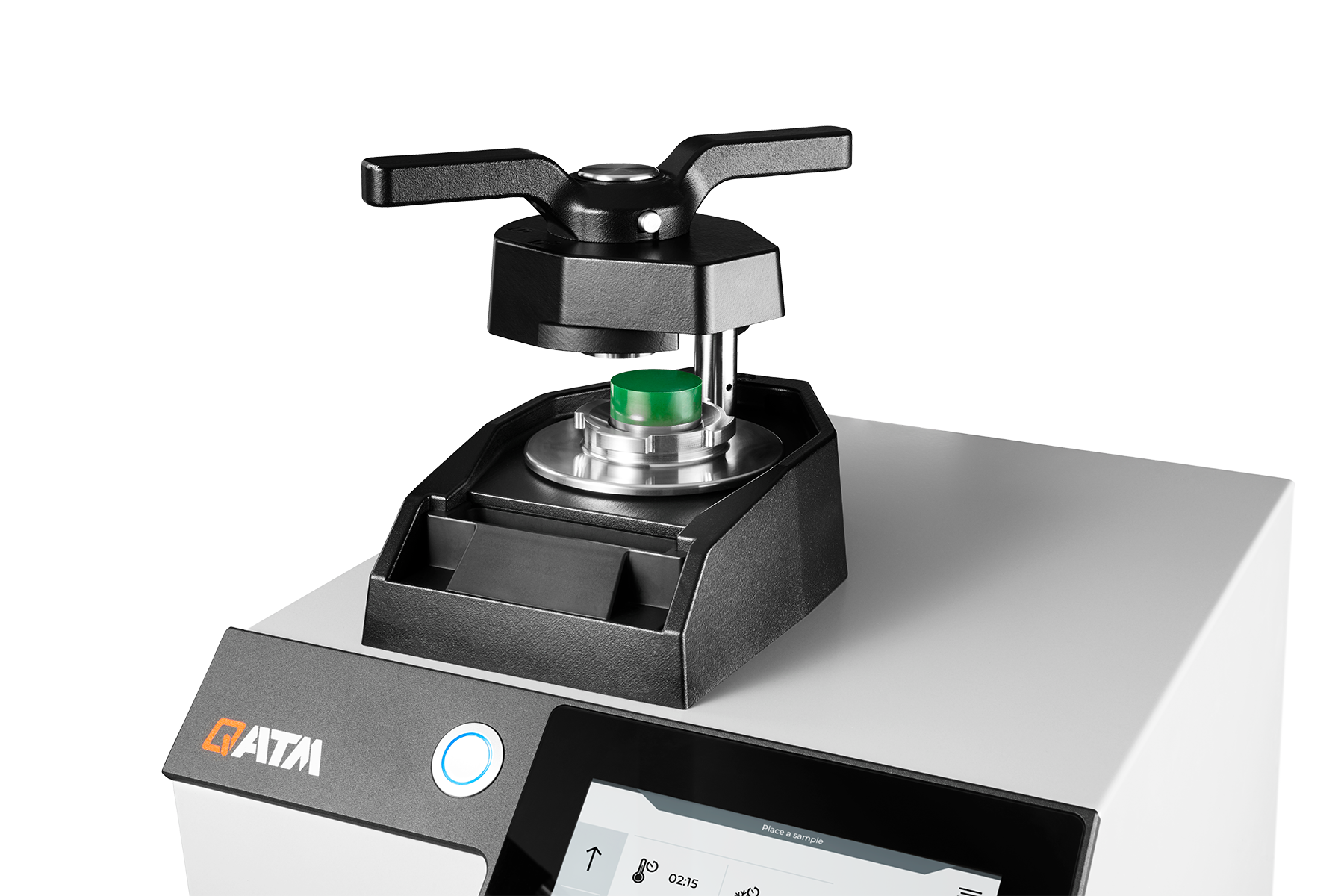

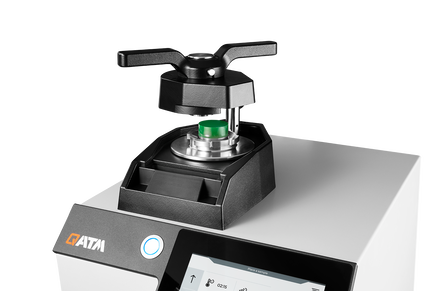

我们创新的滑盖式设计，保证了每一次开启和关闭模具的便捷。
- 模具组件: ø 25.2 - 40 mm (6种不同尺寸)
- 封盖闭合系统: 卡口式
- 可双模镶嵌
- 模块化设计

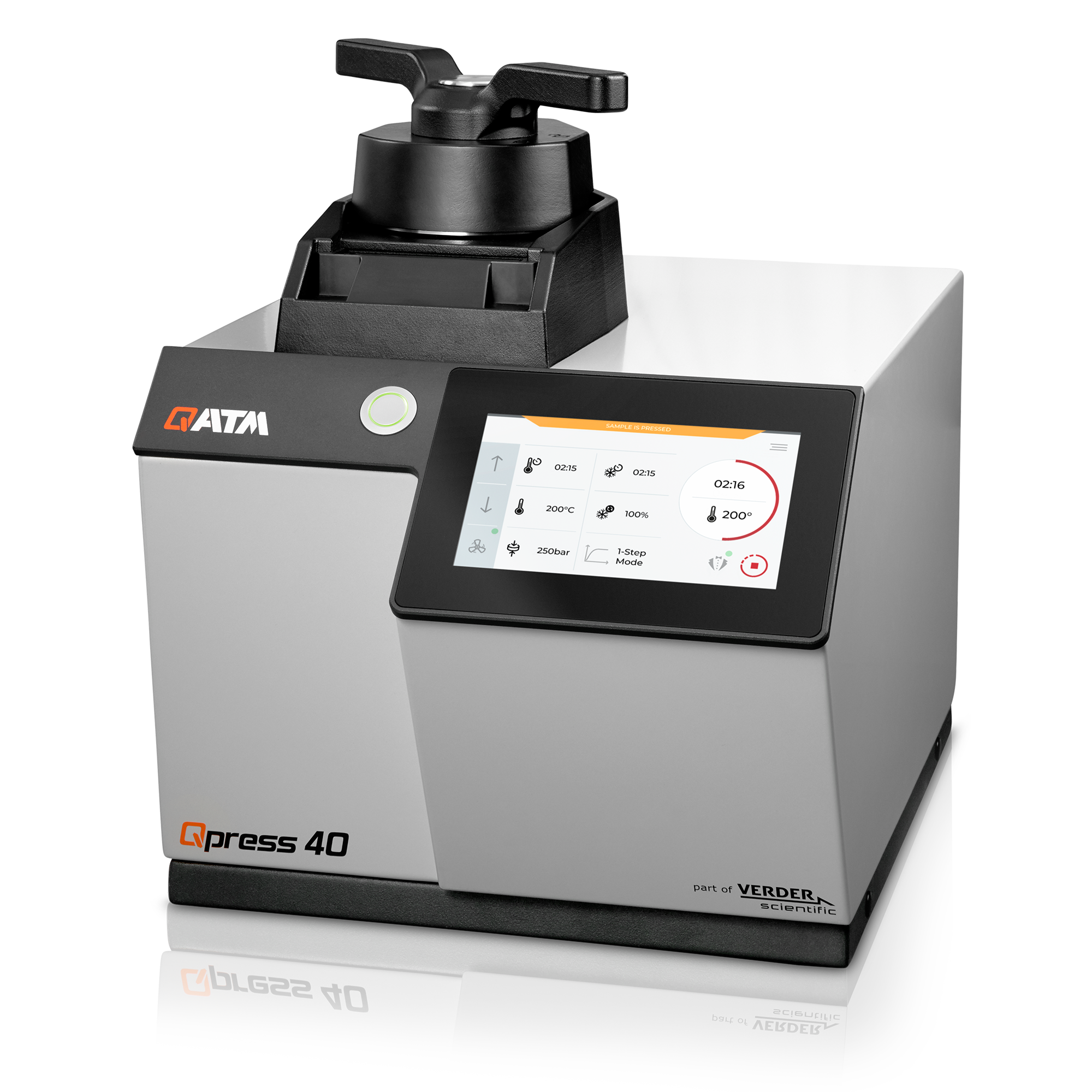

- 镶嵌单元的最大数目: 2/4|Qpress 50-2: 可达2个|Qpress 50-4: 可达4个
- 模具筒: Ø 25.2 - 50毫米(6种不同尺寸)
- 闭合系统: 滑盖式闭合系统
背景信息 热镶嵌
Hot Mounting Presses for Reliable Sample Preparation
A hot mounting press is a device used in metallographic and materialographic sample preparation to embed a specimen in a stable, standardized mount before grinding, polishing, and microscopic examination. By applying controlled heat and pressure, a hot mounting press forms a compact mount that is easy to handle, align, and process throughout the preparation workflow. Most systems are fully hydraulic and water-cooled, which supports consistent results from one sample to the next.
Stable Sample Mounting for Reproducible Results
Hot mounting supports accurate sample mounting by fixing the specimen securely in a defined shape and size. This improves handling, enables reproducible preparation steps, and reduces the risk of sample movement during grinding or polishing. When preparation parameters and mounting materials are matched to the specimen, a stable mount also contributes to minimal deformation of sensitive samples.
Edge Retention for Critical Surface Areas
A key advantage of hot mounting is excellent edge retention. This is particularly important when examining coatings, surface layers, case-hardened zones, or interfaces, where the outer edge of the specimen must remain clearly visible and fully supported during preparation.
Controlled Pressure and Consistent Mount Quality
A hydraulic mounting press provides precise, repeatable pressure throughout the mounting cycle. Combined with controlled heating and water cooling, this supports consistent mount quality from sample to sample. A suitable mould assembly positions the specimen correctly and ensures that the mounting compound forms a uniform, durable mount. Mould cylinders are available in different sizes for round mounts.
Applications in Metallography and Materialography
Hot mounting presses are used in quality control, research, production monitoring, and failure analysis. They are especially suitable when laboratories require standardized mounts, reproducible preparation conditions, and high-quality surfaces for subsequent microscopic evaluation.
热镶嵌 - 常见问题
What is a hot mounting press used for?
A hot mounting press is used to embed metallographic or materialographic samples in a stable mount before grinding, polishing, and analysis. It improves handling and helps ensure consistent preparation results.
What are the advantages of hot mounting?
Hot mounting offers high reproducibility, good dimensional stability, and excellent edge retention. It is especially useful when samples must be prepared in a standardized format.
Why is edge retention important in sample mounting?
Edge retention preserves surface layers, coatings, and material interfaces during preparation. This allows more accurate examination of critical areas near the sample edge.
