完美硬度测试 - QATM 耗材
当使用正确的元素:知识、维护和正确选择耗材和仪器进行硬度测试时,硬度测试更可靠、安全、高效。
洛氏硬度计 Configure Your Hardness Tester to Match Your Application
With the QATM Configurator, you can easily tailor your hardness tester to your individual requirements. Select the appropriate device version, equipment, and accessories, and submit your configuration directly as a non-binding request for quotation to QATM.
Your benefits at a glance:
- Configure individually: Select the device, equipment, and accessories to match your application
- Simple & clear: Step by step to your desired device configuration
- Request directly: Submit your configuration easily as a free and non-binding request for quotation
- Personal support: QATM experts assist you in selecting the right solution
Alternatively, you can also submit your inquiry directly via our contact form.

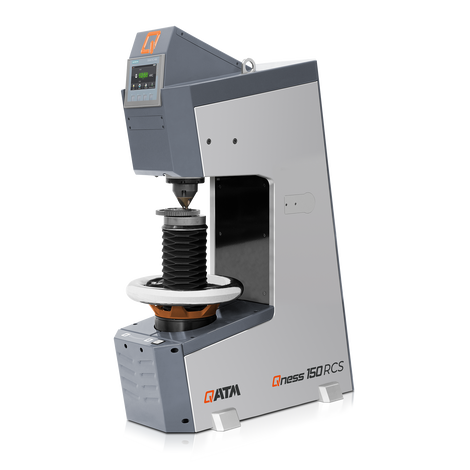

洛氏硬度计 Qness 150 RCS 技术参数
| 测试方法 | Qness 150 RCS: HRC | Qness 60 RCS: HBT 2.5 |
|---|---|
| 测试力范围 | Qness 150 RCS:150 kg (1471.5 N) | Qness 60 RCS:62.5 kg (613.1 N) |
| 高度调节 | 手轮 |

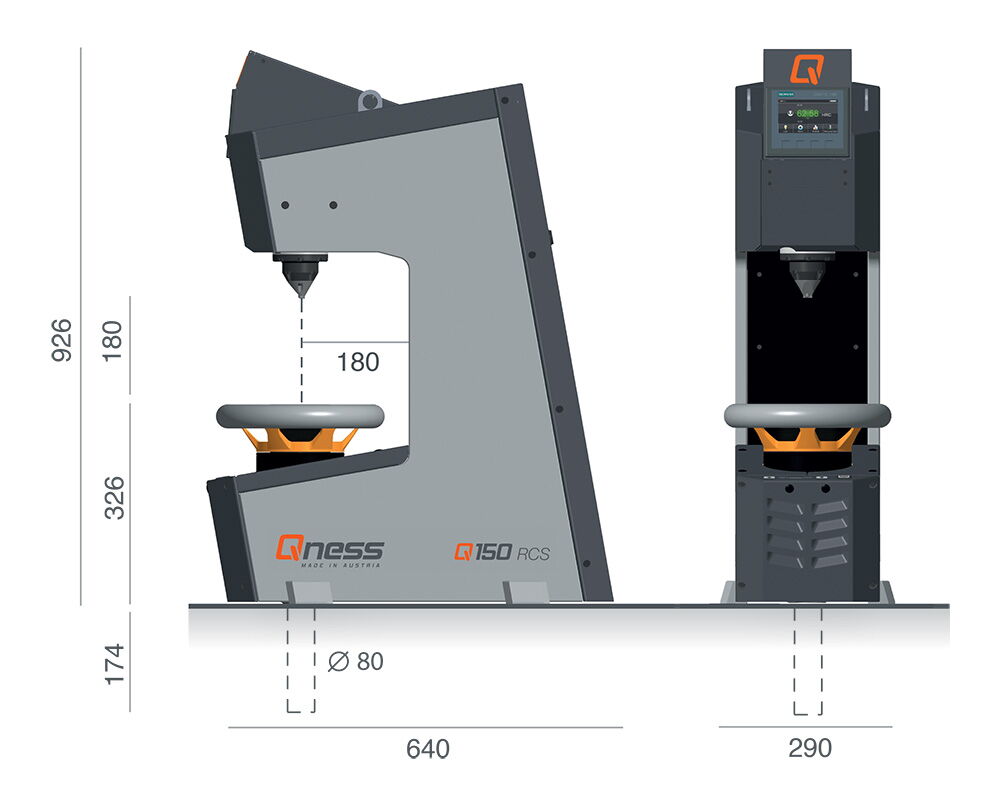

| 测试高度 | 水平范围 | 180毫米/180毫米 |
| 测砧 | Ø 100毫米 |
| 主机重量 | 120 千克 |
| 界面 | 1个RS232 C、1个RJ45(以太网) |
| 电源供应 | 230~1/N/PE、110~1/N/PE |
| 最大功耗 | ~360瓦 |
附件和选项 |
|
| 概述 | 压头(洛氏,布氏) |
| 在线-解决方案 | 另行协商 |
| 选项 | 定制设备, 定制测砧, pro bus, 分拣灯, 闪光灯 |
洛氏硬度计 Qness 150 RCS 资料下载
Product data sheet Qness 60 / 150 RCS
