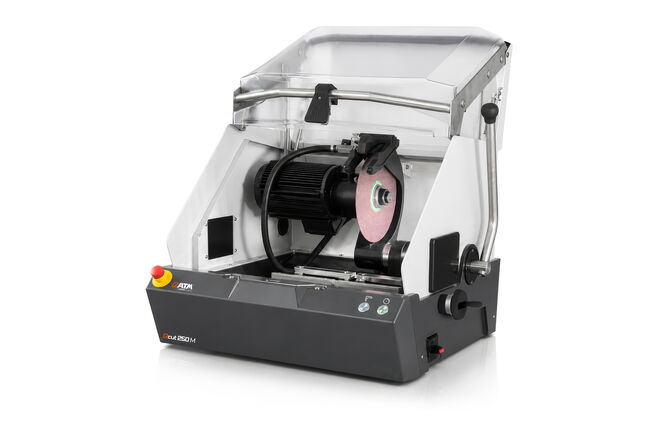

The Qcut 250 M is an exceptionally robust manual cut-off machine for everyday materialographic sample preparation. Its low-vibration design ensures high cutting quality and low cut-off wheel wear, while the wide-opening swivel hood provides full visibility and free access. Simple push-button operation and a well-thought-out cleaning concept make it a reliable solution for daily laboratory work.

Key benefits of the Qcut 250 M at a glance

Low-vibration & robust design: solid cast construction for precise cuts and low wear
Maximum accessibility and visibility: the swivel hood folds back drip-free and clears the working area completely – for fast, safe loading and unloading
Flexible specimen positioning: clamping rails with Easy function allow the quick mounting of numerous clamping tools at a consistently uniform working height – regardless of the clamping device used
Simple & safe: push-button operation with status display, interlocked hood

切割机 Qcut 250 M 专为快速和完美的结果而设计

HIGH CAPACITY

Optimized kinematics make full use of the available space – for noticeably larger workpieces

Offset motor creates more space on both sides of the wheel
Significantly increased usable part size
Matching clamping accessories for full capacity
Optional manual Z-axis (25 mm) for serial cuts

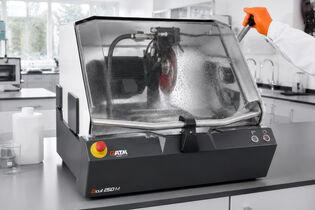

Clear view & safety

The transparent swivel hood combines full process control with the latest safety standard

Good visibility during the cutting process
Opens across the entire width to the rear and stays back drip-free
Maximum accessibility for easy loading and unloading
Door interlocking during operation and run-down time

STABLE & DURABLE

A robust construction ensures smooth cutting and a long service life – even in harsh environments

Massive cast aluminium basin and stably mounted swivel arm dampen vibrations and reduce noise emissions by up to 25%
Smooth-running motor for high cutting quality and low wheel wear
Stainless-steel loading edge and spark deflector plates
Impact- and abrasion-resistant paint finish, anodized aluminium parts

EFFICIENT COOLING

Powerful cooling ensures constant cutting conditions – adapted to the sample throughput

Bar cooling with even distribution of the coolant
Reduced cut-off wheel wear and low heat input into the sample
High cooling performance thanks to large line cross-sections and high flow rate
Optional 45- or 100-litre recirculation cooling for high sample throughput

COMFORTABLE OPERATION

Well-thought-out details make manual cutting fast, precise and ergonomic

Line laser for precise positioning
Start-stop button with status display and LED cutting-chamber lighting

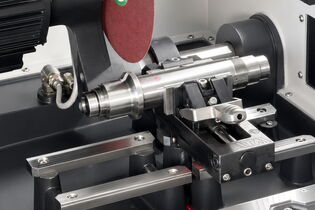

Easy clamping system: fast change, uniform working height
Easy quick-clamping nut for low-effort cut-off wheel change
Ergonomic lever for fine, precise control of the cutting force

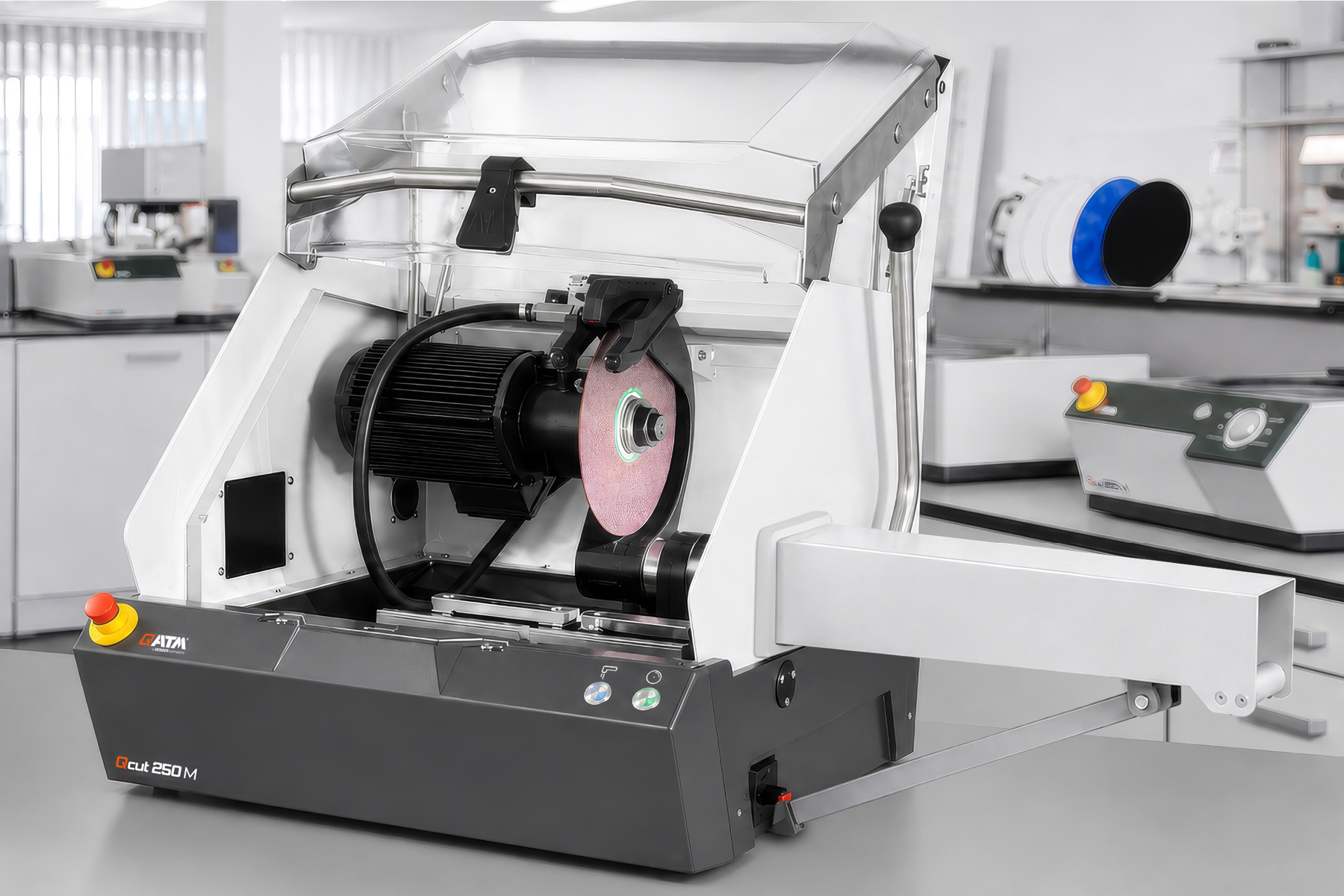

LONG WORKPIECES

Side openings on both sides enable easy and safe positioning and cutting of long parts up to Ø 55 mm

Optional side channel with roller conveyor, left and/or right
Integrated support rollers for feeding
Easy positioning of heavy profiles too
Clamping device, cutting table and roller conveyor exactly at the same height
Protective guard to prevent access to the cutting area

THOROUGH CLEANING

A smart cleaning concept keeps the cutting chamber clean and saves time

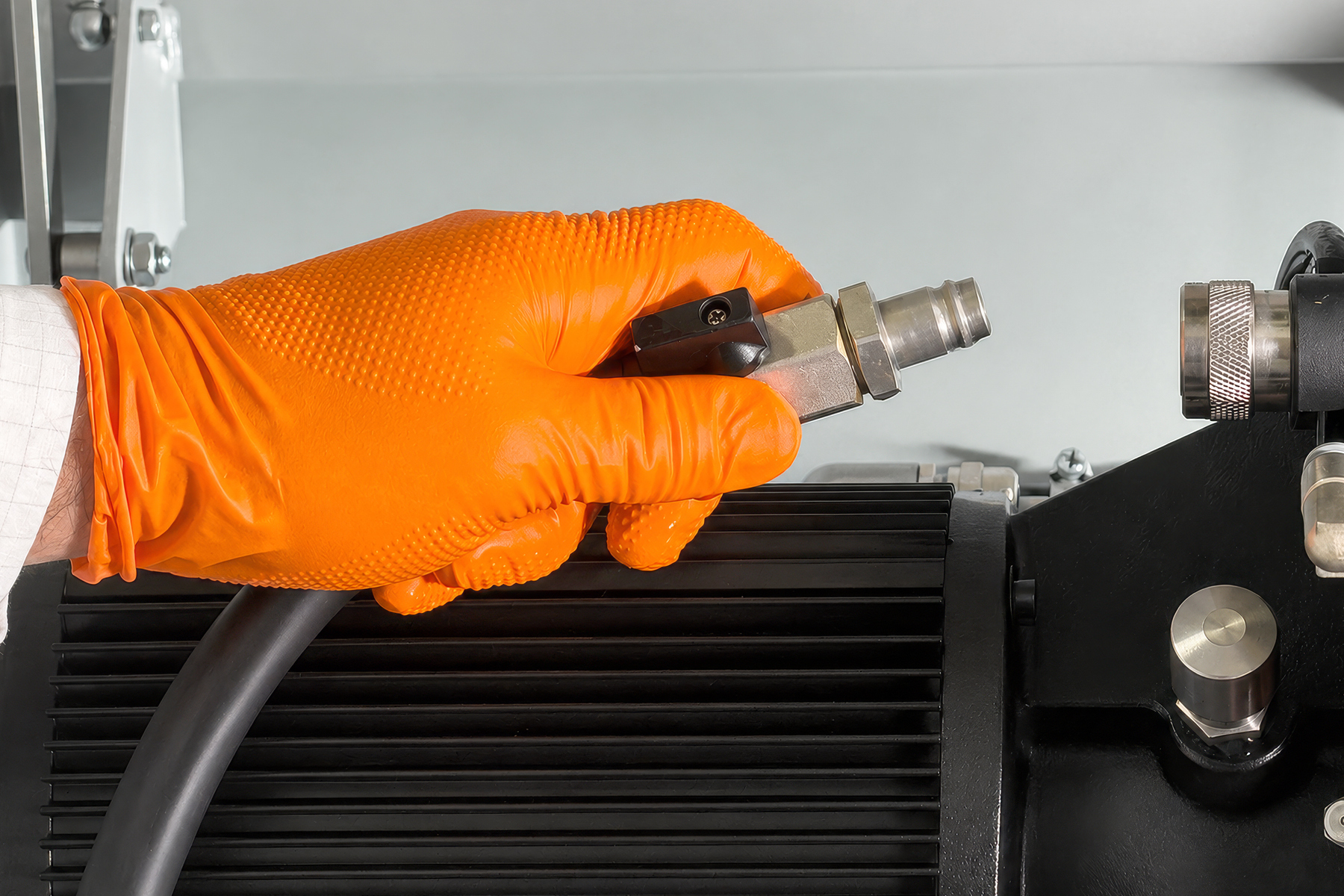

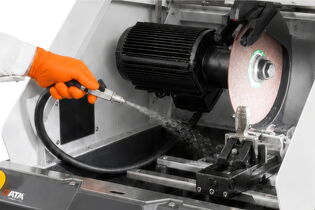

Integrated flushing hose for manual rinsing
Sample collection sieve and steep gradient for fast dirt drainage
Cleaning-friendly, low-edge design with easy-care surfaces

切割机 Qcut 250 M 在现实世界中体验3D模型!

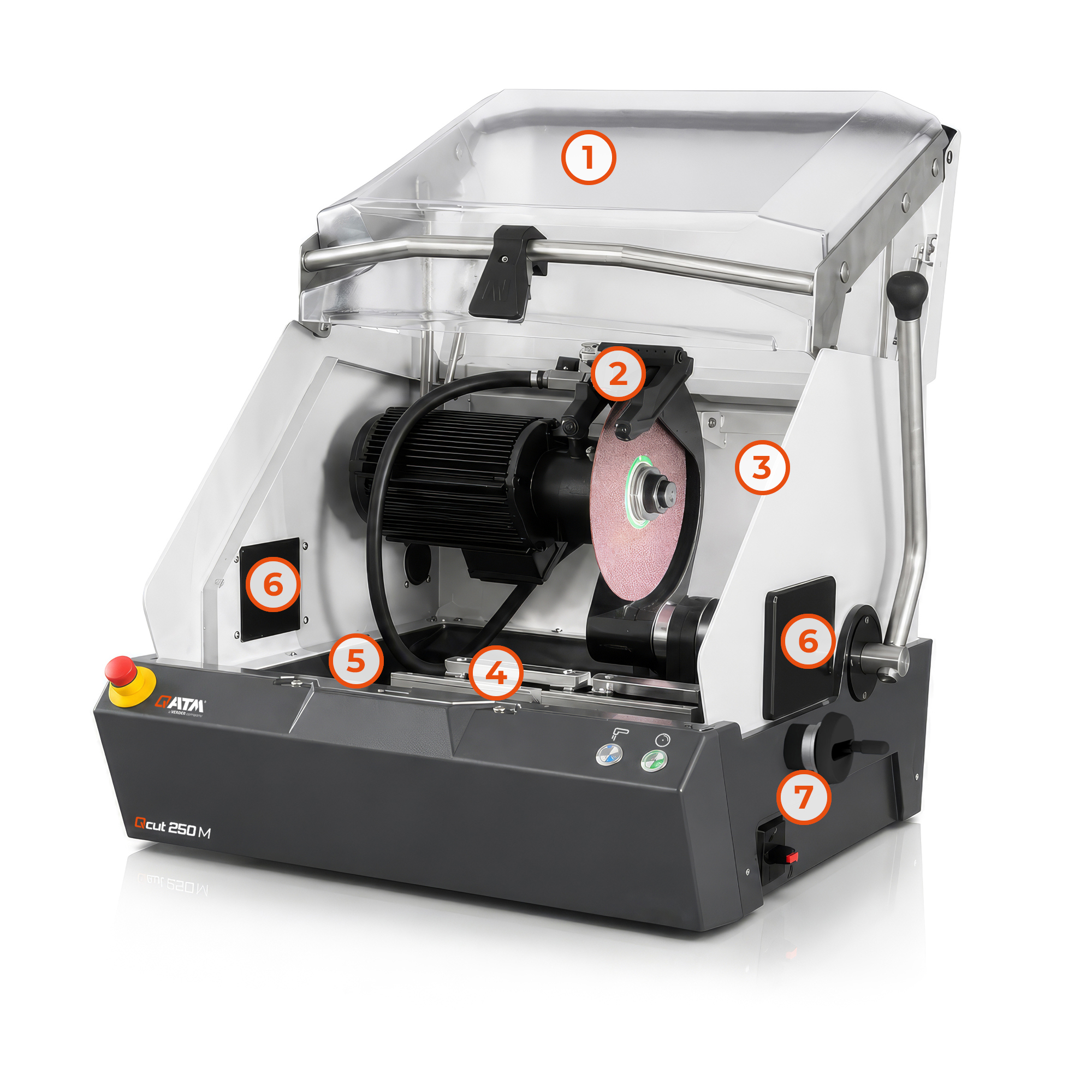

切割机 Qcut 250 M Key features in detail

1. Transparent swivel hood

Opens across the entire machine width and folds back; the working area stays drip-free and is optimally accessible

2. Integrated line laser

Convenient positioning of workpieces in the cutting chamber

3. Powerful LED lightning

Optimal illumination of the cutting chamber for precise work

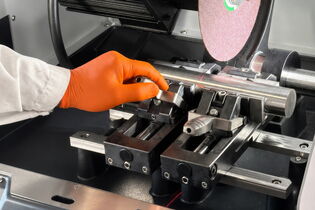

4. Easy clamping system

Fast clamping of numerous clamping tools at a uniform working height

5. Cast aluminium basin and stably mounted cutting arm

Robust, vibration-damped and stable machine body for smooth, precise cuts

6. Side openings left and right

Cutting of long workpieces

7. Optional z-axis

Serial cuts with manual cross-feed

切割机 Qcut 250 M ACCESSORIES – EXPANDABLE TO SUIT YOUR NEEDS

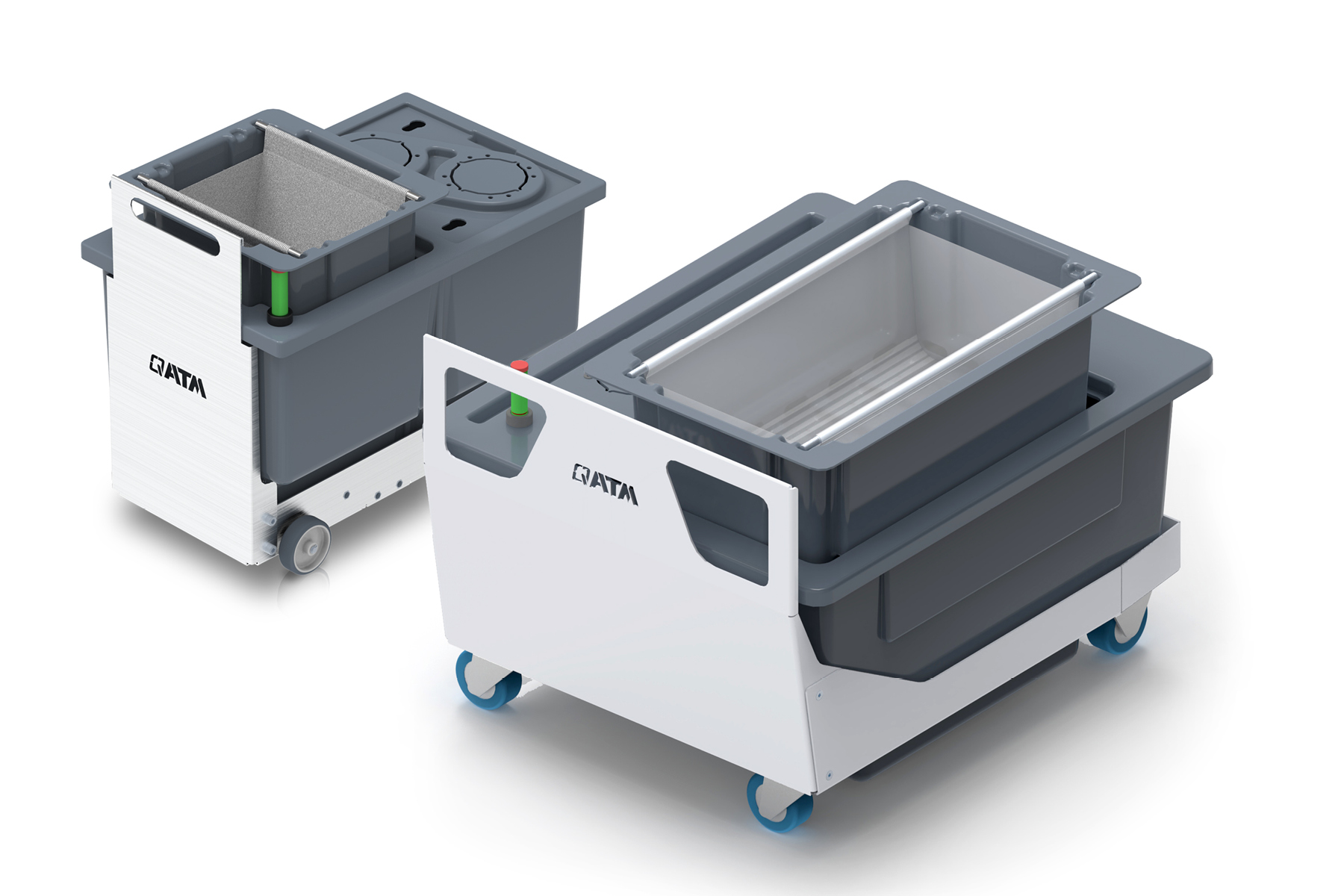

RECIRCULATION COOLING 45 / 100 L

Low-maintenance cooling system for standard applications or high sample throughput

PVC container with removable separating slide
Inlet sieve with filter bag and overflow
Tank capacity of either 45 or 100 litres
Mobile or integrable into the base cabinet
Visual fill-level indicator

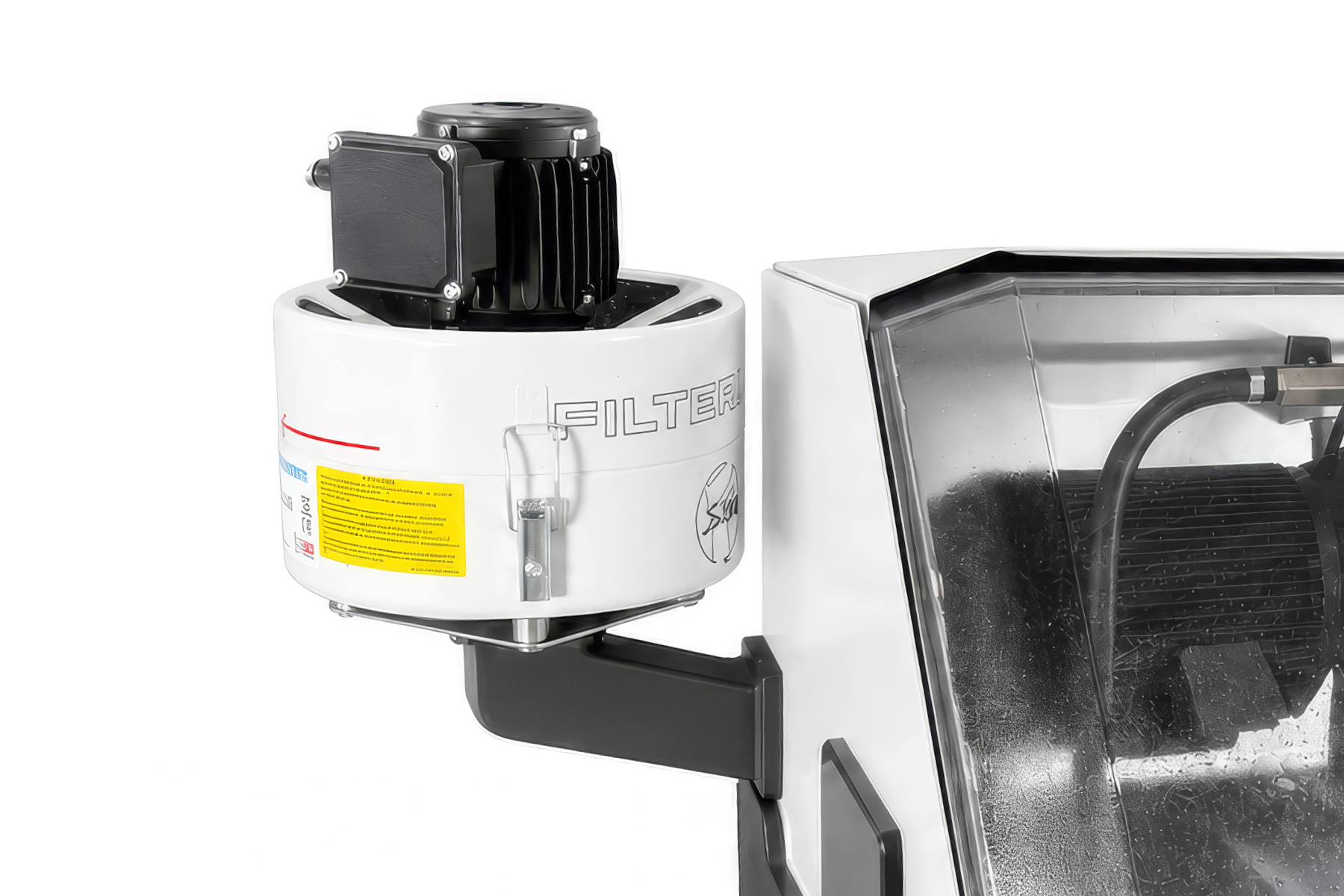

Centrifugal Separator

Efficient extraction for better air and visibility at the workplace

Separates oil mist from the cutting chamber
Protects against inhalation of coolant/lubricant aerosols and improves air quality in the laboratory
Improves visibility during the cutting process
Exhaust power 180 m³/h

Clamping & Collecting

Matching accessories for flexible clamping and burr-free cutting

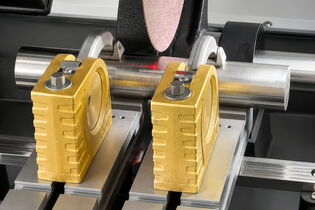

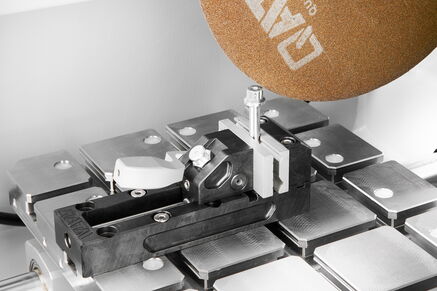

Qtool clamping tools with Easy clamping function for quick and easy setup
Cutting table for universal vices and large parts

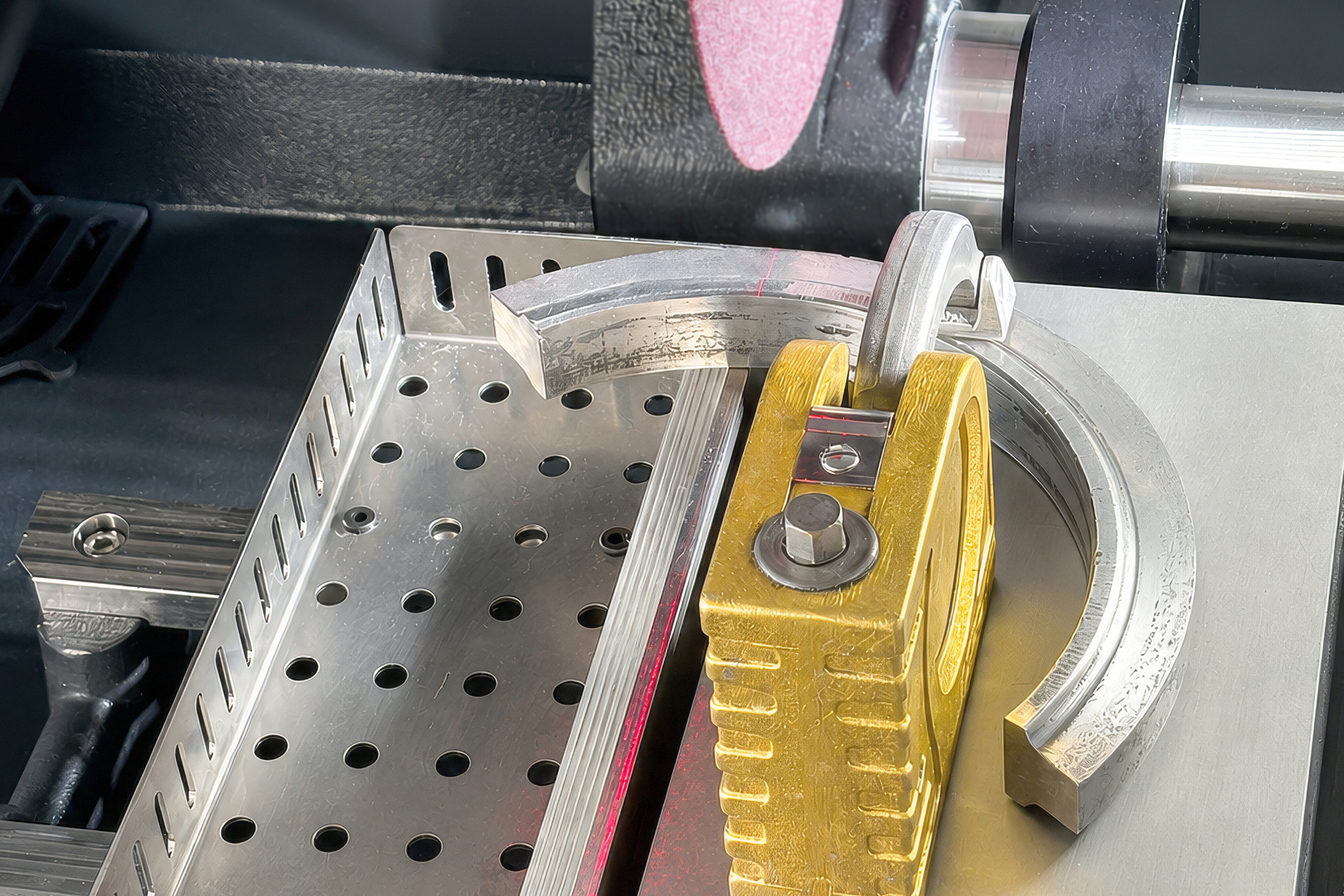

The collection sieve supports the part on both sides, reducing burr formation
Cut-off pieces fall directly into the collection basket

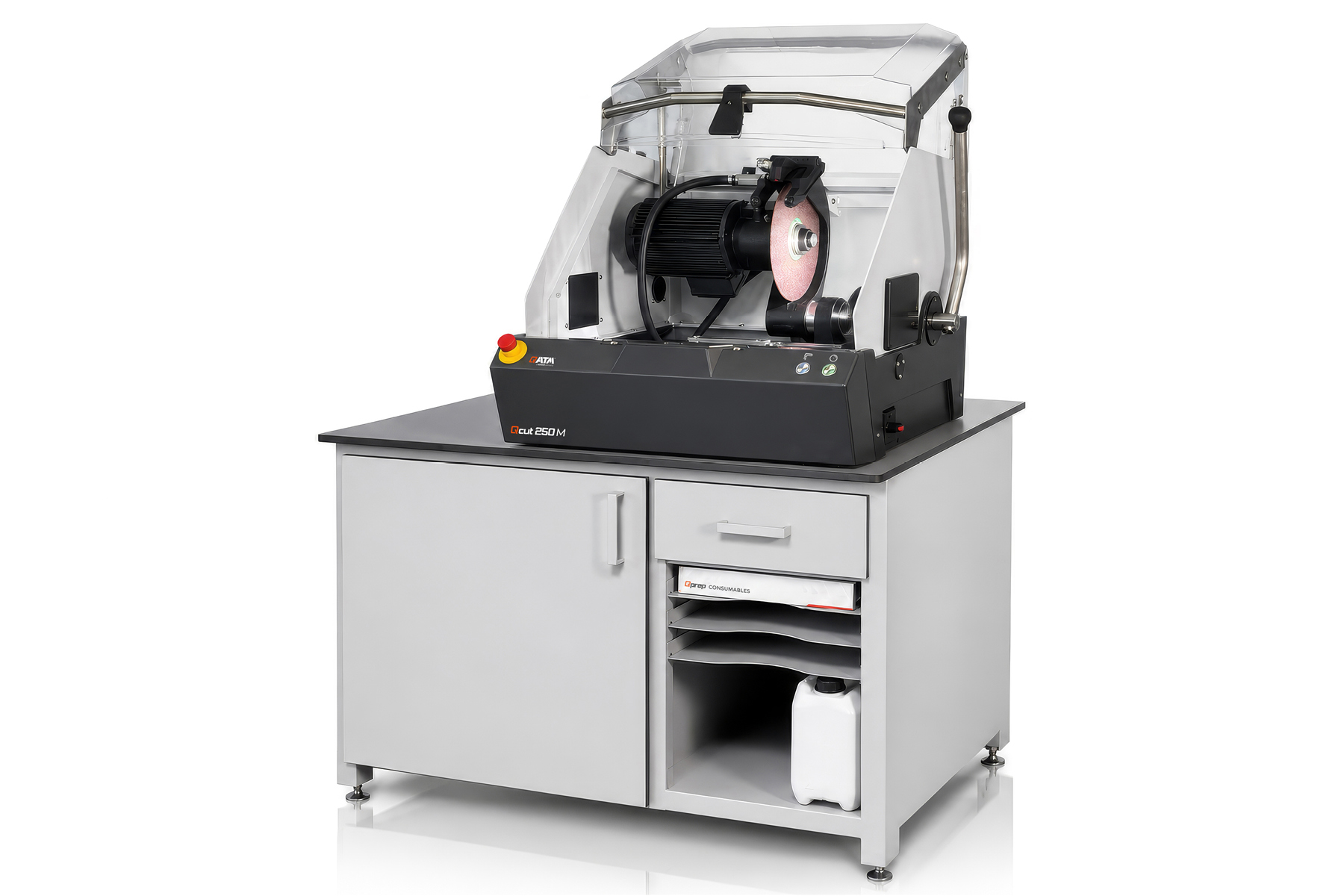

MACHINE CABINET

Everything within reach for efficient work at the cut-off machine

High load capacity for a secure machine footing
Integration of the recirculation cooling system
Organized storage of cut-off wheels and clamping accessories directly at the workplace
Cleaning hose (optional)

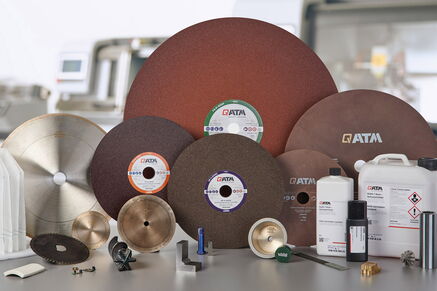

完美的切割 - 由Qprep耗材保证

当使用正确的元素: 知识、保养和正确选择耗材和切割机进行加工时，切割更可靠、更安全、更高效。

产品系列

快速、强大、灵活-Qtools 夹具

我们创新的夹具用于安全、精确地夹紧工件，以确保精确的切割和磨削过程。针对特定的应用和工件尺寸，我们已经开发了各种不同的夹具。

产品系列

切割机 Qcut 250 M 技术参数

最大切割轮	Ø 254 毫米 / 10“
最大样品尺寸	Ø 90 毫米（长达 30 毫米以内） Ø 80 毫米（长达 115 毫米以内） Ø 55 毫米连续
切割轮轴径	Ø 32毫米
电机功率	3 kW S6
转速	2850 转/分钟 (50 赫兹) / 3420 转/分钟 (60 赫兹)
X轴（水平切割）	-
Y-轴 (垂直切割)	手动，150 毫米
Z轴（平行切割）	可选，手动，25 毫米
定位精度 Z	约 0.5 毫米
T型槽宽度	12毫米
侧开口	两侧
连接功率	3.4 kVA

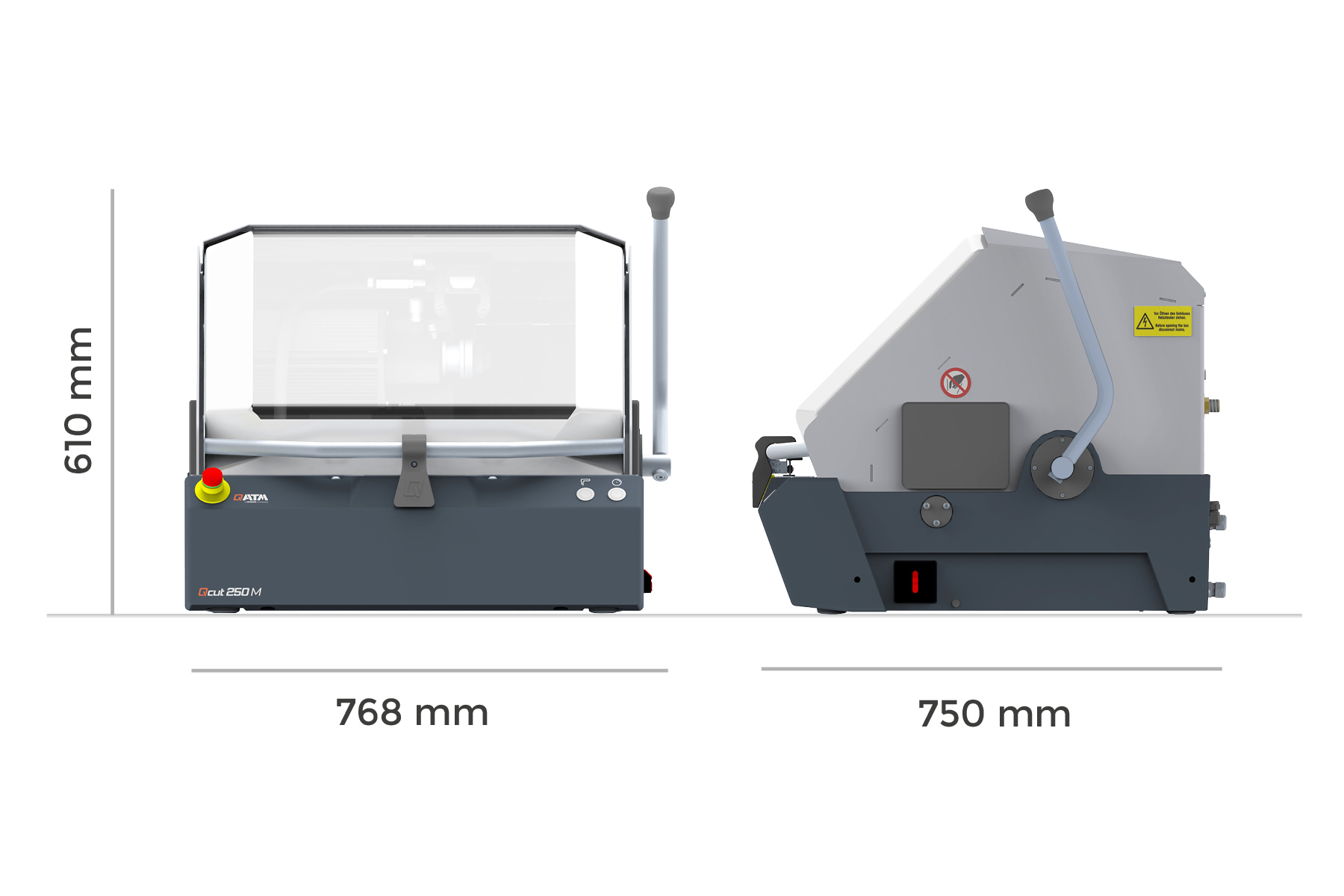

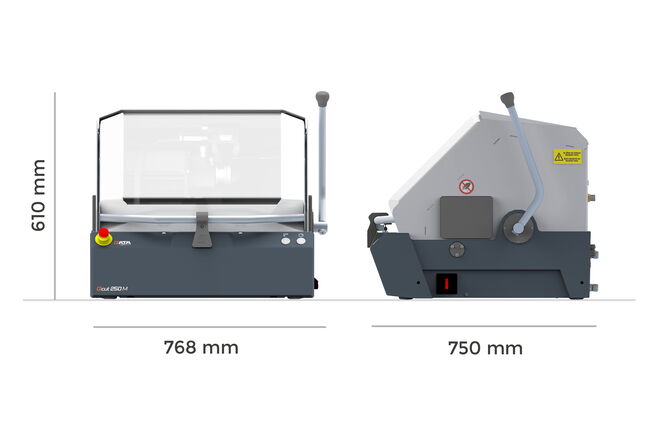

尺寸宽 × 高 × 深	768 × 610 × 750 毫米
重量	约 120 公斤
操作	按钮
激光辅助定位	可选
