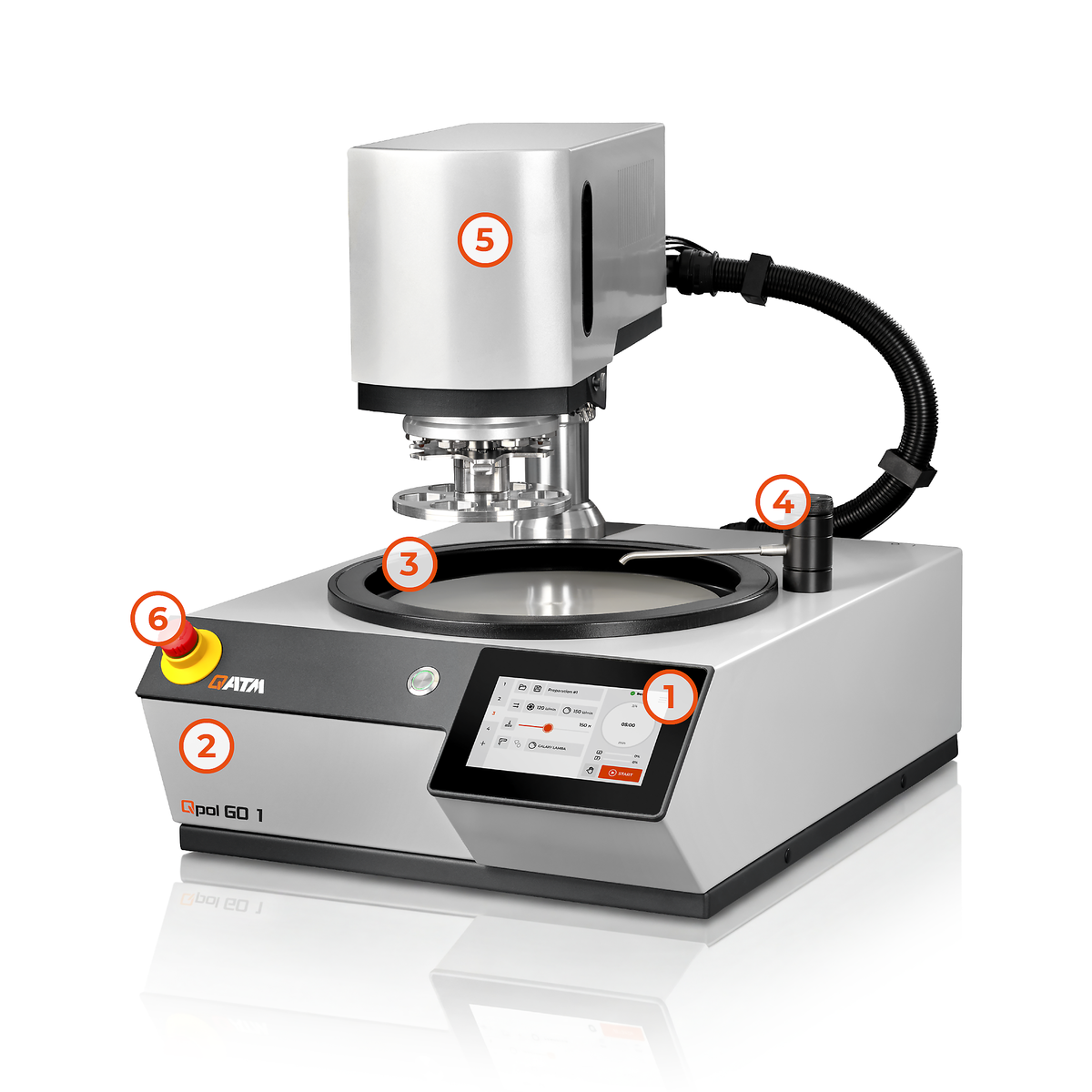

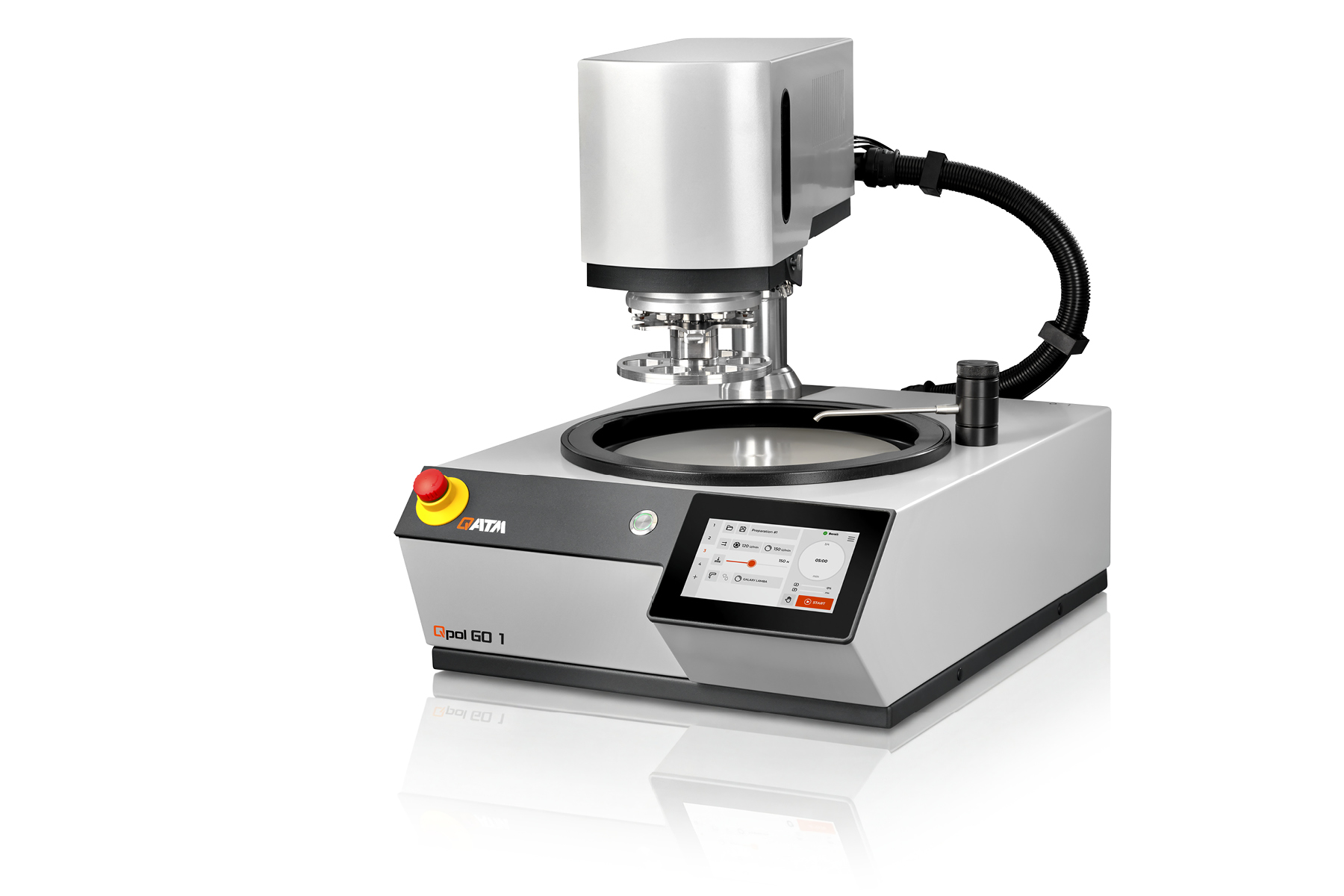

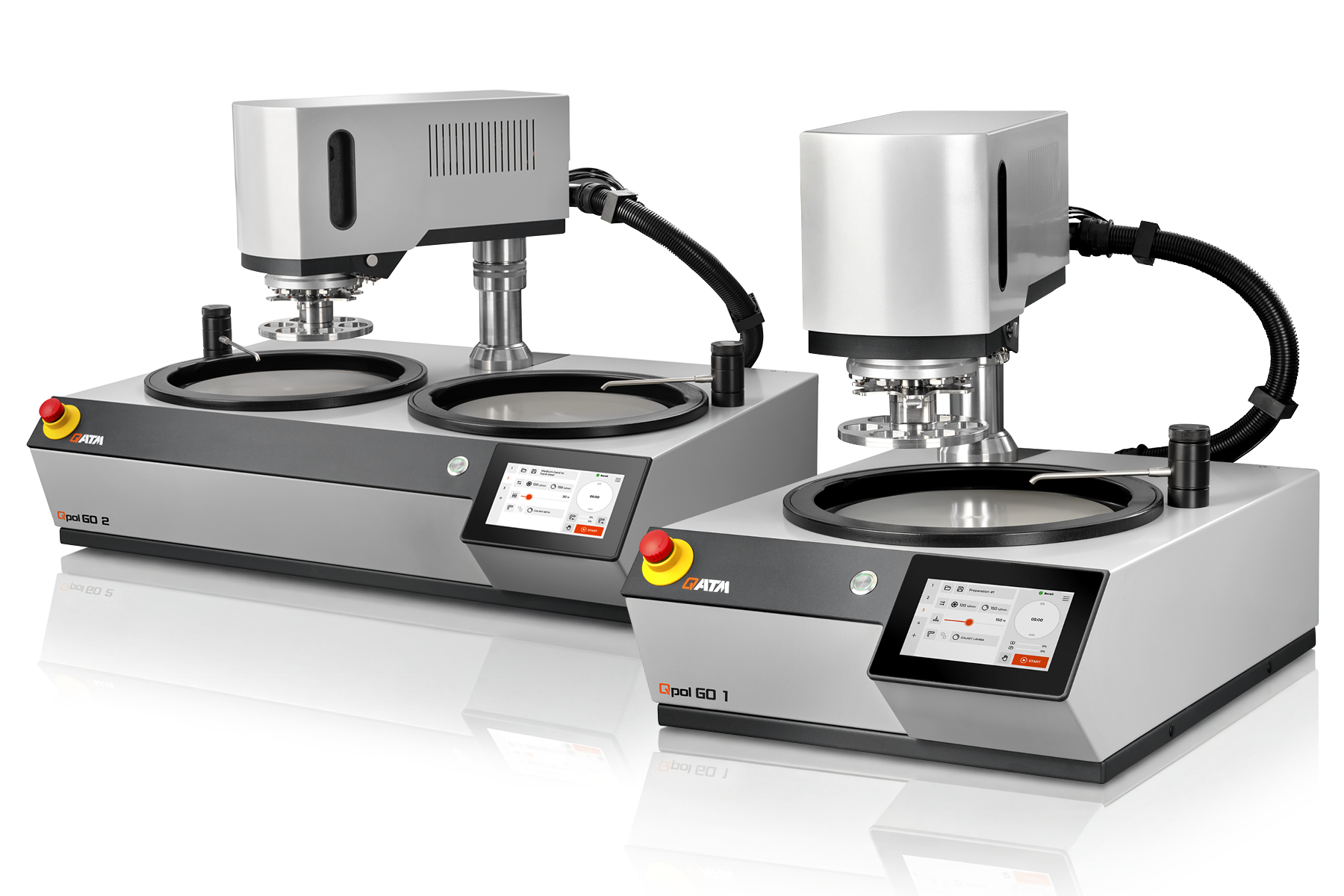

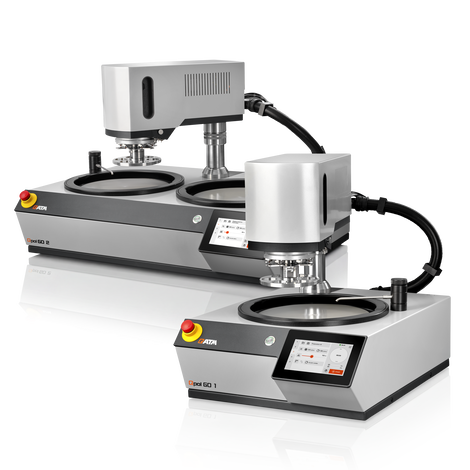

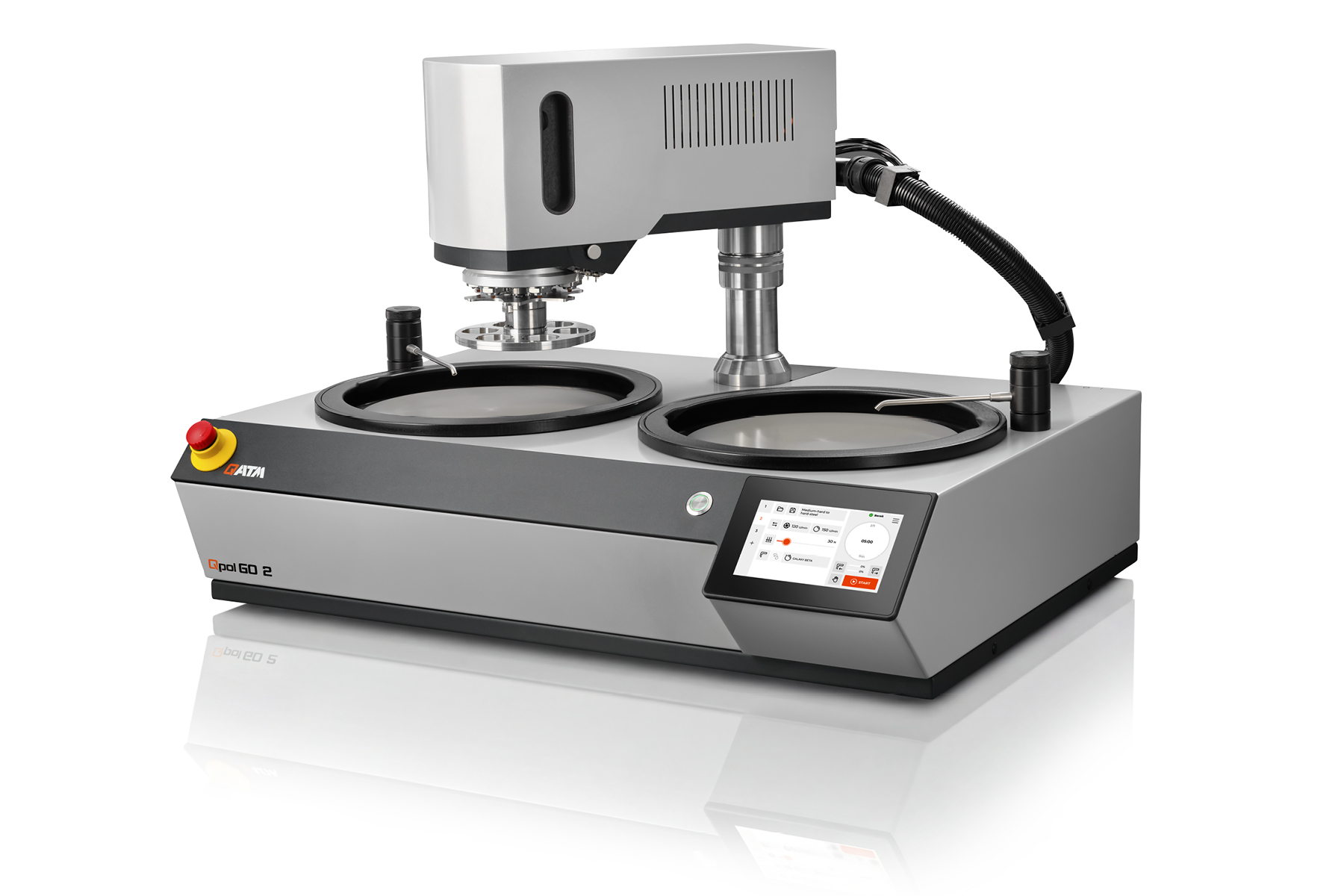

研磨抛光机 Qpol GO 1 / GO 2

研磨抛光机 Qpol GO 1 / GO 2 性能指标

耐用可靠

机器主体采用坚固的焊接铝制结构，并配有高品质、耐用的粉末涂层

• 低振动设计确保操作极其平稳
• 强大的速度控制驱动装置，性能卓越，即使处理大样品也游刃有余
• 抗冲击塑料内槽具有出色的耐用性、耐腐蚀性和易于清洁的特点

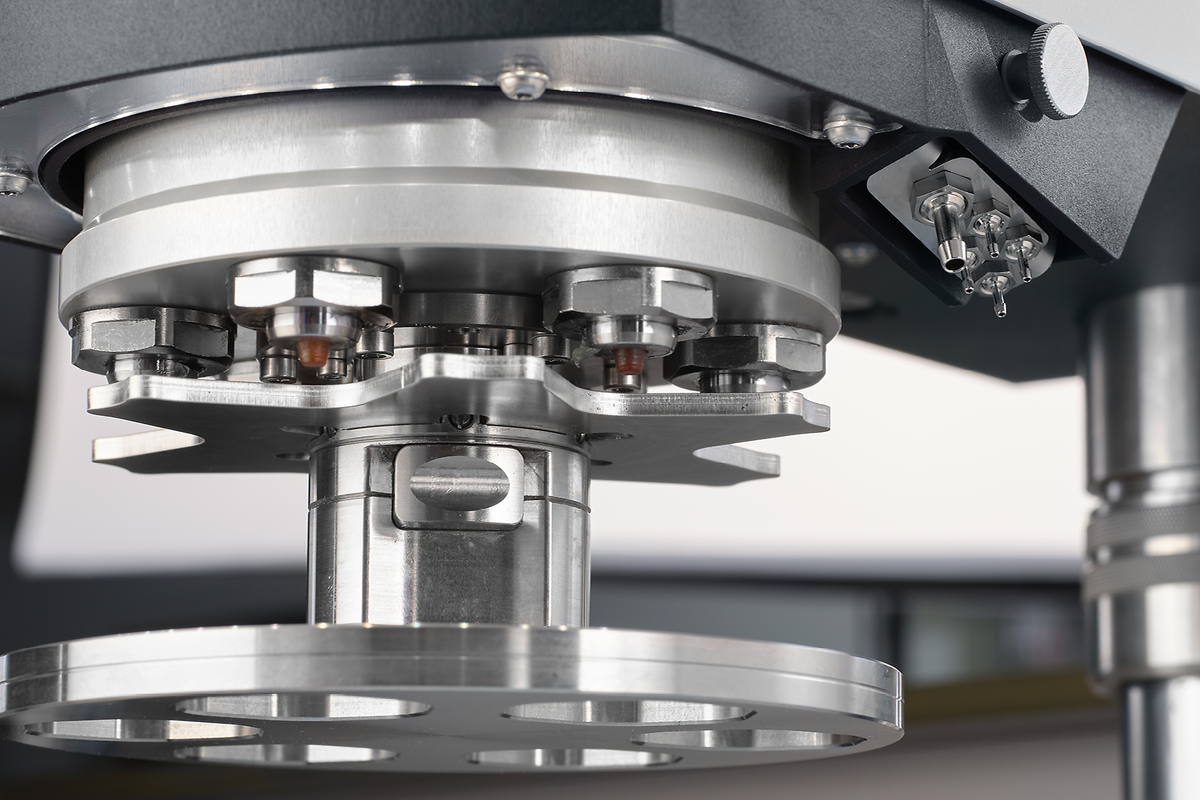

Grinding/polishing head with swivel bearings

High level of user-friendliness and flexibility: The grinding/ polishing head is equipped with adjustable swivel stops for easy swiveling

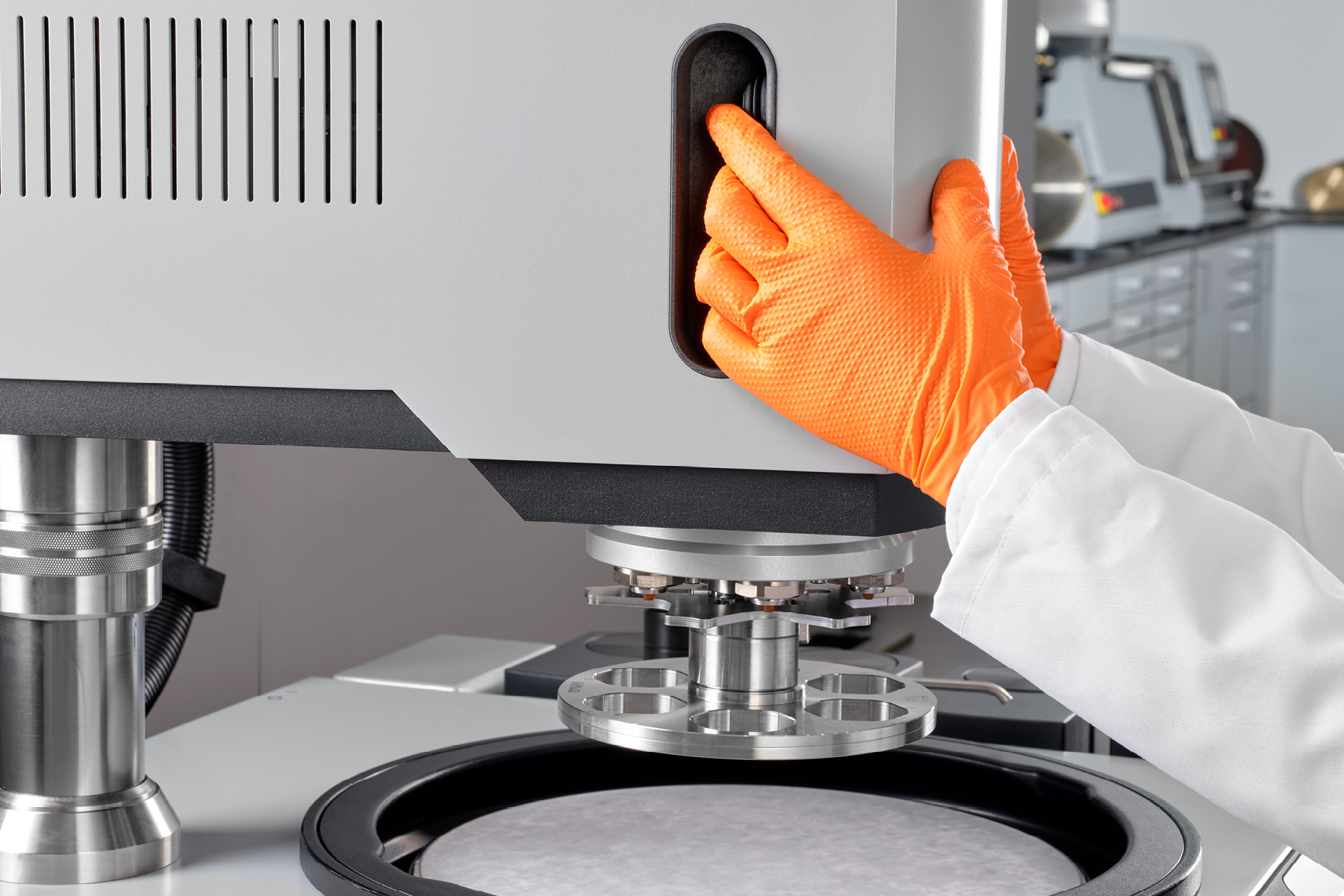

• Recessed handles on both sides with integrated push buttons for unlocking, ensuring convenient operation
• Easy sample holder replacement thanks to the large gap between the grinding/polishing head and the work surface

简易清洁系统

单盘设计：所有部件易于拆卸，方便操作

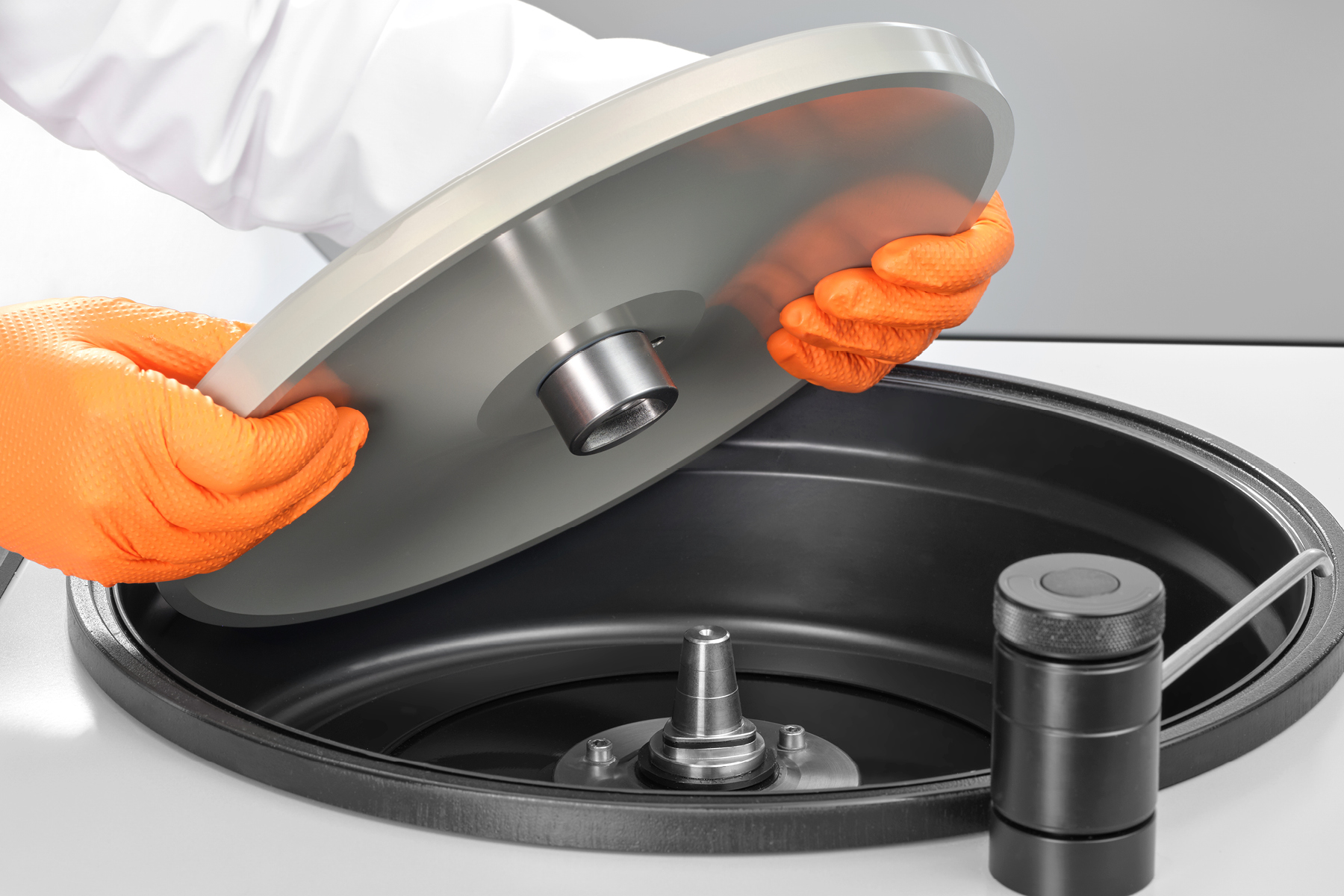

• The splash guard ring and working wheel can be removed with minimal effort, thereby reducing setup and cleaning times
• 碗衬（塑料内衬）易于更换或清洁，以除研磨料和悬浮液残留

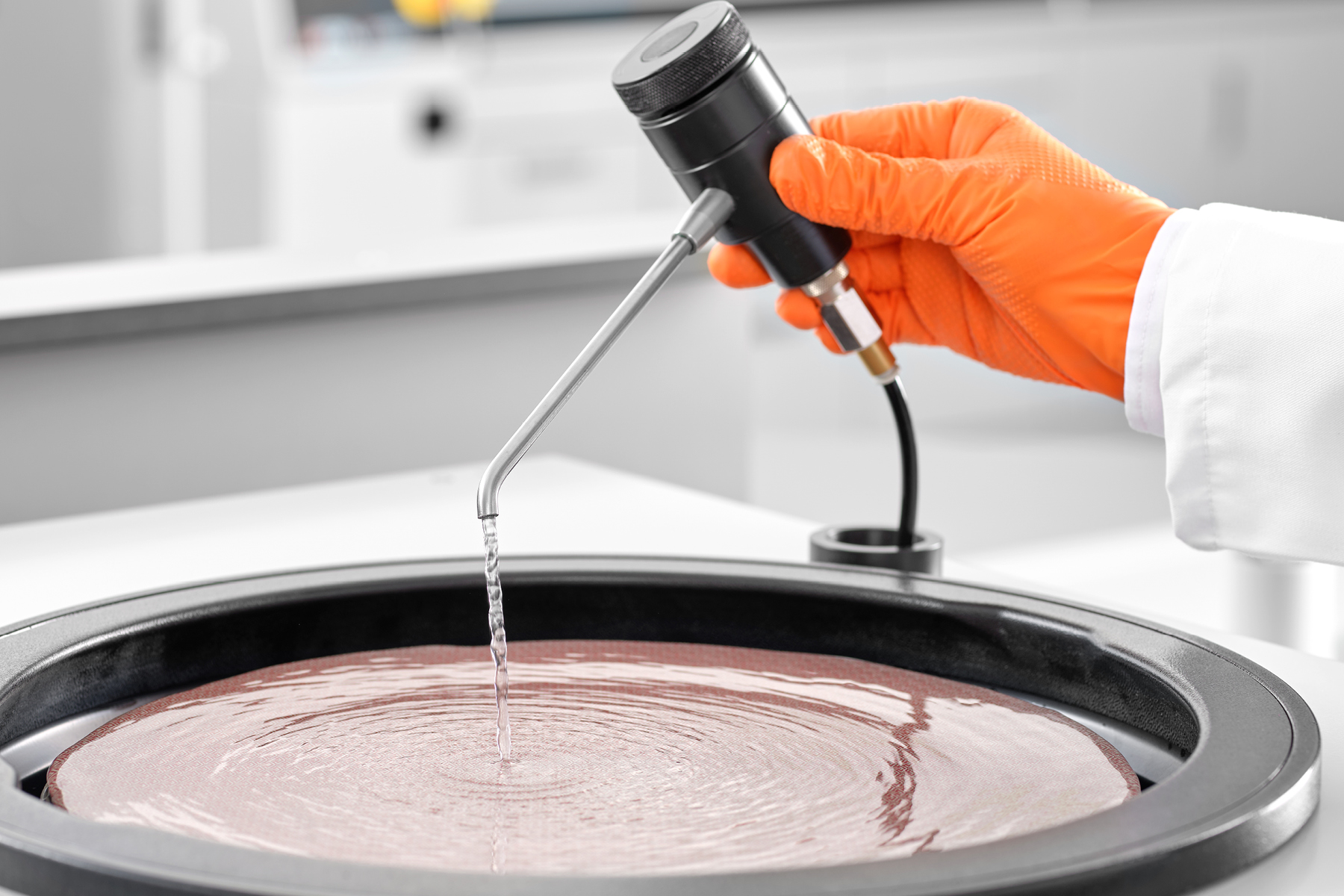

坚固的可拉出式水龙头

Easy and thorough cleaning of the work area and the grinding tray

• 清洁加速功能：可清除研磨/抛光介质上的残留液体（在750 转/分的转速下3秒内甩干）
• 在制备过程开始和结束时，水阀会自动开启
• 坚固的水龙头配有可伸缩的软管延长件

可选: Qdoser加液系统

可选配加液系统，以实现高度的过程灵活性

• Qdoser GO:全自动、软件控制的加液系统，配备 4 个易于拆卸和重新补液的加液瓶，可获得可重复的制备效果（可选配磁力搅拌功能）
• Qdoser ONE: 滴液瓶，便于轻松、连续性加液

符合人体工程学设计的防溅挡圈

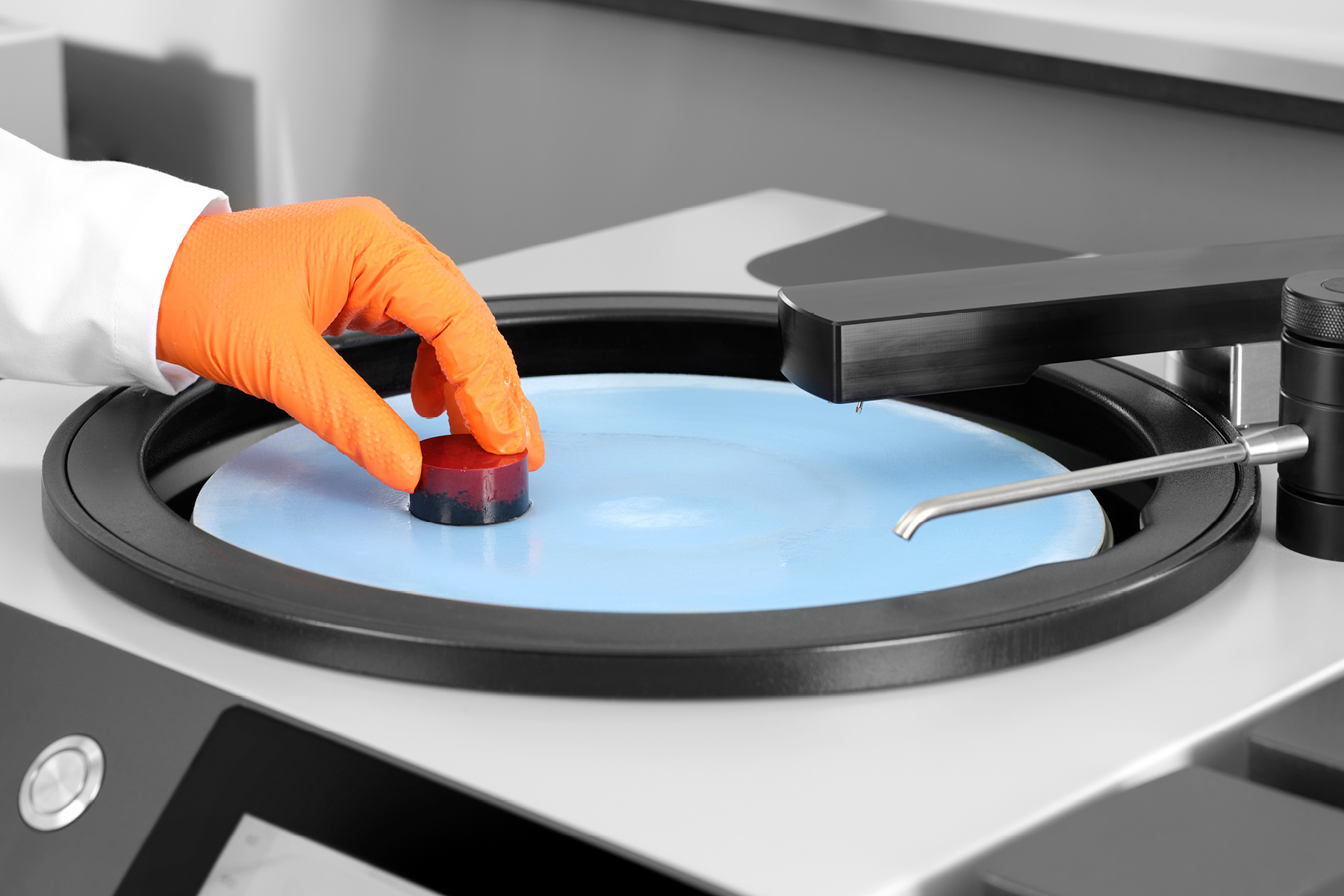

User-friendly design and the ability to quickly replace consumables

• The ergonomically shaped splash guard significantly reduces splashing and can be used as a comfortable hand rest during longer procedures

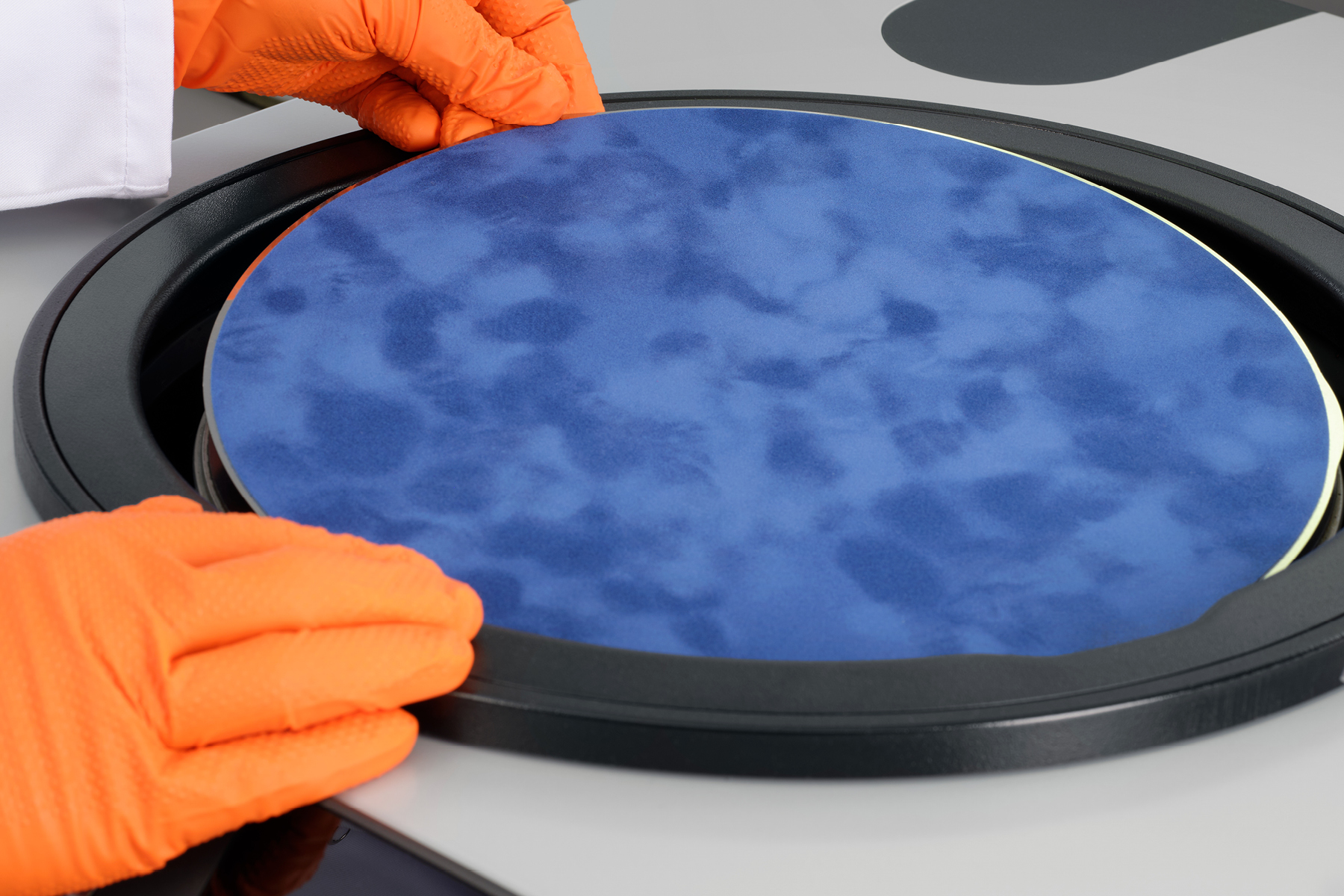

• Grip recesses allow for the replacement of grinding/ polishing media even when the ring is in place

直观且易于使用

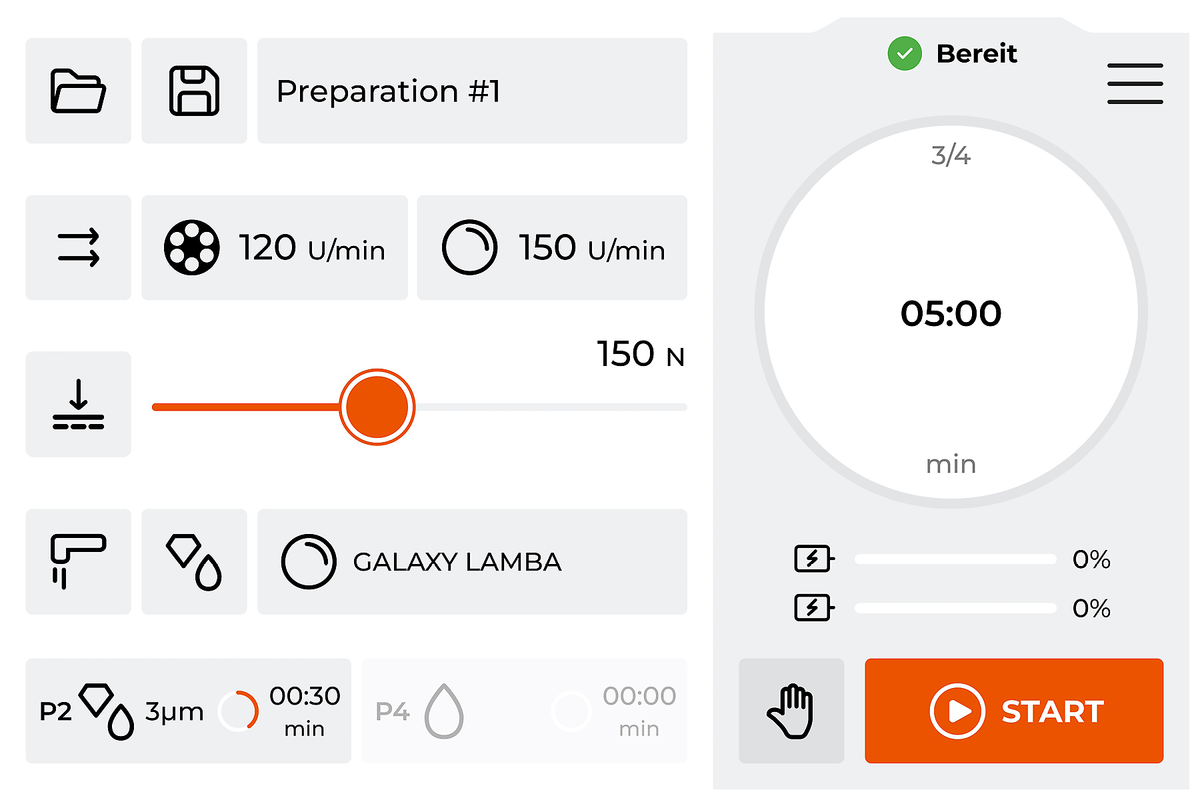

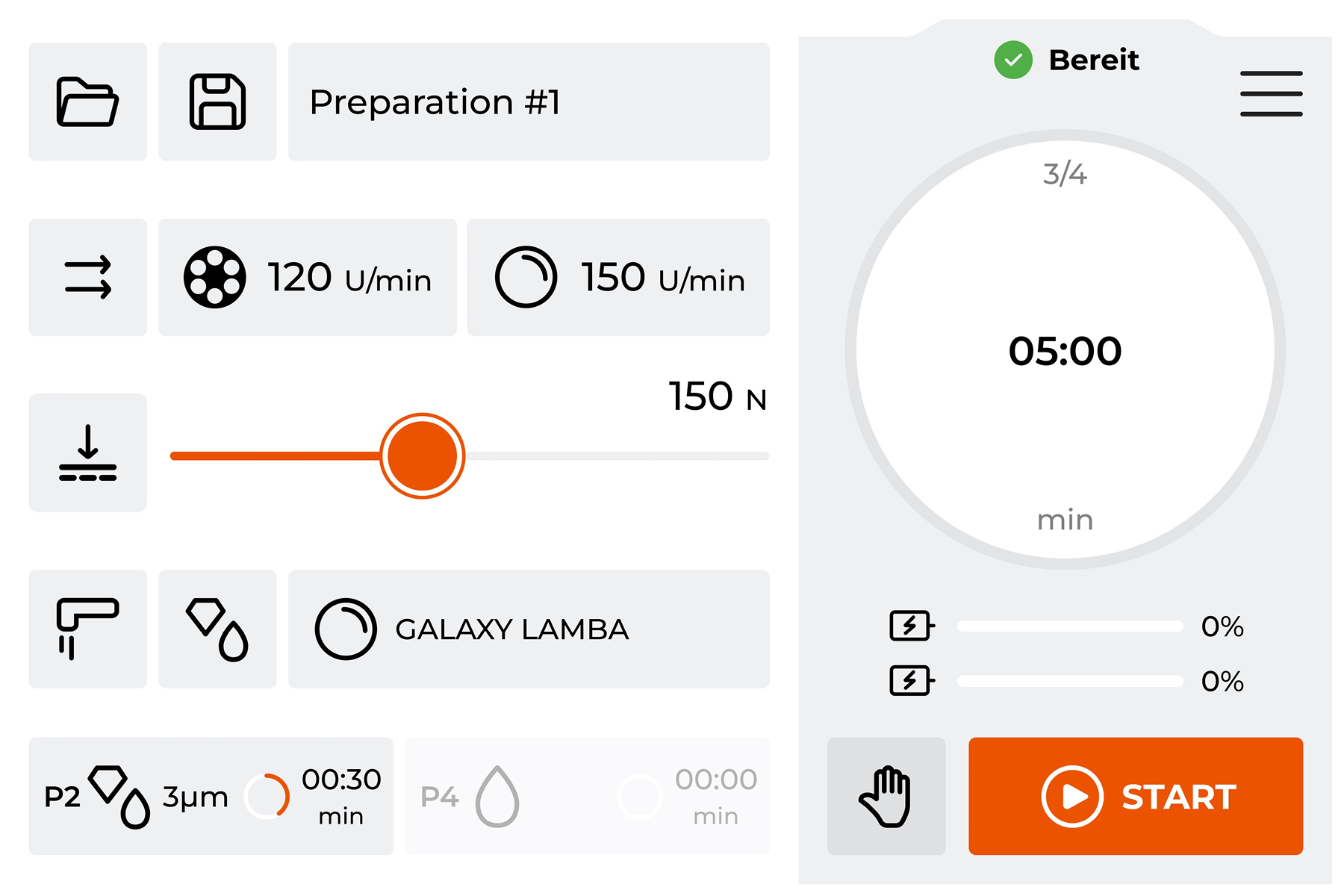

符合人体工程学的7英寸工业触摸屏，配备 QATM 用户软件

• Intuitive menu structure and easy configuration
• Progress indicator for the current procedure via a status bar and an audible signal at the end of the grinding/polishing process
• 内置计时器和直接显示扭矩/接触压力，以实现高重复性

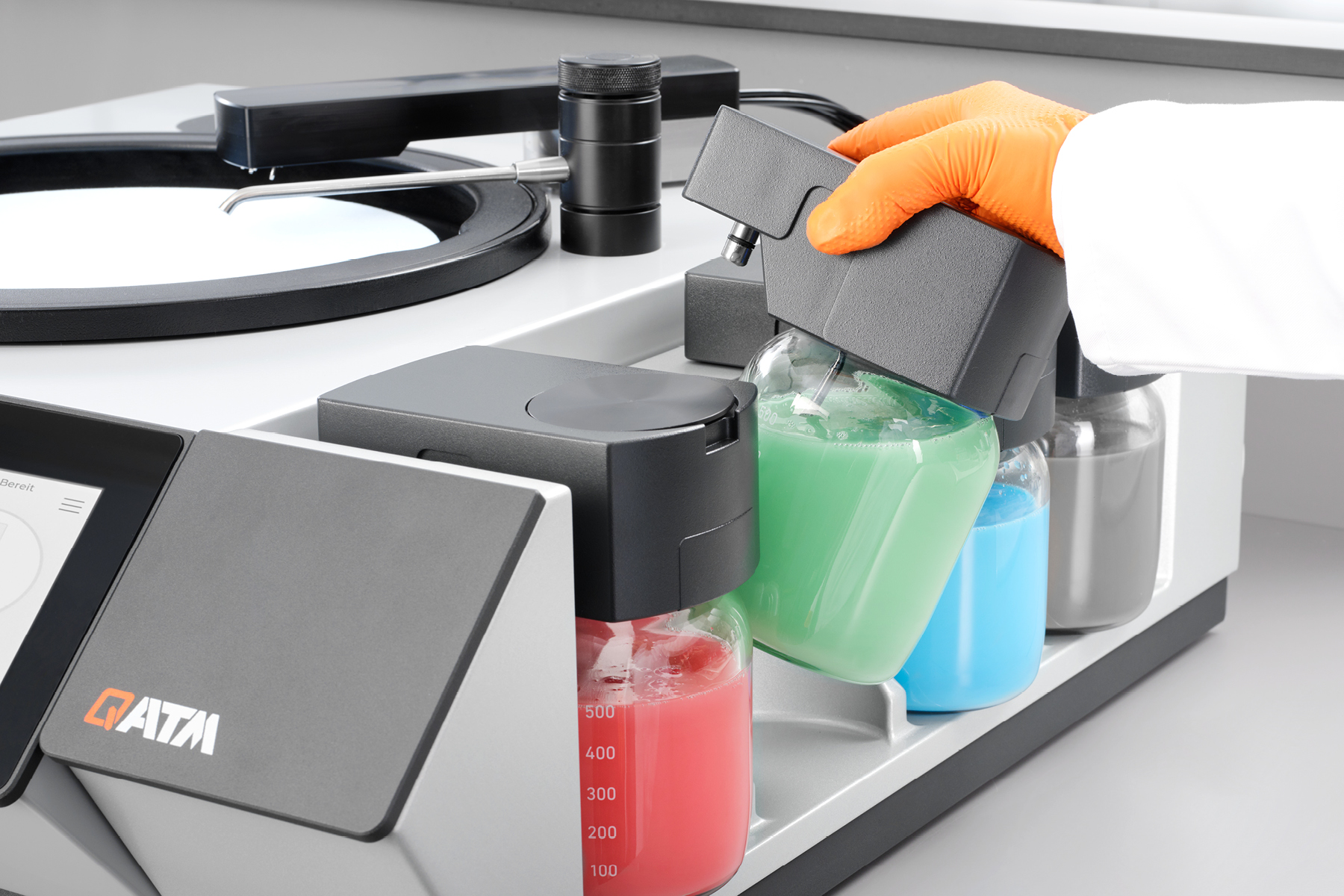

The fully automatic, software-controlled Qdoser dosing system speeds up the grinding and polishing processes in the materialography laboratory and is compatible with devices in the Qpol M, GO, and PLUS series. Four screw-top 500-ml glass bottles can be filled with QPREP diamond suspensions, QPREP lubricants (diamond lubricants), and/or QPREP fine-polishing suspensions through a separate opening in the lid. The suspension storage bottles are easy to remove, making them simple to clean. A backflush function keeps the connecting hoses clean.

Optimized filling and dosing

The suspension storage bottles can be removed at any time and refilled in a way that is optimized for application, e.g., with:

• Qdoser GO: 4x Dia-COMPLETE diamond suspensions

可选: Magnetic stirrer

A magnetic stirrer is available as an option for stirring the polishing agents to achieve excellent preparation results

• The integrated magnetic stirrer prevents the suspension from settling
• Optimal distribution of polishing particles through automatic stirring of the suspensions

Dosage

High flexibility and ease of use thanks to simple polishing agent dispensing

• Easy installation of the dispensing nozzles into the designat-ed mount in the grinding and polishing head
• Fully automatic, software-controlled dosing via the industrial touchscreen on Qpol machines
• Dosing interval can be adjusted as needed
• Including backflush function for easy cleaning

Qdoser ONE

Dropper bottle for easy and continuous dosing

• Easy to use – Standard QATM suspension and lubricant bottles can be quickly and easily screwed onto the dispenser
• Continuously variable dosing rate – The dosing rate is precisely controlled using an adjustment screw
• Can be used with a stand or mounted on polishing head
